USER MANUAL UH5550 DOLMAR

Instruction Manual (page 2-8)

Read this instruction manual carefully before putting the hedge trimmer into operation and strictly observe the safety regulations!

Keep this instruction manual!

Achtung:

Thank you for purchasing a MAKITA product!

Congratulations on choosing a MAKITA hedge trimmer! We are confident that you will be satisfied with this modern machine.

Models UH 4050, UH 4850, UH 5550 and UH 6350 are very light and handy hedge trimmers, with high performance and a good power-to-weight ratio.

The ergonomic design of the grips and controls make for comfortable and untiring operation during extensive jobs. A strain reliever is provided for the power cord at both ends.

The safety features of the UH 4050, UH 4850, UH 5550 and UH 6350 hedge trimmers are state of the art and meet all international standards. These features include hand guards on both handles, 2-hand grip safeties and a quick-stop function.

In order to ensure the proper functioning and performance of your new hedge trimmer, and to safeguard your own personal safety, it is imperative that you read this instruction manual thoroughly before operation. Be especially careful to observe all safety precautions! Failure to observe these precautions can lead to severe injury or death!

EU Conformity Declaration

The undersigned, Junzo Asada and Rainer Bergfeld, as authorized by DOLMAR GmbH, declare that the MAKITA machines,

Type: (222) UH 4050, UH 4850, UH 5550, UH 6350

manufactured by DOLMAR GmbH, Jenfelder Str. 38, 22045 Hamburg, Germany, conforms to the basic safety and health requirements of the applicable EU guidelines:

EU Machine guideline 98/37/EG, EU EMC guideline 89/336/EWG (modified by 91/263/EWG, 92/31/EWG and 93/68/EWG), EU Low-voltage guideline 73/23/EWG (modified by 93/68/EWG), Noise emission 2000/14/EG.

The most important standards applied to properly meet the requirements of the above EU guidelines were: EN 774/A2, EN 50144-1, EN 50144-2-15, EN 55014-1, EN 55014-2, EN 61000-3-2/-3.

The conformity assessment procedure 2000/14/EG was performed per Annex V. The measured sound power level (Lwa) is 95 dB(A). The guaranteed sound power level (Ld) is 98 dB(A).

Your MAKITA hedge trimmer is delivered in a cardboard box to protect it during shipping.

Cardboard is a basic raw material and is consequently reusable or suitable for recycling (waste paper recycling).

Table of contents

EU Conformity Declaration 2

Packaging 2

Symbols 2

Delivery inventory 3

SAFETY PRECAUTIONS 3

General precautions 3

Protective equipment 3

Putting into operation 3-4

Extension power cord 4

Transport and storage 4

Maintenance 4

First aid 4

Working technique 5

Tips on hedge-trimming 5

Environmental protection information 5

Technical data 6

Designation of components 6

Cleaning and maintaining the cutter 7

Instructions for periodic maintenance. 7

Trouble shooting 7

Service, spare parts and guarantee 8

Service centres (see enclosure)

Symbols

You will notice the following symbols on the hedge trimmer and in the Instruction Manual:

Read Instruction Manual and follow all warnings and safety instructions!

Particular care and attention!

Forbidden!

Protect from rain and moisture!

Pull mains plug if power cord is damaged!

Pull mains plug!

Double protective insulation

Switch off motor!

Wear protective gloves!

Wear eye and hearing protection!

First aid

Recycling

CE-marking

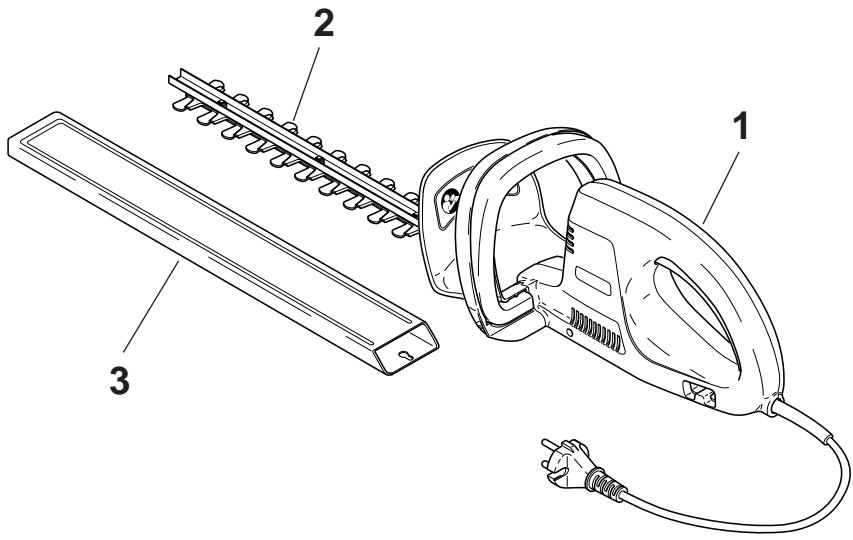

1. Hedge trimmer
2. Cutter
3. Sheath
4. Instruction Manual (not shown)

Should one of the parts listed here be missing, please consult your sales agent!

SAFETY PRECAUTIONS

General precautions

• In order to ensure safe operation, the operator must read this instruction manual to familiarize him or herself with the operation of the hedge trimmer. Users insufficiently informed will endanger themselves as well as others due to improper handling.
• First-time users should have an experienced hedge-trimmer user show them how to use the trimmer.
• Lend the hedge trimmer only to persons who are experienced in the use of such machines. Always give the the instruction manual.
• Persons under 18 years of age must not be allowed to operate the hedge trimmer. Persons over the age of 16 years may, however, use the hedge trimmer for instructional purposes as long as they are under the supervision of a qualified individual.
• Always pay the utmost attention when using the hedge trimmer!
• Use the hedge trimmer only if you are in good physical condition. If you are tired, your attention will be reduced. Be especially careful at the end of a working day. Perform all work calmly and carefully. The user is responsible for all damages to third parties.
• Never use the trimmer when under the influence of alcohol, drugs or medication.

Protective equipment

In order to prevent, eye, hand and foot injuries as well as hearing loss, always wear the protective clothing and gear described in the flooring when working with the hedge trimmer.
- Clothing should be appropriate, i. e. snugly fitting but not so tight as to be a hindrance. Do not wear jewellery or clothing which could get caught on twigs and branches. If you have long hair, always wear a hairnet!
- The protective glasses or goggles keep cut material out of your eyes and prevent eye injuries. Always wear eye protection when using the hedge trimmer!

• Wear adequate hearing protection equipment (ear muffs, ear plugs, etc.). Octave brand analysis upon request.
• Work gloves of stout leather are part of the basic equipment of the hedge trimmer and must always be worn when working with it.
• When using the trimmer always wear sturdy shoes with anti-skid soles.

Starting operation

• Before starting work check to make sure that the trimmer is in good and safe working order. This is a must!
• Do not use the hedge trimmer in the rain or in wet or very damp conditions. The electric motor is not waterproof.
• Do not use the hedge trimmer if it is wet or damp.
• Do not use the hedge trimmer near combustible gases or dust. The motor generates sparks. Explosion hazard!
• Check to make sure that the voltage and frequency of the power supply correspond to the specifications given on the indentification plate. Max. back-up fuse 16 A. We recommend the use of a residual-current-operated circuit breaker (ground-fault circuit interruptor) or an earth leakage current protector.
• Make sure that no children or other persons are within 5 meters (17 feet) of the unit during operation. Watch out for animals.
• The hedge trimmer must not be used unless fully assembled!
• Make sure you have a secure footing before starting operation.

• Do not start the hedge trimmer without having a firm grip on both handles with both hands! The trimmer is designed for use by left- or right-handers, and can be used on both sides equally well.

• NEVER affix the grip safeties in the down position!

• Operate the hedge trimmer only in the manner prescribed by the instruction manual.
• Switch off the hedge trimmer immediately if you notice any change in its behaviour.
• Immediately unplug the mains plug if the power cord should become damaged or severed.
• Immediately switch off the motor and unplug the mains plug if the cutter should come into contact with a fence or other hard object. Check the cutter for damage.
• Before checking the cutter, taking care of faults, or removing material caught in the cutter, always switch off the trimmer and unplug the mains plug.
  Before taking breaks and before leaving the hedge trimmer unattended, always switch it off and unplug the mains plug. Place the trimmer in such a way that it cannot endanger anyone.

Extension power cord

• Use only splash-proof extension cords that are approved for outdoor use and marked as such.
• When selecting an extension cord, give preference to cords in fluorescent or eye-catching colours.
• The hedge trimmer is protectively insulated in accordance with VDE (German Electricians' Association) Standard 0740 Class II, and can therefore be connected to plug sockets without ground contact.
• Always work in such a way that the extension power cord is behind you!
• Always start near the power source and work away from it. This ensures that the extension cord stays behind the work area.
• The trimmer power cord must likewise always be behind the operator. Make sure that it does not get caught, or comes into contact with sharp objects. Route the cord in such a way that no persons can be endangered.

Important: Work especially carefully when the extension cord has to be routed over the hedge!

• Do not use any extension cord with a line cross-section of less than 3 × 1.5 ~mm^2 . When using a reel, make sure that the cord is completely unrolled. The cord length must not exceed 30 ~m / 100 ft

Transportation and storage

• When moving the hedge trimmer to another location, including during work, always unplug the mains plug.

• Never carry or transport the trimmer with the cutter running!

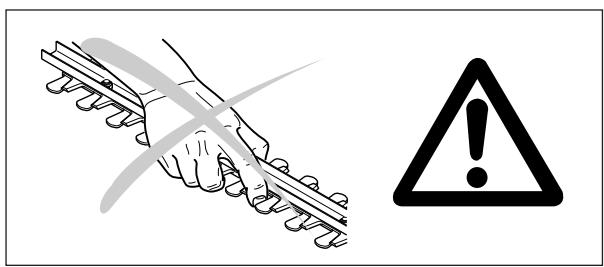

• Never grasp the cutter with your hands!

• When transporting the hedge trimmer for more than short distances, always put on the sheath supplied with the unit.

• Carry the trimmer only by the front handle. The cutter should be pointing backwards.

• When carrying the hedge trimmer in a vehicle, make sure it is in a secure position. It should be transported only in the trunk or in a transport area separate from the driver.
• Store the hedge trimmer with the sheath on, in a dry room. Keep it out of reach of children. Never store the trimmer outdoors.
• Clean the hedge trimmer and especially the cutter after use, and before putting the trimmer into storage for extended periods. Lightly oil the cutter and put on the sheath. The sheath supplied with the unit can be hung on the wall, providing a safe and practical way to store the hedge trimmer.

Maintenance

• Switch off the trimmer and disconnect and secure the mains plug before doing any maintenance work.

• Make especially sure the cutter is undamaged and in good condition.
• Regularly inspect the power cord for damage to the insulation. If the power cord is damaged, disconnect the mains plug.
• Regularly clean the trimmer.
• If the plastic housing is damaged, have the unit repaired by a qualified service technician immediately. Shock hazard! Danger of injury!

Follow the accident-prevention instructions and recommendations of your trade association or insurer.

Do not make any modifications to the hedge trimmer. Doing so will only endanger your safety.

Perform only the maintenance and repair works described in the instruction manual. All other work must be carried out by MAKITA Service.

Use only original MAKITA spare parts and accessories.

Using other than original MAKITA parts or accessories brings a high risk of accidents. We cannot accept any responsibility for accidents and damage resulting from non-MAKITA parts and accessories which have not been approved.

First aid

For the event of a possible accident, please make sure that a first aid kit is always immediately available close by. Immediately replace any items used from the first aid box.

When calling for help, give the following information:

• Place of the accident
• What happened
  Number of injured
• Kind of injuries
• Your name!

NOTE

Individuals with poor circulation who are exposed to excessive vibration may experience injury to blood vessels or the nervous system.

Vibration may cause the following symptoms to occur in the fingers, hands or wrists: "Falling asleep" (numbness), tingling, pain, stabbing sensation, alteration of skin colour or of the skin. If any of these symptoms occur, see a physician!

Working technique

• Work only in good lighting and visibility.
• Never work on an unstable surface. Pay attention to obstacles in the work area - risk of stumbling! Pay constant attention to good footing.
• Never work while standing on a ladder.
• Do not bend too far over while working.
• Guide the trimmer away from your body, with the cutter pointing away and at a safe distance from your body.
• Use the hedge trimmer only for trimming hedges! Do not use it for cutting grass or brash.
• Always keep the ventilation slots unobstructed, to ensure proper cooling of the electric motor.

• Do not allow the cutter to touch the ground when running. Foreign objects will damage the cutter and may lead to injury.

• Do not use the trimmer to lift, lever, or sweep away cut material or other objects.

• Cut thick branches to length with pruning shears before trimming the hedge.

• Do not start working until you have made sure that:

a) No other persons or animals are within the working area.
b) The trimmer operator can step back unhindered in the event of an emergency.
c) The ground is free of all foreign objects, brush, and branches. The operator must have a sure footing (risk of stumbling).

Tips on trimming hedges

The procedure described here can be used very often and makes working easier. If a hedge has to be cut back very substantially, it should be trimmed in two passes.

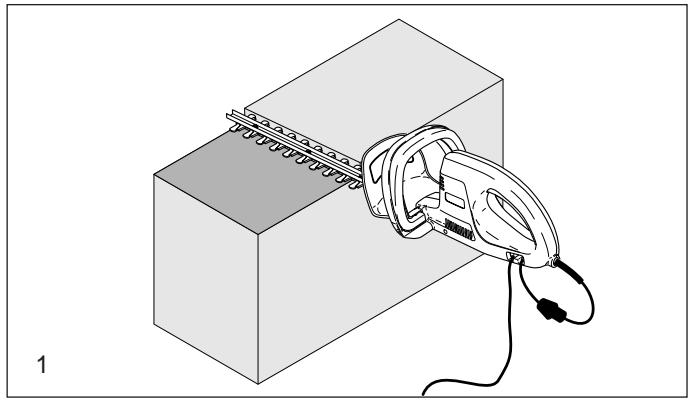

• First cut the hedge to the desired height (1). With practice, it is possible to remove cut material from the hedge with a swinging motion. To get a straight cut, stretch a string along the hedge at the desired height.

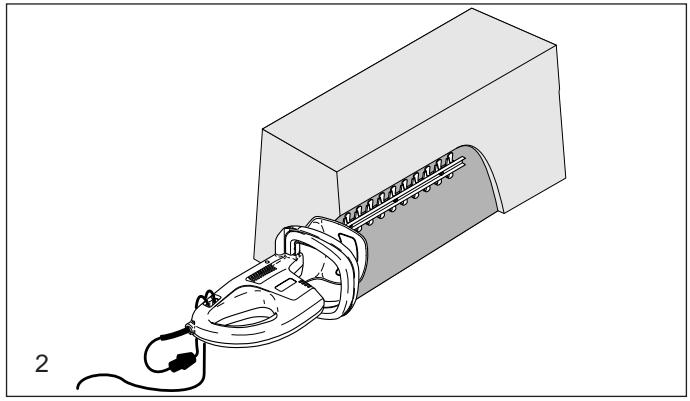

• Trim the hedge to a trapezoidal shape (about 10 cm / 4 in at the top for every 1 m / 3 '3" of height), cutting from bottom to top (2). In this way you avoid cut material falling down into the area not yet cut.

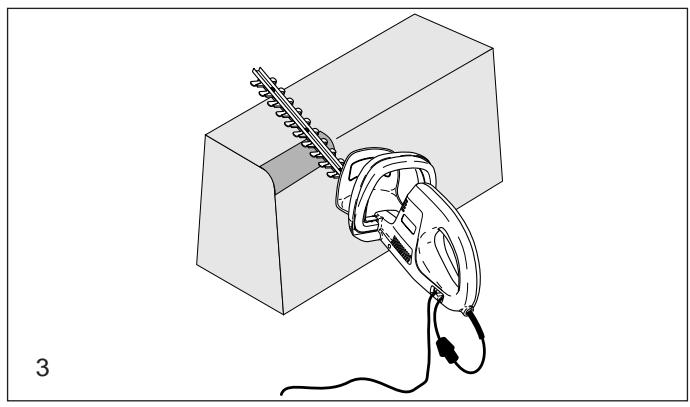

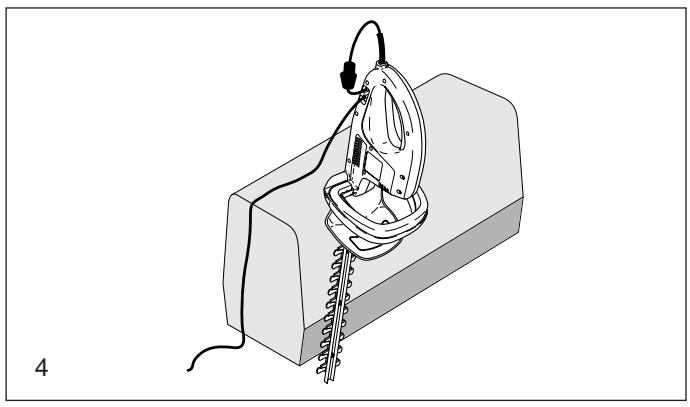

• Round off the top edges of the hedge (3), and finally trim the bottom edges back somewhat (4).

The best times to trim hedges are:

Broad-leaf hedges: June and October

Coniferous hedges: April and August

Fast-growing hedges: About every 6 weeks starting in May

Environmental protection information

Do not use the hedge trimmer during times when people are likely to be resting.

Before trimming a hedge, check to make sure that no birds are nesting in it. If they are, wait until the young have left the nest before trimming near that part of the hedge.

Dispose of cut material in an environment-friendly way, or compost it.

Technical Data

Power consumption	Watt	500
Rated voltage	V	220...240~
Mains frequency	Hz	50...60
Rated current	A	2,3
Supply (back-up) fuse	A	16
Power-cord length	cm	30
Cutter length	cm	40	48	55	63
Blade cycles (no.)	n/min	1500
Sound pressure level LpA at the workplace per EN 50144-1 1) dB (A)		83,8	83,8	83,8	83,8
Sound power level LWA per EN 50144-1 1) dB (A)		96,8	96,8	96,8	96,8
Vibration acceleration ah,w per EN 50144-1 1)
- Bow-type handle at the front	m/s2	2,3	2,3	2,3	2,3
- Grip handle at the rear	m/s2	3,3	3,3	3,3	3,3
Overload protection	Type	Slip clutch
Weight	kg	3,3	3,4	3,5	3,6
Radio Interference suppression/EMC		according to EMC guidelines 89/336/EWG and 92/31/EWG
Protective insulation		Class II (double insulation)
Extension power cord (not included)	Type	DIN 57282 / HO7RN-F L= max. 30 m, min. 3 x 1.5 mm²

1) measured at the highest number of revolutions

Designation of components

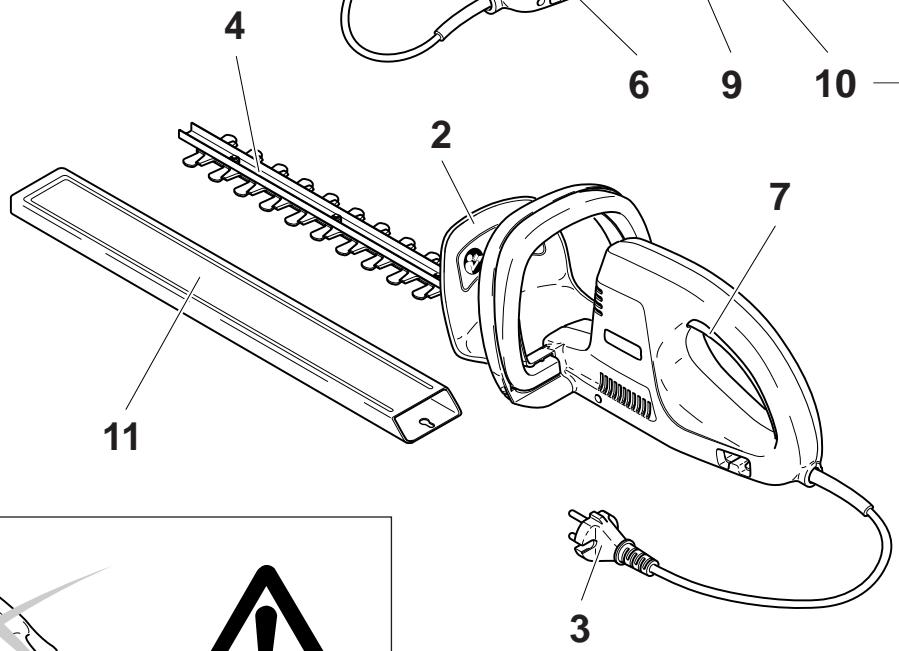

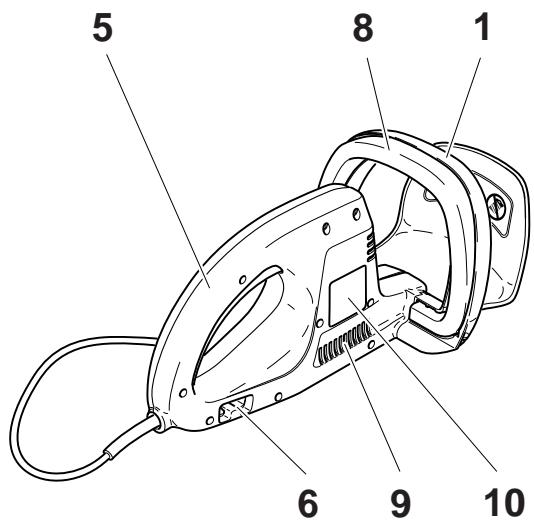

1 Front handle
2 Hand guard
3 Plug
4 Cutter
5 Rear handle
6 Strain reliever for extension power cord
7 Rear grip safety
8 Front grip safety
9 Ventilation slots
10 Identification plate
11 Sheath

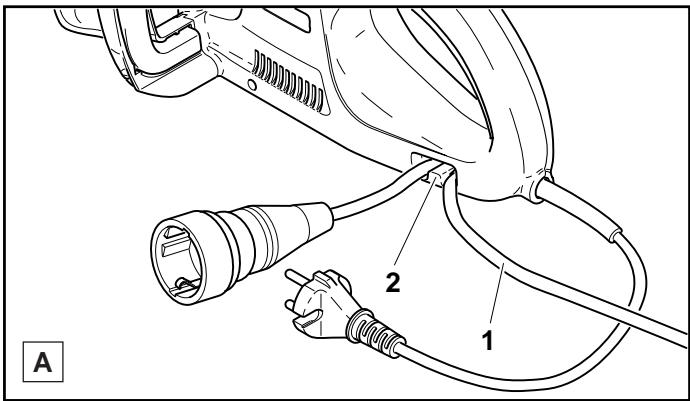

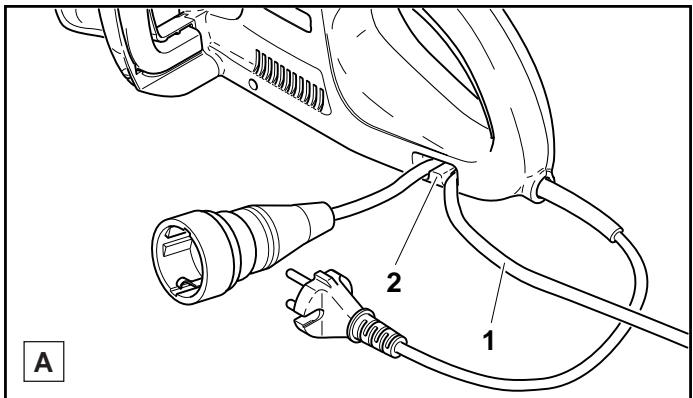

• Hook the extension cord (A/1) in the strain reliever (A/2).

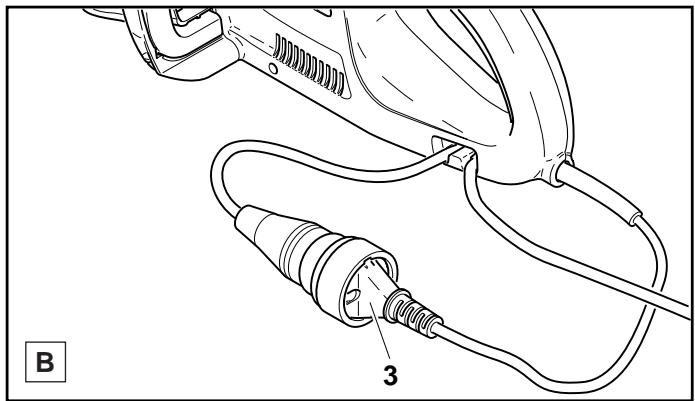

• Connect the mains plug (B/3) with the extension power cord.

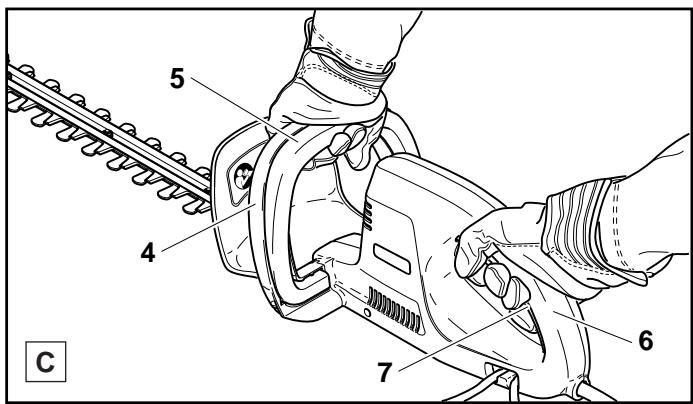

• Hold the front handle (C/4) with one hand, depressing the front grip safety (C/5).
• Grasp the rear handle (C/6) with the other hand and start the trimmer with the rear handle grip safety (C/7).

Caution: The trimmer will start immediately!

Note: The hedge trimmer will start only when both grip safeties (C/5 and C/7) are depressed.

Caution: If the hedge trimmer starts after acuating only one of the switches, do not work with the trimmer! Take the trimmer to a MAKITA service center.

To switch off: Release one or both grip safeties. The trimmer will stop immediately.

Check the cutter brake each time before starting work!

• Start the trimmer as described above.
• Grasp the front handle firmly with one hand. Hold the rear handle with the other hand.
• Depress and then release the rear handle grip safety (C/7). The cutter should stop instantly.

Important: If the cutter does not stop immediately during this test, do not work with the trimmer! Take the trimmer to a MAKITA service center.

MAINTENANCE

To ensure a long servicelife and to prevent any damage the maintenance work described in the following must be performed regularly. The product guarantee will be automatically invalidated if this maintenance is not carried out regularly and according to the instructions.

Caution:

Always disconnect the power cord before doing any work on the hedge trimmer! Always wear protective gloves!

Cleaning and care of the cutter

Caution: Take special care when cleaning and maintaining the cutter (injury hazard).

Check the cutter regularly for damage, and clean it with a suitable brush or cloth.

If cutting performance should become unsatisfactory after extensive use, contact a service center.

Periodic care and maintenance instructions

Before every use

• Check the entire hedge trimmer for cracks and breakage. If there is any damage, immediately have the trimmer repaired by a qualified service technician.
• Check the functioning of the on/off switches.
• The ventilation slots must be unobstructed.
• Check the power cord. If there is any damage, have it replaced at a qualified service center.

After every use

Clean the entire trimmer.
Clean and lightly oil the cutter.

Storage

• Store the entire trimmer in a safe place in a dry room.

Trouble shooting

The motor will not run:

• No power supply, power cord defective, check fuse.

The motor runs, but the cutter doesn't move: Take the trimmer to a MAKITA service center.

Service

The maintenance and repair of modern hedge trimmers and their safety devices require qualified technical training and a workshop equipped with special tools and test instruments.

We therefore recommend that you consult a MAKITA service centre for all work not described in this instruction manual.

The MAKITA service centres have all the necessary equipment and skilled and experienced personnel, who can work out cost-effective solutions and advise you in all matters.

Please contact your nearest service centre (list enclosed).

Spare parts

Reliable long-term operation, as well as the safety of your hedge trimmer, depend among other things on the quality of the spare parts used. Use only original MAKITA parts, marked

Only original spare parts and accessories guarantee the highest quality in material, dimensions, function and safety.

Original spare parts and accessories can be obtained from your local dealer. He will also have the spare parts lists to determine the required spare part numbers, and will be constantly informed about the latest improvements and parts innovations.

Please bear in mind that if parts other than original MAKITA spare parts are used, this will automatically invalidate the MAKITA product guarantee.

Guarantee

MAKITA guarantees the highest quality and will therefore reimburse all costs for replacement of damaged parts resulting from material or production faults occurring within the guarantee period after purchase.

Please note that in some countries special guarantee conditions may exist. If you have any questions, please contact your salesman, who is responsible for the guarantee of the product.

Please note that we cannot accept any responsibility for damage caused by:

• Failure to observe the instructions in the Instruction Manual.
  Non-performance of the required maintenance and cleaning.
  Normal wear and tear.
• The use of unapproved extension power cords.
  The use of force, improper use, misuse or accidents.
• Overheating damage caused by blockage of the ventilation slots.
  Work on the hedge trimmer by unskilled persons or inappropriate repairs.
  Use of unsuitable spare parts or parts other than original MAKITA parts, insofar as they caused the damage.
• Damage related to conditions arising from lease or rent contracts.

Cleaning, servicing and adjustment work is not covered by the guarantee. All repairs covered by the guarantee must be performed by a MAKITA service centre.

22004 Hamburg, Germany

Bouwjaar

Serienummer

- Verlengkabel (A/1) in de trekontlasting (A/2) hangen.

Specifications subject to change without notice
