USER MANUAL MS-330 U DOLMAR

Read this instruction manual carefully before putting the brushcutter into operation and strictly observe the safety regulations!

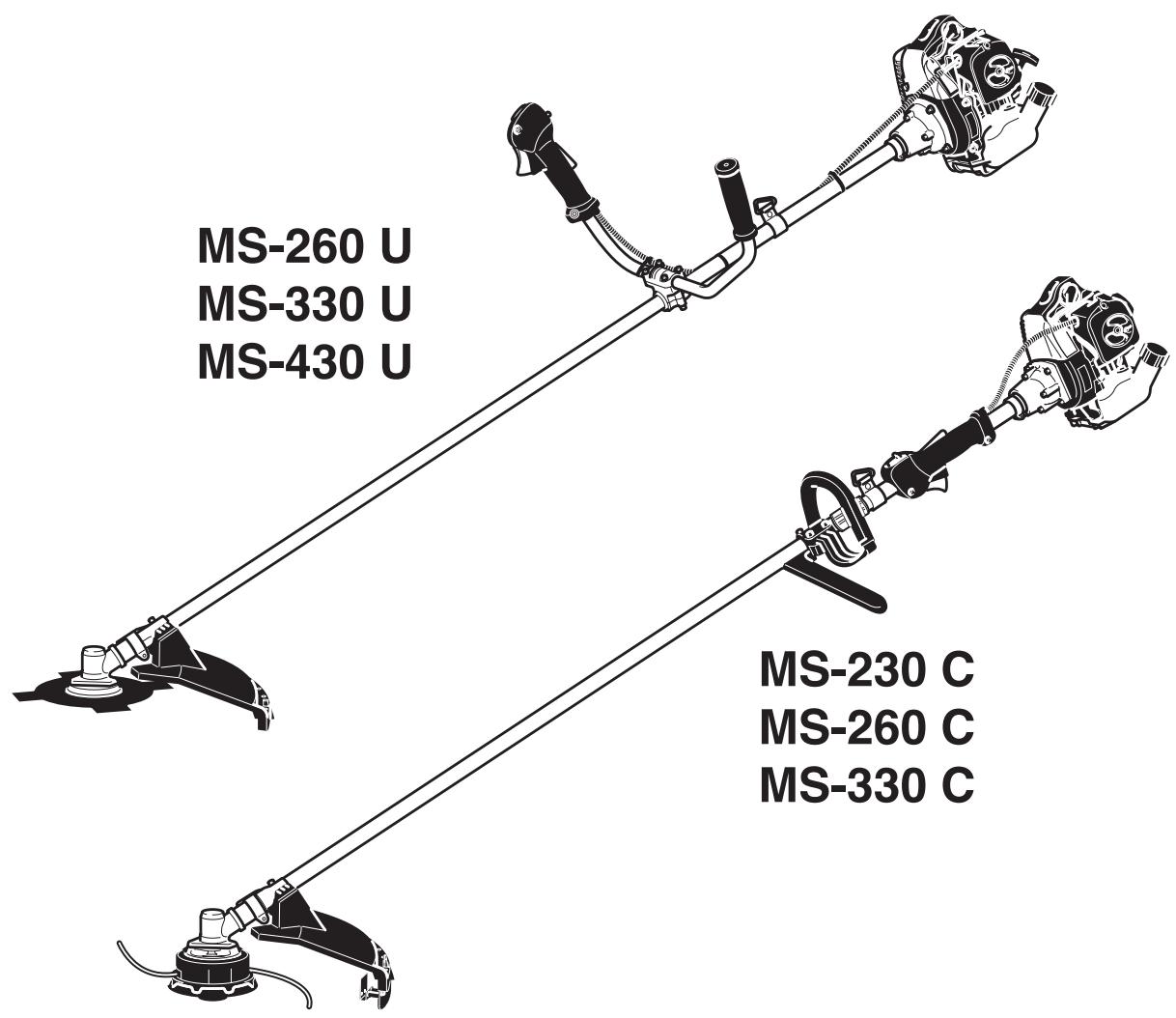

MS-260 U MS-330 U MS-430 U MS-230 C MS-260 C MS-330 C

http{//{www.dolmar.com C €

DOLMAR WW DD Thank you for choosing a DOLMAR product!

We trust that you will be a satisfied customer. By choosing a DOLMAR you have chosen one of the most advanced brushcutters.

With their two-stroke gasoline engines the brushoutters can be used anywhere, and with their fuel pump (primer) they are unusually easy to start. They're ideal for yardwork and greens keeping and especially suitable for occasional use. They offer the latest technology, ergonomic design and high ease of use at a reasonable price.

To ensure your own safety and to getthe maximum performance out of your DOLMAR brushcutter, we urge you to

read this instruction manual carefully before putting the brushcutter into operation and to strictly observe all of the safety regulations! Failure to observe these precautions can lead to severe injury or death!

EU Conformity Declaration

The undersigned, Shigeharu Kominami and Rainer Bergfeld, as authorized by DOLMAR GmbH, declare that the DOLMAR machines,

Type: MS-230 C (351), 260 C (352), 330 C (353), MS-260 U (352), 330 U (353), 430 U (354)

manufactured by DOLMAR GmbH, Jenfelder Str. 38, 22045 Hamburg, Germany, conforms to the basic safety and health requirements of the applicable EU guidelines:

EU Machinery Directive 98/37/ EG,

EU EMC Directive 89/336/ EWG (modified by 91/263/ EWG, 92/31/ EWG and 93/68/ EWG),

Outdoor Noise Directive 2000/14/EG.

The most important standards applied to properly meet the requirements of the above EU Directive were:

EN 11806, EN 14982, EN 61000-4-2, EN 61000-4-3.

The conformity assessment procedure 2000/14/EG was per- formed per Annex V.

MS-230 C: The measured sound power level is 110 db(A), the guaranteed sound power level is 112 db(A).

MS-260 C: The measured sound power level is 110.7 db(A), the guaranteed sound power level is 112 db(A).

MS-260 U: The measured sound power level is 102.8 db(A), the guaranteed sound power level is 105 db(A).

MS-330 C: The measured sound power level is 112.3 db(A), the guaranteed sound power level is 115 db(A).

MS-330 U: The measured sound power level is 103.6 db(A), the guaranteed sound power level is 105 db(A).

MS-430 U: The measured sound power level is 104.7 db(A), the guaranteed sound power level is 107 db(A).

For DOLMAR GmbH LA. Lun Shigeharu Kominami Managing Director

LT Rainer Bergfeld Managing Director

EC declaration of conformity . Packing .

Delivery inventory … Explanation of symbols …

SAFETY PRECAUTIONS General precautions Personal protective equipment … Handling fuels / Refuelling Putting into operation … Kickback … Working behavior / Method of working . Applications for cutting tools … Transport and Storage Maintenance . First Aid …

PUTTING INTO OPERATION Handle installation, MS-260/330/430 U … Handle installation, MS-230/260/330 C Mounting the cutter guard . Mounting the 4-tooth star blade Installing the trimmer head Adjusting the line Replacing the line . Replacing the line knife . Fuel mixture / Refuelling Putting on the harness… Balancing the brushcutter . Quick-release buckle … Start engine Idle adjustment ……

REPAIR AND MAINTENANCE WORK Instructions for maintenance … Sharpening of cutting tools Cleaning the air filter Replacing and Inspecting the spark plug . Lubricating the gear box … Suction head in the fuel tank Cleaning the muffler opening Service and maintenance …

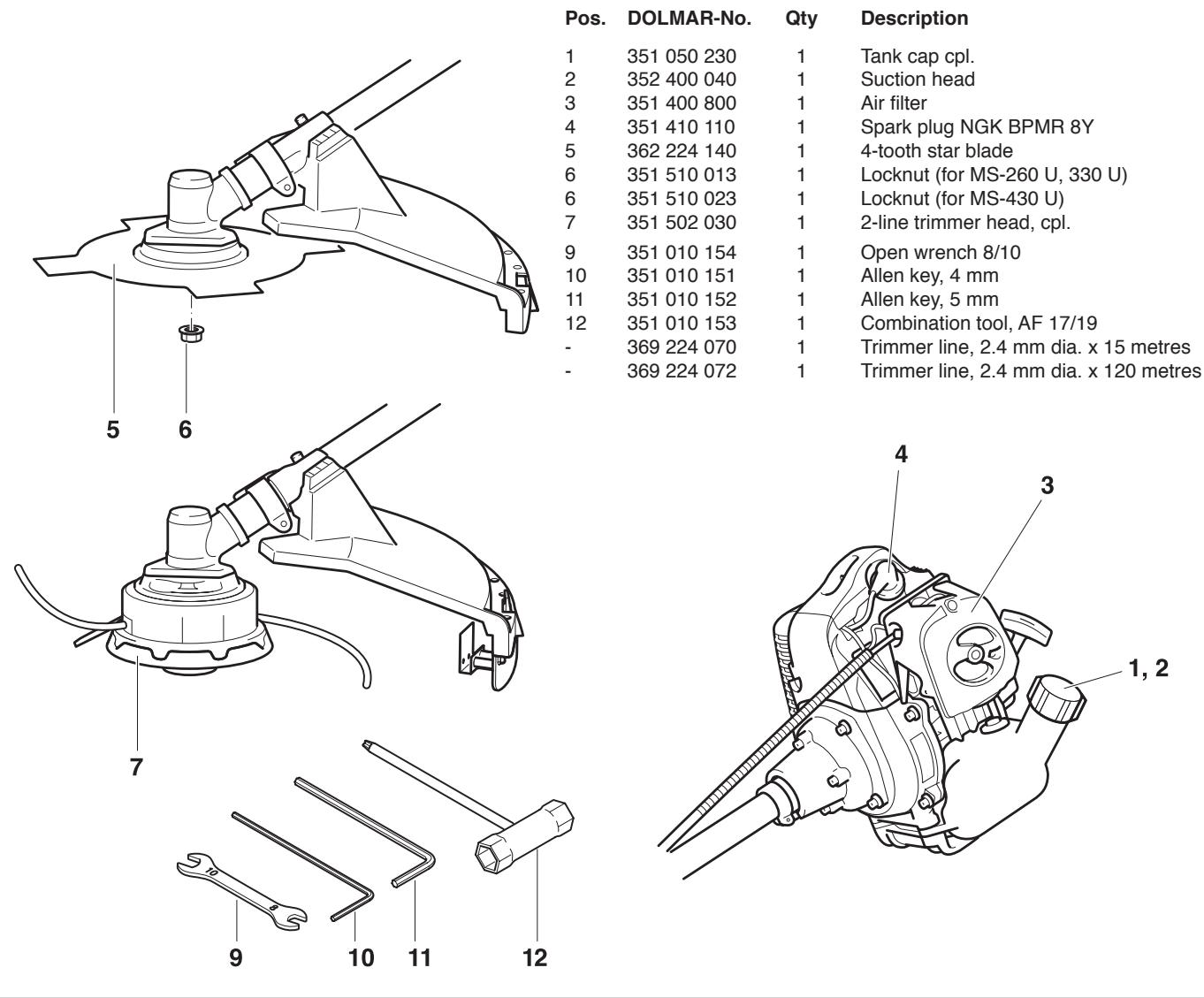

Extract from the spare part .

Service, spare parts and guarantee .

Your DOLMAR brushcutter comes in a cardboard box to protect it from shipping damage.

Cardboard is a raw material. We encourage you to re-use the

box or recycle it (waste paper). ane

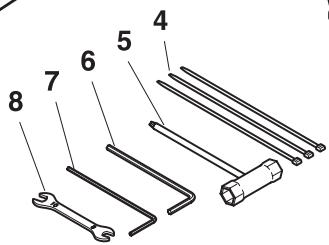

PSS Delivery inventory

If one of these parts is missing when you unpack the brushcutter, contact your dealer!

Handle (version depends on model) Harness

Cable ties (only with the MS-260/330/430 U) Combination tool, AF 17/19

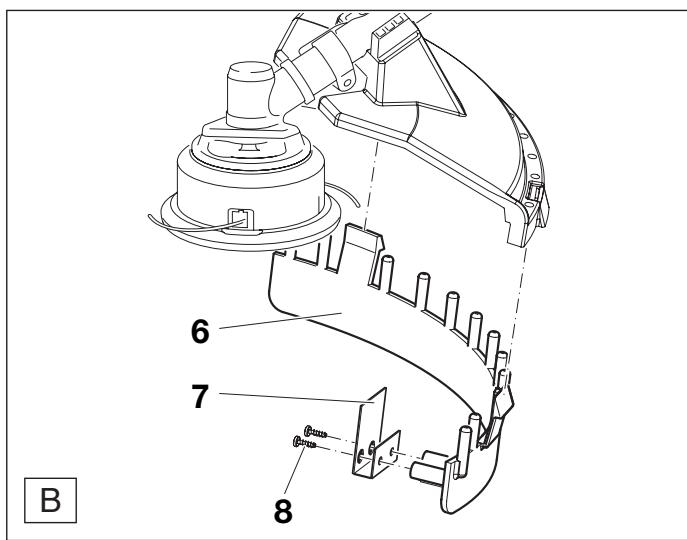

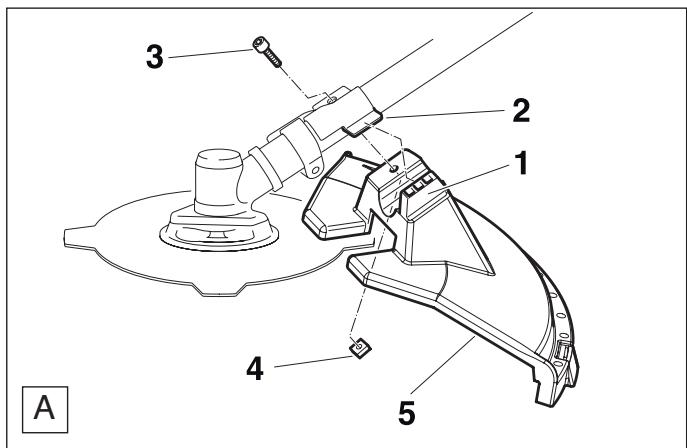

Guard (cutting attachment guard)

(MS-260/330/430 U = 4-tooth star blade, MS-230/260/330 C = 2-line trimmer head) . Tool protection (MS-260/330/430 U only) . Guard extension

Instruction Manual (not shown)

Explanation of symbols You will notice the following symbols on the brushcutter and in the instruction manual.

Do not use saw blades!

CAUTION: Kickback! (blade thrust)

Read the instruction manual and follow all warnings and safety instructions!

Particular care and caution!

Wear head, eye, face and hearing protec-

The distance between the machine and bystanders shall be at least 50 feet!

Beware of thrown objects!

Do not use metal blades!

Fuel and oil mixture

SAFETY PRECAUTIONS General precautions

Proper use: These power brushcutters are intended for cutting

grass or heavy weeds, with the appropriate and permissible cut-

ting tools. À brushcutter may be operated only by one person, and only out of doors!

The cutting tools permissible for this brushcutter must not be used

to cut heavier material such as shrubs, bushes, heavy growth, or

Impermissible users:

Persons who are unfamiliar with this Instruction Manual, minors,

and persons under the influence of alcohol, drugs or medication

must not operate this tool.

To ensure correct operation, the user has to read this instruction

manual to make himself familiar with the handling of the brushcut-

ter. Insufficiently informed users will risk danger to themselves as

well as others due to improper handling (1).

-__Itis recommended only to lend the brushcutter to people who have experience with brushcutters. When lendingthe brushcutter to someone else, give him this Instruction Manual as well.

-_ First-time users should ask their dealer for basic instruc- tions so that they can familiarize themselves with the basic handling of gasoline-powered brushcutting.

- Children and persons under the age of 18 must not be allowed to operate the brushcutter. Exceptions may be made for per- sons over 16 for training purposes under the supervision of a qualified trainer.

- Always use brushcutters with the utmost care and attention.

- Operate the brushcutter only if you are in good physical con- dition. Perform all work calmly and carefully. The user must accept liability for others.

- Never use the brushcutter after consumption of alcohol, drugs or medication (2).

Personal protective equipment

- The clothing worn should be functional and appropriate, i.e. it should be tight-fitting but not cause hindrance. Do not wear either jewellery or clothing which could become entangled with bushes or shrubs. Secure hair so it is above shoulder level. 1f you have long hair, always wear a hair net!

- in order to avoid head-, eye-, hand- or foot injuries as well as to protect your hearing, the following protective equipment and protective clothing must be used during operation of the brushcutter:

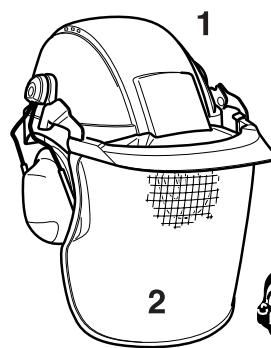

-__ Itis recommended to wear a protective helmet; it is imperative when working in forests. The protective helmet (1) should be checkedatregularintervals for damage and mustbe replaced after 5 years at the latest. Use only approved protective helmets.

- The helmet face shield (2) protects your face from flying particles from the cut and other objects. To prevent eye injury, wear protective goggjles in addition to the face shield.

- Wear adequate noise protection equipment to avoid hear- ing impairment (ear muffs (3), ear plugs etc.). Octave brand analysis upon request.

- The forestry safety jacket (4) is equipped with special red coloured shoulder parts. The arms and neck should always be protected by clothing.

- The protective trousers (5) are made from a nylon fabric with 22 layers and protects against cuts. We strongly recom- mend its use. In any case, it is essential that a long pair of trousers made of tough material be worn during operation of the brushcutter.

-__Protective gloves (6) made of thick leather are part of the prescribed equipment and must always be worn during opera- tion of the brushcutter.

- Safety shoes or boots (7) fitted with anti-skid sole, steel toe caps and leg protection must always be used. Safety shoes equipped with a protective layer give protection against cuts and ensure a secure footing.

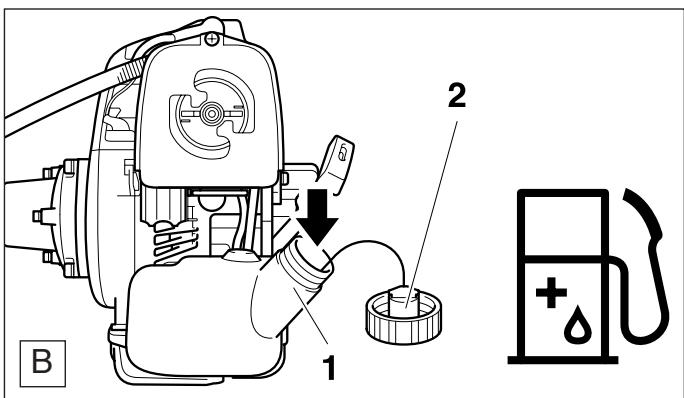

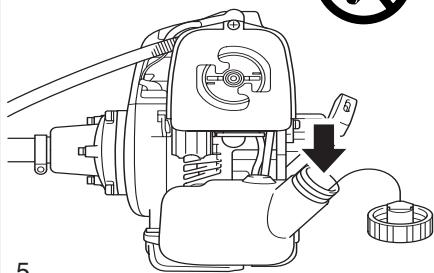

Handling fuels / Refuelling Stop the engine before refuelling.

- Keep away from open flame or sparks and do not smoke while refuelling or mixing fuel.

- Let the engine cool down before refuelling.

- Fuel may contain substances similar to solvents. Eyes and skin

should not come in contact with mineral oil products. Always wear protective gloves when refuelling. Frequently clean and change protective clothes. Do not breathe in fuel vapors. Inhalation of fuel vapours can be hazardous to your health. Before refuelling the brushcutter make sure it is on its side in a stabile position.

Do not spill fuel or oil. When you have spilt fuel or oil im- mediately clean the brushcutter. Fuel should not come in contact with clothes. If your clothes come in contact with fuel, change them at once.

- _ Ensurethatnofuelorchain oil oozesinto the soil (environmental protection). Use an appropriate base.

-__Refuelling is not allowed in closed rooms. Fuel vapors will accumulate near the floor (explosion hazard).

- _ Carefully tighten the locking screw of the fuel tank and inspect the fuel cap at regular intervals.

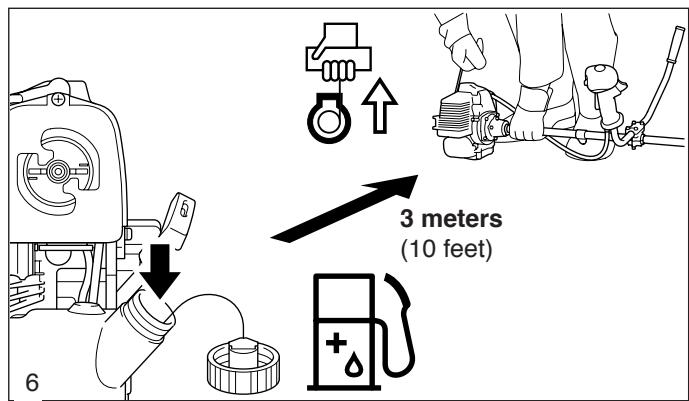

- Change the place before starting the engine (at least 3 meters from the place of refuelling) (6).

- Fuel cannot be stored for an unlimited period of time. Buy only as much as will be consumed in the near future.

- Use only approved and marked containers for the transport and storage of fuel. Ensure children have no access to fuel.

Putting into operation

- Do not work alone. Another person must be nearby in case of emergencies (within shouting distance). Schematic

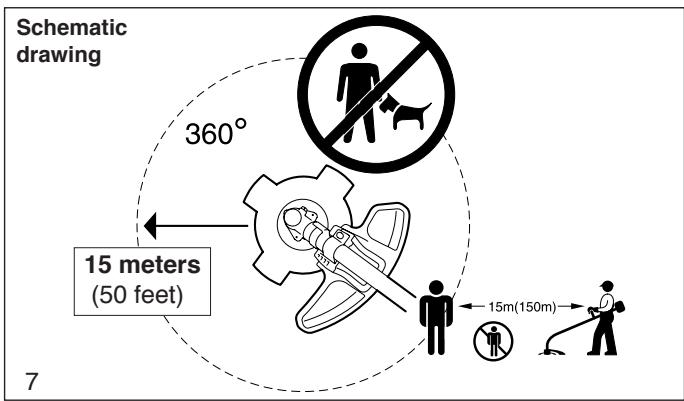

- Children and other persons must remain more than 15 meters drawing = (50 feet) from the working area. Keep an eye out for animals as well (7).

- Before use always check that the brushcutter is safe for ñ \ operation: ! à Make sure the cutting tool is securely installed. The throttle P must automatically return to the off position when released, and the throtle lever lock must work properly. The cutting tool

must not turn during idling. The handles should be clean and (60 feet) dry. The on/off switch must function properly. The guard must \ be undamaged and securely installed in the correct position. Si

Otherwise you are in danger of injury!

- Startthe brushcutter only in accordance with the instructions. Do not use any other methods for starting the engine (8)!

- Use this brushcutter andits cutting tools only for the uses they are intended for as specified in the documentation.

- Start the brushcutter only after complete assembly and inspection. Operation of the device is only permitted after all the appropriate accessories are attached!

- The cutting tool must be equipped with its appropriate guard. Never run the cutter without this guard!

- The cutting tool must not turn during idling. lf necessary adjust the idling speed.

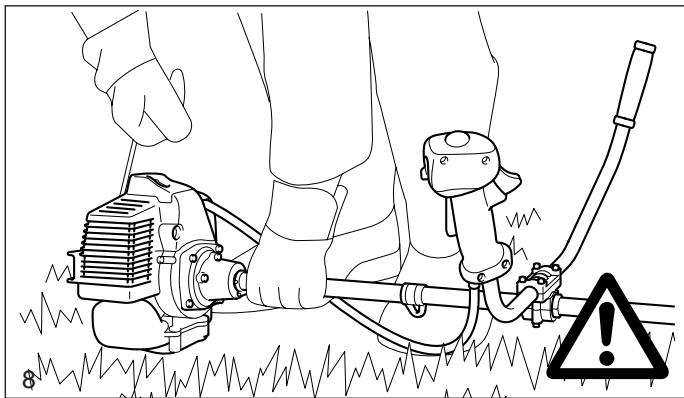

- Before starting, make sure that the cutting tool has no contact u with hard objects such as branches, stones etc. A | SE

- The engine must be switched off immediately if there are any ALP ar AT noticeable changes in the behavior of the equipment.

- Should the cutting tool hit stones or other hard objects, im-

mediately switch off the engine and inspect the cutting tool. MS-230 C - _ Inspect the cutting tool at frequent intervals for damage (de- MS-260 C tect hairline cracks by means of tapping - noise test). Hairline MS-330 C

cracks can occur in the region of the base of the teeth after long use. Damaged cutting tools and cutting tools with hairline cracks must not be used any longer under any circumstances.

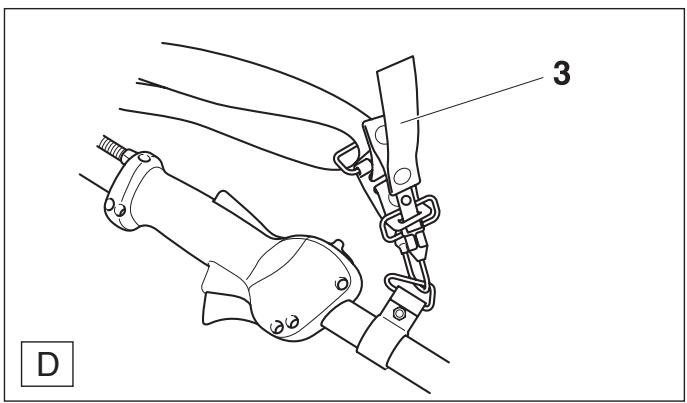

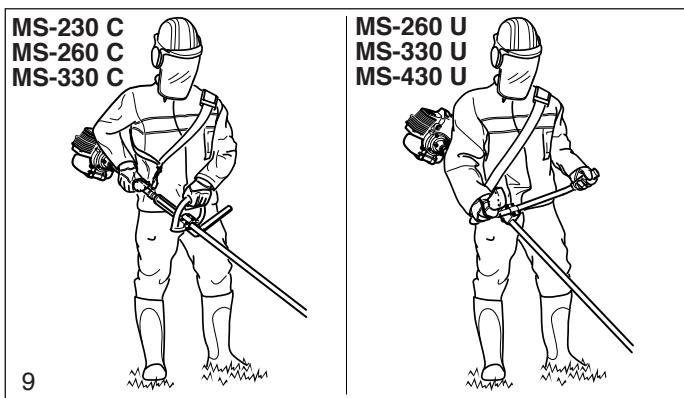

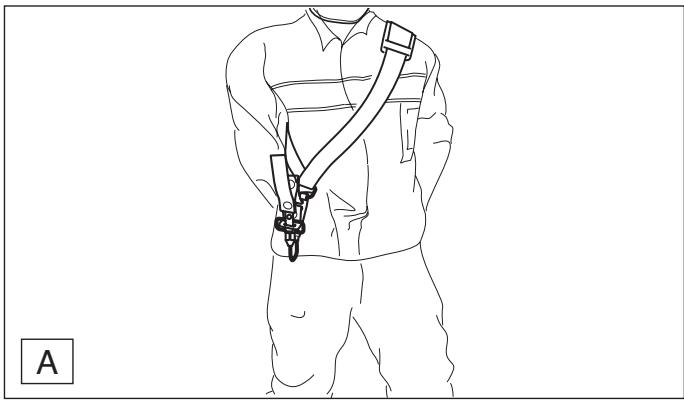

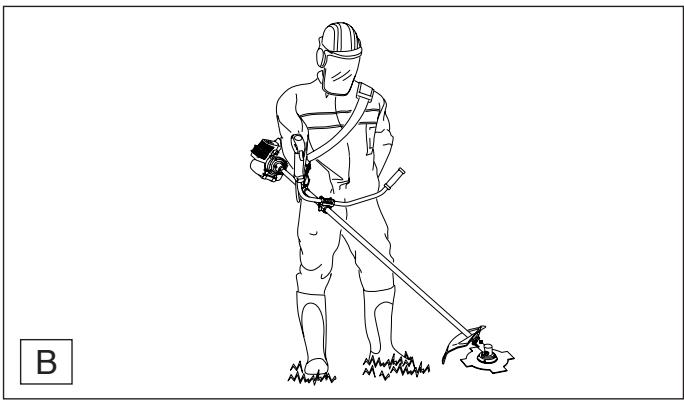

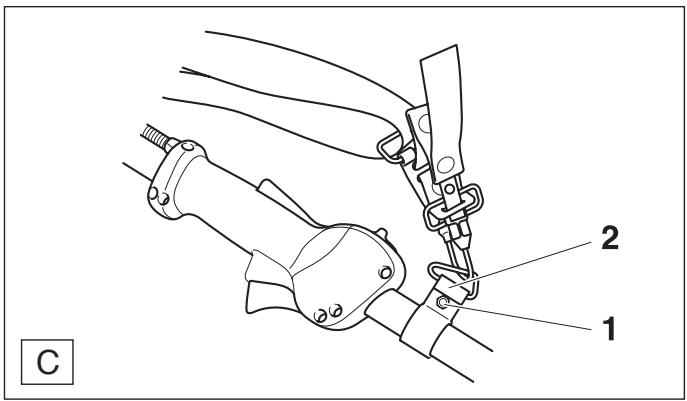

- _ Operatethe brushcutter only withthe shoulder strap attached, which is to be suitably adjusted before putting the brushcutter into operation. lt is essential to adjust the shoulder Strap according to the user's size to prevent fatigue during use. Never hold the cutter with one hand during use.

- When working with the brushcutter always hold it with both 9 hands (9). Keep proper footing and balance at all times.

- _ Operatethe brushcutter in such a manner asto avoidinhalation of the exhaust gases. Do not start or operate the brushcutter in closed rooms (risk of gas poisoning). Carbon monoxide is an odorless gas. Work only in well-ventilated places.

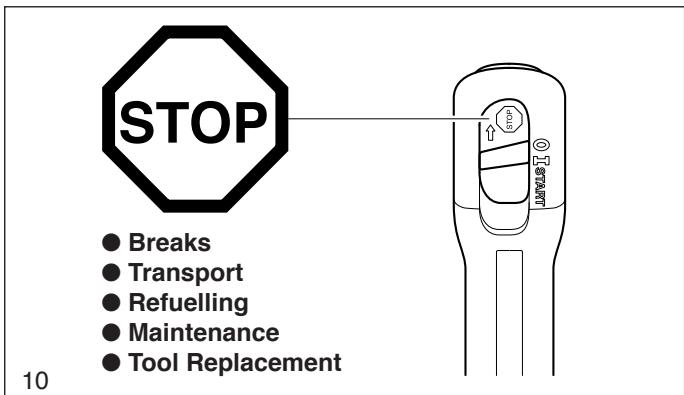

- When taking a break or leaving the brushcutter unattended, turn off the engine (10) and set the brushocutter down in such a way that there is no risk of injury to yourself or others.

- Never put the hot brushcutter onto dry grass or onto any com-

bustible materials. @ Breaks

- Shut off the engine during transport or when moving on to a © Transport new location (10). Refuelling

- Never operate the engine with a faulty exhaust muffler. © Maintenance

During operation the brushcutter can kickback in an uncon- trolled manner. This can happen when the cutting blade (4- tooth star blade) comes into contact with hard objects such as stumps, fenceposts, tree trunks, woody brush or large rocks.

This can fling the brushcutter to one side with great force and speed (injury hazard).

To avoid kickback, observe the following:

- Remove foreign objects from the cutting area and be aware of plants and objects in the area.

- The cutting tool must be turning at full speed before starting cuts.

- The danger of kickback is heightened in the darkened area (illustration), especially if using a metal cutting tool!

Working behavior / Method of working

- Use the brushcutter only in good light and visibility. During the winter season beware of slippery or wet areas, ice and snow {risk of slipping). Always ensure a safe footing.

- Never cut above your shoulder height.

- Never stand on a ladder and run the brushcutter.

- Never climb up into trees to perform cutting operations with the brushcutter.

- Never work on unstable surfaces.

- Make sure the cutting area is free of foreign objects such as stones and metal items. Foreign particles can rebound (danger of injury, 12), damage the cutting tool and cause dangerous kickbacks.

- Before commencing cutting, the cutting tool musthave reached full working speed.

Applications for cutting tools Employ only the correct cutting tool for the job in hand! Do not use tools for jobs they are not designed for.

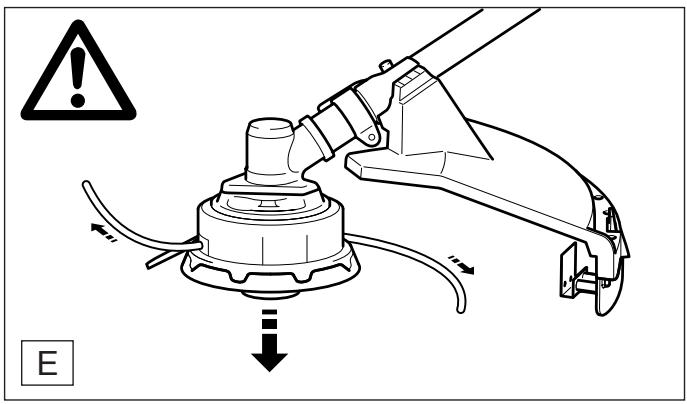

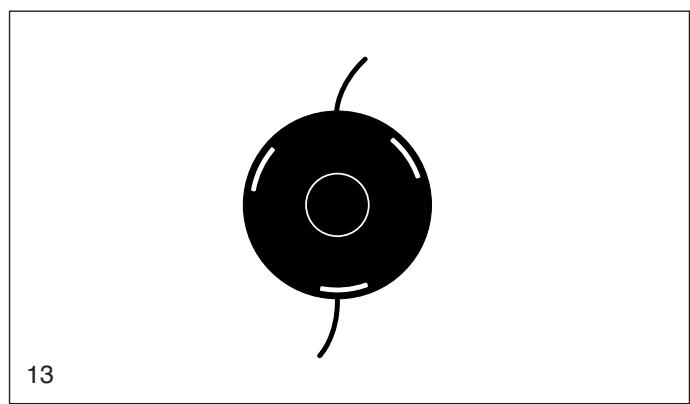

2-line trimmer head (13)

Only for cutting up against walls, fences, trees, posts etc. and at lawn edges (as an adjunct to a lawnmower).

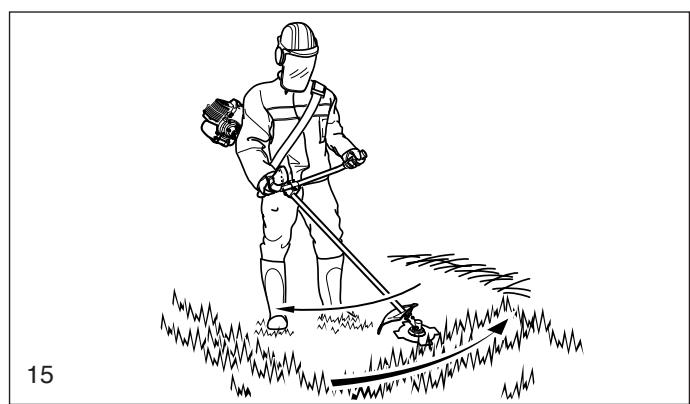

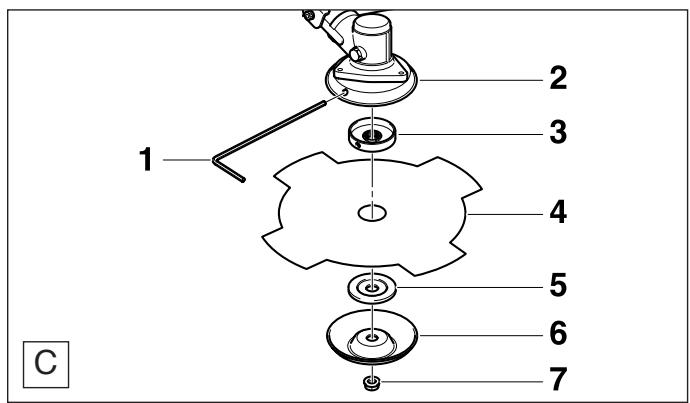

4-ooth star blade (14) For cutting grass or heavy weeds. Perform this cutting work by swinging the brush cutter evenly in half-circles from left to right (15, similar to a scythe).

- When transporting the equipment or moving to another working location, the brushcutter must be switched off in order to avoid unintentionally starting the cutting tool.

- Never transport the brushcutter when the cutting tool is in operation!

- _ Thetool protection included with the equipment must always be used if the brushcutter is transported over longer distances.

- _ Ensure that the brushcutter is safely secured so that no fuel can run out before transporting it in a vehicle. Empty the fuel tank before transporting the brushoutter.

- Before shipping the brushcutter, completely empty the fuel tank.

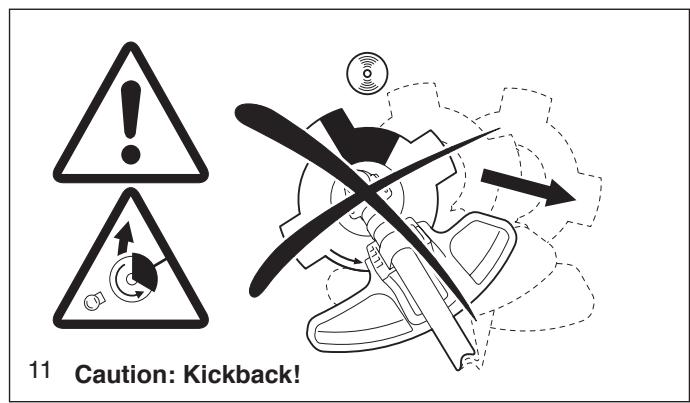

11° Caution: Kickback!

- The brushcutter must be safely stored in a dry room. Use the tool protection for metal cutting tools. Keep the brushcutter out of reach of children.

-_ lfthe brushcutteris stored for a long period of time, it should be given a thorough maintenance check and a complete inspection at an authorized DOLMAR service centre.

-__ lfthe brushcutter is stored for a long period of time, the fuel tank should be completely emptied and the carburetor run dry. Fuels may only be stored for a limited period of time and could cause deposits to form in the tank or in the carburetor.

- Fuel remains in reserve canisters should be used for other engines or disposed of.

- Always make sure the brushoutter is in good working order before using it. This includes in particular the cutting tool, guard, harness and fuel system (check for leaks). Particular attention must be paid to the cutting blades, which must be correctly sharpened.

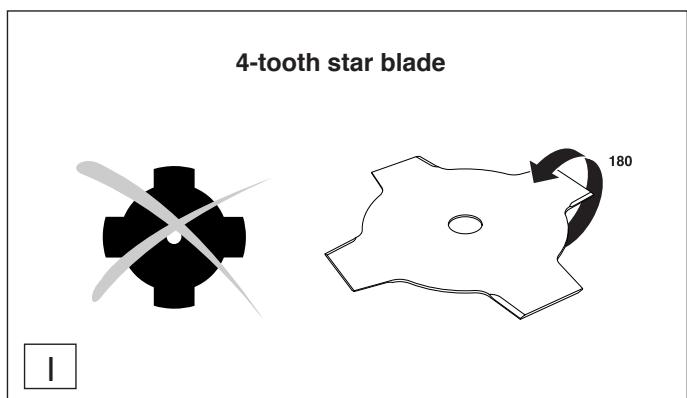

CAUTION: Metal cutting tools must be sharpened only at an

authorized service centre!

A tool which has been improperly sharpened can cause

unbalance and thus considerable danger of injury. Apart from

this, the equipment may be damaged due to vibrations.

- When changing the cutting tool, cleaning the brushcutter and the cutting tool etc., it is essential to switch off the engine and pull the spark plug cap.

- Replace cracked, bent, warped, damaged or dull cutting tools immediately. Never straighten or weld damaged cutting tools.

- _ Operatethe brushcutter with as little noise and pollution as pos- sible. In particular check the correct setting of the carburetor.

- Clean the brushcutter at regular intervals and check that all screws and nuts are well tightened.

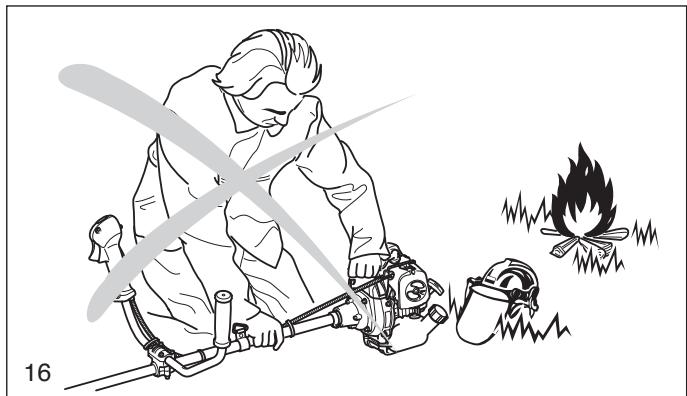

- Never service or store the brushcutter near open flames (16)! - Always store the brushcutter in a locked storage area, with the fuel tank completely empty and the carburetor run dry. Observe the accident prevention instructions issued by the relevant trade associations and insurance companies. Do not make any modifications to the brushcutter - you will only be putting your own safety at risk! The performance of maintenance or repair workbythe useris limited to those activities described in this instruction manual. All other work must be done by the DOLMAR customer service (17). Use only original DOLMAR spares and accessories. The use of non-DOLMAR spares, accessories, or cutting tools increases the risk of accident. DOLMAR will not accept any liability for accidents or damage caused bythe use ofnon-approved cutting tools and fixing devices of cutting tools, or accessories.

A first-aid kit should always be nearby as a precaution in the event of an accident.

Immediately replace any items taken from the first aid kit.

When calling for help, give the following information:

Place of accident, what happened, number of persons injured, nature of injuries, your name.

individuals with poor circulation who are exposed to excessive vibration may experience injury to blood vessels or the nervous system. Vibration may cause the following symptoms to occur in the fingers, hands or wrists: ”Falling asleep” (numbness), tingling,

pain, stabbing sensation, alteration of skin colour or of the skin. If any of these symptoms occur, see a physician!

Technical Data 230 C 1260 C 1 330 C | 260 U 1 330 U 1 430 U Displacement cm° 22.61 25.6 1 32.6 25.6 | 32.6 1 42.7 Bore mm 31133136 33136140 Stroke mm 30130132 30132134 Rated capacity per ISO 8893 kW 0.710.810.97 0.81 0.97 1 1.27 Operating speed rpm 8,000 | 8,000 | 7,500 | 8,000 | 7,500 | 7,500 Maximum engine speed

with one-part metal cutting tool ‘ rpm 7,370 17,370 18,100 | 7,370 | 8,100 | 7,370 Maximum spindle speed

with one-part metal cutting tool ‘ rpm 10,000 10,000

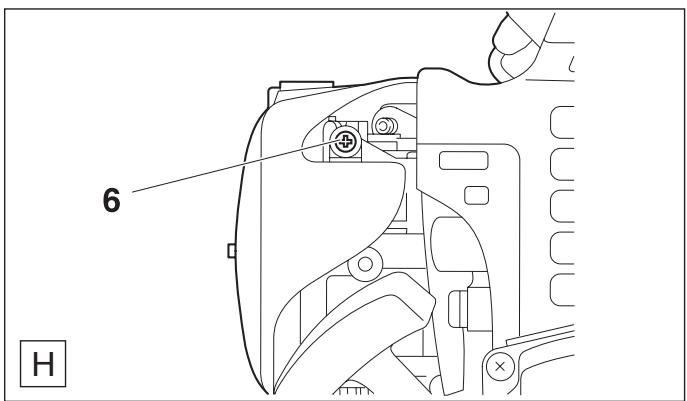

Idling speed rpm 3,000 | 3,000 | 2,500 | 3,000 | 2,500 | 2,500 Carburetor Type diaphragm carburetor | diaphragm carburetor Ignition system Type electronic electronic Spark plug Type NGK BPMR 8Y NGK BPMR 8Y Electrode gap mm 0.6-0.7 0.6-0.7 Sound power level L,,,, per ISO 10884 ? dB (A) | 106.81 107.8 1 109 99.5 | 100.5 | 102

Sound pressure level L,,., at the workplace per ISO 7917 ? dB (A) 94.9 1 95.1 197.1 89.9 | 92 191.4 Vibration acceleration a,,,per ISO 7916 ?

- Right handle (idling speed/maximum speed) m/s? 51/5.7121/62148/55 - Left handle (idling speed/maximum speed) m/s? 40/6.215.0/5.315.3/6.5 - Round handle (idling speed/maximum speed) m/s? 7.516.114.6/9.5147/6.5

- Handle on shaît (idling speed/maximum speed) m/s? 48/8.1144/6016.3/7.8

Fuel consumption per ISO 8893 *) kg/h 0.35 | 0.36 | 0.44 0.36 | 0.44 | 0.49 Specific consumption per ISO 8893 * g/kWh 500 | 450 | 454 450 | 454 | 386 Fuel tank capacity Il 0.610.610.8 0.610.810.9 Mixture ratio (fuel / DOLMAR two-stroke oil)

- when using DOLMAR oil 50:1 50:1

- when using other oils 40:1 40:1

Gear ratio 14:1911419117:21 | 14:19 1 14:19 | 14:19 Weight (not including guard, cutting tool and fuel) kg 51151159 59167179

° The maximum rated speed of the timmer head is not exceeded when using a DOLMAR trimmer head. 2 Figures derived in equal part from idle and top-speed operation (per EN-ISO 11806). 3 At max. power

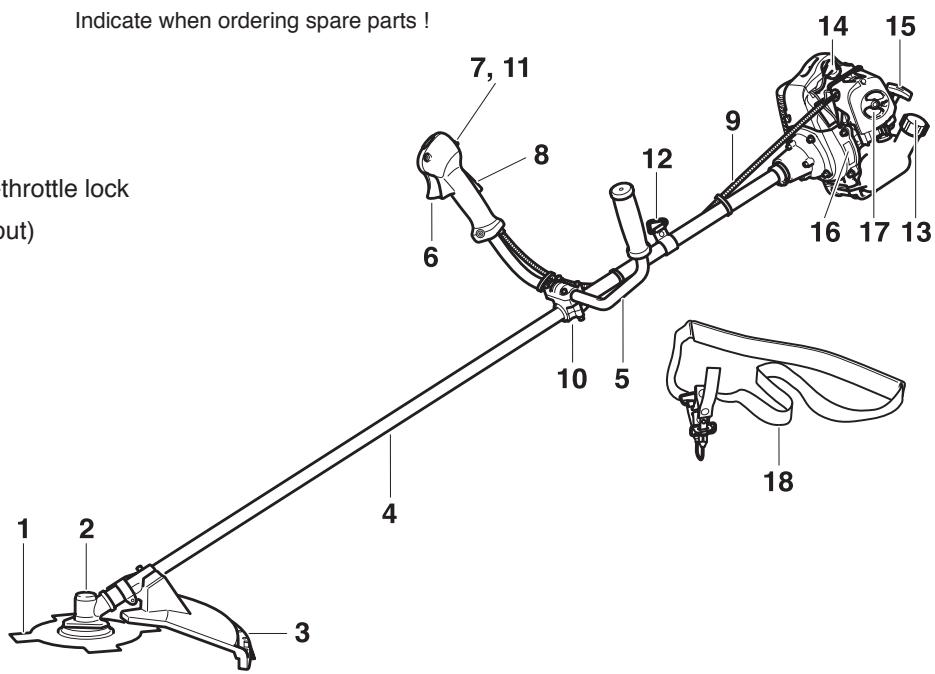

Components Type plate (MS-260 U) ns _——. DOLMAR erial number Year of manufacture LL) Cuïting tool ge Shown: MS-260 U Gear box Guard (Cutter guard) Indicate when ordering spare parts ! 14 15 Shaît tube Handle

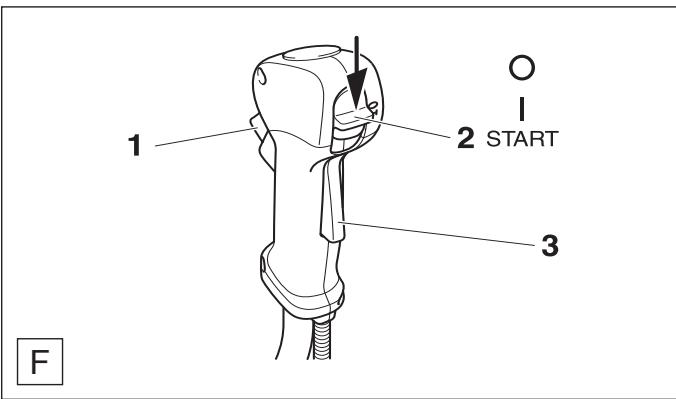

Throttle (throttle trigger) Combination “start/stop” (0/1) switch, half-throttle lock Safety locking button (throttle trigger lockout)

Stop knob for halfway throttle Harness eyelet (suspension point) Fuel tank cap

Spark plug cover 18 Starter grip Type plate Choke lever Harness

PUTTING INTO OPERATION î ro) Q CAUTION: cap and wear protective gloves!

When working on the brushcutter always be absolutely certain to switch off the

engine, pull the spark plug

IMPORTANT: Do not start the brushcutter until fully assembled and inspected!

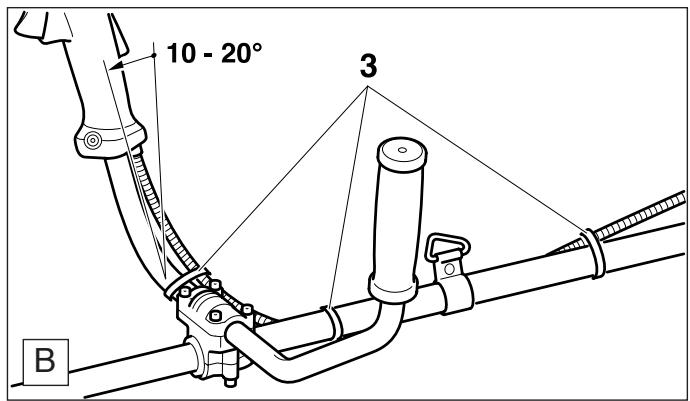

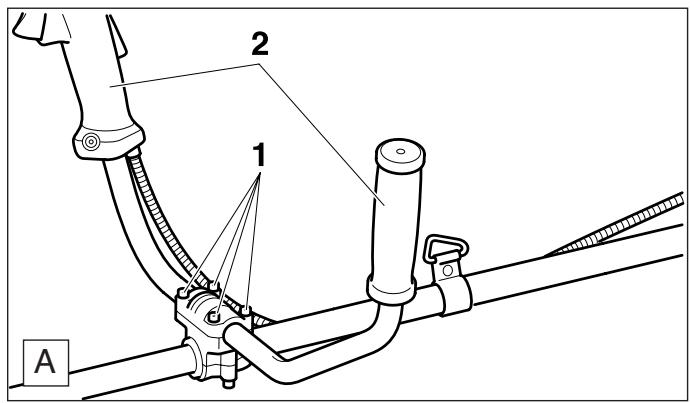

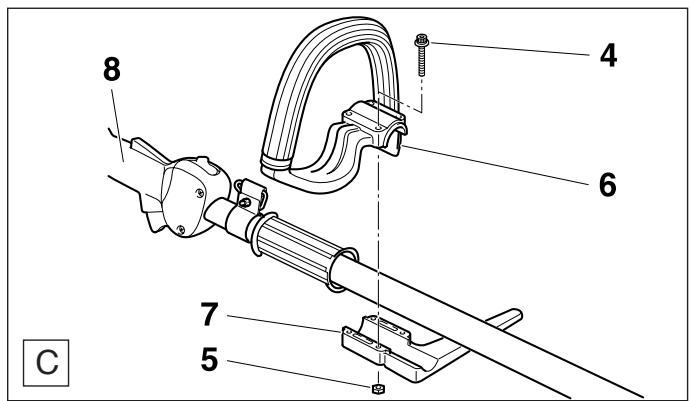

Installing the handle (MS-260 U, MS-330 U, MS-430 U)

-__ Loosen screws (4/1) and unscrew about 1-2 mm.

-__ Pushthe grips (A/2) into the grip mounting, as shown in the illustration.

-__ Tighten the screws only enough to hold the grips while leav- ing them able to be turned for final positioning.

Installing the handle (MS-230 C, MS-260 C, MS-330 C)

-__ Take the bolts and nuts (C/4, 5) and grip bracket (C/7) from the enclosed pack.

- Place grip (C/6) on shaft tube.

-_ Attach the handle retainer plate (C/7) with bolts (C/4) and

nuts (C/5). Set the right distance between the throttle grip (C/8) and hand grip, and tighten screws (C/4).

-__ Push the handle about 10 to 20° forward and tighten the bolts (A/1).

-_ Attach the bowden cable to the shaft tube using the cable ties (B/3) found in the enclosed pack.

The handle must be tilted to accommodate the operator, so the exact angle will depend on the operator's body size. For easiest operation the elbows should be slightly bent, with the wrists straight.

Installing the cutter guard

AO Important: Safety regulations and your own safety make it imperative to use the right cutter guard with a given

Warning: Use only the cutting tools shown here! It is not permittedtouse other cuttingtools as this can increase dan- ger of accidents and cause damage to the equipment!

Tool/guard combinations for the MS-260 U / MS-330 U / MS-430 U Cutting tool

2-line trimmer head Part no. 351 502 030 15 m Part no. 369 224 070 120 m Part no. 369 224 072

Part no. 351 504 101 and

Part no. 351 504 102 Install the guard extension

Tool/guard combinations for the MS-230 C / MS-260 C / MS-330 C Cutter guard

2-line trimmer head Part no. 351 502 030 15 m Part no. 369 224 070 120 m Part no. 369 224 072

Part no. 351 504 101 and

Part no. 351 504 102 Install the guard extension

Mounting the cutter guard -__ Hook the hood (4/5) by the cutout (A/1) on the lug (A/2). - Insert and tighten bolt (4/3) and nut (A/4).

Mounting the guard extension for use with trimmer head.

- See above for installation of the cutter guard.

-_ Attach the guard extension (B/6) supplied with the brushout- ter to the upper part of the cutter guard (A/5), bending it to fitthe contour of the guard.

-_ Attach the trimmer line knife (B/7) to the guard extension (B/8) with the bolt (B/6).

Note: If the trimmer line has been extended (see “Adjusting

the line”) the trimmer line knife automatically cuts the line

ends to the same length during use.

Mounting the 4-tooth star blade (MS-260 U / MS-330 U / MS-430 U)

À € O Always switch off the engine and disconnect the spark plug cap before mounting metal cutter blades! Wear protective gloves!

-__ Unscrew the locknut (C/7) from the shaft by turning it clock- wise. lf necessary, block the angle gear (see below).

Note: The locknut is provided with a left-hand thread!

Installing the trimmer head (MS-230 C / MS-260 C / MS-330 C)

Always switch off the engine and disconnect the spark plug cap before mounting the trimmer head!

Remove floating disc (C/6) and thrust washer (C/5).

Insert the offset screwdriver 4 mm (C/1) through the wind- ing guard and the locking disc into the opening (C/3) in the angular gear (block the winding gear). If necessary turn the mounting disc (C/3) slightly.

Position the blade (C/4), thrust washer (C/5) and finally the floating disc (C/6) as shown.

Screw down the locknut (C/7) and tighten it by turning the combination wrench counter-clockwise.

Caution: For safety reasons, after every 10 tool changes the locknut (C/7) must be replaced with a new one. For the order number, see the spare parts list at the end of this manual.

Remove Allen key and check for freedom of motion of the cutting tool.

Place the mounting disc (D/3) on the shaft.

Insert the 4 mm Allen key (D/1) through the winding guard and the mounting disc (D/3) into the opening on the angle gear (blocks the angle gear). lf necessary turn the mounting disc (D/3) slightly.

Screw the trimmer head (D/2) onto the shaît by turning it counter-clockwise.

Now tighten the trimmer head by hand.

Remove the Allen key and check for freedom of motion of the trimmer head.

Always switch off the engine and disconnect the spark plug cap before replacing the line!

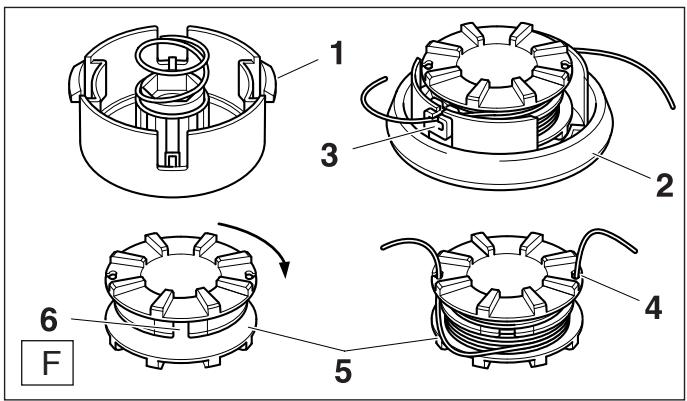

-__ Push the housing tabs (F/1) inward to remove the housing cover (F/2).

-__ Removethe spool (F/5) fromthe housing cover (F/2) remove all line and line fragments.

- Cut line (diam. 2.4 mm) to 7.5 m length.

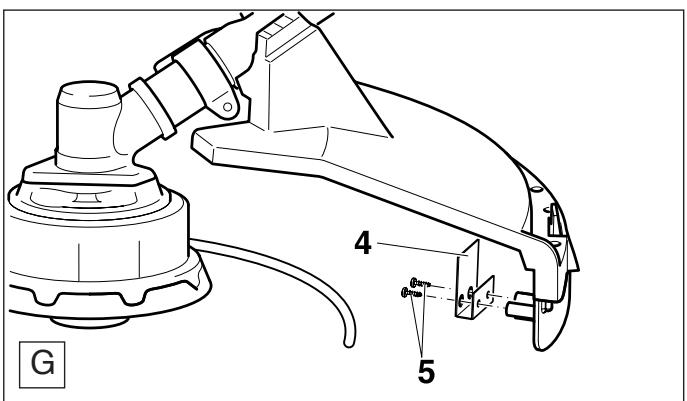

Replacing the line knife (MS-230 C / MS-260 C / MS-330 C)

- You can adjust the line to the right length at any time by lightly tapping the trimmer head against the ground (direction of arrow). The line cutter automatically cuts off excess line. However, this only works when at least 3 cm of line are vis- ible at each end.

-__ lfthe line ends are shorter than 3 cm, it will be necessary to adjust the trimmer line manually.

-__ To do this, push the button firmly and pull out the line ends forcefully.

CAUTION: Before cleaning the trimmer head, replacing the trimmer line, or manually adusting it, make absolutely cer- tain to switch off the engine and pull the spark-plug cap!

-__ Engage the nylon line in the cutout (F/6) so that one end of the line is about 80 mm longer than the other. Then wind both ends tightly about the spool in the direction of the arrow.

-__ Afterwindingtheline, temporarilyinsertthe endsinthe cutouts (F/4). Leave about 100 mm protruding on each end.

- Place the spool (F/5) in the housing cover (F/2). Remove the line ends from the cutouts (F/4) and pull them through the metal eyelets (F/3) in the housing cover.

- Line the housing tabs (F/1) up with the housing cover (F/2) and push together firmly until both tabs click into position audibly.

Before installing a new line knife, make absolutely certain to switch off the engine, disconnect the spark plug cap, and wear protective gloves!

-__ Unscrew the screws (G/5) and remove the old line knife.

- Mount the new line knife (G/4) as shown (towards the trim- mer head) with screws (G/5).

NOTE: Do not overtighten the screws. The protective hood is made of plastic, and overtightening can strip the threads. If this has happened and it is not possible to mount the line knife firmly, the protective hood must be replaced.

Fuel 50:1 40:1 + OIL CT 1000 cm°_ (1 litre) 20 cm° 25 cm° 5000 cm°_ (5 litres) 100 cm° 125 cm° 10000 cm° (10 litres) 200 cm* 250 cm°

The brushcutter is powered by a high-performance two-stroke engine. The engine runs on a mixture of gasoline and two-stroke engine oil.

The engine was designed for regular lead-free gasoline with an octane number of at least 91 ROZ. f this is not available, higher-octane gasoline may be used. This will not damage the engine, but may impair engine performance.

Asimilar situation will arise fromthe use ofleaded fuel. To obtain optimum engine operation and to protect your health and the environment, only unleaded fuel should be used!

For engine lubrication use a two-stroke engine oil (JASO FC or ISO EGD quality grade). Add it to the fuel during refuelling. The engine was designed for use with a high performance two-stroke oil sold by DOLMAR, with a mixture ratio of 50:1. This will ensure long engine life and reliable operation with low exhaust emissions.

DOLMAR high-performance two-stroke engine oil is available in two different sizes:

1 liter part no. 980 008 107 100 ml part no. 980 008 106

In case DOLMAR high-performance two-stroke engine oil is not available, it is urgently recommended to use a mixture ratio of 40:1 with other two-stroke engine oils, as otherwise optimum operation of the engine cannot be guaranteed.

Caution: Do not use ready-mixed fuel from petrol sta- tions.

Preparation of the correct mixture ratio:

50:1 When using DOLMAR high-performance two-stroke oil, i.e. 50 parts gasoline /1 part oil.

40:1 When using other brands, i.e. 40 parts gasoline / 1 part oil.

When preparing the fuel mixture, always first mix the entire oil quantity with half of the gasoline, and then add the rest of the gasoline. Shake the mixture well before putting in the fuel tank.

It is not wise to add more oil to the mixture than specified, even if this may seem safer for the engine. More oil only leads to increased combustion residues, which not only pollute the environment, but are also bad for the cylinder exhaust channel andthe muffler. Furthermore fuel consumption willincrease and performance will fall.

AVOID SKIN AND EYE CONTACT!

Utmost care is required when handling fuel. Fuel may contain substances similar to solvents. Refuel either in a well ventilated

room or outdoors. Do not inhale fuel vapours. Fuel vapours are poisonous and can be hazardous to your health. Avoid eye and skin contact with fuels and mineral oils. Mineral oil products degrease your skin. If your skin comes in contact with these substances repeatedly and for an extended period of time, it will desiccate. Various skin deseases may result. In addition, allergic reactions are known to occur. Eyes can be irritated by contact with oil. If oil comes into your eyes, immediately wash them with clear water.

If your eyes are still irritated, see a doctor immediately!

Fuels have a limited storage life. Fuel and fuel mixtures age. Therefore fuel and fuel mixtures, which have been stored for too long, can cause starting problems. Purchase only that amount of fuel, which will be consumed over the next few months. Store fuel safely in a dry place in approved containers only.

MOGE FOLLOW THE SAFETY PRECAUTIONS! Be careful and cautious when handling fuels. The engine must be switched off!

-__ Thoroughly clean around the tank cap (B/1) so that no dirt can enter the fuel tank.

- Before refuelling the brushcutter make sure it is on its side in a stabile position.

-__ Unscrewthetankcap (B/2) and carefullyfillinthe fuel mixture up to the lower edge of the filler neck. Fill the tank carefully, making sure not to spill any fuel.

-_ Tightly screw on the cap. Clean screw cap and tank after refuelling.

Putting on the harness

Balancing the brushcutter

Put on the harness as shown in figure A.

Adjust it so that the clip is about a hand-width above your hipbone.

Quick-release buckle

Correctly balancing the brushcutter reduces strain on the arms while working.

When using the trimmer head on a level terrain, the trimmer head should touch the ground lightly without the user having to hold the unit.

In difficult terrain or when using the steel bush cutter the brushcutter should balance about 20 cm above the ground without the user having to hold the unit.

Fuel the brushcutter and clip it into the harness.

To balance the brushcutter, loosen the bolt (C/1). Push the eyelet (C/2) forward to move the centre of gravity back towards the engine, or back to move the centre of gravity forward towards the tool.

When you are satisfied with the balance tighten the bolt (CA).

-__ Inanemergency, pullingthe red tab (D/3) willinstantly detach the brushcutter from the operator.

When putting on the shoulder harness, make sure that the red release tab is not on the inside towards the oper- ator’s body, but on the outside, easily visible and easy to reach!

Observe accident-prevention regulations!

Do not start the brushcutter until fully assembled and inspected!

- Move at least 3 meters (10 feet) away from where you filled the fuel tank.

- Make sure you have a good footing, and lay the brushcutter on the ground in such a way that the cutting tool is not touch- ing the ground or anything else.

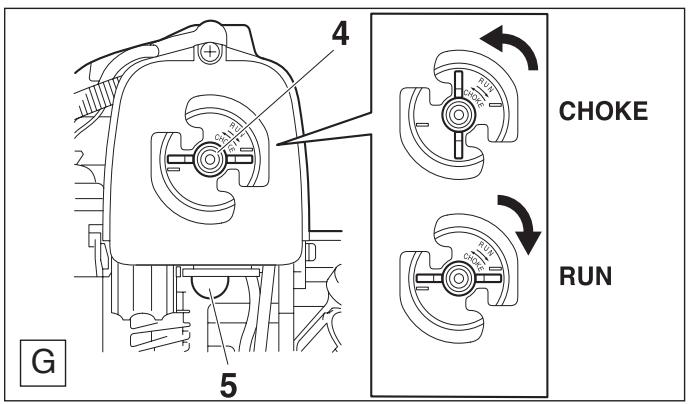

- Prime the fuel pump (G/5) by pressing it several times until you can see fuel in the pump.

-__ Actuate the half-throttle lock by depressing the safety lock (F/3), pressing in the throttle (F/1) and moving the combi- nation switch (F/2) into the START position. Then release throttle (F/1) and then the combination switch (F/2).

- Turn the choke lever (G/4) to the CHOKE (closed) posi- tion.

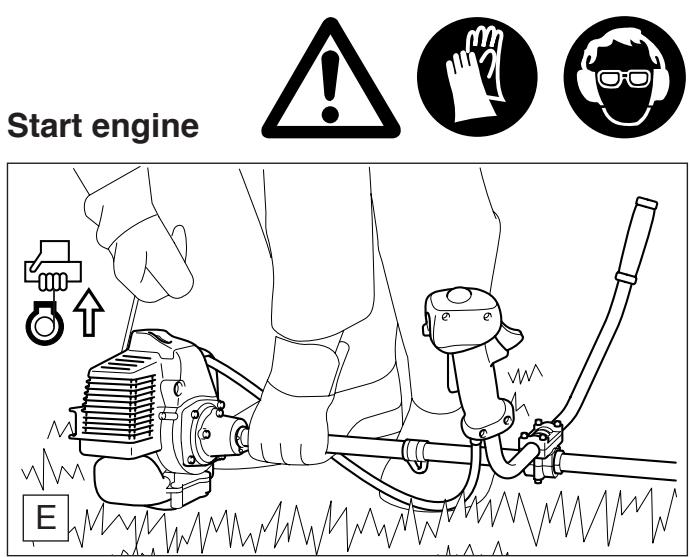

-_ Hold the brushcutter with one hand as shown in Fig. E on page 14.

-__ Pullthe starter cable slowly until you feel resistance (piston is just before top dead centre).

-__ Now pull quickly and forcefully until you hear the first audible ignition (the engine will start briefly).

- Do not pull out the whole starter cable to its full extent and do not let the starter handle jump back, but let it slowly automatically rewind itself.

- Turn the choke lever (G/4) to the RUN (open) position and pull the starting handle again until the engine runs.

- Once the engine has started, press the throttle (F/1) all the way andrelease it again immediately. The half-throttle catch will come out and the engine will idle. -

Warmstart -__ Ifthe engine is warmed up do not prime the fuel pump. - Move the combination switch (F/2) to the “I” position.

- Do not turn the choke switch to the CHOKE (closed) posi- tion, but to RUN.

Stop engine Move the combination switch (F/2) to the “O” position.

Important: The cutting tool must not rotate when the engine is idling! If it does, adjust the idle speed.

- The appropriate cutting tool must be mounted. - Make sure the air filter is clean.

- Let the engine run warm.

- Do not operate the throttle (F/1).

- _ Unscrew the adjustment screw (H/6) no more than 1/8 turn (counter-clockwise).

-_ Repeat the procedure if the cutting tool still rotates during idling.

Ifthe cutting tool does not stop, do NOT work with the brushout- ter. Take it to a DOLMAR service centre!

REPAIR AND MAINTENANCE WORK CAUTION: Before doing any work on the brushcutter, always switch off the motor and pull the plug cap off the spark

plug . Always wear protective gloves!

CAUTION: Start the brushcutter only after complete assembly

Instructions for maintenance

For long life and trouble-free operation of your brushcutter the maintenance work listed below must be carried out regularly. Failure to perform this maintenance work in a correct and timely fashion will void the guarantee. Failure to perform the prescribed mainte-

nance work can lead to accidents!

Do not do any maintenance or servicing work not described in this Instruction Manual. All such work may be done only by a DOLMAR

After refuelling the brushcutter 50 times, it should be given a thorough maintenance check and a complete inspection at a DOLMAR

Page General The brushcutter Clean exterior, check for damage. In case of damage, as a whole have repaired by a qualified service centre immediately Before each start Cutting tool Check for any signs of damage, that the tool is sharp and that it is firmly secured. Guards Check for correct position, firm attachment and good condition. 10 Screws and nuts Check their condition and that they are firmly secured. 1/0-switch, 16 Safety locking button, Throttle lever Functional check 16 Fuel tank cap and fuel system Check for tightness Idling speed Check, the cutting tool must not turn when the engine is idling.| 16 Every time after the Air filter Clean 18 brushcutter is switched off Cooling slit Clean, check for any signs of damage. Every 6 months Spark plug Check and replace if necessary 18 Suction head Have checked by a qualified workshop 18 Fuel tank Clean Starter cable Check for any signs of damage. Annually The brushcutter as a whole Check at an authorized service centre If the brushcutter is The brushcutter Have a maintenance check carried out at a DOLMAR not to be used for a as a whole service centre. Store safely in a dry room. long period of time Fuel tank Empty and clean Carburetor Run empty Metal cutting tools Clean and lubricate lightly Use the tool protection

Sharpening of cutting tools

Note: The cutting tools below should be sharpened only at a qualified workshop! Manual resharpening will result in an imbalance of the cutting tool, causing vibrations and engine damage.

+ 4-tooth star blade

Expert sharpening can be obtained from a DOLMAR service station.

Note: To prolong its useful lifetime, the 4-tooth star blade can be turned once until both cutting sides are blunt.

Cleaning the air filter

Replacing the Spark plug

Inspecting the Spark plug

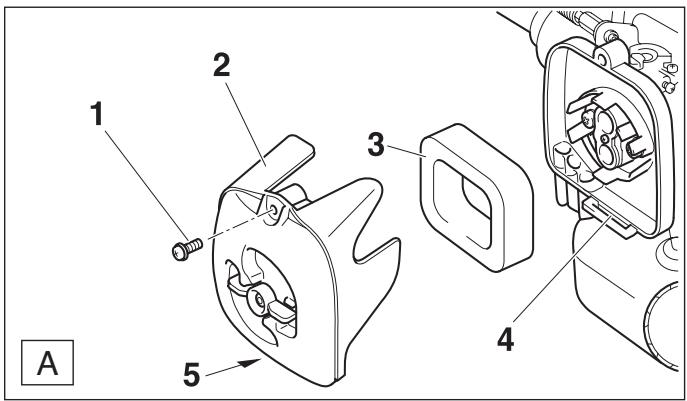

-__Loosen the screws (A/1) and remove the air filter cover (A2).

- Take the foam filter out of the cover.

Caution: To prevent eye injuries, do not blow out dirt

- Very dirty filters can be cleaned out using regular dishwash- ing liquid in lukewarm water.

-__ Ifitis very dirty cleanit more often. Only acleanfilterensures full engine power!

- Before reinstalling the air filter check the choke valve for dirt particles, and if necessary clean it out with a brush.

-_ Carefully dry the air filter and reinstall it.

- First insert the air filter cover (4/2) in the groove (A/4) and then affix with the screw (A/1).

Important: Ifthe air filter is damagedreplaceitimmediately! Torn-off fabric pieces and large dirt particles can destroy the engine!

NEVER touch the spark plug or spark plug cap while the engine is running (high voltage)!

Never do maintenance work with the engine running!

A hot engine can cause severe burns. Wear protective gloves!

The spark plug must be replaced if the insulator is damaged or if the electrodes are severely eroded or dirty or oily.

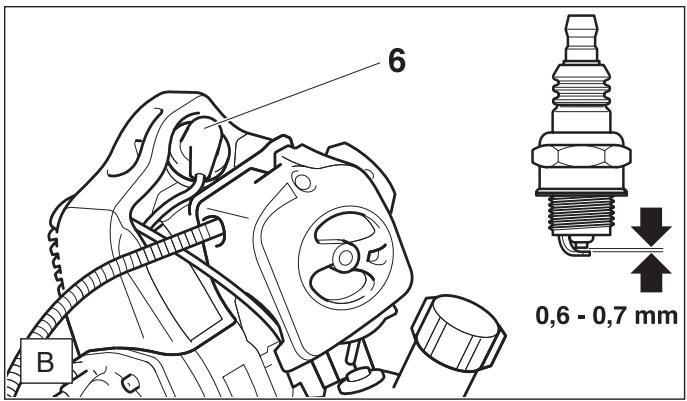

-_ Pullthe spark plug cap (B/6) off the plug. Remove the spark plug with a spark plug wrench (19 mm size).

Replace only with NGK BPMRB8Y spark plugs!

Electrode gap The electrode gap must be 0.6 - 0.7 mm.

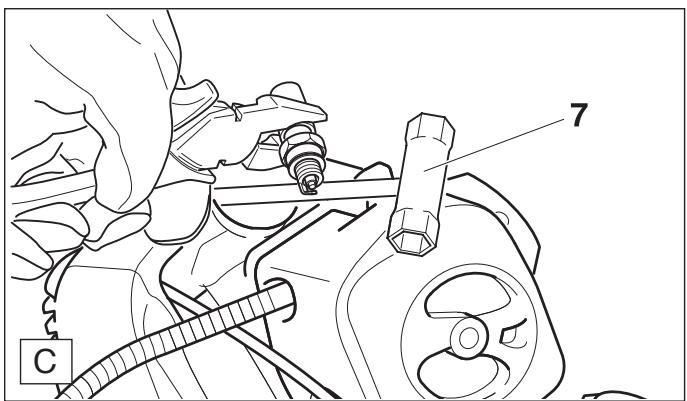

-__ Insertthe wrench (C/7) betweenthe housing andthe cylinder, only as shown in the illustration.

Do not insert the wrench into the spark plug hole. Make contact only with the cylinder (otherwise you may damage the engine).

-__ Firmly connect the spark plug cap to the spark plug (removed from the engine) and hold it against the wrench using insu- lated pliers (away from the spark plug holel).

- Move the combination switch (1/0) to the “l” position.

- Pull the starter cable hard.

A spark should be visible at the electrode gap.

Lubricating the gear box

Suction head in the fuel tank

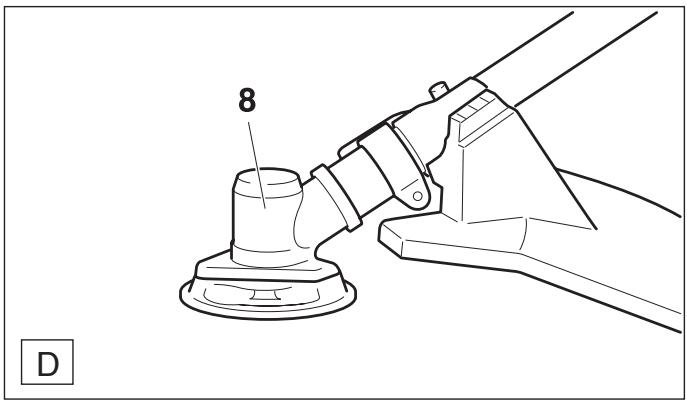

After about 50 operating hours the gear box (D/8) should be checked by a OLMAR service centre, and if necessary re- grease.

The service centre will add the exact amount of grease, as excessive grease will lead to overheating of the gearbox.

Servicing and maintenance

After about 50 tankfuls, have the brushcutterthoroughly inspected at a DOLMAR service centre.

No maintenance and adjustment work not described in this manual may be performed by the user. Al such work must be performed only by a DOLMAR service centre.

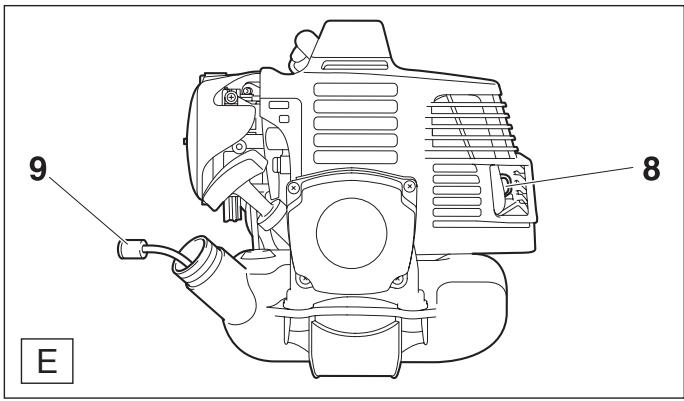

The felt filter (E/9) of the suction head is used to filter the fuel taken in by the carburetor.

A periodical visual inspection of the felt filter should be con- ducted. For this purpose open the tank cap, and use a wire hook to pull out the suction head through the tank opening. If the filter has hardened or is dirty or clogged, replace it. Insufficient fuel supply can result in the admissible maximum speed being exceeded. It is therefore important to replace the felt filter at least every three months to ensure a good fuel sup- ply to the carburetor.

Cleaning the muffler opening

Regularly inspect the muffler opening (E/8). When it becomes clogged with carbon residues, carefully scrape them out with the suitable tool.

Engine will not start or starts only with difficulty

Ignition spark OK No ignition spark

Fuel supply Fuel tank full Compression Inside of engine system

Outside of engine Starter not engaging

Fault in fuel supply or compression system, mechanical defect

STOP switch is depressed, wiring fault or short circuit, spark plug or connector defective, ignition module faulty

incorrect choke position, carburetor defective, suction head dirty, fuel supply line bent or interrupted

Cylinder bottom gasket defective, crankshaft seals damaged, cylinder or piston rings worn Poor sealing of spark plug

Broken starter spring, broken parts inside enginel

may be affected simultaneously

Warm start problems Carburetor Tank filled incorrect carburetor setting Ignition spark OK Engine starts but Fuel supply Tank full incorrect idle speed, suction head or dies immediately carburetor dirty Fuel tank vent defective, fuel supply line interrupted, cable or STOP switch faulty Insufficient power Several systems Engine idling Air filter dirty, carburetor adjustment

incorrect, muffler clogged, exhaust duct in the cylinder clogged

Extract from the spare parts list MS-260/330/430 U DOLMAR Use only original DOLMAR spare parts. For repairs and replacement

of other parts see your DOLMAR service station. MS-230/260/330 C V0

DOLMAR-No. Qty Description

351 050 230 1 Tank cap cpl. 352 400 040 1 Suction head 351 400 800 1 Air filter 351 410 110 1 Spark plug NGK BPMR 8Y 362 224 140 1 4-tooth star blade 351 510 013 1 Locknut (for MS-260 U, 330 U) 351 510 023 1 Locknut (for MS-430 U) 351 502 030 1 2-line timmer head, cpl. 351 010 154 1 Open wrench 8/10 351 010 151 1 Allen key, 4 mm 351 010 152 1 Allen key, 5 mm 351 010 153 1 Combination tool, AF 17/19 - 369 224 070 1 Trimmer line, 2.4 mm dia. x 15 metres - 369 224 072 1 Trimmer line, 2.4 mm dia. x 120 metres

Service, spare parts and guarantee Maintenance and repair

The maintenance and repair modern brushcutters and safety-related components and assemblies requires qualified technical training and a workshop equipped with special tools and testing devices.

Any maintenance or adjustment work not described in this Instruction Manual may be done only by an authorised DOLMAR service centre.

The DOLMAR service centres have all the necessary equipment and skilled and experienced personnel, who can work out cost- effective solutions and advise you in all matters.

Repair attempts by third parties or unauthorised persons will void the warranty.

Reliable long-term operation, as well as the safety of your brushcutter, depend among other things on the quality of the spare parts used. Use only original DOLMAR parts, marked

Only original spare parts and accessories guarantee the highest quality in material, dimensions, functioning and safety.

Original spare parts and accessories can be obtained from your local dealer. He will also have the spare part lists to determine the required spare part numbers, and will be constantly informed about the latest improvements and spare part innovations. To find your local distributor, please visit www.dolmar.com

Please bear in mind that if parts other than original DOLMAR spare parts are used, this will automatically invalidate the DOLMAR product guarantee. 19

DOLMAR guarantees the highest quality and will therefore reimburse all costs for repair by replacement of damaged parts resulting from material or production faults occurring within the guarantee period after purchase. Please note that in some countries particular guarantee conditions may exist. If you have any questions, please contact your salesman, who is responsible for the guarantee of the product.

Please note that we cannot accept any responsibility for damage caused by:

Disregard of the instruction manual.

Non-performance of the required maintenance and cleaning.

Exceeding of the maximum admissible speed due to incorrect carburetor adjustment. Incorrect carburetor adjustment.

Normal wear and tear.

Obvious overloading due to permanent exceeding of the upper performance limits. Use of force, improper use, misuse or accidents.

Overheating due to dirt in the coolant-air intake system including air filter.

Work on the brushcutter by unskilled persons or inappropriate repairs.

Use of unsuitable spare parts or parts which are not original DOLMAR parts, insofar as they have caused the damage. Use of unsuitable or old oil.

Damage related to conditions arising from lease or rent contracts.

Damages caused by disregarding loose outer bolted connections.

Cleaning, servicing and adjustment work is not covered by the guarantee. AIl repairs covered by the guarantee must be performed by a DOLMAR service centre.

To find your local distributor, please visit www.dolmar.com
