Product type	Mobile tower air conditioner
Brand	Cecotec
Model	Energysilence 2000 Cool Tower Smart M
Dimensions (L x W x H)	Approximately 30 x 30 x 80 cm
Weight	Approximately 8 kg
Power supply	220-240 V ~ 50 Hz
Cooling power	2000 W (for a room up to 25 m²)
Main functions	Cooling, ventilation, timer, remote control, oscillation
Noise level	Approximately 45 dB (low mode)
Water tank	Capacity 4 liters, with level indicator
Maintenance and cleaning	Clean the air filter every two weeks; empty and clean the tank regularly
Safety	Automatic shut-off if tipped over, overheat protection
Spare parts and repairability	Available on the Cecotec website: filters, remote control, casters
General information	2-year warranty, Cecotec customer service

Frequently Asked Questions - Energysilence 2000 Cool Tower Smart M CECOTEC

How to install the Energysilence 2000 Cool Tower Smart M air conditioner?

Place the appliance near a window and attach the hot air exhaust hose. Plug it into a power outlet. Refer to the manual for detailed steps.

Can I set the desired temperature?

Yes, use the remote control or the buttons on the appliance to choose a temperature between 16°C and 30°C.

What is the maximum recommended area for this air conditioner?

The appliance is designed for rooms up to 25 m².

How to clean the air filter?

Remove the filter at the back of the appliance, clean it with a vacuum cleaner or soapy water, dry it, and put it back. Do this every two weeks.

What to do if the appliance does not cool well?

Check that the filter is clean, that the exhaust hose is not blocked, and that the room is not too large. Make sure the set temperature is lower than the room temperature.

The appliance has a full tank indicator, what to do?

Empty the water tank located at the bottom of the appliance. The indicator will turn off after putting it back.

Can I use the air conditioner without the exhaust hose?

No, the hose is essential to exhaust hot air to the outside. Without it, the appliance will not cool properly.

The remote control does not work, what to do?

Check the batteries and the range (max 5 m). Replace the batteries if necessary. Point the remote control at the appliance's sensor.

How to activate the oscillation function?

Press the 'Oscillation' (or 'Swing') button on the remote control or on the control panel. The appliance will swing from left to right.

Where to buy spare parts?

Visit the official website of Cecotec or contact their customer service. Filters, remote controls, and casters are available.

USER MANUAL Energysilence 2000 Cool Tower Smart M CECOTEC

1. Parts and components 39
2. Before use 39
3. Product assembly 39
4. Operation 40
5. Cleaning and maintenance 41
6. Technical specifications 42
7. Disposal of old electrical appliances 43
8. Technical support and warranty 43
9. Copyright 43

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Do not immerse the cord, plug or any non-removable part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• If the appliance falls accidentally into water, unplug it immediately. Do not reach into the water!
• Do not operate the device if any fault or unusual sign is detected.
• Do not operate the product next to combustible or explosive gas.
• The appliance must not be placed immediately below a socket.

• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the appliance.

• Make sure the appliance is placed on a flat and stable surface and do not move it during operation.

• Do not use the appliance near windows or places where there is risk of getting wet (at least 2 meters away), as water could cause an electric shock.
• Do not operate the product below or next to curtains.
• Do not cover the air inlet and outlet and do not place the product's cord under carpets or other objects during operating. Keep a minimum safety distance on each side, front and back of the product.
• Do not leave the appliance unattended while in use.
• It is not recommended to use the product with an extension cord.
• Always turn off and unplug the appliance when not in use and before assembling, disassembling or moving it. Pull from the plug, not the cord, to disconnect it from the outlet.
• This product is designed only for household use. It is not suitable for commercial or industrial use. Do not operate it outdoors.
• Cleaning and maintenance tasks should be carried out according to this manual to ensure correct operation of the device.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Do not try to repair the device by yourself. This product can only be assembled, disassembled and repaired by qualified

personnel.

• Do not touch the device with wet hands.
• Turn off the appliance when you do not plan to use it again.
• Do not operate the device on an unstable surface. Do not use the device outdoors.
• The water amount inside the water tank should not exceed the "Max" mark. When you wish to add moisture to the air, the water amount must be filled in the water tank until the "Min" mark.
• Do not lean the water tank to avoid any spills.
• Do not turn the device upside down. If the device falls on the floor with water inside, unplug it from the mains and have it repaired.
• The appliance must not be covered.
• Do not shake the device while it is working, as it could cause it to stop working.
• Replace the water inside the water tank frequently.
• Do not use the device in the bath, shower, swimming pool, above a sink with water or areas with extremely high humidity levels.
• Do not use the device with an exterior timer or any other device which can turn it on automatically, as it could cause a fire if is covered.
• This product has undergone a quality control previous to its commercialisation with the aim of ensuring its correct operating. After the quality control testing, the appliance is cleaned thoroughly, therefore, although it is unlikely to occur, there could be rests of water drops inside it.

Battery instructions

- The remote control includes a battery. Do not burn or expose the battery to high temperatures, as it may explode.

- Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

INSTRUCTIONS DE SÉCURITÉ

1. Control panel
2. Air outlet
3. Front part
4. Water level control window
5. Maintenance
6. Power cord
7. Back
8. Handle
9. Water tank screw
10. Rack/filter
11. Rotating element
12. Water tank
13. Pump
14. Coolers
15. Power cord

(*) The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• Take the product out of the box. Remove all packaging material.
• Save the original box.
• Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact the Cecotec official Technical Support Service immediately.

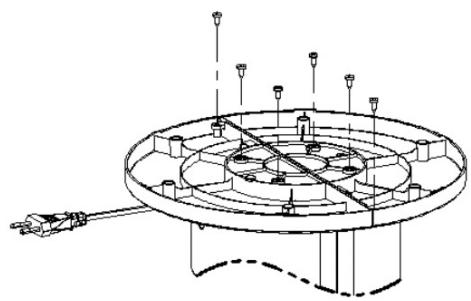

3. PRODUCT ASSEMBLY

• The air cooler is divided into 2 parts. Put them together making sure that they match properly and ensure they are tightly fixed. Fig. 2
• Fix the base to the lower part of the air cooler main body.
• Use the 4 screws provided to screw the base to the air cooler main body. Fig. 3
• Fix it with two side screws.
• Place the device on a stable and level surface.

4. OPERATION

Fig. 4

1. Power button
2. Speed control button
3. Mode button
4. Oscillation button
5. Timer button
6. Cool Mode button

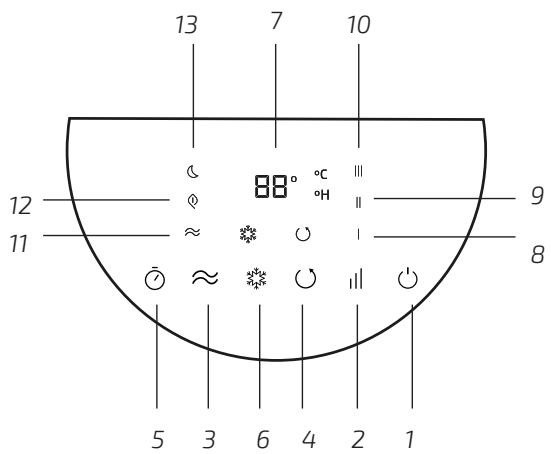

Fig. 5

1. Power button
2. Speed control button
3. Mode button
4. Oscillation button
5. Timer button
6. Cool Mode button
7. Display
8. Low speed indicator
9. Medium speed indicator
10. High speed indicator
11. Normal mode indicator
12. Natura mode indicator
13. Night mode indicator

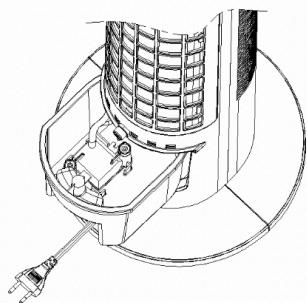

Filling the water tank

• Remove the water tank, to do so, loosen the screw on the water tank and turn the tab.
• Fill the water tank with natural and cold water. Make sure the water level is between the marks 'Min' and 'Max'.
• To increase the cooling effect, insert the ice bucket with ice cubes into the water tank.
• Close the water tank.
• Warnings:
• Make sure that the product is unplugged from the power supply before refilling the water tank.
• Fill the water tank with water. Do not use chemical products, oils or other additives.
• Fill the water tank only with cold water (previously boiled).
• Make sure the water level is between the 'Min' and 'Max' marks.
• Place the device on a stable surface and connect it to the mains. The indicator light indicates that the device is in standby mode. Press the power button and the appliance will start operating at medium speed by default. Press once more and the device will enter the Standby mode.

Speed button

Press this button to choose from high, medium or low speed. The speed by default is medium.

Mode button

Press this button to choose from normal airflow, natural airflow and night mode. The airflow by default is normal.

Oscillation button

• Press this button to choose the air direction.
• Press it again to cancel.
• Direct the blades transversely with your hands, choosing the direction of the air upwards or downwards.

Timer button

Press this button to set the desired operating time from 0 to 8 hours. Every time you press the button, the time will add.

Cool mode button

Press this button to activate the cool mode. If you add the coolers to the water tank, the air will come out cooler. If you press the button again, you will cancel the function. Make sure the water level is between the 'Min' and 'Max' marks.

Battery

The remote control requires a button cell (CR2025, 3V).

5. CLEANING AND MAINTENANCE

• Use a soft, damp cloth to clean the device surface. Do not use abrasive or corrosive products.
• Do not immerse any part of the air cooler in water or other liquids.
• After cleaning, carefully dry the appliance and make sure that all the electrical parts are completely dry.
• Make sure the air inlet and outlet are clean and protected from dust and dirt.
• If the product is not going to be used for a long period, unplug it and store it in a dry and safe place.

• You should clean the device once every week. Dry the water tank completely and refill it with fresh water. This will reduce the amount of mineral deposits and help extend the life of the appliance. Clean and store the device in a safe, dry place if it is not going to be used for a long period of time.

• To ensure that all parts of the appliance are dry, switch it on and only put it in normal mode for 30 minutes before storing it (the time will depend on the humidity conditions). Switch it off and disconnect it from the mains. Empty the water tank. Clean the water tank with a damp cloth to remove dust or mineral deposits. Remove the water tank and rinse it with natural water to remove dirt and dust.

• To remove the rack, press both superior tabs and pull gently. Do not clean the rack by hand, as it could deform, use a soft cloth and clean it with extreme care. Clean the filter with a soft cloth, careful not to deform it. Place it back in place. Cover the device with a clean cloth or a plastic bag before storing it to protect it from dust and scratches. Wind the cord properly to avoid possible falls.

Cleaning and maintenance of the water tank

• Before cleaning the appliance, switch it off and disconnect it from the mains. Loosen the screw on the water tank, turn the plastic tab and remove the tank. Clean the water tank and place it again in place. Tighten the screw again in place.
• Use fresh water to clean and dry it completely. Refill the tank up to the "Max" mark with fresh water. Use a dampen cloth to clean the dirt and dust on the surface of the device. Do not use abrasive or corrosive detergents to clean the product. When the device is not in use, store it in a dry place away from sunlight.

6. TECHNICAL SPECIFICATIONS

Product reference: 05289

Product: EnergySilence 2000 Cool Tower Smart

Power: 60 W, 220-230 V\~, 50/60 Hz

Manufactured in China | Designed in Spain

Description	Symbol	Value	Unit
Air cooler maximum flow	F	13.5	m^3/min
Air cooler power consumption	P	44.3	W
Service value	SV	0.3	(m^3/min)/W
Power consumption on standby mode	PSB	0.4	W
Air cooler sound power level	LWA	59	dB (A)
Maximum air speed	C	2.7	m/seg

Service value measurement standard	IEC 60879_1986 (corr. 1992)
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

(*) Technical specifications may change without prior notification to improve product quality.

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1 (\*)

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7
