Product type	Cordless stick vacuum
Brand	Cecotec
Model	Scoba 2100 Station
Dimensions (L x W x H)	27 x 15 x 115 cm
Weight	3.2 kg
Power source	Rechargeable lithium-ion battery
Battery voltage	22.2 V
Battery capacity	2500 mAh
Maximum runtime	45 minutes
Charging time	4 to 5 hours
Charging station	Yes, with integrated storage
Dust container capacity	0.6 L
Filtration	Washable HEPA filter
Power modes	2 modes: Eco and Turbo
Included accessories	Motorized brush, crevice tool, upholstery tool
Motor	Digital brushless motor, 120 W
Noise level	78 dB
Filter maintenance	Wash with cold water every month
Container cleaning	Empty and rinse after each use
Safety	Automatic shut-off in case of overheating
Spare parts	Battery, filter, brushes available
Repairability	Repairability score 7.5/10

Frequently Asked Questions - Scoba 2100 Station CECOTEC

How to charge the battery of the Cecotec Scoba 2100 Station stick vacuum?

Place the vacuum on the included charging station. Plug the station into a power outlet. The indicator light shows charging status. Allow 4 to 5 hours for a full charge.

What is the runtime of the Scoba 2100 Station vacuum?

Maximum runtime is 45 minutes in Eco mode. In Turbo mode, it is reduced to about 20 minutes.

How to clean the vacuum filter?

Remove the dust container, then take out the HEPA filter. Wash it with cold water and let it dry completely before reinserting. Do not use detergent.

What to do if the light flashes red?

A flashing red light usually indicates low battery or overheating. Recharge the device or let it cool down before using again.

Can the vacuum pick up liquids?

No, the Cecotec Scoba 2100 Station is designed for dry vacuuming only. Vacuuming liquids may damage the motor and void the warranty.

How to empty the dust container?

Press the release button on the container, remove it, and empty the contents into a trash bin. You can rinse the container with warm water and dry it before reassembling.

What accessories are included with the vacuum?

The package includes: the main motorized brush, the crevice tool for corners, and the upholstery tool (dusting brush).

How to maintain the motorized brush?

Regularly clean the brush by removing tangled hair and threads. Use scissors to cut tangles. You can also wash the brush with water if needed.

Where to find spare parts for the Scoba 2100 Station?

Spare parts (battery, filter, brushes) are available on the official Cecotec website or from authorized dealers. Always use original parts.

What to do if the vacuum does not start?

Check that the battery is charged. If the problem persists, clean the charging contacts on the device and the station. If no result, contact Cecotec customer service.

USER MANUAL Scoba 2100 Station CECOTEC

Lightweight upright vacuum cleaner with self-emptying base

cecòtec

1. Parts and components 49
2. Before use 49
3. Operation 50
4. Cleaning and maintenance 52
5. Troubleshooting 53
6. Technical specifications 53
7. Disposal of old electrical and electronic appliances 54
8. Technical support and warranty 54
9. Copyright 54

SOMMAIRE

EU01_101702 - Scoba 2100 Station

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Check the suction tube from time to time to make sure it is not blocked.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• Inspect the power cable regularly for visible damage, especially the cable, plug and the self-emptying station. If the power cable is damaged, it must be replaced with a special cable or set to be supplied by the official Cecotec Technical Support Service. The power adapter is to be properly discarded.

• The appliance must be powered at a low safety voltage as stated on the marking.

• Do not attempt to repair the appliance yourself. Contact the official Cecotec Technical Support Service for advice.
• Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.
• Do not use the appliance if it has been dropped or if there are any visible signs of damage.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Keep the air outlet unblocked to avoid losing suction power.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Do not pull on the cable to disconnect the appliance. Pull from the plug.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Battery instructions

- WARNING: to recharge the battery, only use the self-emptying station supplied with the appliance.

• The appliance contains a battery that should only be replaced by qualified personnel.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit the battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject batteries to mechanical shock.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Do not use any other self-emptying station than the one supplied specifically for use with this appliance.
• Secondary batteries must be charged before use. Always use the provided self-emptying station and refer to these instructions.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Keep this instruction manual for future reference.
• Use the battery only for its intended purpose, i.e., for use with this appliance.
• Non-rechargeable batteries must not be recharged.

INSTRUCTIONS DE SÉCURITÉ

1. Battery
2. Main body
3. Suction tube
4. Vacuum head
5. Station holder
6. Self-emptying station
7. Accessory for upholstery
8. 2 in 1 accessory

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Vacuum cleaner
• Self-emptying station
• Accessory for upholstery
• 2 in 1 accessory
• Dirt-disposal bag (x3)
• Instruction manual

- Do not remove the serial number of the appliance to keep a correct traceability of it in case of assistance.

3. OPERATION

You can use this vacuum cleaner in two different ways:

• As a handheld vacuum cleaner, attaching the accessories directly to the main body.
• As an upright vacuum cleaner, using the suction tube with the accessories assembled.

3.1 Using the vacuum cleaner

1. Press the power button to switch the vacuum cleaner on.
2. Use the speed selection button to choose the desired mode.

Display

Fig. 2

1. Power button
2. Speed selection button
3. Battery indicator light

To choose the desired operation mode, use the speed selection button. This vacuum cleaner features the following modes:

o Eco: low speed mode.
o Turbo: high speed mode.

The appliance features a display that shows the activated mode and the remaining battery percentage. By default, the appliance will start cleaning in Eco mode. To change the desired mode, simply press the speed selection button.

3.2 Accessories

This vacuum cleaner includes different accessories to clean different types of surfaces, objects and dirt. Some of them are suitable for the upright vacuum cleaner mode, and others are preferably used with the handheld one.

Assembling the suction tube and vacuum head. Fig. 3

• To install the vacuum head into the suction tube, match both parts ensuring the tab on the vacuum head matches the guides on the tube and insert the tube into the vacuum head until firmly fixed.
• To disassemble them, press the vacuum head release button, and pull from the suction tube while firmly holding the vacuum head.

Warning

Regularly check that the vacuum head is clean, as foreign objects can scratch delicate floors.

Accessory for upholstery. Fig. 4

This accessory is used for an intense cleaning of upholstered furniture.

1. To install the accessory for upholstery to the main body, align both so that they match and fit them together.
2. To remove, pull the accessory while holding the main body firmly.

2 in 1 accessory. Fig. 5.

This accessory allows cleaning furniture without damaging it and reaching less accessible dirt in corners.

1. To attach the 2 in 1 accessory to the main body, align and fit both until the accessory clicks into place.
2. To remove the accessory, pull the 2 in 1 accessory with one hand while holding the main body firmly with the other.

3.3 Self-emptying station. Fig. 6-7

After use, place the vacuum cleaner in the self-emptying station. When doing so, the station will automatically empty the dirt tank. The motor of the station will be activated and perform three self-emptying cycles. Once the process is complete, the appliance will automatically start charging.

Self-emptying button: to start or pause the self-emptying process, press the button on the top of the self-emptying station.

Note: if you notice that the vacuum cleaner or dirt tank has not emptied completely, press the button on the station again to repeat the process.

Indicator lights: the indicator lights will remain on during the self-emptying process as well as during charging of the appliance.

Dirt tank full warning: when the dirt tank is full, the indicator lights remain lit to indicate that it should be emptied.

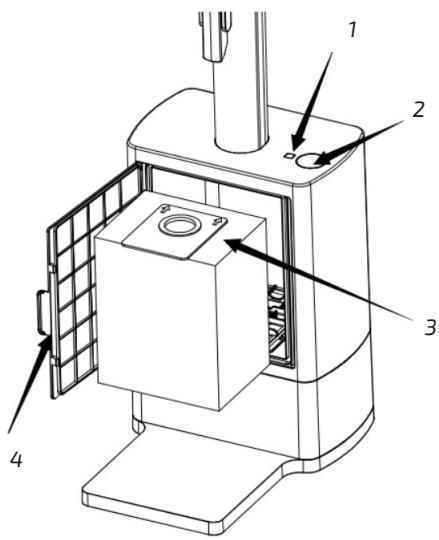

Fig. 7 key:

1. Indicator light
2. Self-emptying button
3. Dirt-disposal bag
4. Door

4. CLEANING AND MAINTENANCE

• Switch off the self-emptying station or unplug it from the power socket and allow it to cool down before cleaning it.
• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids, do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the appliance.
• Do not leave the appliance in a place with direct sunlight.
• Do not leave the appliance in a wet place after cleaning it.
• After prolonged use of the suction base, hair or other particles may become entangled in the brush. To ensure optimum performance, clean it regularly.

Filters and tank cleaning. Fig. 8

• To avoid the appliance from overheating and losing suction power, it is essential to clean the filters frequently. To make the most of the suction power, it is suggested to clean the filter after every use.
• The filters' shelf life will depend on the accumulated use and the type of dirt that is frequently vacuumed. It is recommended to replace the filters approximately every 6 months.
  A Make sure the vacuum cleaner is switched off.
  B Press the dust-tank release button and remove it.
  C Remove the filter system from inside the tank and separate the filters for cleaning.
  D Put the filters back in their original position inside the dirt tank.
  E Refit the dirt tank.
• Vacuum and shake the filters to remove every dirt that may block them and hinder correct air circulation. Remember not to use the vacuum cleaner without the filters properly assembled.
• Filters cannot be washed inside a washing machine nor dried with a hair dryer.
• Do not brush the high-efficiency filter.

Cleaning the vacuum head

The main brush spins at top speed and helps pushing the dirt into the suction mouth. This brush is in contact with the floor and therefore with the dirt, so it can wear out over time, affecting the cleaning efficiency. It is advisable to clean the vacuum head once a week (depending on use).

1. Make sure the vacuum cleaner is switched off.
2. Slide the tab on the side of the vacuum head.
3. You can then remove the brush from inside the vacuum head and clean it.
4. To avoid any damage to the brush, tangled hair should be removed.

5. You can wash the brush with lukewarm water, do not use soap or detergents. However, it is recommended to shake it or vacuum it to avoid placing it back again wet in the brush head.

6. If you decide to wash the brush, make sure it is completely dry before installing it again on the vacuum cleaner.

7. When replacing the brush, make sure it is properly installed.

5. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The vacuum cleaner does not work	The battery is dead.	Charge the battery.
No suction or low suction power	The dirt tank is full or clogged.The dirt tank was not installed correctly.The filter needs to be cleaned.	Empty the dirt tank and clean the filter.Install the dirt tank properly.Clean the filter.
The vacuum cleaner does not charge	The power adapter was not plugged in correctly.	Check that the appliance is correctly positioned on the station and that the plug is properly connected.

When the filter is blocked, the HEPA indicator light will flash to remind you to clean the high efficiency filter.

When the brush is blocked, the indicator light will flash to remind you to clean the brush.

6. TECHNICAL SPECIFICATIONS

Product: Scoba 2100 Station

Product reference: EU01_101702

Rated motor power: 200 W

Rated power of vacuum head: 10 W

Rated power of self-emptying station: 650 W

Self-emptying station output: 18 V, 0.5 A

Battery information:

14.8 V = 2500 mAh 37 Wh

Product: Scoba 2100 Station Battery Pack

Input: 18 V, 0.5 A

Type: SF18650NR-22

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Referenz: Scoba 2100 Station Battery Pack

Prodotto: Scoba 2100 Station Battery Pack

Input: 18 V, 0.5 A

Tipo: SF18650NR-22

5. PROBLEEMOPLOSSING

Product: Scoba 2100 Station

Ürün: Scoba 2100 Station

Referans: Scoba 2100 Station Battery Pack

Giriş: 18 V, 0.5 A

Tip: SF18650NR-22

Fig. / Img. / Rys. / Obr. 3

Fig. / Img. / Rys. / Obr. 4

Fig. / Img. / Rys. / Obr. 5

Fig. / Img. / Rys. / Obr. 6

Fig. / Img. / Rys. / Obr. 7

Fig. / Img. / Rys. / Obr. 8
