Scoba 3000 - Stick vacuum CECOTEC - Free user manual and instructions

Product type	Stick vacuum
Brand	Cecotec
Model	Scoba 3000
Dimensions (L x W x H)	25 x 20 x 110 cm
Weight	2.5 kg
Power source	22 V lithium-ion battery
Maximum runtime	30 minutes
Charging time	4 hours
Suction power	400 W
Dust bin capacity	0.5 L
Filtration	Washable HEPA filter
Main functions	Suction for hard floors and carpets, motorized brush
Power levels	2 (eco, turbo)
Brush type	Motorized brush with bristles
Maintenance	Regular cleaning of filter and bin
Safety	Auto shut-off in case of overheating
Spare parts available	Filter, battery, brush
Repairability	Repairability score 6/10
Included accessories	Crevice tool, upholstery brush
Warranty	2 years

Frequently Asked Questions - Scoba 3000 CECOTEC

How to turn the Scoba 3000 vacuum on and off?

Press the on/off button on the handle. To turn off, press again. Note: the device automatically shuts off in case of overheating.

How to charge the battery?

Plug the charger into the charging port at the back of the handle. The indicator light shows charging status: red during charging, green when the battery is full. Charging time: approximately 4 hours.

What to do if the vacuum no longer sucks?

Check that the dust bin is not full and the filter is not clogged. Clean the filter with clean water and let it dry completely before reinstalling. Also check the brush for any tangled hair or threads.

How to clean the HEPA filter?

Remove the filter from the dust bin. Tap it to remove dust, then wash with warm water (no detergent). Let it air dry for 24 hours before reinstalling. Do not use a hairdryer.

Can the vacuum be used on carpets?

Yes, the Scoba 3000 is equipped with a motorized brush suitable for hard floors and carpets. For thick carpets, use turbo mode for optimal suction.

How to empty the dust bin?

Press the bin release button, remove it and empty its contents into a trash can. You can also rinse it with water. Make sure it is completely dry before reinstalling.

What does the flashing indicator light mean?

A flashing red light usually indicates a low battery or a blockage. Check the manual for the exact code. Reset the device by turning it off and on.

Can the battery be replaced?

Yes, the battery is removable and replaceable. Contact Cecotec customer service to order a replacement battery. Do not throw the used battery in the trash, take it to a collection point.

How to clean the motorized brush?

Remove the brush by pressing the side buttons. Remove any tangled hair and threads using scissors or a comb. The brush can be washed with soapy water. Let it dry before reassembling.

Where to find spare parts?

Spare parts (filter, battery, brush) are available on the official Cecotec website or at authorized retailers. Use the model Scoba 3000 to identify the correct references.

USER MANUAL Scoba 3000 CECOTEC

Aspirador vertical ligero / Lightweight upright vacuum cleaner

Safety instructions 9

1. Parts and components 61

2. Before use 61

3. Operation 62

4. Cleaning and maintenance 63

5. Troubleshooting 64

6. Technical specifications 65

7. Disposal of old electrical and electronic appliances 65

8. Technical support and warranty 65

9. Copyright 66

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.

- Check the suction tube from time to time to make sure it is not blocked.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. If the power cable is damaged, it must be replaced with a special cable or set to be supplied by the official Cecotec Technical Support Service. The power adapter is to be properly discarded.

- The appliance must be powered at a low safety voltage as stated on the product marking.

- Do not attempt to repair the appliance yourself. Contact Cecotec's Official Technical Support Service for any query or repair.

- Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.

- Do not use the appliance if it has been dropped or if there are any visible signs of damage.

• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Keep the air outlet unblocked to avoid losing suction power.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Do not pull on the cable to disconnect the appliance. Pull from the plug.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.

Battery instructions

• WARNING: to recharge the battery, only use the self-emptying base supplied with the appliance.
• The appliance contains a battery that should only be replaced by qualified personnel.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit the battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Do not subject batteries to mechanical shock.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Do not use any charger other than the one supplied specifically for this appliance.
• Secondary batteries must be charged before use. Always use the specified charger and refer to these instructions.
• Do not leave the battery on prolonged charge when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Keep this instruction manual for future reference.
• Use the battery only for its intended purpose, i.e., for use with this appliance.
• Non-rechargeable batteries must not be recharged.

INSTRUCTIONS DE SÉCURITÉ

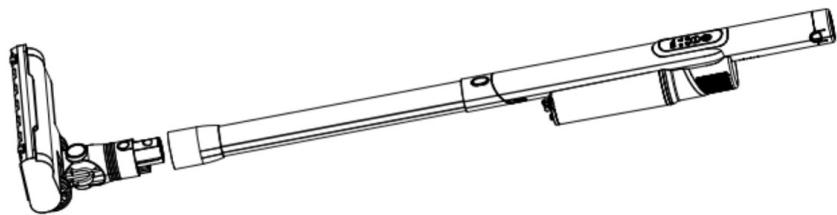

1. Battery
2. Main body
3. Suction tube
4. Vacuum base
5. Extension tube
6. Pet accessory
7. Motorised upholstery brush

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Vacuum cleaner
• Upholstery accessory
• 2-in-1 accessory
• Extension tube
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

ENGLISH

3. OPERATION

This vacuum cleaner can be used in two different ways:

• As a handheld vacuum cleaner, attaching the accessories directly to the main body.
• As an upright vacuum cleaner, using the suction tube with accessories attached to it.

3.1 Using the vacuum cleaner

1. Press the power button to switch on the vacuum cleaner.
2. Use the speed selection button to choose the desired mode.

Display

Fig. 2

1. Power button
2. Speed selection button
3. Battery indicator light

To choose the desired operation mode, use the speed selection button. This vacuum cleaner features the following modes:

o Eco: low speed mode.
o Turbo: high speed mode.

The appliance features a display that shows the activated mode and the remaining battery percentage. By default, the appliance will start cleaning in Eco mode. To change the desired mode, simply press the speed selection button.

3.2 Accessories

This vacuum cleaner includes different accessories to clean different types of surfaces, objects and dirt. Some are used with the upright configuration and others are preferably used with the handheld configuration.

Suction tube assembly. Fig. 3

• To attach the floor vacuum head to the suction tube, align both parts so that the tab on the vacuum head matches the guides on the tube, and insert the tube into the vacuum head until it clicks into place.
• To disassemble them, press the vacuum head release button and pull the suction tube while firmly holding the head.

Warning:

Regularly check that the vacuum head is clean, as foreign objects can scratch delicate floors.

Accessory for upholstery. Fig. 4

This accessory is used for an intense cleaning of upholstered furniture.

1. To install the upholstery accessory to the main body, align both so that they match and fit them together.

2. To remove, pull the accessory while holding the main body firmly.

2 in 1 accessory: Fig. 5.

This accessory allows cleaning furniture without damaging it and reaching less accessible dirt in corners.

1. To attach the 2-in-1 accessory to the main body, align and fit both until the accessory clicks into place.

2. To remove it, pull the 2-in-1 accessory with one hand while holding the main body firmly with the other.

4. CLEANING AND MAINTENANCE

• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids, do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the appliance.
• Do not leave the appliance in a place with direct sunlight.
• Do not leave the appliance in a wet place after cleaning it.
• After prolonged use of the suction base, hair or other particles may become entangled in the brush. To ensure optimum performance, clean it regularly.

Cleaning the filters and dust container. Fig. 6.

• To avoid the appliance from overheating and losing suction power, it is essential to clean the filters frequently. To make the most of the suction power, it is suggested to clean the filter after every use.
• The filters' shelf life will depend on the accumulated use and the type of dirt that is frequently vacuumed. It is recommended to replace the filters approximately every 6 months.
• Make sure the vacuum cleaner is switched off.
• Press the dust container release button and remove it.
• Remove the filter system from inside the container and separate the filters for cleaning.
• Put the filters back in their original position inside the dust container.
• Refit the dust container.
• Vacuum and shake the filters to remove every dirt that may block them and hinder correct air circulation. Remember not to use the vacuum cleaner without the filters properly assembled.

ENGLISH

• Filters cannot be washed inside a washing machine nor dried with a hair dryer.
• Do not brush the high-efficiency filter.

Cleaning the vacuum head

The main brush spins at top speed and helps pushing the dirt into the suction inlet. This brush is in contact with the floor and therefore with the dirt, so it can wear out over time, affecting the cleaning efficiency. It is recommended to clean the vacuum head once a week (depending on use).

1. Make sure the vacuum cleaner is switched off.
2. Slide the tab on the side of the vacuum head.

3. You can then remove the brush from inside the vacuum head and clean it.

4. To avoid any damage to the brush, tangled hair should be removed.

5. You can wash the brush with lukewarm water, do not use soap or detergents. However, it is recommended to shake it or vacuum it to avoid placing it back again wet in the brush head.
6. If you decide to wash the brush, make sure it is completely dry before installing it again on the vacuum cleaner.
7. When replacing the brush, make sure it is properly installed.

5. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The vacuum cleaner does not work	The battery is exhausted.	Charge the battery.
No suction or low suction power.	The dust container is full or clogged.The dust container was not installed correctly.The filter needs to be cleaned.	Empty the dust container and clean the filter.Install the dust container properly.Clean the filter.
The vacuum cleaner does not charge	The power adapter was not plugged in correctly.	Check that the appliance is correctly positioned on the station and that the plug is properly connected.

When the filter is blocked, the HEPA indicator light will flash to remind you to clean the high efficiency filter.

When the brush is blocked, the the brush.

indicator light will flash to remind you to clean

6. TECHNICAL SPECIFICATIONS

Product: Conga Scoba 3000

Product reference: EU01_117778

Motor rated power: 200 W

Vacuum head rated power: 10 W

Charger model: TYGSDC1800500

Battery data:

14.8 V = 2500 mAh 37 Wh

Product: Conga Scoba 3000 Battery Pack

Input: 18 V, 0.5 A

Type: SF18650NR-25

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local

authorities.

Compliance with the above guidelines will help to protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

ENGLISH

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

5. PROBLEEMOPLOSSING

Product: Conga Scoba 3000

Reference: Conga Scooba 3000 Battery Pack

Vstup: 18 V, 0,5 A

Typ: SF18650NR-25

6. TEKNIK ÖZELLIKLER

Ürün: Conga Scoba 3000

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8
