Thunderbrush - Stick vacuum CECOTEC - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	Cecotec
Model	Thunderbrush
Power supply	Li-ion battery 22.2 V, 2000 mAh
Runtime	Up to 30 minutes
Charger	Power adapter 100-240 V, 50/60 Hz
Charging time	Approximately 4-5 hours
Dust container capacity	0.5 L
Filter type	Washable cyclone filter
Main functions	Vacuuming, motorized brush for hard floors and carpets, turbo mode
Noise level	75 dB
Dimensions (L x W x H)	25 x 20 x 112 cm
Weight	2.5 kg
Materials	ABS plastic, aluminum
Maintenance and cleaning	Empty the dust container after each use. Wash the filter with water every month and let it dry completely before reinstalling.
Safety	Do not immerse the appliance in water. Use only the provided charger. Turn off the appliance before cleaning.
Spare parts and repairability	Motorized brush, filter, battery, and charger available separately. Repairability index: 7/10
Included accessories	Motorized brush, crevice tool, small brush, wall mount
Warranty	2 years

Frequently Asked Questions - Thunderbrush CECOTEC

How to empty the dust container?

Press the dust container release button on the side, then remove the container. Open the lid and dispose of the dust. Close the lid and reattach the container until it clicks into place.

How to clean the filter?

Remove the filter from the appliance. Rinse it under running water without detergent. Let it dry completely for at least 24 hours before reinstalling. Do not use the filter when wet.

What is the battery runtime?

The maximum runtime is about 30 minutes in normal mode. In turbo mode, it is reduced to about 15 minutes. The battery takes 4 to 5 hours to fully recharge.

Can I use the vacuum without the filter?

No, it is essential to use the vacuum with the filter in place to protect the motor. Using without the filter may damage the appliance and void the warranty.

What if the motorized brush stops spinning?

First check if the brush is not blocked by hair or fibers. Clean the brush and remove any blockage. If the problem persists, the motorized brush may be defective and needs to be replaced.

How to charge the vacuum?

Plug the charger into the vacuum and a wall outlet. The LED indicator will show the charging status. Once the battery is full, unplug the charger. It is recommended not to leave the appliance plugged in continuously.

Can the vacuum be used on thick carpets?

Yes, the motorized brush is designed for hard floors and carpets. However, on very thick carpets, the runtime may be reduced and the vacuum may have difficulty moving. Use turbo mode if necessary.

How to clean the motorized brush?

Remove the brush from the vacuum by pressing the release button. Use a pair of scissors to cut any hair or threads wrapped around the brush. Clean it with a damp cloth and let it dry before reinstalling.

What if the indicator light flashes red?

A flashing red light may indicate a low battery, a blockage in the tube or dust container, or a clogged filter. Check these points: recharge the battery, clean the filter, and remove any obstructions.

Where can I buy spare parts?

Spare parts (brushes, filters, batteries, chargers) are available on the official Cecotec website or from authorized retailers. You can also contact customer service for the exact references.

USER MANUAL Thunderbrush CECOTEC

Aspirador vertical / Upright vacuum cleaner

cecòtec

1. Parts and components 25
2. Before use 25
3. Operation 25
4. Cleaning and maintenance 26
5. Technical specifications 27
6. Disposal of old electrical and electronic appliances 27
7. Technical support and warranty 27
8. Copyright 27

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not leave the appliance unattended while it is operating.
• Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the Technical Support Service of Cecotec or similar qualified personnel to avoid risks.
• Always place the device on a flat surface. Do not cover the device or put anything on top of it.
• Do not twist, bend, pull, or damage the power cable.
• Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the surface or worktop.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

• Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cable, to disconnect it from the outlet.

• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not use the device if it has been dropped or if there are any visible signs of damage.
• Do not use the appliance to vacuum lit matches, cigarette ends or hot ashes.
• Always unplug the device from the power supply before opening it.
• Unplug the power cable before cleaning or maintenance.
• Do not use the product to vacuum liquids.
• The appliance is not intended to be used by children under the age of 8.
• This appliance can be used by children aged 8 years old and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

INSTRUCTIONS DE SÉCURITÉ

1. Power button
2. Handle
3. Extensible metallic tube
4. Dirt tank
5. Vacuum head
6. Accessory for corners
7. Accessory for furniture
8. Wall bracket

NOTE

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• Take the appliance out of the box.
• Clean the interior and exterior of the device with a damp cloth and dry it afterwards.
• Check for any visible damage. If any is observed, contact as soon as possible the Technical Support Service of Cecotec for advice or reparation.
• Unwind the cord completely.

Product assembly

• Make sure the device is not plugged to a power supply during the assembly of the parts.
• Insert one end of the tube to the main body of the product.
• Assemble the vacuum base to the other end of the tube.

3. OPERATION

• Press the power button to turn the device on.
• Set the angle between the vacuum brush and the body by turning the handle.
• Press the On/off button to switch the device off.

Floor vacuuming

• The vacuum base has two positions:
• Hard floors
• Carpets
  Fig. 2

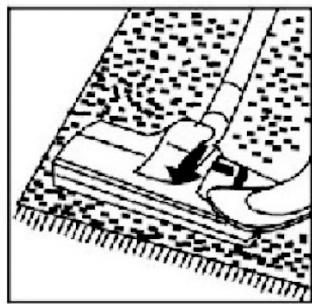

  Position 1: hard floors (extended bristles).
  Fig. 3
• Position 2: carpets (receding bristles).

ENGLISH

- Use the device as a handheld vacuum cleaner to clean sofas, armchairs, furniture, etc. To do so, simply remove the extensible metallic tube and insert any accessory directly to the main body.

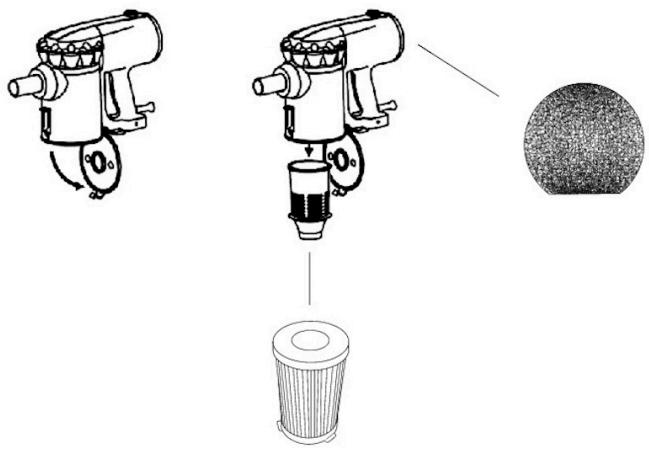

Emptying and cleaning the dust tank Fig. 4

1. Disconnect the appliance from the power supply.
2. Open the compartment on the lower part of the main body by gently pulling the "CLEAN" tab. Empty the dust tank.

Cleaning the protective filter. Remove the plastic protective filter by turning it counterclockwise.

1. Clean the protective filter with a cloth or paper, you can also wash it with warm water.

High-efficiency filter clean-up. Remove the high-efficiency filter by turning it counterclockwise and clean it with a cloth or paper. If there is stubborn dirt, you can wash it with warm water, without detergents or soap.

Note

If you clean the high-efficiency filter with water, let it dry for at least 24 hours before placing it again. To dry the filter do not expose it to direct sunlight.

1. Place the high-efficiency filter again and the plastic protective filter in their place and turn them clockwise until they are fixed.

Cleaning the motor protective filter. To remove the motor protective filter, turn the back cover counterclockwise and remove the filter.

1. To clean it, tap it gently or use a cloth or paper. Place the filter again in its place, the back cover and turn it clockwise to fix it.

4. CLEANING AND MAINTENANCE

• Do not wash any parts of the device in the washing machine or the dishwasher.
• Do not use an electric heater to dry it.
• Do not use abrasive cleaners or scouring pads to clean the device.
• Use a soft, dampened and clean cloth to clean the product's exterior housing.
• Do not let water enter the vacuum cleaner.
• Make sure the product has completely cooled down and is completely dry before storing it.
• Do not wind the cable around the product, this could damage it.
• Keep the appliance in a cool, dry place and out of reach from children.

ENGLISH

5. TECHNICAL SPECIFICATIONS

Model: ThunderBrush

Product reference: 05666

600 W, 220-240 V\~, 50/60 Hz

Made in China | Designed in Spain

Technical specifications may change without prior notification to improve product quality.

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys./Obr.2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4
