Product Type	Front-loading freestanding washing machine
Brand	Cecotec
Model	Bolero Dresscode 7110 Inverter A
Wash Capacity	7 kg
Maximum spin speed	1100 rpm
Energy class	A (depending on model)
Dimensions (W x D x H)	60 x 55 x 85 cm
Net weight	Approximately 65 kg
Power supply	220-240 V, 50 Hz
Rated power	2000 W
Motor type	Inverter (brushless)
Number of programs	15
Main programs	Cotton, Synthetics, Delicates, Wool, Quick 30 min, Rinse + Spin, Spin only
Special functions	Delayed start, Child lock, Digital display
Noise level (wash/spin)	62 dB / 76 dB (estimated)
Annual water consumption	Approximately 10000 L
Annual energy consumption	Approximately 220 kWh
Maintenance	Regular cleaning of pump filter and detergent drawer
Safety	Anti-pinch system, Overflow protection
Spare parts and repairability	Yes, available through customer service
General information	User manual available for download on the manufacturer's website

Frequently Asked Questions - Bolero Dresscode 7110 Inverter A CECOTEC

How to install the Cecotec Bolero Dresscode 7110 Inverter A washing machine?

Make sure the appliance is on a flat, stable surface. Remove the transport bolts at the back, connect the inlet and drain hoses, then plug in the power supply. Refer to the installation manual for more details.

What does the displayed error code EXX mean?

Error codes vary by model. Consult the user manual for the exact meaning. For example, E01 may indicate a drainage problem. If the code persists, contact customer service.

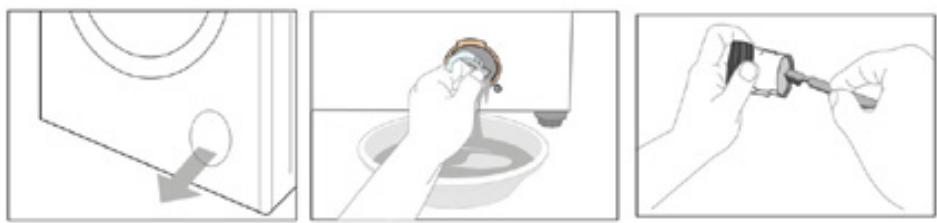

How to clean the pump filter?

Unplug the appliance. Open the lower hatch, unscrew the filter by turning counterclockwise. Clean it under running water and replace it. Check for any obstructions. Do this every 2 months.

Which program to use for cotton?

Use the Cotton program (usually at 40°C or 60°C). It is designed for resistant fabrics. If the laundry is lightly soiled, the Eco 40-60 program is recommended to save energy.

How to activate the child lock?

Press the Temperature and Spin buttons simultaneously for 3 seconds. A padlock symbol appears on the display. To deactivate, repeat the process.

Why is the machine not draining?

Check that the drain hose is not kinked or clogged. Clean the pump filter. If the problem persists, the hose or pump may be defective. Contact an authorized repairer.

What is the maximum wash capacity?

The maximum capacity is 7 kg for the Cotton program. Do not exceed this load to ensure proper washing and avoid damaging the machine.

How to run a cleaning cycle of the machine?

Start a Drum Clean or High-temperature wash program (90°C) with no laundry. Add a washing machine cleaner to the detergent drawer. Repeat every 3 months.

What to do if the machine does not turn on?

Check that the plug is properly connected and the circuit breaker has not tripped. Make sure the door is properly closed. If nothing happens, the power cable or electronic board may be faulty. Call a professional.

How to contact Cecotec customer service?

You can reach customer service by phone at [phone] (Monday-Friday, 9 am-6 pm) or via the contact form on the official Cecotec website. Have your serial number handy.

USER MANUAL Bolero Dresscode 7110 Inverter A CECOTEC

Safety instructions 11

1. Parts and components 91

2. Before use 91

3. Installation 92

4. Operation 94

5. Cleaning and maintenance 99

6. Troubleshooting 101

7. Technical specifications 104

8. Technical sheets 105

9. Disposal of old electrical

and electronic appliances 108

1. Technical support and warranty 108

2. Copyright 109

3. Simplified Declaration of Conformity 109

SOMMAIRE

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• The air openings must not be obstructed by a carpet.
• Children under 3 years old must stay away from the washing machine, unless they are constantly supervised.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the device. Cleaning and maintenance should not be carried out by children without supervision.
• Children should be supervised to make sure that they do not play with the device.
• Use the hose set supplied with the appliance. Do not reuse old hoses.
• The washing machine must be installed so that there is a distance of at least 200 mm between the outer casing of the appliance and external heat sources, such as appliances with heating elements.
• Ensure the mains voltage matches the voltage specified on the appliance's rating label and that the socket is properly earthed.

• If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified persons, to avoid any hazard.

• This appliance is for indoor use only.

• Make sure the device is installed in places where the temperature is above 0 °C.
• The appliance is not designed for built-in installation.
• Before carrying out any maintenance in the appliance, unplug the appliance from the mains.
• As a safety measure, we advise you to unplug the appliance and cut the water supply after every use.
• Never unplug the appliance with wet hands.
• Unplug the power cable before cleaning or repairing the appliance.
• For safety reasons, the appliance must be properly earthed.
• Water channelling and electrical devices must be connected by a qualified technician in accordance with the local and national safety regulations specified by the manufacturer.
• The door may reach high temperatures during operation. Keep children and pets away from the glass door.
• Do not use the device in rooms where moisture, explosives, or caustic gases are present.
• If the room where the washing machine is located has any type of device that generates fumes from the burning of fuels, make sure that there is proper ventilation, as the accumulation of these fumes may cause a fire hazard.
• Do not wash items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers.
• We do not recommend washing foam rubber products, shower caps, waterproof garments, items or garments lined with rubber, or pillows with foam rubber padding.
• Detergents, fabric softeners, and other additives should be used as specified by the product manufacturer.
• Do not wash articles that have been cleaned in, washed in, soaked in, or stained with flammable or explosive

substances, like wax, oil, paint, petrol, degreasers, dry-cleaning solvents, kerosene, etc., which may result in fire or explosion.

• When washing fabrics that contain vegetable or cooking oil or have been contaminated by haircare products, they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• The plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the device.
• The appliance shall not be installed in a humid place.
• The product is designed for machine-washable laundry only.
• Do not stand or sit on the appliance.
• Do not lean against appliance door.
• Flammable and explosive or toxic solvents are forbidden. Do not use detergents containing petrol, alcohol, etc. Only use detergents suitable for machine washing, especially those which are dosed directly in the drum.
• Do not stop the device before ending the washing cycle. In any case, if this should happen, remove the garments with caution, as they may reach high temperatures.
• Once the washing cycle has finished, we recommend removing the laundry as soon as possible to prevent creases.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.
• Cecotec shall not be held liable for any damage, accident, or incident resulting from the misuse of this appliance. It is the responsibility of the user to operate and

maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.

- We are constantly working on the development and improvement of our appliance models and ranges. Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and ranges without prior notice.

Cautions during the handling of the appliance

• If you wish to change the location of the washing machine, make sure you re-install the transport bolts, as they will prevent damage to the appliance during transport.
• Water accumulated inside the appliance must be drained out.
• Handle the machine carefully. Do not lift the appliance by its protruding parts. Do not use the door of the device as a handle during transport.
• The device is heavy. Transport it with care.
• Secure the drain and water-supply hose correctly.
• Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are put in or distributed well.
• Do not use to wash carpets.
• Never pour water manually during washing.

INSTRUCTIONS DE SÉCURITÉ

https://eprel.ec.europa.eu/screen/product/washingmachines2019

1. Detergent and fabric softener drawer
2. Door glass
3. Door
4. Drain pump cover
5. Drain pump filter
6. Top cover
7. Control panel
8. Body
9. Door seal
10. Drain hose
11. Adjustable feet
12. Transit bolts
13. Rear cover
14. Water supply valve
15. Power cable

Note: Remove the filter from the drain pump to drain the water if the washing machine will not be used for a long time.

NOTE:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To improve quality, our products are constantly updated and their appearance and specifications may change.
• Accessories may vary depending on the washing machine model.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them

are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Washing machine
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

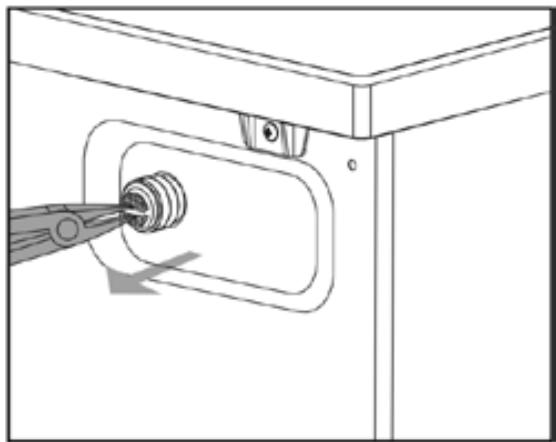

Removing the transport bolts

• IMPORTANT: Remove all 4 transport bolts located at the rear of the washing machine. You can see the location of the transport bolts in Figure 2. Use the necessary tools.
• Then, cover the holes with the caps provided.

Notes:

• If the transport bolts are not removed when the appliance is in operation, vibrations, loud noises or even malfunctions may occur.
• Keep the bolts in case you need to transport the washer in the future.

Fig. 2 key:

1. Transit bolts

Installation requirements

• Concrete floor is the most suitable installation surface for the washing machine, as it is much less prone to vibrations during spinning than wooden floorboards or carpeted surfaces.
• Make sure the appliance is correctly levelled and positioned. The distance between the washing machine and the wall must be more than 10 cm.
• To avoid vibrations during spinning, do not place the machine on a floor that is not strong enough.
• The washing machine must be perfectly level on its four feet to ensure safe and proper operation. If the washing machine is not positioned correctly, it may shift. In addition, vibrations and loud noises may also occur. Fig. 3

• To level the washing machine:

• Turn the locknuts clockwise using a spanner.

• Position the feet at the desired height. Tighten the locknuts again to secure them.

Note: Loosen and tighten the locknuts with a 17 mm and 5 mm spanner.

Fig. 3 key:

1. Locknut
2. Adjustable foot
3. Spanner
4. Loosen
5. Lock
6. High
7. Low

Connecting the drain hose

You can install the drain hose in two different ways:

1. Straight into the sink

Fig. 4

• If the water tap has not been used before, check it for any plugs; if there are any, remove them.
• Insert the drain hose into the tap and secure it with a hose clamp if necessary.
• Make sure that a bend is formed in the drain hose to prevent debris from the sink from entering the washing machine.
• If required, the drain hose can be extended to a length of up to 4 m.

Fig. 4 key:

1.- Bend

2. To a vertical pipe

Fig. 5.

• First, bend the end of the drain hose using a U-shaped piece.
• Next, attach the drain hose to the standpipe (which should have an internal diameter of approximately 30 mm) making sure that there is some space between the hose and both internal walls of the pipe.
• If you choose this connection method, make sure that the top of the pipe is no higher than 90 cm above the floor and no lower than 60 cm.

Fig. 5 key:

1.- U-shaped piece (supplied depending on the washing machine model).

Connecting the water supply hose

Fig. 6.

• Select the right tap and make sure that the outlet is flat.
• Connect the water supply hose provided to a 34 threaded tap.
• Only use a hose that is completely new.
• If there is a valve on the back of the washing machine, it must be connected to a cold water supply. Fig. 7

Fig. 7 key:

1. Cold water inlet valve
2. Cold water inlet hose with white nut

4. OPERATION

4.1 Control panel

Fig. 8

1. Programmes
2. Display.
3. Icons

Display

The display shows the current configuration, available options and relevant information.

90 - 20	Temperature	Indicates the washing temperature
8 h - 2 h	Delay Start	Indicates the time of the delay end function
	Locked door	Indicates that the door is locked, so you cannot open it
	Child Lock	Indicates that the child lock is active
	Washing phase	Indicates that washing is in progress
	Rinsing phase	Indicates that rinsing is in progress
	Spin and drain phase	Indicates that spin and drain are running

Icons

	Temperature	Press this icon repeatedly to change the washing temperature.
	Delay Start	Press this icon repeatedly to select the delay start time.
	Start/Stop	Press to start or pause the washing cycle. If you need to add any items during the washing cycle, press and hold this icon for 3 seconds. If the water level at that moment is too high, a draining process will be executed. If the water temperature is too high, you will not be able to add any additional garments.
	Child Lock	When the machine is running, press and hold the Temperature and Delay start icons at the same time for 3 seconds. At this point, the Child lock function will be activated and the corresponding indicator light will light up. To deactivate this function, press and hold the Temperature and Delay start icons for 3 seconds. When the Child lock function is activated, you can only switch off/on the washing machine. All other icons shall be disabled.

Note: For your safety, do not switch off the washing machine or take out the laundry while it is in operation, as the water temperature may be high. The door lock will be automatically deactivated when the washing cycle has finished and the drum has cooled down.

Programmes

Programme	Max. load (kg)		Length (H:min)		Max. temp. (°C)	Max. spin (rpm)	Washing symbol
	EU01_ 122326	EU01_ 122327	EU01_ 122326	EU01_ 122327
Mix	5	5	0:59	0:59	60	800	Cold / 20°C / 40°C/ 60°C
Eco 40-60	6	7	3:18	3:28	--	1200	40°C / 60°C
Cotton	6	7	0:58	0:58	20	800	20 °C
Express 30'	3	3	0:30	0:30	--	800	-
Express 15'	2	2	0:15	0:15	--	800	-
Drum Clean	0	0	1:12	1:12	90	600	60°C / 90°C
Synthetics	3.5	3.5	1:12	1:12	60	800	Cold / 20°C / 40°C/ 60°C
Delicate	2	2	0:59	0:59	40	600	Cold / 20°C / 40°C
Steam Wash	3	3	2:11	2:11	90	800	90°C
Rinse & Spin	--	--	0:16	0:13	--	1000	-
Spin	--	--	0:11	0:08	--	1200	-

The Eco 40-60 programme can wash cotton laundry with normal soiling declared washable at 40^ or 60^ , together in the same cycle, and this programme is used to assess compliance with EU eco-design legislation;

• The most energy-efficient programmes are generally those that operate at lower temperatures and for longer durations;
• Noise and remaining moisture content are influenced by the spin speed: the higher the spin speed in the spin phase, the higher the noise and the lower the remaining moisture content;
• The values given for programmes other than the Eco 40-60 programme and the washing and drying cycle are only indicative.

The noise of the washing machine and the humidity level of the laundry depend on the spin speed: the higher the spin speed, the higher the noise and the lower the humidity level.

IMPORTANT: To improve product quality, the technical specifications in the above table are subject to change without prior notice.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and use of the washing machine.

Programme	Type of washing and recommendations
Mix	For lightly soiled or normally soiled clothes made of cotton, linen, man-made fibres or a mixture of these fabrics.Do not mix clothes of different colours.
Eco 40-60	For cotton clothes with normal soiling level. This is the most convenient programme in terms of combined water and energy consumption.
Cotton	For garments made of cotton, linen or other cotton blend fabrics.
Express 30'	For freshening a small number of items that do not require a thorough wash and are suitable for the Cotton 20 °C programme.
Express 15'	For freshening a small number of items that do not require a thorough wash and are suitable for the Cotton 20 °C programme.
Drum Clean	This programme is used to clean the drum. Do not put clothes in the washing machine while this programme is in operation.
Synthetics	For synthetic or blended fabrics, underwear, coloured garments, non-shrink T-shirts.
Delicate	For clothing made of delicate fabrics (e.g. silk).
Steam Wash	For cotton garments, underwear, sheets, pillows and children's clothing.
Rinse & Spin	This is a programme suitable for rinsing garments. Do not add detergent.
Spin	Spin programme especially suitable for cotton and linen.

4.2 Operation

- Before first use, you should perform a complete washing cycle without laundry. Do the following:

1. Connect the washing machine to the mains and turn on the tap.
2. Then, choose the Cotton programme.
3. Press the Start/Pause icon.
4. This process removes any remaining water from the factory check.

Steps prior to washing

• Make sure that the water supply hose is connected and turn on the tap.

• After making sure that the socket is properly grounded, insert the plug.

• Make sure that the drain hose is correctly positioned.

• Separate the laundry according to the colour and the information on the care label. Most garments have a textile care label on the collar or on a side seam.
• Dark fabrics often contain excess dye and should be washed separately several times before mixing with other garments. Always wash whites and colours separately.
• Make sure that all pockets are empty. Foreign objects (coins, paper clips, etc.) can damage the laundry and the washing machine components.
• Close the zips and fasten the hooks before running a washing programme.
• Heavily soiled areas, stains, etc. should be pre-treated with liquid detergent, stain remover, etc.
• Turn clothes that clump easily or contain wool inside out before putting them in the washing machine.
• Load the laundry into the drum without squeezing it.
• Mixing large and small items provides better washing results and also helps to distribute the load evenly during spinning.
• To make the most efficient use of energy and water, fill the washing machine completely before starting it. However, do not overload it, as this will cause creases in the garments and reduce cleaning efficiency.

Note: Make sure that no clothes are trapped between the door and the gasket.

Detergent and fabric softener drawer Fig. 9

1. Open the drawer and add detergent into the washing compartment marked with the symbol ☐ or ☐.
2. Add fabric softener in the compartment marked with the symbol 📄 or 🌐. Do not exceed the maximum filling level.
3. Close the drawer.

The amount of detergent to be added depends on the following:

• The amount of clothing.
• Soiling level.

Light soiling level: There are no visible stains. The garments may give off a slight odour.
o Normal soiling level: There are some visible stains.
o High soiling level: There are many visible stains and some of them are dry.

- Water hardness level.

Note:

• It is recommended to use a detergent that does not produce too much foam.
• Follow the detergent and fabric softener manufacturer's recommendations.

Fig. 9 key:

1. Main detergent compartment
2. Fabric softener compartment
3. Prewash compartment

Steps for washing

1. Once you have put the laundry in the washing machine and added the required amount of detergent and softener, press the Start/Pause icon to start the washing machine.
2. The appliance will beep at the end of the washing cycle.

Notes:

• After the washing cycle is finished, the machine will enter standby mode. If you switch on the appliance and 10 minutes pass without selecting any programme, it will switch off.
• This washing machine is equipped with a balance control system, which ensures its stability during spinning. To protect the appliance, the spinning process will be interrupted if the laundry is not evenly distributed in the drum. The wash is redistributed by the reverse rotation of the drum. This may occur several times before the load is balanced and normal rotation can resume. If the laundry is still not evenly distributed in the drum after about 20 minutes, the machine will not spin. In this case, redistribute the load manually and reselect the spin programme.

Door lock system

The door lock system will be activated in the following cases:

• When the washing machine is started. At the end of the washing cycle, the door will unlock.
• When the temperature inside the drum is higher than 60 °C.
• When the water exceeds a certain level.

Caution: Do not attempt to open the door if the washing cycle has not finished yet or if the power supply has been cut off in the middle of the process; doing so may result in burns.

5. CLEANING AND MAINTENANCE

• Disconnect the washing machine from the mains before cleaning.
• Do not clean the washing machine with a hose.

Cleaning the exterior

Clean the outside of the washing machine with a mild (non-abrasive) cleaning product or simply with soap and water. Afterwards, be sure to dry it well with a cloth.

Note: Do not use solvents, abrasive cleaning agents, glass cleaners or multi-purpose cleaning products. These could damage plastic surfaces and other components due to the chemicals they contain.

Drum cleaning

Clean the drum every 3 months using the Drum Clean programme.

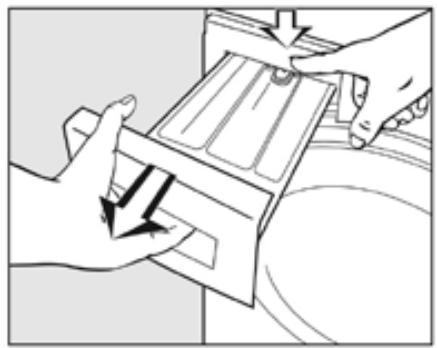

Cleaning the detergent drawer

Fig. 10

Remove detergent residues regularly. Clean the detergent drawer by following these steps:

• Pull out the detergent drawer until you feel resistance. Then, press down on the unlocking latch and, at the same time, pull out the detergent drawer.
• Remove the siphon from the compartment and clean it.
• Clean the rest of the detergent drawer with a brush and warm water.

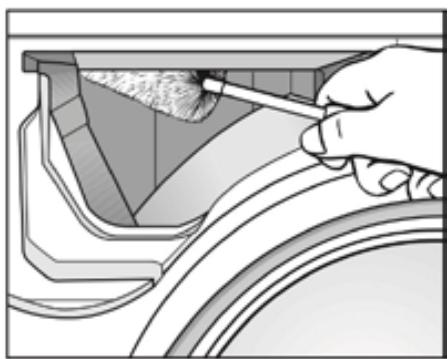

Cleaning the housing of the detergent drawer

Fig. 11

Use an elongated brush to remove detergent residues from the inside of the housing.

Cleaning the water supply hose mesh filter

Fig. 12

Use needle-nose pliers to remove the plastic filter. Clean the filter and replace it. Such filters should be checked approximately every 6 months, or more often if there are frequent interruptions to the water supply.

Note: The filter must be put back in place after cleaning.

Cleaning the drain pump filter

Fig. 13

1. Disconnect the washing machine from the mains and open the bottom cover with a screwdriver.
2. Place a container or bowl under the pump. Unscrew and remove the filter.
3. Clean the filter carefully.

Caution:

If the washing machine is exposed to temperatures below 0 °C , certain precautions must be taken.

The filter should be cleaned every 2 months or when the error ⚙ ⚙ ⚙ ● appears on the display.

6. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Problem	Error code	Possible causes	Solution
The washing machine does not fill with water	○●●●	The tap is not open.	Open the tap.
		The water supply hose is not positioned correctly.	Position the water supply hose correctly.
		The water supply valve is damaged.	The water supply valve must be replaced, to do so contact the official Cecotec Technical Support Service.
The appliance beeps	●○●●	The door is not properly closed.	Close the door correctly.
		Clothes have been caught between the gasket and the door.	Insert the laundry that has been trapped in the drum into the washing machine.
		Door lock is damaged.	The door lock must be replaced, to do so contact the official Cecotec Technical Support Service.
The washing machine does not drain properly	○○●●	Drain hose is kinked or crushed.	Check the drain hose.
		The drain pump filter is blocked.	Clean the filter.
		Drain system hoses are clogged.	Check the drain system and clean it.
The water level in the washing machine is too high. The water sensor is not working properly.	●●○●	The water supply valve is damaged.	The water supply valve must be replaced, to do so contact the official Cecotec Technical Support Service.
		The water sensor is not properly connected.	Check that the water sensor is correctly connected.
		The water sensor is damaged.	The water sensor must be replaced, to do so contact the official Cecotec Technical Support Service.
The motor does not operate	○●○●	Motor connections are not correct.	Check that the motor connections are correct.
		The overheating protection has been activated.	Check whether an overload has occurred. Switch off the washing machine and switch it on again when the motor has cooled down.
		The motor is damaged.	The motor must be replaced, to do so contact the official Cecotec Technical Support Service.
There is a fault in the heater.	●○○●	Heater connections are not correct.	Check that the heater connections are correct.
		The heater is damaged.	The heater must be replaced, to do so contact the official Cecotec Technical Support Service.

Fault in the temperature sensor.	○○○●	The temperature sensor is not properly connected.	Check that the temperature sensor connections are correct.
		The temperature sensor is damaged.	The temperature sensor must be replaced, to do so contact the official Cecotec Technical Support Service.
The tension is not adequate.	●●●○	The mains voltage is too high or too low.	When the voltage is correct, restart the washing machine.
A communication error has occurred	○●●○	The communication signal is faulty.	Check the communication signal and wiring terminals for damage.
Frequency converter failure.	●○●○	The frequency converter circuit is damaged.	Check the wiring terminals of the frequency converter for damage.
		The frequency converter is damaged.	Replace the frequency converter.

● ◦ ● ◦ Indicator light off
● ◦ ● ◦ Indicator light flashing

Note:

If none of these situations match your problem, do not attempt to disassemble or repair the washing machine yourself. Repairs carried out by unqualified people may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. Repairs must be carried out by an authorised technician using only original spare parts.

Some of these instructions are intended for qualified technicians; do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by incorrect repair voids the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

7. TECHNICAL SPECIFICATIONS

Reference	EU01_122326	EU01_122327
Model	Bolero DressCode 6110 Inverter Max	Bolero DressCode 7110 Inverter
QR code
Washing capacity	6 kg	7 kg
Rated voltage	220 - 240 V~	220 - 240 V~
Rated frequency	50 Hz	50 Hz
Rated power	1600 W	1600 W
Standard water pressure	0.02 MPa - 0.80 MPa	0.02 MPa - 0.80 MPa
Net weight	50 kg	50 kg
Protection rating	IPX4	IPX4
Energy Efficiency Class*	A	A

(*) Energy Efficiency Class ranging from "A" (most efficient) to "G" (least efficient)

Information related to energy efficiency can be found in the European Commission's public database EPREL:

1. Open the EPREL database homepage

https://eprel.ec.europa.eu/screen/product/washingmachines2019

1. Search by model reference.

You can find more information on this model and access its database by scanning the QR code (also found on the energy label).

IMPORTANT: Technical specifications may change without prior notice to improve product quality.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance

with the relevant regulations. These values may vary depending on the environmental conditions and use of the washing machine.

ATTENTION: These data is subject to regulatory changes.

Made in China | Designed in Spain

8. TECHNICAL SHEETS

EU01_122326 Bolero DressCode 6110 Inverter Max
SETTING	UNIT	VALUE
Rated capacity for washing cycle, in 0.5 kg(c) intervals	kg	6
Power consumption for ECO programme 40-60 at rated capacity ( E_W,full )	kWh/cycle	0.600
Power consumption for ECO programme 40-60 at half capacity ( E_W,1/2 )	kWh/cycle	0.300
Power consumption for ECO programme 40-60 at one-quarter of rated capacity ( E_W,1/4 )	kWh/cycle	0.220
Weighted energy consumption of ECO 40-60 programme ( E_W )	kWh/cycle	0.417
Standard energy consumption of the ECO 40-60 programme ( SCE_W )	kWh/cycle
Energy efficiency index of the washing cycle ( EEI_W )	—	51.5
Water consumption of ECO programme 40-60 at rated capacity ( W_W,full )	L/cycle	42.0
Water consumption of ECO 40-60 programme at half of rated capacity ( W_W,1/2 )	L/cycle	32,0
Water consumption of ECO 40-60 programme at one quarter of the rated capacity ( W_W,1/4 )	L/cycle	28.0
Washing cycle weighted water consumption ( W_W )	L/cycle	36
Washing efficiency rating of ECO 40-60 programme at rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO 40-60 programme at half rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO programme 40-60 at one quarter of the rated capacity ( I_W )	—	1.031
Rinsing efficiency of ECO 40-60 programme at rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at half the rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at one quarter of the rated capacity ( I_R )	g/kg	5.0
ECO 40-60 programme duration at rated capacity ( t_W )	(h:min)	3:18
ECO 40-60 programme duration at half rated capacity ( t_W )	(h:min)	2:36
ECO 40-60 programme duration at one quarter of nominal capacity ( t_W )	(h:min)	2:36
Temperature reached for at least 5 min within the load during ECO 40-60 programme at rated capacity (T)	°C	33
Temperature reached for at least 5 min inside the load during ECO 40-60 programme at half rated capacity (T)	°C	26
Temperature reached for at least 5 min within the load during ECO 40-60 programme at one quarter of the rated capacity (T)	°C	22
Spin speed in the spin phase of the ECO 40-60 programme at rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at half rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at one quarter of the nominal capacity (S)	RPM	1200
Weighted residual moisture content after washing (D)	%	53.9
Airborne acoustic noise emissions during ECO 40-60 programme (spin phase)	dB(A) re 1 Pw	72
Power consumption in off mode ( P_o ) (if applicable)	W	0.50
Standby mode power consumption ( P_sm ) (if applicable)	W	0.50
Is information displayed in standby mode?	—
Standby mode power consumption ( P_sm ) in mains standby conditions (if applicable)	W	0.50
Power consumption in Delay start ( P_ds ) (if applicable)	W	4.00

EU01_122327 Bolero DressCode 7110 Inverter
SETTING	UNIT	VALUE
Rated capacity for washing cycle, in 0.5 kg(c) intervals	kg	7
Power consumption for ECO 40-60 programme at rated capacity ( E_W,full )	kWh/cycle	0.780
Power consumption for ECO 40-60 programme at half capacity ( E_W,1/2 )	kWh/cycle	0.280
Power consumption for ECO programme 40-60 at one-quarter of rated capacity ( E_W,1/4 )	kWh/cycle	0.140
Weighted energy consumption of ECO 40-60 programme ( E_W )	kWh/cycle	0.447
Standard energy consumption of the ECO 40-60 programme ( SCE_W )	kWh/cycle	0.862
Energy efficiency index of the washing cycle ( EEI_W )	—	51.9
Water consumption of ECO programme 40-60 at rated capacity ( W_W,full )	L/cycle	45.0
Water consumption of ECO 40-60 programme at half of rated capacity ( W_W,1/2 )	L/cycle	36.0
Water consumption of ECO 40-60 programme at one quarter of the rated capacity ( W_W,1/4 )	L/cycle	31.0
Washing cycle weighted water consumption ( W_W )	L/cycle	38
Washing efficiency rating of ECO 40-60 programme at rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO 40-60 programme at half rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO programme 40-60 at one quarter of the rated capacity ( I_W )	—	1.031
Rinsing efficiency of ECO 40-60 programme at rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at half the rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at one quarter of the rated capacity ( I_R )	g/kg	5.0
ECO 40-60 programme duration at rated capacity ( t_W )	(h:min)	3:28
ECO 40-60 programme duration at half rated capacity ( t_W )	(h:min)	2:42
ECO 40-60 programme duration at one quarter of nominal capacity ( t_W )	(h:min)	2:42
Temperature reached for at least 5 min within the load during ECO 40-60 programme at rated capacity (T)	°C	40
Temperature reached for at least 5 min inside the load during ECO 40-60 programme at half rated capacity (T)	°C	27
Temperature reached for at least 5 min within the load during ECO 40-60 programme at one quarter of the rated capacity (T)	°C	24
Spin speed in the spin phase of the ECO 40-60 programme at rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at half rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at one quarter of the nominal capacity (S)	RPM	1200
Weighted residual moisture content after washing (D)	%	53.9
Airborne acoustic noise emissions during ECO 40-60 programme (spin phase)	dB(A) re 1 Pw
Power consumption in off mode ( P_o ) (if applicable)	W	0.50
Standby mode power consumption ( P_sm ) (if applicable)	W	0.50
Is information displayed in standby mode?	—
Standby mode power consumption ( P_sm ) in mains standby conditions (if applicable)	W	-
Power consumption in Delay start ( P_ds ) (if applicable)	W	4.00

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

12. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

https://eprel.ec.europa.eu/screen/product/washingmachines2019

6. PROBLEEMOPLOSSING

https://eprel.ec.europa.eu/screen/product/washingmachines2019

https://eprel.ec.europa.eu/screen/product/washingmachines2019

https://eprel.ec.europa.eu/screen/product/washingmachines2019

https://eprel.ec.europa.eu/screen/product/washingmachines2.19

es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

www.cecotec.es
