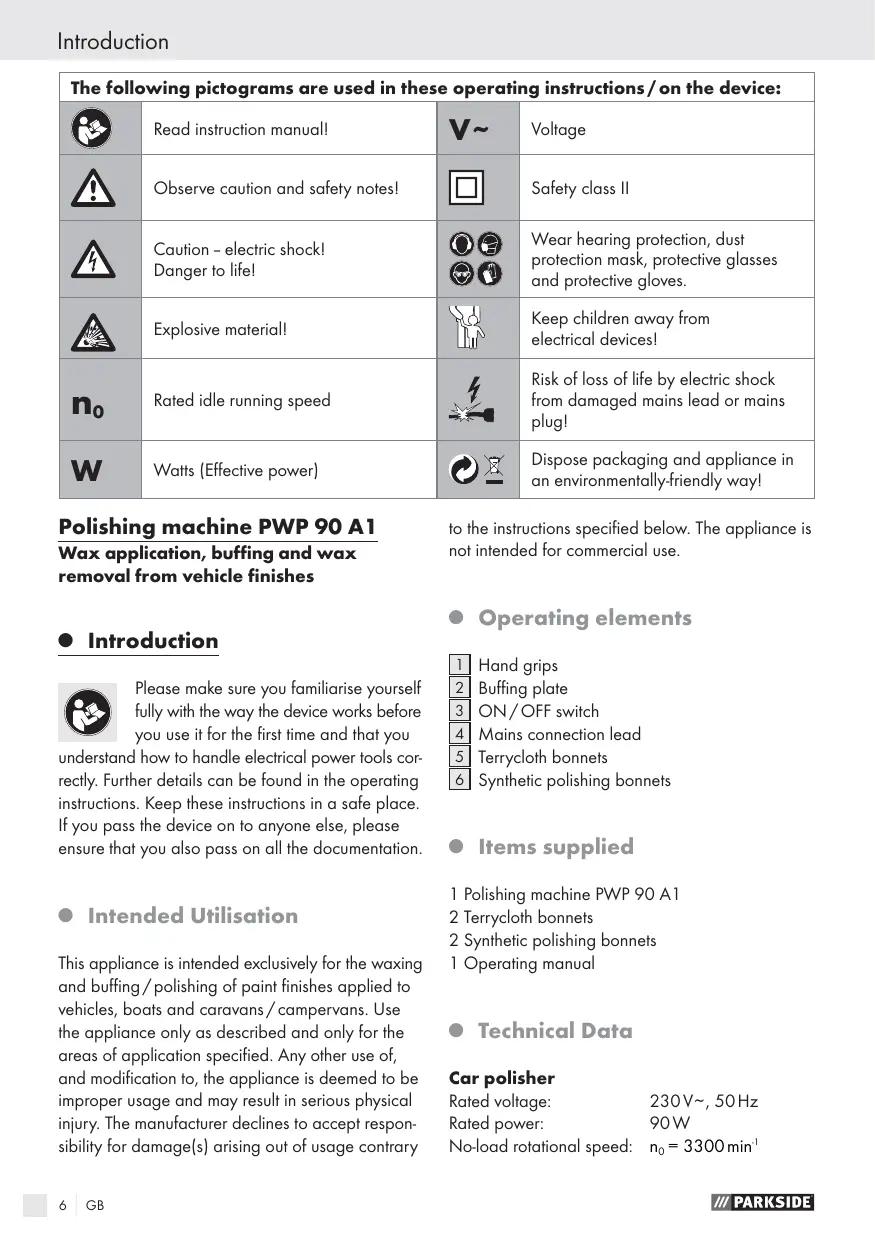

Introduction The following pictograms are used in these operating instructions / on the devic Read instruction manuall

Voltage Observe caution and safety notes!

O Safety class Il Caution - electric shock! Danger to life!

Wear hearing protection, dust protection mask, protective glasses and protective gloves. Explosive material! Keep children away from electrical devices! Rated idle running speed An Ris of os o fe by cleci shock from damaged mains lead or mains plug!

Watis (Effective power] Dispose packaging and appliance in an environmentallÿ-friendly way! (PE Polishing machine PWP 90 A1 Wax application, Buffing and wax removal from vehicle finishes © Introduction Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you understand how to handle electrical power tools cor- recily. Further details can be found in the operating instructions. Keep these instructions in a safe place. IF you pass the device on to anyone else, please ensure that you also pass on all the documentation. © Intended Utilisation This appliance is intended exclusively for the waxing and buffing / polishing of paint finishes applied to vehicles, boats and caravans / campervans. Use the appliance only as described and only for the areas of application specified. Any other use of, and modification to, the appliance is deemed to be improper usage and may result in serious physical injury. The manufacturer declines to accept respon- sibility for damage(s) arising out of usage contrary to the instructions specified below. The appliance is not intended for commercial use. © Operating elements [1] Hand grips Buffing plate ON/OFF switch Mains connection lead Terrycloth bonnets [6] Synthetic polishing bonnets © Items supplied 1 Polishing machine PWP 90 A1 2 Terrycloth bonnets 2 Synthetic polishing bonnets 1 Operating manual © Technical Data Car polisher Rated voltage: 230V-, 50Hz Rated power: 90Ww No-load rotational speed: n5= 3300 min' 1 PARKSIDE

Introduction / General safety advice for electrical power tools Polishing disc: 2 250mm Protection class: O Noise and vibration data: Measured values for noise are determined in ac- cordance with EN 60745. The Aweighted noise level of the electrical power tool are typically: Sound pressure level: 60 dB{A) Sound power level: 71 dB(A) Uncertainty K: 3dB © Wear ear protection! Evaluated acceleration, typical: Hand / arm vibration ay = 2,6 m/s Uncertainty K = 1,5m/s° FN LEZ he vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN 60745 and can be used to compare devices. Different uses of the device give rise to different vibra- tion levels and in many cases they may exceed the values given in these instructions. lt is easy to under- estimate the vibration load if the electrical power tool is used regularly in particular circumstances. Note: If you wish to make an accurate assessment ofthe vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working

FN LAINE Read all the safety advice and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury. General safety advice for electrical power tools Keep all the safety advice and instructions in a safe place for future reference! 71 PARKSIDE The term “electrical tool” used in the safety advice refers to electrical tools powered by mains electrici- ty (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

a) Keep your working area clean and well lit, Untidy or poorly lit working areas can lead to accidents b) Do not work with the devi ÀA in potentially explosive envi- ronments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes. cd Ka Keep children and other in people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the device must match the mains socket. The plug must not be mod in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock. Avoid touching earthed surfaces such as pipes, radiators, ovens and refrig- erators with any part of your body. There is an increased risk of electric shock if your bodÿ is earthed. Keep the device away from rain or moisture. Waïer entering an electrical device increases the risk of electric shock. d) n Do not use the mains lead for Le 9Y purpose for whichit was Lx not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat,

General safety advice for electrical power tools

oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock. When working outdoors with an elec- trical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock. Use a residual current device (RCD) for protection if operating the electri- cal power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock. Personal safety Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead lo serious injury. © Wear personal protective equipment and always wear OO :cfety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of elec- frical power tool used and work undertaken, reduces the risk of injury. Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it. Accidents can happen if you carry the device with your finger on the ON/OFF switch or with the device switched on. Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury. Avoid placing your body in an unnat- ural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.

Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your haïr, clothing and gloves clear of mov- ing parts. Loose clothing, jewellery or long hair can become trapped in moving parts. If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust. Careful handling and use of electrical power tools Do not overload the device. Always use an electrical power tool that is intended for the task you are under- taking. By using the right electrical power tool for the job you will work more safely and achieve a better result. Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired. Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device. When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar With it or has not read the instructions and advice. Electrical power tools are dan- gerous when they are used by inexperienced people. Look after the device carefully. Check that moving parts are working prop- erly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have dam- aged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools: 1 PARKSIDE

General safety advice for electrical power tools / Operation Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cuting edges are less likely to jam and are easier to control. Use the electrical power tool, accesso- ries, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this par- ticular type of device. In doing this, take into account the working conditions and the task in hand, The use of electrical power tools for purposes other than those in- tended can lead to dangerous situations. VAN Safety advice for car polisher Avoiding the danger of injury, fire and damage to your health: Always pull the plug out of the mains socket before cleaning or maintaining the device. Ensure that the bonnet is well secured to the buffing plate. Do not touch any rotating parts! Before switching on check to ensure that the buffing plate is not blocked and can start up without problem. Check to ensure that the bonnet and the buffing plate are complete and undamaged. Immedi. ately exchange torn or damaged bonnets / buffing plates. Wait until the polishing disc is flat on the surface to be polished before switching on ihe waxer / polisher. Do not use any abrasives; these can destroy the paint finish. Original ancillaries / accessories Use only the andillaries and accessories that are detailed in the operating il structions. The use of parts other than those recommended in the operating instructions, or other accessories, can put you at risk of injury. 71 PARKSIDE © Understood everything? = When you have become familiar with these general safety instruction for electrical appli- ances, and, with the help of the appropriate operating instructions, know all about the func- fions and handling of your electrical appliance, then you can start working with it. You will work at your safest only with careful attention to all of the declarations and instructions of the manufacture. © Operation © Placing the bonnet on the buffing plate

1. Turn the car polisher over so that the polishing

centrally and taughily onto the buffing plate. © Applying wax/polish With the terry bonnet

1. Always use high quality products for waxing.

n Follow the working methods given on the packaging.

2. Apply the wax/polish direcily on the working

surface of the terry bonne n Spread the wax/polish so that it forms a thin, even, complete coating over the terry bonnet Note: Too much wax does not necessarily achieve a better finish and you will have to spent more time later removing the coating.

3. Spread the wax evenly right up to the edge of

the terry bonnel © Switching on the device and waxing/polishing the paintwork Note: The paintwork to be polished must be care- fully cleaned and completely dry. lf necessary, use a paintwork cleaner. Use products that are appro- GB 9

Operation / Cleaning and Maintenance / Service centre / Warranty priate for the demands on and condition of your paintwork. Heavily oxidised paintwork will require the use of a special cleaner. For this use a combined product [cleaner + wax)

1. Place the car polisher on the surface to be pol-

ished. Note: To avoid the splattering of wax or polish, do not switch the appliance on yet. Dab the appliance a few times at various points on the area to be buffed. In this way you can ensure that excess wax/ polish is once more distributed evenly over the terrycloth bonnet and the area to be buffed.

2. Take both appliance grips [1] firmly in your

hands and switch the appliance on by pressing the ON / OFF switch [3 ]{see also Fig. BJ.

3. Guide the waxer/polisher evenly over the

paintwork [see Fig. C). Note: Do not press on the waxer /polisher! The selfweight of the car polisher alone applies sufficient pressure for the waxing / pol- ishing process.

4. Switch the appliance off before you remove it

from the area being buffed. To do this, release the ON/ OFF switch Any difficult to reach comers or recesses may have to be completed later by hand. Take the terry bonnet | 5 | off the car polisher and use the bonnet for the corners and recesses. © Polishing or removing wax with the synthetic polishing bonnet Note: The wax/polish must be allowed to dry on sufficiently to produce the best polishing performance Otherwise any polish that is still fluid will be smeared by the polishing bonnet. Use the synthetic polishing bonnet [6] for final polishing or removing the wax. When working, always follow the instructions for use of the wax/polish 10 GB © Cleaning and Maintenance DANGER OF INJURY! Switch the device off and pull the plug out ofthe mains socket before carrying out any work on the device. CAUTION! Ensure that no fluids can permeate into the appliance, this could lead to the destruction of the product. The appliance is maintenance-ree Use a slighily moist cloth to clean the housing, if necessary with a mild detergent. When cleaning the housing, under no circum- stances should you use strong detergents, solvents or abrasives. Clean the bonnet by washing by hand in soapy water. © Service centre paired only by qualified specialist personnel using original manufactur- er parts only. This will ensure that your de- vice remains safe to use. = EN CZ the plug or mains lead needs to be replaced, always have the replacement carried out by the manu- facturer or its service centre. This will en- sure that your device remains safe to use. © Warranty The warranty for this appliance is for 3 years from the date of purchase. The ap- pliance has been manufactured with care and meticulously examined before deliv- ery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this Way can a post-free despatch for your goods be assured. 1 PARKSIDE

Warranty / Disposal / Declaration of Conformity / Manufacturer The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or for damage to fragile compo- nents, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and im- proper handling, use of force and internal tamper- ing not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, wo days after the purchase date. Repairs made after the expiration ofthe warranty period are subject to payment.

In accordance with European Directive 2002/96/EC {covering waste electrical and electronic equipment] and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling The packaging is wholly composed of environmentally-riendly materials that can be disposed of at a local recycling centre. Do not dispose of electrical power tools with the household rubbish! Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices. 71 PARKSIDE © Declaration of Conformity / Manufacturer CE We, KompernaB GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives: Machinery Directive (2006/42/EC) EU Low Voltage Directive (2006/95/EC) Electromagnetic Compatibility (2004 /108/EC) Applicable harmonized standards EN 55014-1:2006 EN 55014-2:1997+A1+A2 Polishing machine PWP 90 A1 Date of manufacture (DOM): 11-2010 Serial number: IAN 58811 Bochum, 30.11.2010 Hoyss Hans KompernaB - Managing Director - We reserve the right to make technical modifica- tions in the course of further development. GB 11
