| Product Type | Pendulum Jigsaw |
| Brand | PARKSIDE |
| Model | PSTK 730 A1 |
| Rated Voltage | 230 V ~ 50 Hz |
| Power Consumption | 730 W |
| No-Load Speed | 600 - 2900 min⁻¹ |
| Max. Cutting Depth | 110 mm |
| Pendulum Stroke | 3 levels + fine cut adjustment |
| Bevel Cut | 0° - 45° (left/right) |
| Protection Class | II (double insulation) |
| Weight (approx.) | Approx. 1.8 kg |
| Quick Clamp | Yes |
| Variable Speed | Yes |
| Dust Extraction Connection | Yes |
| Parallel Guide | Yes, included |
| Blades Included | 2 wood blades, 1 metal blade |
| Maintenance | Clean with a dry cloth, regular blade replacement |
| Safety | Safety stop, anti-contact protection, emergency stop |
| Repairability | Spare parts available from the manufacturer or after-sales service |
Frequently Asked Questions - PSTK 730 A1 PARKSIDE
User questions about PSTK 730 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric saw in PDF format for free! Find your manual PSTK 730 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PSTK 730 A1 by PARKSIDE.
USER MANUAL PSTK 730 A1 PARKSIDE
Operation and Safety Notes
Translation of original operation manual
SE
PENDELSTICKSAG
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
F
Proper use.. 6
Features and equipment.. Page 6
Included items . Page 7
Technical information.. 7
General safety advice for electrical power tools
1.Workplace safety.
2. Electrical safety.. Page 8
3. Personal safety.. Page 8
4. Careful handling and use of electrical power tools Page 8
Safety advice relating specifically to this device. Page 9
Original accessories/attachments Page 10
Preparing for use
Information about saw blades.. Page 10
Mounting/replacing saw blades.. Page 10
Attaching the chip guard. Page 10
Attaching the guide fence.. Page 11
Connecting the vacuum sawdust extraction device.. Page 11
Operation
Setting the cutting angle.. Page 11
Setting the speed. Page 11
Setting the pendulum action.. Page 11
Switching On/Off Page 11
Maintenance and cleaning
Maintenance.. Page 12
Cleaning. Page 12
Service centre
Warranty.. Page 12
Disposal
Declaration of Conformity/Manufacturer. Page 13

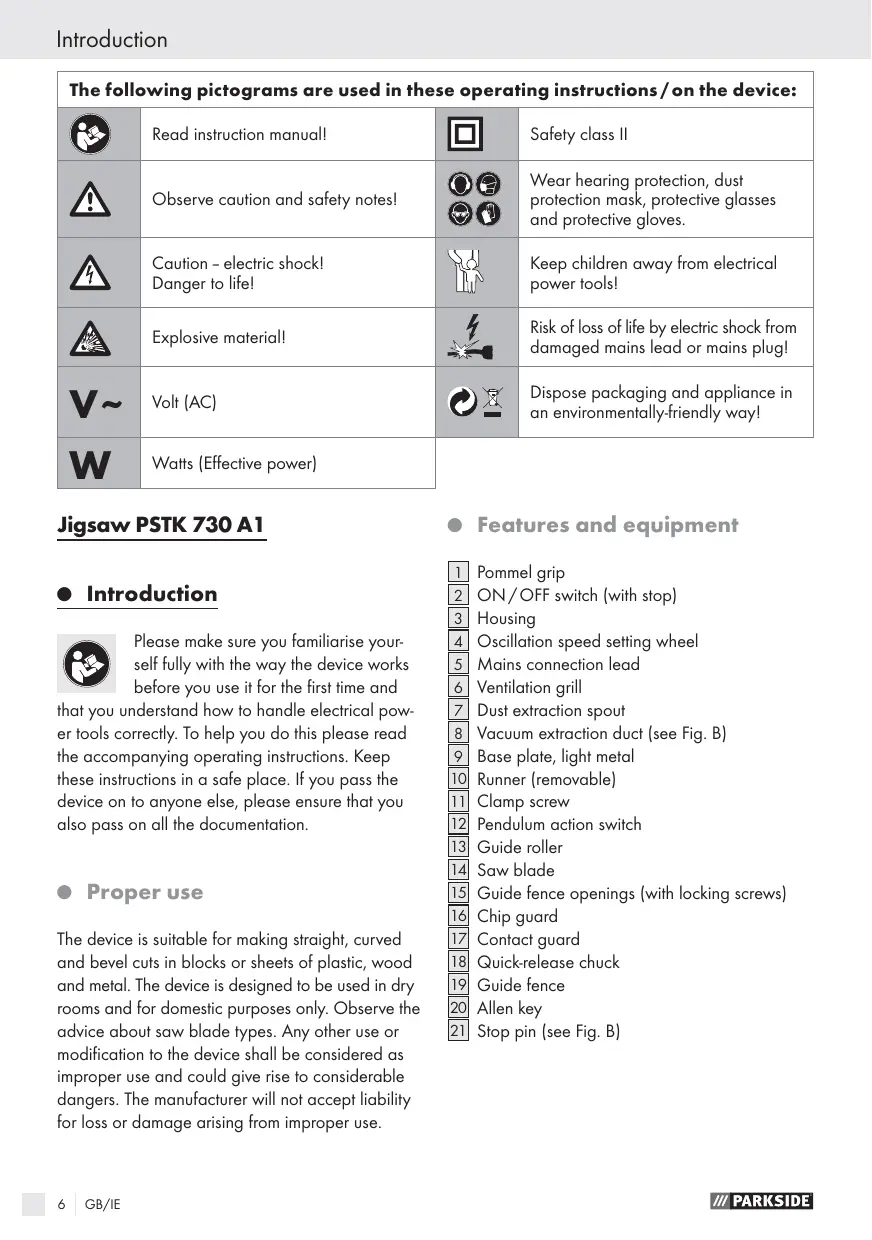

| The following pictograms are used in these operating instructions/ on the device: | |||
| Read instruction manual! | Safety class II | ||
| Observe caution and safety notes! | Wear hearing protection, dust protection mask, protective glasses and protective gloves. | ||
| Caution - electric shock! Danger to life! | Keep children away from electrical power tools! | ||
| Explosive material! | Risk of loss of life by electric shock from damaged mains lead or mains plug! | ||
| V~ | Volt (AC) | Dispose packaging and appliance in an environmentally-friendly way! | |
| W | Watts (Effective power) | ||
Jigsaw PSTK 730 A1
Introduction
Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and
that you understand how to handle electrical power tools correctly. To help you do this please read the accompanying operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.
Proper use
The device is suitable for making straight, curved and bevel cuts in blocks or sheets of plastic, wood and metal. The device is designed to be used in dry rooms and for domestic purposes only. Observe the advice about saw blade types. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use.
- Features and equipment
Pommel grip
2 ON/OFF switch (with stop)
3 Housing
4 Oscillation speed setting wheel
5 Mains connection lead
6 Ventilation grill
Dust extraction spout
Vacuum extraction duct (see Fig. B)
Base plate, light metal
10Runner (removable)
11 Clamp screw
12 Pendulum action switch
13 Guide roller
14 Saw blade
15 Guide fence openings (with locking screws)
Chip guard
17 Contact guard
[18] Quick-release chuck
19 Guide fence
[20] Allen key
[21] Stop pin (see Fig. B)
- Included items
1 Jigsaw including
- Dust extraction spout
-Allen key - Chip guard
1 Guide fence
1 Operating instructions
2 Saw blades for wood
1 Saw blade for metal
Technical information
Jigsaw: Parkside PSTK 730 A1
Rated voltage: 230V 50Hz
Power consumption: 730W
No-load speed: max. n_0600 - 2900^-1
Cutting depth: max. 110mm
Pendulum action: 3 speeds and a fine
cutting setting
Inclined cut: 0 - 45^ left/right
Protection class: II/回
Noise and vibration data:
Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:
Sound pressure level: 90 dB(A)
Sound power level: 101 dB(A)
Uncertainty K: 3 dB
Wear ear protection!
Evaluated acceleration, typical:
Hand/arm vibration a_h = 6,268m / s^2
Uncertainty K = 1,5m / s^2
WARNING! The vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN 60745 and can be used to compare devices.
Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to underestimate the vibration load if the electrical power tool is used regularly in particular circumstances.
Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.
General safety advice for electrical power tools
WARNING! Read all the safety advice and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury.
Keep all the safety advice and instructions in a safe place for future reference!
The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).
1. Workplace safety
a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts.
Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool.
Distractions can cause you to lose control of the device.
2. Electrical safety
a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it. Accidents can happen if you carry the device with your finger on the ON/OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.
4. Careful handling and use of electrical power tools
a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power
tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.
Safety advice relating specifically to this device
Avoiding the danger of injury, fire and damage to your health:
Hold the electrical power tool by the insulated handle surfaces when you are undertaking work where there is the danger of the attachment striking hidden electricity cables or the device's mains lead. Contact with a live wire could cause metal parts of the device to become live and lead to electric shock.
- Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand.
Always switch on the electrical power tool before placing it against the workpiece. There is also the risk of kickback.
- Keep you hands away from the area of the saw blade. Do not grip the underside of the workpiece. Contact with the saw blade may result in the risk of injury.
Make sure that the base plate lies on the workpiece when sawing.
If a dangerous situation arises, pull the mains plug immediately out of the mains socket.
Always work with the mains lead leading away from the rear of the device.
WARNING! NOXIOUS FUMES! Working with harmful/ noxious dusts represents a risk to the health of the person operating the device and to anyone near the work area.
Wear protective glasses and a dust mask!
Do not saw materials containing substances harmful to health.
Do not saw materials containing asbestos. Asbestos is a known carcinogen.
- When sawing wood and in particular when working on materials that give rise to dusts that are hazardous to health, the device must be connected to a suitable dust extraction device.
Make sure you have adequate ventilation.
- Do not work on moistened materials or damp surfaces.
Switch off the electrical power tool after completing each stage of work but do not with
draw the saw blade 14 from the cut until after it has come to a standstill.
After switching off do not brake the saw blade 14 by pressing it sideways against an object. It could cause the saw blade 14 to be damaged, break or initiate a kickback.
Use only undamaged, defect-free saw blades. Distorted or blunt saw blades can break or cause a kickback.
Always keep the device clean, dry and free of oil or grease.
- Original accessories/ attachments
Use only the accessories and attachments detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.
Preparing for use
Information about saw blades
The Parkside equipment supplied as standard with your tool includes saw blades intended mainly for sawing wood and metal.
1 blade (wood) for quick cutting
in softwood (green arrow marking)
1 blade (wood) for clean
cutting in softwood (orange arrow marking)
// PARKSIDE
1 blade (special) for metal up to 3mm thick (x arrow marking)
Note: Use a suitable coolant, e.g. cutting oil. This improves the endurance and increases the service life of the metal saw blade.
Saw blades are available which have been optimally designed for particular tasks. You can use any of these saw blades provided they have the correct shank fitting (single lug shank).
- Mounting/replacing saw blades
| Saw blade type | |
| Suitable for PSTK 730 A1 | Unsuitable |
WARNING! Pull the mains plug out of the socket before you carry out any task on the device, otherwise there may be risk of injury.
Turn the quick-release chuck 18 and hold it in the turned position.
Press the selected saw blade 14 up to the stop in the quick-release chuck 18.
The saw blade 14 should then engage.
The saw blade must lie in the guide roller 13.
- Release the quick-release chuck [18]. The chuck must then return to its original position.
The saw blade 14 is then locked in place.
- Attaching the chip guard
Pull the runner [10] off the base plate [9].
Insert the chip guard 16 from below into the base plate 9 and slide it into the slots provided. The chip guard can help prevent breaking out of the surface.
- Attaching the guide fence
The guide fence can be attached on the left or right side of the device (see Fig. A).
- Release the two locking screws of the fence guide openings [15].
- Slide the guide fence [19] into the fence guide openings [15].
Retighten the two locking screws.
- Connecting the vacuum sawdust extraction device
Insert the dust extraction spout 7 into the vacuum extraction duct 8 until it engages.
Connect a vacuum device approved for the extraction of sawdust and splinters to the dust extraction spout (see Fig. C).
Operation
- Setting the cutting angle
- Release the clamp screw [11] using the Allen key [20].
Set the cutting angle 0^ / 15^ / 30^ / 45^ (left/right) on the base plate [9]. The embossed marking for each recessed line indicates the cutting angle setting. The housing has a stop pin [21] (see Fig. B) which must engage in the appropriate recessed line. - Tighten the clamp screw using the Allen key [20].
- Setting the speed
Set the desired speed using the oscillation speed setting wheel 4.
If possible always determine the optimum setting beforehand by carrying out a practical test.
- Setting the pendulum action
You can set the pendulum movement of the saw blade using the pendulum action switch. By having no pendulum action (setting "0") you can produce fine, clean cut edges. Turn off the pendulum action for thin workpieces.
With the pendulum action activated (settings 1 - 3) you can cut through the workpiece at increasingly quicker rates.
□ If possible always determine the optimum setting beforehand using a practical test.
- Switching On/Off
DANGER! Before connecting to the mains plug check that the mains circuit supplies 230V 50Hz and is fitted with a 16 A fuse or cut-out in accordance with the regulations!
Switching on:
Push the ON/OFF switch 2 into position "1" and ensure it engages.
Switching off:
Press the rear part of the ON/OFF switch 2.
- Maintenance and cleaning
- Maintenance
Replace the saw blade 14 as soon as its teeth become blunt and it starts to produce defective saw cuts.
- Cleaning
- Carry out that cleaning of the device when you have finished sawing.
Remove dirt (e.g. caused by sawdust or splinters). Use a dry cloth.
Service centre
■ ★WARNING: Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
GB DES UK LTD
Tel.: 0871 5000 700 (£ 0.10 / minute)
e-mail: support.uk@kompernass.com
IE Kompernass Service Ireland
Tel: 1850 930 412 (0,082 EUR/Min.)
Standard call rates apply.
Mobile operators may vary.
e-mail: support.ie@kompernass.com
- Disposal
The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.
Do not dispose of electric tools in the household waste!
In accordance with European Directive 2002/96/EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
Declaration of Conformity/ Manufacturer C
We, Kompernaß GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:
Machinery Directive (2006/42/EC)
EU Low Voltage Directive (2006/95/EC)
Electromagnetic Compatibility (2004/108/EC)
Applicable harmonized standards
EN 55014-1:2006
EN 55014-2:1997+A1
EN 60745-1:2009
EN 60745-2-11:2003+A11+A1+A12
EN 61000-3-2:2006
EN 61000-3-3:1995+A1+A2
Type/Device description:
Jigsaw PSTK 730 A1
Date of manufacture (DOM): 08-2010
Serial number: IAN 56597
Bochum, 31.08.2010
Hans Kompernaβ
- Managing Director -
We reserve the right to make technical modifications in the course of further development.
Aluksi
Date of manufacture (DOM): 08-2010
Hand-/Armvibration a_h = 6,268m / s^2
© by ORFGEN Marketing
