2020CE - Electric hair styling device BABYLISS - Free user manual and instructions

Product type	Multi-accessory hairstyling tool
Brand	Babyliss
Model	2020CE
Power supply	Mains, power cord
Power	25 W (estimated)
Maximum temperature	About 200 °C (white temperature indicator)
Included accessories	Curling irons 16 mm, 19 mm, square; interchangeable brush; spiral; straightening/waving ceramic plates; storage pouch
Main functions	Curl, wave, straighten, crimp, add volume
Plate coating	Ceramic (30% improved glide)
Switch	3 positions: I/O/II (off, on, high temperature)
Locking system	Rotating ring with LOCK/RELEASE markings
Heating indicator	LED light and white indicator dot on the tube
Safety	Manual shut-off, cool before cleaning
Maintenance and cleaning	Unplug and let cool; clean the brush with a comb; surfaces with a dry or slightly damp cloth
Spare parts and repairability	Not indicated; interchangeable accessories available
Dimensions (approx.)	25 cm × 5 cm (handle); accessories vary
Weight (approx.)	350 g (with main accessory)
Warranty	Refer to the manual or retailer

Frequently Asked Questions - 2020CE BABYLISS

How to attach an accessory to the Babyliss 2020CE device?

Hold the handle with the switch facing up. Insert the metal rods of the accessory into the body aligning them with the connectors. Push firmly then lock by turning the ring in the LOCK direction.

How to remove an accessory after use?

First let the accessory cool down. Turn the ring in the RELEASE direction, then pull the accessory to remove it.

What is the ideal temperature for using the curling irons?

Plug in the device and set the switch to II. Wait until the temperature indicator dot on the heating tube turns white. This indicates that the ideal temperature is reached.

How to get tight curls with the Babyliss 2020CE?

Use the interchangeable spiral. Take a section of about 2-3 cm, gently wrap it around the hot spiral, hold for 15 seconds, then gently unwind. Let it cool before styling.

Can the straightening plates also crimp?

Yes, the 2-in-1 straightening/waving plates have a selector. To crimp, place a section between the plates and hold closed for about 15 seconds. To straighten, glide along the hair from roots to ends.

How to maintain the interchangeable brush?

Use a comb to remove hair and styling product residues. Clean regularly to prevent buildup.

Can I use the device on wet hair?

For curling irons, hair can be slightly damp. For straightening/waving plates, always work on dry hair for optimal results.

How to make curls last longer?

After creating the curl, wait for the hair to cool before brushing or combing. You can also spray a little hairspray before working on the section.

What to do if the indicator light does not come on?

Check that the device is properly plugged in and the switch is set to II. If the problem persists, consult the manual or contact Babyliss customer service.

How to store the device after use?

Unplug it and let it cool completely. Store the device body and accessories in the provided pouch until next use.

USER MANUAL 2020CE BABYLISS

change the hairstyles

fun style 8 in 1

your hairdressers' skills at home

FRANÇAIS

BABYLISS FUN STYLE

Fun Style, your new beauty ally, is a styling tool with many accessories that are fully ready to fulfil your most personal styling desires.

FEATURES

1. Lock/unlock symbols
2. « I/O/II » button
3. 16 mm curling iron
4. 19mm curling iron
5. Square iron
6. Brush sleeve attachment
7. Spiral sleeve attachment
8. Ceramic straightening/crimping plates
9. Pouch

USE

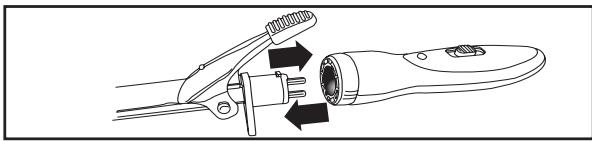

To connect an attachment to the unit before turning it on, hold the handle with the switch facing up. Place the metal rods of the attachment into the connectors inside the body of the unit. Press the accessory in firmly and lock the unit by turning the ring towards "LOCK".

To remove the attachment after use, first allow it to cool completely. Turn the ring towards "RELEASE", then pull the attachment to remove.

Plug in and place the switch on II. The indicator light should light on. Allow a few minutes to heat. When the heat ready dot on the

barrel turns white, the appliance has reached optimum styling temperature. Take care not to touch the barrel when using the appliance, as it gets very hot.

1.Irons (Fig. 1)

• Section damp or dry hair evenly, and comb through before styling. Pressing the automatic curl release, place curling tong midway up the hair section and spread hair evenly between spoon and barrel. Once hair is in place, carefully let go of curl release so that hair is held securely between spoon and barrel.
• Roll the hair around the tong from the tips to the point where you want the curls to begin. Don't let the tong touch your scalp. Hold the tong in place for 10 to 15 seconds.
• Trick: for tighter and bouncer curls, work with only a little hair at a time. For gentler, looser curls, work with more hair at a time.
• To avoid kinks in your hair, make sure your hair is properly rolled under the clamp in the direction you want your hair to curl. Place the clamp on top of the section to curl the hair under. To curl your hair out, place the clamp under the section.
• To remove the curling tong, press the clamp lever to open. To "set" the curl, wait until your hair has cooled before handling.
• Trick: for better hold, mist the section lightly with hairspray before curling.

2. Brush Sleeve Attachment

• For gentler curls or a gentler style, use the slip-on brush with the curling tong. Make sure the barrel is cool. Slide the brush over the barrel. Take up a section of hair and roll around the brush, hold for about 15 seconds and gently unroll. Allow your hair to cool before combing or brushing.
• Trick: for better hold, mist the section of hair lightly with hairspray before working with it.

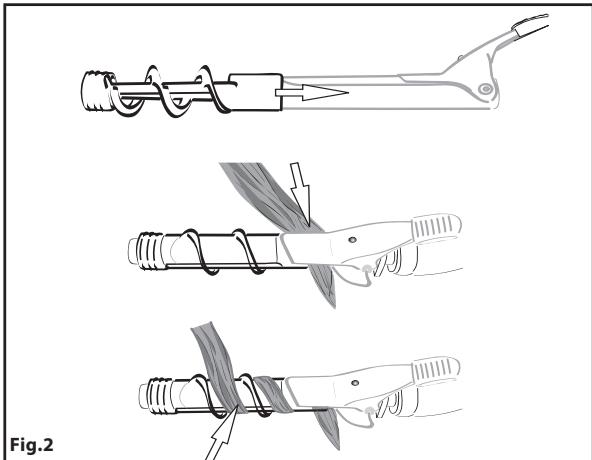

3. Spiral Sleeve Attachment (Fig. 2)

For tight and well-shaped curls, use the slip-on spiral with the curling tong.

• Make sure the barrel is cool. Slide the slip-on spiral over the tong.
  Take up a section of hair of about 2-3cm and roll it carefully around the spiral, hold for about 15 seconds and unroll it gently.
• Allow your hair to cool before styling.
• Trick: for better hold, mist the section of hair lightly with hairspray before working with it.

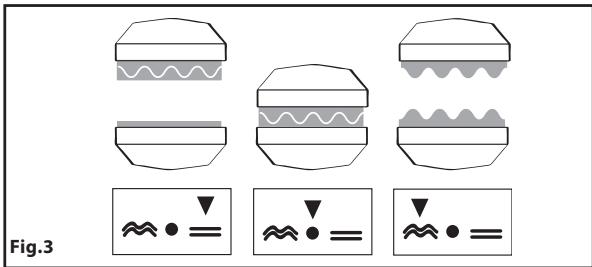

4. Ceramic-coated straightening/crimping plates (Fig. 3)

The BaByliss ceramic-coated straightener and crimper attachment is an original styling tool that transforms into either crimper or straighteners with a simple flip of a switch. Thanks to this 2-in-1 attachment, it is now possible to create all kinds of styles.

The Ceramic coating of the BaByliss heating plates provides a smooth, even surface. Glide through the hair is improved by 30% . The hair is straight, silky and shiny.

Use of the crimping plates

• Work with dry hair. Take up a section of hair, place it between the plates and then close the plates. Hold the unit closed for about 15 seconds. Release, and then take up the next part of the section using the last wave as a guide. Always work from the roots to the tips.
• For a more marked effect, first mist the section with hairspray and hold the unit closed for a little longer.
• Trick: for best results, work on straight hair or hair that has first been straightened.

Use of straightening plates

• Use the straighteners on dry hair taking up small sections at a time. Holding the hair taut and beginning at the roots, slide the straighteners the length of the hair. Work smoothly so as to avoid creating a ridge in the middle of the section.
• For short, curly styles, use a spray gel.
• To soften and tame curly hair, use the straighteners on the lengths of the hair only, leaving the hair curly at the roots to keep body and volume. For this kind of hairstyle, use the straighteners following the shape of the style.

The straightening plates can also be used for accenting particular sections (fringe, outer movement, etc.).

• For styles with the ends curled under, use the unit as described above but turn the hair under (just as you would with a brush when blow drying). Hold for a few seconds then release.
• For styles with the ends curled out, use the same movement but turn the ends in the other direction.

MAINTENANCE OF THE UNIT

• Unplug the unit and allow to cool completely before cleaning or storing.
• We advise you clean the brush regularly to avoid build-up of hair, styling products, etc. Use a comb to remove hair from the brush. Use a dry or very slightly damp cloth for the plastic and ceramic surfaces.
• Store the body of the unit and the attachments in the pouch provided until the next time you use it.
