USER MANUAL MK6000 PARROT

Description of the Parrot MK6000 p 8

Connecting your Bluetooth phone / PDA . p 9

FEATURES p 9

Telephony p 9

Voice menu structure . p 9

Description and use of the features . p 10

Voice recognition 11

Recording keywords and magic words 11

Saving contacts in the Parrot MK6000 . p 11

Streaming audio p 11

Pairing your audio player with the Parrot MK6000 . p 12

Description and use of the features . 12

UPDATING p 13

HOTLINE 13

SPECIFICATIONS p 13

NOTES 14

GENERAL INFORMATION p 135

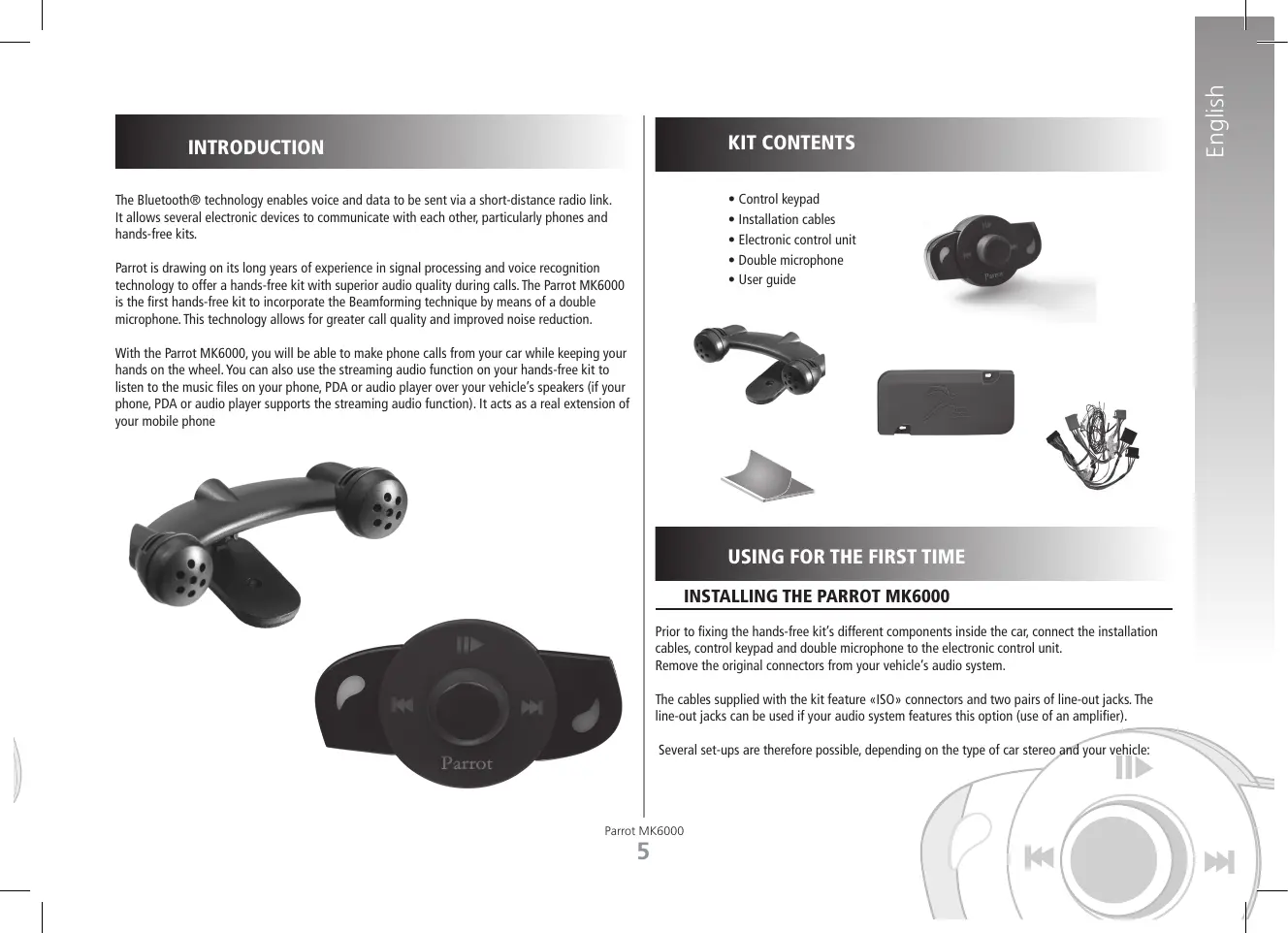

INTRODUCTION

The Bluetooth® technology enables voice and data to be sent via a short-distance radio link. It allows several electronic devices to communicate with each other, particularly phones and hands-free kits.

Parrot is drawing on its long years of experience in signal processing and voice recognition technology to offer a hands-free kit with superior audio quality during calls. The Parrot MK6000 is the first hands-free kit to incorporate the Beamforming technique by means of a double microphone. This technology allows for greater call quality and improved noise reduction.

With the Parrot MK6000, you will be able to make phone calls from your car while keeping your hands on the wheel. You can also use the streaming audio function on your hands-free kit to listen to the music files on your phone, PDA or audio player over your vehicle's speakers (if your phone, PDA or audio player supports the streaming audio function). It acts as a real extension of your mobile phone

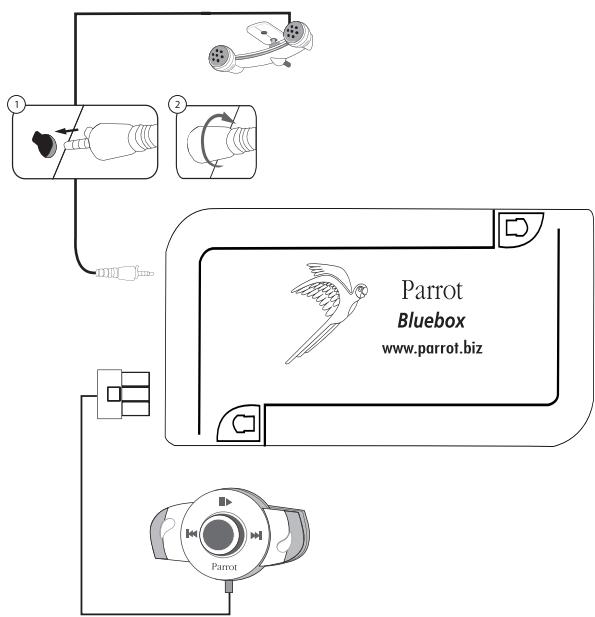

KIT CONTENTS

Control keypad
- Installation cables
Electronic control unit

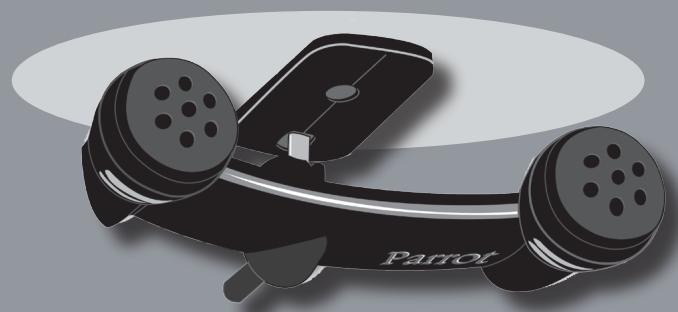

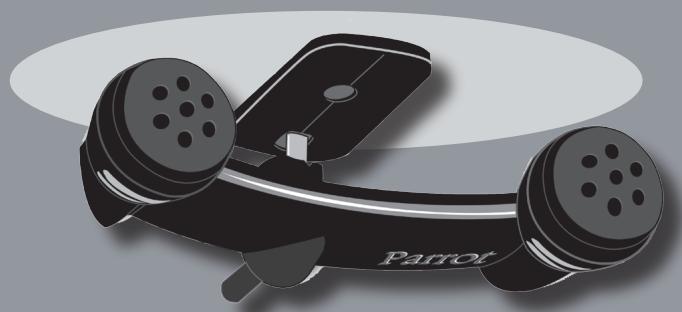

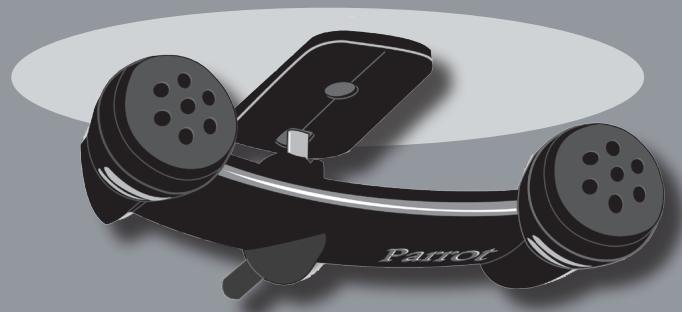

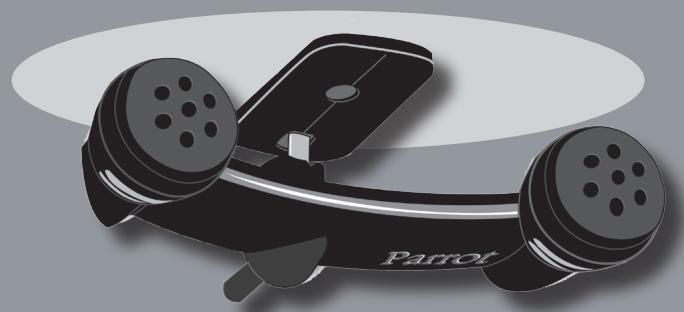

- Double microphone
- User guide

USING FOR THE FIRST TIME

INSTALLING THE PARROT MK6000

Prior to fixing the hands-free kit's different components inside the car, connect the installation cables, control keypad and double microphone to the electronic control unit. Remove the original connectors from your vehicle's audio system.

The cables supplied with the kit feature «ISO» connectors and two pairs of line-out jacks. The line-out jacks can be used if your audio system features this option (use of an amplifier).

Several set-ups are therefore possible, depending on the type of car stereo and your vehicle:

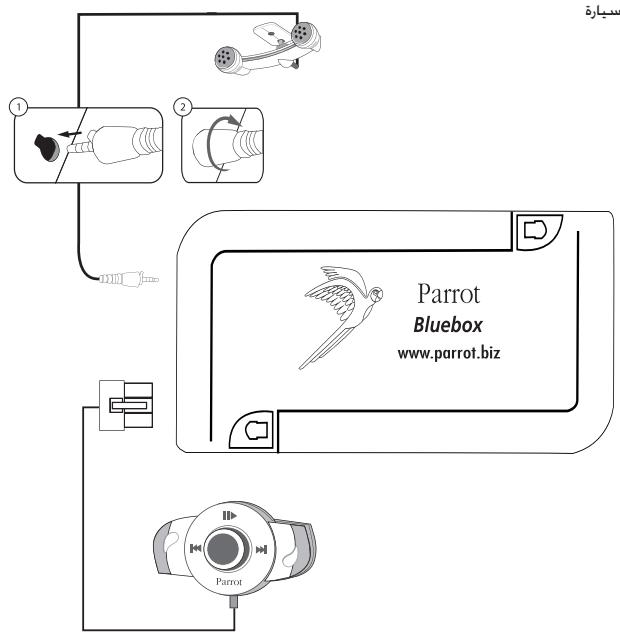

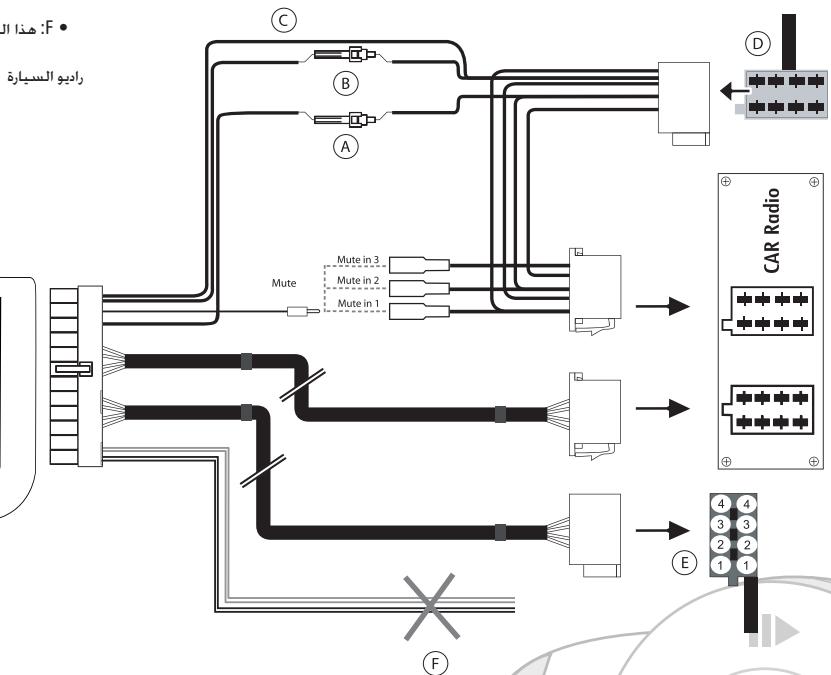

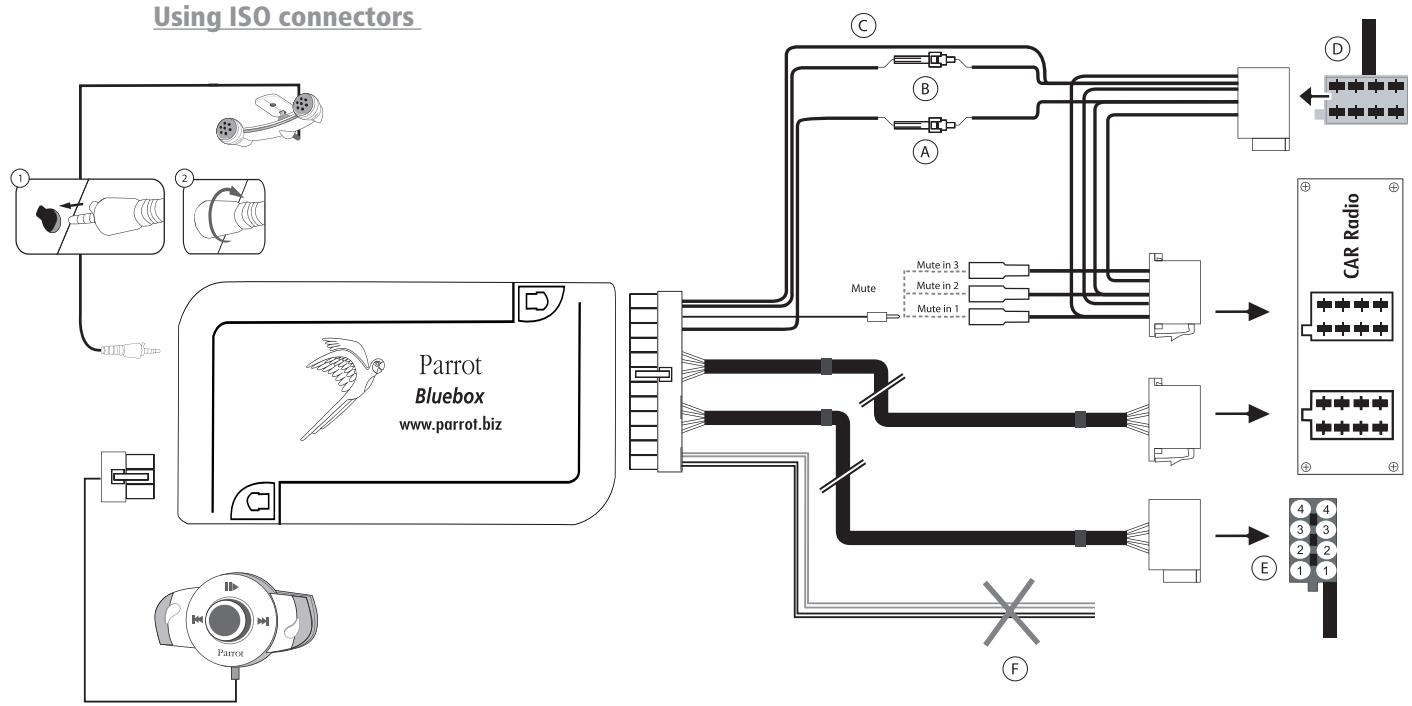

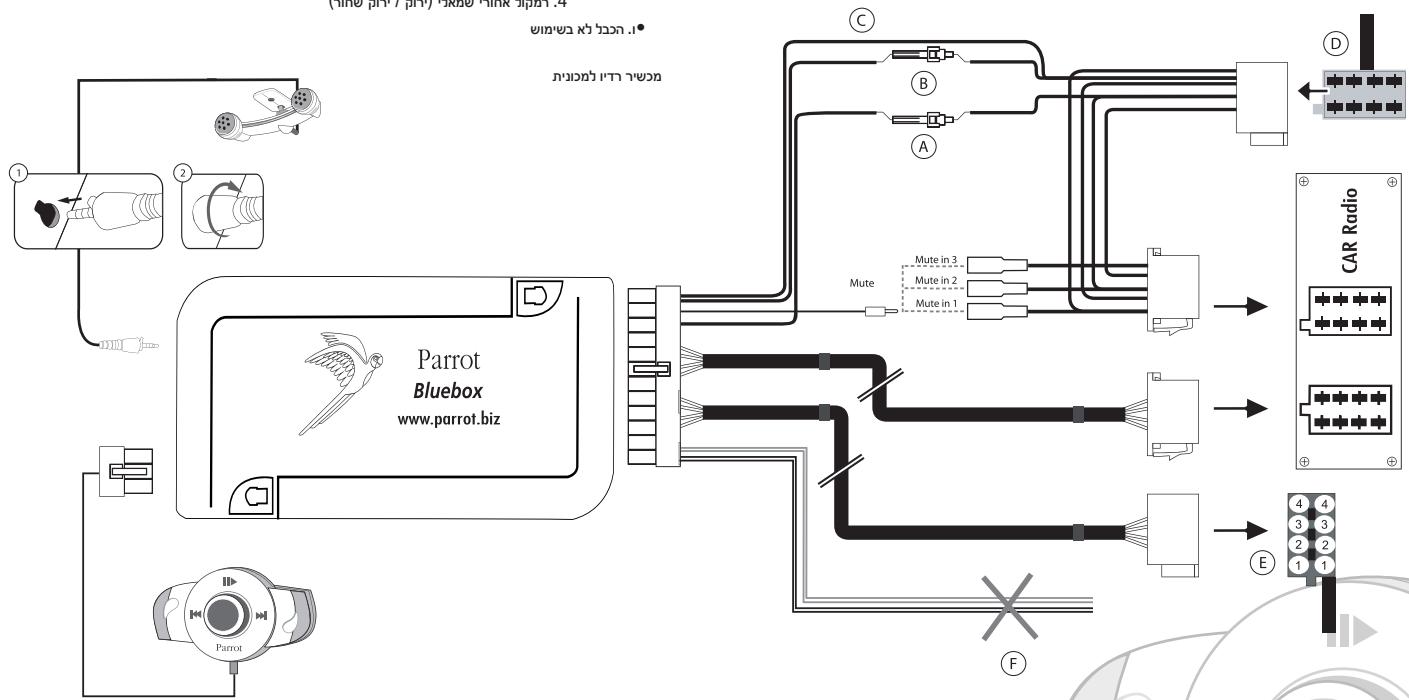

Car stereo with an «ISO» connector (refer to the following diagram):

• Connect the male connectors of the hands-free kit to the car stereo.
• Join the vehicle's audio and power supply cables to the female connectors of the Parrot MK6000.
• On the installation cable, connect the free yellow wire to one of the audio system's corresponding mute-in jacks if available (mute in 1, mute in 2 or mute in 3).

Note: the mute function is used to silence the sound from your car stereo to make way for a call. The choice of the mute-in jack depends on your car stereo's configuration.

A: Ignition 12V
B: Constant 12V supply
C:Ground
D: Connection to the vehicle's power supply
- E: Connection to the vehicle's speakers

1.Rear right speaker (purple / purple-black)
2.Front right speaker (grey / grey-black)
3.Front left speaker (white / white-black)
4.Rear left speaker (green / green-black)

F: This wiring is not used.

Parrot MK6000

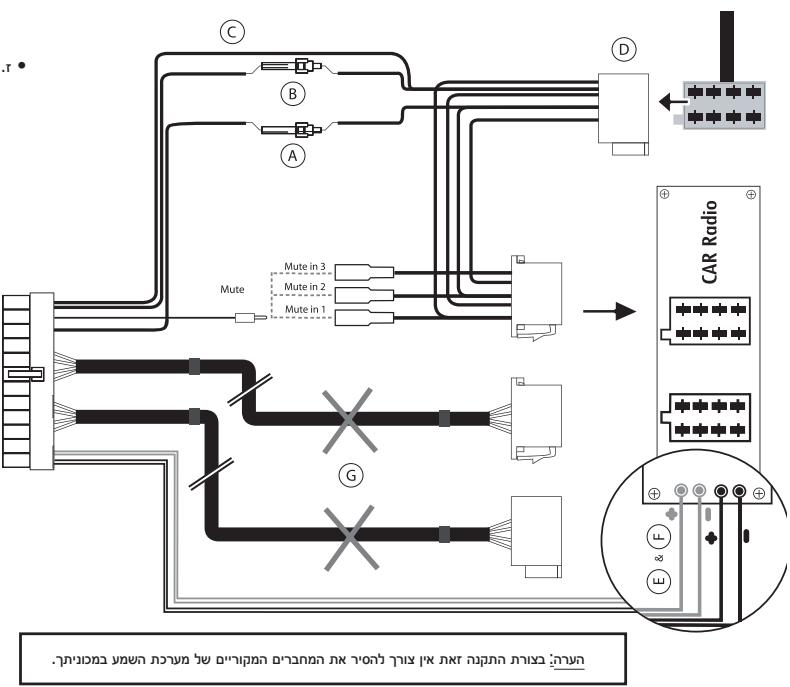

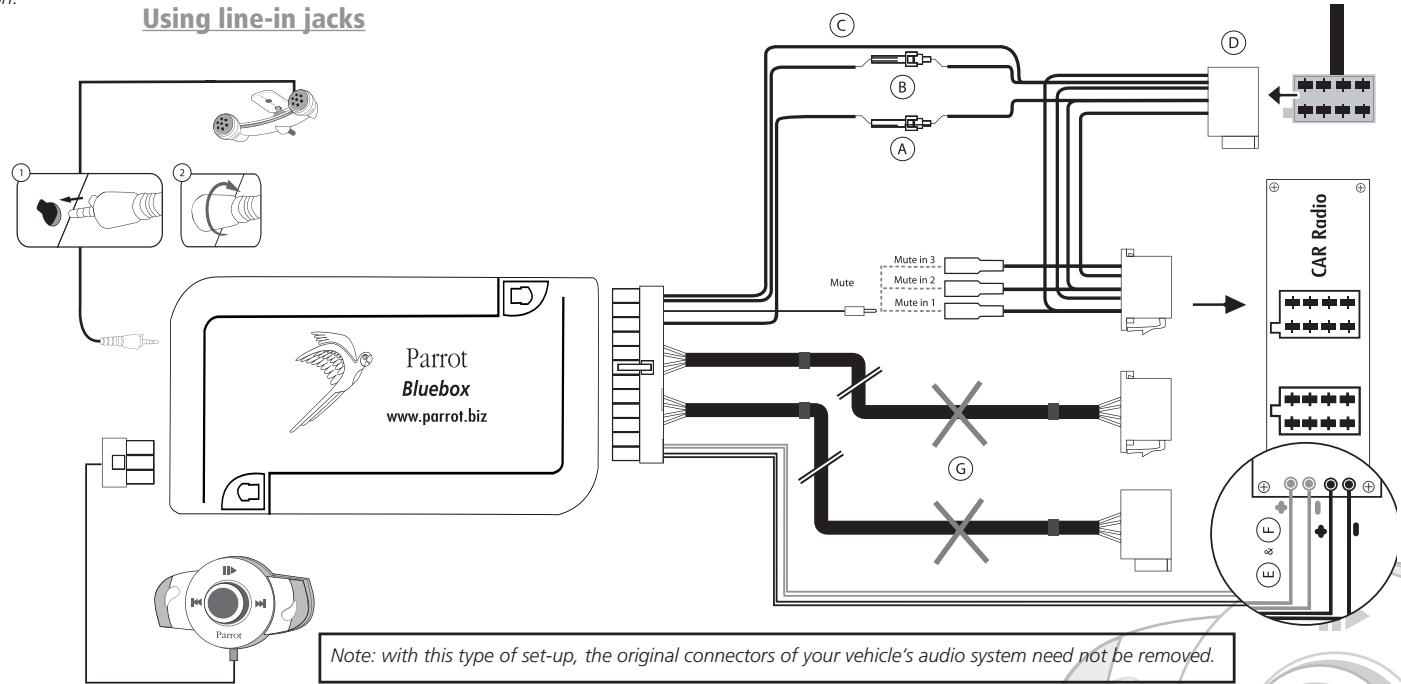

Car stereo with line-in jacks (refer to the following diagram):

• Use this type of connection by wiring a line-out jack (brown & white wire or red & black wire) to your car stereo's line-in jack.
• Using the two pairs of line-out jacks will enable you to take advantage of the streaming audio function in stereo over your vehicle's speakers.
• On the installation cable, connect the free yellow wire to one of the audio system's corresponding mute-in jacks if available (mute in 1, mute in 2 or mute in 3).

Note: the mute function is used to silence the sound from your car stereo to make way for a call. The choice of the mute-in jack depends on your car stereo's configuration.

A: Ignition 12V
B: Constant 12V supply
C:Ground
D: Connection to the vehicle's power supply
E: Line-out 1

1: Line 1+: white

2:Line 1-:brown

F: Line-out 2
1: Line 2+:red
2: Line 2 - black
G: This wiring is not used.

Car stereo without «ISO» connectors:

• To simplify the wiring procedure, you will need to purchase an «ISO adapter» cable.
  Refer to the range of ISO adapters on our website: www.parrot.biz

Installing the kit's power cable:

Refer to your car stereo's wiring diagram.
- The red wire of the kit's cable must correspond to the constant +12V supply, the orange wire to the ignition +12V and the black wire to earth.
- Check that the orange wire is not connected to the constant +12V supply, as you could run down the vehicle's battery, preventing your hands-free kit from operating correctly.
- On some vehicles, the red and orange power supply wires may need to be reversed. This can easily be done by reversing the two fuse holders on the Parrot MK6000 installation cable.

Note: on some vehicles, there is no ignition +12V on the vehicle's connectors. You must therefore connect the orange power supply wire to the fuse box or another ignition power source.

Checking the wiring:

• When switching off your vehicle's ignition, you should notice the following:
• The red and green LEDs should turn off
• The «Fast forward» and «Fast rewind» LEDs should light up for one second

• The «Play» LED should light up for one second

• When switching on the ignition, the opposite should happen.

Otherwise, the ignition +12V and the constant +12V supply have been reversed. In this case, reverse the two fuse holders on the kit's power supply lead.

Choose the place for the keypad inside your vehicle. We would advise you to fit it in the centre of the dashboard or near you. The double microphone must be angled towards the driver and preferably fitted between the sun visor and the rear-view mirror.

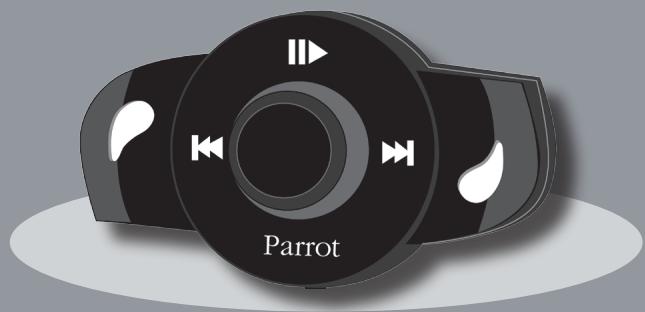

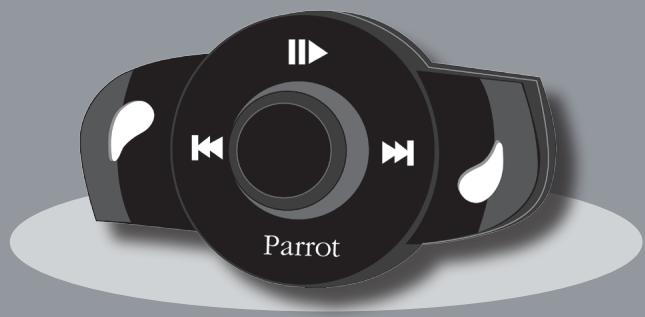

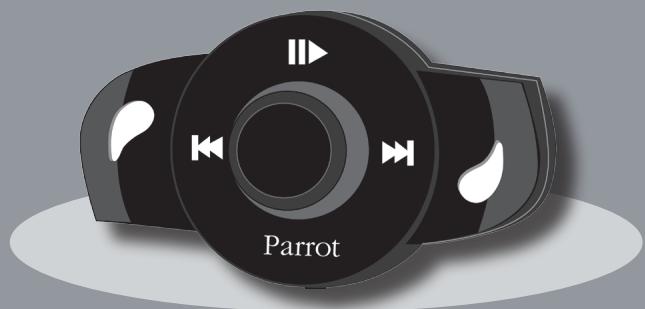

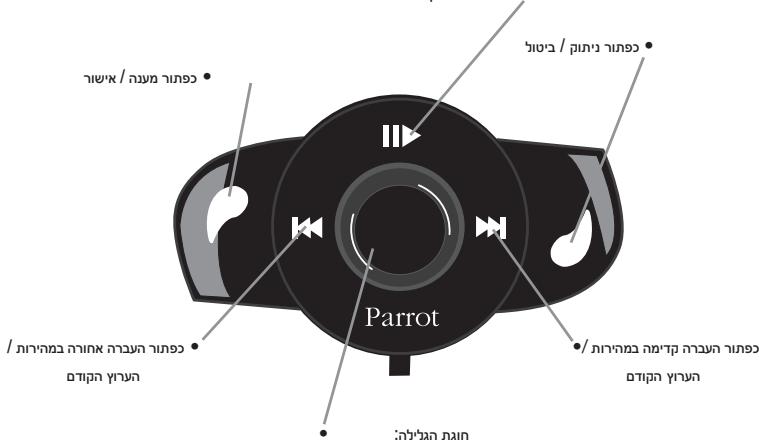

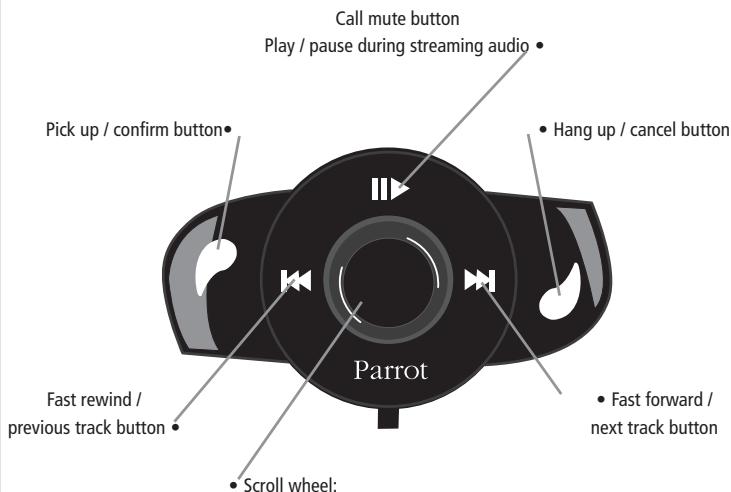

DESCRIPTION OF THE PARROT MK6000

• Call / streaming audio volume adjustment
• Scrolling through the menus
• Press to confirm

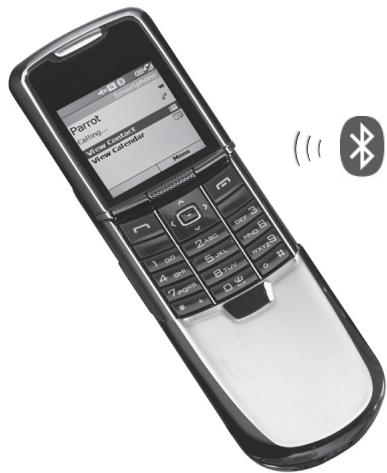

CONNECTING YOUR BLUETOOTH PHONE / PDA

Prior to using your Parrot MK6000 with your phone for the very first time, you must initially pair both devices.

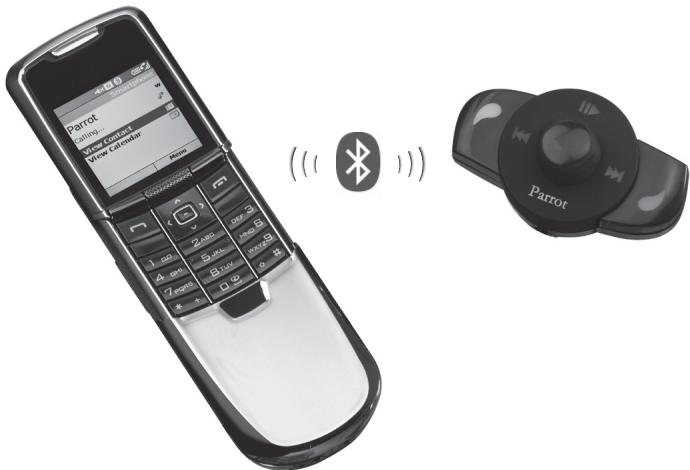

PAIRING YOUR PHONE WITH THE PARROT MK6000

• From your Bluetooth phone, search for Bluetooth peripherals (consult your phone's user guide or refer to the «Support» heading on the www.parrot.biz website).
• Select «MK6000» in the list.
• Enter «0000» on your phone when prompted.
• The Parrot MK6000 says «pairing successful» when both devices are paired. The hands-free kit sounds a beep when connected.

FEATURES

TELEPHONY

VOICE MENU STRUCTURE

Scrolling through the menus:

• Press the central scroll wheel to access the menus. The kit says the name of the current menu.
• Browse through the menus by turning the wheel and confirm with the green button or by pressing the scroll wheel.
• To exit the menu, press the red button or wait a few seconds.

Menu structure

• Phonebook: this menu enables you to access your contacts. You must first send your contacts via the «Add voiceprints» menu.
• Language: select the language.
  Volume: adjust the volume of the voice menus.
• Add voiceprints: once enabled, the Parrot MK6000 is ready to receive contacts (sent one by one - refer to the chapter entitled «Save contacts in the Parrot MK6000»). You must first assign a voiceprint to the contact sent.
• Magic words activated / deactivated: activate / deactivate the magic words for making calls via the voice recognition feature. The magic words («phone» and «hang up») must be recorded, so that they can be enabled. If necessary, recording will start automatically.
• Record keywords: to use the voice recognition feature and all its possibilities, record the keywords «general», «mobile», «work», «home» and «other», as well as the magic words «phone» and «hang up».
• Software update by Bluetooth: enable this option before updating via Bluetooth

(www.parrot.biz, Download section). Doing so will increase the number of devices compatible with your hands-free kit.

DESCRIPTION AND USE OF THE FEATURES

Making a call manually from the phone

• Dial the number using the phone's keypad and start the call.
• The call automatically changes to hands-free mode. Otherwise, press the green button on the Parrot MK6000.

Making a call from the hands-free kit's phonebook

• Click on the central scroll wheel and turn it until the kit says «Phonebook», and then confirm.
• Turn the scroll wheel to change to the next letter. Press the scroll wheel or the green button to consult the contact names beginning with that letter.
• Press the scroll wheel or the green button on the kit to select a contact.
• By turning the scroll wheel, the kit says the different types of phone number available for that contact: «general», «mobile», «work», «home» and «other».
• Press the scroll wheel or the green button on the kit to start the call.
  The call is transmitted to the vehicle's speakers.
• Important: you must first associate voiceprints with your contacts (refer to the chapter entitled «Voice recognition»).

Making a call via the voice recognition feature

• Press the green button on the Parrot MK6000.
• Say the name of the person that you wish to call after the «beep».
• IMPORTANT: you must have first recorded the voice prints on your phone or the kit (refer to the chapter entitled «Voice recognition»).
• When using the kit's voice recognition feature, say «home», «work», «mobile», «general» or «other» after the second beep.

Receiving a call

• An incoming call is indicated by a ringtone and the LEDs flashing quickly on the Parrot MK6000. If the caller's name has been recorded, it will be played through the vehicle's speakers.
• Press the green button on the device to answer the call. The car stereo will automatically be muted and the call reproduced through the vehicle's front speakers.

Ending a call

• To end a call, press the red button on the Parrot MK6000. The car stereo will automatically come back on.

Redial function

• Hold down the green key on the kit for two seconds to radial the last number dialled.

Adjusting the volume

• During the call, turn the scroll wheel on the PARROT MK6000. The volume setting is saved for subsequent calls.

Changing to discreet mode

• During a call, if you want to continue the conversation on your phone (private conversation), press the green button on the Parrot MK6000. The call is transferred to the phone.
• If you want to switch back to the kit, press the green button again.

Microphone mute

• During a call, if you do not want the person on the other end of the line to hear you, quickly press the «Play» button on the Parrot MK6000. Press the button again to cancel the mute.

Sending DTMFs

• During a call, you can send DTMFs (Dual-Tone Multi-Frequency) for touch-tone dialling. This feature can be used for managing your voicemail, for example.
• Press the scroll wheel - the kit says «0».
• Turn the wheel to scroll through the numbers.
• Press the scroll wheel to send the selected number to the phone.
• Repeat this sequence for sending other DTMFs.

Clearing the memory

• You can pair up to five devices.
• If you attempt to pair a sixth device, the kit says «memory full».
• To pair a new phone, you must clear the memory by holding down both the green and red buttons for three seconds.

CAUTION: doing so also clears all the contacts and the associated voiceprints.

Note: the use of certain features (voice recognition, radial, discreet mode) depends exclusively on your phone. Refer to the Support heading on our website at www.parrot.biz for further information.

VOICE RECOGNITION

Recording keywords and magic words

To offer you as many features as possible, the Parrot MK6000 lets you record keywords: «general», «mobile», «work», «home», «other», as well as magic words: «phone» and «hang up».

The magic word «phone» lets you accept an incoming call, as well as start the voice recognition feature. The magic word «hang up» lets you terminate a call.

In the event of a contact with several phone numbers, the keywords allow you to choose the number to call.

• Click on the central scroll wheel and turn it until the kit says «Record keywords», and then confirm.
• The kit says «Record all keywords».

• If one or more keywords are already recorded, the kit selects the first keyword that has not yet been recorded.

• Press the central scroll wheel or the green button to start recording. Follow the prompts given by the kit. You will need to record each keyword twice for greater recognition.

• When a keyword is correctly recorded, the kit automatically goes to the next. Otherwise, it prompts you to record it again.
• As soon as all keywords are correctly recorded, the kit enables them automatically.
• You can exit the menu at any time by pressing the red button and then go back to record or modify the keywords whenever required.
• If you do not wish to record all the keywords, turn the scroll wheel to select the required word.

Saving contacts in the Parrot MK6000

To use the voice recognition feature of the Parrot MK6000, you must send the contacts by Bluetooth from your phone to the kit. Proceed as follows:

• Return to the «Add voiceprints» menu.
• Press the scroll wheel or the green button: the Parrot MK6000 and the phone disconnect the kit is now ready to receive contacts.
• On your phone, select the contacts and send them by Bluetooth (refer to your phone's user guide or our website).
• Select «MK6000» from the list (enter 0000 as the PIN code if prompted by your phone).
• Once received, the kit asks you to record the name corresponding to the contact. The voice print is assigned to the contact.

Note: the use of certain features (voice recognition, send contacts by Bluetooth) depends exclusively on your phone (support of the Hands-free or Headset profile). Refer to the Support heading on our website at www.parrot.biz for further information.

STREAMING AUDIO

The streaming audio feature lets you play the music tracks recorded on your Bluetooth audio player over the vehicle's speakers. This feature depends on your audio player. Some phones also incorporate this feature. For further information, refer to our website: www.parrot.biz

Prior to using the Parrot MK6000 with your audio player, you will need to pair both devices.

Note: if you are using your phone for the hands-free and streaming audio functions at the same time, the following phase is not required. Your phone is already recognised by the kit.

Pairing your Bluetooth audio player

• From your Bluetooth audio player, search for Bluetooth peripherals (consult your audio player's user guide or refer to the «Support» heading on the www.parrot.biz website).
• Select «MK6000».
• Enter «0000» on your audio player when prompted.
• The Parrot MK6000 says «pairing successful» when both devices are paired. The device sounds a beep when connected.
• The LED of the blue «Play / Pause» button lights up when the connection between the hands-free kit and the audio player is active.

Note: since some audio players do not have an interface for entering the pairing code, simply enable the pairing mode on your audio player (refer to your device's user guide) and switch on your Parrot MK6000.

Description and use of the features

Playing music files:

• If a connection for streaming audio is active, press the «Play / Pause» button to start playing the music files stored in your phone's / player's memory.

Pausing during playback:

• When playing music files, quickly press the «Play / Pause» button to momentarily stop playback. While paused, your car stereo is still muted and the «Play» LED flashes.
• Quickly pressing the «Play / Pause» button resumes playback of the music track.

Stopping playback:

• Hold down the «Play / Pause» button to stop playback. The car stereo is once again played through the vehicle's speakers.

Adjusting the volume:

• When playing a music file, the scroll wheel on the hands-free kit can be used to adjust the volume. You can also adjust the volume via the phone (refer to your phone's user guide).
• The volume for calls and the volume for the streaming audio function work separately.

Selecting music files:

• When playing a music file, you can change to the next or previous track by quickly pressing the «Next» and «Previous» buttons respectively.

Note: if your audio player supports this feature, the front/rear LEDs on your hands-free kit light up.

Fast forwarding / fast rewinding the current track:

• During playback, you can fast forward or rewind by holding down the «Next» and «Previous» buttons respectively.

Note: if your audio player supports this feature, the front/rear LEDs on your hands-free kit light up.

Note: the use of certain features (selecting music files, fast forward / fast rewind, volume adjustment from the phone) depends exclusively on your phone. Refer to the Support heading on our website at www.parrot.biz for further information.

When using the streaming audio function on your hands-free kit, you can still access the different menus: Phonebook, add voiceprints, and so on. Simply press and then turn the scroll wheel on the Parrot MK6000. The streaming audio feature pauses when browsing through the menus.

The phone functions of your Parrot MK6000 remain active while streaming audio is being used (except for use of the magic word «phone»). When using the Parrot MK6000 in phone mode, the streaming audio feature is suspended.

UPDATING

You can update the software version of your Parrot MK6000 by Bluetooth.

Simply enable this mode before updating.

The update is performed by Bluetooth from a computer equipped with Bluetooth.

Updating provides access to new features and improves compatibility with an even wider range of phones.

For further information, visit our website to download the latest software version: www.parrot.biz

HOTLINE

Our hotline is at your disposal to provide you with any assistance required. You can contact the hotline by email or telephone. Open from Monday to Friday between 9 am and 6 pm (GMT+1).

• Europe: [phone]
  Italy: [phone]
  Spain: [phone]
  UK: [phone]
  Germany: [phone]
  USA: +1 (877) 9 PARROT (toll-free)
  China: [phone]

Visit our website at www.parrot.biz to download the latest software version.

SPECIFICATIONS

BLUETOOTH

• Bluetooth 1.2 qualified
  Hands-free profile 1.0 and 1.5

• Headset profile 1.1

• Object Push Profile 1.1
  Advanced Audio Distribution Profile 1.0
  Audio/Video Remote Control Profile 1.0

• Bluetooth PIN code «0000»
  Maximum range: around 10m
• Pairing of up to five phones
• 150 contacts per phone
  150 voiceprints per phone

MECHANICS

• Dimensions: 65 × 28 × 138 mm
  Weight: 130g

CONNECTIONS

• ISO connector
• ISO adapter available at: www.parrot.biz

SIGNAL PROCESSING

• Beamforming and noise reduction
• Echo cancellation
  Built-in voice recognition

COMPLIANCE

FCC
E2
- Bluetooth
CE
- Environment qualified

NOTES

Parrot MK6000

Parrot MK6000

François

SOMMAIRE

INTRODUCTION p 17

CONTENU DE L'EMBALLAGE p 17

PREMIÈRE UTILISATION p 17

Installation du Parrot MK6000 p 17

Description du Parrot MK6000 p 20

Connector son telephone / PDA Bluetooth . p 21

FONCTIONNALITÉS p 21

Téléphonie 21

PepexoB DnCKpeTbI pekIM

• EcnBbPbEmaP3aOBpBa bXOTHe npeHtHa P3aOBpCteNepoHa (nHcHaaCBs3), HaNMeHTHa 3eNeHyIO KHONKY Parrot MK6000. P3aOBp 6yDet npeBedeH ha TenePhoH.
• Ecni Bbl XOTnTe nepeuTn Ha KOMPnKeT rpmKOROBopae CBA3n, eue pa3

HaKMnTe Ha 3eJIeHyIO KHOIIKy.

OTKJIIOUeHHe MmKpOcPohA

• EcnB BO Bpemc CBAHn Bbl He XOTHe, YTObbl BAu COBeceHnk CJIbIaH Bac, 6bictpo Haxmnte Ha KHONky «BOcpnoImBeDeHne» KOMNNEkTa Parrot MK6000. NObTopnte DeIctBnE dnn NobToPHorO BKIOUHeHn MHKpOfoHa.

OTnpaBkA TOHObIX CnHAnOB

• Bo vpeMa p3a0rOba P bI MoKETe OTnPaBnTb TOHObIe CNHAnbl Ha6oPa (DByXTOHaBnbl MHOrOHaCToTHbl Ha6Op). 3To nO3BoJnEYT npApaTb, HaprIMep, BauWeI rOLOCOOB noTOI.
• Haxmnte Ha noBopOTHOe KOleCnKO - yCTpoiCTBO pOoi3HeceT «0».
  -Поворачавай КОпеско Дя Измени zuфр.
• Haxmte Ha KOncIO dIa OTnpaBkN bIbpaHoro Homepa Ha TepeOH.
• Повторе 3ту посту вателовость дя OTправки другин TOHOBых сигнанов набopa.

YdaJIeHHe n3 namrTn

• BblMOKeTe CBy3bBAbTdo 5 yctpoCTB.
• Ecni Bbl nonbtaeTcB bblonHnTB cBra3bIbAHne 1eCToro TeNeΦoHa, yCTPOJCTBO nPOn3HeCET «PamrTa 3aONHeHa».
  -Дя CBZbIbHnA HOBOTo TEnefoHa Bbl DoJIckHbI OCHNTbN PAmTb yCTpoCTBa, OndOBpeMeHNO DePka HaxaTbIMN 3eNeHyU N KpaChyU KhONky B TceEHMe 3 CEkyHd. BHNMaHme: 3TO TaKe pnpBOJNT K ydaJIeHNo BCex COOTBETCTByUOxINX KOHTAKTOB I rONOCobix MToK.

П汞мецону: Исторбуне Н ekomonьх уз указаньх Функш (eолесови habop, поемор, досчрим bөхum) зацum уckнюшп ом eалeeо meneфог. Дяг nolyeону дононшьнoi uнфорmaquu obpamumecь на hau web-calm www.parrot.biz e paэден Support (Плodeржka).

TOLOCOBOHABOP

3apernctppyTe KIOUeBbI e Mmuaeeckne cNoBa

Дяпpeюctablenia Bam MaKcImaIbHNoункциогаьHocTN KOMJIeKT Parrot MK6000 no3BONJET Bam 3apeNCTprpoBaT bKnIOyBeIe cNoBa: «ObUnn«, «MObunbHbI», «pa6OuH», «DomaUnH», «dpyroI», a taKoze MarUcheckne cNoBa «Tepepon» и «pa3beDInHtB».

MaruYeCKoe CNoBTO TeneoHn PO3BOJnEaT BAM OTBeaHT Ha BXOJaIIN Bb3OB, a TaKKe BkIOUaTb FyHKUIO rOLOCOBOrHOb6pa. MaruYeCKoe CNoBTO PAs3eDInHITb N03BOJET BAM pa3bEiDNHITb Bb3OB.

B Tom cIyuae, ecn KOHTaKT IMeET HeckoIbKO HomepOB TepefoHOB, KIOUeBbIe CNoBa IO3BOJIAHOT BbIbpaTb HOMepa TepefoHa Ira Na6opa.

• Κεηκηνιθης ἀνταπραλβόνινος Μολεκης Μινοβερητε εγο τακ, ζτόβας κόμιπηκτη προύπες (3aπίκες κλίουενεβχς συβ), 3aτε Ποῦτερπινε Βυδόρ.
• YctpoCTBO npoun3Hecet «3anncatb BCE kIIOueBbIe cnoBa».
  B cnyuae ecnno nIO HeckonbKO kIOUeBbIX cNOB yKe 6blN 3aIncabbl, yctpoiCTBO ycTaHOBNTcH a nepBoe He3aIncahHOe KIOUeBOe CNOBO.
  Даганчала Загану Симмerte Нацентларьно КОЕСКИ ИМ Зеленю KONIKY.Ссенитукима, coошабамь устор CTomb. Bam notpebyetcaraNIMCAtb kajdoe klnouyebe cnoBO dBa paaa da lyuwoero paocnoHabAHn.
• Korda Кюнчебо снов Будет павильно Занисану, усточь ВавOTAMUЧЕСКИпейен К сдушему.В потуНбом слуаe, усточьNONPONPOCSN BAC ZANICATь erO NOBTOPHO.
  B Cnyuae npabnIbHO 3aIncn BCex KIOUeBbIX cNOB yCTPOIcTBO aBTOMATNueCKn AKTNBIPyET INX.
  BbMOKeTe BIO6O MoMeHT BbITn 3 MeHIO, HxKAB DnT 3TOr HA KpaCHyO KHOKIy, N BepHYbc Tn 3aIINC INN 3MeHeHHN KJIuOeBbX CnOB B IIO6oe yD06Hoe DnB Bac PBM.
• ECNI BbI He XOTNTe 3aINcBbIbTb BCE KJIIOUeBbIe CNoBa, NOBepHInTe KOJIecNko, TTObI NOnyUHTb DOCTyn K JKeNaEOMomy CNOBy.

PerncpaKoHTaKToB Parrot MK6000

ДлгИ NGЛьзOBAHЯ rONOCOВО NaHба КOMПпЕТа Parrot MK6000 Bbl DoJIЖиI bTb Hа Hero KOHTaKtbl C MOБиMbHOrO TepeФona chepe3 BluTeoth. BInONHnTe cNeDyUOUIne DeiCTBnI:

-BoiDInTe B MeHIO《IobabNTb rOIOCObIe METkN》
- Haxmte Ha konecno nnn Ha 3eneHyo knonky: Parrot MK6000 n Tepeon pa3beDnHraTc, u yctpoiCTBO Parrot MK6000 6ydet rotobok

PnEmy KOHTaKTOB.

• Ha CBOeM TeLEFOHe BbIepeNTe KOHTaKtBn OTnPaBbTe Nx Chepez Bluetooth (ObpaTMeTcB K INCTpyKUm BaWero TELeFOHa Nm Ha NaHs caIT B INTepHete).
• Вьберпг в синcke «МК6000» (ВвебиTe 0000 дя PIN-кда, ecлteneфон заирочт erо).
• Посné полунець кОНТАУ CTPOПСТВО NOПРСИВ兰州ANICATБ ИМА, COOTBETCTBYIOUCE ДАнHOMY KONTAKTY. 3Та ГONOCOBАmetka БуETnpINCBOEHA 3TOMY KONTAKTY.

Ipumuehue: IcnoIb3oaeHue HeKOMOpbix U3 yka3aHHbIX fynHKuU (eONOCoeU H6Op, oompaek Ka konHMakoe hepe3 Bluetooth) 3aucum uckNoUmehbo om eaueeo menefoha (nodepkxa npDfounHandsfree unu Headset). Danyneyoue doonHmelnho uHnpmauu obapumecb ha hau web-calm www.parrot.biz e pa3den Support (Todepkka).

NOTOKOBOE 3BvAHNE

ФункцяnotOKOBORO 3ByuHINЯ NO3BOJRAET Bam BOCPON3BODITb Yepe3 KOnOHKn BaWero ABTOM0BnIa My3bIaNbHbe NPO3BDEHIna, 3aNCAHNbHe NaBaWEM ayDNONNepe Bluetooth. 3TaФункця 3aBNCIT OT BaWero ayDNONNeepa. HeKOTOpBte TENEFOHb Taikoe pacnonaratoT StOyФункnei.ДЯdoNONHTeBHO nHΦopMaun onbpatntecb Ha Naaw web-caitn no aDyncy: www.parrot.biz

Ipeep nCnoIb3ObaHnem Parrot MK6000 c BaIIM ayDIOJIeIepOM Heo6xOIMO BbIPOINHTcBra3bIbAHne DByx yCTpoIcTB.

CBy3bBaHne BaWero ayDnOpJneepa c Parrot MK6000

PnmuHHe: EcnBbI nCNoJIb3yeTe Baa TepeoH dIra FyHKUIN
rpoMKorOBopAuee CBaN I NOTOKOBOrO 3ByaHn OndOBpeMeHNO, CneDuOuee
deiCTBne MoXHO npOnycTntb. Baa TepeoH yxe paCno3HaH KOMnKeTOM.

CzB3bIaHne Baawero aydnonJIeepa Bluetooth

• BынолнITE поисперашихустовBluetoothс BAшero aydINONJIeepa Bluoteoth (obpatnteь кИнстукши no ekciNYataMu BAшero aydINONJIeepa ИИн obpatnteь ha web-caIT www.parrot.bizВ pa3den Support [ПоДержka]).
• BbIepeHTe «MK6000».
• Пизэнposе Кда Вьени Te «0000» На вашем пелеге.
• Пи сеонн endух yctpoiCTB, yctpoiCTBO Parrot MK6000 obyBNT

«yCneuHoe CBra3bIbAHne».При coeINHeHH yCTpoIcTBO nOdaT 3BykoBoi CnIHaI.

KoDA coeDInHeHne MEXdy KOMPNEKTOM rPMKOROBPOAeCE CB3Nn BaUMn ayDNIOHNepeom 6ydt AKTNUBHO, 3aROpNTcN INDnKaTOp CNHeN KONKN BocnpOnBaDEHeNE / Paya3#.

TIpumueHae: Hekomopbye ayduonnepebye He uMeiom umhepecea dne 6oDa KaOda cea3buaHua. B makOM cnyae aem docmamoo hokmuupoeam pekum cera3buaHa ea eawem nnepe (o6pammeBc u hcmpkyuu eaueo ycmpoLcma) u eknouhm bau Parrot MK6000.

Oncahne nIcnoIb3OBaHne cyHKcN

Bocpnon3BeDeHHe My3bIkaJIbHbIx paJIIOB:

• Ecπn coeμnHeHne dπa NOTOKOBOro 3ByuHaHn aKTHBHO, HaxMnte Ha

KhONkY《Bocnpou3BedeHne /Pay3a》ДЯн haayana BOCNPou3BedeHnMy3bIkaJIbHbIXФaIIIOB, 3aIINcaHHbIX NpamrTn BaWero TepefoHa / pIeepa.

Pny3a npn Bocnpon3BedeHnn My3bIkaJIbHbIX paJIOB:

• Bo Bpem BoCnpo3BedeHnMy3bIaJIbHbIX
• PhaIIOB KpaTkoBpeMeHHo NaKmIte Ha KhoNkY
• «BocPOn3BedeHn / Pny3a» ДпВуРeMHOJ
• OctaHOBKn BoCnpo3BedeHn My3bIaJIbHbIX
• PhaIIOB. Bo Bpem 3ToI nay3bI baw abTomob6n
• OTKlnOHe n INdIKatOp «BoCnpo3BedeHn» 6
  KpaTkoBpeMeHHe NaJatne Ha KOnKy «Bocpnoun3BeHene / Playa» npuBedeT K npoDoljkeHIO BOCpnoun3BeHene My3bkaIbHorO paJna.

PpekpaueHne Bocpon3BeDeHnMy3bikalnbHbix paJIIOB:

OCTaBaTbCBAKTHBbIMN BO BpEmA McNoJIb3oBAHnI NOtOKOBORO BOCnpOn3BeDeHnI (3a NcKNJUeHMeM McNoJIb3oBAHnI KInUeBOrO CnOBA《TeNefoH>).Bo BpEmA McNoJIb3oBAHnI Parrot MK6000 BpXmIE TneFoHnHO CBs3NФyHKuIa NOtOKOBORO BOCnpOn3BeDEHnI 6yDet npNoCTaHBnIBaTbCb.

OБОНЛЕNHNE

Bb MoKeTe 3aRpy3MbHOByo BEpcnIO nporpAMMHorO 6eCneHnBaWero KOMPNeKrTgPOMKOrOBPOUeJcBzRn Parrot MK6000epee Bluetooth. Bam DoCTaTOHOAOKTbINBOPOBaTb 3OT pEKm nepd 6hOBJIeHNm nporpAMMbbl.

Оьновленne ппоцьод TCусязBluetooth c KMьютepа, ochaшиногустpoи CBom Bluetooth.

OboHbIe HIOB0JIaRETNCIOJIb3OBaTb HOBIIe FyHKUIM UyNHyUHTb COBMecTUMOCt b yCTPOCTBa C 60JIbUIM YCNOM TeteFOHOB.

TEXHNUECKNEXAPAKTEPNUCTNIK

BLUETOOTH

• Bluetooth 1.2
  -Прфиь Handsfree1.0и1.5
  -Празфигь Headset 1.1
  -Празфигь Object Push 1.1
• Порозль Advanced Audio Distribution 1.0
  -Прорфиль дисанционногу упраьлениyaудно/видаeo AVRCP
  PIN-koD Bluetooth «0000»
• MakcmaJIbHOe pacCTOaHHe: OKoJIO 10 M
  CBy3bBaHHe Do 5 TeJefoHOB.
  150 KOHTAKTOB Ha TeJeFOH
  150 roIocobix MeTOK Ha TeJeOHO

P aepn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

Parrot MK6000-wnn.

|DTV

1. Bluetooth Parrot MK6000

1

Bluetooth - 2018 Wannn Bluetooth 3G Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi Wi-fi

.0190 1111 1111 1111 1111 1111 1111

. www.parrot.biz:nnnnn noann nnnn nn nnnn

onn ipn

nni nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

(GMT + 1)18:00 - 09:00

yun k an yun nn nnnn nn, npin yip nywn nn

《TIPN》n99by（K）nn99bynnnyn7y

nannn

/nnn nn, nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnn

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

innnnn

y by nnnn nn nnnn nn nnnn nn nnnn

.

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

[111,111]

. www.parrot.biz

:Parrot MK6000 1

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

Bluetooth

"IN IN IIKN pa WOWENH YIYI YI YI) Bluetooth 1000,Bluetooth 1000

www.parrot.biz (Support) «nnn nnn

.《MK6000》n

10nwnnnn nn 0000

Parrot MK6000

y 1

Tyn) TINN NNNN NNNN NNNN NNNN NNNN NNNN

.Parrot MK6000 won nn pnn (wipnn wwnn nn

JINUNI NIDNN

TIN xynn

OONNNnN nnnn nnnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

1

nynynnnnna 09a

npon/ynwnn 1nnnnnnnnnnnnnnnnnnnn

nwn, np09nn nn.n0nn nynn nynn np09n

nannnnn 1

nnn nn

ninn nn nnn nn nn nn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n n, n nn nn nn nn nn nn nn nn nn nn nn nn

n nn nnnn

.100101 101 101 101 101 101 101

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Parrot MK6000

Parrot MK6000

:Bluetooth

.《n n n 1

Parrot MK6000

Wwennnwnnnn) Bluetoothwnnnn nn nnnn nn nnnn nn nnnn nn nnnn

(1)

(1990) 10000 (m) Parrot MK6000

.wnn nn nnnn nn nn nn nn nn nn

n (Bluetooth nnnn nn nnnn (nnnnnn nn nnnn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

《nnn》ninn nnn www.parrot.biz 1000000000000000000000000000000

TINN

T

n 1

www.parrot.biz/

Parrot MK6000

(DTMF)

DTMF (Dual-Tone Multi Frequency)

.ynnnn nn nnnnnnnnnnn

.（0）ywnn-ynnnynn yyn

0000 1

.195n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

DTMFnBnBnBnBnBnBn

1

.

.《NnIINr》ynn，yINnNON

.

n nn nnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

. www.parrot.biz 1

中

Dop nnnn nn np

,《》：nnnn nno nny Parrot MK6000 wwn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

《P1111111111111111111111111111111111111

nwnn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

.

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

.

.

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnn

Parrot MK6000

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

n nn nnnn nn nn nn nn nn nn nn nn

Parrot MK6000- n y, p

nDIO

Parrot MK6000

nynnnynnynnynnn

TIN LIN

1. Jnnn nn n nn nn nn nn nn nn nn nn nn nn nn nn nn

yunnnnnyi

Parrot MK6000

n nn nnn nn nn nn

y

.190nININ DITN 190n by n,nnnn

0n n nn nnnn nn nnnn nn nnnn nn nnnn

《nni nnn

.

.

Parrot MK6000,

. nwn w np w np np np np np . (Parrot MK6000- w np w np

nynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnn nnnn, n n n nn n nn n nn (n nn) n nn

n nn nnnn nn nn nn nn, nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

. www.parrot.biz (Support)

《MK600》

.1p nivwupnnwvW 0000]m

PARROT MK6000

nnnnn nn nn nn

1

nnn nn nnnn

TINNnnoonnynnnn/nuu

INnnn /nnynnnnnnnnnnn

ynnn n

HIVN

《ISO》

.1SO

www.parrot.biz www.parrot.biz

nwn nn nnnnnnnnn

.

+12Vnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

-12Vnnn nn nnnn

n

n nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

Parrot MK6000

n nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnn

nppnn np

non non, nnnn nn nn no

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n" 《nnnn nnyn》 n111n nnnnn nnyn

nnn nnnn nnN 《yyn》n

.7nnn nn nn nn nn n nn

n nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnn

n nn nnn npnnn nn

100n 111nn.

n nn nnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

12Vnnnnn.

12V.

nynn.

n nn nnn npn n.

Line-out 1

: +Line1.1

in: -Line 1.2

Line-out 2.

DTR: + Line 2.1

Line 2-..2

.

: (n) line-in

no (nniin nnnn nnnn) line-out nnnn nnnn nnne

line-in

(mute in 3 mute in 1, mute in 2) n

12Vnnnnn.

12V.2

n nn nnn npn n.

nnn nn n n.

(1)

（nWw/）.2

(nivp/1)

(1nwn/1)nnn.4

wnn nn 1

nnnn

.

Parrot MK6000 1

mute-in nioo nn nnnn nn nnnn nnnn

.(mut e in 3 mute in 1, mute in 2) nnp

n nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

mute-in n no

nynnn

mnpn

nnpnn

nnpnn n n

1919n

wnnnn nn

nwnny

PARROT MK6000 mppm

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnpnnnnnn

yynnnn nn nn

nynn n line out nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

.

nattn

nennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n 1

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

《NnK》"Parrot MK6000.

.0ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Parrot MK6000

y nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

IN IN INN,ON

TINIINNINNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

96
96
96
96 Parrot MK6000
93 Parrot MK6000
92 1
92
92
92
91
90
90 1
90 Parrot MK6000
90
89 Parrot MK6000
89
88 1
88 1nnipn
88
87
35

Parrot MK6000

Parrot MK6000

汉语

内容

介绍 p 101

工具包的内容 p 101

第一次使用 p 101

Environment qualified

山

#

Bluetooth 1.2 qualified

Hands-free profile 1.0 and 1.5

Headset profile 1.1

Object Push Profile 1.1

Advanced Audio Distribution Profile 1.0

Audio/Video Remote Control Profile 1.0

0000 山 Bluetooth

10 Jol Go jil 23

a1gao auaos jh

150

150

aaiil lalgl

65x28x138

130:jj

#

ISO

www.parrot.biz:ISO

a|LdA|

JLJIaig aagai

swll

joo joo

gall Jgogagll KcJl Jlo LjL jn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

Parrot MK6000 aLcJg aLbUwUaI Lgag, gauuauauauauauauauau

aIgall yjiei wai Laiy iuyu oLkui uagai

plaswll Lc Lo) ogall saiyjao plsswll laa aab Parrot MK6000 1

Parrot MK6000

#

Bluetooth 3000 Parrot MK6000

J 10

. Bluetooth aasssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

aIgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

www.parrot.biz:

JL

aIgI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI gI

. +1 juiuyu yuyi) 6 aclw gao lao 9 acwl uao aei31 pgiy jiyjai yuo zgiao

696003481(0)+33 :L29,

631439862+39:U

202 404 902 +34: L

5872 112 870 (0) +44: a=11 a<101

6877172900+49:L

（jLJ）PARROT9(877）+1:ssuUyg

944601164862+：

.ogell www.parrot.biz jiejlliei

:

Jusu Jusu jusu. Jusu uill 1a / Jusu / JJcLsogio Luaeia

aJLwJUclcawgjzjc

Ciygal s guan bua

plaiwglgoaillaojgeoaggallalwllpiaiwLgawgwoaloJaeWic

g 100000000000000000000000000000000000000

(1)

gaiy jolil ggi 5g i 11

Jae mo Jg

:agagall cieh jil

aaii aaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii

a0j1 J 1o L aio oL aIoo lao Ic eJJI p d. aagbo r ailllal al

Bluetooth

Jbblnbltio 100

(www.parrot.biz 1g

.（MK6000）

100000

XiaojgSLoaic aigwajjIjgljIjIjIjIjIjIjIjIjIjIjIjIjIjIjIjIjIjIj

joo jy JuaJgSLoaic 1000

.

IJIJI IJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI JIJIJI J1

Parrot MK6000 J (jLgLJyLd)

Lgolwgljzall

:ayagall cale Jaa

Laloo jjw jfJ (Cgogagj/Ji) jhaw gawl jw Jw Jw Jw Jw Jw Jw

Jauill 1251 / caii aigjzbl

S_ ACD = S_ COD + S_ BDO

1jai jjglacayjwlaiaaagai ciaLo jiaui slii

gS:Loai.ahalI Jaiill alay » iag o aegi

Lcwocljw wJzwnl jg> jgLw.Laog

.（）

（）

gwsll JwJwJwJw

11clg w. aodjI Laiy jll ciei I g, JuswJy JyJy JyJy JyJy JyJy JyJy

Jn 1

aolj 1i j. lsclogig aalil aolll jaojj Jaaaiu cuao Jcui ool sui

a + b = 15, 1 + 2 = 45^ , 1 + 3 = 90^

LgogjlgSaaajgaiwJus JssllsJss

Lalj 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

a.131 131

aalal aolll jaiy alal jai jaii oals Js Jnuiu uji

Parrot MK6000

aajg jaij g aagall aoai Jw2g lclpao

（《jgjj11

（1）

a.111 a.111 a.111 111 111 111 111 111

#

a. a|g|

aagall aolal

:aijglj1JLx-2y-3

aJalal alal alal Jgaiw gai jgaiI JgaiI aySyl alelal

.

jg jn jn jn jn jn jn jn

aLJI

Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus

yllaiIg yalalIg sLw wsc lcll jnssall no. Jyllalll

15c 20g>all g all lolo 25c 23b 2 c alg y 111 J

Parrot MK6000

JgjLwJgclcJJ.ajlllIygl +12VJleJgJgJgJgJgJgJgJgJgJg

JlJIaIbIaIgJyaiIaIyJIaJIaIbJI

：

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

.

1

12JL:A·

12gjB·

81:C

jLJg j:D

1. 1. 1. 1. 1. E

1+11:1

1341:2

1. 1,2,3 ÷ 1.57 .

2a_1 + b = 3

231:2

pssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

: (jlll jwwj g) Jld Jdo Jao Lao oJoo

llllg jjyjjg lllll) 131 h11 111 111 111 111 111 111 111

Lg

LJwclawgjzogwll gddjno no oaiywlcl jyblaln no no

L 1.

a1 = 2,a2 = - 4

ISO

12J:A·

12g:B

81:C

jLJWJg aallll jw:D

jLwJlclLaJy:E·

（gjgljj/1gj）

（g-5Lo/5Lo）gai1aLo81acLo01.2

（）/

(2gwi-jas1/jas1)

p#i#o#j# j#o#jll i#:F

. .Parrot MK6000 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

aie. aI (s p) J 1 cLw y LjLsw Jn no jolal ogall Cw y paai w lwl ay bag .ahlo

aljdl alugiss

cuii iiaia a

SsJILSL

a#g:51 053 a#g

Gg20 g3gS 1

pssuill J

yjgpln

PARROT MK6000

aill lalao aol 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.1gS110sS110sS2gS110gSgS

LjLwJyUgUdUuUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdU

IaI IaI aiai Iaie Iaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

:cljLwogjLwJ

#

aagssllggs

Jn Jn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

plaaaii jaoa aagjll gajllg aylilg alleo ci g aegalbllg iip

Parrot MK6000.

aannnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nnnnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nennnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn nannnnn nn

Lsc. aJssll saslae alc y laaay aaiy aalil 1uLLsI JLa! Ls! Parrot MK6000

g yIe IyIeIyU. yIyIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyIyIyU yIyI

Jgai jaiol Jaoi Lgi. (gai gai aiaagacai

132
132
132 0
132 Parrot MK6000
129 Parrot MK6000
128 PDA jg / Bluetooth
128
128 2
128 1
127
126
126
126 Parrot MK6000
126
125 :Parrot MK 6000 g
125
124
124
124
123
135

Parrot MK6000

SAFETY INFORMATION

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1). this device may not cause harmful interference, and
(2). this device must accept any interference received, including interference that may cause undesired operation.

Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

Declaration of Conformity

CE

We, Parrot S.A. of 174 quai de Jemmapes, 75010 Paris, France, declare under our sole responsibility that our product, the Parrot MK6000 to which this declaration relates is in conformity with appropriate standards EN300328, EN301489-1, EN60950 following

the provision of Radio Equipment and Telecommunication Equipment directive (1999/5/EC R&TTE), and requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC.

Bluetooth

The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Parrot S.A. is under license. Other trademarks and trade names are those of their respective owners.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environ, mentally safe recycling. Business users should contract their supplier and the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

GENERAL INFORMATION

Copyrights

Copyright © 2004 Parrot. All rights reserved. The total or even partial reproduction, transmission or storage of this guide in any form or by any process whatsoever (electronic, mechanical, photocopy, recording or otherwise) is strictly prohibited without prior consent from Parrot.

Registered trademarks

All the names and trademarks mentioned in this document are copyright-protected and are the property of their respective owners.

Modifications

The explanations and specifications in this guide are given for information purposes only and may be modified without prior notice. They are deemed to be correct at time of going to press. The utmost care has been taken when writing this guide, as part of the aim to provide you with accurate information. However, Parrot shall not be held responsible for any consequences arising from any errors or omissions in the guide, nor for any damage or accidental loss of data resulting directly or indirectly from the use of the information herein. Parrot reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users.

As part of our ongoing concern to upgrade and improve our products, the product that you have purchased may differ slightly from the model described in this guide. If so, a later version of this guide might be available in electronic format at Parrot's website at www.parrot.biz.

Parrot

Parrot S.A. - 174, quai de Jemmapes - 75010 Paris - France

Fax [phone] / Phone [phone]

http://www.parrot.biz

PI030385AA

C E

Bluetooth

RKXCK3005
