Product type	Liquid fuel portable auxiliary heater
Brand	ZIBRO
Model	MONNLIGHTER
Recommended fuel	Paraffin (Zibro Extra or Zibro Kristal)
Heating power	2.50 kW
Suitable room volume	40 to 90 m³
Fuel consumption	0.26 L/h (208 g/h)
Tank autonomy	19.0 hours
Tank capacity	4.9 L
Dimensions (L x D x H)	388 x 388 x 474.5 mm
Weight	6.2 kg
Wick type	K
Ignition	Electric (ignition coil, C size 1.5V batteries)
Included accessories	Manual fuel pump, batteries
Warranty	2 years (excluding wear parts)
Routine maintenance	Cleaning with a damp cloth, replacing batteries and wick
Safety	Automatic fire extinguisher, manual stop, safe distance 1.5 m
Wear parts	Wick, batteries, igniter (ignition coil), hand pump
Outdoor use	Possible on stable and weather-protected ground

Frequently Asked Questions - MONNLIGHTER ZIBRO

What fuel should I use with the ZIBRO MONNLIGHTER heater?

Use only high-quality paraffin, such as Zibro Extra or Zibro Kristal. Unsuitable fuel can cause tar deposits, odors and reduce the life of the appliance.

Why doesn't my appliance ignite?

First check that the batteries are correctly installed and sufficiently charged. Make sure the tank contains enough fuel and that the wick is well soaked (wait 30 minutes after refilling). If the problem persists, the igniter may be defective; contact your dealer.

How do I adjust the flame height?

After ignition, wait 10 to 15 minutes for the flame to become visible. Use the wick adjustment knob to adjust the height: turn right to increase, left to decrease. The flame must be between the minimum and maximum marks indicated in the manual.

What if smoke or soot occurs?

Check that the combustion chamber is level (move it gently). Adjust the flame height. Make sure you are using suitable and non-expired fuel. If the problem persists, clean the appliance and contact your dealer.

The appliance turns off by itself, why?

This may be due to an empty tank, insufficient ventilation (open a window), poor quality fuel, or a worn wick. Also check that the automatic fire extinguisher is not accidentally activated.

How do I maintain my ZIBRO MONNLIGHTER heater?

Regularly clean the appliance with a damp cloth. Replace batteries when low. For the wick, occasionally let the appliance burn until the fuel is exhausted to extend its life. Contact a dealer for repairs.

What safety distances should be observed?

Place the appliance at least 1.5 meters from any flammable object (walls, curtains, furniture). Do not use in a dusty room or with drafts. Always ensure adequate ventilation.

How do I store the appliance at the end of the season?

Burn off any remaining fuel in a ventilated area. Allow to cool, clean the appliance, remove the batteries and store it in its original packaging away from dust. Use new fuel the following season.

Can I use the appliance outdoors?

Yes, on a stable and level ground, sheltered from rain, snow and wind. Do not expose it to the elements and respect safety distances.

How do I replace the wick?

Make sure the appliance is off and cold. Follow the steps in the manual: remove the jacket, inner chamber, wick adjustment, then insert the new wick ensuring alignment. After replacement, check the wick height (4-6 mm) and the proper operation of the extinguisher.

USER MANUAL MONNLIGHTER ZIBRO

LE COMBUSTIBLE APPROPRIÉ

K CONDITIONS DE GARANTIE

Congratulations on your purchase of this Zibro heater, the number one brand amongst portable heaters. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure the maximum lifetime for your heater.

This appliance comes with a 24-month manufacturer's warranty on all defects in materials or workmanship.

We wish you much warmth and comfort from your Zibro.

Yours sincerely,

PVG International b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR ZIBRO DEALER.

3 BEFORE YOU START READING, FOLD OUT THE LAST PAGE.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 53 ff.).

1 Remove all packaging materials (refer to Section A).
2 Fill the fuel tank ⑧ and wait 30 minutes before you ignite the heater (refer to Section B, Fig. F).
3 Insert the batteries into the battery holder (refer to Section A, Fig. D).
4 Check whether the combustion chamber 4 is fully upright (refer to Section C, Fig. I).
5 Ignite the heater by turning the wick adjuster knob 2 as far to the right as possible and then gently push down the igniter lever 3 (refer to Section C, Fig. H).
6 Prior to adjusting the flame (refer to Section D), let the heater heat up for 10 to 15 minutes.
7 Switch off the heater (refer to Section E).

• The first time you ignite your heater it will smell like 'new' for a short time.
• Store your fuel in a cool and dark place.
• Fuel has a limited shelf life. Start every heating season with new fuel.
• The right quality of fuel will be assured, when you use Zibro Extra or Zibro Kristal for your heater.
• If you change to another brand and/or type of paraffin oil, you must first finish up all the remaining fuel in the heater.

MAIN COMPONENTS

Safety button (for emergency stop)
② Wick adjuster knob
3 Igniter lever
Combustion chamber
Combustion chamber handle
6 Fuel indicator
Grill
Fuel tank
Ignition coil
10 Battery holder
Carrying handle
12 Fuel tank cap

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

For each model the minimum size of space is specified in which you can use the heater safely, without additional ventilation (refer to Section J). If a particular room is smaller than the specified space, always leave a window or door slightly ajar (± 2.5cm) . We also recommend doing this in highly insulated or draught-free rooms and/or at altitudes above 1,500 metres. However, if there is insufficient ventilation (i.e. oxygen), the heater will automatically switch off. Do not use your heater in cellars or other underground areas.

OUTDOOR USE

Your Moonlighter can be used in the garden or on the patio. Make sure the floor is firm and completely level. Do not expose the Moonlighter to rain, hail, snow, etc. For reasons of safety and to prevent soot build-up do not use the Moonlighter in a high wind.

Position the Moonlighter at a minimum distance of 1.5 metre from highly inflammable objects; take care when using the heater under awnings or canopies.

THE RIGHT FUEL

Only use Class C1 paraffin fuel in accordance with BS2869 Part two, or equivalent. Your Zibro heater has been designed for use with high-quality water-free pure paraffin oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

excessive tar deposits on the glass fibre wick
incomplete burning
reduced heater lifetime
smoke and/or smells
deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Always refer to your local Zibro dealer for the right fuel for your heater.

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

MANUAL

A INSTALLING THE HEATER

1 Carefully remove your Zibro heater from the box and check the contents. In addition to the heater you also need to have:

the batteries
a manual fuel pump
these directions for use

Keep the box and the packaging materials for storage and/or transportation.

2 Remove the packaging material from the grill 7 (Fig. A, B, C).
3 Fill the fuel tank as indicated in Section B.
4 Insert the batteries into their holder 10 at the back of the heater (Fig. D). Ensure that the positive and negative poles match the + and - marks indicated on the battery housing.
5 The floor should be firm and completely level.
6 Your heater is now ready for use.

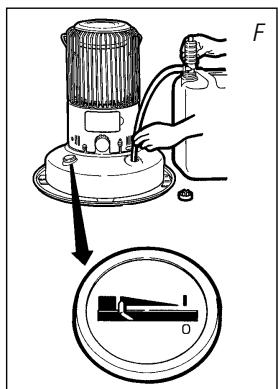

B FILLING FUEL

Do not fill the fuel tank in the living room, but in a more suitable place (there can always be some spillage). Follow the procedure below:

1 Make sure that the heater is switched off.
2 Insert the straight tube of the manual fuel siphon into the kerosene container. Remove the fuel tank cap on the heater (Fig. E), and insert the siphon's flexible hose into the fuel tank opening (Fig. F).
3 Lock the valve on top of the pump (turn clockwise).
4 Squeeze the pump a few times, until fuel starts flowing into the fuel tank. As soon as this happens, there is no need to press any longer.
5 Stop filling by loosening the valve on top of the pump (turn anti-clock-wise), once the gauge indicates that the tank is full.
6 Remove the siphon carefully, allowing the excess kerosene to drain from the tube back into container. Replace the fuel tank cap and tighten it securely (Fig. G). Be sure to wipe away any spilled kerosene from tank or other heater parts.

NOTE: Be especially careful to avoid overfilling the tank with very cold kerosene; otherwise overflow might occur when the fuel warms up.

C

IGNITING THE HEATER

NOTE1: When you first use your new heater, ignite it out of the living area of your house, either in a garage or an outside area protected from strong drafts. Burn it for about 15 minutes to remove all of the protective oil present on the burner parts. If this 15 minute "burn-in" is done inside, some objectionable odour will be observed. This procedure is necessary ONLY THE FIRST TIME you ignite your heater.

NOTE2: If you have fuelled your heater for the first time, or if you are refuelling it after it has been out of fuel for a long time, you will need to wait about thirty (30) minutes for the wick to become fully saturated before lighting. Failure to allow enough time for the wick to become fully saturated may cause permanent damage to the wick when it is lighted.

Always ignite the heater with the igniter slide. Never use matches or cigarette lighters.

Follow the procedure below:

1 Turn the wick adjuster knob clockwise until it stops (Fig. H). This raises the wick to its maximum height. As the wick rises within the heater, the wick adjuster knob turns with some resistance and makes a sound like the winding of a clock. Once the wick has reached its proper height, the automatic extinguisher is fully engaged. Gently push down the igniter lever. The igniter coil should glow and touch the wick. When flame appears, release the igniter lever. The wick adjuster knob will now move freely left or right to adjust the flame.

NOTE: If you have difficulty igniting the wick, push back the igniter lever very slightly to remove the igniter coil form direct contact with the wick.

After having ignited the heater, always check whether the combustion chamber 4 is level, by sliding it slightly to the left and the right by its handle (fig. I) 5. This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

D ADJUSTING THE FLAME

After you have ignited the heater, it will take 10 to 15 minutes for the flame to become visible in the combustion chamber. Only then can you check whether the flame is correct. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. The page opposite the folding page shows the minimum and maximum permissible burning heights of the flame (Fig. M). The flame can be adjusted with the wick adjuster knob ② (Fig. H).

Too low a flame may also be caused by:

insufficient fuel (fill the tank)
poor fuel quality (contact your dealer)
insufficient ventilation (leave window or door ajar)
wastage of the wick (contact your dealer or replace the wick, refer to section L)

E SWITCHING OFF THE HEATER

Turn the wick adjuster knob counter clockwise until it stops (about 1/8 turn) (fig. J.). After a few minutes continue turning counter clockwise until it stops (about a half turn). Within a few moments the flame will be completely extinguished and the heater will be off.

NOTE: For routine turn-off, DO NOT use the "Manual Shutoff" or activate the "Automatic Extinguisher" by jarring the heater. These methods may cause unwanted odour, soot and smoke. Only the wick adjuster knob should be used for normal shutoff.

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your Zibro dealer.

broken ignition coil

THE HEATER DOES NOT IGNITE

The batteries are not positioned correctly in the holder. Check (Fig. D).
There is not enough power left in the batteries for the ignition. Replace (Fig. D).
You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the fuel tank, wait for 30 minutes before igniting the heater.
You are pushing down the igniter slide ③ with too much force. Push it down less forcefully (Section C).
The ignition coil is defective. Contact your dealer.

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

The combustion chamber 4 has not been positioned correctly. Use the handle 5 to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level.
The flame height has not been adjusted properly. See Fig. M and the directions in Section D.
You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.
You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (Section 'What you need to know in advance').
Dust has gathered in the lower part of the heater. Contact your dealer.
The wick height is not correct. Contact your dealer.

THE HEATER SLOWLY EXTINGUISES

The fuel tank is empty. Refer to Section B.
The lower reservoir is contaminated by water. Contact your dealer.
The wick has hardened on the upper side. Burn the heater until all fuel is used (Section G). Use the right fuel.
You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

Wick position too low. Contact your dealer.
Before you refilled the tank, the heater had burnt up almost all the fuel. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (Section 'What you need to know in advance').
The room is insufficiently ventilated. Leave a window or a door wide open for a while.

THE HEATER BURNS TOO HIGH, THE FLAMES CANNOT BE ADJUSTED.

You are using an incorrect, too volatile type of fuel. Refer to THE RIGHT FUEL (Section 'What you need to know in advance').
Wick position too high. Contact your dealer.

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only three components are subject to wear:

ignition coil

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with the other domestic waste. Follow the locally applicable regulations regarding the disposal of domestic chemical waste.

2. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

3. THE IGNITION COIL

The ignition coil will last longer if you ignite in the right way. Replace the batteries on time and make sure you do not push down the ignition slide too forcefully. If the filament is broken, you should replace the coil.

Do not remove any heater components yourself. Always contact your dealer for repairs.

Let the heater cool down first, before you start any maintenance or service work.

H

STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the next procedure:

1 Ignite the heater outside the living room and let it burn until all fuel is used.
2 Let the heater cool down.
3 Clean the heater with a damp cloth and then dry it with a cloth.
4 Remove the batteries from the holder 10 and store them in a dry place.
Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste.
6 Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Always move the heater in an upright position.

J SPECIFICATIONS

Ignition	electrical	Dimensions (mm)	width	388
Fuel	paraffin	(including base plate)	depth	388
Capacity (kW)*	2,50		height	474,5
Suitable space (m3)	40-90	Accessories:	manual fuel pump
Fuel consumption (l/hr)*	0,26		batteries
Fuel consumption (g/hr)*	208	Required batteries	size C, 1,5V
Burning time per tank (hr)*	19
Capacity fuel tank (litres)	4,9
Weight (kg)	6,2
Wick type	K

• At maximum setting
  ** Specified values are indicative

WARRANTY PROVISIONS

Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty will not apply to parts that are subject to normal wear, such as the batteries, the ignition coil, the wick and the manual fuel pump.
5 The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.

The warranty will not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

• Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

10 TIPS FOR SAFE USE

1 Make sure that children are always aware of the presence of a burning heater.
2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
3 Position the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture (Fig. L).
4 Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.
5 Switch off the heater, before you go to sleep.
Store and move fuel only in suitable tanks and jerrycans.
7 Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).
8 Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).
9 Be aware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.
10 Always make sure that there is sufficient ventilation.

REPLACING THE WICK

L ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOLED BEFORE STARTING TO REPLACE THE WICK.

1 Release the automatic extinguisher by pushing down on the manual shutoff.
2 Remove the three (3) thumbscrews holding heater cover, and lift cover up. Remove batteries from the battery holder.
3 Lift the inner heater camber off the hole in the primary air tube.
4 Remove the three (3) wing nuts around the wick adjuster. Lift the wick adjuster off the heater while moving it slightly back and forth.
5 Slide two fingers between the orange band on the wick and the wick adjuster. After lifting all three (3) pins off the slots, fold the wick and remove it.
Place the wick adjuster on its slide. Next, line up the two (2) openings in the wick adjuster: 1) the diagonal slots in the fixed part of the wick adjuster, and 2) the slots in the moving parts of the wick adjuster controlled by the wick adjuster knob.
7 Fold the new wick in quarters and insert it into the wick adjuster from wick adjuster bottom. Place one of the pins in one of the line-up openings. If you experience difficulty, gently turn the wick adjuster knob clockwise. Then insert the two other pins, turning the wick adjuster knob if necessary.
8 Finally, gently press the wick, all along its circumference, against the adjuster to insure that it is firmly in place.
9 Lower the wick adjuster into the fuel tank, guiding the tail of the wick so it fits over the primary air tube and evenly into place.

Point the wick adjuster knob to the front of the heater. Insure that the wick adjuster is centered over the studs on the fuel tank.

NOTE: The space between the wick adjuster and the primary air tube should be even all around.

NOTE: Make certain the top of the wick adjuster and the top of primary air tube are the same weight. If they uneven, the flames tend to be uneven, too.

10 Tighten the three (3) wing nuts around the wick adjuster.
11 Turn the wick adjuster knob to be sure the wick moves smoothly up and down.

AFTER REPLACING THE WICK, CHECK THE OPERATION OF THE AUTOMATIC EXTINGUISHER.

Wick height should be 5mm when wick adjuster knob is turned fully clockwise. Be sure to check.

NOTE: If wick does not move smoothly and easily, or wick height is not in the range of 4- 6 mm, do not use the heater. Disassemble and repeat items 6 through 11.

NOTE: If any ragged edges appear on the top of the wick, trim them with a scissors carefully. DO NOT cut the body of the wick.

12 Replace the inner heat chamber on the top of the primary air tube.
13 Replace the heater cover on the fuel tank and secure it into position with three (3) thumbscrews. Replace batteries in the battery holder. Be sure that the outer heat chamber is properly seated by moving the wire heat chamber handle left and right.

Once again, check the proper operation of the automatic extinguisher.

NOTE: Before lighting a new wick for the first time, turn the wick to its lowest position and allow the wick to saturate with kerosene for about thirty (30) minutes.

Egregio Signore, Gentile Signora,

ACCENSIONE DELLA STUFA

3. LA BOBINA DI ACCENSIONE

DE KACHEL GAAT LANGZAAM UIT

OPSLAG (NA HET STOOKSEIZOEN)

Holloway Bank, Wednesbury

West Midlands WS10 OAW

Tel.: [phone]

Fax: [phone]

email: [e-mail]

ITALIA

PVG Italy SRL

Via Niccolò Copernico 5

50051 CASTELFIORENTINO (FI)

tel: [phone]

fax: [phone]

email: [e-mail]

N NORGE

Sunwind - Gylling A/S

Rudsetta 71-75 / P.O. Box 64

N-1309 RUD

tel: [phone]

fax: [phone]

email: [e-mail]

N L NEDERLAND

PVG International b.v.

P.O.Box 96

5340 AB OSS

tel: [phone]

fax: [phone]

email: [e-mail]

PORTUGAL

Gardena, Lda
