USER MANUAL TO 2035 - FICHE PRODUIT SEVERIN

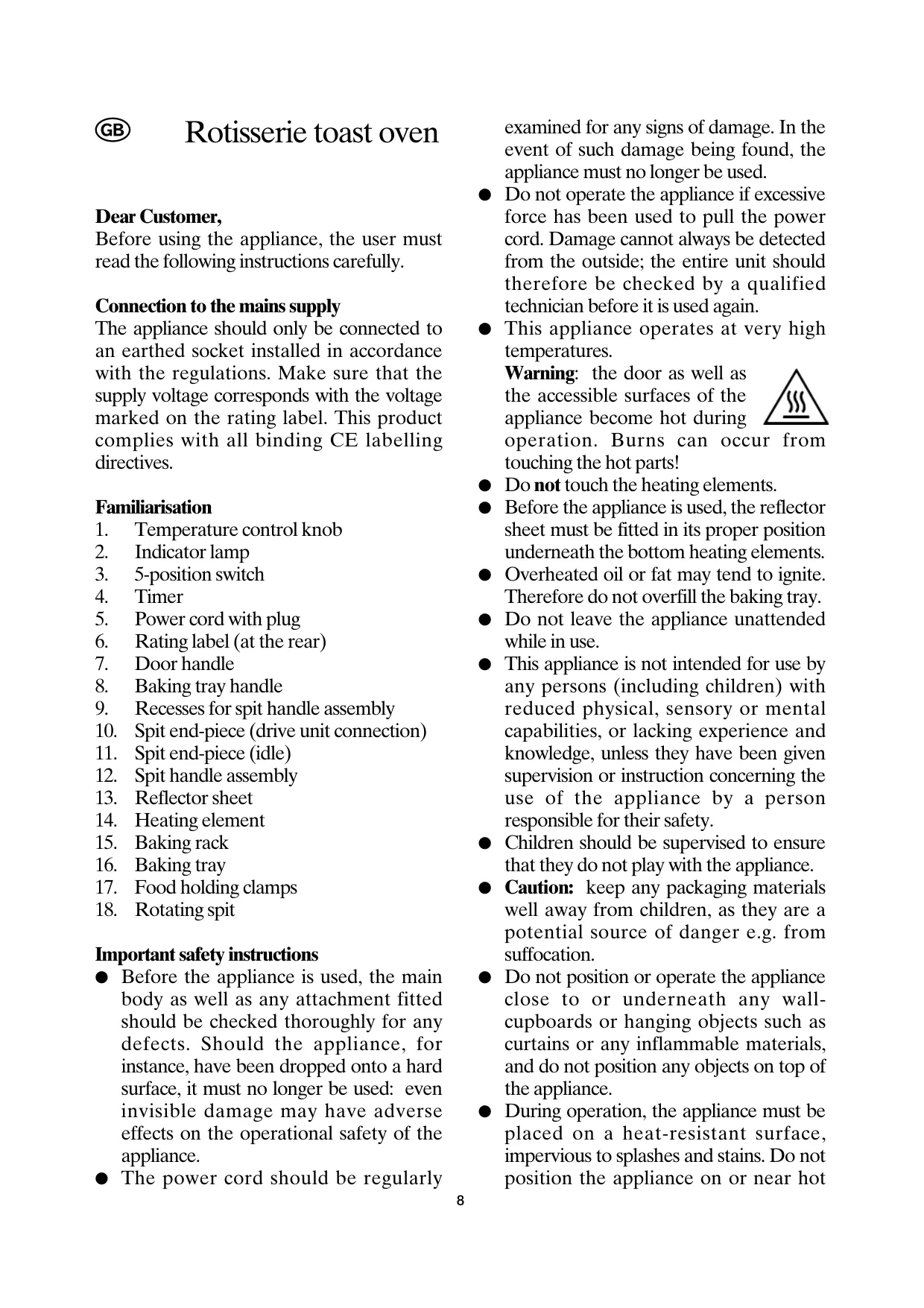

Before using the appliance, the user must read the following instructions carefully.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Temperature control knob
2. Indicator lamp
3. 5-position switch
4. Timer
5. Power cord with plug
6. Rating label (at the rear)
7. Door handle
8. Baking tray handle
9. Recesses for spit handle assembly
10. Spit end-piece (drive unit connection)
11. Spit end-piece (idle)
12. Spit handle assembly
13. Reflector sheet
14. Heating element
15. Baking rack
16. Baking tray
17. Food holding clamps
18. Rotating spit

Important safety instructions

• Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• The power cord should be regularly

examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

• Do not operate the appliance if excessive force has been used to pull the power cord. Damage cannot always be detected from the outside; the entire unit should therefore be checked by a qualified technician before it is used again.
• This appliance operates at very high temperatures.

Warning: the door as well as the accessible surfaces of the appliance become hot during operation. Burns can occtouching the hot parts!

• Do not touch the heating elements.
• Before the appliance is used, the reflector sheet must be fitted in its proper position underneath the bottom heating elements.
• Overheated oil or fat may tend to ignite. Therefore do not overfill the baking tray.
• Do not leave the appliance unattended while in use.
• This appliance is not intended for use by any persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Caution: keep any packaging materials well away from children, as they are a potential source of danger e.g. from suffocation.
• Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.
• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. Do not position the appliance on or near hot

surfaces, open flames or inflammable vapours.

• Do not allow the power cord to touch any hot parts of the appliance.

• Do not let the power cord hang free.
  Always switch off and remove the plug from the wall socket

• after use, as well as

• in cases of malfunction, and

• during cleaning.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system
• No responsibility can be/will be accepted if damage results from improper use, or if these instructions are not complied with.
• This appliance is intended for domestic use only and not for commercial applications.
• In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.

Temperature control

With the temperature control knob, the temperature can be set to the desired level. The indicator lamp lights up after the timer is activated. Once the pre-set temperature has been reached, the indicator lamp switches off.

5-position switch settings

• Both heating elements and rotating spit switched off.

Upper heat
Upper heat with rotating spit
Upper heat and lower heat
Lower heat

The heating elements will only be switched

on after the timer is activated.

Timer

By using the timer, the cooking time can be selected up to a maximum of 60 minutes. After the pre-programmed time has elapsed, an acoustic signal indicates that the heating elements are switched off. To switch off the whole appliance, the heating elements must be switched off as well.

Hot-air convection

The hot-air convection fan is activated automatically whenever the heating elements are switched on.

Rotating spit

When using the rotating spit, only the upper heating function is used.

• Before the spit is used, always ensure that the backing rack and baking tray are properly inserted into one of the guide rails.
• When the food to be cooked is put onto the spit, make sure that it cannot come into contact with either the upper heating elements or the baking tray - ensure sufficient distance.
• Pierce the food to be cooked on the spit, making sure that the spit goes through the middle. This is to ensure that the food is at a sufficient distance from the baking tray, the oven interior and the heating elements. Use the holding clamps to secure the food in the center of the spit.
• Any parts sticking out (e.g. wings of a chicken) should be held in with a toothpick, a piece of string or other suitable means. This ensures that no part of the food can protrude or come off during the cooking process.

• Inserting and removing the rotating spit:

• Once the food has been securely attached, place the spit onto the handle assembly. Ensure that the indentations in the handle assembly fit into the corresponding recesses in the spit.

• Slide the spit end-piece with the drive

unit connection into the drive unit (see picture II).

• Place the idle end of the spit into its holding bracket on the other side (see picture I).
• To remove the rotating spit, follow these steps in reverse order.

Start up

• Clean the appliance (see General care and cleaning) and remove any packing materials completely.
• Before using the appliance for the first time, let it heat up for 10 minutes with both heating elements on. When the appliance is switched on for the first time, a slight smell may be emitted. This is normal and will only last for a very short time. Ensure sufficient ventilation.

Operation

• Before using the appliance, make sure that the reflector sheet is fitted in its proper position underneath the lower heating elements.
• Pre-heat the oven compartment for several minutes with the door closed, using both heating elements. Set the temperature control knob to the required level and use the timer control knob to select the desired pre-heating time. The indicator lamp switches off once the preset temperature has been reached. The appliance is now pre-heated and ready for use.
• Place the food to be cooked on the baking rack. When cooking food containing fat or moisture, use the baking tray to stop any dripping into the interior of the appliance. When using the rotating spit, always ensure that the baking rack and baking tray are properly inserted into one of the lower guide rails.
• The baking tray must always be placed on the baking rack and inserted into one of the guide rails.
• Close the door, set the temperature control knob to the required level and

use the timer knob to select the desired cooking time.

• For overhead baking or grilling, either the upper or the upper and lower elements may be selected.
• The switch settings (upper heat/ lower heat) may be changed during the cooking process.
• After the pre-programmed cooking time has elapsed, the timer will automatically switch off the heating elements.
• To interrupt the cooking process temporarily, set the 5-position switch to the “ ” position. However, it should be noted that the timer function continues during the interruption.
• To switch off the appliance earlier, set the timer to "0" and turn the 5-position switch to the "●" position.
• Always use the door handle to open the hot door after use. When removing the baking tray, use the tray handle provided. Likewise, when removing the spit, the spit handle must be used. Always place the baking tray on a heat-resistant surface.
• After use, set the 5-position switch to the "●" position and remove the plug from the wall socket.

Cooking times

The grilling/cooking times listed are approximate times only, as each food to be grilled or cooked is of a different nature and consistency; please also refer to the information contained on the food packaging.

Food	Temperature / setting	Grilling/ cooking time
Chicken (rotating spit)	200°C	60 mins.
Pizza (deep-frozen)	200°C	12-14 mins.
Toast Hawaii	175°C	8-10 mins.
Baguette (deep-frozen)	180°C	16-18 mins.
Cookies, biscuits	175°C	15-17 mins.
Cakes, pastry	150°C	50-60 mins.

General care and cleaning

• Before cleaning the appliance, ensure it is disconnected from the power supply and has completely cooled down.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives, harsh cleaning solutions or spray-type oven cleaners.
• The exterior of the housing may be cleaned with a damp, lint-free cloth.
• The baking tray, baking rack, spit and holding clamps may be cleaned using hot water and a mild detergent.
• If necessary, the reflector sheet may be removed before cleaning. Make sure that the reflector sheet is fitted in its proper position underneath the heating elements after cleaning.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of

two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
