USER MANUAL BRIGGS & STRATTON 3200 PSI BRIGGS & STRATTON

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A. Model No. 020225 (3200 PSI Pressure Washer) Manual No. 203764GS Revision - (04/23/2007) SAFETY RULES

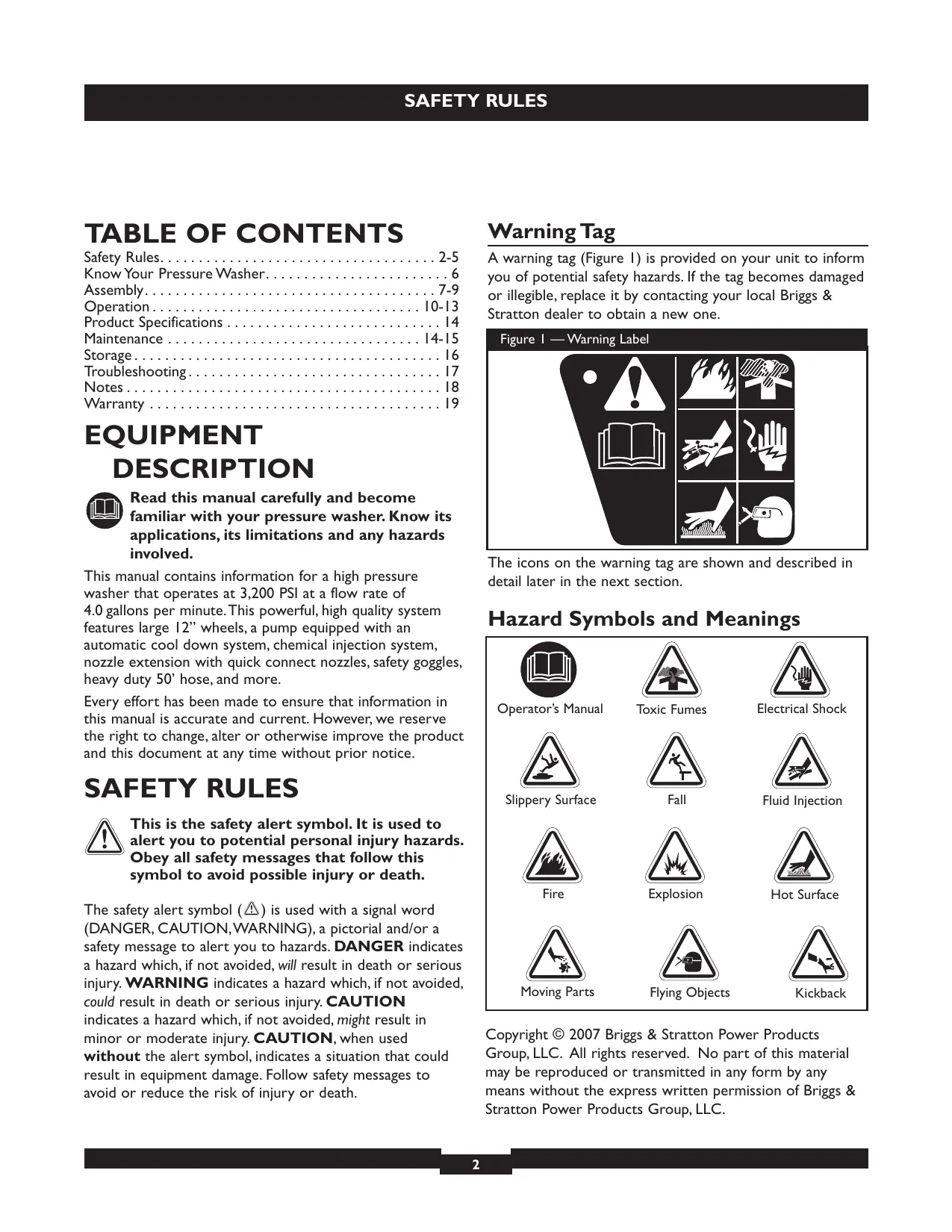

TABLE OF CONTENTS

Warning Tag A warning tag (Figure 1) is provided on your unit to inform you of potential safety hazards. If the tag becomes damaged or illegible, replace it by contacting your local Briggs & Stratton dealer to obtain a new one. Figure 1 — Warning Label EQUIPMENT DESCRIPTION Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations and any hazards involved. This manual contains information for a high pressure washer that operates at 3,200 PSI at a flow rate of

4.0 gallons per minute.This powerful, high quality system

features large 12” wheels, a pump equipped with an automatic cool down system, chemical injection system, nozzle extension with quick connect nozzles, safety goggles, heavy duty 50’ hose, and more. Every effort has been made to ensure that information in this manual is accurate and current. However, we reserve the right to change, alter or otherwise improve the product and this document at any time without prior notice. The icons on the warning tag are shown and described in detail later in the next section. Hazard Symbols and Meanings Operator’s Manual SAFETY RULES Toxic Fumes Electrical Shock Slippery Surface Fall Fluid Injection Fire Explosion Hot Surface This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION,WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. CAUTION, when used without the alert symbol, indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death. Moving Parts Flying Objects Kickback Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC.

SAFETY RULES WARNING WARNING Running engine gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death. Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

WHEN ADDING FUEL

• Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
• DO NOT light a cigarette or smoke.

WHEN OPERATING EQUIPMENT

• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT spray flammable liquids.

WHEN TRANSPORTING OR REPAIRING EQUIPMENT

• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF. WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

• Operate pressure washer ONLY outdoors.

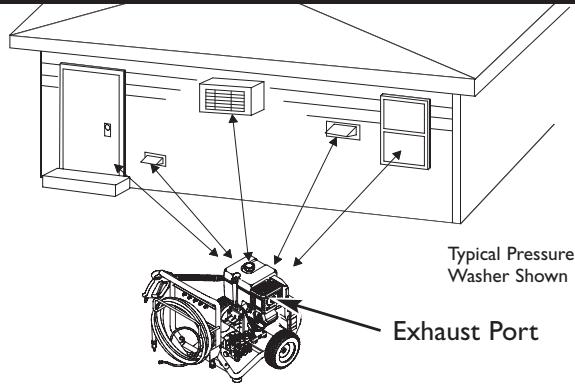

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or enclosure, even if doors or windows are open.
• Use a respirator or mask whenever there is a chance that vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors. WARNING Use of pressure washer can create puddles and slippery surfaces. High pressure spray could cause you to fall if you are too close to the cleaning surface.

• Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors. WARNING
• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Operate this unit on a stable surface.
• The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back. Spray contact with electrical wiring can result in electrocution.
• Keep water spray away from electric wiring or fatal electric shock may result.

SAFETY RULES WARNING WARNING Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation. Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release pressure and avoid kickback each time, before starting engine. Engage trigger lock when not in use.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point gun in safe direction and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

NEVER aim spray gun at people, animals or plants. DO NOT allow CHILDREN to operate pressure washer. NEVER repair high pressure hose. Replace it. NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use. WARNING Running engines produce heat.Temperature of muffler and nearby areas can reach or exceed 150°F (65°C). Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire. WARNING High pressure spray can cause paint chips or other particles to become airborne.
• Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing adequate safety goggles.

• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead. WARNING WARNING Starter and other rotating parts can entangle hands, hair, clothing, or accessories. Unintentional sparking can result in fire or electric shock.

• DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry. WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE WASHER
• Disconnect spark plug wire from spark plug and place wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

SAFETY RULES CAUTION CAUTION Excessively high or low operating speeds increase risk of injury and damage to pressure washer. Improper treatment of pressure washer can damage it and shorten its life.

• If you have questions about intended use, ask dealer or contact Briggs & Stratton Power Products.
• NEVER operate units with broken or missing parts, or without protective housing or covers.
• DO NOT by–pass any safety device on this machine.
• Before starting pressure washer in cold weather, check all parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on unit.
• Check fuel system for leaks or signs of deterioration, such as chafed or spongy hose, loose or missing clamps, or damaged tank or cap. Correct all defects before operating pressure washer.
• This equipment is designed to be used with Briggs & Stratton Power Products authorized parts ONLY. If equipment is used with parts that DO NOT comply with minimum specifications, user assumes all risks and liabilities.

• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure. CAUTION A pressure washer produces a high pressure spray which increases risk of injury and damage to unit.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly attached. CAUTION High pressure spray may damage fragile items including glass.
• DO NOT point spray gun at glass when in jet spray mode.
• NEVER aim spray gun at plants.

KNOW YOUR PRESSURE WASHER

KNOW YOUR PRESSURE WASHER

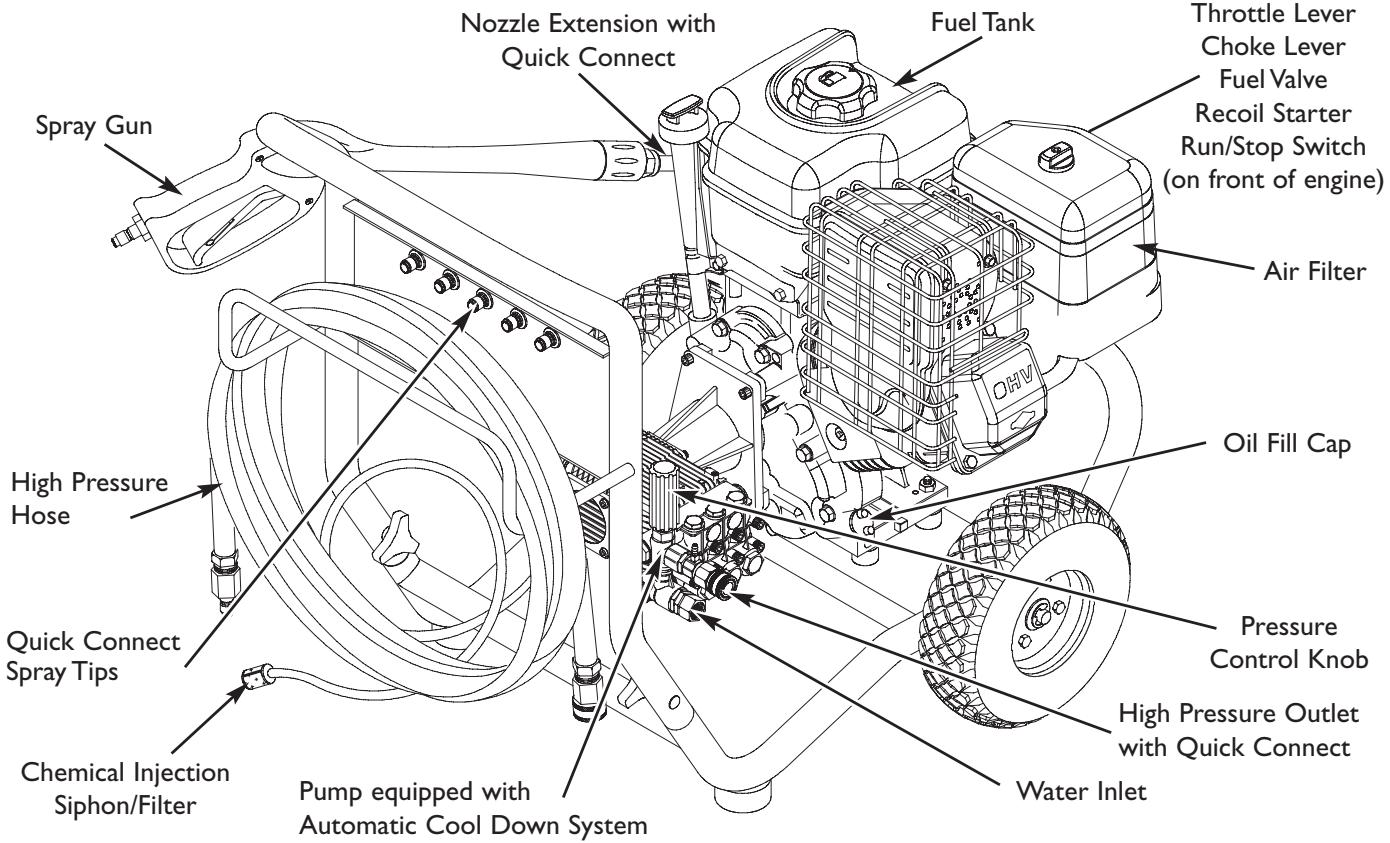

Read this operator’s manual and safety rules before operating your pressure washer. Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Throttle Lever Fuel Tank Nozzle Extension with Choke Lever Quick Connect Fuel Valve Recoil Starter Spray Gun Run/Stop Switch (on front of engine) Air Filter Oil Fill Cap High Pressure Hose Pressure Control Knob Quick Connect Spray Tips Chemical Injection Siphon/Filter High Pressure Outlet with Quick Connect Water Inlet Pump equipped with Automatic Cool Down System Air Filter — Protects engine by filtering dust and debris out of intake air. Nozzle Extension with Quick Connect — Permits easy switching between five different spray tips. Automatic Cool Down System — Cycles water through pump when water reaches 125°-155°F.Warm water will discharge from pump onto ground.This system prevents internal pump damage. Pressure Control Knob — Varies pressure of high pressure spray. Oil Fill Cap — Fill engine with oil here. Pump — Develops high pressure. Chemical Injection Siphon/Filter — Used to siphon detergent or other pressure washer chemicals into the low pressure stream. Recoil Starter — Use for starting the engine manually. Run/Stop Switch — Set this switch to "Run" before using recoil starter. Set switch to "Stop" to switch off engine. Choke Lever — Prepares a cold engine for starting. Fuel Tank — Fill tank with recommended fuel. Spray Gun — Controls the application of water onto cleaning surface with trigger device. Includes safety latch. High Pressure Hose — Connect one end to the water pump and the other end to the spray gun. Quick Connect Spray Tips — Detergent, 0°, 15°, 25°, and 40°: for various cleaning applications. High Pressure Outlet with Quick Connect— To connect high pressure hose. Throttle Lever—Sets engine in starting mode for recoil starter. Water Inlet — Connect garden hose here.

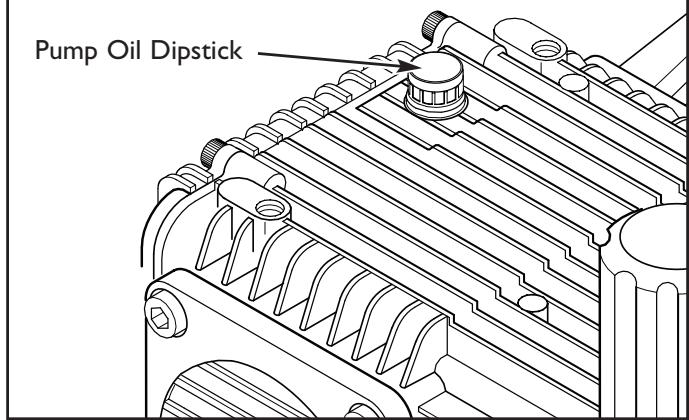

Verify oil dipstick has been installed into pump (Figure 2). Figure 2 — Pump Dipstick IMPORTANT: Read entire operator’s manual before you attempt to assemble or operate your new pressure washer. Pump Oil Dipstick Unpack the Pressure Washer

Remove everything from carton except pressure washer.

Open carton completely by cutting each corner from top to bottom.

Remove pressure washer from carton. Carton Contents Items in the carton include:

• Spray gun with quick connect fitting
• Nozzle extension with quick connect fitting
• Parts Bag (includes the following):
• Bag containing 5 multi–colored quick connect spray tips
• Engine operator’s manual
• Handle fastening hardware kit (which includes):
• Plastic knobs (2) If parts are missing or damaged, contact the local Briggs & Stratton service center.

Add oil to engine crankcase.

Add fuel to fuel tank.

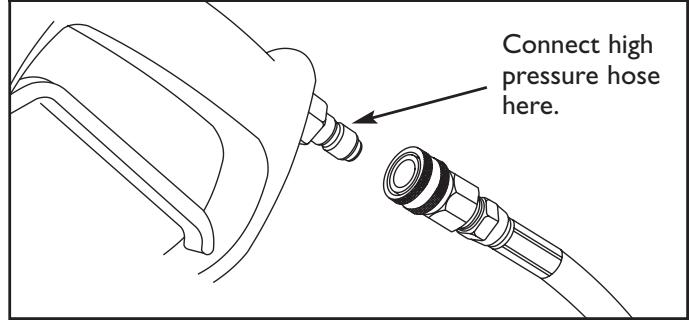

Connect high pressure hose to spray gun and pump.

Connect water supply to pump.

Attach nozzle extension to spray gun.

Select/attach quick connect spray tip to nozzle extension. Attach Handle NOTE: All assembly operations given in this section will be described from the perspective of assembling the pressure washer from the rear.

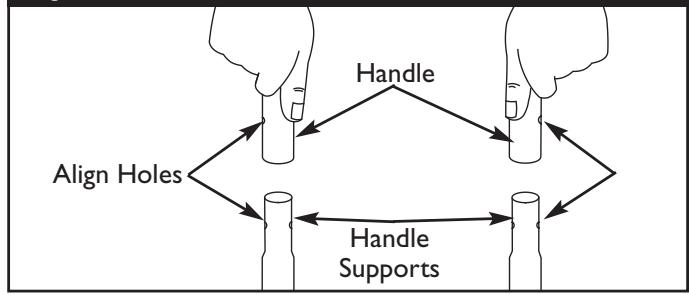

Place handle assembly onto handle supports connected to main unit. Make sure holes in handle align with holes on handle supports (Figure 3). Figure 3 — Attach Handle to Base Handle Align Holes PREPARING PRESSURE

WASHER FOR USE

Handle Supports To prepare your pressure washer for operation, you will need to perform these tasks:

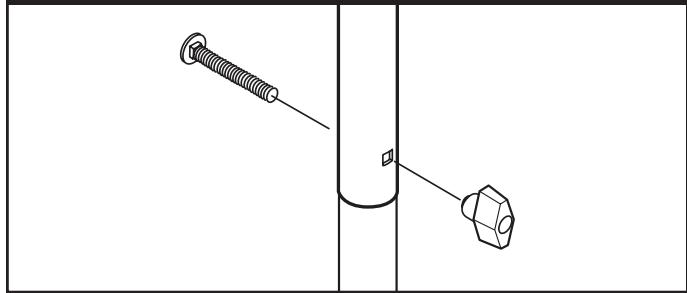

1. Attach handle to main unit.

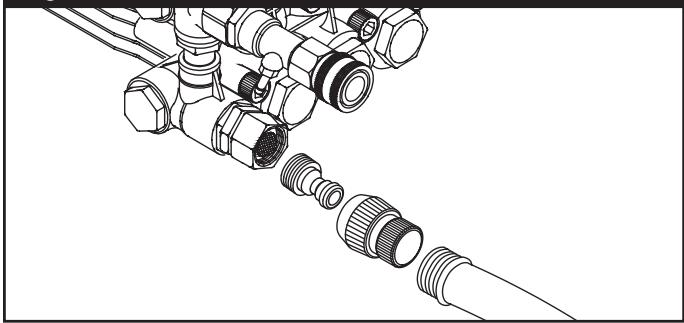

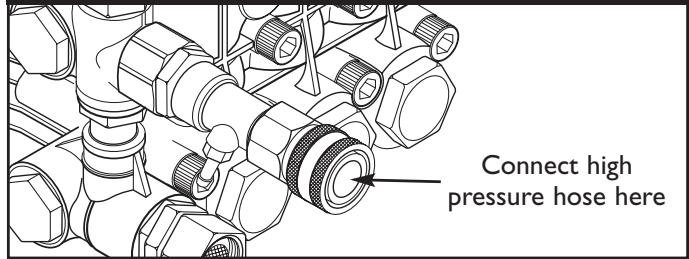

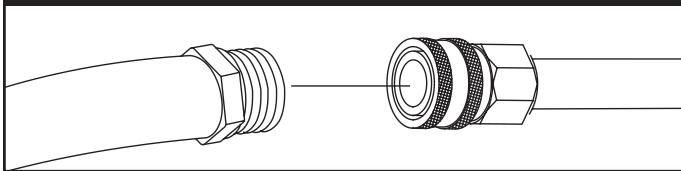

ASSEMBLY Connect Hose and Water Supply to Pump NOTE: It may be necessary to move the handle supports from side to side in order to align the handle so it will slide over the handle supports.

IMPORTANT: To avoid pump damage, you must assemble the nozzle extension to the spray gun and attach all hoses before you start the engine. Insert carriage bolts through holes from outside of unit and attach plastic knob on inside of handles (Figure 4). Tighten by hand.

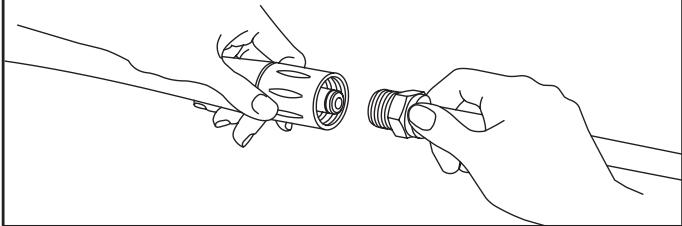

Figure 4 — Secure Handle Uncoil high pressure hose and attach quick connect end of hose to base of spray gun (Figure 5). Pull down on collar of quick connect, slide onto spray gun and let go of collar.Tug on hose to be sure of tight connection. Figure 5 — Connect High Pressure Hose to Spray Gun Connect high pressure hose here.

Insert multi–colored spray tips in spaces provided in handle. Add Engine Oil and Fuel

• Place pressure washer on a level surface. NOTE: Remove and discard all pump shipping caps before attaching hoses. CAUTION

Any attempt to crank or start the engine before it has been properly filled with the recommended oil will result in equipment failure.

• Refer to engine manual for oil and fuel fill information.
• Damage to equipment resulting from failure to follow this instruction will void warranty. Similarly, attach other end of high pressure hose to high pressure outlet on pump (Figure 6). Pull down on collar of quick connect, slide onto pump and let go of collar. Pull on hose to be sure of tight connection. Figure 6 — Connect High Pressure Hose to Pump

• Refer to engine operator’s manual and follow oil and fuel recommendations and instructions. NOTE: Check oil often during engine break–in. Refer to engine operator’s manual for recommendations. Connect high pressure hose here

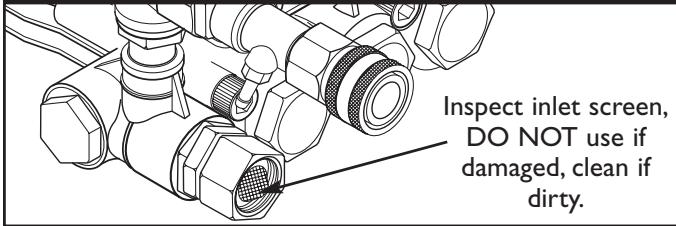

Before connecting garden hose to water inlet, inspect inlet screen (Figure 7). Clean screen if it contains debris or replace if damaged. DO NOT RUN PRESSURE WASHER IF SCREEN IS DAMAGED. CAUTION There MUST be at least ten feet of unrestricted garden hose between the pressure washer inlet and any flow shut off device, such as a ‘Y’ shut-off connector or other convenience-type water shut-off valve. Figure 7 — Inspect Inlet Screen

• Damage to equipment resulting from failure to follow this instruction will void warranty.

Inspect inlet screen, DO NOT use if damaged, clean if dirty.

WARNING Run water through garden hose for 30 seconds to clean out any debris. High pressure spray can cause paint chips or other particles to become airborne. IMPORTANT: DO NOT siphon standing water for water supply. Use ONLY cold water (less than 100°F).

Turn ON water, point gun in a safe direction and squeeze trigger to purge pump system of air and impurities.

• Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing adequate safety goggles. Attach female quick connect to garden hose.Attach male quick connect to water inlet on pump (Figure 8). Figure 8 — Connect the Garden Hose to Water Inlet Checklist Before Starting Engine Review the unit’s assembly to confirm you have performed all of the following:

1. Be sure to read “Safety Rules” and “How To Use Your

Pressure Washer” before using pressure washer.

Connect garden hose (not to exceed 50 feet in length) to water inlet (Figure 8). Pull back on collar of quick connect, slide fitting onto pump and let go of collar. Pull on hose to be sure of a tight connection.

Make sure handle is in place and secure.

Check that oil has been added to the proper level in engine crankcase.

Add proper fuel to fuel tank.

Check for properly attached hose connections.

Check to make sure that there are no kinks, cuts, or damage to high pressure hose.

Provide a proper water supply at an adequate flow. OPERATION How To Start Pressure Washer To start your pressure washer for the first time, follow these instructions step-by-step.This starting information also applies if you have let the pressure washer sit idle for at least a day. If you have any problems operating your pressure washer, please contact the local Briggs & Stratton service center.

Place pressure washer near an outside water source capable of supplying water at a flow rate greater than

5.0 gallons per minute and no less than 20 PSI at

pressure washer end of garden hose.

Check that high pressure hose is tightly connected to spray gun and to pump. See “Preparing Pressure Washer for Use” for illustrations.

Make sure unit is in level position.

Connect garden hose to water inlet on pressure washer pump.

Turn ON water, point gun in a safe direction and squeeze trigger to purge pump system of air and impurities. Pressure Washer Location Pressure Washer Clearance WARNING Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead. Place pressure washer outdoors. DO NOT place pressure washer where exhaust gas could accumulate and enter inside or be drawn into a potentially occupied building. Ensure exhaust gas is kept away from any windows, doors, ventilation intakes or other openings that can allow exhaust gas to collect in a confined area (Figure 9). Prevailing winds and air currents should be taken into consideration when positioning pressure washer. CAUTION DO NOT run the pump without the water supply connected and turned on.
• Damage to equipment resulting from failure to follow this instruction will void warranty. WARNING Running engine gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.

Attach nozzle extension to spray gun (Figure 10). Tighten by hand. Figure 10 — Connect Nozzle Extension to Spray Gun

• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or enclosure, even if doors or windows are open. Figure 9 — Pressure Washer Clearance

Choose spray tip you want to use and insert it into nozzle extension. See “How to Use Spray Tips”.

Engage safety latch to spray gun trigger (Figure 11). Figure 11 — Spray Gun with Safety Latch Engaged Safety Latch Typical Pressure Washer Shown Exhaust Port

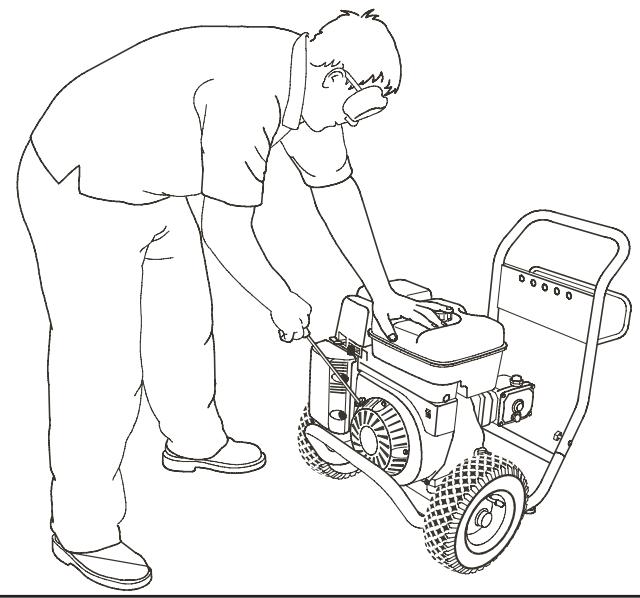

When starting engine, position yourself as recommended in Figure 12 and start engine according to instructions given in engine operator’s manual. WARNING Running engines produce heat.Temperature of muffler and nearby areas can reach or exceed 150°F (65°C). Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire. Figure 12 - Recommended Starting Position

• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead. How To Stop Pressure Washer

Let engine idle for two minutes. Turn engine off according to instructions given in engine operator’s manual.

3. ALWAYS point gun in a safe direction and squeeze

spray gun trigger to release retained high water pressure. IMPORTANT: Spray gun traps high water pressure, even when engine is stopped and water is disconnected. WARNING WARNING The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation. Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury. Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release pressure and avoid kickback each time, before starting engine.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point gun in safe direction and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

NOTE: Always keep the throttle lever in the “Fast” position when operating the pressure washer.

Engage safety latch on spray gun when not in use. OPERATION How to Use Spray Tips Cleaning and Applying Detergent The quick–connect on the nozzle extension allows you to switch between five different spray tips.The spray tips vary the spray pattern as shown below (Figure 13). IMPORTANT: Use detergents designed specifically for pressure washers. Household detergents could damage the pump. CAUTION CAUTION A pressure washer produces a high pressure spray which increases risk of injury and damage to unit. You must attach all hoses before you start the engine.

• Starting the engine without all the hoses connected and without the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this instruction will void warranty.

• NEVER exchange spray tips without locking the safety latch on the trigger. Follow these instructions to change spray tips:

1. Engage safety latch on spray gun.

To apply detergent follow these steps:

1. Review spray tip use.

Pull back collar on quick–connect and pull current spray tip off. Store spray tips in space provided on handle storage panel. Select desired spray tip:

• For gentle rinse, select white 40° or green 25° spray tip.
• To scour surface, select yellow 15° or red 0° spray tip.
• To apply detergent, select black spray tip. Pull back on collar, insert new spray tip and release collar.Tug on spray tip to make sure it is securely in place.

Prepare detergent solution as required by manufacturer.

Place small filter end of detergent siphoning tube into detergent container. CAUTION Keep the detergent siphoning tube from coming in contact with the hot muffler.

• When inserting the filter into a detergent solution bottle, route the tube so as to keep it from inadvertently contacting the hot muffler.

For most effective cleaning, keep spray tip from 8 to 24 inches away from cleaning surface. If you get spray tip too close, you may damage cleaning surface. Make sure black spray tip is installed. NOTE: Detergent cannot be applied with the high pressure spray tips (White, Green,Yellow, or Red). DO NOT get closer than 6 inches when cleaning tires. Figure 13 — Quick Connect Spray Tips High Pressure Low Pressure Use to apply detergent Black White 40° Green 25°

Make sure garden hose is connected to water inlet. Check that high pressure hose is connected to spray gun and pump and start engine.

Apply high pressure spray to small area and check surface for damage. If no damage is found, you can assume it is okay to continue cleaning.

Apply detergent to a dry surface, starting at lower portion of area to be washed and work upward, using long, even, overlapping strokes.

Start at top of area to be rinsed, working down with same overlapping strokes as you used for cleaning.

Allow detergent to soak in between 3–5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. DO NOT allow detergent to dry on (prevents streaking). Cleaning Detergent Siphoning Tube If you used the detergent siphoning tube, you must flush it with clean water before stopping the engine. IMPORTANT: You must flush the detergent siphoning system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes. Pressure Washer Rinsing Remove black spray tip from nozzle extension.

Select and install desired high pressure spray tip following instructions in “How to Use Spray Tips”.

Increase (decrease) spray pressure by turning pressure control knob clockwise (counterclockwise) (See “Know Your Pressure Washer”). Use lower pressure to wash items such as a car or boat. Use higher pressure to strip paint and degrease driveways. Place detergent siphoning tube/filter in a bucket full of clean water.

Engage safety latch on spray gun.

Attach black cleaning detergent nozzle.

Flush for 1-2 minutes.

Shut off engine. ALWAYS point gun in a safe direction and squeeze spray gun trigger to release retained high water pressure. IMPORTANT: Spray gun traps high water pressure, even when engine is stopped and water is disconnected. After you have applied detergent, scour the surface and rinse it clean as follows:

1. Engage safety latch on spray gun.

WARNING The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation. Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury. WARNING

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use. High pressure spray could cause you to fall if you are too close to the cleaning surface.
• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Operate this unit on a stable surface.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back. Automatic Cool Down System (Thermal Relief) If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach temperatures above 125°F.The system engages to cool the pump by discharging the warm water onto the ground.

Check and Clean Inlet Screen Examine the screen on the water inlet. Clean it if the screen is clogged or replace it if screen is damaged. Check High Pressure Hose The high pressure hose can develop leaks from wear, kinking, or abuse. Inspect the hose each time before using it. Check for cuts, leaks, abrasions or bulging of cover, damage or movement of couplings. If any of these conditions exist, replace the hose immediately. GENERAL MAINTENANCE RECOMMENDATIONS The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence.To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual. WARNING The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation. NOTE: Should you have questions about replacing components on your pressure washer, please visit our website at BRIGGSandSTRATTON.COM.

• Some adjustments will need to be made periodically to properly maintain your pressure washer.

• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure rating of unit.

• All maintenance in this manual and the engine operator’s manual should be made at least once each season. Check Detergent Siphoning Tube Examine the filter on the detergent tube and clean if clogged.The tube should fit tightly on the barbed fitting. Examine the tube for leaks or tears. Replace the filter or tube if either is damaged.

• Once a year you should check the spray gun and nozzle extension assembly for wear.Also clean or replace the spark plug and clean or replace the engine air filter. Please refer to engine operator’s manual for more details.
• If equipped with inflatable tires, keep the air pressure at the value marked on the tire or within 15 and 40 psi. Check Gun and Nozzle Extension Examine the hose connection to the spray gun and make sure it is secure.Test the trigger by pressing it and making sure it “springs back” into place when you release it. Put the safety latch in the ON position and test the trigger.You should not be able to press the trigger. Check engine oil level. Check water inlet screen for damage. Check high pressure hose for leaks. Check detergent siphoning tube and filter for damage. Check spray gun and nozzle extension assembly for leaks. Rinse out garden hose to flush out debris. Nozzle Maintenance A pulsing sensation felt while squeezing the spray gun trigger may be caused by excessive pump pressure.The principal cause of excessive pump pressure is a spray tip clogged or restricted with foreign materials, such as dirt, etc.To correct the problem, immediately clean the spray tip following these instructions:

Shut off engine and turn off water supply.

Remove spray tip from end of nozzle extension. MAINTENANCE

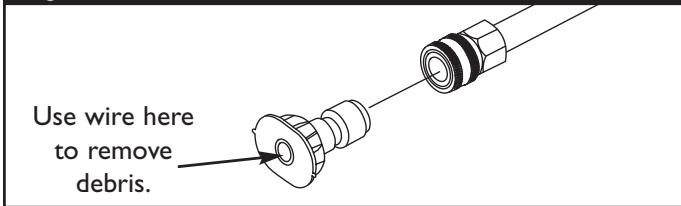

Pump Maintenance Use a small paper clip to free any foreign material clogging or restricting spray tip (Figure 14). Changing Pump Oil Change oil after first 50 hours of operation and then every 200 hours or 3 months, whichever occurs first. Figure 14 — Nozzle Maintenance NOTE: When changing pump oil, use only high quality nondetergent 30 weight oil. Use no special additives. Use wire here to remove debris.

Change pump oil as follows: Using a garden hose, remove additional debris by back flushing water through nozzle extension (Figure 15). Back flush between 30 to 60 seconds.

Clean area around brass oil drain plug at bottom of pump.

Remove oil drain plug. Drain oil completely into an approved container.

When oil has completely drained, install oil drain plug and tighten firmly.

Clean area around pump oil dipstick. Remove dipstick and fill pump with recommended oil to “Full” mark on dipstick (typically 0.43L or 15 oz.).

Install pump oil dipstick.

Wipe up any spilled oil. Figure 15 — Backflushing the Nozzle Extension

Reinstall spray tip filter into nozzle extension.

Reconnect nozzle extension to spray gun.

Reconnect water supply, turn on water, and start engine.

Test pressure washer by operating with each Quick Connect spray tip. ENGINE MAINTENANCE See the engine operator’s manual for instructions on how to properly maintain the engine. O–Ring Maintenance CAUTION Through the normal operation of your pressure washer, o–rings are used to keep the connections of the hoses and spray gun tight and leak–free.These o-rings may become worn or damaged. Avoid prolonged or repeated skin contact with used motor oil.

• Used motor oil has been shown to cause skin cancer in certain laboratory animals.
• Thoroughly wash exposed areas with soap and water. An O–Ring Maintenance Kit is provided with your pressure washer which includes replacement o-rings, rubber washer and water inlet filter. Refer to the instruction sheet provided in the kit to service your unit’s o-rings. Note that you will not use all of the parts in the kit. KEEP OUT OF REACH OF CHILDREN. DON'T

POLLUTE. CONSERVE RESOURCES. RETURN

USED OIL TO COLLECTION CENTERS. To remove a worn or damaged o–ring; use a small flathead screwdriver to get underneath the o-ring and pry it off. WARNING The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

• NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.

STORAGE Water should not remain in the unit for long periods of time. Sediments or minerals can deposit on pump parts and “freeze” pump action. If you do not plan to use the pressure washer for more than 30 days, follow this procedure:

If available, use PumpSaver in place of RV antifreeze and follow package instructions.

Shut off the engine and let it cool, then remove all hoses. Disconnect spark plug wire from spark plug.

Empty the pump of all pumped liquids by pulling the recoil handle about 6 times.This should remove most of the liquid in the pump. Store unit in a clean, dry area. Flush detergent siphoning tube by placing the filter into a pail of clean water while running pressure washer in low pressure mode. Flush for one to two minutes.

Draw RV antifreeze (non-alcohol) into the pump by pouring the solution into a 3-foot section of garden hose connected to inlet adapter and pulling recoil handle twice. See the engine operator’s manual for instructions on how to properly prepare the engine for storage.

TROUBLESHOOTING TROUBLESHOOTING Problem Pump has following problems: failure to produce pressure, erratic pressure, chattering, loss of pressure, low water volume. Detergent fails to mix with spray. Engine shuts down during operation. Cause Correction

Low pressure spray tip installed.

Replace spray tip with high pressure spray tip.

Water inlet is blocked.

Inadequate water supply.

Provide adequate water flow.

Inlet hose is kinked or leaking.

Straighten inlet hose, patch leak.

Clogged inlet hose strainer.

Check and clean inlet hose strainer.

Water supply is over 100°F.

Provide cooler water supply.

High pressure hose is blocked or leaks.

Clear blocks in outlet hose.

Spray tip is obstructed.

10. Pump is faulty.

10. Contact Authorized service facility.

Detergent siphoning tube is not submerged.

Insert detergent siphoning tube into detergent.

Detergent filter is clogged or cracked.

Clean or replace filter/detergent siphoning tube.

High pressure spray tip installed.

Replace spray tip with low pressure spray tip. Out of fuel. Fill fuel tank.

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC PRESSURE WASHER OWNER WARRANTY POLICY Effective December 1, 2005 replaces all undated Warranties and all Warranties dated before December 1, 2005 LIMITED WARRANTY Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the pressure washer that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for the time periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM. THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW. ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country. WARRANTY PERIOD Consumer Use 1 year Commercial Use 90 days The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated above. “Consumer use" means personal residential household use by a retail consumer. “Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once equipment has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty. NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE YOUR PROOF OF PURCHASE RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME WARRANTY SERVICE IS REQUESTED, THE MANUFACTURING DATE OF THE PRODUCT WILL BE USED TO DETERMINE THE WARRANTY PERIOD.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply if equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial number on the pressure washer or engine has been removed or the equipment has been altered or modified. During the warranty period, the Authorized Service Dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal use and service. This warranty will not cover the following repairs and equipment:

Normal Wear: Outdoor Power Equipment, like all mechanical devices, needs periodic parts and service to perform well. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction (due to chemical, lime, dirt, and so forth).

Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized installation or alteration and modification, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in our judgment, to adversely affect its performance and reliability. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction (due to chemical, lime, dirt, and so forth).

Other Exclusions: This warranty excludes wear items such as quick couplers, seals, o-rings, pumps that have been run without water supplied or damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing or freezing or chemical deterioration. Accessory parts, such as guns, hoses, nozzle extensions (wands), and nozzles, are excluded from the product warranty. This warranty excludes used, reconditioned, and demonstration equipment and failures due to acts of God and other force majeure events beyond the manufacturers control. 198187E, Rev. C, 12/31/2006

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WI, USA

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WI, USA

SICHERHEITSVORKEHRUNGEN INHALTSVERZEICHNIS Warnschild

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WI, USA

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WI, EUA
