BRIGGS & STRATTON 2700 PSI - Pressure washer BRIGGS & STRATTON - Free user manual and instructions

Product type	Pressure washer
Brand	BRIGGS & STRATTON
Model	2700 PSI
Maximum pressure	186 bar (2700 PSI)
Water flow rate	9.5 L/min (2.5 gal/min)
Engine type	4-stroke gasoline (not specified)
Fuel	Unleaded gasoline
Engine lubrication	Engine oil (per engine manual)
Detergent injection system	Yes, low-pressure nozzle included
High pressure hose length	7.6 m (25 ft)
Wheel diameter	25 cm (10 in)
Weight (shipping)	38.1 kg (84 lb)
Sound power level (LwA)	104 dB(A)
Sound pressure level at 7 m	79 dB(A)
Max water inlet temperature	35 °C
Automatic cooling system	Triggers at 51-68 °C
Warranty private use	1 year
Warranty professional use	90 days
Spare parts	O-rings, filters, nozzles, HP hose, etc.
Included accessories	Safety goggles, 4 nozzles (black, white, yellow, red), nozzle extension, gun, HP hose

Frequently Asked Questions - BRIGGS & STRATTON 2700 PSI BRIGGS & STRATTON

How to start the BRIGGS & STRATTON 2700 PSI pressure washer?

Make sure the water supply is open and the high pressure hose is properly connected. Set the choke lever to 'High' (rabbit). Slowly pull the starter rope until you feel resistance, then pull quickly. After starting, point the gun in a safe direction and pull the trigger to purge air.

What type of detergent to use with this pressure washer?

Use only detergent specifically designed for pressure washers. Household detergents can damage the pump. Apply it with the black nozzle (low pressure) in low pressure mode.

How to change the spray nozzle?

First engage the trigger safety lock. Pull the quick connect collar back, remove the current nozzle, insert the new one and release the collar. Check that it is secure by pulling on it.

What to do if pressure is low or intermittent?

Check that the high pressure nozzle is installed (not the black nozzle). Check water supply (sufficient flow), clean inlet filter and nozzle, and inspect hose for kinks or leaks.

How to maintain the pressure washer pump?

This model is pre-lubricated and sealed: no additional lubrication is necessary. Always use cold water (max 35°C) and never run the pump without water. For extended non-use, drain the pump and use RV antifreeze.

How to store the pressure washer for winter?

Rinse the detergent system with clean water, stop the engine, disconnect all hoses. Drain the pump by pulling the starter rope 6 times. Fill it with RV antifreeze (alcohol-free) or PumpSaver. Store the unit in a clean, dry place.

What are the essential safety precautions?

Always use the pressure washer outdoors, at least 1.5 m from any building. Wear safety goggles. Never point the spray at people, animals, or plants. Lock the trigger when the gun is not in use. Do not use flammable solvents.

Why does the engine stall under load?

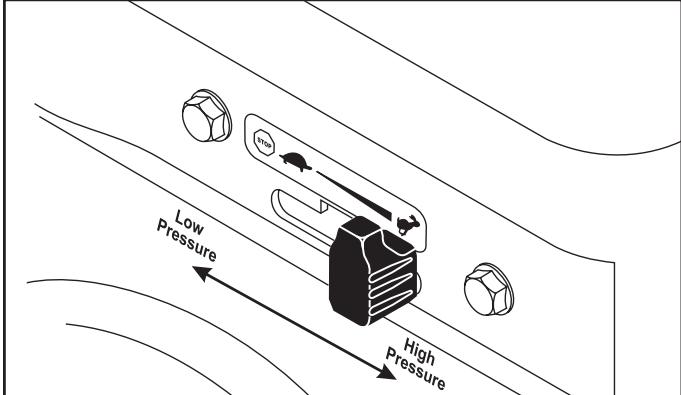

The engine speed may be too low. Move the throttle lever to 'Fast' position. If the problem persists, contact an authorized Briggs & Stratton service center.

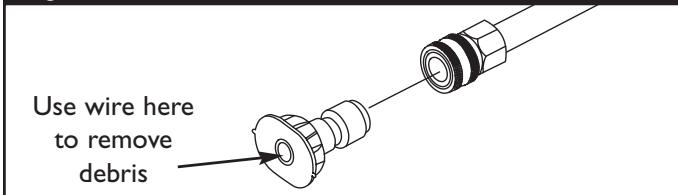

How to clean a clogged nozzle?

Stop the engine and turn off water. Remove the nozzle from the lance. Use the provided wire (or a paperclip) to dislodge debris. Rinse the lance backwards with a garden hose for 30-60 seconds. Reattach the nozzle and test.

What is the warranty of this pressure washer?

The warranty is 1 year for private use and 90 days for professional use. It covers material and workmanship defects. Keep your proof of purchase. Wear parts (nozzles, seals, hoses) and damage from misuse are not covered.

USER MANUAL BRIGGS & STRATTON 2700 PSI BRIGGS & STRATTON

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.

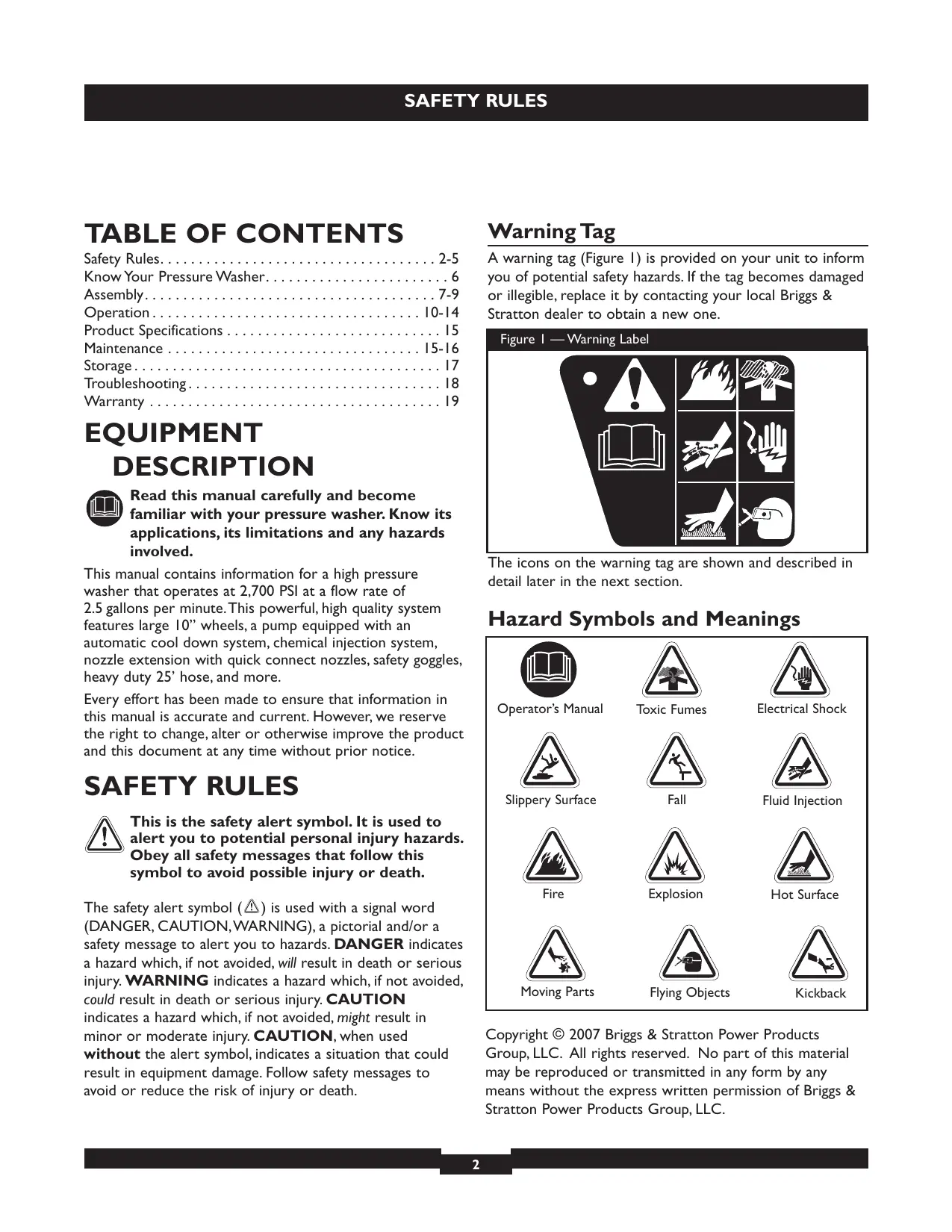

TABLE OF CONTENTS

Safety Rules. 2-5

Know Your Pressure Washer. 6

Assembly. 7-9

Operation 10-14

Product Specifications 15

Maintenance 15-16

Storage 17

Troubleshooting 18

Warranty 19

EQUIPMENT DESCRIPTION

Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations and any hazards involved.

This manual contains information for a high pressure washer that operates at 2,700 PSI at a flow rate of 2.5 gallons per minute. This powerful, high quality system features large 10^ wheels, a pump equipped with an automatic cool down system, chemical injection system, nozzle extension with quick connect nozzles, safety goggles, heavy duty 25^ hose, and more.

Every effort has been made to ensure that information in this manual is accurate and current. However, we reserve the right to change, alter or otherwise improve the product and this document at any time without prior notice.

SAFETY RULES

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

The safety alert symbol (A) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. CAUTION, when used without the alert symbol, indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.

Warning Tag

A warning tag (Figure 1) is provided on your unit to inform you of potential safety hazards. If the tag becomes damaged or illegible, replace it by contacting your local Briggs & Stratton dealer to obtain a new one.

Figure 1 — Warning Label

The icons on the warning tag are shown and described in detail later in the next section.

Hazard Symbols and Meanings

Operator's Manual

Toxic Fumes

Electrical Shock

Slippery Surface

Fall

Fluid Injection

Fire

Explosion

Hot Surface

Moving Parts

Flying Objects

Kickback

Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC.

WARNING

Running engine gives off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning.

• Operate pressure washer ONLY outdoors.

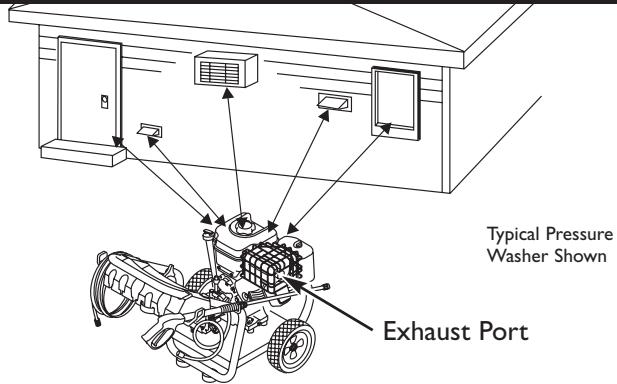

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or enclosure, even if doors or windows are open.
• Use a respirator or mask whenever there is a chance that vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors.

WARNING

Use of pressure washer can create puddles and slippery surfaces.

High pressure spray could cause you to fall if you are too close to the cleaning surface.

• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Operate this unit on a stable surface.
• The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

WARNING

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WHEN ADDING FUEL

• Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
  DO NOT light a cigarette or smoke.

WHEN OPERATING EQUIPMENT

• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT spray flammable liquids.

WHEN TRANSPORTING OR REPAIRING EQUIPMENT

• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

• Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

WARNING

Spray contact with electrical wiring can result in electrocution.

• Keep water spray away from electric wiring or fatal electric shock may result.

WARNING

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release pressure and avoid kickback each time, before starting engine. Engage trigger lock when not in use.

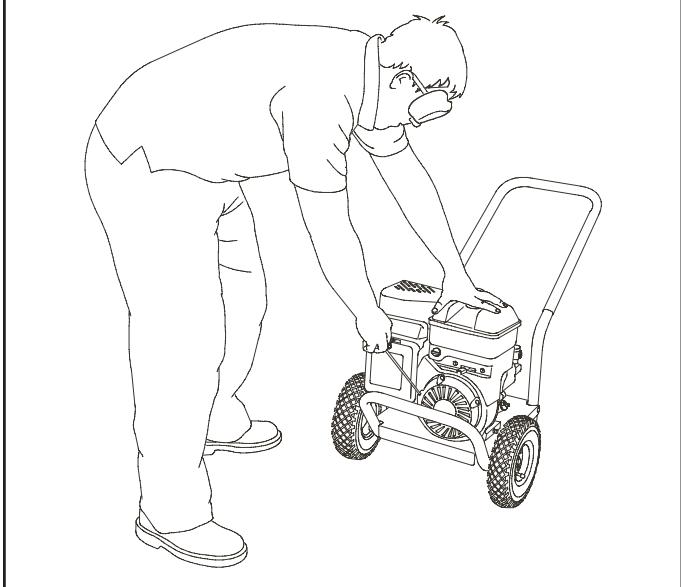

• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point gun in safe direction and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

WARNING

Running engines produce heat. Temperature of muffler and nearby areas can reach or exceed 150^ (65^) .

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

WARNING

Starter and other rotating parts can entangle hands, hair, clothing, or accessories.

• DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• NEVER aim spray gun at people, animals or plants.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

WARNING

High pressure spray can cause paint chips or other particles to become airborne.

• Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing adequate safety goggles.

WARNING

Unintentional sparking can result in fire or electric shock.

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE WASHER
- Disconnect spark plug wire from spark plug and place wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

CAUTION

Excessively high or low operating speeds increase risk of injury and damage to pressure washer.

DO NOT tamper with governed speed.
- DO NOT operate pressure washer above rated pressure.

CAUTION

A pressure washer produces a high pressure spray which increases risk of injury and damage to unit.

• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.

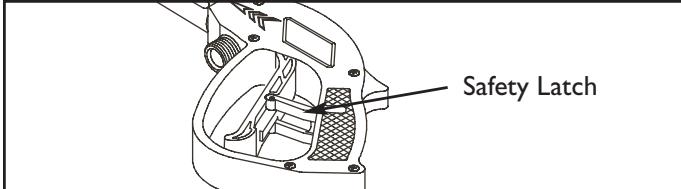

• NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly attached.

CAUTION

High pressure spray may damage fragile items including glass.

• DO NOT point spray gun at glass when in jet spray mode.
• NEVER aim spray gun at plants.

CAUTION

Improper treatment of pressure washer can damage it and shorten its life.

• If you have questions about intended use, ask dealer or contact Briggs & Stratton Power Products.
• NEVER operate units with broken or missing parts, or without protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• Before starting pressure washer in cold weather, check all parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on unit.
• Check fuel system for leaks or signs of deterioration, such as chafed or spongy hose, loose or missing clamps, or damaged tank or cap. Correct all defects before operating pressure washer.
• This equipment is designed to be used with Briggs & Stratton Power Products authorized parts ONLY. If equipment is used with parts that DO NOT comply with minimum specifications, user assumes all risks and liabilities.

KNOW YOUR PRESSURE WASHER

Read this operator's manual and safety rules before operating your pressure washer.

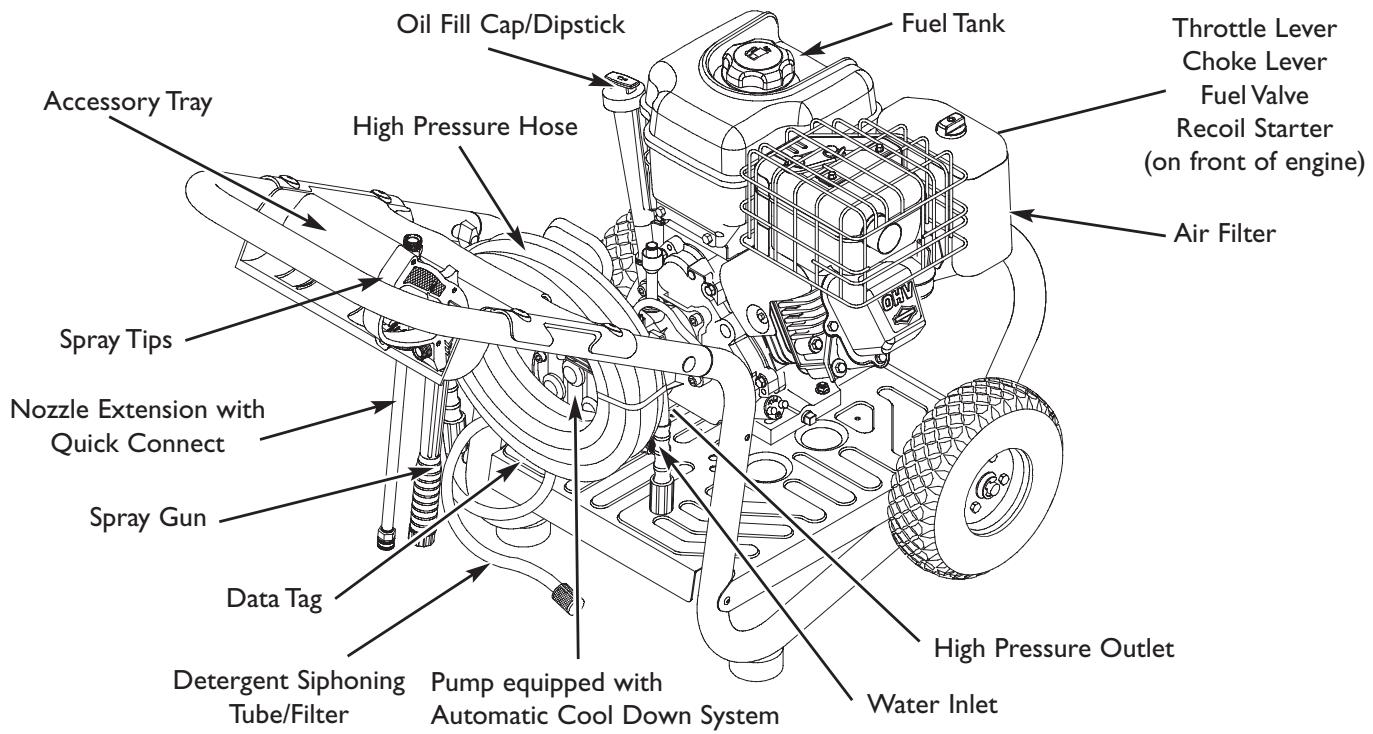

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

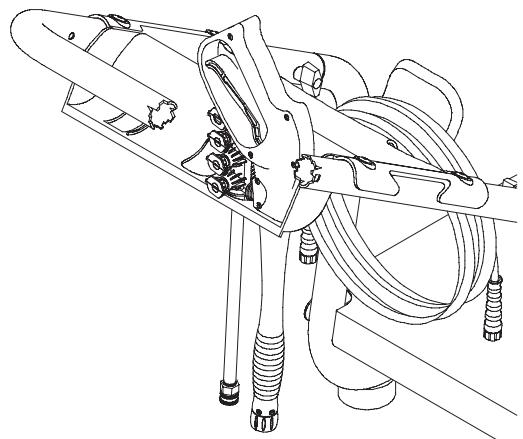

Accessory Tray — Provides convenient storage for standard and optional accessories, such as brushes, turbo wands, ect.

Air Filter — Protects engine by filtering dust and debris out of intake air.

Automatic Cool Down System — Cycles water through pump when water reaches 125^ - 155^ F. Warm water will discharge from pump onto ground. This system prevents internal pump damage.

Choke Lever — Prepares a cold engine for starting.

Data Tag — Provides model, revision and serial number of pressure washer. Please have these readily available if calling for assistance.

Detergent Siphoning Tube/Filter — Use to siphon detergents designed specifically for pressure washers into the low pressure stream.

Fuel Tank — Fill tank with regular unleaded fuel. Always leave room for fuel expansion.

Fuel Valve - Used to turn fuel on and off to engine.

High Pressure Hose — Connect one end to the water pump and the other end to the spray gun.

High Pressure Outlet — To connect high pressure hose.

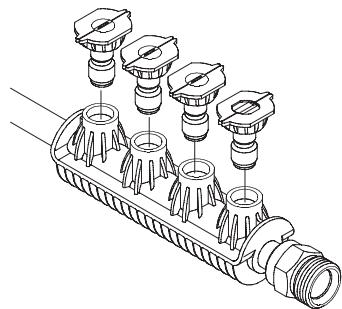

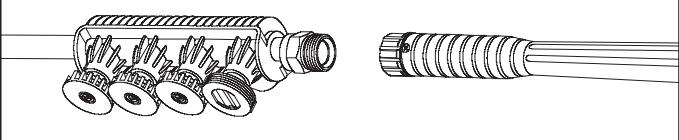

Nozzle Extension with Quick Connect — Allows you to switch between four different spray tips.

Oil Fill Cap/Dipstick - Check and fill engine oil here.

Pump - Develops high pressure.

Recoil Starter Use for starting the engine manually.

Safety Goggles (not shown) — Always use the enclosed goggles or other eye protection when running your pressure washer.

Spray Gun — Controls the application of water onto cleaning surface with trigger device. Includes safety latch.

Spray Tips — Detergent, 0^ , 15^ , and 40^ : for various high pressure cleaning applications.

Throttle Lever—Sets engine in starting mode for recoil starter and stops a running engine.

Water Inlet — Connect garden hose here.

ASSEMBLY

IMPORTANT: Read entire operator's manual before you attempt to assemble or operate your new pressure washer.

Unpack the Pressure Washer

1. Remove everything from carton except pressure washer.
2. Open carton completely by cutting each corner from top to bottom.
3. Remove pressure washer from carton.

Carton Contents

Items in the carton include:

• Main Unit
• Handle
• Plastic Accessory Tray
  High Pressure Hose
  Spray Gun
• Nozzle Extension with Quick Connect Fitting and Tip Holder
• Parts Bag (which includes the following):

Operator's Manual
Engine Manual
Safety Goggles
- Maintenance Kit
Hose Fittings
Quick Connects
- Bag containing 4 multi-colored Quick Connect Spray Tips
- Handle Fastening Hardware Kit (which includes):

Carriage Bolt
L Bolts (2)
- Plastic Knobs (3)
Tree Clips (4)

If parts are missing or damaged, contact the local Briggs & Stratton service center.

PREPARED PRESSURE WASHER FOR USE

To prepare your pressure washer for operation, you will need to perform these tasks:

I. Attach handle to main unit, then attach accessory tray to handle.
2. Add oil to engine crankcase.
3. Add fuel to fuel tank.

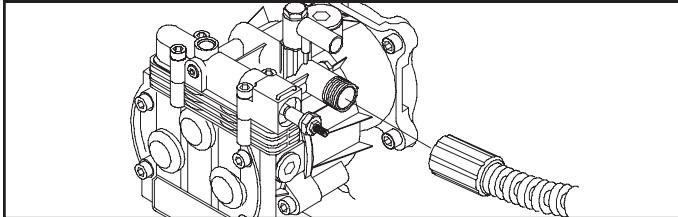

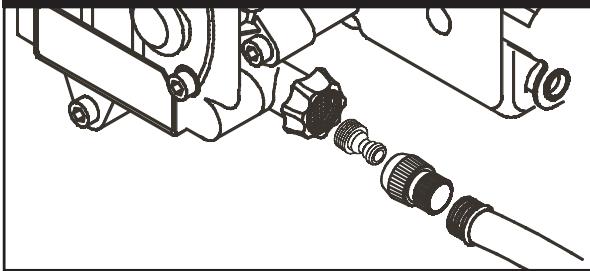

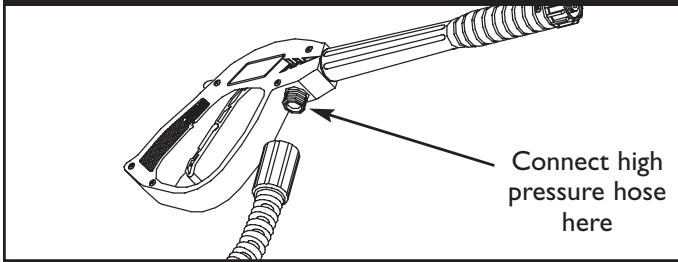

4. Connect high pressure hose to spray gun and pump.

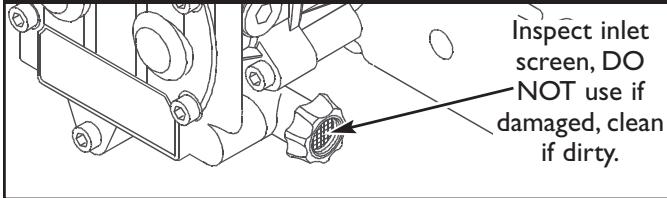

5. Connect water supply to pump.
6. Attach nozzle extension to spray gun.
7. Select/attach quick connect spray tip to nozzle extension.

Attach Handle and Accessory Tray

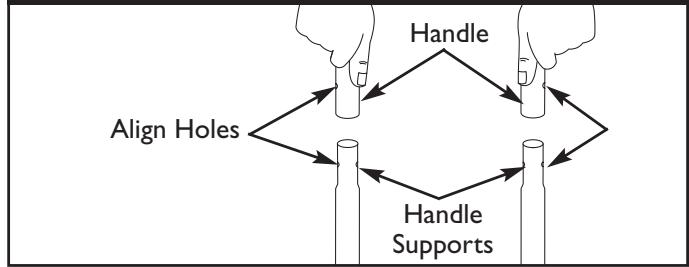

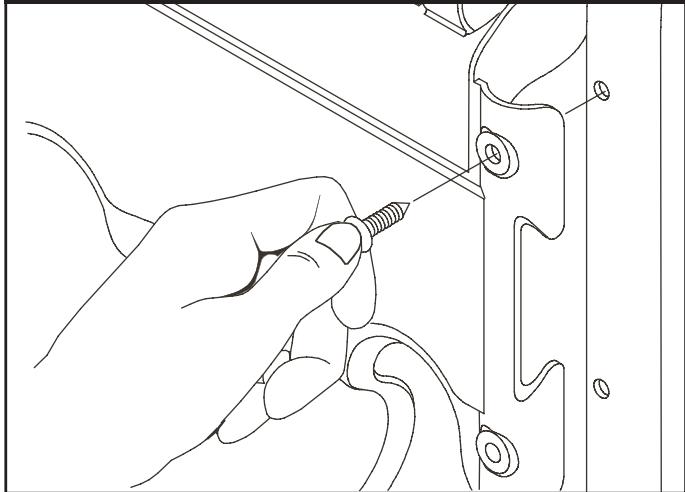

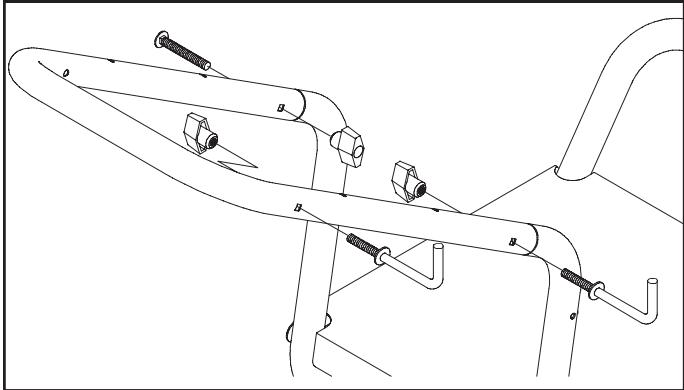

1. Place handle onto handle supports connected to main unit. Make sure holes in handle align with holes on handle supports (Figure 2).

Figure 2 Attach Handle to Base

NOTE: It may be necessary to move the handle supports from side to side in order to align the handle so it will slide over the handle supports.

1. Insert carriage bolt through left side hole from outside of unit and attach a plastic knob from inside of unit (viewing from rear of unit). Tighten by hand (Figure 3).

Figure 3 Attach Bolts to Handle

1. Insert "L" bolts through holes on right side of handle (viewing from rear of unit). Hold bolts in place and attach plastic knobs from inside of handle (Figure 3). Tighten by hand.

2. Place accessory tray over holes on handle (viewing from front of unit). Push the tree clips into the holes until they sit flat against the accessory tray (Figure 4).

Figure 4 Attach Accessory Tray to Handle

Add Engine Oil and Fuel

• Place pressure washer on a level surface.

CAUTION

Any attempt to crank or start the engine before it has been properly filled with the recommended oil will result in equipment failure.

Refer to engine manual for oil and fuel fill information.
- Damage to equipment resulting from failure to follow this instruction will void warranty.
- Refer to engine operator's manual and follow oil and fuel recommendations and instructions.

NOTE: Check oil often during engine break-in. Refer to engine operator's manual for recommendations.

Connect Hose and Water Supply to Pump

IMPORTANT: To avoid pump damage, you must assemble the nozzle extension to the spray gun and attach all hoses before you start the engine.

I. Attach one end of high pressure hose to base of spray gun (Figure 5). Tighten by hand.

Figure 5 Connect High Pressure Hose to Spray Gun

1. Attach other end of high pressure hose to high pressure outlet on pump (Figure 6). Tighten by hand.

Figure 6 Connect High Pressure Hose to Pump

1. Before connecting garden hose to water inlet, inspect inlet screen (Figure 7). Clean screen if it contains debris or replace if damaged. DO NOT RUN PRESSURE WASHER IF SCREEN IS DAMAGED.

Figure 7 Connect Garden Hose to Water Inlet

1. Run water through garden hose for 30 seconds to clean out any debris.

IMPORTANT: DO NOT siphon standing water for water supply. Use ONLY cold water (less than 100^ ).

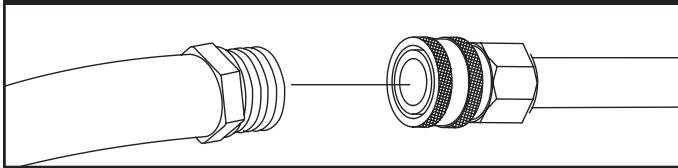

1. Attach female quick connect to garden hose. Attach male quick connect to water inlet on pump (Figure 8).

Figure 8 Connect the Garden Hose to Water Inlet

1. Connect garden hose (not to exceed 50 feet in length) to water inlet (Figure 8). Pull back on collar of quick connect, slide fitting onto pump and let go of collar. Pull on hose to be sure of a tight connection.

CAUTION

There MUST be at least ten feet of unrestricted garden hose between the pressure washer inlet and any flow shut off device, such as a 'Y' shut-off connector or other convenience-type water shut-off valve.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

• Turn ON water, point gun in a safe direction and squeeze trigger to purge pump system of air and impurities.

WARNING

High pressure spray can cause paint chips or other particles to become airborne.

Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.
Before starting the pressure washer, be sure you are wearing adequate safety goggles.

Checklist Before Starting Engine

Review the unit's assembly to confirm you have performed all of the following:

I. Be sure to read "Safety Rules" and "How To Use Your Pressure Washer" before using pressure washer.
2. Make sure handle is in place and secure.
3. Check that oil has been added to the proper level in engine crankcase.
4. Add proper fuel to fuel tank.
5. Check for properly attached hose connections.
6. Check to make sure that there are no kinks, cuts, or damage to high pressure hose.
7. Provide a proper water supply at an adequate flow.

HOW TO USE PRESSURE WASHER

If you have any problems operating your pressure washer, please contact the local Briggs & Stratton service center.

Pressure Washer Location

Pressure Washer Clearance

WARNING

Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

Place pressure washer outdoors. DO NOT place pressure washer where exhaust gas could accumulate and enter inside or be drawn into a potentially occupied building. Ensure exhaust gas is kept away from any windows, doors, ventilation intakes or other openings that can allow exhaust gas to collect in a confined area (Figure 9). Prevailing winds and air currents should be taken into consideration when positioning pressure washer.

WARNING

Running engine gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.

• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or enclosure, even if doors or windows are open.

Figure 9 — Pressure Washer Clearance

How To Start Pressure Washer

To start your pressure washer for the first time, follow these instructions step-by-step. This starting information also applies if you have let the pressure washer sit idle for at least a day.

1. Place pressure washer near an outside water source capable of supplying water at a flow rate greater than 3.5 gallons per minute and no less than 20 PSI at pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to spray gun and to pump. See "Preparing Pressure Washer for Use" for illustrations.
3. Make sure unit is in level position.
4. Connect garden hose to water inlet on pressure washer pump.
5. Turn ON water, point gun in a safe direction and squeeze trigger to purge pump system of air and impurities.

CAUTION

DO NOT run the pump without the water supply connected and turned on.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

• Attach nozzle extension to spray gun (Figure 10). Tighten by hand.

Figure 10 Connect Nozzle Extension to Spray Gun

1. Place colored quick connect spray tips in slots on holder that's attached to nozzle extension (Figure 11).

Figure II — Install Spray Tips in Holder

1. Choose spray tip you want to use and insert it into nozzle extension. See "How to Use Spray Tips".
2. Engage safety latch to spray gun trigger (Figure 12).

Figure 12 — Spray Gun with Safety Latch Engaged

1. Move throttle control lever to "High" position, shown on engine as a rabbit (Figure 13).

Figure 13-Throttle Control Lever

1. When starting engine, position yourself as recommended in Figure 14 and start engine according to instructions given in engine operator's manual.

Figure 14 - Recommended Starting Position

WARNING

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release pressure and avoid kickback each time, before starting engine.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point gun in safe direction and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

WARNING

Running engines produce heat. Temperature of muffler and nearby areas can reach or exceed 150^ (65^) .

Severe burns can occur on contact.

Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

How To Stop Pressure Washer

I. Move throttle control lever to "Stop" position.
2. Turn engine off according to instructions given in engine operator's manual.

1. ALWAYS point gun in a safe direction and squeeze spray gun trigger to release retained high water pressure.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

IMPORTANT: Spray gun traps high water pressure, even when engine is stopped and water is disconnected.

1. Engage safety latch on spray gun when not in use.

How to Use Accessory Tray

The unit is equipped with an accessory tray with places to store your spray gun and nozzle extension. There is also a hook at the front of the accessory tray to hold your high pressure hose.

NOTE: The extra hole in the tray is for storing a utility brush. The extra clip in the tray is for storing a turbo nozzle. The brush and turbo nozzle are NOT included with your pressure washer. You can buy these items as optional accessories.

I. Place nozzle extension through hole on accessory tray, as shown in Figure 15.

Figure 15 — Typical Accessory Tray

1. Place spray gun through hole on accessory tray on right side of unit (Figure 15).
   NOTE: You may also use the hooks attached to the handle to store your gun and nozzle extension, as shown on page 6.
2. Hang high pressure hose on hook attached to accessory tray on front of tray, as shown in Figure 15.

How to Use Spray Tips

The quick-connect on the nozzle extension allows you to switch between four different spray tips. The spray tips vary the spray pattern as shown (Figure 16).

Figure 16 — Spray Tip Spray Patterns
Low Pressure

Black
Use to apply detergent

High Pressure

40^ White

15^ Yellow

0^ Red

Follow these instructions to change spray tips:

I. Engage safety latch on spray gun.

CAUTION

A pressure washer produces a high pressure spray which increases risk of injury and damage to unit.

NEVER exchange spray tips without locking the safety latch on the trigger.

1. Pull back collar on quick-connect and pull current spray tip off. Store spray tips in slots on holder that's attached to nozzle extension.

2. Select desired spray tip:

3. For gentle rinse, select white 40^ spray tip.
   To scour surface, select yellow 15^ or red 0^ spray tip.
   To apply chemical, select black spray tip.

4. Pull back on collar, insert new spray tip and release collar. Tug on spray tip to make sure it is securely in place.

5. For most effective cleaning, keep spray tip from 8 to 24 inches away from cleaning surface. If you get spray tip too close, you may damage cleaning surface.
6. DO NOT get closer than 6 inches when cleaning tires.

Cleaning and Applying Detergent

IMPORTANT: Use detergents designed specifically for pressure washers. Household detergents could damage the pump.

CAUTION

You must attach all hoses before you start the engine.

• Starting the engine without all the hoses connected and without the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this instruction will void warranty.

To apply detergent follow these steps:

I. Review spray tip use.
2. Prepare detergent solution as required by manufacturer.

1. Place small filter end of detergent siphoning tube into detergent container.

CAUTION

Keep the detergent siphoning tube from coming in contact with the hot muffler.

• When inserting the filter into a detergent solution bottle, route the tube so as to keep it from inadvertently contacting the hot muffler.

• Make sure black cleaning detergent nozzle is installed.

NOTE: Detergent cannot be applied with the high pressure spray tips (White, Yellow or Red).

1. Make sure garden hose is connected to water inlet. Check that high pressure hose is connected to spray gun and pump and start engine.
2. Apply detergent to a dry surface, starting at lower portion of area to be washed and work upward, using long, even, overlapping strokes.
3. Allow detergent to soak in between 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. DO NOT allow detergent to dry on (prevents streaking).

IMPORTANT: You must flush the injection system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes.

Pressure Washer Rinsing

Wash and Rinse Surface

This pressure washer permits regulation of output water pressure by varying the engine speed. The throttle control lever found on the front of the engine may be set, as shown in Figure 17:

Figure 17 - Throttle Control
Pressure	Low	to	High
Duty	Light	Medium	Heavy
Application	Auto	Concrete	Paint Removal
	Boat	Driveway	Degreasing
	Furniture	Deck

After you have applied detergent, scour the surface and rinse it clean as follows:

I. Engage safety latch on spray gun.
2. Remove black chemical nozzle from nozzle extension.
3. Select and install desired high pressure nozzle following instructions "How to Use Spray Tips" on page 12.
4. Keep spray gun a safe distance from the area you plan to spray.

WARNING

High pressure spray could cause you to fall if you are too close to the cleaning surface.

• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Operate this unit on a stable surface.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.

• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

• Adjust spray pressure by sliding throttle control lever left or right, as shown in Figure 13 on page 11.

• Apply a high pressure spray to a small area and then check the surface for damage. If no damage is found, you can assume it is okay to continue rinsing.
• Start at top of area to be rinsed, working down with same overlapping strokes as you used for cleaning.

Cleaning Detergent Siphoning Tube

If you used the detergent siphoning tube, you must flush it with clean water before stopping the engine.

I. Place detergent siphoning tube/filter in a bucket full of clean water.
2. Engage safety latch on spray gun.
3. Attach black cleaning detergent nozzle.
4. Flush for 1-2 minutes.
5. Shut off engine.
6. ALWAYS point gun in a safe direction and squeeze spray gun trigger to release retained high water pressure.

IMPORTANT: Spray gun traps high water pressure, even when engine is stopped and water is disconnected.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

Automatic Cool Down System (Thermal Relief)

If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach temperatures above 125^ . The system engages to cool the pump by discharging the warm water onto the ground.

SPECIFICATIONS

Outlet Pressure 2700 psi

Flow Rate 2.5 gallons per minute (gpm)

Detergent Use detergent approved for pressure washers

Water Supply Temperature .... Not to Exceed 100^

Automatic Cool Will cycle when water

Down System reaches 125^ - 155^

Measured LwA .104 dB(A)/pW

Guaranteed LwA 104 dB(A)/pW

Sound Pressure Level @ 7m .79 dB(A)

Shipping Weight 84 lbs.

GENERAL MAINTENANCE RECOMMENDATIONS

The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual.

NOTE: Should you have questions about replacing components on your pressure washer, please visit our website at BRIGGSandSTRATTON.COM.

• Some adjustments will need to be made periodically to properly maintain your pressure washer.
• All maintenance in this manual and the engine operator's manual should be made at least once each season.
• Once a year you should check the spray gun and nozzle extension assembly for wear. Also clean or replace the spark plug and clean or replace the engine air filter. Please refer to engine operator's manual for more details.

Before Each Use

1. Check engine oil level.
2. Check water inlet screen for damage.
3. Check high pressure hose for leaks.
4. Check detergent siphon tube and filter for damage.
5. Check spray gun and nozzle extension assembly for leaks.
6. Rinse out garden hose to flush out debris.

PRESSURE WASHER MAINTENANCE

Check and Clean Inlet Screen

Examine the screen on the water inlet. Clean it if the screen is clogged or replace it if screen is damaged.

Check High Pressure Hose

The high pressure hose can develop leaks from wear, kinking, or abuse. Inspect the hose each time before using it. Check for cuts, leaks, abrasions or bulging of cover, damage or movement of couplings. If any of these conditions exist, replace the hose immediately.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

NEVER repair high pressure hose. Replace it.
- Replacement hose rating MUST exceed maximum pressure rating of unit.

Check Detergent Siphon Tube

Examine the filter on the detergent tube and clean if clogged. The tube should fit tightly on the barbed fitting. Examine the tube for leaks or tears. Replace the filter or tube if either is damaged.

Check Gun and Nozzle Extension

Examine the hose connection to the spray gun and make sure it is secure. Test the trigger by pressing it and making sure it "springs back" into place when you release it. Put the safety latch in the ON position and test the trigger. You should not be able to press the trigger.

Nozzle Maintenance

A pulsing sensation felt while squeezing the spray gun trigger may be caused by excessive pump pressure. The principal cause of excessive pump pressure is a spray tip clogged or restricted with foreign materials, such as dirt, etc. To correct the problem, immediately clean the spray tip following these instructions:

I. Shut off engine and turn off water supply.
2. Remove spray tip from end of nozzle extension.
3. Use a small paper clip to free any foreign material clogging or restricting spray tip (Figure 18).

Figure 18 — Nozzle Maintenance

1. Using a garden hose, remove additional debris by back flushing water through nozzle extension (Figure 19). Back flush between 30 to 60 seconds.

Figure 19 - Backflushing the Nozzle Extension

1. Reinstall spray tip into nozzle extension.
2. Reconnect nozzle extension to spray gun.
3. Reconnect water supply, turn on water, and start engine.
4. Test pressure washer by operating with each quick connect spray tip.

O-Ring Maintenance

Through the normal operation of your pressure washer, o-rings are used to keep the connections of the hoses and spray gun tight and leak-free. These o-rings may become worn or damaged.

An O-Ring Maintenance Kit is provided with your pressure washer which includes replacement o-rings, rubber washer and water inlet filter. Refer to the instruction sheet provided in the kit to service your unit's o-rings. Note that you will not use all of the parts in the kit.

To remove a worn or damaged o-ring; use a small flathead screwdriver to get underneath the o-ring and pry it off.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

• NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.

Pump Oil Maintenance

This model does not require any pump maintenance. The pump is pre-lubricated and sealed, requiring no additional lubrication for the life of the pump.

ENGINE MAINTENANCE

See the engine operator's manual for instructions on how to properly maintain the engine.

CAUTION

Avoid prolonged or repeated skin contact with used motor oil.

• Used motor oil has been shown to cause skin cancer in certain laboratory animals.
  Thoroughly wash exposed areas with soap and water.

KEEP OUT OF REACH OF CHILDREN. DON'T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL TO COLLECTION CENTERS.

PREPARING THE UNIT FOR STORAGE

Water should not remain in the unit for long periods of time. Sediments or minerals can deposit on pump parts and "freeze" pump action. If you do not plan to use the pressure washer for more than 30 days, follow this procedure:

1. Flush detergent siphoning tube by placing the filter into a pail of clean water while running pressure washer in low pressure mode. Flush for one to two minutes.
2. Shut off the engine and let it cool, then remove all hoses.

3. Empty the pump of all pumped liquids by pulling the recoil handle about 6 times. This should remove most of the liquid in the pump.

4. Draw RV antifreeze (non-alcohol) into the pump by pouring the solution into a 3-foot section of garden hose connected to inlet adapter and pulling recoil handle twice.
   If available, use PumpSaver in place of RV antifreeze and follow package instructions.

5. Store unit in a clean, dry area.

STORING THE ENGINE

See the engine operator's manual for instructions on how to properly prepare the engine for storage.

TROUBLESHOOTING

Problem	Cause	Correction
Pump has following problems: failure to produce pressure, erratic pressure, chattering, loss of pressure, low water volume.	1. Low pressure spray tip installed.	1. Replace spray tip with high pressure spray tip.
	2. Water inlet is blocked.	2. Clear inlet.
	3. Inadequate water supply.	3. Provide adequate water flow.
	4. Inlet hose is kinked or leaking.	4. Straighten inlet hose, patch leak.
	5. Clogged inlet hose strainer.	5. Check and clean inlet hose strainer.
	6. Water supply is over 100°F.	6. Provide cooler water supply.
	7. High pressure hose is blocked or leaks.	7. Clear blocks in outlet hose.
	8. Gun leaks.	8. Replace gun.
	9. Spray tip is obstructed.	9. Clean spray tip.
	10. Pump is faulty.	10. Contact Authorized service facility.
Detergent fails to mix with spray.	1. Detergent siphoning tube is not submerged.	1. Insert detergent siphoning tube into detergent.
	2. Chemical filter is clogged or cracked.	2. Clean or replace filter/detergent siphoning tube.
	3. High pressure spray tip installed.	3. Replace spray tip with low pressure spray tip.
Engine shuts down during operation.	Out of gasoline.	Fill fuel tank.

Effective December 1, 2005 replaces all undated Warranties and all Warranties dated before December 1, 2005

LIMITED WARRANTY

Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the pressure washer that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for the time periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM.

THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTYES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW. ANY AND ALL IMPLIED WARRANTYES ARE EXCLUDING. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDING TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.

WARRANTY PERIOD

Consumer Use 1 year

Commercial Use 90 days

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated above. "Consumer use" means personal residential household use by a retail consumer. "Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once equipment has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty.

NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE YOUR PROOF OF PURCHASE RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME WARRANTY SERVICE IS REQUESTED, THE MANUFACTURING DATE OF THE PRODUCT WILL BE USED TO DETERMINE THE WARRANTY PERIOD.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienceed. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply if equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial number on the pressure washer or engine has been removed or the equipment has been altered or modified. During the warranty period, the Authorized Service Dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal use and service. This warranty will not cover the following repairs and equipment:

Normal Wear: Outdoor Power Equipment, like all mechanical devices, needs periodic parts and service to perform well. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction (due to chemical, lime, dirt, and so forth).
Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized installation or alteration and modification, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in our judgment, to adversely affect its performance and reliability. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction (due to chemical, lime, dirt, and so forth).
Other Exclusions: This warranty excludes wear items such as quick couplers, seals, o-rings, pumps that have been run without water supplied or damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing or freezing or chemical deterioration. Accessory parts, such as guns, hoses, nozzle extensions (wands), and nozzles, are excluded from the product warranty. This warranty excludes used, reconditioned, and demonstration equipment and failures due to acts of God and other force majeure events beyond the manufacturers control. 198187E, Rev. C, 12/31/2006

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WI, USA

TABLE DES MATIÈRES
