Product type	Residential pressure washer
Brand	Briggs & Stratton
Model	2400 PSI
Maximum pressure	2400 PSI (165 bar)
Water flow rate	7.57 L/min (2 GPM)
Engine type	4-stroke gasoline engine
Pump	Axial cam pump with stainless steel pistons
High-pressure hose length	7.6 m (25 ft)
Detergent injection system	Siphon with filter, low-pressure use
Nozzle	Adjustable nozzle (high and low pressure)
Automatic cooling system	Triggers between 51°C and 68°C
Shipping weight	29 kg (64 lbs)
Max. inlet water temperature	35°C
Sound pressure level (at 7 m)	79 dB(A)
Guaranteed noise level	104 dB(A)
Safety	Trigger lock, safety goggles included
Warranty (private use)	1 year
Warranty (professional use)	90 days
Fuel	Unleaded gasoline
Engine lubrication	Engine oil (according to engine manual)

Frequently Asked Questions - BRIGGS & STRATTON 2400 PSI BRIGGS & STRATTON

How to start the pressure washer?

Make sure the water supply is open and the hose is connected. Point the gun in a safe direction, squeeze the trigger to purge air, then lock the trigger. Place the choke lever in 'START' position, pull the starter rope slowly until resistance is felt, then pull quickly. Once started, move the choke to 'FAST'.

Why is pressure low?

Check if the nozzle is in low-pressure mode (pull it back for high pressure). Ensure water supply is sufficient (flow > 7.5 L/min) and the inlet screen is not clogged. Inspect the high-pressure hose for leaks or kinks. Clean the nozzle orifice if necessary.

How to use detergent?

Place the nozzle in low-pressure mode (slide it forward). Immerse the siphon tube in compatible detergent. Start the engine and spray on a dry surface starting from the bottom. Let it sit for 3-5 minutes, then rinse in high-pressure mode. Always flush the system after use by placing the tube in clean water and running for 1-2 minutes.

How to safely shut off the pressure washer?

Let the engine run idle for 2 minutes, then turn it off according to the engine manual. After stopping, point the gun in a safe direction and squeeze the trigger to release residual pressure. Engage the trigger lock. Disconnect the water supply and hose if necessary.

What to do if the engine does not start?

Check oil and gasoline levels. Ensure the stop switch is in 'ON' position. Check the spark plug and air filter. If the engine is flooded, wait a few minutes. Refer to the engine manual for details.

How to store the unit for winter?

Flush detergent system, drain the pump by pulling the handle 6 times, then fill with RV antifreeze (non-alcohol) or PumpSaver. Clean air filter, drain fuel tank or add stabilizer. Store in a clean, dry place.

What type of engine oil to use?

Refer to the engine manual provided. Generally, for a Briggs & Stratton 4-stroke engine, use SAE 30 (or 10W-30 in cold weather) detergent oil. Check level before each use.

How to clean a clogged nozzle?

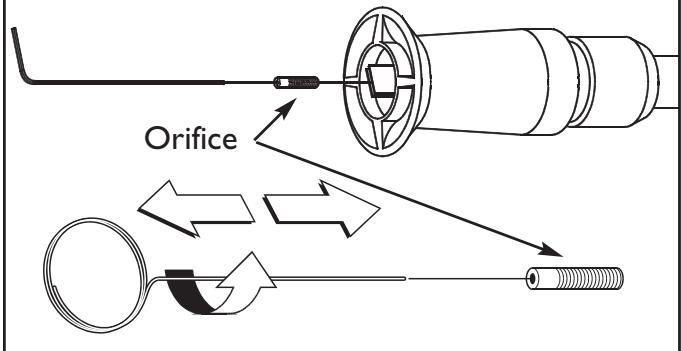

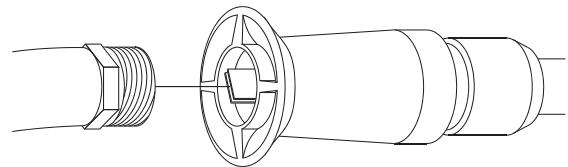

Shut off engine and water. Remove the lance from the gun. Use a 2 mm Allen key to unscrew the orifice at the nozzle tip. Clean with the provided wire or a paperclip, then back-flush with a garden hose for 30-60 seconds. Reassemble and test.

What safety distance should be maintained?

Keep a distance of 20 to 60 cm between the nozzle and the surface being cleaned. For tires, stay at least 15 cm away. Maintain at least 1.5 m clearance around the pressure washer to avoid heat and exhaust fumes.

What to do in case of a leak at the gun or hose?

Never repair a high-pressure hose; replace it immediately with a hose rated for higher pressure than the rated pressure. For gun leaks, replace O-rings. Consult the service kit provided. If the leak persists, contact an authorized service center.

USER MANUAL BRIGGS & STRATTON 2400 PSI BRIGGS & STRATTON

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.

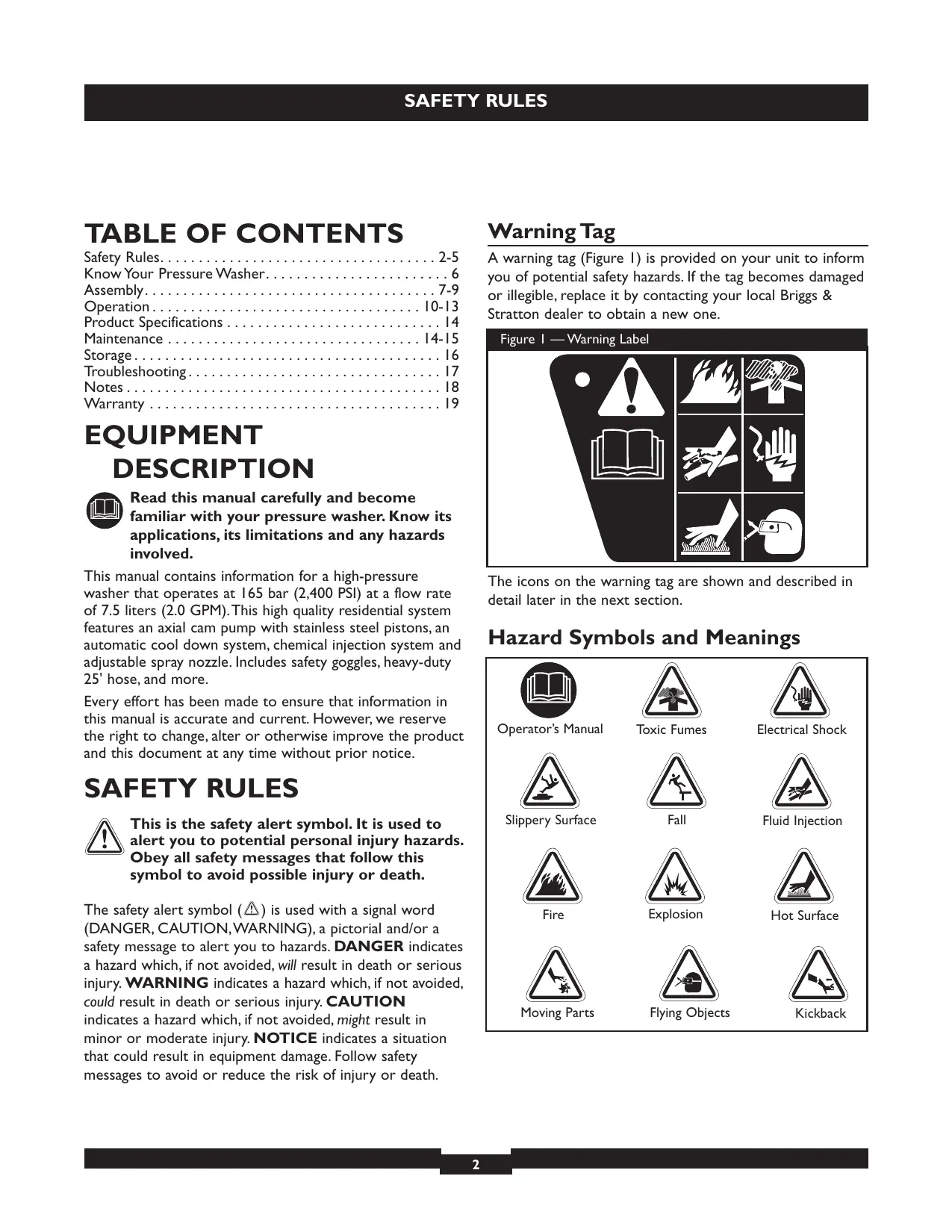

TABLE OF CONTENTS

Safety Rules. 2-5

Know Your Pressure Washer. 6

Assembly. 7-9

Operation 10-13

Product Specifications 14

Maintenance 14-15

Storage. 16

Troubleshooting 17

Notes 18

Warranty 19

EQUIPMENT DESCRIPTION

Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations and any hazards involved.

This manual contains information for a high-pressure washer that operates at 165 bar (2,400 PSI) at a flow rate of 7.5 liters (2.0 GPM). This high quality residential system features an axial cam pump with stainless steel pistons, an automatic cool down system, chemical injection system and adjustable spray nozzle. Includes safety goggles, heavy-duty 25^ hose, and more.

Every effort has been made to ensure that information in this manual is accurate and current. However, we reserve the right to change, alter or otherwise improve the product and this document at any time without prior notice.

SAFETY RULES

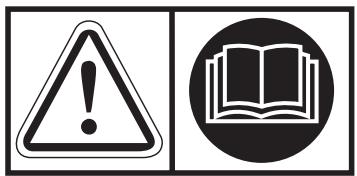

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

The safety alert symbol (A) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. NOTICE indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.

Warning Tag

A warning tag (Figure 1) is provided on your unit to inform you of potential safety hazards. If the tag becomes damaged or illegible, replace it by contacting your local Briggs & Stratton dealer to obtain a new one.

Figure 1 — Warning Label

The icons on the warning tag are shown and described in detail later in the next section.

Hazard Symbols and Meanings

Operator's Manual

Toxic Fumes

Electrical Shock

Slippery Surface

Fall

Fluid Injection

Fire

Explosion

Hot Surface

Moving Parts

Flying Objects

Kickback

WARNING

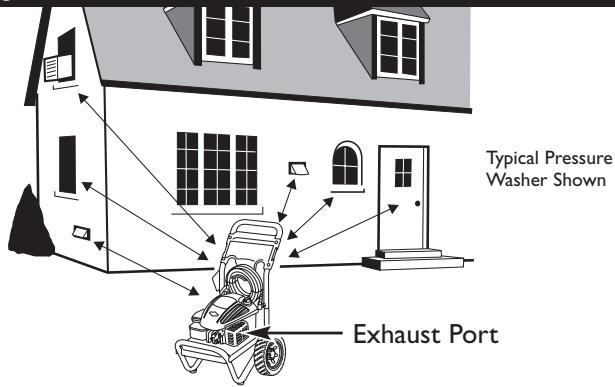

Running engine gives off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning.

• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or enclosure, even if doors or windows are open.
• Use a respirator or mask whenever there is a chance that vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors.

WARNING

Use of pressure washer can create puddles and slippery surfaces.

High pressure spray could cause you to fall if you are too close to the cleaning surface.

• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Operate this unit on a stable surface.
• The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

WARNING

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WHEN ADDING FUEL

• Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
  DO NOT light a cigarette or smoke.

WHEN OPERATING EQUIPMENT

• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT spray flammable liquids.

WHEN TRANSPORTING OR REPAIRING EQUIPMENT

• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

• Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

WARNING

Spray contact with electrical wiring can result in electrocution.

• Keep water spray away from electric wiring or fatal electric shock may result.

WARNING

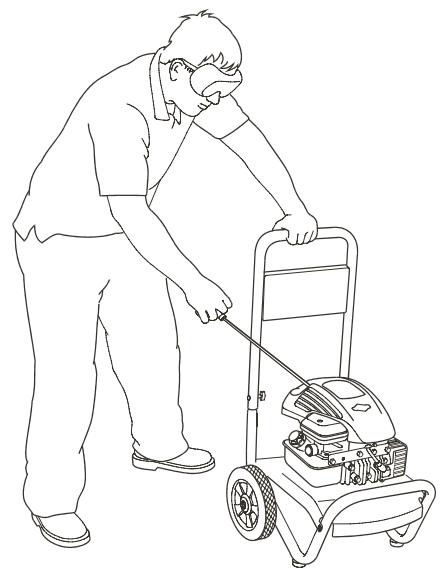

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release pressure and avoid kickback each time, before starting engine. Engage trigger lock when not in use.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point gun in safe direction and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

WARNING

Running engines produce heat. Temperature of muffler and nearby areas can reach or exceed 150^ (65^) .

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

WARNING

Starter and other rotating parts can entangle hands, hair, clothing, or accessories.

• DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• NEVER aim spray gun at people, animals or plants.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.

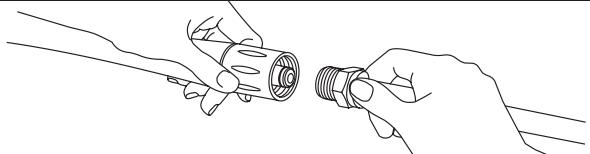

• NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

WARNING

High pressure spray can cause paint chips or other particles to become airborne.

• Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing adequate safety goggles.

WARNING

Unintentional sparking can result in fire or electric shock.

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE WASHER
- Disconnect spark plug wire from spark plug and place wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

CAUTION

Excessively high or low operating speeds increase risk of injury and damage to pressure washer.

DO NOT tamper with governed speed.
- DO NOT operate pressure washer above rated pressure.

CAUTION

A pressure washer produces a high pressure spray which increases risk of injury and damage to unit.

• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly attached.

NOTICE

High pressure spray may damage fragile items including glass.

• DO NOT point spray gun at glass when in jet spray mode.

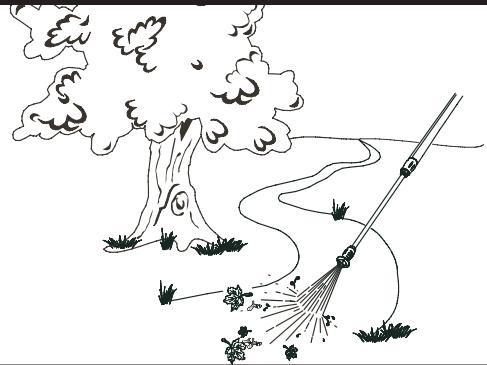

• NEVER aim spray gun at plants.

NOTICE

Improper treatment of pressure washer can damage it and shorten its life.

• If you have questions about intended use, ask dealer or contact Briggs & Stratton Power Products.
• NEVER operate units with broken or missing parts, or without protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• Before starting pressure washer in cold weather, check all parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on unit.
• Check fuel system for leaks or signs of deterioration, such as chafed or spongy hose, loose or missing clamps, or damaged tank or cap. Correct all defects before operating pressure washer.
• This equipment is designed to be used with Briggs & Stratton Power Products authorized parts ONLY. If equipment is used with parts that DO NOT comply with minimum specifications, user assumes all risks and liabilities.

KNOW YOUR PRESSURE WASHER

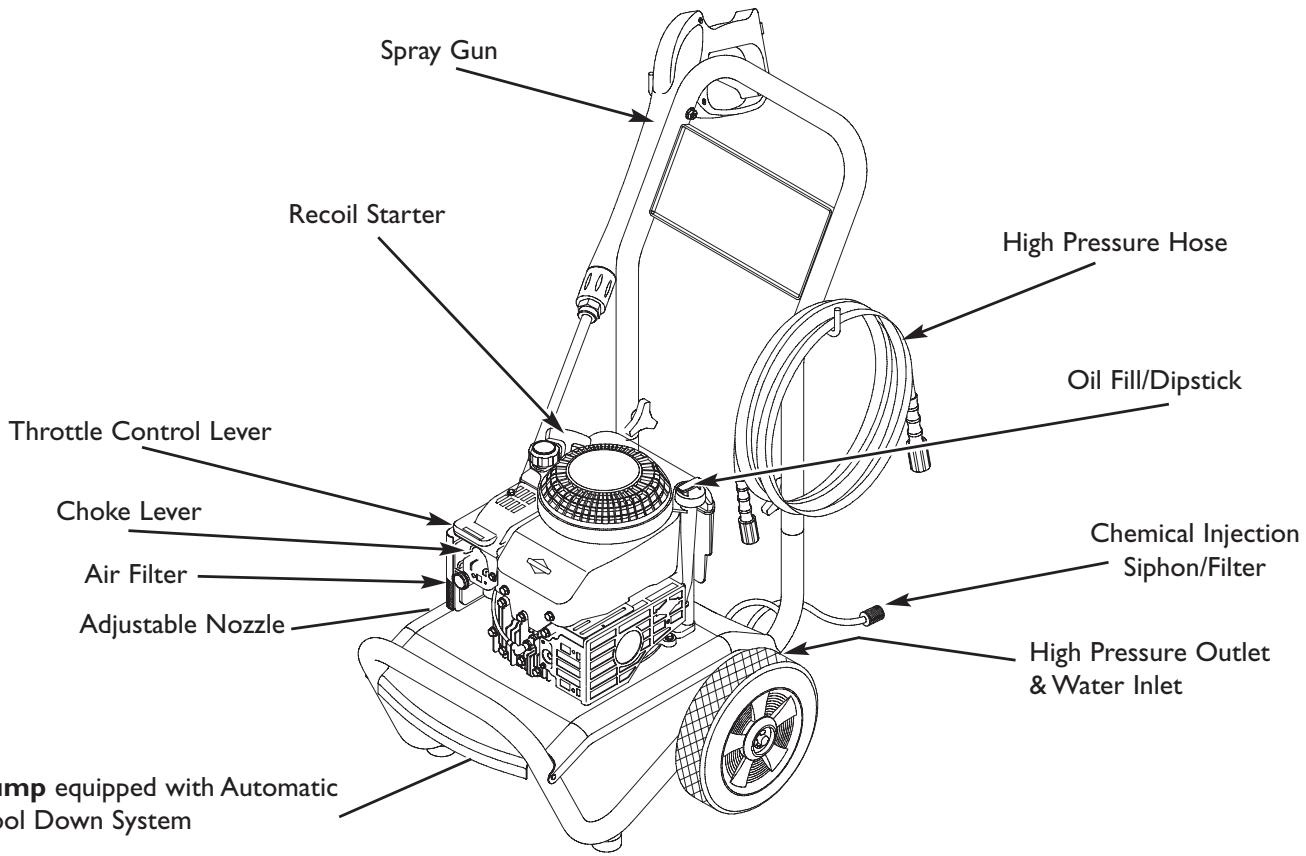

Read this operator's manual and safety rules before operating your pressure washer.

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

Adjustable Nozzle — Always attached to nozzle extension. Adjustable nozzle allows you to adjust spray pressure and spray pattern.

Air Filter — Dry type filter element limits the amount of dirt and dust that gets in the engine.

Automatic Cool Down System — Cycles water through pump when water reaches 125^ - 155^ F.Warm water will discharge from pump onto ground. This system prevents internal pump damage.

Chemical Injection Siphon/Filter — Use to siphon detergent or other pressure washer chemicals into the low pressure stream.

Choke Lever — Prepares a cold engine for starting.

High Pressure Hose — Connect one end to water pump and the other end to spray gun.

High Pressure Outlet — Connection for high pressure hose.

Data Tag (not shown, near rear of base plate) – Provides model and serial number of pressure washer. Please have these readily available if calling for assistance.

Oil Fill/Dipstick — Check and fill with oil here.

Pump — Develops high pressure.

Recoil Starter - Used for starting the engine manually.

Spray Gun — Controls the application of water onto cleaning surface with trigger device. Includes safety latch.

Throttle Control Lever — Sets engine in starting mode for recoil starter and stops a running engine.

Water Inlet — Connection for garden hose.

ASSEMBLY

IMPORTANT: Read entire owner's manual before you attempt to assemble or operate your new pressure washer.

Remove Pressure Washer From Carton

• Remove the parts bag, accessories, and inserts included with pressure washer.
• Slice two corners at the end of carton from top to bottom so the panel can be folded down flat.
• Remove pressure washer from carton.

Carton Contents

Items in the carton include:

• Main Unit
  Handle
  Goggles
  High Pressure Hose
  Spray Gun
  Adjustable Nozzle Extension
• Parts Bag (which includes the following):

Hose Fittings
Quick Connects
- Maintenance Kit
Owner's Manual
Engine Manual
- Handle Fastening Hardware Kit (which includes):

Carriage Bolts (2)
- Plastic Knobs (2)
"L" Hooks (2)
- Plastic Knobs (2)

If parts are missing or damaged, contact the local Briggs & Stratton service center.

PREPARED PRESSURE WASHER FOR USE

To prepare your pressure washer for operation, you will need to perform these tasks:

I. Attach handle to main unit.
2. Add oil to engine crankcase.
3. Add fuel to fuel tank.

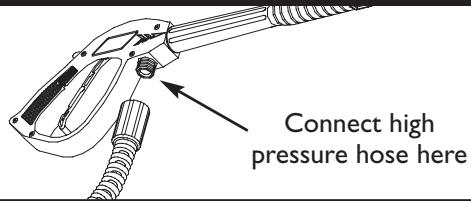

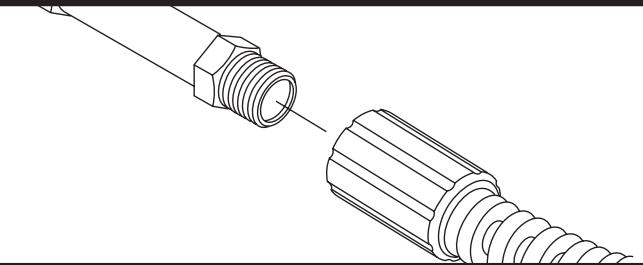

4. Connect high pressure hose to spray gun and pump.

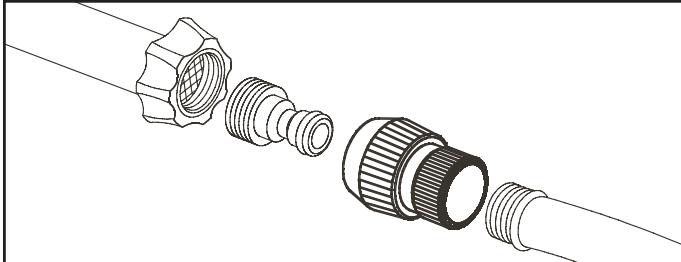

5. Connect water supply to pump.
6. Attach nozzle extension to spray gun.

Attach Handle to Unit

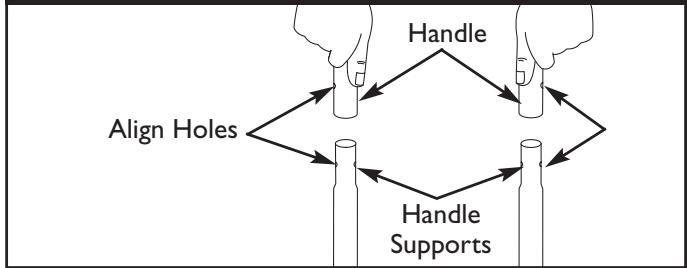

1. Place handle assembly onto handle supports connected to main unit. Make sure holes in handle align with holes on handle supports (Figure 2).

Figure 2 Attach Handle to Base

NOTE: It may be necessary to move the handle supports from side to side in order to align the handle so it will slide over the handle supports.

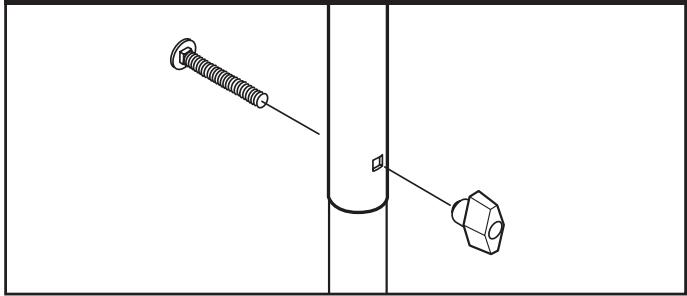

1. Insert carriage bolts through holes from outside of the unit and attach a plastic knob from inside of unit (Figure 3). Tighten by hand.

Figure 3 — Secure Handle

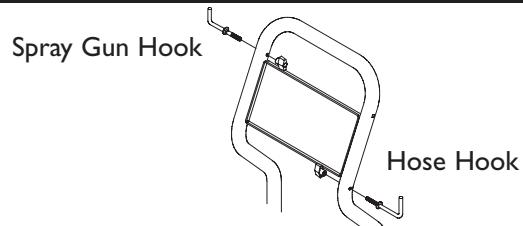

1. Insert one "L" hook through hole just above billboard on left side of handle (viewing from front of unit). Hold hook in place and attach a plastic knob from inside of unit (Figure 4). Tighten by hand.

Figure 4 Attach "L" Hooks to Handle

1. Insert other "L" hook through hole just below billboard on right side of handle (viewing from front of unit). Hold hook in place and attach a plastic knob from inside of unit (Figure 4). Tighten by hand.

Add Engine Oil and Fuel

• Place pressure washer on a level surface.
• Refer to engine owner's manual and follow oil and fuel recommendations and instructions.

NOTICE

Any attempt to crank or start the engine before it has been properly filled with the recommended oil will result in equipment failure.

Refer to engine manual for oil and fuel fill information.
- Damage to equipment resulting from failure to follow this instruction will void warranty.

NOTE: Check oil often during engine break-in. Refer to engine owner's manual for recommendations.

Connect Hose and Water Supply to Pump

IMPORTANT: To avoid pump damage, you must assemble the nozzle extension to the spray gun and attach all hoses before you start the engine.

1. Uncoil high pressure hose and attach one end of hose to base of spray gun (Figure 5). Tighten by hand.

Figure 5 Connect High Pressure Hose to Spray Gun

1. Attach other end of high pressure hose to high pressure outlet on pump (Figure 6). Tighten by hand.

Figure 6 Connect High Pressure Hose to Pump

1. Before connecting garden hose to water inlet, inspect inlet screen (Figure 7). Clean screen if it contains debris or replace if damaged. DO NOT RUN PRESSURE WASHER IF SCREEN IS DAMAGED.

Figure 7 - Inspect Inlet Screen

Inspect inlet screen, DO NOT use if damaged; clean if dirty.

1. Run water through garden hose for 30 seconds to clean out any debris.
   IMPORTANT: DO NOT siphon standing water for water supply. Use ONLY cold water (less than 100^ ).
2. Attach female quick connect to garden hose. Attach male quick connect to water inlet on pump (Figure 8).

Figure 8 Connect the Garden Hose to Water Inlet

1. Connect garden hose (not to exceed 50 feet in length) to water inlet (Figure 8). Pull back on collar of quick connect, slide fitting onto pump and let go of collar. Pull on hose to be sure of a tight connection.

NOTICE

There MUST be at least ten feet of unrestricted garden hose between the pressure washer inlet and any flow shut off device, such as a 'Y' shut-off connector or other convenience-type water shut-off valve.

• Damage to equipment resulting from failure to follow this instruction will void warranty.
• Turn ON water, point gun in a safe direction and squeeze trigger to purge pump system of air and impurities.

WARNING

High pressure spray can cause paint chips or other particles to become airborne.

Always wear safety goggles when using this equipment or in vicinity of where equipment is in use.
- Before starting the pressure washer, be sure you are wearing adequate safety goggles.

Checklist Before Starting Engine

Review the unit's assembly to ensure you have performed all of the following.

I. Make sure the handle is secure.
2. Check that oil has been added to proper level in engine crankcase.
3. Add proper gasoline to fuel tank.
4. Check for properly tightened hose connections (high pressure and water supply) and there are no kinks, cuts, or damage to high pressure hose.
5. Provide a proper water supply at an adequate flow.
6. Be sure to read "Safety Rules" and "How To Use Pressure Washer" before using pressure washer.

HOW TO USE PRESSURE WASHER

If you have any problems operating your pressure washer, please contact the local Briggs & Stratton service center.

Pressure Washer Location

Pressure Washer Clearance

WARNING

Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

• Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

Place pressure washer outdoors. DO NOT place pressure washer where exhaust gas could accumulate and enter inside or be drawn into a potentially occupied building. Ensure exhaust gas is kept away from any windows, doors, ventilation intakes or other openings that can allow exhaust gas to collect in a confined area (Figure 9). Prevailing winds and air currents should be taken into consideration when positioning pressure washer.

WARNING

Running engine gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.

• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or enclosure, even if doors or windows are open.

Figure 9 — Pressure Washer Clearance

How To Start Pressure Washer

To start your pressure washer for the first time, follow these instructions step-by-step. This starting information also applies if you have let the pressure washer sit idle for at least a day.

I. Place pressure washer near an outside water source capable of supplying water at a flow rate greater than 3.0 gallons per minute and no less than 20 PSI at pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to spray gun and to pump. See "Preparing Pressure Washer for Use" for illustrations.
3. Make sure unit is in level position.
4. Connect garden hose to water inlet on pressure washer pump.
5. Turn ON water, point gun in a safe direction and squeeze trigger to purge pump system of air and impurities.

NOTICE

DO NOT run the pump without the water supply connected and turned on.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

• Attach adjustable nozzle extension to spray gun (Figure 10). Tighten by hand.

Figure 10 Connect Nozzle Extension to Spray Gun

1. Position nozzle in low pressure mode (see "How To Use Adjustable Nozzle") and squeeze trigger on spray gun to relieve air pressure caused by turning ON water. Water will flow out of spray gun in thin stream. Continue to hold trigger until steady stream of water occurs and no air remains in system. This will make it easier to pull start the engine. Release trigger.
2. Engage safety latch to spray gun trigger (Figure 11).

Figure 11 — Spray Gun with Safety Latch Engaged

1. When starting engine, position yourself as recommended in Figure 12 and start engine according to instructions given in engine operator's manual.

Figure 12 - Recommended Starting Position

WARNING

Running engines produce heat. Temperature of muffler and nearby areas can reach or exceed 150^ (65^) .

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

DO NOT touch hot surfaces and avoid hot exhaust gases.
- Allow equipment to cool before touching.
- Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

How To Stop Pressure Washer

I. Let engine idle for two minutes.
2. Turn engine off according to instructions given in the engine owner's manual.
3. ALWAYS point gun in a safe direction and squeeze spray gun trigger to release retained high water pressure.

IMPORTANT: Spray gun traps high water pressure, even when engine is stopped and water is disconnected.

WARNING

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release pressure and avoid kickback each time, before starting engine.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point gun in safe direction and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.

• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

• Engage safety latch on spray gun when not in use.

NOTE: Always keep the throttle lever in the "Fast" position when operating the pressure washer.

How To Use Adjustable Nozzle

You now should know how to START your pressure washer and how to STOP it. The information in this section will tell you how to adjust the spray pattern and to apply detergent or other cleaning chemicals.

CAUTION

A pressure washer produces a high pressure spray which increases risk of injury and damage to unit.

• NEVER adjust spray pattern when spraying.
• NEVER put hands in front of nozzle to adjust spray pattern.

I. Slide nozzle forward to adjust spray to low pressure mode (Figure 13). Slide nozzle backward to achieve high pressure.

Figure 13 -Adjusting Nozzle for Pressure
Slide nozzle backward for High Pressure Mode

Slide nozzle forward for low pressure mode and detergent application

1. Point nozzle towards a firm surface and press trigger to test spray pattern (Figure 14).

Figure 14 - Testing the Spray Pattern

1. Twisting nozzle adjusts spray pattern from a narrow pattern to a fan pattern (Figure 15).

Figure 15 - Adjusting the Nozzle for Spray Pattern
Rotate nozzle counterclockwise for fan spray pattern

Rotate nozzle clockwise for narrow spray pattern

1. For most effective cleaning, keep spray nozzle between 8 to 24 inches away from cleaning surface.
2. If spray nozzle is held too close to surface, especially using high pressure mode, damage to surface may occur.
3. DO NOT get closer than 6 inches when cleaning tires.

Applying Detergent With Adjustable Nozzle

IMPORTANT: Use soaps designed specifically for pressure washers. Household detergents could damage the pump.

NOTICE

You must attach all hoses before you start the engine.

Starting the engine without all the hoses connected and without the water turned ON will damage the pump.
- Damage to equipment resulting from failure to follow this instruction will void warranty.

To apply detergent, follow these steps:

I. Review adjustable nozzle use.
2. Prepare detergent solution as required by job.
3. Place filter end of chemical injection hose into detergent container.

NOTICE

Keep the chemical injection tube from coming in contact with the hot muffler.

• When inserting the filter into a detergent solution bottle, route the tube so as to keep it from inadvertently contacting the hot muffler.
• Slide adjustable nozzle forward to low pressure mode. Detergent cannot be applied with nozzle in high pressure position.
• Make sure garden hose is connected to water inlet. Check that high pressure hose is connected to spray gun and pump; start engine.
• Apply detergent to a dry surface, starting at lower portion of area to be washed and work upward, using long, even, overlapping strokes.
• Allow detergent to "soak in" for 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. DO NOT allow detergent to dry on (prevents streaking).

IMPORTANT: You must flush the chemical injection system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes.

Pressure Washer Rinsing

For Rinsing:

I. Slide nozzle backward to high pressure, press trigger and wait for detergent to clear.

NOTE: You can also stop detergent from flowing by simply removing chemical injection hose from bottle.

1. Keep spray gun a safe distance from surface.

WARNING

High pressure spray could cause you to fall if you are too close to the cleaning surface.

• Keep spray nozzle between 8 to 24 inches away from cleaning surface.
• Operate this unit on a stable surface.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location.

• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when gun kicks back.

• Apply high pressure spray to a small area, then check surface for damage. If no damage is found, it is okay to continue cleaning.

• Start at top of area to be rinsed, working down with same overlapping strokes as used for washing and applying detergent.

Cleaning Chemical Injection Hose

If you used the chemical injection hose, you must flush it with clean water before stopping the engine.

I. Place chemical injection hose in a bucket full of clean water.
2. Engage safety latch on spray gun.
3. Slide adjustable nozzle forward to low pressure position.
4. Flush for 1-2 minutes.
5. Shut off engine.
6. ALWAYS point gun in a safe direction and squeeze spray gun trigger to release retained high water pressure.

IMPORTANT: Spray gun traps high water pressure, even when engine is stopped and water is disconnected.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun trigger, to release high pressure, every time you stop engine. Engage trigger lock when not in use.

Automatic Cool Down System (Thermal Relief)

If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach temperatures above 125^ . The system engages to cool the pump by discharging the warm water onto the ground.

SPECIFICATIONS

Outlet Pressure 2400 psi

Flow Rate 2.0 gallons per minute (gpm)

Detergent Use detergent approved for pressure washers

Water Supply Temperature .... Not to Exceed 100^

Automatic Cool Will cycle when water

Down System reaches 125^ - 155^

Measured LwA .104 dB(A)/pW

Guaranteed LwA 104 dB(A)/pW

Sound Pressure Level @ 7m .79 dB(A)

Shipping Weight 64 lbs.

GENERAL MAINTENANCE RECOMMENDATIONS

The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual.

NOTE: Should you have questions about replacing components on your pressure washer, please visit our website at BRIGGSandSTRATTON.COM.

• Some adjustments will need to be made periodically to properly maintain your pressure washer.
• All maintenance in this manual and the engine operator's manual should be made at least once each season.
• Once a year you should check the spray gun and nozzle extension assembly for wear. Also clean or replace the spark plug and clean or replace the engine air filter. Please refer to engine operator's manual for more details.

Before Each Use

1. Check engine oil level.
2. Check water inlet screen for damage.
3. Check high pressure hose for leaks.
4. Check detergent siphon tube and filter for damage.
5. Check spray gun and nozzle extension assembly for leaks.
6. Rinse out garden hose to flush out debris.

PRESSURE WASHER MAINTENANCE

Check and Clean Inlet Screen

Examine the screen on the water inlet. Clean it if the screen is clogged or replace it if screen is damaged.

Check High Pressure Hose

The high pressure hose can develop leaks from wear, kinking, or abuse. Inspect the hose each time before using it. Check for cuts, leaks, abrasions or bulging of cover, damage or movement of couplings. If any of these conditions exist, replace the hose immediately.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure rating of unit.

Check Chemical Injection Hose

Examine the filter on the detergent tube and clean if clogged. The tube should fit tightly on the barbed fitting. Examine the tube for leaks or tears. Replace the filter or tube if either is damaged.

Check Gun and Adjustable Nozzle Extension

Examine the hose connection to the spray gun and make sure it is secure. Test the trigger by pressing it and making sure it "springs back" into place when you release it. Put the safety latch in the ON position and test the trigger. You should not be able to press the trigger.

Nozzle Maintenance

A pulsing sensation felt while squeezing the spray gun trigger may be caused by excessive pump pressure. The principal cause of excessive pump pressure is a orifice clogged or restricted with foreign materials, such as dirt, etc. To correct the problem, immediately clean the orifice using the tools included with your pressure washer and follow these instructions:

I. Shut off engine and turn off water supply.
2. Detach nozzle extension from spray gun. Twist nozzle clockwise to stream position. Using 2mm (5/64) allen wrench, remove orifice from end of nozzle extension (Figure 16).

Figure 16 — Removing and Cleaning Orifice

1. Use wire (or small paper clip) to free any foreign material clogging or restricting orifice (Figure 16).
2. Using garden hose, remove additional debris by back flushing water through nozzle extension (Figure 17). Back flush between 30 to 60 seconds. Turn adjustable nozzle extension to stream spray and move nozzle from low to high while flushing.

Figure 17 - Backflushing the Nozzle

1. Reinstall orifice into nozzle extension. DO NOT overtighten orifice with allen wrench.
2. Reconnect nozzle extension to spray gun.
3. Reconnect water supply, turn on water, and start engine.
4. Test pressure washer by operating with nozzle in high and low positions.

O-Ring Maintenance

Through the normal operation of your pressure washer, o-rings are used to keep the connections of the hoses and spray gun tight and leak-free. These o-rings may become worn or damaged.

An O-Ring Maintenance Kit is provided with your pressure washer which includes replacement o-rings, rubber washer and water inlet filter. Refer to the instruction sheet provided in the kit to service your unit's o-rings. Note that you will not use all of the parts in the kit.

To remove a worn or damaged o-ring; use a small flathead screwdriver to get underneath the o-ring and pry it off.

WARNING

The high pressure stream of water that this equipment produces can pierce skin and its underlying tissues, leading to serious injury and possible amputation.

• NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.

Pump Oil Maintenance

This model does not require any pump maintenance. The pump is pre-lubricated and sealed, requiring no additional lubrication for the life of the pump.

ENGINE MAINTENANCE

See the engine operator's manual for instructions on how to properly maintain the engine.

CAUTION

Avoid prolonged or repeated skin contact with used motor oil.

Used motor oil has been shown to cause skin cancer in certain laboratory animals.
Thoroughly wash exposed areas with soap and water.

KEEP OUT OF REACH OF CHILDREN. DON'T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL TO COLLECTION CENTERS.

PREPARING THE UNIT FOR STORAGE

Water should not remain in the unit for long periods of time. Sediments or minerals can deposit on pump parts and "freeze" pump action. If you do not plan to use the pressure washer for more than 30 days, follow this procedure:

1. Flush detergent siphoning tube by placing the filter into a pail of clean water while running pressure washer in low pressure mode. Flush for one to two minutes.
2. Shut off the engine and let it cool, then remove all hoses. Disconnect spark plug wire from spark plug.

3. Empty the pump of all pumped liquids by pulling the recoil handle about 6 times. This should remove most of the liquid in the pump.

4. Draw RV antifreeze (non-alcohol) into the pump by pouring the solution into a 3-foot section of garden hose connected to inlet adapter and pulling recoil handle twice.
   If available, use PumpSaver in place of RV antifreeze and follow package instructions.

5. Store unit in a clean, dry area.

STORING THE ENGINE

See the engine owner's manual for instructions on how to properly prepare the engine for storage.

TROUBLESHOOTING

Problem	Cause	Correction
Pump has following problems: failure to produce pressure, erratic pressure, chattering, loss of pressure, low water volume.	1. Nozzle in low pressure mode.	1. Pull nozzle backward for high pressure mode.
	2. Water inlet is blocked.	2. Clear inlet.
	3. Inadequate water supply.	3. Provide adequate water flow.
	4. Inlet hose is kinked or leaking.	4. Straighten inlet hose, patch leak.
	5. Clogged inlet hose strainer.	5. Check and clean inlet hose strainer.
	6. Water supply is over 100°F.	6. Provide cooler water supply.
	7. High pressure hose is blocked or leaks.	7. Clear blocks in outlet hose.
	8. Gun leaks.	8. Replace gun.
	9. Orifice is obstructed.	9. Clean orifice.
	10. Pump is faulty.	10. Contact Briggs & Stratton Power Products service facility.
Detergent fails to mix with spray.	1. Detergent siphoning tube is not submerged.	1. Insert detergent siphoning tube into detergent.
	2. Chemical filter is clogged.	2. Clean or replace filter/detergent siphoning tube.
	3. Nozzle is in high pressure mode.	3. Push nozzle forward for low pressure mode.
Engine runs good at no-load but "bogs" when load is added.	Engine speed is too slow.	Move throttle control to FAST position. If engine still "bogs down", contact engine manufacturer.
Engine shuts down during operation.	Out of gasoline.	Fill fuel tank.

NOTES

Effective December 1, 2005 replaces all undated Warranties and all Warranties dated before December 1, 2005

LIMITED WARRANTY

Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the pressure washer that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for the time periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM.

THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTYES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW. ANY AND ALL IMPLIED WARRANTYES ARE EXCLUDING. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDING TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.

WARRANTY PERIOD

Consumer Use 1 year

Commercial Use 90 days

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated above. "Consumer use" means personal residential household use by a retail consumer. "Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once equipment has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty.

NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE YOUR PROOF OF PURCHASE RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME WARRANTY SERVICE IS REQUESTED, THE MANUFACTURING DATE OF THE PRODUCT WILL BE USED TO DETERMINE THE WARRANTY PERIOD.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienceed. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply if equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial number on the pressure washer or engine has been removed or the equipment has been altered or modified. During the warranty period, the Authorized Service Dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal use and service. This warranty will not cover the following repairs and equipment:

• Normal Wear: Outdoor Power Equipment, like all mechanical devices, needs periodic parts and service to perform well. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction (due to chemical, lime, dirt, and so forth).
  Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized installation or alteration and modification, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in our judgment, to adversely affect its performance and reliability. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction (due to chemical, lime, dirt, and so forth).
  Other Exclusions: This warranty excludes wear items such as quick couplers, seals, o-rings, pumps that have been run without water supplied or damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing or freezing or chemical deterioration. Accessory parts, such as guns, hoses, nozzle extensions (wands), and nozzles, are excluded from the product warranty. This warranty excludes used, reconditioned, and demonstration equipment and failures due to acts of God and other force majeure events beyond the manufacturers control. 198187E, Rev. C, 12/31/2006

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WI, USA

TABLE DES MATIÈRES

Vazão 7,5 litros/min (2,0 gpm)
