USER MANUAL LOGOS 694ΑT OLIVETTI

PUBLICATION ISSUED BY: Olivetti S.p.A. www.olivetti.com Copyright © 2006, Olivetti All rights reserved This manual may not be photocopied, translated into any language or reproduced in any form, in whole or in part, without the prior written consent of Olivetti S.p.A. The manufacturer reserves the right to make changes to the product described in this manual at any time and without notice. The compliance of this product to quality mark standards is certified by the affixed on the product itself. Printer selection switch Rounding selector Decimal selector

Dezimalselektor Rundungsselektor Druckselektor

Percentage Multiplication Equals Division Euro Local Square root Rate TAX - TAX + Void Call Non-add/Date Paper feed Grand total switch Item count switch Subtraction (Totalizer 1) Addition (Totalizer 1) Total (Totalizer 1) Subtotal (Totalizer 1) Grand total Item count 24 Cambia segno Total (Totalizer 2) Subtotal (Totalizer 2) Subtraction (Totalizer 2) Addition (Totalizer 2) Tax rate and Currency exchange rate Euro currency Local currency TAX plus calculation TAX minus calculation Gross margin Delta percent Totalizer 2 occupied Totalizer 1 occupied Grand Total totalizer occupied VOID CALL

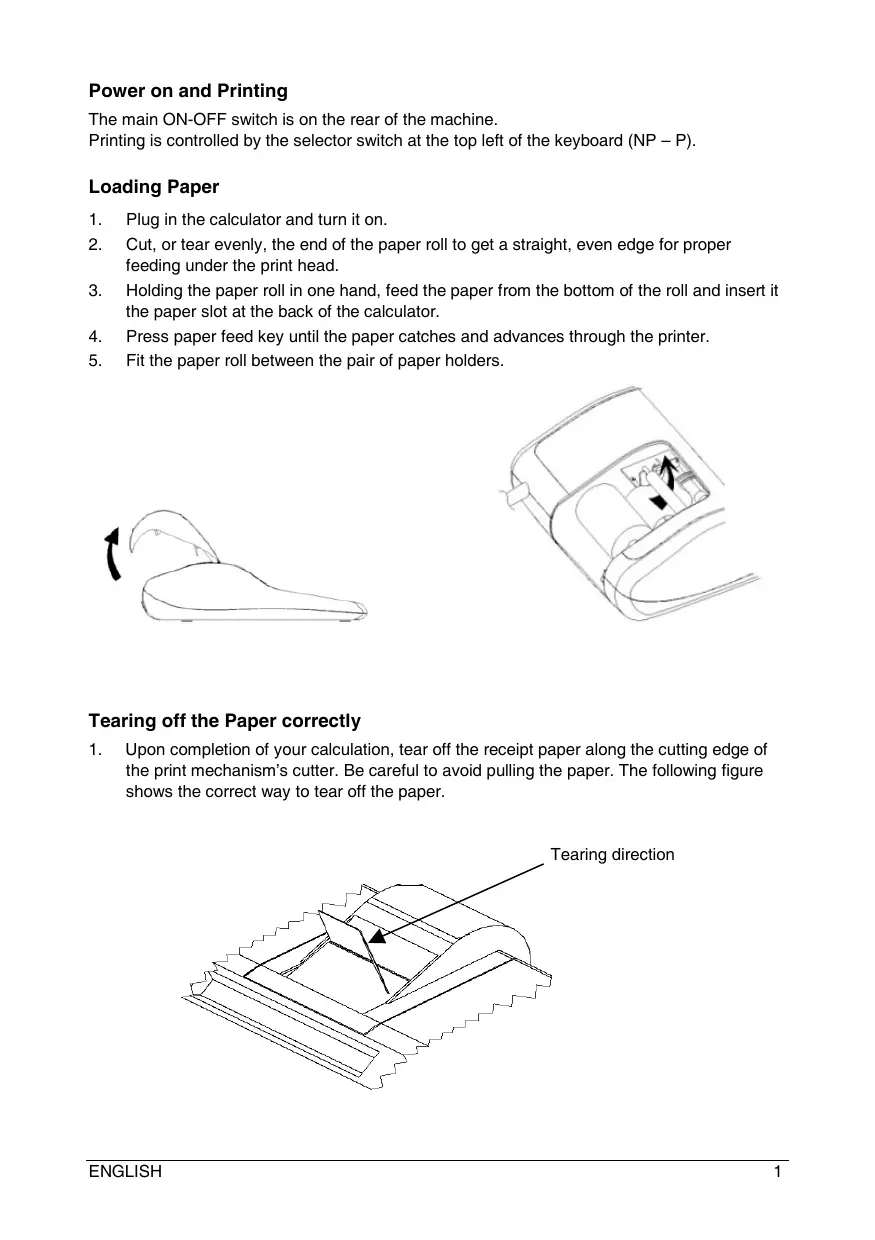

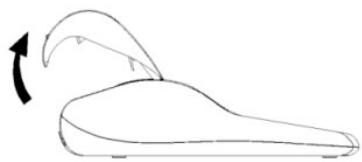

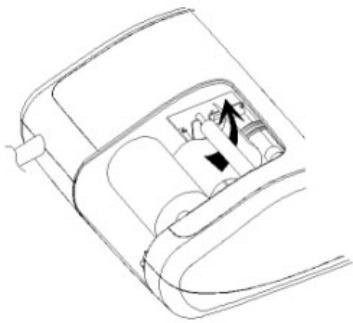

Minus (Negative) Overflow or Error Used in Auto Call function only. Power on and Printing The main ON-OFF switch is on the rear of the machine. Printing is controlled by the selector switch at the top left of the keyboard (NP – P). Plug in the calculator and turn it on. Cut, or tear evenly, the end of the paper roll to get a straight, even edge for proper feeding under the print head. Holding the paper roll in one hand, feed the paper from the bottom of the roll and insert it the paper slot at the back of the calculator. Press paper feed key until the paper catches and advances through the printer. Fit the paper roll between the pair of paper holders. Tearing off the Paper correctly

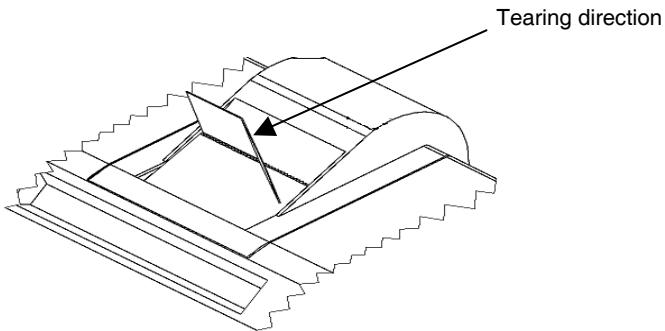

Upon completion of your calculation, tear off the receipt paper along the cutting edge of the print mechanism’s cutter. Be careful to avoid pulling the paper. The following figure shows the correct way to tear off the paper. Tearing direction ENGLISH

Keyboard Description NP P

Printer selection switch Printer is activated only when [↑] [C/CE] or [#/D] key is pressed. Printer is activated as long as calculator is turned on. Rounding selector Absolute round down.

Final result is rounded up if the 1st digit not to be printed is 5 or more and rounded down if the 1st digit not to be printed is 4 or less.

Absolute round up. + 0 2 3 4 F

Decimal Point selector Add mode. The decimal point is automatically placed before the last two digits in addition and subtraction. 0,2,3,4 For multiplication and division, decimal point is set to the result of calculation. For addition and subtraction, decimal point is set to all entries. For all the results, number in the decimal place to the last decimal place designated will be rounded. For example, number at 3rd decimal place is rounded at “2” position.

Grand Total switch Calculation without Grand Total ACC Any total made with [Τ]1 or [T]2 key is automatically accumulated to Grand Total totalizer. The result of multiplication, division, the first result of percent calculations and deltas are stored in the GT totalizer. The GT totalizer can be recalled by pressing the [GT] follow by [T]1 or [T]2 key.

Item Count switch Calculation without Item Count

Item Count. Number of entries using keys [+]1, [−]1, [+]2 and [−]2 will be counted. The counter is added for [+]1, [+]2 and subtracted for [−]1, [−]2. Result is printed at left when [S]1, [T]1, [S]2 or [T]2 key is used.

Paper feed key Advances the paper roll. [#/D]

Automatic floating point for decimally accurate computing. Decimal point is entered at desired position and the decimal point is automatically shifted to the right is under 12 digits of integer. Non-add / Date key Prints an entry, e.g. a date followed by “#”, on left hand side of paper roll, without changing the sequence of the calculation. ENGLISH [CALL] Call key Checks each calculation step by step. Continuous pressing performs quick replay. [VOID] Void key Enables correction for each calculation step. [TAX +] Tax plus key Calculates an amount including VAT with Tax rate preset by [RATE] key. [TAX -] Tax minus key Calculates an amount excluding VAT with Tax rate preset by [RATE] key. [RATE] Rate key Enters Tax rate or Currency Exchange rate. [EURO] Euro currency Converts the displayed value to Euro currency. [LOCAL] Local currency Converts the displayed value to Local currency.

Square root key Calculates the square root of the contents of the display.

Delta percent key Automatically compares any two amounts and then calculates and prints the percent change. [GM] Gross Margin key From a known cost of goods and a desired gross margin, this key automatically calculates and prints the amount of markup and the selling price.

Right shift key Deletes right most character of a live entry.

Percentage key Completes percent calculation when [x] or [÷] key is used. [X] Multiplication key To multiply, enter the first number (multiplicand) and press the [x] key; then enter the second number (multiplier) and press [=] key to obtain result.

Equal key Completes multiplication, division, delta percent or mark up. [÷] Division key To divide, enter the number to be divided (dividend) and press the [÷] key; then enter the second number (divisor) and press [=] key to obtain result. ENGLISH

Sign change key Reverses the sign on the display. Decimal point key If the decimal point key is used more than once in a numeral, the first decimal point will be considered as effective. Numeric keys Any numeral over 14 digits will be ineffective and will cause an error to be indicated. [-]1 Minus key Subtracts an amount from the accumulator. To subtract the same amount more than once (repeat subtraction), enter the amount once and press this key as many times as necessary. [+]1 Plus key Adds an amount to the accumulator. To add the same amount more than once (repeat addition), enter the amount once and press this key as many times as necessary. [T]1 Total key Prints and clears the total for Totalizer 1. When pressed with the “ACC” switch selected, the result is accumulated automatically in the Grand Total totalizer. [S]1 Subtotal key Gives intermediate result of addition and subtraction. Prints but does not clear Totalizer 1. [GT] Grand total key Pressing this key followed by [+]1, [+]2, [-]1, [-]2, [S]1, [S]2, [T]1 or [T]2 keys does calculations on the Grand Total Totalizer. [CNT]

Clear / Clear entry key Pressed once, clears a live entry. Pressed twice, clears all the contents, including totalizer 1, totalizer 2 and Grand Total totalizer. Item count key Does calculations with item count. [T]2 Total key Prints and clears the total for Totalizer 2. When pressed with the “ACC” switch selected, the result is accumulated automatically in the Grand Total totalizer. [S]2 Subtotal key Prints but does not clear Totalizer 2. ENGLISH [-]2 Minus key Subtracts an amount from Totalizer 2. To subtract the same amount more than once (repeat subtraction), enter the amount once and press this key as many times as necessary. [+]2 Plus key Adds an amount to Totalizer 2. To add the same amount more than once (repeat addition), enter the amount once and press this key as many times as necessary. Technical Specifications Type: Desktop Adding Machine/Calculator, Electronic Print/Display Basic Operations: Addition/subtraction (with subtotal and total) and multiplication/division Capacity: 4 rules, successive calculation, totalizer 2 calculation, grand total calculation, constant calculation, tax calculation, currency exchange calculation, gross margin calculation. Printer: Thermal printer Paper width: Rounding Display

IIT Rounding Display

Paper Rounding Display

[+]1 [+]1 [TL]1 Decimal

RIPETERE CALCOLO - REPEAT CALCULATION - REPETITION DU CALCUL BERECHNUNG WIEDERHOLEN - REPETIR CÁLCULO - REPETIR O CÁLCULO BEREKENING HERHALEN Print Calculation

400. I+

13. I13. I13. I-002

361. IT

SUBTOTALE - SUBTOTAL - SOUS-TOTAL - ZWISCHENSUMME - SUBTOTAL SUBTOTAL - SUBTOTAAL Print Calculation + 4.16 S ? Enter

NON ADDIZIONE/DATA - NON-ADD/DATE - PAS DE CALCUL/DATE - KEINE ADDITION/DATUM - NO AÑADIR/FECHA - NÃO ADIÇÃO/DATA - NIET-TELLEN/DATUM Print Calculation #23401

Rounding Display 23’401

[#/D] [#/D] [+]1 [+]1 [S]1

7.57 IS

3.00 c =

Print Calculation 2÷3=? Enter [÷]

3.00 c

RIPETERE CALCOLO - REPEAT CALCULATION - REPETITION DU CALCUL BERECHNUNG WIEDERHOLEN - REPETIR CÁLCULO - REPETIR O CÁLCULO BEREKENING HERHALEN Print Calculation 23 = 2 x 2 x 2 = ? Rounding Display

Calculation 2x5=? Enter

5. c

5. c

MARGINE LORDO - GROSS MARGIN - MARGE BRUTE - BRUTTO-SPANNE - MARGEN

BRUTO - MARGEM BRUTA - BRUTOMARGE

Print Calculation Gross amount including 14%TAX = 200 Net amount = ? Enter [+/-] [GM] 200 [=] Purchase price = 60 Sale price including 32% margin = ?

Rounding Display - 14.00

32.00 GM

(Press & hold until display blinking)

Print TAX rate RATE [TAX+] RATE [RATE] [TAX+]

0.00 C ↕

Rounding Display TAX +

Price with tax = ? Price with tax =

Price without tax = ? Decimal

Rounding Display 1’279.00 1’432.48

24.45 IT+

Paper 11 435.00 ∆ 15 987.00 =

39.81 %

Calculation 100 + 200

900 - 500

400. II+

20. x

7. C =

140. ∗

140. II+

12. x

5. C =

60. ∗

60. II+

900. IIS

900. IIT

(Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

CURRENCY EXCHANGE There are 13 Euro currency rates available in memory, the default values are preset to 1. To select a position in which to set the rate you desire: Press and hold the [RATE] key until the “RATE” symbol blinks on the display. Press the [EURO] key, the display will show “ r-01 1. ”. Enter the required rate and press the [EURO] key. The current rate is now set. Press the [+] key, to move on to the next rate. Press the [-] key, to move back to previous rate.

If you want to return the Euro Currency and TAX rates to their default rate, switch OFF the machine, then holding down [C/CE] and [+] switch it ON again. “r-CC” will appear on the display and the default rate is set. Print

Calculation Set Currency rate

1.08 in r-02

Paper (Blinking)RATE

(Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

8 000.00 € 8 640.00 ∗

0.00 C

Calculation Set Currency rate

1.08 in r-02

Paper (Blinking)RATE

(Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

8 000.00 € 8 640.00 ∗ CHANGE -02 LOCAL (Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

8 000.00 € 8 640.00 ∗

0.00 C

(Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

(Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

8 000.00 € 8 640.00 ∗

0.00 C

(Press & hold 3 sec.)

[EURO] [+]1 [EURO] (Blinking)RATE 2500+4000+1500 = Total Euro currency?

[EURO] 2500+4000+1500 = Total Euro currency?

1.08 €

8 000.00 € 8 640.00 ∗

0.00 C

123.x 3.= 369.∗ 456.÷ 3.= 152.∗ 217.◊ 217.∗

[CALL] [CALL] [CALL] [CALL] [CALL] [CALL] [CALL] [CALL] [CALL] [CALL] Decimal

(Press & hold until display blinking) (Blinking)RATE [#/DATE] [#/DATE] Paper (Blinking)RATE

- - - ITA - - -

- - - ENG - - -

(Press & hold until display blinking) DEU FRA (Blinking)RATE ESP (Blinking)RATE ITA

- - - ENG - - -

- - - ITA - - -

DIRECTIVE 2002/96/CE ON THE TREATMENT, COLLECTION, RECYCLING AND DISPOSAL OF ELECTRIC AND ELECTRONIC DEVICES AND THEIR COMPONENTS

1. FOR COUNTRIES IN THE EUROPEAN UNION (EU)

The disposal of electric and electronic devices as solid urban waste is strictly prohibited: it must be collected separately. The dumping of these devices at unequipped and unauthorized places may have hazardous effects on health and the environment. Offenders will be subjected to the penalties and measures laid down by the law. TO DISPOSE OF OUR DEVICES CORRECTLY: a) Contact the Local Authorities, who will give you the practical information you need and the instructions for handling the waste correctly, for example: location and times of the waste collection centres, etc. b) When you purchase a new device of ours, give a used device similar to the one purchased to our dealer for disposal. The crossed dustbin symbol on the device means that: - When it to be disposed of, the device is to be taken to the equipped waste collection centres and is to be handled separately from urban waste; - Olivetti guarantees the activation of the treatment, collection, recycling and disposal procedures in accordance with Directive 2002/96/CE (and subsequent amendments).

2. FOR OTHER COUNTRIES (NOT IN THE EU)

The treatment, collection, recycling and disposal of electric and electronic devices will be carried out in accordance with the laws in force in the country in question. Part Number 528319 Printed in Malaysia
