Product type	Desktop calculator with electronic display and printer
Brand	Olivetti
Model	Logos 902
Display	Backlit LCD display, 12 digits
Calculation capacity	12 digits input and result
Printer	Drum printer (PA 612)
Ribbon	Ribbon cartridge L-5MR/B (accessory code 80406)
Paper	Paper roll width 57.5 ± 0.5 mm, diameter 50 mm (accessory code 81120)
Dimensions	315 × 205 × 83 mm
Weight	1.4 kg
Power supply	Mains (AC plug)
Operating temperature	0 °C to 40 °C
Main functions	Addition, subtraction, multiplication, division, sequential calculation, memory, margin/deduction, constant calculation, rate and Euro conversion
Selectors	Rounding (5/4, cut-off, accumulate), decimal point (F, A, 0, 2, 3, 4), grand total (GT), item count (IC)
Euro conversion	13 programmable exchange rates, Euro/local currency conversion
Environmental features	Recycled plastic, antibacterial keypad, automatic shut-off after 3 minutes of inactivity
Maintenance / Cleaning	Do not use liquid (e.g., alcohol); clean the body with a dry cloth
Safety	Do not cover the device while powered; avoid exposure to sunlight, temperature variations, humidity; unplug before servicing
Spare parts / Repairability	Ribbon and paper user-accessible; internal repair reserved for qualified personnel

Frequently Asked Questions - LOGOS 902 OLIVETTI

How to replace the printer ribbon?

Remove the printer cover. Lift the ribbon holder, remove the used spools. Insert the new spools with the black side of the ribbon facing up, pass the ribbon through the guide and make sure the rewinding direction is correct.

How to load the paper roll?

Cut or tear the edge of the roll to get a straight edge. Hold the roll, unwind the paper from underneath, insert it into the slot on the right side of the calculator. Press the paper feed key until it engages, then place the roll on the support.

What to do if the screen does not turn on?

Check that the calculator is plugged in and the voltage matches the one indicated under the device. Press any key to reactivate the screen after an automatic standby (3 minutes of inactivity).

How to clear the total memory or grand total?

To clear the accumulation register (total), press the [C/CE] key twice. To clear the memory, use the [M*] key which prints and erases the memory content.

How to program a Euro exchange rate?

Press and hold [RATE] until 'RATE' flashes. Press [EURO] to select the position (r-01 to r-13). Enter the rate and press [EURO]. Use [+] or [-] to navigate between positions.

How to convert an amount to euros or local currency?

Enter the amount, then press [EURO] to convert to euros, or [LOCAL] to convert to local currency (with a previously programmed exchange rate).

How to use the margin function (MU)?

Enter the cost, press [MU], enter the desired margin percentage, then press [=]. The calculator displays the selling price and the margin.

How to clean the calculator?

Never use liquids such as alcohol. Wipe the body with a dry, soft cloth. Avoid exposure to sunlight, humidity, and large temperature variations.

What does the red display mean?

The display turns red if the displayed value or result is negative.

How to restore default exchange rates and tax rate?

Turn off the calculator, then turn it back on while holding the [C/CE] and [+] keys. The screen displays 'r-CC' to confirm the restoration.

USER MANUAL LOGOS 902 OLIVETTI

This manual may not be photocopied, translated into any language or reproduced in any form, in whole or in part, without the prior written consent of Olivetti S.p.A. The manufacturer reserves the right to make changes to the product described in this manual at any time and without any notice.

The compliance of this product to quality standards is certified by the C mark affixed on the product itself.

Olivetti & Ambiente

Olivetti & the Environment

Olivetti has always been committed to making its own contribution to environmental protection, and in the effort to operate obtaining the right balance between innovation, technology and protection of the planet. By adding the environmental sustainability to its company mission, Olivetti shows its commitment to designing, producing and marketing products that take into consideration low energy consumption, recycling of materials and health safeguards, in conformance with current norms. For further information, refer to the site www.olivetti.com.

• is produced using recycled plastic that can be recycled again at the end of the product's lifetime;
• uses an antiseptic keyboard that is able to prevent the spreading of bacteria and micro-organisms damaging to the health;
• has low energy consumption, thanks to automatic switch-off of the display after 3 minutes of inactivity, allowing significant energy savings.

It is one of a range of products designed to take into account low energy consumption, waste disposal and material recycling as well as health safeguards.

CETTE CALCULATRICE PROFESSIONNELLE ECO-FRIENDLY QUI RESPECTE L'ENVIRONNEMENT ET PROTEGE LA SANTÉ :

RECYCLED

RECYCLABLE

ANTISEPTIC

SAVING

The calculator must not be covered when turned on, as this will cause it to overheat. Do not use organic solutions such as alcohol to clean the casing. Do not use or leave the calculator in direct sun light. Locations subject to quick temperature changes, high humidity and dirt should also be avoided. The electrical power socket-outlet shall be near the equipment and shall be easily accessible.

WARNING:

Hazard of electrical shock. No user serviceable parts are contained inside. All servicing must be done by qualified service person.

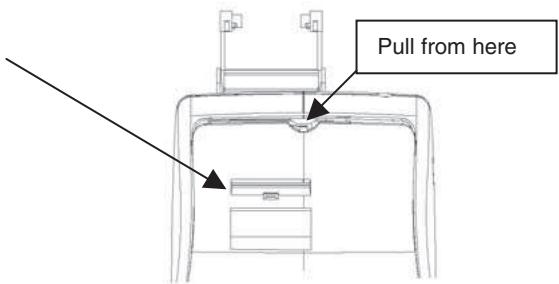

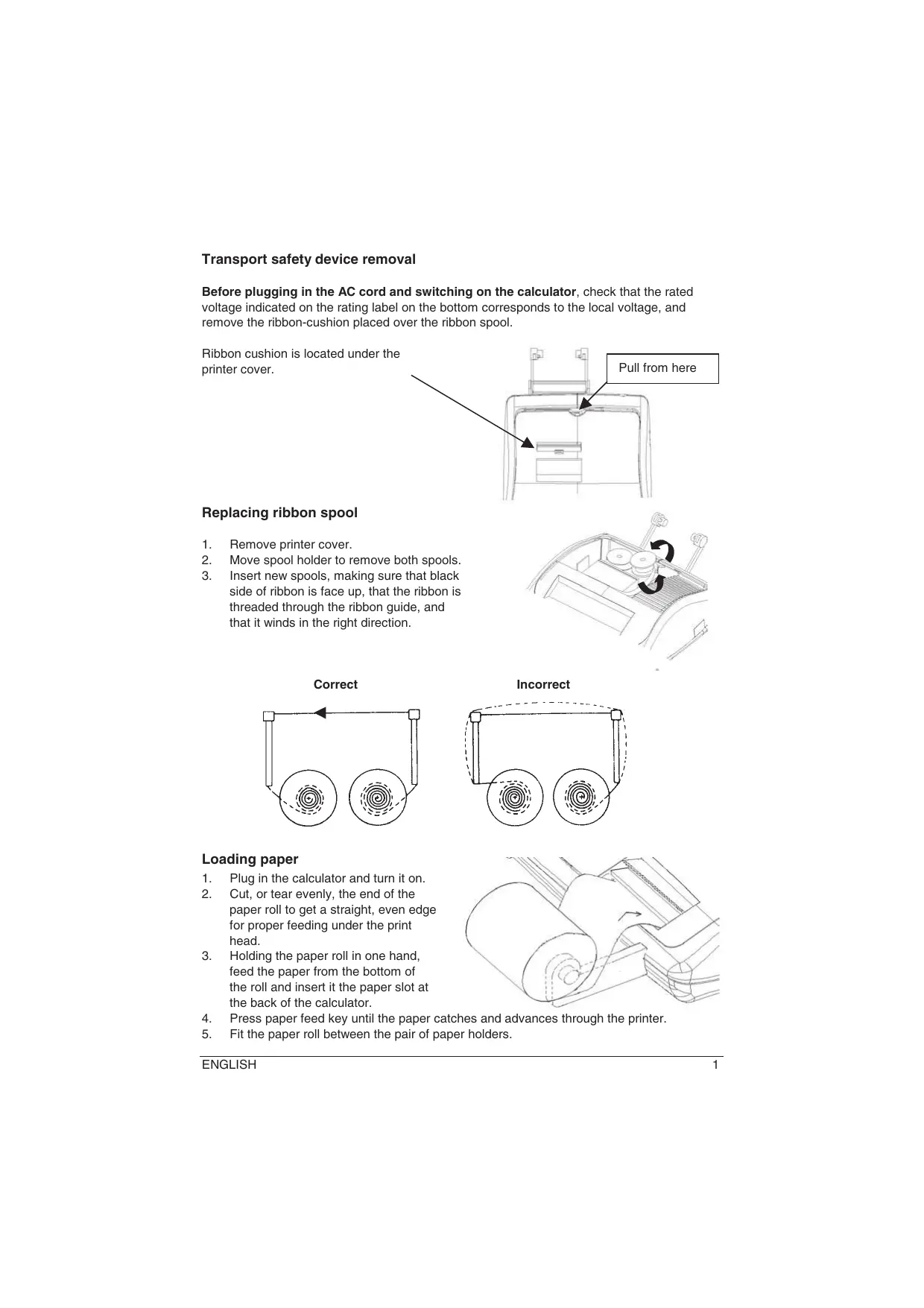

Transport safety device removal

Before plugging in the AC cord and switching on the calculator, check that the rated voltage indicated on the rating label on the bottom corresponds to the local voltage, and remove the ribbon-cushion placed over the ribbon spool.

Ribbon cushion is located under the printer cover.

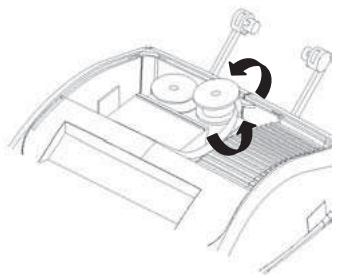

Replacing ribbon spool

1. Remove printer cover.
2. Move spool holder to remove both spools.
3. Insert new spools, making sure that black side of ribbon is face up, that the ribbon is threaded through the ribbon guide, and that it winds in the right direction.

Correct

Incorrect

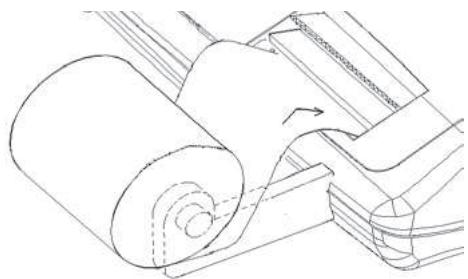

Loading paper

1. Plug in the calculator and turn it on.
2. Cut, or tear evenly, the end of the paper roll to get a straight, even edge for proper feeding under the print head.
3. Holding the paper roll in one hand, feed the paper from the bottom of the roll and insert it the paper slot at the back of the calculator.
4. Press paper feed key until the paper catches and advances through the printer.
5. Fit the paper roll between the pair of paper holders.

Keyboard Description

NP P Printer selection switch

NP Printer is activated only when paper feed key or non-add/date key is pressed.

P Printer is activated as long as calculator is turned on.

059 Rounding selector

0 Absolute round down.

5 Final result is rounded up if the 1^st digit not to be printed is 5 or more and rounded down if the 1^st digit not to be printed is 4 or less.

9 Absolute round up.

A 0 2 3 4 F Decimal Point selector

A Add mode. The decimal point is automatically placed before the last two digits in addition and subtraction.

0,2,3,4 For multiplication and division, decimal point is set to the result of calculation.

For addition and subtraction, decimal point is set to all entries.

For all the results, number in the decimal place to the last decimal place designated will be rounded. For example, number at 3^rd decimal place is rounded at "2" position.

F Automatic floating point for decimally accurate computing. Decimal point is entered at desired position and the decimal point is automatically shifted to the right is under 12 digits of integer.

- GT Grand Total switch

Calculation without Grand Total

GT Any total made with [^] key is automatically accumulated to memory. The accumulated grand total can be recalled by pressing the [M^] key

- IC Item Count switch

Calculation without Item Count

IC Number of entries using keys [+] , [-] , [M+] and [M-] will be counted.

The counter is added for [+] , [M + ] and subtracted for [-] , [M - ] . Result is printed at left when [] , [] , [M] or [M^] key is used.

[↑] Paper feed key

Advances the paper roll.

[AUTO CALL] Auto call key

Automatically recalls calculation made in "NP" mode.

[CALL] Call key

Checks each calculation step by step.

Continuous pressing performs quick replay.

[Void] Void key

Enables correction for each calculation step.

[TAX +] Tax plus key

Calculates an amount including VAT with Tax rate preset by [RATE] key.

[TAX -] Tax minus key

Calculates an amount excluding VAT with Tax rate preset by [RATE] key.

[RATE] Rate key

Enters Tax rate or Currency Exchange rate.

[EURO] Euro currency

Converts the displayed value to Euro currency.

[LOCAL] Local currency

Converts the displayed value to Local currency.

[√] Square root key

Calculates the square root of the contents of the display.

[MU] Mark up key

From a known cost of goods and a desired gross margin, this key automatically calculates and prints the amount of markup and the selling price.

[%] Percentage key

Completes percent calculation when [x] or [÷] key is used.

[Δ] Delta percent key

Automatically compares any two amounts and then calculates and prints the percent change.

[+] Division key

To divide, enter the number to be divided (dividend) and press the [÷] key; then enter the second number (divisor) and press [=] or other keys as necessary to obtain result.

If the key is pressed repeatedly, it will make sequential division calculations.

[X] Multiplication key

To multiply, enter the first number (multiplicand) and press the [x] key; then enter the second number (multiplier) and press [=] or other keys as necessary to obtain result.

If the key is depressed repeatedly, it will make sequential multiple calculations.

[=] equals key

Completes multiplication, division, delta percent or mark up.

[C/CE] Clear / Clear entry key

Cleared a live entry by pressing this key once. Clears all the accumulator or calculation status except Memory by pressing this key twice.

[+/-] Sign change key

Reverses the sign on the display.

[→] Right shift key

Deletes right most character of a live entry.

[0]-[9], [00], Numeric keys

[000], [●] Any numeral over 12 digits will be ineffective. When decimal point key is used more than once in one numeral, the first decimal point will be considered as effective.

[-] Minus key

Subtracts an amount from the accumulator.

To subtract the same amount more than once (repeat subtraction), enter the amount once and press this key as many times as necessary.

If this key is pressed immediately after [%] key, it works as a percent minus key.

[+] Plus key

Adds an amount to the accumulator.

To add the same amount more than once (repeat addition), enter the amount once and press this key as many times as necessary.

If this key is pressed immediately after [%] key, it works as a percent plus key.

[\#/D] Non-add / Date key

Prints a live entry as an identifier, e.g. an invoice number with “#” mark, on left hand side of paper roll.

[0] Subtotal key

Gives intermediate result of addition and subtraction.

Prints but does not clear the accumulator.

[*] Total key

Gives total result of addition and subtraction.

Pressing this key clears the total accumulator.

When this key is pressed with the "GT" switch engaged, the result is accumulated automatically in memory.

[M*] Memory total key

Prints and clears the memory.

[M0] Memory subtotal key

Prints but does not clear the memory.

[ \text{[M\_]} ] Memory minus key

Subtracts an amount from memory.

If there is a live calculation pending, this key will complete the calculation and subtract the amount from memory.

[ \mathbf{M}^{+} ] Memory plus key

Adds an amount to memory.

If there is a live calculation pending, this key will complete the calculation and accumulate the result to memory.

Technical Specifications

Type: Desktop Adding Machine/Calculator, Electronic Print/Display

Basic Operations: Addition/subtraction (with subtotal and total) and multiplication/division

Capacity: Input and result - 12 digits

Decimal System: Floating(F), Add mode(A), Fixed(0,2,3,4)

Functions: 4 rules, successive calculation, memory calculation, mark-up/down calculation, constant calculation, tax calculation, and EURO calculation

Printer: Character cylinder selection type (PA 612)

Ink Ribbon Cartridge: L-5M R/B

Ribbon cartridge ordering code: 80406

Paper width: Width 57.5± 0.5mm X Diameter 50mm

Paper roll ordering code: 81120

Display: 12 digit LCD Back Light display

Operating Temperature: 0^ 40^

Dimensions: 315 × 205 × 83 cm

Weight: 1,4 Kg

[?] Touche Sous-total

Touche Addition mémoire

[-] Taste Subtraction

[#/D] Taste Keine Addition/Datum

- GT Selector total general

- GT Selector do total geral

[%] Toets percentage

[M=] Toets aftrekken in geheugen

		Print P	Rounding 0	Decimal 2	GT ●	IC ●
Calculation	Enter		Display		Paper
Price without tax = 300	300	[TAX+]	TAX +	355.80		300.00
						18.6 %
Price with tax = ?						55.80 △
						355.80 *
Price with tax = 355.80	355.80	[TAX-]	TAX -	300.00		355.80
						18.6 %
						55.80 △
Price without tax = ?						300.00 *

CALCOLO DELLA PERCENTUALE - PERCENTAGE CALCULATION - CALCUL DU POURCENTAGE - PROZENTSATZ-BERECHNUNG - CÁLCULO DEL PORCENTAJE - CÁLCULO DA PERCENTAGEM - PERCENTAGEBEREKENING

		Print P	Rounding 5	Decimal 2	GT •	IC •
Calculation	Enter		Display		Paper
12779 = 100%	1279	[X]	1'279.00			1 279.00 x
? = 12%	12	[%]	153.48			12.00 %
						153.48 *

CALCOLO DELL'ADDIZIONE E DELLO SCONTO - ADD-ON AND DISCOUNT CALCULATION - POURCENTAGE DE MAJORATION ET POURCENTAGE DE REMISE - ZUSCHLAG- UND RABATTBERECHNUNG - CÁLCULO DE LA ADICION Y DELDESCUENTO - CÁLCULO DA ADIÇÃO E DO DESCONTO - BEREKENING VAN TOESLAGEN KORTING

		Print P	Rounding 5	Decimal 2	GT ●	IC ●
Calculation	Enter		Display		Paper
180 + 15% - 3% = ?	180	[X]	180.00			180.00 x
	15	[%]	27.00			15.00 %
		[+]	207.00			27.00 *
						207.00+%
						207.00 x
		[X]	207.00			3.00 %
	3	[%]	6.21			6.21 *
		[-]	200.79			200.79-%

PERCENTUALE DELLA COSTANTE - PERCENTAGE OF CONSTANT - POURCENTAGE DE CONSTANT - KONSTANTENPROZENTSATZ - PORCENTAJE DE LA CONSTANTE - PERCENTAGEM DA CONSTANTE - PERCENTAGE VAN DE CONSTANTE

		Print P	Rounding 5	Decimal 2	GT ·	IC ·
Calculation	Enter		Display		Paper
120 = 100% ? = 25%	120	[X]	120.00			120.00 x 25.00 % 30.00 *
	25	[%]	30.00
? = 33%	33	[%]	39.60			33.00 % 39.60 *

RICAVO/PERDITA - MARK UP/DOWN - MARGE DE BENEFICE/PERTE - AUF-/ ABSCHLAGE - PRODUCTO/PÉRDIDA - GANHO/PERDA - WINST-/VERLIESMARGE

		Print P	Rounding 5	Decimal 2	GT ●	IC ●
Calculation	Enter		Display		Paper
Gross amount including 14% TAX = 200 Net amount = ?	200	[MU]	MU 200.00			200.00 M 14.00 -% 24.56 △* 175.44 *
	14	[+/-] [=]		175.44
Purchase price = 60 Sale price including 32% margin = ?	60	[MU]	MU 60.00			60.00 M 32.00 % 28.24 △* 88.24 *
	32	[=]		88.24

TOTALE GENERALE IN MEMORIA - GRAND TOTAL MEMORY - GRAND TOTAL
MEMOIRE - SPEICHER-ENDSUMME - TOTAL GENERAL EN MEMORIA - TOTAL GERAL
NA MEMORIA - GROOTTOTAAL IN GEHEUGEN

		P	Print P	Rounding 5	Decimal 2	GT GT	IC IC
Calculation	Enter		Display		Paper
13.20 9.55		[C/CE]	0.				0. C
8.30 7.36	13.2	[+]	13.20				13.20 +
+ 2.95 18.33	8.3	[+]	21.50				8.30 +
24.45 +35.24 =*?	2.95	[+]	24.45				2.95 +
		[*]	M	24.45	003		24.45 M+
	9.55	[+]	M	9.55
	7.36	[+]	M	16.91			9.55 +
	18.33	[+]	M	35.24			7.36 +
		[*]	M	35.24	003		18.33 +
		[M*]	59.69				35.24 M+
					002
							59.69 M*

CALCOLO DELLA PERCENTUALE DELTA - DELTA PERCENT CALCULATION - CALCUL DE LA VARIATION EN POURCENTAGE - BERECHNUNG DER DELTA-QUOTE - CÁLCULO DEL PORCENTAJE DELTA - CÁLCULO DA PERCENTAGEM DELTA - BEREKENING VAN PERCENTAGEVERSCHIL

		Print P	Rounding 5	Decimal 2	GT •	IC •
Calculation	Enter		Display		Paper
2001: 15987	11435	[Δ]	11'435.00		11 435.00 Δ
1999: 11435 (±100%)	15987	[%]	39.81		15 987.00 = 4 552.00 Δ*
Δ% = ?					39.81 Δ%

CALCOLO IN MEMORIA - MEMORY CALCULATION - CALCUL MEMOIRE - BERECHNUNG IM SPEICHER - CÁLCULO EN MEMORIA - CÁLCULO NA MEMORIA - BEREKENING IN GEHEUGEN

		P	5	F	GT	IC
Calculation	Enter	Display		Paper
		[C/CE]	0.			0. C
100 + 200 = ?	100	[+]	100.			100. +
900 - 500 = ?	200	[+]	300.			200. +
20 X 7 = ?		[*]	300.			300. *
12 X 5 = ?
Total ?		[M⁺]	M 300.			300. M+
	900	[+]	M 900.			900. +
	500	[-]	M 400.			500. -
		[*]	M 400.			400. *
		[M⁺]	M 400.			400. M+
	20	[X]	M 20.			20. x
	7	[=]	M 140.			7. =
						140. *
		[M⁺]	M 140.			140. M+
	12	[X]	M 12.			12. x
	5	[M⁺]	M 60.			5. =
						60. M+
		[M◇]	M 900.			900. M◇
		[M*]	900.			900. M*
		[C/CE]	0.			0. C

There are 13 Euro currency rates available in memory, the default values are preset to 1.

To select a position in which to set the rate you desire:

• Press and hold the [RATE] key until the "RATE" symbol blinks on the display.
• Press the [EURO] key, the display will show "r-01 1".
• Enter the required rate and press the [EURO] key.

The current rate is now set.

• Press the [+] key, to move on to the next rate.

• Press the [-] key, to move back to previous rate.

• If you want to return the Euro Currency and TAX rates to their default rate, switch OFF the machine, then holding down [C/CE] and [+] switch it ON again. "r-CC" will appear on the display and the default rate is set.

		Print P	Rounding 5	Decimal 2	GT •	IC •
Calculation	Enter	Display			Paper
Set Currency rate 1.08 in r-02	[RATE] (Press & hold 3 sec.)	(Blinking)RATE 0.
	[EURO] [+]	RATE € r-01 1.
	1.08 [EURO]	RATE r-02 1.
		RATE € 1.08				1.08
2500+4000+1500 = Total Euro currency?	2500 [+]	2'500.00			2 500.00 +
	4000 [+]	6'500.00			4 000.00 +
	1500 [+]	8'000.00			1 500.00 +
	[]*	8'000.00			8 000.00 *
	[EURO]	€ 7'407.41			8 000.00 ÷
					1.08 =
					7 407.41 *
2500+4000+1500 = Total Euro currency?	2500 [+]	2'500.00			2 500.00 +
	4000 [+]	6'500.00			4 000.00 +
	1500 [+]	8'00.00			1 500.00 +
	[]*	8'000.00			8 000.00 *
	[LOCAL]	LOCAL 8'640.00			8 000.00 x
					1.08 =
					8 640.00 *

DIRECTIVE 2002/96/CE ON THE TREATMENT, COLLECTION, RECYCLING AND DISPOSAL OF ELECTRIC AND ELECTRONIC DEVICES AND THEIR COMPONENTS

1. FOR COUNTRIES IN THE EUROPEAN UNION (EU)

The disposal of electric and electronic devices as solid urban waste is strictly prohibited: it must be collected separately. The dumping of these devices at unequipped and unauthorized places may have hazardous effects on health and the environment.

Offenders will be subjected to the penalties and measures laid down by the law.

TO DISPOSE OF OUR DEVICES CORRECTLY:

a) Contact the Local Authorities, who will give you the practical information you need and the instructions for handling the waste correctly, for example: location and times of the waste collection centres, etc.
b) When you purchase a new device of ours, give a used device similar to the one purchased to our dealer for disposal.

The crossed dustbin symbol on the device means that:

• When it to be disposed of, the device is to be taken to the equipped waste collection centres and is to be handled separately from urban waste;
• Olivetti guarantees the activation of the treatment, collection, recycling and disposal procedures in accordance with Directive 2002/96/CE (and subsequent amendments).

2. FOR OTHER COUNTRIES (NOT IN THE EU)

The treatment, collection, recycling and disposal of electric and electronic devices will be carried out in accordance with the laws in force in the country in question.

DIRECTIVE 2002/96/CE SUR LE TRAITEMENT, LA COLLECTE, LE RECYCLAGE ET LA MISE AU REBUT DES EQUIPEMENTS ELECTRIQUES ET ELECTRONIQUES ET DE LEURS COMPOSANTS

1. POUR LES PAYS DE L'UNION EUROPEENNE (UE)
