USER MANUAL LR 2107 C JONSERED

Ride-on Lawnmower with Petrol engine-62 cm blade

The present manual constitutes an integral part of the product and it should be kept for all future reference.

We wish to thank you for choosing our Ride-on lawnmower. We are confident that the high quality of our machine will meet with your satisfaction and appreciation and that your lawn mower will give you long-lasting service. Before starting to use your machine, make sure to read with care this manual, provided to you with all the necessary information for proper use, in compliance with basic safety requirements.

Caution! Read the instruction manual before use.

IIoo00xIaiaoTcOooxxtao to 2eEioiOoiovipnivao TnVchiOnj.

Keep other people well away from the danger area!

Risk of breathing in toxic gases! Do not use the unit in closed or poorly ventilated environments.

Risk of explosion! Do not fill the unit with unleaded petrol while the engine is running.

Caution! Hot surface

Remove the ignition key and read the instruction manual before carrying out any service or maintenance work on the ride-on lawnmower and disconnect the spark plug.

Caution! Protect from rain.

The following symbols are fixed on the Ride-on lawnmower:

From top to left:
- Caution! Read the instruction manual before use.
- Rotating blade, risk of limb injury
- Danger of thrown objects
- Remove the ignition key and read the instruction manual before carrying out any service or maintenance work on the ride-on lawn mower and disconnect the spark plug.
- Keep the safety distance from the operating ride-on lawnmower (except operator)
- Max. work slope: 10^
- Noise level in accordance with the law
- Keep other people well away from the danger area!
- Make sure there are no children within the work area.
- Never carry any passenger.

Generelle Warnetakte

The following symbols are fixed on the Ride-on lawnmower:

Warning: risk of limb injury. Rotating parts.

Warning: risk of hand and feet injury.

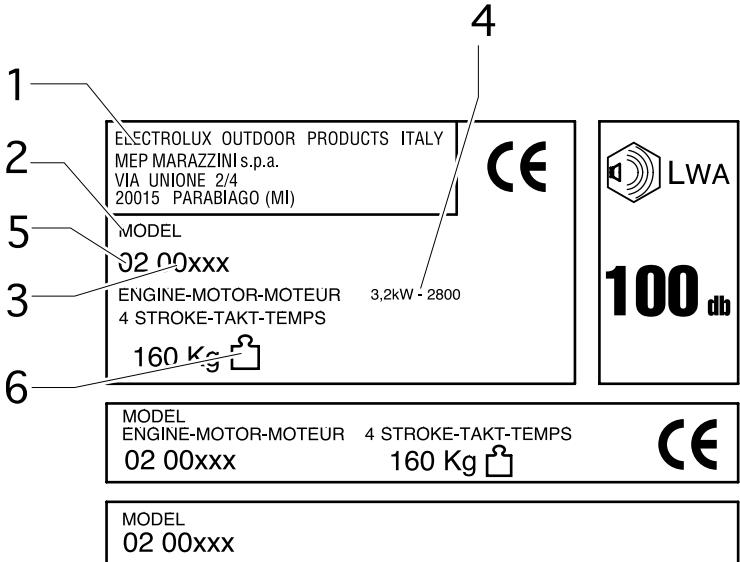

Serial number - Progressive

Engine revolutions-Power in Kw

Year of construction

Baujahr

Año de construcción

Bouwjaar

Anodefabricacao

Rokprodukci

Epitèsièv

Rok výroby

Fremstillingsar

Tilverkningsar

Konstruksions

Valmistusvuosi

Leto izdelave

EoXataoxevns

6

Peso

Poids

Weight

Gewicht

Peso

Gewicht

Peso

Cieszar

Suly

Hmotnost

Vae

Vikt

Vekt

Teža

Paino

Baooc

DEMARRAGE AVEC CABLE

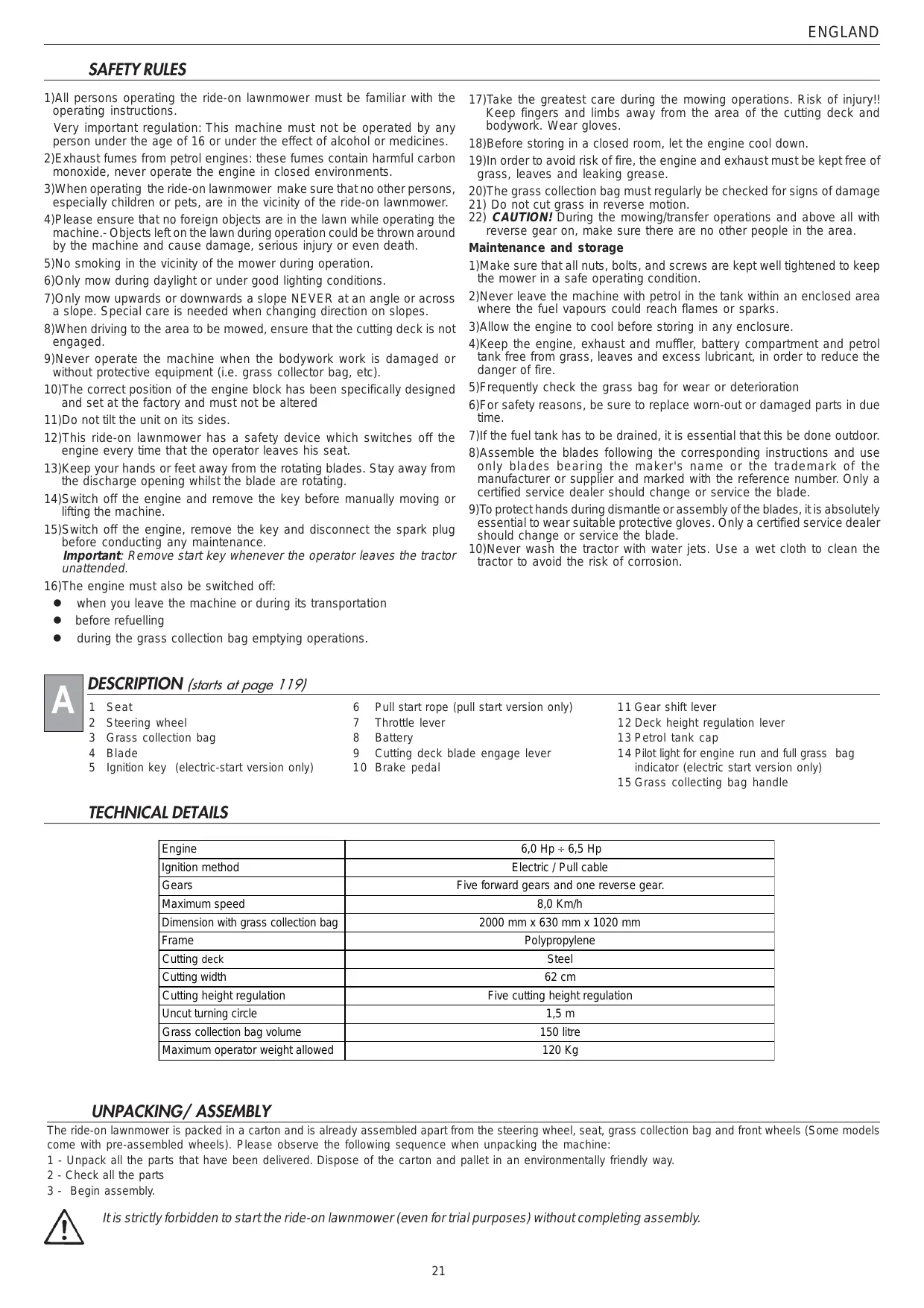

1) All persons operating the ride-on lawn mower must be familiar with the operating instructions.
Very important regulation: This machine must not be operated by any person under the age of 16 or under the effect of alcohol or medicines.
2) Exhaust fumes from petrol engines: these fumes contain harmful carbon monoxide, never operate the engine in closed environments.
3) When operating the ride-on lawnmower make sure that no other persons, especially children or pets, are in the vicinity of the ride-on lawnmower.
4)Please ensure that no foreign objects are in the lawn while operating the machine.- Objects left on the lawn during operation could be thrown around by the machine and cause damage, serious injury or even death.
5)No smoking in the vicinity of the mower during operation.
6)Only mow during daylight or under good lighting conditions.
7)Only mow upwards or downwards a slope NEVER at an angle or across a slope. Special care is needed when changing direction on slopes.
8) When driving to the area to be mowed, ensure that the cutting deck is not engaged.
9)Never operate the machine when the bodywork work is damaged or without protective equipment (i.e. grass collector bag, etc).
10)The correct position of the engine block has been specifically designed and set at the factory and must not be altered
11) Do not tilt the unit on its sides.
12)This ride-on lawnmower has a safety device which switches off the engine every time that the operator leaves his seat.
13)Keep your hands or feet away from the rotating blades. Stay away from the discharge opening whilst the blade are rotating.
14)Switch off the engine and remove the key before manually moving or lifting the machine.
15)Switch off the engine, remove the key and disconnect the spark plug before conducting any maintenance.
Important: Remove start key whenever the operator leaves the tractor unattended.
16)The engine must also be switched off:
- when you leave the machine or during its transportation
- before refuelling
- during the grass collection bag emptying operations.

17)Take the greatest care during the mowing operations. Risk of injury!! Keep fingers and limbs away from the area of the cutting deck and bodywork. Wear gloves.
18)Before storing in a closed room, let the engine cool down.
19) In order to avoid risk of fire, the engine and exhaust must be kept free of grass, leaves and leaking grease.
20)The grass collection bag must regularly be checked for signs of damage
21) Do not cut grass in reverse motion.
22) CAUTION! During the mowing/transfer operations and above all with reverse gear on, make sure there are no other people in the area.

Maintenance and storage

1)Make sure that all nuts, bolts, and screws are kept well tightened to keep the mower in a safe operating condition.
2)Never leave the machine with petrol in the tank within an enclosed area where the fuel vapours could reach flames or sparks.
3)Allow the engine to cool before storing in any enclosure.
4)Keep the engine, exhaust and muffler, battery compartment and petrol tank free from grass, leaves and excess lubricant, in order to reduce the danger of fire.
5)Frequently check the grass bag for wear or deterioration
6)For safety reasons, be sure to replace worn-out or damaged parts in due time.
7) If the fuel tank has to be drained, it is essential that this be done outdoor.
8)Assemble the blades following the corresponding instructions and use only blades bearing the maker's name or the trademark of the manufacturer or supplier and marked with the reference number. Only a certified service dealer should change or service the blade.
9)To protect hands during dismantle or assembly of the blades, it is absolutely essential to wear suitable protective gloves. Only a certified service dealer should change or service the blade.
10)Never wash the tractor with water jets. Use a wet cloth to clean the tractor to avoid the risk of corrosion.

DESCRIPTION (starts at page 119)

1 Seat
2 Steering wheel
3 Grass collection bag
4 Blade
5 Ignition key (electric-start version only)

6 Pull start rope (pull start version only)
7 Throttle lever
8 Battery
9 Cutting deck blade engage lever
10 Brake pedal

11 Gear shift lever
12 Deck height regulation lever
13 Petrol tank cap
14 Pilot light for engine run and full grass bag indicator (electric start version only)
15 Grass collecting bag handle

TECHNICAL DETAILS

Engine	6,0 Hp ÷ 6,5 Hp
Ignition method	Electric / Pull cable
Gears	Five forward gears and one reverse gear.
Maximum speed	8,0 Km/h
Dimension with grass collection bag	2000 mm x 630 mm x 1020 mm
Frame	Polypropylene
Cutting deck	Steel
Cutting width	62 cm
Cutting height regulation	Five cutting height regulation
Uncut turning circle	1,5 m
Grass collection bag volume	150 litre
Maximum operator weight allowed	120 Kg

UNPACKING/ ASSEMBLY

The ride-on lawnmower is packed in a carton and is already assembled apart from the steering wheel, seat, grass collection bag and front wheels (Some models come with pre-assembled wheels). Please observe the following sequence when unpacking the machine:

1 - Unpack all the parts that have been delivered. Dispase of the carton and pallet in an environmentally friendly way.
2 - Check all the parts
3 - Begin assembly.

It is strictly forbidden to start the ride-on lawnmower (even for trial purposes) without completing assembly.

B

ASSEMBLY OF THE GRASS COLLECTION BAG (starts at page 119)

The grass collection bag is included with all models as a standard feature.

For assembly the following parts and tools are required:

Tools required:
- Phillips head screwdriver
- Wrench 8

Parts:

• 4 screws M5x30 UNI 7688
• 4 M5 self-locking nuts
• Front frame for grass collecting bag

Assembly:

Fix the front frame of the grass collecting bag to the pre-assembled grass collecting bag frame.

Make sure that the front section of the grass collecting bag is in the correct position to ensure the correct operation of the grass collecting bag and of the tractor. Insert the 4 M5x30 screws into the corresponding holes.

Screw and properly tighten screws and self-locking nylon nuts with tools.

Complete the assembly of the bag on the frame by connecting the grassbag rubber snap on hooks.

FRONT WHEELS ASSEMBLY (starts at page 119)

(NOTE: Some models come with pre-assembled wheels)

1 - Mount the front wheels on the axles (16), positioning a washer (17), the wheel (18) and a washer (19).
2 - Secure with circlip (20).

Tools required:

• Pliers
  Parts:
• 4 washer
• 2 circlip

Attention: Assemble the wheel with valve outwards.

STEERING WHEEL ASSEMBLY (starts at page 120)

Tools required:

• Phillips head screwdriver
• Wrench 010mm

Parts:
-1 screw M6x45 UNI 7687
- M6 Flanged Nut.

Assembly:

Insert the steering wheel on the steering tube and align the steering wheel hole with the steering tube hole.

Make sure that the steering wheel is in the correct position (Fig.D1).

• Insert the screw, screw and tighten the nut with the screw using the suitable tools.

NOTE: The steering wheel can be adjusted to two heights based on operator preference see D1.

ACCESS TO THE ENGINE COMPARTMENT (starts at page 120)

To remove the access cover to the engine compartment use a screwdriver and insert it into the appropriate slots of the engine cover until the two front connections and the two rear connections are released.

SEAT ASSEMBLY (starts at page 120)

Tools required:
- Wrench 013 mm

Parts:

• 4 screw M8x18
• 4 washer 9x24
• 4 lock washer 8

1- Fasten the seat (1) to the support plate through the 4 M8 x 18 screws. Assemble with 4 washers 9 x 24 and 4 lock washer 8.
2- Before tightening the screws, adjust the position of the seat on the holes of the plate to suit the user's needs.

Regularly check the screw fixing.

OPERATION

ADJUSTING THE CUTTING HEIGHT

Before the cutting height is adjusted, the engine must be switched off and the blade must have come to a complete standstill.

ADJUSTMENT (starts at page 120)

1 - Push the adjustment lever (12) outwards in order to release it from its seat.
2 - Push the lever into the required notch for the cutting height (no.5 positions for the same number of cutting positions)
3 - Release the lever slowly until it locates in the notch.
4 - The cutting height is now set.

EMPTYING THE GRASS COLLECTION BAG (starts at page 120)

Empty the grass collection bag in time before it overflows.

The red light situated (electric start version only) under the steering wheel shows that the bin is full.

Don't over fill the grass collection bag. When the red light situated under the steering wheel is on, empty bag.

1 - Disengage the cutting deck and switch off the engine.
2 - Hold the handle and lift the bag. Shake the bag twice until it is completely empty.
3 - Let the grass collection bag return slowly to its original position.
4 - Resume operation on the engine.

SAFETY PRECAUTIONS (starts at page 121)

Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed.

(starts at page 121)

Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running.

Ensure the tractor has been fully and correctly assembled. Fill the petrol tank with unleaded petrol and fill the engine with the correct oil. Read and fully understand the instruction for starting the machine.

Use the following in your ride-on lawnmower:

Petrol engine oil
lead free (min. octane rating 92)
SAE 30 ("SE", "SF" O "SG")

STARTING THE ENGINE

Start up the engine only after filling the tanks with sufficient petrol and oil.

Carefully follow the instructions in the enclosed engine manufacturer's operating and maintenance manual.

REFUELLING (starts at page 121)

Danger of explosion! Fill the tank only in an open area! Never refuel while the engine is running or is very hot! DO NOT SMOKE when refuelling the tractor.

The unleaded petrol tank plug is situated in the left rear side of the tractor.
1 - Unscrew the tank cap (33) and fill up with lead-free petrol.
2 - After refuelling, the tank cap shall be closed again.

TOPPING UP WITH OIL

Use only oil of type SAE 30 ("SE", "SF" or "SG"). Ensure that no oil is spilt onto the ground.

1-Lift the seat

The compartment for oil supply is situated in the motor block and can be accessed by removing the protection as shown in Fig. D2.

2-Unscrew the oil filler cap (21)
3- Fill up the oil until the "MAX." mark on the dip stick is reached
4- Replace the oil filler cap.

STARTING UP

Before starting up check the oil and petrol levels.

Do not smoke during the oil and petrol refuelling and checking operations. Top up with petrol or oil if necessary (as described in detail in the previous chapter).

Starting up (engine start) must be carried out as described in detail under the heading "initial starting up".

Never change gear while driving, the mower must always be at a standstill.

Never mow the grass with reverse gear engaged.

ENGINE START

The exhaust fumes contain carbon monoxide, an odourless and deadly gas. Never start the engine in closed or badly ventilated rooms.

(starts at page 104)

Look for a flat piece of ground with short grass for starting the engine.

Operate the electric start only when sitting on the tractor with the blade clutch (9) in stop position and with brake engaged.

1 - Set the clutch deck blade engage lever (9) to STOP position
2 - Set the throttle lever (7) to START position
3 - Press brake pedal (10) and put it into parking position.

ELECTRIC START (starts at page 122)

4 - Insert the ignition key in the ignition block (5)

5 - Turn the key to the right and release it, after starting in "RUN" position. The green light positioned beneath the steering wheel control remains on. Should the engine fail to start within 5 seconds, to avoid damaging the battery, wait a further 10 ten seconds before trying again.

PULL START

Put brake pedal into parking position.

Make sure that the cutting deck blade engage lever is not engaged.

Put accelerator lever into START position.

Grab the pull start rope (6) and pull it. Engine should start. - Repeat if necessary until engine starts.

After start up, sit on the seat and proceed to the work operations.

(starts at page 122)

6 - Set the lever (7) between

and

until you judge the revs to be correct for your work

SWITCHING OFF THE ENGINE ELECTRIC START

Turn off the engine by turning key to Stop. The green light will switch off.

Only switch the engine off when the machine is at a complete standstill.

Always remove the ignition key to prevent accidental starting.

PULL START

Turn off the engine by pushing accelerator lever (7) forward to STOP position.

MOVING WITHOUT POWER (starts at page 122)

Movement without power possible only with engine off. Before manually moving the unit, make sure the gear is in neutral.

Apply parking brake when finished.

DRIVING INSTRUCTIONS

Ensure that there are no persons or animals within the operating vicinity of the machine.

Select the required speed and drive carefully. Transportation of other persons is strictly forbidden.

DRIVING (starts at page 122)

1 - Press the brake pedal (10) which acts as a clutch, activate the lever (12) according to chosen gear, then slowly release the brake pedal (10) until unit starts moving. To engage reverse gear, stop, and engage the reverse and engage the gear into reverse (R) by pressing the brake pedal (10), then slowly releasing the brake pedal (10) again.
2 - The speed maybe varied by manually operating throttle lever (7).

CAUTION! During work or transfer phases, in case of upward/downward slopes, use 1^st gear only.

BRAKING (starts at page 122)

Press the brake pedal (10).

To lock brake pedal (10) move lever to parking position.

OPERATING CUTTING DECK MECHANISM

The cutting system can be enabled only if the engine is on, lever (7) is positioned on and the grass collecting bag is installed.

(full throttle), the operator is sitting on board the tractor

ENGAGING THE MOWER MECHANISM (starts at page 122)

1 - Engage the brake (9)
2 - Set the lever (10) on START position

The mower mechanism is now engaged and the blade is rotating.

3 - It is possible to begin cutting in forward gear after having released the brake pedal.

If the user stands up from the seat during the mowing, the engine switches off.

SWITCHING OFF THE MOWER GEAR

Release blade enabling lever (9) until this is off.

The blade stops turning in about 5 seconds.

(starts at page 123)

CONTROL/SAFETY DEVICES

a	Bag position microswitch
b	Brake pedal microswitch
c	Seat microswitch
d	Operation light (electric-starter version)
e	Bag full light (electric-starter version)
f	Blade enabled microswitch

MAINTENANCE

All maintenance, service and cleaning work must be carried out only after the engine has stopped and cooled off. The following operations may be carried out by the user. All other maintenance, service and repair works must be carried out by an authorized dealer.

	AFTER USING EACHTIME	AFTER FIRST5HOURS	OFTEN, ON AS NEEDED BASIS	EVERY 25 OPERATING HOURS	EVERY 50 OPERATING HOURS	AT THE BEGINNING OF EVERY SEASON	PRIOR TO STORING
Engine check	■	■	■
Oil change		■		■		■
Engine air filter cleaning				■
Spark plug check					■	■
Engine air filter replacement					■
Battery and terminal cleaning				■
Brake check	■		■
Loose part check	■						■
Mower cleaning			■				■

In the event of using this ride-on lawnmower under extreme conditions and very high temperatures, check more often.

OIL CHANGE (starts at page 123)

Remove engine compartment access case, as described in D2.

Remove oil cap. Using the syringe supplied, suck out the oil.

Repeat until the engine is empty of oil.

CAUTION!

In order to prevent any pollution to the water-table, used oil must not be drained into the sewer system or waterworks. Most garages have used oil deposits, or use the authorized deposits according to your local authority regulations.

OIL LEVEL CHECK

You can check the motor oil level with the dip stick placed in the oil filler tank cap.

The oil level must be between "MAX." and "MIN." notches (refer to the engine manufacturer's maintenance manual).

AIR FILTER AND SPARK PLUG

Please follow the engine manufacturer's operating instructions enclosed with this ride-on lawnmower and the trouble shooting guide.

BLADE REPLACEMENT (starts at page 123)

Always use only original spares!

Always disconnect the spark plug before blade or cutting deck service.

If the cutting deck or the blade need service, take the unit to an authorized dealer.

Remove the ignition key and always wear protective gloves when you replacing the blade.

1 - Release the blade from the hub using a 17 mm wrench. Install the new blade and properly tighten the hub with the relevant wrench.Torque requirement for blade is minimum 55 Nm.

BATTERY (starts at page 123)

Remove the battery during storage!

Before starting the motor for the first time, you are advised to keep the battery on charge for 2 to 3 hours.

If the battery proves to be low during starting, charge it for 24 hours.

When starting, don't keep trying to start for more than 5 seconds.

BATTERY RECHARGE

1 - Remove front access (22)
2 - Pull out cable with the battery charger connector
3 - Connect the battery charger to the battery charger connector
4 - Plug in the battery charger in wall outlet
5 - Disconnect connectors and replace the cover after battery recharge is complete.

Recharge the battery only in a dry room.

IMPORTANT! Protect the contacts from dirt, damp and moisture.

DO NOT SPRAY WITH WATER!

MOWER CLEANING (starts at page 124)

For unit cleaning, shut off engine and wait for unit to cool down completely. Do not use a water hose or water jet to clean unit. This could cause corrosion and damage the unit. Use cloths, or brushes to clean away dirt and grass.

Use cloths or brushes to clean away any dirt of grass residue.

• Frequently check the blade for damage.

FURTHER MAINTENANCE AND REPAIR ADVICE

Always wear protective gloves when handling the blades (during checking or cleaning operations).

Regularly check that the grass collection device is in good condition. Due to the risk of fire it is essential that both the engine and exhaust are kept free of grass, leaves or any combustible material!

STORAGE

Never store the unit where the petrol vapors could come into contact with flames or sparks.

BATTERY DISPOSAL

Those batteries marked with a "crossed out waste disposal bin" and bearing the chemical symbol Pb (battery containing lead) are not to be disposed in domestic waste bins.

The user is legally obliged to take the used batteries to special collection points or to return them to the retailer.

• The lawn mower must be checked by a SERVICE DEALER on a regular basis.
• Cleaning under the bodywork

With machine at a standstill and off.

• Attach fitting (23) on the deck to the water supply tap. Turn on the tap.
• start up the motor (blade in rotation), allowing it to warm up for a few minutes.
• at the end of cleaning switch off the motor, turn off the tap, detach the tube from the deck connection

For safety reasons always replace used and or damaged parts immediately (by an authorized dealer).

Only use genuine parts see below. Failure to use genuine parts could result in malfunction or damage to the tractor.

Always use original belt.

• Check with an Authorized Service Dealer for Repair Parts.

Drive belt - Style AX - 32 1/4"K - Kevlar

Cutting Deck Belt - 4H400

1 - If the deck or drive belt come off the pulley, please see the diagram to correctly reroute the belt.
2 - Before servicing the belts shut off engine, apply parking brake, and lower deck to lowest height cut. Wait for engine to cool.

TROUBLESHOOTING

FAULT	POSSIBLE CAUSES	CORRECTION
Engine does not start	No petrol	Fill the petrol tank with unleaded petrol
	Poor contaminated petrol	Always use clean, fresh petrol. Only use unleaded petrol.
	Dirty engine air filter	Clean the engine air filter according to engine manufacturer's guidelines and instruction manual.
	No spark	Clean the spark plug and replace if necessary, according to engine manufacturer's instruction manual.
	Difficulty in starting, flooded engine.	Unscrew the plug and dry it. Follow engine manufacturer's guidelines and instruction in manual. Let the unit sit for a few minutes.
	Flat battery	Recharge.
	Starter cord incorrectly connected	Check the connection.
	Intervention of safety devices	Check the correct operation of the devices (see point L)
Engine stalls	Grass too high or damp.	Raise the cutting lever to maximum height. Slow ground speed, or wait for grass to dry.
	Mower casing blocked	Clean the casing (Important: before cleaning extract the spark plug lead)
	Dirty air filter	Clean air filter (see engine instructions also).
	Carburetor calibration incorrect	Take unit to Authorized Service Dealer for assistance.
Poor cut	Blunt blade	Take unit to Authorized Service Dealer to replace the blade.
	Blade badly worn	Take unit to Authorized Service Dealer to replace the blade.
	Incorrect cutting height	Take unit to Authorized Service Dealer to replace the blade.
Grass bag fails to fill	Grass too heavy or too damp to be conveyed by the air stream	Wait until the lawn surface has dried off.
	Blade badly worn, blunt	Replace the blade.
	Grass is too high causing poor collection.	Cut the lawn twice, altering the cutting height accordingly.
	Casing blocked with previous grass cutting	Clean the casing (do not use water)NB: remember to remove the spark plug connector.
The unit does not drive	Drive belt detached	See belt routing diagram page 124
	Defective transmission	Seek assistance from Authorized Service Dealer.
Cutting deck does not function	Cabling defect	Seek assistance from Authorized Service Dealer.
	Clutch damage	Seek assistance from Authorized Service Dealer.
	Faulty belt	Seek assistance from Authorized Service Dealer.
	Bag is not installed properly	Properly install bag and check fit up

SICHERHEITSHINWEISE

Repitur a operacao ate o completeness do reservatorio.

ATENÇAO

A这其中 uses a few different ways to use the same function.

A MOTOR MUKODESBE HOZASA:

A beinditastCsakis azutancsinalni miutan elgesges mennyisegu benzin es olaj van tve a tartalyokban. Pontosan kovetni a hasznalati es karbantartasi utasitasokban levo mellkelt szabalyokot.

PENGCSERE (Lsd 123 old)

DALŠI POKNY PRO UDRŽBU A OPRAVU

ELEKTRISK START (borjar pa sidan 122)

VAXEL (borjar paskidan 122)

BROMs (borjar paskidan 122)

Tryckpàbromspedalen (10).

INKOPPLING AV KLIPPNINGSSAPARATEN (borjar pa sidan 122)

1-Aktivera bromsen (9)
2- Placera spaken (10) pÅ START.

UTBYTE AV KNIVBLADET (borjar paa sidan 123)

LUFT FILTER OG TENNPLUGGER

Man bes a radsporre konstruktorsbrukanvisning handboken for motoren, som leveres med hvr motor slamaskin og se "Maskinskader etterskelse" tabellen.

UTSKIFTING AV KNIVEN (se side 123)

Iltid bruk kun originale reservedeler!

TPOXIEMA KAI ANTIKATAZAH MAXAIPIOY ( .123)

Xoouoioiεiε móvo ta avovtixá avtalaaxtixá.

Aioovbseotae navto oiovocipnvo ano onoiadntote diabixosa ouvtngonos o to aaxai np so sto votma ta xonnc.

Eav to ouotma xonns n to maiaqioxieicovta oovthonon anevvovveite o eva eiovostodtoevo vovgeyio.

Na qoqate neoataevtia yavxotav xavetny avixatadostan tow maagiov xai va to xeidi evanoi aioyn oov

The manufacturer of your machine guarantees it from the purchasing date for a duration of 24 months. Machines used for hire are not covered by this guarantee.

The manufacturer, moreover will replace all original parts which, under normal conditions of machine use and maintenance (hence excluding any professional use of the same), were to prove, in the judgement of the firm's technicians, faulty for reasons of manufacture.

The following is not covered by this warranty:

• internal combustion engine parts (in this regard you are referred to the warranty provided by the firm that manufactures the engine),
• parts damaged by normal wear and tear or by misuse/inadequate maintenance of the equipment. i.e. blades and drive belts.
• parts that have been damaged by assembly or use not in compliance with the specifications of this booklet.

It is clearly understood that the present warranty would be automatically invalidated, if modifications were to be carried out on the machine without the consent of the manufacturer or if nonoriginal items were to be assembled on the machine. Furthermore, the manufacturer declines all liability as regards civil responsibility deriving from improper use of the machine that is not in compliance with the rules of use and maintenance. Technical service during the guarantee period will be recognized only if the request made at the authorized technical service centre is accompanied by valid proof of purchase. All the labour and transportation costs, as well as costs for any damage or losses during transportation, will be chargeable to the user, as likewise any expenses for cleaning, adjustment or normal maintenance.

You are recommended to check, upon purchase, that the product is visibly in good condition and to read the instruction manual carefully before using the equipment.

All requests for spare parts must specify the machine model, the year of purchase, and the item number.

Internal combustion engine warranty

The guarantee covering the internal combustion engine and the engine parts supplied on your machine is provided by the manufacturer of the engine, as appears in the corresponding enclosed booklet.

IMPORTANT: Use only original Spare Parts

ATTENTION: Specify colours in your spare part's order

GARANTIESCHEIN

HUSQVARNA OUTDOOR PRODUCTS ITALIA S.P.A.

Headquarters:

Via Como 72 - 32868 - VALMADRERA (LC) - ITALY- Tel. [phone] - Fax [phone]
