USER MANUAL DJ048 LEXIBOOK

Please refer to image A

1. Flash
2. Camera lens
3. Power button
4. LED
5. Play button
6. Delete button
7. LCD

Please refer to image B

8.Shutter button

Please refer to image C

1. Tripod hole (tripod not included)

Please refer to image D

1. Strap hole
2. Battery compartment / SD card slot

Please refer to image E

1. USB jack

Please refer to image F

1. Image size
2. Number of pictures left to take
3. Storage card is in use
4. Battery level indicator
5. Picture mode

CONTENTS OF THE PACKAGING

1xDJ048digital camera
1 x USB cable
1 x hand strap
1 x installation CD-ROM
1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded for your child's safety.

INSERTING NEW BATTERIES

Please refer to image D.

1. Make sure the camera is off.
2. To open the battery door, slide it in the direction of the arrow.
3. Insert 2 × LR03/AAA 1,5V --- type (batteries not included) observing the polarity indicated inside the battery compartment.
4. Close the battery compartment.

Note: When the low battery icon appears on the LCD screen, replace the batteries.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time.

WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again.

Important note: All files stored in the unit's internal memory will be lost when switching off the camera or replacing the batteries. Make sure you transfer the files to your computer before turning off the product or changing the batteries.

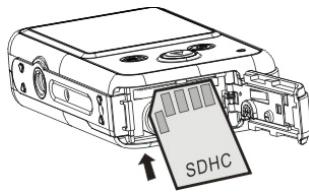

INSTALLING A MEMORY CARD

Please refer to image D.

You need to insert an SD card (8 GB maximum, not included) so you can store your pictures.

1. Turn the camera off.

2. Push the SD card firmly into the SD slot until you hear a 'click' sound. Close the battery door.

3. Turn the camera on and should appear on the LCD screen.

Note:

• To remove the card, push it in slightly to release it from the slot.
• We recommend that you purchase a good quality SD card.

INSTALLING THE CAMERA DRIVER AND THE SOFTWARE

Follow these instructions to install the camera driver and the "ArcSoft Medialmpression" software on your computer system.

1. Insert the CD Software (included) in your CD-ROM drive. The CD will auto run, and the main menu will appear.
2. Click "Install Driver", and then follow the instructions to install the camera driver.
3. You will need to reboot your computer after the driver installation.
4. Click 'Install Medialmpression', and the 'Choose Setup Language' screen will appear. Select your language and click 'OK'. Follow the instructions to install 'ArcSoft Medialmpression' on your computer system. The software offers many applications for photo editing and printing.
5. Once you have finished installing, please restart the computer.

Note:

• If the CD does not auto run, click 'Start', 'Run', then type in 'D:\autorun.exe' in the Run dialog text box (where D:\ is your CD-ROM drive) and press Enter.
• You must install the driver before downloading photos/videos from the camera or using it as a webcam.
• Make sure the camera is not connected to your computer before installing the driver and the software.

TURNING THE CAMERA ON AND OFF

Press and hold the POWER button to turn the camera on or off. When you turn the camera on, the LCD screen lights up and a 'beep' sounds to confirm the camera is ready for use.

Note: The camera will auto power off after 3 minutes of inactivity.

USING THE CAMERA

Turn the camera on to enter camera mode and take photos.

Taking a photo

Press the SHUTTER button to take a photo. The LED lights up and the number of photos left to shoot displays in the top, right-hand corner of the LCD screen.

Automatic Flash

The camera will automatically activate the flash in low-light situations. When the flash is charging the LED flashes red.

SD card

When the SD card inserted in the camera is full, 'full memory card' will be displayed. Make sure you transfer your photos to your computer before you empty the SD card.

Viewing photos

When the camera is turned on, press the PLAY button repeatedly to view your photos. Press the SHUTTER button to exit photo playback.

Deleting last photo taken

1. Select a photo for deletion. Press the DELETE button and 'Delete This File?' appears.
2. Use the PLAY button to select 'Yes' (or 'No' if you want to exit this function) and press the SHUTTER button to confirm.

Setting the date and time

1. Press and hold the DELETE button until the time settings menu appears.
2. Press the POWER or DELETE buttons to increase or decrease the number.
3. Press the PLAY button to move to the next setting.
4. Press the SHUTTER button to confirm and exit this setting.

DOWNLOADING YOUR PHOTOS AND VIDEOS

Manual downloading

1. Turn on the camera and then connect it to your computer via the USB cable provided. Press PLAY until 'MSDC' appears on the camera LCD screen.
2. Select 'Copy pictures to a folder on my computer' and click 'OK'.
3. Follow the computer's onscreen commands until you are notified that downloading is complete.

OR, you can follow step 1 above and then:

1. Click on the 'Start' button in Windows.
2. Click on the 'My computer' icon.
3. Click on 'Removable storage device' then 'DCIM'. The images are stored in a subfolder called '100MEDIA'.
4. You can copy and paste the images into any directory you choose.

Downloading using 'Arcsoft Medialmpression'

1. Turn on the camera and then connect it to your computer via the USB cable provided.
2. Press the PLAY button until 'MSDC' appears on the camera.
3. Launch the 'Arcsoft MedialImpression' program by clicking on the shortcut

Media Impression 2.1nk

Click the 'Import' button on the main menu screen.

1. In the 'Import' screen, click on the 'Get Media From' dropdown box in the left-hand column and select the 'Removable disk' driver of the camera.

Note: Make sure you have selected the 'Removable disk' driver or you won't be able to download your photos/videos.

1. Then in the 'Destination Folder' choose the location you want your camera files to be stored. Click on the yellow folder to browse for a new storage location. You can also edit the subfolder name, import option and attach a tag.
2. Select the files you want to download. You can click on the button at the bottom of the screen to 'Select All' or 'Deselect All', or you can hold down the computer's 'Ctrl' key and click on various files to select or deselect them.
3. Click on 'Import' to start downloading the files.
4. Click the 'Done' button to transfer the photos from your camera to the destination folder.

Note: Click on the house image in the left-hand corner to return to the main menu page at any time.

WEBCAM MODE

Connected to your PC, your camera can be used as a webcam.

Note: the camera must be in webcam mode.

Webcam mode

1. Turn the digital camera on.
2. Connect the video camera to your computer using the USB cable provided.

3. Press PLAY until 'PC CAM' appears on the camera LCD screen.

4. Double-click on the Amcap.Ink con on your desktop to view the real-time images taken by the webcam.

Instant messaging (chat)

You can use your camera as a webcam with your instant messaging client (Yahoo Messenger, MSN Messenger, Skype...).

Example:

1. Put your camera in webcam mode and connect it to your computer then launch MSN Messenger.
2. On the MSN interface, select 'Actions', then 'Start a Video Conversation'.
3. Select the person you want to chat with, and press 'OK'.

TROUBLESHOOTING

Q: My camera doesn't turn on when I press the POWER button. What do I do?

A:

1. Check that you have installed the batteries correctly.
2. Place new batteries in your camera.

Q: Why does nothing happen when I press the SHUTTER button?

A:

1. The camera may still be doing a previous action such as recharging the flash, saving, copying or erasing a photo. Wait a few seconds and try again.
2. The camera's SD card memory may be full. If this is the case, you need to delete photos from your camera. Make sure you transfer any photos you want to keep to your computer first.

Q: Why are my pictures unclear?

A:

1. The lens may be dirty. Gently blow any loose dust from the lens. Then breathe gently on the lens and wipe it with a soft, clean cloth that has no chemicals on it.
2. Make sure you hold the camera steady until after the red LED light has gone out.
3. You may be too close to your subject. Try moving further away.

Q: Why are my pictures too dark?

A:

You may need to move closer to your subject or your subject may need to move to a lighter area.

Q: Why does the camera turn off automatically?

A:

1. Your batteries may be low. Place new batteries in your camera.
2. After 3 minutes of inactivity, your camera goes into power saving mode. Press the "POWER" button and see if it turns on.

Q: I have taken photos but my computer does not recognize my camera. What do I do?

A:

1. Ensure that you have in fact taken photos. Press the SHUTTERT button a few times to take some sample photos and then try downloading them again.
2. Always use the USB cable that came with the camera. Make sure it is firmly connected to the camera and the computer.
3. Give your computer time to recognize the USB connection device. Try refreshing the device options list until you see the removable device appearing. If the computer does not recognize your device, check the 'Specifications' section to see if your computer meets the system requirements.

SPECIFICATIONS

Image Sensor	CMOS Sensor
Image Resolution	2592 x 1944 Pixels (5 MP)
File Format	JPEG
External Memory	SD / MMC / SDHC Card (up to 8 GB)
LCD Screen	1.77" TFT
Lens	f=9.3, F3.1
Exposure	Automatic
White Balance	Automatic
ISO	Automatic
Flash	Automatic
Interface	USB 2.0
System Requirements	Windows 2000 / XP / Vista / Windows 7
Battery	2 x LR03/AAA

MAINTENANCE

Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not expose the unit to direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit.

WARRANTY

This product is covered by our 1-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: DJ048series

Designed and developed in Europe - Made in China

©2010 Lexibook®

United Kingdom & Ireland

For any further information, please call Helpline: 0808 1003015

www.lexibook.com

This product is not a toy.

CE

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
