Product type	Range hood
Brand	ROBLIN
Model	CREATIX BK - 5045001
Minimum distance between hob and hood	650 mm
Air outlet diameter	150 mm (reducible to 120 mm with supplied nozzle)
Number of speeds	4 (1, 2, 3, Timed Intensive 10 min)
24H function	Yes (extraction rate of 100 m³/h for 10 minutes per hour)
Delayed shutdown (Delay)	30 minutes
Lighting	White LED, class 1M (do not view with optical instruments)
Grease filters	Metallic, dishwasher safe (every 2 months or when 24H alarm flashes)
Activated carbon filter	Optional (recirculation mode), not washable, replacement every 4 months approximately
Filter saturation alarm	Yes: 100 hours for grease filters, 200 hours for carbon filter
Key lock	Yes (press button A for 5 seconds)
Remote control	Optional (LR03-AAA batteries not included)
Surface maintenance	Damp cloth and neutral liquid detergent
Repairability	Replacement of LED lighting by after-sales service
Electrical connection	Mains connection with bipolar switch (contact opening ≥ 3 mm)
Intended use	Domestic, removal of cooking odors

Frequently Asked Questions - CREATIX BK - 5045001 ROBLIN

What is the minimum distance to maintain between the hood and the hob?

The minimum safety distance is 650 mm between the hob and the bottom of the hood.

How to clean the metal grease filters?

Grease filters can be washed in the dishwasher. It is recommended to wash them every 2 months or as soon as the 24H indicator flashes. Let them dry before reinstalling.

When should the activated carbon filter be replaced?

The activated carbon filter (recirculation version) must be replaced approximately every 4 months or when the 24H alarm flashes. It is neither washable nor regenerable.

How to activate or deactivate the key lock?

Press button A for 5 seconds. All LEDs flash cyclically to confirm activation or deactivation.

What to do if the hood does not turn on?

First check that the hood is plugged in and that the bipolar switch is engaged. If the problem persists, contact after-sales service.

How to use the Intensive function?

Press button E to activate intensive speed. It runs for 10 minutes, then automatically returns to the previous speed. To deactivate it before the end, press E again or turn off the motor.

What does the flashing of the 24H button mean?

The flashing of the 24H button indicates that it is necessary to wash the grease filters (100 operating hours) or replace the carbon filter (200 hours) depending on the display mode.

How to reset the filter alarm after maintenance?

Turn off the lighting and motor, then press button F (24H) for 5 seconds. The indicator stops flashing.

Can I use the hood without an external air outlet?

Yes, in recirculation mode. You must purchase an activated carbon filter kit and install the supplied adjustable grille for the recirculated air outlet.

How to replace the LED lighting?

The LED lighting must be replaced by after-sales service. Do not attempt to do it yourself, as it is a class 1M component.

USER MANUAL CREATIX BK - 5045001 ROBLIN

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

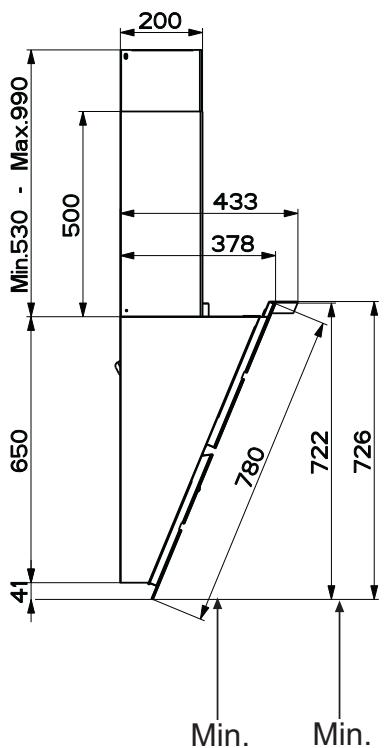

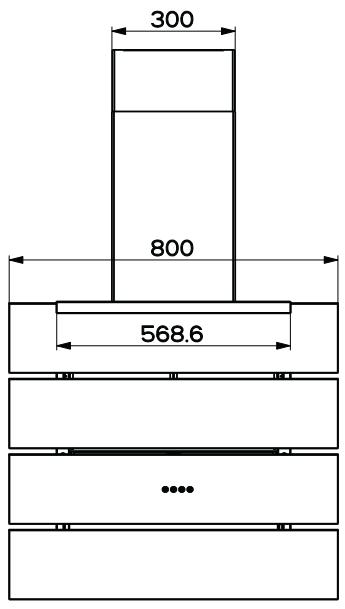

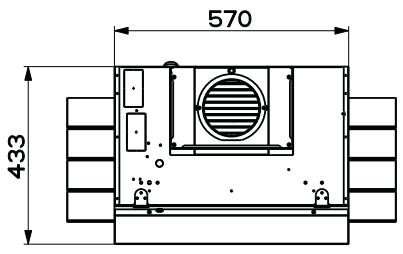

• The minimum safety distance between the cooker top and the extractor hood is 650mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
  All air ducting regulations must be complied with.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

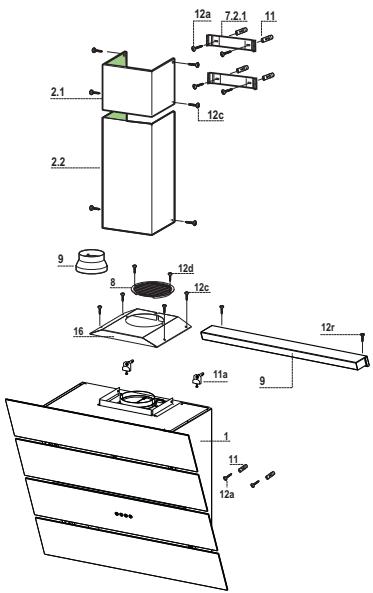

Components

Ref.	Q.ty	Product Components
1	1	Hood Canopy complete with: Controls, Light, Fan unit, Filters
2.1	1	Upper chimney
2.2	1	Lower chimney
5	1	Lighting unit
8	1	Directional air outlet grille
9	1	Reduction flange 150-120
16	1	Filter cover
Ref.	Q.ty	Installation Components
7.2.1	2	Upper chimney fixing brackets
11	6	Plugs
11a	2	SB 12/10 Wall Plugs
12a	6	Screws 4.2 x 44.4
12c	10	Screws 2.9 x 6.5
12r	2	Screws 2.9 x 6.5
12d	2	Screws 2.9 x 9.5
	Q.ty	Documentation
	1	Instruction Manual

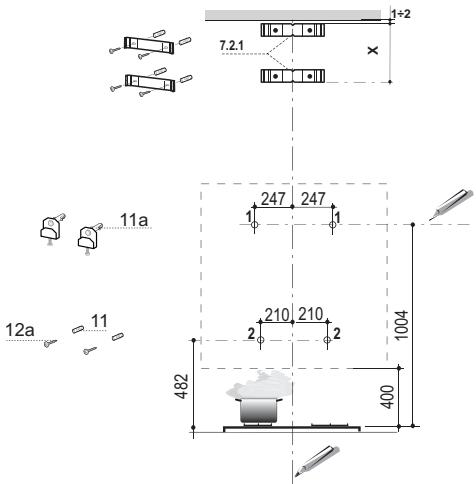

Wall drilling and bracket fixing

As a first step, proceed with the following drawings:

• a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;
• a horizontal line at a minimum 1004mm above the cooker top.
• Mark a point (1) on the horizontal line, 247 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Mark a reference point (2) as indicated at 210 mm from the vertical reference line and 482 mm above the cooker top.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Drill at the marked points (1), using a 12mm drill bit.
• Drill at the marked points (2) using a 8mm drill bit.
• Insert the bracket plugs 11a into the holes (1) and tighten the screws.
• Insert plug 11 into holes (2).

To install a decorative chimney ( optional )

• Place bracket 7.2.1 on the wall, about 1 - 2mm from the ceiling or from the upper limit, aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the bracket holes.
• Place the bracket 7.2.1 on the wall at X mm below the first bracket ( X = height of the upper chimney section), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the bracket holes.
• Drill 8 mm holes at all the marked centre points.
• Insert the wall plugs 11 in the holes.
  Fix the brackets using the 12a screws (4,2× 44,4) supplied with the hood.

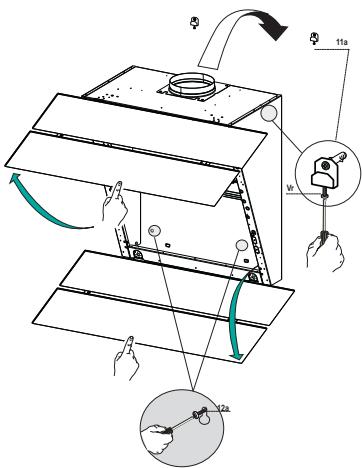

Fitting the hood body

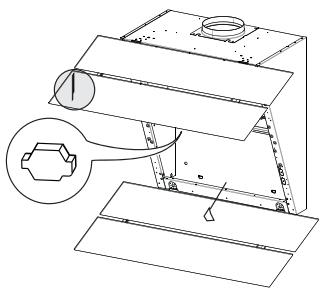

• Open the doors/the door (See section Open Panels).
• Remove the Metal grease filters using the handles provided.
• Adjust the two screws Vr , in the brackets 11a, so that they are at the start of their travel.
• Hook the hood body to the two brackets 11a.
• From the inside of the hood body, turn screws Vr to level the hood body itself.
• Fasten the safety screw 12a.
• Close the doors/the door again.

Connections

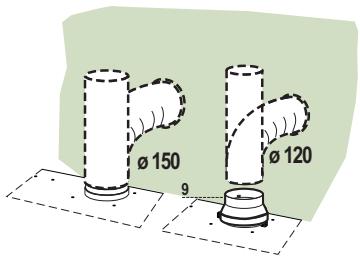

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm , the choice of which is left to the installer.

• To install a 120mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

RECYCLING VERSION AIR OUTLET

To install the hood in recycling version, the optional charcoal filter kit must be purchased.

• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5).
  Fix the air outlet grid 8 on the recirculation air outlet using the 2 screws 12d (2,9 x 9,5) provided.

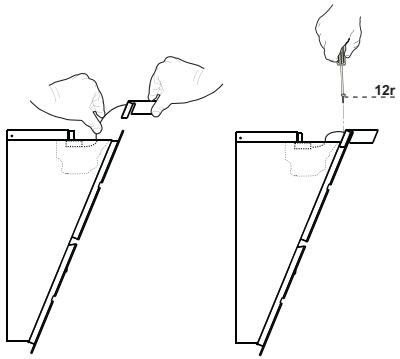

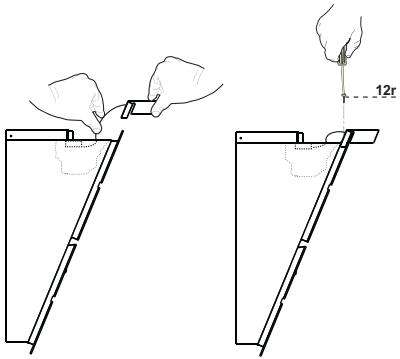

Fitting the Lighting Unit

• Insert the Lighting unit cable into the opening.
• Rest the Lighting unit 9.
  Fix it using the Screws 12r provided.

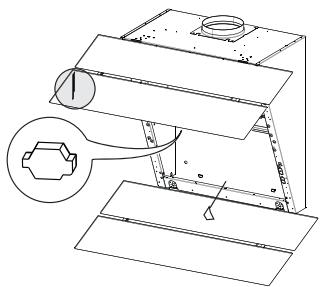

• Remove grease filters.
• Inside the hood canopy there is a wiring box for connection of the lighting unit.
• Open the box and connect the wires to the terminal inside it, checking that the colours are combined properly.
• Close the wiring box, replace the grease filters and close the doors.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

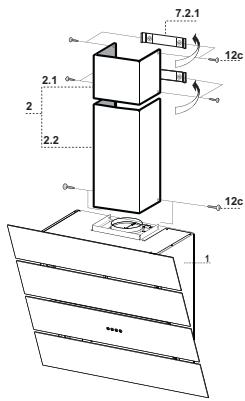

Chimney assembly

Upper exhaust Chimney

• Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower exhaust Chimney

• Slightly widen the two sides of the chimney and hook them between the upper chimney and the wall, making sure that they are well seated.
  Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.

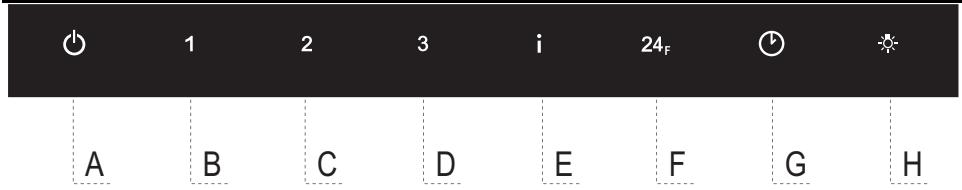

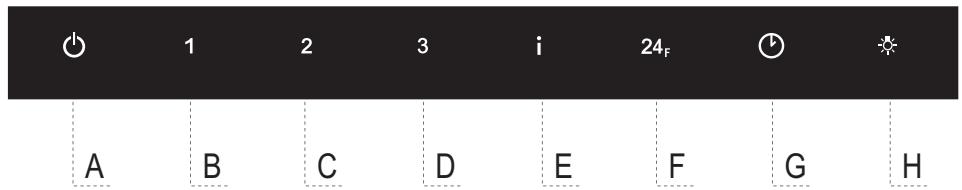

Control panel

Button	Function	Led
A	Turns the Motor off.	The Leds indicating the Speed of the motor turn off.
	Enables / Disables Keyboard Lock mode if pressed and held for 5 seconds.	All the Leds light up in cycle.
B	Activates speed one.	The Leds indicating Speed one and Motor Off turn on.
C	Activates speed two.	The Leds indicating Speed two and Motor Off turn on.
D	Activates speed three.	The Leds indicating Speed three and Motor Off turn on.
E	Activates Intensive speed. This speed is timed to run for 10 minutes. At the end of this time the system will automatically return to the speed set before. It is disabled by pressing the Button or turning the Mo- tor off.	Flashes once a second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. To turn it off, press and hold the button again for 5 seconds.	Button A Led flashes twice. Button A Led flashes once.
F	Starts the 24H function, in which the motor starts at a speed that allows suction of 100 m³/h for 10 minutes per hour. This mode cannot be activated if Intensive or Delay modes are active. To turn it off, press the button again.	The Leds indicating 24H speed and Motor Off turn on.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approxi- mately 5 seconds. These indications are only visible when the motor is turned off.	When the procedure terminates, the indication shown previously turns off: 24H Flashing Indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. 24H Flashing Indicates the need to change the activated charcoal fil- ters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
G	Activates Delay mode, with automatic shutdown of the Motor, the Fans and the Lighting with a 30' delay. It is disabled by pressing the button or turning the motor off.	The Delay Led lights up.
	Pressing and holding the button for 5 seconds enables the remote control Pressing and holding the button for 5 seconds disables the remote control	Button A Led flashes twice. Button A Led flashes once.
H	Press briefly to turn the lighting system on and off at maximum intensity.	The Lighting Led lights up.
	Press and hold the button for 2 seconds to turn the Courtesy Lights On (if provided).

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Metal grease filters

These can also be washed in the dishwasher, and need to be cleaned whenever the 24H Led flashes or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press and hold button F (24H) for 5 seconds.

Cleaning the Filters

• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.

The Activated Charcoal Filter is only present on the Hoods in Recirculation version, and has the job of retaining smells in the flow of air that passes over it, until reaching saturation. This cannot be washed or regenerated, and must be changed when the 24H led on the display starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.

• Press button E (Intensive) until confirmation is given:

• Motor Off LEDs flash twice - Activated Charcoal Filter saturation alarm ACTIVATED.

• Motor Off LEDs flash once - Activated Charcoal Filter saturation alarm DEACTIVATED.

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press and hold button F (24H) for 5 seconds.

Changing the Filter

• Remove the Metal grease filters.
• Remove the saturated Activated charcoal filter, using the hooks provided.
• Fit the new Filter, hooking it into place.
• Replace the Metal grease filters.

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7μW. Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

• For replacement contact technical support. ("To purchase contact technical support")

YcTaHOBka Kopnyca BbITaKKN

• OTKpoIte CTBOPKN/ДeHb OTKpbITbIX IBepei (cM. ПаHeJIb pa3IeJIe OTKpbITHe).
  3a cIeIIHaJIbHbIe pyKn BbIHbTe MeTaJIINHeckHe KHPoBbIe _IIbTpbl
  BCTaBte IBa BnHTa Vr KpoHITeHOB 11a BCXOJHOE IOJOKeHHe.
  -ПовесытебукКорпунсВьTiЯЖиНа2Крошштейна11a.
• H3Hytpn KOpIyCa BbITaKKn OTpeYJIHpYe 3aT8KKy BnHTOB Vr, YTO6bl BbICTaBHTb KOpIyC IIO ypOBHIO.
  3aTaNHTe IpeDOxpaHHTeJIbHbIe BNHTb1 12a.
  3aKpoIte CTBOPKH/ДeHb OTKpbITbIX DBepe.

CoeHHnHn

BbIpyCK BO3dYXA I3 BCACbIBAOUeB BbITJXKIN

IIyycTaHOBKN BcacbIBaIOIeB bITJXKN CoeHHHTbe c BblIyckHNO Tpy6oN JecTKOIN HIN rH6KOIN Tpy6KoIN dHaMeTpOM 150 IN 120 MM, TIN KOTopoN MOKeT Bbl-6paTB MOHTaXHHK.

• JIa coeHHeHH Tpy6Ko0 120 MM BCTaBnB IpePExOJIbH bIaHeu9BBbIyCckHOEOTBePcTHe KOpHyCa BBJrKaH.
  3aKpeINITb Tpy6ky COOTBETCTBYIOUHMN Tpy6HbIMN 3aJHMamH. Heo6XoINMbI KpeIeKHBI MaTePnJI He BXOINT B KOMIIJEKT.
• BbHyTb ΦHJIbTpbl OT 3aIIaXOB Ha aKTHBHOM yTJIe.

BbIpyCK BO3dYXA N3 ΦNJIbTPYIOUeBbITJXKKI

IycaTahOBKn HcIIJIHeHnA cpeKHMOM peuHpKyIaHH (c hJIbTpauHne) Heo6xOJHMO yCTaHOBHTIOIOJIHNTeJIbHbIKOMIIJEKT KApTpHJaKa C yROJIbHbIM hJIbTpom.

• CHHMMTE KpeIeKHHbI yTOJIOk IbIMOXOda
  3aKpeHnTe HaI OTBepCTHe MJIY BbIyScKa BO3JyXa HJIbTpuyIOoee IOKpbITHe, IIOJIb3yAcb 4 BHTaMn 12c (2,9 x 6,5).
  3aKpeIInTe HaIIpaBJIeHHyO peIeTky 8 HaI OTbepCTHE M IJIY BbIpyCKa OHNIIeHHORO BO3Jyxa 2 IIpHJaaraEMbIMN BHHTAmn 12d (2,9 x 9,5).

YcTaHObKa OCBeTHeBHoTo np60pa

-Пюпунсту Кабшьocветитseьного пнбopa черstOTBERCTNE.
-ПОJOЖНТЕOCBETHTEJIbHbI ПИнбop9.
3aKpeHnTe erO IIpHJIaIaeMbIMN BHTAMn 12r.
BbIbTe KINPOBbIe HJIbTpbl.
BHytpn Koprnyca BbTgKKn OKOJIO OTKpbItoi 3aJIyIuIKN HaxoJITcR KOPO6Ka IJIaJIeKTPHueCKOro COeINHeHHoOCBeHTeJIbHOrIpH6opa.
- OTKpoIte Kopo6ky H coeHHHTe IPOBOJa c BHyTpeHHM KOHtAKTHbIM 3aJHMOM, IPOBepHB COBIIaJeHHe ICBeta IPOBOIOB.
- 3akpoIte paIpeJIeJIHTeJIbHyIO KOpO6Ky, yCTaHOBHTe JHPOBbIe ΦJIbTpbl N 3akpoIte CTBOPKn.

3JIeKTPnueCKOEIOJKnIOUeHNE

CoeHNHTb BbITXKky C cTeBbIM HAnpJKeHHeM, yCTaHOBBIByXIOJIIOCHbIyIKJIIOVAteJIb C pa3BeJeHHem KOHTaKTOB He MeHee 3 MM.
CHTbIPOTHBOKHNPOBbIe HJIbTpbl (CMOTpn pa3JeJ "YxoJ) H IIOBOpHTb IIpaBBHbHOCTb IOJOKeHHpa3bema IITaIOIIero Ka6eJI B pO3ETKE BbITXKKN

YctaHObKa DbIMOXOda

BepxHHn IbIMoXoI

CJIeKa pa3BecTH nIbe 60KOBbIe KpOMKn IbIMOxoJa, 3aIeHtB Hx 3a cKObI 7.2.1 H BHOb CBecTH Hx IO yIopa.
3aKpeIINb IbIMOXoI c6Oky 4 BXOJIHMMB KOMIIJEKT BHTAMN12c (2,9x9.5).

HnKnnIbIMOXoI

CJIeKpa3BecTHIBe6OKOBIE KpOMKn IbIMOXOJa,3aIeINtB Hx MeKJy BepXHm IbIMOXOJOM IN CTeHOIN BHOBcCBCTHN X IO yIopa.
3aKpeINITb HNKHIOU qAcTb IbIMOXoJa c6Oky K KopIpyy BblTJKKBxOJIIHMN B KOMIIJEKT 2 BNHTaMn 12c (2,9 x 9,5).

Panaelb ynpablenia

AFSTANDSBEDIERING (OPTIE)
