Product type	Clothes iron
Brand	Philips
Model	Azur 7500 Series DST7510
Dimensions (L x W x H)	30 x 12 x 15 cm
Weight	1.5 kg
Power	2400 W
Water tank capacity	300 ml
Soleplate	SteamGlide Plus
Continuous steam output	40 g/min
Steam boost	200 g/min
Anti-drip	Yes
Auto shut-off	Yes, after 2 min in vertical or horizontal position
Safety lock	Yes
Cleaning and maintenance	Self-cleaning function, integrated anti-scale system
Indicative price	70-90 €
Warranty	2 years
Availability of spare parts	Soleplate, tank, buttons available at Philips
Repairability	Repairability score: 8.0/10

Frequently Asked Questions - Azur 7500 Series DST7510 PHILIPS

How to use the steam boost function?

Make sure the water tank is full. Press the steam boost button (located on the handle) to get a powerful steam burst, ideal for stubborn creases.

What to do if the iron no longer heats up?

Make sure the plug is connected and the thermostat is set to a suitable temperature. If the problem persists, contact Philips service.

How to clean the soleplate?

Use a non-abrasive damp cloth after cooling. Avoid chemical cleaners. The SteamGlide soleplate is non-stick.

Can I use tap water?

Yes, but to avoid limescale, mix 50% tap water and 50% demineralized water. Use the self-cleaning function regularly.

How to activate auto shut-off?

Auto shut-off is activated by default. The iron turns off after 2 minutes of inactivity in vertical or horizontal position. A beep sounds.

Does the soleplate scratch clothes?

No, the SteamGlide Plus soleplate is designed to glide smoothly without snagging, even on delicate fabrics like silk.

How to descale my iron?

Use the self-cleaning function: fill the tank, plug in the iron, set it to max, then hold the self-cleaning button while tilting the iron over the sink.

Can I dry iron without steam?

Yes, set the thermostat to the desired temperature and do not use the steam button. Make sure steam is turned off.

What to do if water drips from the soleplate?

This can happen if the steam is too cold or if the tank is too full. Wait for the iron to heat up and use the automatic anti-drip function.

Where to find spare parts?

Spare parts (soleplate, tank, buttons) are available on the official Philips website or from authorized dealers. Use model number DST7510.

USER MANUAL Azur 7500 Series DST7510 PHILIPS

Black Philips air iron with a black body and handle, no visible text or symbols on the device itself.

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

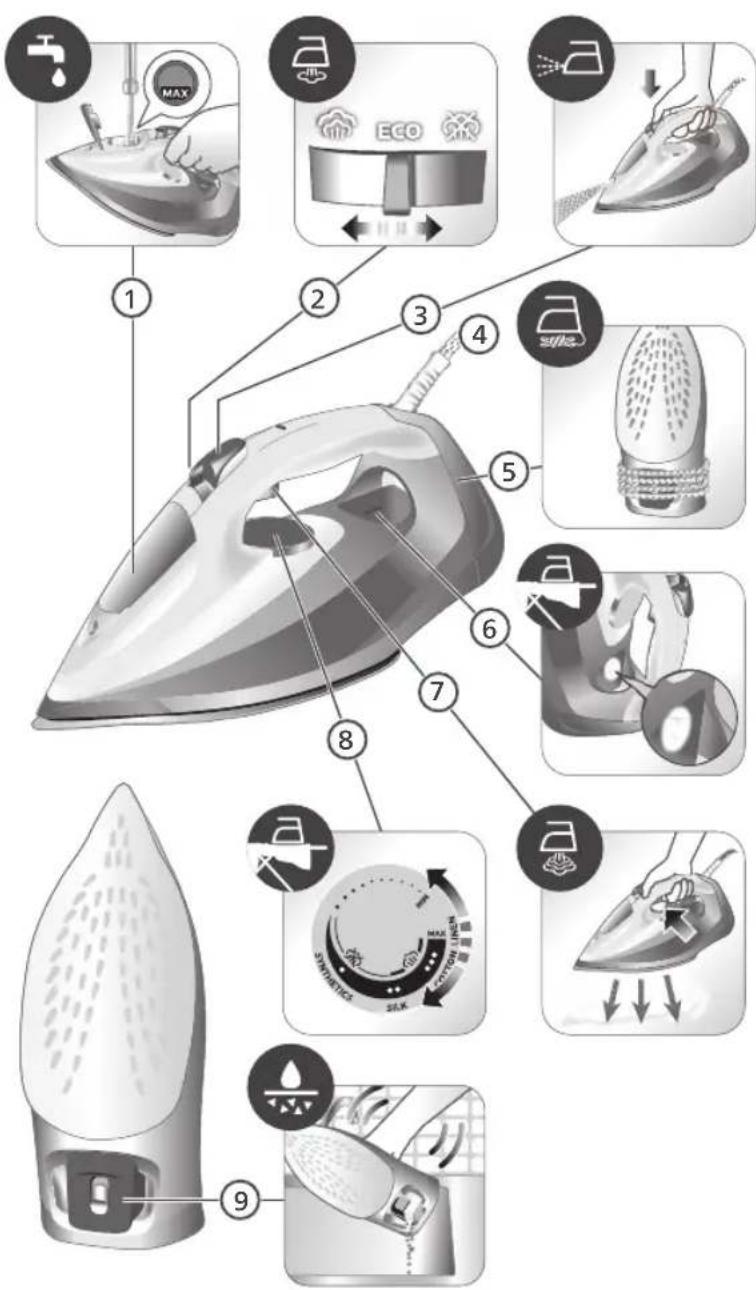

Product overview

4 English

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Using the appliance

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/^*
	COTTON	/^*
	SILK	ECO
	SYNTHETICS

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

8 English

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

10

English

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Do not position the iron towards yourself or others.

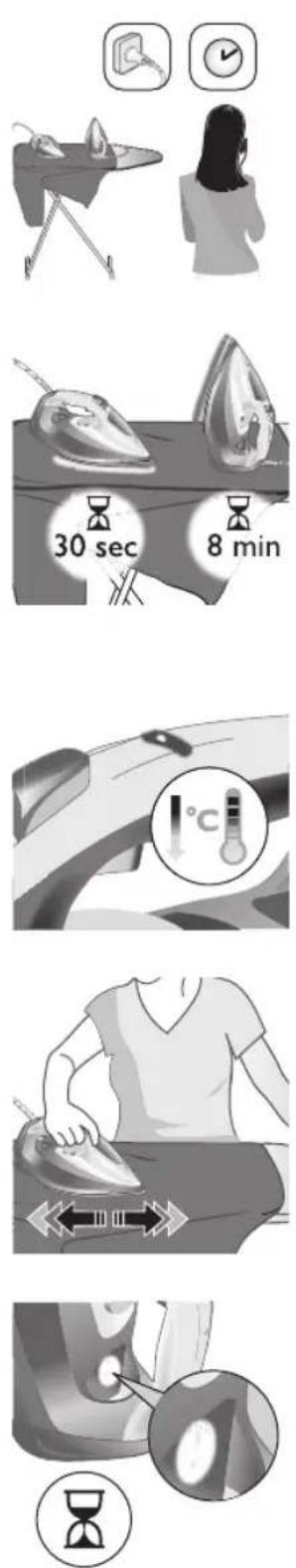

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

12 English

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a stainless steel iron with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

14 English

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views (① and ②) showing internal components, no text or symbols present.

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a metallic object (no text or symbols visible)

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.

English

My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

English

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Giriş

22 Azərbaycanca

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Cihazdan istifadə

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/ *
	●●●COTTON	/ *
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an iron, labeled 'ECO' in the top-left corner (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with steam rising (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Azərbaycanca

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Azərbaycanca

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a seed or pod with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a stainless steel iron with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

32 Azərbaycanca

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and showerhead, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a steam iron being placed into a sink with a drain, against a grid background (no text or symbols)

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.

Azərbaycanca

My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

Azərbaycanca

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Pendahuluan

1 Tutup tangki air
2 Pemilih uap
3 Semprotan air
4 Kabel
5 Tempat menggulung kabel
6 Lampu indikator
7 Pemicu semburan uap
8 Kenop suhu
9 Penampung Quick Calc Release

Menggunakan alat

Illustration of a steam iron with a warning symbol (no text or labels)

1 Jangan colokkan steker setrika ke stopkontak.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand using an iron iron to clean (ECO) from a machine, no text or symbols present.

Illustration of a hand ironing an iron with steam, no text or symbols present

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

3 Uap akan keluar saat menyetrika.

Mode tanpa uap/mode penyetrikaan kering

1 Atur pengaturan uap ke mode tanpa uap/mode penyetrikaan kering

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a power iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

1 Atur kenop suhu ke pengaturan MAX (MAKS) (posisi antara COTTON [KATUN] dan LINEN).

Bahasa Indonesia

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Jangan arahkan setrika menghadap Anda atau orang lain.

Mati otomatis (DST7030, DST7040, DST7050, DST7060, DST7510 saja)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a light bulb with a magnified inset showing a bottle and a textured sphere (no text or symbols)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a downward arrow indicating compression (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

4 Geser tuas penampung Quick Calc Release ke atas.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Tarik tutup penampung Quick Calc Release ke luar.

Water dispenser with a bag pouring liquid into a sink, set against a tiled wall (no text or symbols visible)

Illustration of a steam iron being placed into a sink with a drain, against a grid background (no text or symbols)

8 Jangan mengisi air melalui lubang setrika.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Goyangkan setrika untuk mengeluarkan air beserta partikel kerak melalui lubang setrika.

Hand pressing down a button on a surface, no text or symbols visible

10 Dorong tuas ke bawah untuk mengunci penampung Quick Calc Release. Pastikan terdengar bunyi "klik".

Penyimpanan

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

3 Biarkan setrika mendingin.

52 Bahasa Indonesia

Close-up of a hand using a power iron to clean or install a component, with a grid background (no text or symbols visible)

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 Gulung kabel listrik di sekeliling bodi setrika.

Pemecahan masalah

1 Penutup tangki air
2 Pemilih stim
3 Penyembur air
4 Kord
5 Menggulung kord
6 Lampu penanda
7 Picu pancutan stim
8 Tombol suhu
9 Pengumpul Pelepasan Kerak Pantas

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron being heated, with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

	MAXLINEN	/	\( /	\( /●	\( /	\( /●	ECO
	\( SUTERA
	SINTETIK

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

3 Stim akan dilepaskan semasa penyeterikaan.

Illustration of a hand ironing an iron on a bed (no text or symbols)

2 Selepas seketika, stim akan berhenti semasa proses penyeterikaan.

Penyembur air

Illustration of a hand using an iron on a surface with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Sebaik sahaja lampu penanda MATI, seterika sedia digunakan.

Illustration of a hand cleaning a pear-shaped object with a checkmark indicating inspection (no text or symbols)

Illustration of a lit candle with a magnified inset showing a bottle and a textured surface (no text or symbols)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a small object into a container with arrows indicating direction (no text or symbols)

Illustration of a steam iron being placed on a surface with a small device nearby (no text or symbols visible)

5 Keluarkan penutup pengumpul Pelepas Kerak Pantas.

Close-up of a stainless steel kitchen sink with a faucet and bucket, against a tiled wall (no text or symbols visible)

Illustration of a hand washing a showerhead with a drain, against a grid background (no text or symbols)

Illustration of a kitchen sink with a drain, showing a shower and warning symbols (no text or labels)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to a plug with a magnified inset showing its internal structure (no text or symbols)

Close-up of a hand using a power iron to clean or install a component, with a grid background (no text or symbols visible)

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Odklopte víčko nádržky na vodu.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand using a steam iron to press down a person's arm (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using an iron to press down on a textured surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a seed or pod with a checkmark indicating selection (no text or symbols present)

Illustration of a showerhead with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron pressing down on a sink with a small device nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a hand washing a shower with a drain, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Žehličku odpojte.

Illustration of a hand using a power iron to clean or install a surface, with a grid background (no text or symbols)

Diagram of a mechanical device with rotating arms and a spring-like component (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Åbn läget til vandtanken.

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a cloud or smoke (no text or symbols)

To dampskyer: Der leveres mere kontinuerligt maksimal damp til genstridige folder.

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

3 Dampen bliver frigivet under strygning.

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

102 Dansk

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with an exclamation mark and a cross symbol, against a grid background (no text or symbols)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

4 Skub dækslet til Quick Calc Release-opsamleren op.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a hand washing a shower with a drain, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to burn or steam (no text or symbols visible)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a power iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand using an iron to clean clothing, with arrows and checkmark symbols indicating inspection or repair (no text present)

Illustration of hands using a steam iron to burn or smoke (no text or symbols)

Illustration of a person using a steam iron to clean air, with a hand holding the iron and a cross mark above (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with warning symbols (in警告, exclamation, and cross) against a grid background, no text or labels present.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a bucket, against a grid background (no text or symbols)

Illustration of a steam iron being placed into a sink with a drain, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or install a metal component, with a grid-patterned background (no text or symbols)

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

2 Libistage auruvalijat paremale, et valida aururežiim / kuiv triikimine

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Keerake veepaagi kaas lahti.

Illustration of a hand using a tool to press or adjust a component on an iron (no text or symbols visible)

Illustration of a hand using an iron iron to clean (ECO) from a machine, no text or symbols present.

Illustration of a hand ironing an iron with steam, no text or symbols present

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person ironing a steam iron on a bed (no text or symbols)

Ilma auruta režiim / kuivtriikimise režiim

1 Seadke auruseadistus ilma auruta režiimile / kuivtriikimise režiimile

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using an iron to clean or wear a textured surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand inserting a device into a container with an arrow (no text or symbols)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and showerhead, no text or symbols present

Illustration of a hand washing clothes with steam rising, no text or symbols present

8 Ärge valage triikraua avasse vett.

Eesti

Medical illustration showing a surgical procedure with labeled steps (no text or symbols present)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

3 Laske seadmel jahtuda.

Illustration of a hand using a power iron on a metal surface (no text or symbols)

Diagram of a mechanical device with rotating arms and textured body, no visible text or symbols

Illustration of a steam iron with a warning symbol (no text or labels)

152

Español

Illustration of a iron (£) being cut with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand using an iron iron to clean (ECO) from a machine, no text or symbols present.

Illustration of a hand steaming a steam iron with a circular icon showing a smoke or vapor (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

Illustration of a steam iron with a cable, showing internal components and a plug (no text or symbols)

Illustration of a mechanical component with an hourglass icon and magnified detail (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to burn on a person's back (no text or symbols visible)

Illustration of a hand ironing an iron on a bed (no text or symbols visible)

Illustration of a hand using an iron on a surface with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a light bulb with a magnified inset showing a bottle and a textured sphere, no text or symbols present.

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand inserting a plug into a container with an arrow (no text or symbols)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a bucket, against a grid background (no text or symbols)

Illustration of a hand washing clothes with steam rising, no text or symbols present

Illustration of a robotic arm with labeled parts (1 and 2), showing mechanical components and a close-up view of the arm (no text or symbols present)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to press or install a surface, with a grid-patterned background (no text or symbols)

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron emitting a plug, showing internal components and cord (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to burn or steam (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

Hand inserting a small object into a container with arrows indicating direction (no text or symbols)

Illustration of a steam iron being placed on a surface with a small device nearby (no text or symbols visible)

Modern kitchen sink with faucet and showerhead, placed on a tiled wall (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink (no text or symbols visible)

Illustration of a faucet with a warning symbol (no text or labels)

Medical illustration showing a surgical procedure with labeled steps (no text or symbols present)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron on a metal surface (no text or symbols)

Diagram of a mechanical device with rotating arms and textured body, no visible text or symbols

1 Poklopac spremnika za vodu
2 Gumb za odabir pare
3 Raspršivanje vode
4 Kabel
5 Namotavanje kabela
6 Indikator
7 Okidač za dodatnu količinu pare
8 Regulator temperature
9 Odjeljak Quick Calc Release

Uporaba aparata

Vrsta vode koju treba upotrebljavati

Napomena: Prilikom prve uporabe glačala možda ćete primijetiti malo pare. To će ubrzo prestati.

Vrsta vode koju treba upotrebljavati

Illustration of a steam iron with a warning symbol (no text or labels)

1 Nemojte ukopčavati glačalo.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Otvorite poklopac spremnika za vodu.

4 Napunite spremnik za vodu do oznake MAX. Nemojte dodavati parfeme, mirise, sapun ni ocat.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Čvrsto zatvorite poklopac spremnika za vodu.

Postavljanje temperature i pare

	MAXLAN	/^*
	PAMUK	/^*
	SVILA	ECO
	SINTETIKA

Illustration of a hand using an iron on a steam, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming a steam iron with a circular icon showing a smoke or vapor (no text or symbols)

Dva oblaka pare: veća dosljedna količina pare kontinuirano se ispušta radi uklanjanja tvrdokornih nabora.

Za tvrdokorne nabore, podesite postavku pare na dva oblaka pare na zatim pritisnite i držite okidač za dodatnu količinu pare ispod drške. Najveća moguća dosljedna količina pare kontinuirano će se ispuštati.

Priprema za uporabu

2 Okrenite regulator temperature na oznaku odgovarajuće temperature koja je naznačena na ušivenoj markici odjevnog predmeta.

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

3 Glačalo postavite u uspravan položaj.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Utikač umetnite u uzemljenu utičnicu i postavite glačalo u uspravan položaj. Ako upotrebljavate produžni kabel, provjerite odgovaraju li njegove specifikacije glačalu.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

2 Okrenite regulator temperature između svile i lana, u skladu s prikazom na slici.

Illustration of a person using a steam iron to burn or press the air (no text or symbols visible)

1 Postavite postavku pare na način rada bez pare / suho glačanje

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Hrvatski

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward movement and checkmark indicators (no text or symbols)

2 Dodatna količina pare u okomitom položaju: Pritisnite i otpustite okidač za dodatnu količinu pare u okomitom položaju kako biste ispustili mlazove pare na odjeću koja visi. Ako stalno držite okidač za dodatnu količinu pare dok je glačalo u uspravnom položaju, konstantna para neće se ispuštati.

Illustration of hands using a steam iron to clean clothing (no text or symbols)

3 Dodatna količina pare u okomitom položaju: Povucite i razvucite odjevni predmet koji visi dok upotrebljavate dodatnu količinu pare za uklanjanje tvrdokornih nabora.

4 Nemojte golom šakom podržavati odjevni predmet prilikom glačanja.

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's internal structure (no text or symbols)

2 Provjerite je li se glačalo ohladilo.

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a showerhead with warning symbols (in警告, exclamation, and cross) against a grid background, no text or labels present.

4 Glačalo nemojte prati/čistiti pod mlazom vode iz slavine jer se time mogu oštetiti električne komponente u njemu.

Calc-Clean

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

4 Ručicu odjeljka Quick Calc Release povucite prema gore.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Izvucite poklopac odjeljka Quick Calc Release.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Poklopac odjeljka Quick Calc Release očistite vodom.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Protresite glačalo kako biste ispustili vodu i čestice kamenca iz otvora glačala.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Protresite glačalo kako biste ispustili vodu i čestice kamenca iz otvora glačala.

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

3 Pustite glačalo da se ohladi.

200 Hrvatski

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

4 Ispraznite ostatak vode iz spremnika za vodu.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

206 Italiano

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person ironing a piece of material, showing steam and hair (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's internal structure (no text or symbols)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a showerhead with warning symbols (in警告, exclamation, and cross) against a grid background, no text or labels present.

Illustration of a wall socket connected to a plug with a cable, showing an arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and showerhead, against a grid background (no text or symbols)

Illustration of a hand washing clothes with steam rising, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

Illustration of a mechanical device with rotating components and motion arrows (no text or symbols)

224 Latviešu

Illustration of a steam iron with a warning symbol (no text or labels)

1 Nepievienojiet gludekli strāvas avotam.

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Cieši aizveriet udens tvertnes vaku.

Illustration of a hand using an iron iron to clean (no text or symbols)

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cable, showing internal components and a power outlet (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Neversiet gludekli pret sevi vai citiem cilvékiem.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Pärliecinieties, ka gludeklis nav pievienots elektrotiklam.

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a showerhead with an exclamation mark and a cross symbol, against a tiled wall background (no text or symbols)

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

2 Pärliecinieties, ka gludeklis nav pievienots elektrotiklam.

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a bucket, against a grid background (no text or symbols)

Illustration of a hand washing clothes with steam rising, no text or symbols present

7 Pakratiet gludekli, lai izlietu udeni un katlakmens daljinas pa gludekla atveri.

8 Nelejiet uđeni gludekla atvere.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Pakratiet gludekli, lai izlietu üdeni un katlakmens daljinas pa gludekla atveri.

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a magnified view (no text or symbols)

2 Atvienojiet gludekla kontaktdakšu.

3 Laujiet gludeklim atdzist.

Illustration of a hand using a power iron on a kitchen (no text or symbols visible)

4 Izlejiet no ūdens tvertnes atlikušo ūdeni.

Diagram of a bottle with internal structure and curved arrows indicating rotation or movement (no text or symbols)

242 Lietuviškai

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Atidarykite vandens bakelio dangtj.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cable, showing internal components and a power outlet (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand using a steam iron to press down a person's arm (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

4 Lygindami nelaikykite plikomis rankomis.

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand pressing a button on a mechanical component (no text or symbols visible)

Illustration of a steam iron being placed on a sink with a small device nearby (no text or symbols visible)

Illustration of a stainless steel kitchen sink with a faucet and showerhead, against a tiled wall (no text or symbols)

Illustration of a steam iron in a kitchen sink with a pipe, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron on a kitchen (no text or symbols visible)

Diagram of a bottle with internal structure and curved arrows indicating rotation or movement (no text or symbols)

260 Magyar

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

Magyar

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward motion and checkmark indicators (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's internal structure (no text or symbols)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a light bulb with a magnified inset showing a bottle and a textured sphere (no text or symbols)

Illustration of a showerhead with an exclamation mark and a warning symbol, set against a tiled wall background (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a steam iron being placed on a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

278 Nederlands

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

284 Nederlands

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward motion and checkmark indicators (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with an exclamation mark and a cross symbol, against a tiled wall background (no text or symbols)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron pressing down on a sink with a small device nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and showerhead, against a grid background (no text or symbols)

Illustration of a steam iron being placed on a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or install a metal component, with a grid-patterned background (no text or symbols)

Illustration of a mechanical device with rotating components and a handle, no visible text or symbols

Illustration of a steam iron emitting smoke with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a roof symbol (no text or symbols present)

Illustration of two iron steamers with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to press down a piece of material (no text or symbols visible)

3 Damp slippes ut under stryking.

Ingen dampmodus/tørrstrykingsmodus

1 Still inn dampinnstillingen til ingen dampmodus/tørrstrykingsmodus

Illustration of a hand ironing an iron on a bed (no text or symbols)

2 Etter en liten stund stopper dampen mens du stryker.

Vanntåke

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward motion and checkmark indicators (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Når indikatorlyset er av, er strykejernet klar til bruk.

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a steam iron in a sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and showerhead, no text or symbols present

Illustration of a steam iron being placed on a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron on a metal surface (no text or symbols)

Diagram of a mechanical device with rotating arms and internal components (no text or symbols)

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Jihozdan foydalanish

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/^*
	●●●COTTON	/^*
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing an iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

320 O'zbek

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward motion and checkmark indicators (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing airflow and heat transfer (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

322 O'zbek

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's internal structure (no text or symbols)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a seed or pod with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a showerhead with an exclamation mark and a cross symbol, against a tiled wall background (no text or symbols)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

324 O'zbek

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views (① and ②) showing internal components, no text or symbols present.

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

330 O'zbek

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Wstep

332 Polski

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

	MAXLEN	\( /\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\wedge}}}}}}}}}}}}}}}}}}}}}}	\( /\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\wedge}}}}}}}}}}}}}}}}}}}}}}}}}
	●●●BAWEŁNA	\( /\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widetilde{\wedge}}}}}}}}}}}}}}}}}}}}}}}}}}	ECO
	●●JEDWAB
	●TKANINA SYNTETYCZNA	\( \widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\vee}}}}}}}}}}}}}}}}}}}}}}}}}}	\( \widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\wedge}}}}}}}}}}}}}}}}}}}}}}}}}

Illustration of a hand ironing an iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person ironing a piece of hair, showing steam and hairline (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward motion and checkmark indicators (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's internal structure (no text or symbols)

Illustration of a hand holding a pear-shaped object with a checkmark indicating inspection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with an exclamation mark and a warning symbol, set against a tiled wall background (no text or labels)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a steam iron being placed into a sink with a drain, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Odłącz żelazko.

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

Diagram of a mechanical device with rotating arms and internal components (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand using an iron on a steam, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a steam drop symbol (no text or symbols present)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person ironing a piece of material, showing steam and hair (no text or symbols)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using an iron on a surface, with a downward arrow indicating motion (no text or symbols)

Português

Illustration of a hand using an iron to clean clothing, with arrows and checkmark symbols indicating inspection or repair (no text present)

Illustration of hands using a steam iron to burn on a garment (no text or symbols present)

3 Jato de vapor vertical: puxe e estique a peça de roupa pendurada enquanto usa o jato de vapor para remover os vincos persistentes.

Illustration of a person using a steam iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's internal structure (no text or symbols)

Illustration of a hand holding a pear-shaped object with a checkmark indicating inspection (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a steam iron being placed into a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or install a metal component, with a grid-patterned background (no text or symbols)

Diagram of a mechanical or fluidic device with rotating arrows indicating motion (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand ironing an iron with steam rising (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using an iron on a surface, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward motion and checkmark indicators (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

3 Jato de vapor vertical: Puxe e estique a roupa pendurada enquanto usa o jato de vapor para remover os vincos mais difíceis.

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand cleaning a pear-shaped object with a checkmark indicating inspection (no text or symbols)

Illustration of a lit candle with a magnified inset showing a bottle and sand (no text or symbols)

Illustration of a showerhead with warning symbols (in警告, exclamation, and cross) against a grid background, no text or labels present.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Retire a tampa do coletor do Quick Calc Release.

Illustration of a stainless steel kitchen sink with a faucet and showerhead, against a grid background (no text or symbols)

Illustration of a steam iron being placed on a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Desconecte o ferro.

Close-up of a hand using an iron on a surface, no text or symbols visible

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a steam iron emitting smoke with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand using a steam iron to clean or smoke (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cable, showing internal components and a power outlet (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

Illustration of a hand ironing an iron on a bed (no text or symbols visible)

Illustration of a hand using a steam iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a circular icon showing upward movement and checkmark indicating inspection (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a tiled wall (no text or symbols)

Illustration of a hand using a steam iron to clean or wash the floor (no text or symbols visible)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using an iron on a kitchen sink (no text or symbols visible)

Diagram of a bottle with internal structure and curved arrows indicating rotation or movement (no text or symbols)

404 Shqip

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/ *
	●●●COTTON	/ *
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with steam rising (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

408 Shqip

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Shqip

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

412

Shqip

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a light bulb with a droplet and a magnified inset showing a bottle and textured surface (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a showerhead with an exclamation mark and a cross symbol, against a grid background (no text or symbols)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

414

Shqip

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a tiled wall (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand using a steam iron to clean or wash the floor (no text or symbols visible)

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te ●MEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

Shqip

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Uvod

422 Slovenščina

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Uporaba aparata

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/^*
	●●●COTTON	/^*
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cable, showing internal components and a power outlet (no text or symbols)

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

426 Slovenščina

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Slovenščina

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

430 Slovenščina

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a light bulb with a droplet and a magnified inset showing a bottle and textured surface (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a stainless steel iron with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

432 Slovenščina

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a tiled wall (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand using a steam iron to clean or wash the floor (no text or symbols visible)

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

434 Slovenščina

Illustration of a hand using a power iron to clean or install a metal component, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te ●MEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.

436 Slovenščina

My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

438 Slovenščina

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Úvod

Blahoželáme vám ku kúpe a vítame vás medzi používatelmi produktov spoločnosti Philips! Ak chcete naplno využit podporu ponúkanú spoločnostou Philips, zaregistrujte svoj produkt na lokalite www.philips.com/welcome. Pred použitím zariadenia si prečítajte tento návod na použitie, leták s dôležitými informáciami a stručný návod pri spustení. Odložte si ich na neskoršie použitie. Odložte si ich na neskoršie použitie.

Prehl'ad produktu

440 Slovensky

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Veko zásobníka na vodu pevne zatvorte.

Nastavenie teploty a pary

	MAXLINEN	/^*
	COTTON	/^*
	SILK	ECO
	SYNTHETICS

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

3 Počas nečinnosti postavte žehličku na pätu.

Illustration of a steam iron with a cable, showing internal components and a power outlet (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand using a steam iron to press down a person's arm (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Stlačte a uvolnite tlačidlo kropenia vodou v hornej časti rukoväti. Z dýzy bude striekat' voda.

Illustration of a hand using a iron to clean clothing, with arrows and checkmark symbols indicating inspection or repair (no text present)

Illustration of hands using a steam iron to burn on a garment (no text or symbols)

Illustration of a person using a steam iron to clean air, with a hand holding the iron and a cross mark above (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing a plug plug (no text or symbols present)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Žehliacu plochu utrite navlhčenou handričkou.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with an exclamation mark and a warning symbol, set against a grid background (no text or labels)

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

4 Páčku zberača funkcie Quick Calc Release posuňte nahor.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Vytiahnite veko zberača funkcie Quick Calc Release.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Veko zberača funkcie Quick Calc Release očistite vodou.

Illustration of a hand washing a shower with a drain, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

10 Stlačte páčku, aby ste zaistili zberač funkcie Quick Calc Release. Budete počut kliknutie.

Odkladanie

Illustration of a wall socket connected to a plug with a magnified inset showing the plug's tip (no text or symbols)

2 Žehličku odpojte zo siete.

Illustration of a hand using a power iron on a kitchen sink (no text or symbols visible)

Diagram of a bottle with internal structure and curved arrows indicating rotation or movement (no text or symbols)

1 Poklopac posude za vodu
2 Birač postavke pare
3 Prskalica
4 Kabl
5 Namotavanje kabla
6 Indikator
7 Okidač za dodatnu količinu pare
8 Regulator temperature
9 Quick Calc Release sakupljač

Upotreba aparata

Tip vode koji bi trebalo koristiti

Napomena: Pri prvoj upotrebi, pegla može da izbaci malo pare. To će ubrzo prestati.

Tip vode koji bi trebalo koristiti

Ovaj aparat je prikladan za korišćenje sa vodom iz česme. Medutim, ako živite u oblasti sa tvrdom vodom, preporučujemo da pomešate jednake količine vode sa česme i destilovane ili demineralizovane vode. To će sprečiti brzo stvaranje naslaga kamenca i produžiti radni vek aparata.

Nemojte da dodajete parfem, vodu iz mašine za sušenje veša, sirće, štirak, sredstva za uklanjanje kamenca, aditive za peglanje, vodu čiji je sadržaj kamenca smanjen hemijskim putem niti druge hemikalije zato što to može da dovede do prskanja vode, pojave braon fleka ili oštećenja aparata.

Punjenje rezervoara za vodu

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Pomerite birač postavke pare udesno da biste izabrali režim bez pare / režim za suvo peglanje 🚗

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a small object on an iron (no text or symbols visible)

5 Čvrsto zatvorite poklopac rezervoara za vodu.

Podešavanje temperature i pare

	MAKSLAN	/ / *
	PAMUK	/ / *
	SVILA	ECO
	SINTETIKA

Illustration of a hand using an iron on a steam, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a steam drop symbol (no text or symbols present)

Dva oblaka pare: Uzastopno se primenjuje veća količina pare, za tvrdokorne nabore.

Za tvrdokorne nabore, podesite postavku pare na dva oblaka pare 📄ipritisnite i držite dugme za dodatnu količinu pare ispod drške. Maksimalna konstantna para će se neprekidno ispuštati.

Pre upotrebe

Tokom prve upotrebe možda ćete videti dim, to je normalna pojava. To će ubrzo nestati.

1 Proverite etiketu na odeći da biste se uverili da se tkanina može peglati i koja je odgovarajuća postavka temperature za nju.

2 Okrenite regulator temperature na odgovarajuću oznaku u skladu sa etiketom na odeći.

Illustration of two iron shavings with a cross mark indicating a specific part (no text or symbols present)

3 Postavite peglu u uspravan položaj.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Uključite utikač u uzemljenu utičnicu i ostavite peglu da stoji na postolju. Ako koristite produžni kabl, postarajte se da nominalna snaga produžnog kabla odgovara pegli.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Sačekajte da se pegla zagreje. Indikatorska lampica će svetleti neprekidno dok se pegla zagreva.

462 Srpski

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Kada je pegla spremna za upotrebu, lampica će se isključiti. Lampica se može paliti i gasiti tokom peglanja, pošto se pegla povremeno dogreva da bi održala temperaturu.

Peglanje parom

1 Pomerite birač postavke pare na režim ECOECO režim pare.

2 Okrenite regulator temperature na položaj između svile i lana na osnovu slike.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

1 Podesite postavku pare na režim bez pare / režim za suvo peglanje

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 Nakon kratkog vremena para će prestati da izlazi tokom peglanja.

Prskalica

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Pritisnite i otpustite dugme za prskanje vode na vrhu drške. Voda će prskati iz mlaznice.

Horizontalni i vertikalni mlaz pare

1 Podesite regulator temperature na postavku MAKS, između pamuka i lana.

464 Srpski

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

3 Vertikalni mlaz pare: Zategnite viseći komad odeće dok koristite mlaz pare da biste uklonili tvrdokorne nabore.

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Kada se indikatorska lampica isključi, pegla je spremna za upotrebu.

Illustration of a steam iron being compressed with a magnified inset showing a plug (no text or symbols)

2 Uverite se da se pegla ohladila.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Očistite grejnu ploču vlažnom krpom.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

4 Gurnite nagore ručicu Quick Calc Release sakupljača.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Očistite poklopac Quick Calc Release sakupljača vodom.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Protresite peglu da biste ispraznili vodu i čestice kamenca iz otvora.

8 Ne sipajte vodu u otvor pegle.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Protresite peglu da biste ispraznili vodu i čestice kamenca iz otvora.

Hand pressing down a button on a surface, no text or symbols visible

10 Gurnite ručicu nadole da biste zaključali Quick Calc Release sakupljač. Čućete zvuk „klik“.

Odlaganje

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

1 Pomerite birač postavke pare da biste izabrali režim bez pare / režim za suvo peglanje

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Isključite peglu iz zidne utičnice.

3 Ostavite peglu da se ohladi.

Illustration of a hand using a power iron on a metal surface (no text or symbols)

4 Prospite preostalu vodu iz rezervoara za vodu.

Diagram of a mechanical device with rotating arms and a spring-like component (no text or symbols)

5 Namotajte kabl za napajanje oko glavnog kućišta pegle.

Rešavanje problema

U ovom poglavlju ukratko su navedeni najčešći problemi do kojih može da dođe sa aparatom. Ako ne uspete da rešite problem pomoću informacija navedenih u nastavku, posetite www.philips.com/support da biste pronašli listu najčešćih pitanja ili se obratite centru za korisničku podršku u svojoj zemlji.

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a steam drop symbol (no text or symbols present)

Illustration of two iron steamers with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to burn or press (no text or symbols visible)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

Illustration of hands using a steam iron to burn on a garment (no text or symbols)

Illustration of a person using a steam iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand holding a teardrop-shaped object with a checkmark indicating inspection (no text or symbols present)

Illustration of a showerhead with warning symbols (in警告, exclamation, and cross) against a grid background, no text or labels present.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a hand washing a shower with a drain, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Irrota silitysraudan pistoke pistorasiasta.

Illustration of a hand using a power iron to clean or install a surface (no text or symbols visible)

Diagram of a mechanical device with rotating arms and internal components (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a iron iron being heated by a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

	MAXLINNE	\( /\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\wedge}}}}}}}}}}}}}}}}}}}}}}	*
	●●●BOMULL	\( /\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\wedge}}}}}}}}}}}}}}}}}}}}}}}	*
	●●SIDEN	ECO
	●SYNTET	※

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming a steam iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

3 Ånga avges under strykningen.

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being compressed with a magnified inset showing a plug (no text or symbols)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with warning symbols (in警告, exclamation, and cross) against a grid background, no text or labels present.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Dra ut Quick Calc Release-uppsamlarens lock.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a hand washing a shower with a drain, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a wall socket connected to an electrical plug with a magnified view (no text or symbols)

2 Koppla ur strykjärnet.

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

Illustration of a mechanical device with rotating components and motion arrows (no text or symbols)

512 Tiếng Việt

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Sử dụng thiết bị

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/ *
	●●●COTTON	/ *
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with a circular icon showing a roof symbol (no text or symbols present)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode in steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode.

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Tiếng Việt

Illustration of a hand using a iron to clean clothing, with arrows and checkmark symbols indicating inspection or repair (no text present)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to burn on a garment (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using a steam iron to clean air, with a hand holding the iron and a cross mark above (no text or symbols)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

520 Tiếng Việt

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being compressed with a magnified inset showing a plug (no text or symbols)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a showerhead with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

522 Tiếng Việt

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a steam iron being placed into a sink with a pipe, against a grid background (no text or symbols)

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a metallic object (no text or symbols visible)

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

524 Tiếng Việt

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam

Tiếng Việt 525

My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.

Tiếng Việt 527

	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Giriş

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

Türkçe

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

Illustration of hands using a steam iron to burn on a garment (no text or symbols)

Illustration of a person using a steam iron to clean air, with a hand holding the iron and a cross mark above (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

Illustration of a hand using a tool to cut a leaf or seed, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a light bulb with a magnified inset showing a bottle and a textured sphere, no text or symbols present.

Illustration of a showerhead with an exclamation mark and a cross symbol, against a tiled wall background (no text or symbols)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a hand washing a shower with a drain, no text or symbols present

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to an electrical plug with a magnified inset showing its internal structure (no text or symbols)

Illustration of a hand using a power iron on a kitchen sink (no text or symbols visible)

Illustration of a mechanical device with rotating components and motion arrows (no text or symbols)

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Enjamy ulanmak

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/^*
	●●●COTTON	/^*
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with steam rising (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

552 Türkmençe

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing an iron on a bed (no text or symbols visible)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

554 Türkmençe

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a light bulb with a droplet and a magnified inset showing a bottle and textured surface (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a showerhead with an exclamation mark and a cross symbol, against a tiled wall background (no text or symbols)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

558 Türkmençe

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Türkmençe 559

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

560 Türkmençe

Illustration of a hand using a power iron to clean or install a metal component, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.

562 Türkmençe

My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

564 Türkmençe

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Εισαγωγή

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to burn on a person's back (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

Illustration of hands using a steam iron to clean clothing (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron with a magnified inset showing a plug (no text or symbols)

Illustration of a hand using a tool to cut a leaf or seedling with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron pressing down on a sink with a small device nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a steam iron being placed into a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a surface, no text or symbols visible

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron on a metal surface (no text or symbols visible)

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand using an iron on a steam iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a steam drop symbol (no text or symbols present)

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron on a jacket with a circular icon showing upward motion (no text or symbols)

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

Illustration of a person using an iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand cleaning a pear-shaped object with a checkmark indicating inspection (no text or symbols present)

Illustration of a lit candle with a magnified inset showing a bottle and a textured surface (no text or symbols)

Illustration of a steam iron on a sink with warning symbols (no text or labels)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand inserting a device into a container with an arrow (no text or symbols)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a bucket, against a grid background (no text or symbols)

6 Почистете с вода капачето на колектора Quick Calc Release.

Illustration of a steam iron being placed into a sink with a drain, against a grid background (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a steam iron with a magnified inset showing a small object (no text or symbols present)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using an iron on a surface, no text or symbols present

Illustration of a mushroom-shaped container with rotating arrows indicating flow or movement (no text or symbols)

604 Кыргызча

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Шайманды колдонуу

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	\( /\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\widehat{\wedge}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}})}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with a circular icon showing a steam drop symbol (no text or symbols present)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

608 Кыргызча

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a hand using a steam iron to press down a person's arm (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using an iron to clean or wear a textured surface (no text or symbols)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Кыргызча

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a light bulb with a droplet and a magnified inset showing a bottle and textured surface (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a stainless steel iron with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

Кыргызча

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te ●MEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloEcoettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Вовед

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/ *
	●●●COTTON	/ *
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with a circular icon showing a cloud or smoke (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a person using a steam iron to press down a surface (no text or symbols visible)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Македонски

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a stainless steel iron with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

632 Македонски

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a steam iron being placed on a sink with a pipe, against a grid background (no text or symbols)

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te ●MEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloEcoettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Введение

Illustration of a steam iron with a clamped hook and a cross mark (no text or symbols)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a surface, showing a curved arrow (no text or symbols)

Illustration of a hand using an iron iron to clean (ECO) from a machine, no text or symbols present.

Illustration of a hand steaming iron with a circular icon showing a roof symbol (no text or symbols present)

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand using a steam iron to press down a person's arm (no text or symbols visible)

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a iron on a jacket with checkmarks and arrows indicating inspection or repair (no text or symbols)

Illustration of hands using a steam iron to burn on a garment (no text or symbols)

Illustration of a person using a steam iron to clean air, with a hand holding the iron and a cross mark above (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron with a magnified inset showing a plug (no text or symbols)

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a showerhead with an exclamation mark and a warning symbol, set against a tiled wall background (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Извлеките крышку контейнера Quick Calc Release.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

Illustration of a steam iron being placed into a sink with a pipe, against a grid background (no text or symbols)

Illustration of a mechanical device with two views of a component (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or install a surface, with a grid-patterned background (no text or symbols)

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Истифодаи дастгох

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

660 Точикий

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/^*
	COTTON	/^*
	SILK	ECO
	SYNTHETICS

Illustration of a hand ironing an iron, labeled 'ECO' in the top-left corner (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with steam rising (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode or steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a hand ironing an iron on a bed (no text or symbols)

3 Steam will be released during ironing.

664 Точикй

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Точикй 665

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person holding a medical device with a cross symbol (no text or labels)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand using a tool to cut a leaf or seedling, with a checkmark indicating the correct step (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

Illustration of a hand inserting a device into a container with an arrow indicating direction (no text or symbols)

4 Slide up the Quick Calc Release collector lever.

Illustration of an iron (£) being placed on a surface with a small device nearby (no text or symbols visible)

5 Pull out the Quick Calc Release collector lid.

Close-up of a stainless steel faucet with a hand washing it, against a grid-patterned wall (no text or symbols visible)

6 Clean the Quick Calc Release collector lid with water.

Close-up of a hand washing a showerhead with a drain, against a tiled background (no text or symbols visible)

7 Shake the iron to drain the water and scale particles from the opening of the iron.

Illustration of a kitchen sink with a drain marked by an exclamation mark and a grid background (no text or symbols)

8 Do not run water into the opening of the iron.

670 Точикй

Illustration of a robotic arm with labeled parts (1 and 2), showing mechanical components and a close-up view of the arm (no text or symbols present)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a metallic object (no text or symbols visible)

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to press or install a surface, with a grid background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam

672 Точикй

My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

Точикй 675

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Вступ

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a power tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

Illustration of a steam iron emitting a plug, showing internal components and cord (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a power iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron with a magnified inset showing a plug (no text or symbols)

Illustration of a hand using a tool to cut a leaf or seedling, with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand inserting a device into a container with an arrow (no text or symbols)

Illustration of an iron (£) being placed on a surface with a small device nearby (no text or symbols visible)

Close-up of a stainless steel faucet with a hand washing it, against a grid-patterned wall (no text or symbols visible)

Illustration of a hand washing a showerhead with a drain, against a grid background (no text or symbols)

Illustration of a kitchen sink with a drain, showing a shower and warning symbols (no text or labels)

Illustration of a robotic arm with labeled parts (1 and 2), showing mechanical components and a close-up view of the arm (no text or symbols present)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or install a surface, with a grid background (no text or symbols)

Diagram of a bottle with internal structure and curved arrows indicating rotation or movement (no text or symbols)

Illustration of a steam iron with a warning symbol (no text or labels)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

Illustration of a hand ironing an iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with steam rising (no text or symbols)

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person ironing a piece of hair, showing steam and motion (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using an iron on a surface, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward trends (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron with a magnified inset showing a plug (no text or symbols)

Illustration of a hand using a tool to cut a leaf or seedling with a checkmark indicating the correct removal (no text or symbols present)

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand inserting a device into a container with an arrow (no text or symbols)

Illustration of an iron (£) being placed on a surface with a small device nearby (no text or symbols visible)

5 Жылдам как тазалау коллекторының какпафын алыңыз.

Close-up of a stainless steel faucet with a hand washing it, against a grid-patterned wall (no text or symbols visible)

Illustration of a hand washing a showerhead with a drain, against a grid background (no text or symbols)

Illustration of a kitchen sink with a drain, showing a shower and warning symbols (no text or labels)

Hand pressing a button on a metallic object with a black arrow indicating motion (no text or symbols visible)

Illustration of a wall socket connected to an electrical plug with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a power iron to press or install a surface, with a grid-patterned background (no text or symbols)

Diagram of a mechanical device with rotating arms and internal components (no text or symbols)

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Uwnph oqunwqndnniún

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	//^*
	COTTON	//^*
	SILK	ECO
	SYNTHETICS

Illustration of a hand ironing an iron with 'ECO' label (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand steaming iron with a circular icon showing a cloud or smoke (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron iron holders with a cross mark indicating the angle (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Ruijtntu

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO model or steam mode

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a hand ironing an iron on a person's back (no text or symbols)

3 Steam will be released during ironing.

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using an iron to clean or wear, with a downward arrow indicating the process (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

720 Rujtntu

Illustration of a hand using an iron to clean clothes, with a magnified inset showing upward and downward arrows (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron with a cross mark (no text or symbols)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

722 Ruijtntu

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being compressed with a magnified inset showing a plug (no text or symbols)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand holding a pear-shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a showerhead with an exclamation mark and a cross symbol, against a grid background (no text or symbols)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

724 Ruijtntu

Hand inserting a card into a device (no text or symbols visible)

4 Slide up the Quick Calc Release collector lever.

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 Pull out the Quick Calc Release collector lid.

Illustration of a stainless steel kitchen sink with a faucet and a hand holding a bag, against a grid background (no text or symbols)

6 Clean the Quick Calc Release collector lid with water.

Illustration of a hand washing a shower with a drain, no text or symbols present

7 Shake the iron to drain the water and scale particles from the opening of the iron.

8 Do not run water into the opening of the iron.

Illustration of a mechanical device with two views of a component (no text or symbols)

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a surface, no text or symbols visible

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to clean or install a metal component, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te ●MEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloEcoettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.

Ruijtntu

The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

ข้อมูลเบื้องต้น

Illustration of a steam iron with a black X mark and chain, no text or symbols present

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

Illustration of a hand using an iron iron to clean (ECO) from a surface, no text or symbols present.

การตั้งค่า ECO:

Illustration of a hand ironing an iron with steam, no text or symbols present

แบบไอน้ำสองก้อน:

Illustration of two iron iron pieces with a cross mark, no text or symbols present

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

738 ภาษาไทย

Illustration of a person using a steam iron to burn on a person's back (no text or symbols visible)

Illustration of a steam iron being processed with a magnified inset showing internal components (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols visible)

Illustration of a hand using an iron on a textured surface, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a circular icon showing upward motion and a checkmark indicating inspection (no text or symbols present)

Illustration of hands using a steam iron to burn on a garment (no text or symbols)

Illustration of a person holding a medical device with a cross mark, no text or symbols present

Illustration of a person standing at a table with an iron iron, facing a wall-mounted device and a clock (no text or symbols present)

Close-up of a car's roof with a thermometer icon and temperature label (no readable text or symbols beyond the thermometer)

Illustration of a person using an iron on a surface with directional arrows indicating motion (no text or symbols)

Close-up of a hand holding a small object with an hourglass icon nearby (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand holding a leafy vegetable with a checkmark indicating selection (no text or symbols)

Illustration of a lit fuse with a magnified inset showing a bottle and plug, no text or symbols present.

Illustration of an iron iron in a kitchen with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

Hand holding a mechanical component with an arrow indicating direction (no text or symbols visible)

Illustration of a steam iron with a small electronic device, placed on a surface with a grid background (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and a small object floating inside (no text or symbols)

Illustration of a hand washing a car with steam rising, no text or symbols present

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a steam iron with a magnified inset showing a warning symbol (no text or labels present)

Illustration of a wall socket connected to a plug with a downward arrow indicating compression (no text or symbols)

2 ถอดปลักเตาร็ด

Illustration of a hand using an iron on a workbench (no text or symbols visible)

Illustration of a steamer with rotating arms and a handle, no text or symbols present

1 Water tank lid
2 Steam selector
3 Water spray
4 Cord
5 Cord winding
6 Indicator light
7 Steam boost trigger
8 Temperature dial
9 Quick Calc Release collector

Type of water to use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a steam iron with a warning symbol (no text or labels)

1 Do not plug in the iron.

Jahmugun g6s

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

2 Slide the steam selector to the right to select no steam mode/dry ironing mode

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 Flip open the water tank lid.

4 Fill water tank up to the MAX indication mark. Do not add any additives like perfume, fragrances, soap or vinegar.

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 Close the water tank lid firmly.

Setting the temperature and steam

	MAXLINEN	/^*
	●●●COTTON	/^*
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand ironing an electric iron, labeled 'ECO' in the top-left corner (no other text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand ironing an iron with steam rising (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

For stubborn creases, set the steam setting to two steam clouds and press and hold the steam boost trigger below the handle. Maximum constant steam will be delivered continuously.

Preparing for use

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

1 Check the garment label to ensure that the fabric is ironable and its appropriate temperature setting.

2 Turn the temperature dial to the appropriate ironable temperature indication according to the garment label.

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, no text or symbols present

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

5 Wait for the iron to heat up. The indicator light will turn steady on while it is heating up.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the iron is ready to be used, the indicator light will switch off. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

Ironing with steam

1 Slide the steam selector to ECO mode in steam mode.

2 Turn the temperature dial to between silk and linen based on the image.

Illustration of a hand ironing an iron on a bed (no text or symbols)

3 Steam will be released during ironing.

760 ฟูดมอนุกง ๑๖๖

No steam mode/dry ironing mode

1 Set the steam setting to no steam mode/dry ironing mode.

Illustration of a hand ironing a steam iron on a bed (no text or symbols)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water will be sprayed out of the nozzle.

Horizontal & vertical steam boost

1 Set temperature dial to MAX setting between cotton and linen.

Illustration of a hand using an iron on a jacket with a circular icon showing upward motion (no text or symbols)

2 Vertical steam boost: Press and release the steam boost trigger in the vertical position to release shots of steam on hanging garments. Holding down the steam boost trigger in the vertical position will not deliver constant steam.

Illustration of hands using a steam iron to clean clothing, showing motion and shading (no text or symbols)

3 Vertical steam boost: Pull and stretch your hanging garment while using the steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person using an iron on their back, with a cross symbol indicating iron (no text or symbols present)

5 Do not position the iron towards yourself or others.

Auto shut off (DST7030, DST7040, DST7050, DST7060, DST7510 only)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the iron is not in use for more than 30 seconds while resting on its soleplate or 8 minutes while resting on its heel/ base, the iron will enter auto shut off mode.

3 The temperature of the iron will decrease in auto shut off mode. The Auto Shut Off light will also blink quickly to indicate the iron is at auto-off status. To completely switch off the iron, plug out the iron/ switch off the mains plug.

4 Picking up or moving the iron will reactivate it.

5 The indicator light will turn steady ON, indicating that the iron is heating up again.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 Once the indicator light switches OFF, the iron is ready for use.

Cleaning and maintenance

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

1 Ensure the iron is not plugged in.

2 Ensure the iron is cooled down.

Illustration of a hand using a tool to cut a leaf or seedling, with a checkmark indicating the correct removal (no text or symbols present)

3 Wipe the soleplate with a damp cloth.

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

4 Do not wash/ clean the iron under running water as it may damage the electrical components within.

Calc-Clean

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 It is recommended to descale your iron after every 1 to 3 months of use to prolong its lifetime, or when brown stains/water is observed.

IMPORTANT: The Quick Calc Release automatically collects loose scale particles during ironing.

Illustration of a wall socket connected to a plug with an arrow indicating direction (no text or symbols)

2 Ensure the iron is not plugged in.

3 Ensure the iron is cooled down.

Illustration of a hand inserting a device into a container with an arrow (no text or symbols)

4 Slide up the Quick Calc Release collector lever.

Illustration of an iron (£) being placed on a surface with a small device nearby (no text or symbols visible)

5 Pull out the Quick Calc Release collector lid.

Close-up of a stainless steel faucet with a hand washing it, against a grid-patterned wall (no text or symbols visible)

6 Clean the Quick Calc Release collector lid with water.

Close-up of a hand washing clothes with steam rising, no visible text or symbols

7 Shake the iron to drain the water and scale particles from the opening of the iron.

Illustration of a kitchen sink with a drain marked by an exclamation mark and a grid background (no text or symbols)

8 Do not run water into the opening of the iron.

766 จุสมรูปติ จุสม

Illustration of a biological structure with numbered annotations (1, 2), no readable text or symbols present.

9 Shake the iron to drain the water and scale particles from the opening of the iron.

Hand pressing down a button on a metallic object (no text or symbols visible)

10 Push down the lever to lock the Quick Calc Release collector. You will hear a 'click' sound.

Storage

1 Slide the steam selector to select no steam mode/dry ironing mode.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Illustration of a hand using a power iron to press or install a surface, with a grid-patterned background (no text or symbols)

4 Pour any remaining water out of the water tank.

Diagram of a mechanical or fluidic device with rotating arrows indicating flow or movement (no text or symbols)

5 Wind the power cord around the main body of the iron.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

My Philips Steam Iron does not produce steam.	There is no water/not enough water in the tank.	If there is no water in the water tank of your Philips Steam Iron, your iron is not able to generate steam. Please refill the water tank with water. After this, your iron should produce steam again.
	The iron is not ready to steam.	Your iron is ready to produce steam when the indicator light switches off.
	The steam setting is set to no steam mode/dry ironing mode	Aways ensure that the temperature dial is at the 2-dot ●3 ●lot or ●te●HEN setting. Then, select a steam setting (ECO setting and 2-cloud setting) on the steam selector at the top of the handle.Ironing with steam with the temperature dial at the 1-dot or SYNTHETIC setting may cause wet spots/leaking as the temperature of the iron may not be hot enough to convert water to steam
My Philips Steam Iron does not remove creases.	The temperature is set too low.	For irons with a temperature dial, please set the temperature according to the fabric that you are ironing. You can use the following table as a reference.Note: For some fabrics such as silk, wool, cotton and linen, steam would be needed to remove creases more efficiently.
	Steam is not used. Switch the steam selector to or 2-cloECOettingYour Philips Iron does not produce steam when the temperature dial is at the 1-dot position, SYNTHETIC or Calc-Clean setting. You can get more steam by changing to a stronger steam setting, or using the steam boost function to help remove tough wrinkles.To remove creases in the vertical position, press and release the steam boost trigger or button to release a shot of steam. Holding down the trigger or button will not produce a continuous steam boost.Note that repeated usage of the steam boost in a short period of time may cause spitting or a reduction in the amount of steam produced. If this happens, wait for a short while before using the steam boost function again.
The steam boost in my Philips Steam Iron is not working.	The steam boost trigger has not been pressed and released.	To activate the steam boost in your Philips Steam Iron, press and release the steam boost button/trigger. Holding onto the steam boost button/trigger does not produce continuous steam boost. You may need to press the steam boost button/trigger several times on the first use for the pump to draw sufficient water.Note: We recommend to use the steam boost at the 3-dot temperature setting or higher. Using the steam boost at lower temperature settings may result in wet spots forming as the temperature of the iron may not be high enough to convert water into steam.
	The steam boost function was used too often within a short period of time.	When you use the steam boost function of your Philips Steam Iron too often within a short period, the steam boost function will stop working for a while. In this case, please wait a couple of minutes before you use the steam boost again.For stubborn wrinkles, we recommend to use the steam boost with the steam setting at the no steam mode/dry ironing mode for the best effect.
	The iron is not ready to steam.	The iron is ready to steam when the indicator light switches off.
My Philips Steam Iron produces smoke when heating up.	First usage. During production, some parts of the iron have been slightly greased. As a result of this, your iron may produce some smoke when it is switched on for the first few times, this is normal and should dissipate shortly.
	There is water in the soleplate.	Sometimes, there might still be some remaining water in your iron's soleplate after the last usage. This water will evaporate when your iron's soleplate heats up, and the steam generated may look like smoke. This is normal and should dissipate shortly.
	My iron is still producing smoke even after checking the above.	There could be an issue with the iron, we recommend you to contact us.
There are water droplets/leaking on my garment during ironing.	First time usage. If you experience leaking/spitting during your first usage, perform the Calc Clean function once. If this does not resolve the leaking on your next use, we recommend you to contact us.
	The steam boost function was used too often within a short period of time.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	There is a build up of scale/calcification in the iron.	If there is brown water or white flakes coming out of the iron, this may indicate a build up of calcification in the iron. Perform the Calc Clean function to clear this. If you live in an area with hard water, we recommend to use distilled water (or 50% distilled and 50% tap water) and perform the calc clean function once a month to prolong the lifetime of the iron.Note: the presence of white flakes on the very first use of the iron is normal.
	You have added other chemicals or additives into the water tank.	Fragrances/oils/chemicals/additives/descaling solutions should not be added into the water tank as they are damaging to the device. Please rinse the water tank, fill it up with water and descale your iron.
	You have not closed the water tank lid properly.	Close the lid firmly after filling.
	Steam has condensed onto the ironing board.	Steam may condense on the board cover, particularly when using irons that produce powerful levels of steam for a prolonged period of time. This can look like your iron is leaking from the soleplate. To prevent this, you can do the following:1 Select a lower steam setting than the setting you have been using or use steam during the first ironing strokes and then finish up with the dry-ironing strokes.2 You can also put an extra layer of cloth between the ironing board and the ironing board cover to minimize condensation.3 Replace the ironing board cover if the sponge material has worn out.
	Small droplets/wet spots that occur during start of ironing session.	If small droplets or wet spots occur during the start of the ironing session, this is normal as water might have collected in the soleplate from the previous ironing session, and the iron was used before it had fully heated up. Iron over the droplets/wet spots We recommend that the iron be stored in a vertical position with the steam setting set to no steam mode/dry ironing mode before it is unplugged to minimize the collection of water in the soleplate.
The iron leaks after ironing.		If your iron leaks after unplugging/during storage, it may be because water has collected in the soleplate from leaving the steam setting on before the anti-drip feature activates. We recommend to set the steam selector to no steam mode/dry ironing mode before unplugging the iron. Empty the water tank and place the iron in the vertical position when cooling down/for storage.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
	You have set a higher temperature than recommended for the fabric type.	Using a higher than recommended temperature setting for the fabric type may cause the iron to burn the fabric. Check your garment and that your iron is set to the correct temperature setting before ironing. The iron is safe to use on all ironable garments with the correct temperature setting. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
The iron has stopped heating up.	Auto shut-off has been activated.	When your iron has not been used in 30 seconds in the horizontal position or 8 minutes in the vertical position), the iron will automatically shut-off. This is indicated by a constant blinking of the indicator light. To re-activate the iron, move the iron and the indicator light will light up again, indicating that the iron is heating up.If your iron has a dedicated Auto Shut Off light, the ASO light will blink when the iron enters the ASO state. When the iron is moved, the ASO light will switch off and the temperature indicator light will turn on, indicating that it is heating up again.
	There is a power connection problem.	Please check the mains cord, the plug and the wall socket. Ensure that everything is properly connected. If you are using an extension plug, please ensure that power rating is suitable for the iron.
	The iron does not switch on anymore (I have tried the above but my iron still does not heat up).	If this is the case, there might be a problem with your iron. We recommend you to contact us.
The indicator light on the iron is blinking/breathing.	Iron is heating up. The indicator light may turn on and off during ironing as the iron heats up periodically to maintain its temperature.

772 简体中文

产品简介

Illustration of a steam iron emitting smoke with a warning symbol (no text or labels)

1 确保熨斗电源插头已拔下。

774 简体中文

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 翻开水箱盖。

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 盖紧水箱盖。

设置温度和蒸汽量

	最高亚麻	/^*
	棉质	/^*
	丝质	ECO
	化纤	**

Illustration of a hand ironing an iron, labeled 'ECO' in a circular badge (no other text or symbols)

Illustration of a hand using a steam iron to clean or wear (no text or symbols)

Illustration of two iron iron pieces with a cross mark, no text or symbols present

3 将熨斗竖立放置。

Illustration of a steam iron with a cable, showing internal components and a lit fuse (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a detail (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a hand ironing an iron on a person's back (no text or symbols)

3 熨烫过程中将放出蒸汽。

无蒸汽/干熨模式

Illustration of a steam iron being processed with a magnified inset showing internal components (no text or symbols)

1 将蒸汽设置调至无蒸汽/干熨模式

Illustration of a hand ironing an iron on a bed (no text or symbols visible)

2 片刻过后，熨烫过程中蒸汽将会消失。

喷雾按钮

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using an iron on a hanger with checkmarks indicating correct and incorrect actions (no text or symbols)

Illustration of hands using an iron to steam or burn iron, showing airflow direction (no text or symbols)

4 熨烫时请不要用手作为支撑面。

Illustration of a person holding a device with a cross symbol (no text or symbols present)

5 切勿将熨斗朝向自己或他人。

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron with a magnified inset showing a plug (no text or symbols)

1 确保熨斗电源插头已拔下。

2 确保熨斗自然冷却。

Illustration of a hand cleaning a pear-shaped object with a checkmark indicating inspection (no text or symbols)

3 用湿布擦拭熨斗底板。

Illustration of a light bulb with a magnified inset showing a bottle and a textured surface (no text or symbols)

Illustration of a steam iron on a sink with warning symbols (no text or labels)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 确保熨斗电源插头已拔下。

3 确保熨斗自然冷却。

Illustration of a hand inserting a button into a device (no text or symbols visible)

4 向上滑动快速除垢收集器控制杆。

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 拔出快速除垢收集器盖子。

Water dispenser with a bag pouring liquid into a sink, set against a tiled wall (no text or symbols visible)

6 用水清洗快速除垢收集器盖子。

Illustration of a hand washing clothes with steam rising, no text or symbols present

8 请勿将水倒入熨斗的开口处。

784 简体中文

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 拔下熨斗插头。

3 让熨斗自然冷却。

Illustration of a hand using an iron on a surface, no text or symbols present

4 将水箱中剩余的水倒出。

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

5 将电源线缠绕在熨斗机身上。

故障排除

Illustration of a steam iron with a cord and a cross mark, no text or symbols present

1 請勿將熨斗插上電源。

Illustration of a steam iron with a magnified inset showing a small object (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 掀開水箱蓋。

Illustration of a hand using a tool to press down a steaming iron (no text or symbols visible)

5 確實蓋好水箱蓋。

設定溫度和蒸氣

	MAX (最大)LINEN (亞麻)	/^*
	●●●COTTON (棉)	/^*
	●●SILK (絲)	ECO
	●SYNTHETICS (合成纖維)	※

Illustration of a hand ironing an iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand steaming iron with a circular icon showing a cloud or smoke (no text or symbols)

Illustration of two iron iron holders with a cross mark indicating a specific part (no text or symbols present)

3 將熨斗直立放置。

Illustration of a steam iron with a cable, showing internal components and a plug (no text or symbols)

Illustration of a mechanical component with an hourglass icon and magnified detail (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to press down a blanket (no text or symbols visible)

3 在熨燙期間將會釋放蒸氣。

796 繁體中文

無蒸氣模式/乾式熨燙模式

Illustration of a hand ironing an iron on a bed (no text or symbols)

2 一段時間後，蒸氣會在熨燙期間停止。

水噴霧

Illustration of a hand using a steam iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

Illustration of a hand using an iron to clean clothing, with a downward arrow indicating the process (no text or symbols present)

Illustration of a person holding a medical device with a cross symbol (no text or labels)

5 請勿將熨斗朝向自己或他人。

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

6 指示燈關閉後，即可開始使用熨斗。

清潔與維護

1 請確認熨斗未插電。

2 請確認熨斗已經冷卻。

Illustration of a hand cleaning a pear-shaped object with a checkmark indicating inspection (no text or symbols present)

3 請用濕布擦拭底盤。

Illustration of a steam iron in a kitchen sink with warning symbols (no text or labels)

Diagram showing a wall socket connected to an electrical plug with a directional arrow (no text or symbols)

2 請確認熨斗未插電。

3 請確認熨斗已經冷卻。

Illustration of a hand inserting a button into a device (no text or symbols visible)

4 將快速脫鈣收集器控制桿向上滑動。

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

5 將快速除鈣收集器上蓋拉出。

Water dispenser with a bag pouring liquid into a sink, set against a tiled wall (no text or symbols visible)

6 用水清潔快速除鈣收集器上蓋。

Illustration of a hand washing clothes with steam rising, no text or symbols present

8 請勿對著熨斗開口加水。

802 繁體中文

Hand pressing down a button on a metallic object (no text or symbols visible)

10 將控制桿向下壓，將快速除鈣收集器鎖定。您會聽到咔噠聲。

收納

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 拔下熨斗插頭。

3 讓熨斗冷卻。

Close-up of a hand using a power iron to clean or install a component, with a grid background (no text or symbols visible)

4 將水箱中剩餘的水倒空。

Illustration of a mechanical device with rotating arrows indicating motion (no text or symbols)

5 將電線纏繞在熨斗主體。

疑難排解

808 한국어

Illustration of a steam iron emitting smoke with a warning symbol (no text or labels)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols visible)

3 물탱크 뚜껑을 젖혀서 엽니다.

Illustration of a hand using a tool to press or brush on an iron (no text or symbols visible)

5 물탱크 뚜껑을 꼭 단으십시오.

온도 및 스틼 설정

	최대마	/	\( /	\( /	\( /	\( /	\( /_	\( ECO
	ECO
	ECO
	ECO

Illustration of a hand ironing an iron, labeled 'ECO' in the top-left corner (no other text or symbols)

Illustration of a hand using a steam iron to clean or smoke (no text or symbols)

Illustration of two iron shavings with a cross mark indicating a defect or damage (no text or symbols present)

3 다리미를 세워 듣니다.

Illustration of a steam iron with a cord and plug, no text or symbols present

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person ironing a piece of hair, showing steam and motion (no text or symbols)

Illustration of a hand ironing an iron on a bed (no text or symbols)

Illustration of a hand using a steam iron to press down on a textured surface (no text or symbols)

Illustration of a hand using an iron to clean clothes, with arrows indicating direction (no text or symbols)

Illustration of hands using a steam iron to clean or smoke from a jacket (no text or symbols)

Illustration of a person using a steam iron with a cross mark (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a steam iron being heated by a plug, with a magnified inset showing the plug's electrical contact (no text or symbols present)

2 다리미가 식었는지 확인합니다.

Illustration of a hand holding a seed or pod with a checkmark indicating selection (no text or symbols present)

Illustration of a lit fuse with a magnified inset showing a bottle and bulb (no text or symbols)

Illustration of a steam iron on a sink with warning symbols (no text or labels)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

3 다리미가 식었는지 확인합니다.

Hand inserting a card into a device (no text or symbols visible)

Illustration of a steam iron being placed on a kitchen sink with a small appliance nearby (no text or symbols)

Illustration of a stainless steel kitchen sink with a faucet and showerhead, against a grid background (no text or symbols)

Illustration of a hand washing clothes with steam rising, no text or symbols present

Illustration of a robotic arm with labeled parts, showing motion capture and assembly (no text or symbols)

Hand pressing down a button on a metallic object (no text or symbols visible)

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 다리미의 전원을 뽑으십시오.

3 다리미를 식혀주십시오.

820 한국어

Illustration of a hand using a power iron to clean or install a surface (no text or symbols visible)

Diagram of a mechanical device with rotating arms and textured body, no visible text or symbols

العربية 825

Illustration of a steam iron with a warning symbol (no text or labels)

826 العربية

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a steam iron (no text or symbols present)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

荣

1. ع الكي الجاف

طاء خزان المياه 3.

Illustration of two iron iron holders, one with a cross mark and the other with a checkmark (no text or symbols)

Illustration of a steam iron emitting a power cord (no text or symbols)

Close-up of a mechanical component with an hourglass icon and magnified detail (no text or symbols)

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

وُشر وينطفى في 6

بناً على الصورة.

Illustration of a person ironing a steam iron on a bed (no text or symbols visible)

Illustration of a person using a steam iron on a hanger, with checkmarks and arrows indicating inspection or repair (no text or symbols)

.فعات من البخار 2

Illustration of hands using a steam iron to burn on a garment (no text or symbols present)

م في أثناء الكي 4.

Illustration of a person using an iron on a machine with a cross mark (no text or symbols)

أشخاص آخرین.5

Illustration of a person standing beside a table with an iron iron, next to two icons showing a close-up and a timer (no text or symbols)

لفتة من الوقت.

832 العربية

٤ دقائق في أثناء 2

Close-up of a car's dashboard with a circular icon showing temperature reading (no text or symbols on the dashboard itself)

شفيل الإعتابقائي 3

Illustration of a person using an iron on a surface with directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

Liberia مرة أخرى.

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

غزة للاستخدام.6.

العربية 833

التنظيف والصيانة

لَة بمصدر طاقة.

مكواة قد بردت 2.

Illustration of a hand holding a teardrop-shaped object with a checkmark indicating selection (no text or symbols present)

eta قماش رطبة.

Illustration of a droplet with a magnified inset showing a bottle and a textured surface (no text or symbols)

Illustration of a steam iron on a sink with warning symbols (no text or labels)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

Illustration of a hand pressing down a mechanical component with an arrow (no text or symbols)

لَة بمصدر طاققة.

مكواة قد بردت 3.

ن بسرعة لأعل 4.

العربية 835

Illustration of a steam iron pressing down on a laptop keyboard (no text or symbols visible)

بسرعة للخارج.5

Close-up of a stainless steel kitchen sink with a faucet and showerhead, against a tiled wall (no text or symbols visible)

ن بسرعة بالமاء.6.

Illustration of a steam iron emitting air from a surface, with no visible text or symbols

ن فتحة المكواة.

ي فتحة المكواة.

ن فتحة المكواة.9

836 العربية

Hand holding a device with a black arrow pointing to a component (no visible text or symbols)

. ستسمع صوت 10

"قطقة."

التخزين

1. اللكي الاجCAF

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

1. مصدر الاطقة

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

ع الامكواة ت_BRد.3.

أي مياه متبقية. 4.

Close-up of a hand using a power iron on a machine, with a grid-patterned background (no text or symbols visible)

Illustration of a bottle with a curved tube wrapped around it, showing motion arrows (no text or symbols)

رئيسي للمكواة.5

مخزن آب با درب 1

لليد انت Beach بخار 2

اسپری آب 3

سيم 4

سیم جمع کن 5

چراغ نشانگر 6

اشه تقویت بخار 7

يَجْ دما 8

سوبزدای سریع 9

استفاده از دستگاه

نوع آب مورد استفاده

Illustration of a steam iron with a warning symbol (no text or labels)

۸۴۳ فارسی

1. ۱، انت Beach شود

Illustration of a hand using a tool to lift a cup on an iron (no text or symbols)

Illustration of a hand using a tool to press down a steamer (no text or symbols visible)

را محكم بندید.5

تنظيم دما و بخار

	حداکتر نخى
ECO
	الياف مصنوعي

Illustration of a hand using an iron iron to clean (no text or symbols)

Illustration of a hand ironing an iron with steam, symbolizing heating or cooling (no text or symbols present)

إحت قرار دهید.3.

Illustration of two iron iron pieces with a cross mark indicating a defect or damage (no text or symbols present)

Illustration of a steam iron emitting a cable with a plug, no text or symbols present

گیرد. در صورت 4

Illustration of a hand holding a small object with an hourglass icon nearby (no text or symbols)

روشن می ماند.5.

846 قارسی

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

Illustration of a person using a steam iron to burn or steam (no text or symbols visible)

Illustration of a steam iron with a magnified inset showing a component (no text or symbols)

Illustration of a hand ironing a steaming iron on a bed (no text or symbols visible)

Illustration of a hand using a power iron to press down on a surface, with a downward arrow indicating motion (no text or symbols present)

، تمام مى شود.

اسپری آب

پری خواهد شد.

Illustration of a hand using an iron on a jacket, with checkmarks and arrows indicating inspection or repair (no text or symbols)

Illustration of hands using a steam iron to clean or smoke from a surface (no text or symbols)

تا بخار به صورت 2

، استفاده نكنید.

Illustration of a person using a steam iron to hold an iron, with a cross mark symbol indicating the iron (no text or symbols present)

ز خودداری کنید. 5.

849 فارسی

Illustration of a person working on an iron iron with two thought bubbles showing a magnified view of the iron (no text or symbols present)

1. شدن می کند

Close-up of a thermometer icon with 'I°C' label, no other text or symbols visible

3(Auto Shut O

Illustration of a person ironing with a double-headed arrow indicating compression (no text or symbols)

روشن می شود. 4.

Close-up of a mechanical component with an hourglass icon highlighting a specific area (no text or symbols present)

-اغ شدن است.5.

850 قارسی

Close-up of a mechanical component with a checkmark and magnified detail (no text or symbols)

ه استفاده است 6

دنک شده باشد. 2.

طوب تميز كنید.

Illustration of a hand pressing down on a pear-shaped object with a checkmark indicating inspection (no text or symbols present)

Illustration of a nail polish bottle and its cross symbol, no text or labels present

Illustration of a showerhead with warning symbols (no text or labels)

رسوب زدایی

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

دنک شده باشد.

فارس

Hand holding a metallic object with a triangular arrow, no visible text or symbols

مت بالا بکشید.4

Illustration of a steam iron pressing down on a kitchen sink with a small remote device (no text or symbols visible)

را بيرون بکشید.5

Modern kitchen sink with faucet and soap bubbles on a grid background (no text or symbols)

با آب تميز کنید. 6.

Illustration of a steam iron being washed with air by a showerhead (no text or symbols visible)

ه آن خارج شود.

1. هانه اتو نريزید.

Illustration of a robotic arm with labeled parts, showing a close-up of the internal components (no text or symbols present)

Hand holding a container with a black arrow pointing to a small object inside (no text or symbols visible)

Illustration of a steam iron with a magnified inset showing internal components (no text or symbols)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

۸۵۳ ۶۱۰۴۲

۰ آن خارج شود.۹

کلیک" را خواهید 10

لثنيد.

نگهداری

1. شک قرار گیرد

را از برق بکشید.

د اتو خنک شود.

Illustration of a hand using a power iron on a metal surface (no text or symbols)

Illustration of a cylindrical container with internal flow arrows indicating process (no text or symbols)

ب بيرون بریزید.

٨ اتو جمع کنید. 5.

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

2025 © Versuni Holding B.V.

642001019157 (09/2025)
