Product type	Professional waffle maker
Brand	Royal Catering
Model	RCWM-02-E
Dimensions (L x W x H)	Approximately 400 x 300 x 250 mm
Weight	Approximately 12 kg
Power supply	230 V, 50 Hz
Power	2000 W
Number of waffle plates	2
Waffle type	Thick Belgian waffles
Housing material	Stainless steel
Non-stick coating	Yes, aluminum cast plates with PTFE coating
Adjustable thermostat	Yes, from 50 °C to 300 °C
Heating indicator light	Yes, green/red light
Safety	Thermal cut-off, automatic shut-off in case of overheating
Care and cleaning	Removable plates for easy cleaning, clean with a damp cloth
Spare parts available	Cooking plates, thermostats, handles
Repairability	Estimated repairability index 7/10 (standard parts)
Included accessories	Recipe book, wooden spatula
Usage	Indoor use only

Frequently Asked Questions - RCWM-02-E Royal Catering

How to use my Royal Catering RCWM-02-E waffle maker for the first time?

Before first use, clean the plates with a damp cloth and dry them. Plug in the appliance, set the thermostat to the desired temperature (usually 200°C) and wait for the light to go out. Pour the batter, close the lid and let cook for 3 to 5 minutes.

What type of batter to use for crispy waffles?

For crispy waffles, use a batter made with flour, eggs, melted butter and sugar. Let the batter rest for 30 minutes in the refrigerator before cooking. A high temperature (200-220°C) gives a better crispiness.

How to clean the waffle maker plates?

Unplug the appliance and let it cool down. The plates are removable: remove them and wash them in hot soapy water with a non-abrasive sponge. Do not put them in the dishwasher. Dry completely before reinserting.

What to do if the waffle maker does not heat up?

Check that the appliance is properly plugged in and that the thermostat is not on the minimum position. If the indicator light does not come on, the thermal fuse may have blown. Contact customer service for a replacement.

Does the non-stick coating wear out over time?

Yes, with intensive use, the non-stick coating may wear out. Avoid using metal utensils and prefer wood or silicone. If scratches appear, it is advisable to replace the plates.

Can I prepare other foods than waffles?

This waffle maker is designed only for waffles. Using other foods (brownie batter, eggs) may damage the coating and is not recommended.

How to set the temperature for soft waffles?

For soft waffles, set the thermostat between 160°C and 180°C. Longer cooking at moderate temperature gives a tender interior and slightly golden exterior.

What to do if the batter sticks to the plates?

Make sure the plates are non-stick and lightly oiled before each use. If the batter sticks, check that the temperature is high enough (at least 180°C) and that the batter is not too liquid.

The waffle maker gives off a burnt smell on first use, is that normal?

Yes, during the first use, manufacturing residues may emit an odor. Let the appliance heat empty for 10 minutes in a ventilated area. The odor will disappear after a few uses.

Where can I buy spare parts?

Spare parts (plates, thermostats, handles) are available on the Royal Catering manufacturer website or from authorized dealers. Check the manual for exact references.

USER MANUAL RCWM-02-E Royal Catering

DE	Produktname	ROTATIONSWAFFELEISEN
EN	Product name	ROTARY WAFFLE MAKER
PL	Nazwa produktu	OBRACANA GOFROWNICA
CZ	Název výrobku	VAFLOVAČ - OTOČNÝ
FR	Nom du produit	GAUFRIER ROTATIF
IT	Nome del prodotto	PIASTRA PER WAFFEL
ES	Nombre del producto	GOFRERA - GIRATORIA
HU	Termék neve	GOFRISÜTŐ - FORGATHATÓ
DA	Produktnavn	VAFFELJERN - DREJELIGT
FI	Tuotteen nimi	VOHVELIRAUTA - PYÖRIVÄ
NL	Productnaam	WAFELIJZER - DRAAIEND
NO	Produktnavn	VAFFELJERN - ROTERENDE
SE	Produktnamn	VÄFFELJÄRN - VÄNDBART
PT	Nome do produto	MÁQUINA DE WAFFLES - ROTATIVA
SK	Názov produktu	VAFLOVAČ - OTOČNÝ
DE	Modell	RCWM-01-E
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Produtor
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do produtor
SK	Adresa výrobcu

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Rotary Waffle Maker
Model	RCWM-01-E	RCWM-02-E
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	2000
Protection class	IPX3
Temperature range [°C]	50 – 300
Dimensions [width x depth x height; mm]	330 x 350 x 370	460 x 350 x 380
Weight [kg]	14.3	15.35

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Rotary Waffle Maker

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock. b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock. c) Do not touch the device with wet or damp hands. d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock. f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre. g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids. h) When the device is no longer used, switch it off and pull the plug out of the socket.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device. b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay. d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service. e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently! f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out. g) Children or unauthorised persons are forbidden to enter a work station. h) Use the device in a well-ventilated space. i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it. j) Keep packaging elements and small assembly parts in a place not available to children. k) Keep the device away from children and animals. l) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.

b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device. c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries. d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source. e) The device is not a toy. Children must be supervised to ensure that they do not play with the device. f) NOTE: During operation, some elements of the device become very hot – scalding hazard! Do not touch these elements with your bare hands! Take out cooked meals using tongs or other kitchenware.

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner. b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired. c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device. d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users. e) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use. f) Keep the device out of the reach of children. g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use. h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws. i) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used. j) Do not move, adjust or rotate the device in the course of work. k) Do not leave this appliance unattended while it is in use. l) Clean the device regularly to prevent stubborn grime from accumulating. m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person. n) It is forbidden to interfere with the structure of the device in order to change its parameters or construction. o) Keep the device away from sources of fire and heat. p) Heating plastic containers containing adhesives, flammable materials, etc. can result in hazardous smoke and fumes. q) Place the device away from flammable materials and at least 20 cm from walls, windows, etc. r) Do not use this device for drying, heating or drying out of objects. s) Do not leave dishes in the switched off device. The resulting moisture causes damage to the product. t) Users must be trained in the use of the appliance and should read the instructions manual. The instructions manual must always be available in the place where the appliance is used. u) Use kitchen utensils that are intended for use with food and that will not scratch the appliance. Do not use sharp and metal objects. v) When using the device, never touch the heating plate or its enclosure, as they constitute a scalding hazard. When opening hot device, remember that steam will be released.

w) Place the unit on a heat resistant basis!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when

using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed for baking waffles.

The device is designed for commercial use. It can be used in restaurants, hotels, canteens, etc. It is forbidden to use the device in continuous operation for mass food production

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

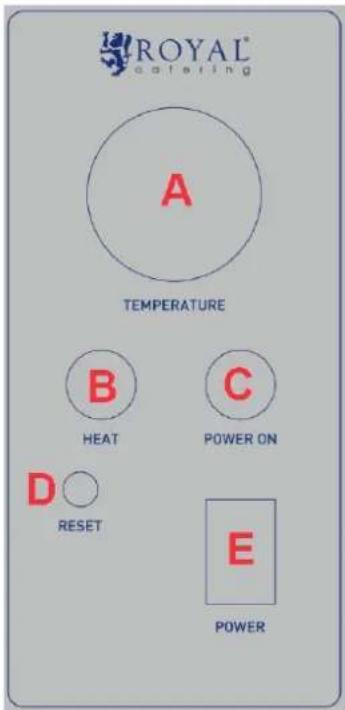

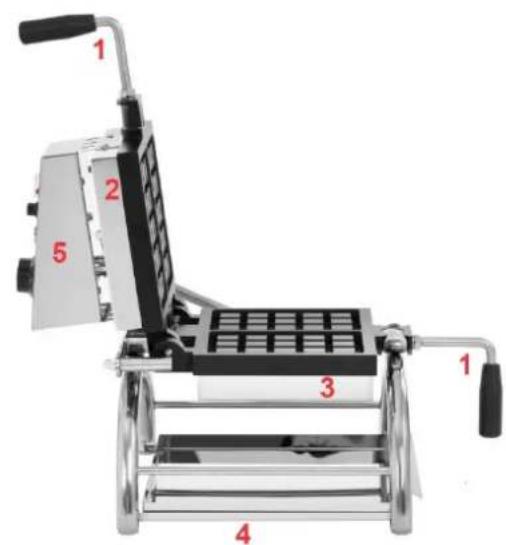

1 - Handle 2 - Upper heating plate 3 - Lower heating plate 4 - Drip tray 5 - Control panel:

A – Thermostat knob (temperature setting)

B - Heating indicator light

C - Power indicator light

D-Reset button

E-ON/OFF switch

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of the environment must not be higher than 40°C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

The installation site must have adequate ventilation (e.g., hood).

Before first use, disassemble all parts and clean them as well as the whole device.

Fully unpack the device and remove the protective film before first use. The packaging material may melt or catch fire through contact with the hot device.

3.3. Assembling the device

Fit the handles to the heating plates.

Place the drip tray on the device housing to prevent dough from flowing out from between the heating plates.

3.4. Device use

CAUTION! It is not recommended to eat the first few prepared waffles.

CAUTION: Before using the device for the first time, wash and grease the heating plates thoroughly and then preheat the device without dough.

While the device is heating up, a little smoke may appear - this is perfectly normal. You should only take care of proper ventilation. After a few minutes, turn off the device and wait until it cools down, then grease the heating plates - the device is ready for use.

1) Make sure that the thermostat knob [A] is set to "MIN" and the I/O switch [E] is set to "O".

2) Connect the device to the power supply.

3) Switch on the device by setting the I/O switch [E] to the "I" position.

4) Turn the thermostat knob [A] to select the desired temperature. The heating control [B] will light up and the device will start heating. The heating elements will automatically maintain the set temperature using the thermostat. The heating plates should remain closed while the device is heating up.

5) When the device has reached the set temperature, carefully open the upper heating plate by grasping the handle [1] (grease the heating plates if necessary), spread a suitable amount of the previously prepared dough on the lower heating plate, close the device and by turning the handle spread the dough over the heating elements.

6) To remove the ready waffles, place the heating plates in the initial position and carefully open the device (watch out for high temperature). Waffles should be removed with a spatula made of wood or plastic. Do not use sharp metal objects, so as not to damage the coatings on the heating plates.

7) After the end of baking, grease the heating plates again, if necessary.

8) Always keep the heating plates when the device is not used.

9) To switch off the device set thermostat knob [A] to "MIN", set the I/O switch [E] to the "O" position and then unplug the device from the power supply.

10) After the device has cooled down, clean it thoroughly.

If overheating occurs, the device will automatically switch off. In such cases it is necessary to:

• turn the thermostat knob [A] to the "MIN" position,
• set the I/O [E] switch to the "O" position,
• let the device cool down,
• remove the black cap of the RESET button [D] and press it to restart the device.

3.5. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used. b) Use only non-corrosive cleaners to clean the surface. c) Avoid using excessive amounts of water or detergent to clean the device so as not to get the electrical parts inside the housing wet. d) Use only mild, food-safe detergents to wash the device. e) After cleaning the device, all parts should be dried completely before using it again. f) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight. g) Do not spray the device with a water jet or submerge it in water. h) The device must be regularly inspected to check its technical efficiency and spot any damage. i) Use a soft, damp cloth for cleaning. j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance. k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

1 - Mango 2 – Upper heating plate 3 – Lower heating plate 4 - Drip tray 5 - Control panel:

1 - Handle

2 - Upper heating plate

3 - Lower heating plate

1 - Handle

2 - Upper heating plate

PLACEMENT OF THE APPLIANCE

CAUTION! Hot surface, risk of burns!

1 - Handle 2 - Upper heating plate 3 - Lower heating plate 4 - Drip tray 5 - Control panel:

A – Thermostat knob (temperature setting) B – Heat indicator light C – Power indicator light D – Reset button E - ON/OFF switch

PLACEMENT OF THE APPLIANCE

1 - Handle

1 - Handle

DEVICE PLACEMENT

1 - Handle 2 - Upper heating plate 3 - Lower heating plate 4 - Drip tray 5 - Control panel:

For the disposal of the device, please consider and act according to the national and local rules and regulations.
