USER MANUAL BV4010 BLAUPUNKT

Blue and red hairdryer with a black bag labeled 'BLAUPUNKT' (no additional text or symbols visible)

Enjoy it.

Pure mechanical diagram showing fluid flow around a pipe with directional arrows (no text or symbols)

Fig.4 Fig.6Fig.5

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
- The device should only be connected to an socket with values corresponding to the values on the rating label.
- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the

repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Keep your workplace tidy and well lit.

• Disorder and insufficient lighting lead to accidents.

- Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.

• A moment of carelessness may cause losing control of your tool.

- If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.

- Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.

- Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.

- Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.

- Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

- Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

• Always place and use the power tool on a stable, level and horizontal surface.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Check the grinder housing for damage before each use.

- Ensure that the vents are free from debris.

- Use the appliance only in a dry, well-lit environment.

• This tool should not be used by people under 16 years of age.

- Objects can be blown with air stream over a considerable distance. Before use, carefully inspect the work area for possible objects such as stones, broken glass, nails, wire, or fibers.

- Risk of injury by ejected material. Do not operate the appliance on gravel. Operate the appliance only on a hard, level surface and in the recommended position.

- Serious injuries may be caused by rotating rotor blades. Keep body parts away from rotating parts. Turn off the motor and wait for the blades to stop rotating before opening the vacuum housing, connecting/replacing the pipes, opening or removing the bag.

• Even if the appliance is used according to the recommendations, some residual risk remains. The following

hazards may occur during use of the equipment:

• Vibration can cause personal injury. For each task, use the appropriate tools, attached handles and use the lowest speed required to perform the job.
- Noise can cause hearing damage. Wear hearing protectors to reduce the risk.
- Injuries may be caused by ejection of objects that may come out of the outlet pipe due to air pressure if the bag is not properly fastened or damaged.
- Use the appliance only in a dry, well-lit environment.
• The appliance is designed to blow and suck light material such as leaves, grass and other garden waste.

WEAR PERSONAL PROTECTIVE EQUIPMENT

- Wear safety glasses according to En166

- Use protective masks in accordance with En149

- Use other types of proper personal protective equipment, depending on the type of work involved.

If a crossed-out waste bin symbol appears on the appliance, this indicates that the product is covered by European Directive 2012/19/EU. Familiarise yourself with the requirements of your local electrical and electronic waste collection system. Follow your local regulations. Do not dispose of this product with household waste. Proper disposal of the old product will prevent potential negative effects on the environment and human health.

Information on environmental protection

The packaging contains only the necessary elements. Every effort has been made to ensure that the three packaging materials are easy to separate: cardboard (box), polystyrene foam (internal protection) and polyethylene (handbags, protective sheet). The device is manufactured from recyclable materials and can be used again after its disassembly by a specialized company. Observe local regulations for the disposal of packaging materials, waste batteries and unnecessary equipment.

The product is manufactured from high quality materials and components that can be recycled and reused.

	Carefully read the operating instructions and all safety precautions before starting up the appliance.		Wear protective footwear
	The product complies with EC safety standards		Use hearing protection
	Do not expose the appliance to precipitation or moisture.		Wear protective gloves
	Blower mode		Wear protective clothing
	Dispose of the product in accordance with the WEEE directive		Wear a protective mask
	Vacuum mode		Wear safety glasses
	Rotating fan blades. Keep hands and feet away from openings during operation.		Danger caused by objects thrown away with great force. Bystanders should be kept away from the work area.

Description of the device (Fig.1)

1. Handle for mounting the shoulder strap.
2. Speed adjustment.
3. Trigger button.
4. Operating mode switch: vacuum/blower
5. Holder for the bag for leaves/debris.
6. Bag for leaves/debris.
7. Hook for fixing the bag.
8. Wheels.
9. Vacuum head.
   10.Front vacuum pipe.
   11.Middle vacuum pipe.

PREPARING FOR USE

Follow the steps below to assemble the device (Fig. 2):

1. Unpack the middle part of the vacuum pipe, connect the pipe with the body of the device so as to fit the mounting hole with the one in the middle pipe.
2. Use the screws included in the set to connect the elements, screw it with a screwdriver (Fig. 3).
3. Install the front pipe: Insert the front pipe from the hole in the middle pipe so that the pieces fit. Use the included screws to connect the components.

Installation of guide wheels (Fig. 4)

1. Put the plastic part with the wheels onto the end of the front pipe.
2. Tighten the screw securely with a screwdriver (fig. 4).

Installation of the blower head (Figure 5)

1. Place the rectangular end of the blower head at the end of the front pipe and tighten the supplied screws.

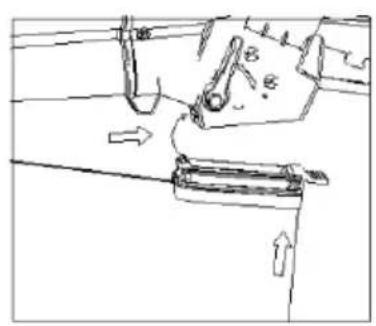

Installation of the bag for leaves/debris (Fig. 6)

1. Attach the pressed bag for leaves to the base of the devices as shown in the additional drawing.
2. Place the bag hook on the bag mounting hook as shown in the additional drawing.

Installing the shoulder strap

1. Connect the shoulder strap latch to the column holder in the main housing.
2. Tighten the latch nut firmly.
3. Set the preferred strip length.

APPLIANCE OPERATION

CAUTION: Before starting the appliance for the first time, read the warnings at the beginning of the manual.

1. Press the trigger button to switch the appliance on.
2. Blower mode - move the mode switch to the upper position to start the blower mode.

Ensure that the vacuum is directed and used in a safe manner when the blower mode is selected. Do not direct the air flow from the blower directly or indirectly to another person.

1. Vacuum mode – move the mode switch to the upper position to start the vacuum mode. When the vacuum mode is selected, air together with leaves and other garden debris is sucked in through a large vacuum pipe and pushed through a mulching rotor. The debris is shredded and then blown into the bag for leaves/debris.

IMPORTANT: Always make sure that the bag is properly fastened, according to the "Installation of the bag for leaves/debris" section in this manual.

Always pay attention to what is drawn into the blower/vacuum pipe. This product is intended solely for the removal of garden debris, such as leaves, twigs and cuttings.

1. Emptying the bag for leaves/debris – the bag is attached to the blower pipe and housing in 2 points. There is no need to unplug the bag from the appliance to empty it. The back of the bag has a full-length zip fastener. Simply open the lock and empty the contents. Fasten the zip before operating the appliance.

Recommendations:

The following points can help you to use the BV4010 leaf vacuum

• Damp materials are difficult to shred and may cause the appliance shredder blockage.
• If the leaves etc. are damp, use the vacuum in the blower mode to place the leaves etc. in one place, then vacuum them and shred when dry.
  • The leaf vacuum is not a waste disposal device. Do not attempt to mulch any material outside the typical garden debris.
• Avoid using the vacuum where there are stones or other hard objects. These objects will damage the rotor of the vacuum blower.
• For better performance and comfort, it is recommended to empty the collection bag when it is approximately half full. This reduces weight and also allows the vacuum to achieve its top performance.
• It is also recommended not to collect soil. The soil generally contains moisture and, in combination with other garden debris, may block the vacuum.

CLEANING AND MAINTENANCE

Clean the device with a damp cloth. Do not use solvent-based cleaning agents. Do not immerse the device in water. Do not clean the unit with water from a hose or a pressurised water jet. Switch off the device before cleaning.

Technical data:

Power output 3500 W

3 in 1 - blower, vacuum and shredder

Lightweight design

Bag capacity 45 l

10:1 mulching factor

Blower air speed up to 270 km/h

Capacity in vacuum mode: 792 m /h ^3

Capacity in blower mode: 792 m /h ^3

Speed: 9,000-15,000 rpm

6-stage speed control

Wire: 0.3 m

LPA: 90.2 dB(A), KpA: 3 dB(A)

LWA: 105 dB(A)

Vibrations: 4.27 m/s ^2

Power supply: 220-240 VAC 50/60 Hz

Dimensions: 120 x 16 x 30 cm

Weight: 2.8 kg

Sound pressure level (according to EN 50636-2-100)	90.20dB(A) K=3dB
Sound power level (according to EN 50636-2-100)	102.40dB(A) K=3dB
Guaranteed sound power level(according to 2000/14/EC, amended by 2005/88/EC)	105dB(A)
- Vibrations (according to EN 50636-2-100)	4.27 m/s^2 k=1.5 m/s^2

EC DECLARATION OF CONFORMITY

01/2022/BV4010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warszawa, Polska

We declare under our sole responsibility that our product:

Type of device: Leaf Vacuum and Blower

Product symbol: BV4010

If used for its intended use complies with the essential requirements relating to the:

2006/42/EC

2014/30/EU

2000/14/EC (+2005/88/EC)

2011/65/EU and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN 55014-1:2021

EN 55014-2:2021

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

MD and LVD standards:

EN ISO 12100:2010

EN60335-1:2012+AC:2014+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019

EN 50636-2-100:2014

EN62233:2008

RoHS standards:

EN IEC 63000:2018

Conformity assessment method used

2000/14/EC and amended by 2005/88/EC Annex V

Sound power level dB (A)

Measures sound power level (LPA): 90,2 dB(A), KpA: 3,0 dB(A)

Guaranteed sound power level (LWA): 105 dB(A)

BLAUPUNKT

Sound pressure level (according to EN 50636-2-100)	90.20dB(A) K=3dB
Sound power level (according to EN 50636-2-100)	102.40dB(A) K=3dB
Guaranteed sound power level(according to 2000/14/EC, amended by 2005/88/EC)	105dB(A)
- Vibrations (according to EN 50636-2-100)	4.27 m/s^2 k=1.5 m/s^2

DEKLARACJA ZGODNOŚCI WE

01/2022/BV4010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

POUŽÍVAJTE OSOBNÉ OCHRANNÉ PROSTRIEDKY

• Noste ochranné okuliare v súlade s normou EN 166

• Noste ochrannú masku v súlade s normou EN 149

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
