Product Type	Hi-Fi Mini System with DAB+
Brand	Blaupunkt
Model	PP16DAB
RMS Power Output	2 x 20 W (stereo)
Tuner Types	DAB/DAB+, FM (RDS)
Bluetooth	Yes (streaming via A2DP)
CD Player	Yes (supports CD, CD-R, CD-RW, MP3)
USB Port	1 x USB (playback of MP3 files)
AUX Input	1 x 3.5 mm stereo jack
Headphone Output	1 x 3.5 mm stereo jack
Display	LED dot-matrix display
Remote Control	Yes (included)
Speaker Configuration	2 detachable speakers, 10 W each
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	40 W (max), <1 W (standby)
Dimensions (Main Unit)	200 x 100 x 250 mm (W x H x D)
Weight (Main Unit)	Approx. 1.5 kg
Cleaning Instructions	Wipe with a soft dry cloth; avoid solvents.
Safety	Class II, double insulation
Spare Parts & Repairability	Parts available via authorised service centres

Frequently Asked Questions - PP16DAB BLAUPUNKT

How do I set the clock on the Blaupunkt PP16DAB?

Press and hold the Clock button until the hour flashes. Use the +/- buttons to set the hour, press Clock again, set minutes, then press Clock to confirm.

Can I connect my phone via Bluetooth?

Yes. Press the Source button until 'BT' appears, then enable Bluetooth on your phone and select 'Blaupunkt PP16DAB' from the list. No PIN required.

What types of CDs does it support?

It supports CD, CD-R, CD-RW discs, and also MP3 files burned onto CD-R/RW discs.

How do I improve FM radio reception?

Extend the included FM antenna fully and reposition it for best reception. Avoid placing the device near metal objects or electronic interference.

Why is there no sound from the speakers?

Check that the speakers are securely connected to the main unit, the volume is not muted or turned down, and the correct source is selected (e.g., CD, FM, BT).

How do I reset the system to factory settings?

Press and hold the Power button for about 5 seconds until the display flashes 'RESET'. Confirm with the Enter button. All presets and settings will be lost.

Can I listen to DAB radio without an antenna?

No, a DAB antenna is required. The device includes a built-in DAB antenna, but for better reception, you can attach an external DAB antenna (not included).

What is the maximum USB storage capacity supported?

USB flash drives up to 32 GB formatted in FAT32 are supported. Drives with higher capacity or different file systems may not work.

How do I clean the device?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids, abrasive cleaners, or solvents. For stubborn dirt, slightly dampen the cloth with water.

Is the Blaupunkt PP16DAB compatible with 110V power?

Yes, the power supply is universal (100-240V AC, 50/60Hz). Just use the appropriate country-specific power cord or adapter.

USER MANUAL PP16DAB BLAUPUNKT

Enjoy it.

IMPORTANT SAFETY INSTRUCTIONS

The marking plate is located at the bottom of the apparatus.

Important Safety Instructions

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference. • The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom. Do not install the product in the following areas: - Places exposed to direct sunlight or close to radiators. On top of other stereo equipment that radiate too much heat. ○ Blocking ventilation or in a dusty area. - Areas where there is constant vibration. ○ Humid or moist places. • Do not place near candles or other naked flames. • Operate the product only as instructed in this manual. • Before turning on the power for the first time, make sure the power adaptor is properly connected. - Plug-in the USB stick directly or use an USB-extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before

the product is operated.

1. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
2. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
3. Follow instructions - All operating and users' instructions should be followed.
4. Installation - Install in accordance with the manufacturer's instructions.
5. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
6. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
7. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
8. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
9. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
10. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
11. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
12. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
13. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
14. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
15. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious

damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

1. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
2. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
3. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
4. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
5. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
6. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating.
7. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
8. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
9. Try to install the product near a wall socket or extension cord and shall be easily accessible.
10. The highest environmental temperature suitable for this product is 35°C.
11. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

28. Battery

1. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.
2. The batteries should be drawn to the environmental aspects of battery disposal.
3. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

- Install all batteries correctly, + and - as marked on the apparatus.

- Do not mix batteries (old and new or carbon and alkaline, etc.)

- Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) No. 1275/2008 implementing Directive 2009/125/EC regarding standby and off mode electric power consumption of electronic household and office equipment. After 60 minutes without any audio input, the device will automatically switch into

standby mode. Follow the instruction manual to resume operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 60 minutes, the device will automatically switch into standby mode in order to save energy (ERP 2 standard). Please note that low volume settings in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also cause an automatic switch into standby mode. If this happens, please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.) to resume playback. Please contact the local service center if the problem persists.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing, and objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture, or dust.
8. Do not locate this unit near any water sources, e.g., taps, bathtubs, washing machines, or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on an amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen.
16. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.
17. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.
18. To prevent possible hearing damage, do not listen at high volume levels for long periods.

NOTICE

This product complies with the radio interference requirements of the European community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

LOCATIONS OF CONTROLS

Front view

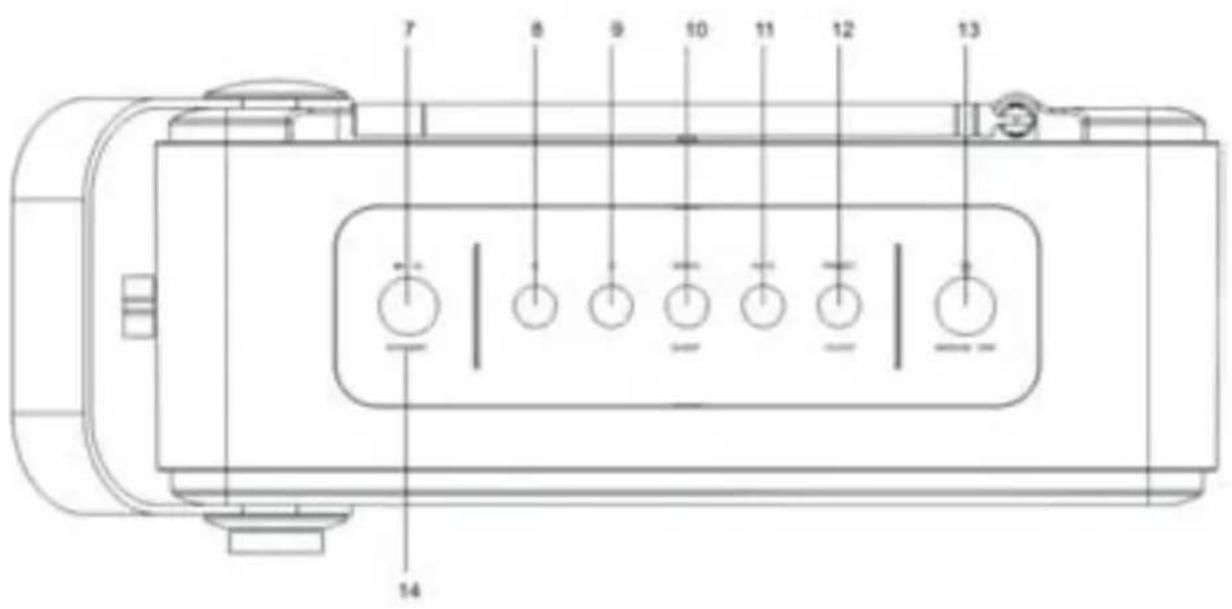

Top view

Back view

Bottom view

1. POWER ON/OFF Switch
2. BACK-LIGHT ON/OFF Switch
3. FUNCTION Selector
4. VOLUME Knob
5. Battery charging indicator
6. LCD Display

7. ▶ /OK /STANDBY Button

• In power on mode, press and hold this button for 3 seconds to switch the unit into Standby mode.
• In Standby mode, press and hold this button for 3 seconds to switch the unit on. -To select current option

• In Bluetooth mode:

-Play/pause current playback. -When receiving an incoming call on your cell phone, tap this button once to answer the phone, tap this button again to end the call.

8-9. < Button / > Button

-To scroll through a Menu or DAB station list. - In FM mode: -Short press the button to increase or decrease 50 KHz frequencies from current frequency for manual scan. -Press and hold the button to auto scan the strong signal station in downward or upward frequency; then stop and play the available station automatically. - In Bluetooth/USB/SD mode: Return to the beginning of current track or skip to the previous/ next track

10. MENU/SLEEP Button

• Press and hold this button to set the sleep timer. • In DAB/FM mode:
• Short press this button to show menu for the current mode, press it again to show playing source screen.

11. INFO Button

• In DAB/FM mode: Cycle through further information of current radio.

12. PRESET/CLOCK Button

• Press & hold this button in standby mode to set the clock time. • In DAB/FM mode:

-Short press this button to pick up the preset radio station.

-Press and hold this button to enter the radio station preset mode.

13. ALARM/SNOOZE/ DIM Button

• Press & hold this button to set the alarm in standby mode.
• Activate the snooze function when the alarm is ring up.
• When the back-light is on, short press this button to adjust the brightness level (Bright/DIM/OFF).
• Built-in Microphone
• Telescopic Antenna
• USB Port
• SD/MMC Card Slot
• DC 5V Jack

19. 3.5mm AUX-IN Jack

20. Battery Cover

21. Battery locking screw

=Unlocked

=Locked

Battery installation

1. Use a coin or tool to rotate the battery locking screws 90 degrees to unlock the battery cover.
2. Remove the battery cover with your fingers.
3. Follow the polarity to install the accompanied 3.7V lithium battery
4. Replace the battery compartment door and rotate the locking screw to lock the battery cover.

Warning:

Notes:

Your battery will last longer if you follow these simple guidelines for charging and storing.

a. For first-time charging, charge it for at least 4 hours. b. Recharge and store the unit within the temperature range of 5°C to 35°C (40°F to 95°F). c. Do not charge for longer than 24 hours. Excessive charging or discharging may shorten the battery's life. d. Battery life naturally shortens slowly over time. e. During charging, you can play music at the same time. f. Please do not use it in high humidity and temperature environments for a long time. g. Please turn off the radio if it is not used for a long time. h. Do not dispose of the battery in fire; the battery may explode or leak.

Important:

a. We do not recommend removing the battery and playing music using USB power connection directly, as this may cause unexpected noise. b. Due to prolonged charging and discharging, battery life will be affected and playback time will also be shortened. We cannot guarantee consistent playback throughout, and this is not covered by our warranty or service.

Power supply

1. Connect the supplied AC-DC adapter to the DC 5V jack on the back of the unit using the attached USB cable, and plug the adapter into a properly installed AC socket.
2. Make sure the connected voltage corresponds to the figures on the rating plate.

Caution

1. Only use the supplied power adapter for this device. Do not use it for other devices.
2. Only use the original AC adapter. This adapter has been specially designed for the accompanying battery to gradually charge it. Any other adapter may shorten battery life or damage the battery or the device.

Note:

Disconnect from the mains power supply during long periods of non-use.

Charging the installed battery

The installed battery can also be charged using the supplied AC-DC adapter. Plug the adapter into a wall socket and connect the other end to the DC 5V jack. The battery charging indicator will light up yellow, and once fully charged, the light turns green.

Note:

1. The charging time will depend on the state of charge of the battery.
2. Remember to remove the battery during longer periods of non-use.

General operation

1. Rotate the Power ON/OFF Switch to "ON" position to turn on the unit, the display on the unit will light up and display the time digits "00:00" with the current operating mode.
2. Rotate the Function Selector to select different operation mode: DAB, FM, AUX-IN, Bluetooth, USB, SD.
3. Press and hold ▶/OK/STANDBY button for 3 seconds to enter into standby mode, it will display "00:00:00" and "Time is not set" at first time to use this radio, or power off and power on again the unit by power on/off selector.
4. In Standby mode, press and hold this button for 3 seconds to switch the unit on.
5. To completely switch off the unit, rotate the Power ON/OFF switch to OFF position.

Notes:

1. The time and date can be updated automatically, which can synchronize with national time signals broadcast over DAB and FM (when available). It also can be set manually by pressing the PRESET/CLOCK button in Standby mode (please reference operation in the following time & date set up part).
2. ECO design: The unit turns to Standby mode automatically if it is not providing the main functions or inappropriate for the intended use for 60 minutes during any operating mode (except for FM/DAB mode).
3. Please kindly note if you rotate the power on/off selector on OFF position; the unit power will be cut off totally. So the time, alarm function will disable.

DAB radio operation

In DAB radio mode, the unit can receive DAB/DAB+ digital signal (band III) and display the information of the broadcasting station.

Auto Scan

1. Fully extend the telescopic antenna.
2. Switch the unit on by rotating the Power ON/OFF selector; and rotate the Function Selector to DAB position to enter DAB mode.

For the first time use or if the station list is empty, the radio will perform a full scan to tune the available stations automatically; the display shows the scan progress and the total channel number during the scanning.

1. When the scan progress is completed, it will then set the time and start playing the first station on the station list it finds.
2. To change the station, press the "<" or ">" button to scroll through the list of stations and press the ▶/OK button to select the displayed station. The display screen will show the station information at the same time.
3. If no stations are detected during the scan, the display will show "Service not available".

Notes:

1. Just like Digital TV, there are some areas where it may still be difficult to get a good DAB signal. The broadcasters are constantly improving DAB coverage, so in some cases it may be necessary to wait before some or all DAB services become available. You can check coverage for your area.
2. You may also need to start a scan manually to update the list of stations for one of the following reasons:
3. New stations may become available from time to time.
4. Stations close or can no longer be received (In the station list, invalid stations are indicated with a question mark "?" in front of their name).
5. If reception was not good for the original scan (for example, the antenna was not up), this may result in an empty or incomplete list of available stations.
6. If you have poor reception of some stations causing the audio to break up, please switch and listen to the stations with good signal strength.

How to re-do a full scan

To re-do a full scan, you may short press the MENU button to show the menu and then press

Press the OK button to select Full Scan.

Manual tune

In addition to the normal scanning method, you can also manually tune to a specific channel or frequency. This can be useful for adjusting your antenna to achieve the best possible reception and for scanning a particular channel to update the station list.

1. Press the MENU button, then press ">" to display the submenu: Manual tune, and press the OK button to enter.
2. Press "<" or ">" to display a specific channel or frequency, then press the OK button to tune to that channel or frequency. The display shows a live indication of the received signal strength on the selected frequency. Adjusting the antenna will optimize the received signal strength.

Note: The slightly larger rectangle on the signal strength bar indicates the audio quality threshold. If the solid rectangle is above the threshold, the output sound will be good; otherwise, the output audio quality will deteriorate.

To remove stations that are listed but unavailable

1. Press the MENU button, then press ">" or "<" to display the submenu: Remove; press the OK button to enter the Remove option.
2. Press ">" to select "Yes" and then press the OK button to confirm the remove operation.

Note:

This remove function can remove all invalid stations indicated in the station list with a '?' in front of the station name.

Station Presets

The unit allows you to store up to 20 DAB stations for easy recall at any time.

To save a station

1. If you have found the desired station, press and hold the PRESET button until the display shows Preset Store.
2. Press "<" or ">" button to choose the preset memory position, press the OK button to confirm the settings.

To recall a station

1. Short press the PRESET button during DAB mode to enter the preset station selection mode.
2. Press ">" or "<" button to select the preset station.
3. Press ▶/OK button to choose and play the displayed station.

Now playing information

While a station is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station such as programme name, track title and contact details. Long DLS information which over 16 characters will be scroll across showed on the display.

To view further information

Each time you press INFO button, the next set of information will be displayed, cycling through: DLS text, DL Plus information (this is only displayed if broadcast by

the station), signal strength,

programme type, ensemble name,

channel number/frequency, signal error rate,

bit rate, codec/DAB variant, time and date.

Note:

DL Plus presents additional information that can be broadcast by stations and stored temporarily on your radio.

Dynamic range compression (DRC)

This function can optimize to adjust the output sound quality automatically according to the input signal in order to get steady and nice sound output. For example, there can adjust the sound louder if the input audio signal is small; and modify the sound smaller if the audio signal is too loud.

Note:

DRC only works if it is enabled by the broadcaster for a specific station.

To change the DRC setting

Select Menu > DRC, then press ▶/ok button to enter the DRC submenu.

Press “>” or “<” to select the available options:

DRC off, high, low.

DRC off: DRC is switched off.

DRC high: DRC is switched on; the default setting recommended for noisy environment.

DRC low: DRC is set to half normal level.

FM radio operation

FM radio working frequency is 87.5~108MHz based on analogue signal; the radio includes RDS (Radio Data System) function.

1. Fully extend the telescopic antenna.
2. Rotate the FUNCTION Selector to FM position to enter FM mode.
3. Press and hold the “<”/“>” button to search the station, it will then stop and play the first station it finds automatically.

1. Short press "<" or "> " button to increase or decrease the radio frequency in 50KHz step by step for fine tuning.

Note: If the reception is too weak and there is noise on the received station, try to improve the reception by changing the direction of the telescopic antenna, or move the radio next to the window.

Station presets

The unit allows you to store up to 20 FM stations which is same operation method as described in DAB mode.

FM station information

While FM radio is playing, the screen shows its frequency, or if RDS information is available, station name and any further 'RadioText' information can be showed.

If no information is available, just the frequency and a No Radio Text message will be showed.

To view further information about the broadcast

Each time you press INFO button, the relative information will be displayed, cycling through: RDS RadioText, programme type, frequency, time and date.

AUX IN (MP3 Link) mode operation

In Aux In mode, the unit can playback audio from an external source such as an MP3 player.

1. Plug one end of the 3.5mm audio cable (included) into the headphone or line out jack on your player, then plug the other end of the cable into the unit's AUX-IN jack on the back of the unit.
2. Rotate the FUNCTION Selector to AUX position to enter AUX mode.
3. Turn on the external audio source player and select the music from your device for playing.
4. The volume level can be controlled through the radio now. But main control will be through your external player.

Notes:

1). If you connected to the line out jack of your external device, then you only need to adjust the volume control of this radio. If you connected to the headphone jack of your external device, then you may need to adjust both the volume control of your external device and the volume control of this radio to find the most desirable volume setting. 2) Press and hold the ⬆OK button to switch the unit to Standby mode or switch the unit off by rotating the Power ON/OFF selector to OFF position when you finish listening.

Don't forget to switch off the power of your external device as well.

Bluetooth operation

The radio includes the Bluetooth function which allows you to audio streaming playback the music with a Bluetooth enabled device. The Bluetooth working range is within 10 meters depending on the surroundings and the unit used.

Due to the different device manufacturers, models, and software versions, compatibility and working with all Bluetooth devices cannot be guaranteed.

Logging on devices (Pairing)

Before starting the music audio streaming playback, we need to pair the radio with your Bluetooth device first.

1. Switch the unit on by rotating the Power ON/OFF selector to "ON" position. Rotate the FUNCTION selector to BT position to enter Bluetooth mode, "Bluetooth" will show and flare on the display which means the unit is available to pair with other devices.
2. Activate the Bluetooth function on your device (e.g., mobile phone; refer to the operation manual of your player) and search for available Bluetooth devices.
3. Check the list of available Bluetooth devices and select "BP PP16DAB" for pairing.

Tips:

a. Only one playback unit can be connected to the speaker. If the speaker is already connected to another playback unit, the radio will not appear in the BT selection list. b. If a password is required on your device, enter "0000" (four zeros) and press OK. c. If pairing is successful, you will hear a voice prompt "Connecting", and "Bluetooth" will stop flashing on the display.

1. After the Bluetooth pairing connection is complete, you can select and play music from your Bluetooth device, and the sound will output from the radio.
2. Short press the ▶/OK button to pause or resume playback. Press the ">" button to skip to the next track, or press the "<" button to go to the beginning of the current track or the previous track.
3. To stop the unit, press and hold the ▶/OK button to enter standby mode, or switch the unit off by rotating the Power ON/OFF switch on the left of the unit to the OFF position.

Notes:

• Bluetooth compatibility is not guaranteed due to the release of new devices.
• Depending on the device manufacturer, you may need to perform the registration (pairing) again to connect the devices.
• To be able to transfer audio data, Bluetooth needs to stay activated in your player. Please reference the operation in the manual of your device.
• When the Bluetooth is playing with a mobile phone and a call comes in, the music will be interrupted temporarily and resume after you end the call.
• The player will be disconnected when your device is moved beyond the operational range. If you want to reconnect your device to this player, place it within the operational range (within 10 meters, depending on the surroundings).
• If the device is moved beyond the operational range, when it is brought back, please check if the device is still connected to the player. If the connection is lost, follow the above instruction to pair your device again.

Phone call hands-free

1. When your phone connects with the radio via Bluetooth mode and receives an incoming call, short tap the OK button on the radio to pick up the call. The phone call voice will come out from the speaker. Put your mouth close to the microphone hole located on the top corner of the radio.
2. Adjust the volume control of your cell phone to obtain the desired sound level.
3. To end the call, just tap the OK button again. If you were playing music from your cell phone to the radio before answering the call, the music will automatically resume playing when you hang up.

Notes:

Please do not put the radio close to the phone during hands-free talking, because it may impact the sound quality reception.

USB & SD card playback operation

1. Switch the unit on by rotating the Power ON/OFF selector to "ON" position, and insert your USB device or SD/MMC card with copied MP3 music into the USB port or SD/MMC card slot on the back of the unit.
2. Rotate the FUNCTION Selector to USB or SD position to enter the relevant mode; "USB Stick" or "SD Card" will appear on the display. The USB or SD/MMC card will start playing music automatically once the contents scanning is finished.
3. Press the ▶I/ENTER button to pause or resume playback.
4. Press the ">" button to skip to the next track, or press the "<" button to go to the previous track.
5. Press the "PRESET" button to change the repeat mode cyclically: Repeat-1, Repeat All, and No Repeat.
6. To remove your USB device or SD/MMC card, simply stop the playback and gently unplug it from the connector.

Note:

a. The extension cable for USB stick connection for playing is not recommended, as it may impact audio signal transfer, and the sound output may become intermittent. b. Please make sure your SD card is not locked before SD card playback. Otherwise, the music cannot be read out and played.

Sleep Timer Setup

1. During any operating mode, press and hold the MENU SLEEP button to enter the Sleep timer setting. "Set sleep time" will show on the display, and the sleep icon "√" will flash as well.

1. Short press the MENU SLEEP button to adjust the sleep delay time in minutes from: Sleep off / 1 / 20 / 30 / 60 / 90 / 120. The setting will be confirmed automatically after 10 seconds, and the sleep icon " " stops flashing on the display.
2. Select "Sleep off" to cancel the sleep mode; the sleep icon " " disappears simultaneously.

Time and Date Setup

1. During standby mode, press and hold the PRESET/CLOCK button to start the time and date setting.
2. By using the “>” or “<” button, you can adjust the time and date figures; then press the PRESET/CLOCK button to confirm and move to the next setting.
3. In DAB mode, the time and date can update automatically if a DAB signal is available.

Alarm set up

The unit includes two alarms which allow you to set alarm time for waking up. You can select FM/DAB/USB/SD/Buzzer as the alarm source. The 🔒 symbol will show on the left corner of the display after you set the alarm. Note: the alarm setting can only be set and work in standby mode after time set.

Alarm1 setting

1. In standby mode, press and hold the ALARM/SNOOZE button, and "Alarm1 Setup" will show on the display.
2. Short press the OK button to confirm, and the hour digits will flash on the display.
3. Short press the ">" or "<" button to adjust the hour, then press the OK button to confirm the hour. The hour digit will stop flashing and the minute digit will start flashing.
4. Short press the ">" or "<" button to adjust the minutes, then press the OK button to confirm the minute.
5. Repeat using the “>” / “<” and OK buttons to set the following items until the alarm setting is complete.

a. Duration - 15 | 30 | 45 | 60 | 75 | 90 minutes. If the alarm is not cancelled, the unit will return to standby after this time period.

b. Alarm Type (Source) - Buzzer | DAB | FM | USB | SD.

c. Alarm Mode – Daily | Once | Weekends | Weekdays. Choose the days for alarm activation.

d. Alarm - Off | On to turn on or off the alarm.

After Alarm on is selected, the alarm1 will be executed, and the alarm1 alert icon will stop flaring.

Set the Alarm 2

In standby mode, press and hold the ALARM/SNOOZE button for 3 seconds twice until the "Alarm2 Setup" is shown on the display.

1. The other settings of Alarm2 refer to Alarm1 settings described above.

Notes:

a. To ensure the alarm function works properly, make sure that the volume level is set at a proper position before turning off the unit, because the main volume can control the loudness of the alarm sound.

b. The alarm sound can wake you up in standby mode only; please do not switch off the power by the left side of the power ON/OFF selector after alarm setting, otherwise, the alarm sound cannot work. c. If the DAB or FM alarm type is selected, the alarm will turn on and broadcast the pre-used station. d. If the USB or SD alarm type is selected, the alarm will turn on and play the pre-used track. e. If the USB or SD alarm type is selected but the USB stick or SD card is absent, it will switch to Buzzer alarm mode automatically. f. When the alarm time is coming up, the alarm volume increases gradually, and the bell icon will flare on the display. g. Press and hold the ALARM/SNOOZE button for 3 seconds to cancel the alarm when it is activated. And the alarm will ring up again when the time comes on tomorrow.

Snooze

When the alarm is activated (waking you), short press the ALARM/SNOOZE button will cancel the alarm sound and activate the snooze function. The Snooze icon "🔍" will show on the display. And you will get another 10 minutes time for sleeping, and it will ring up again after 10 minutes.

System Settings

How to enter this submenu

1. In DAB or FM mode, short press the MENU button, then press the ">" or "<" button to scroll through the submenu.

1. Press the ▶/OK button to select and enter the option under the submenu.
2. Press the ">" or "<" button to switch the selection, and press the ▶/OK button for confirmation.

Language Set

The system operation language can be selected from options such as Polish, English, Czech, Deutsch, and Italian under the system language menu. You can choose your preferred language from the menu. The factory default language is Polish.

Factory Reset

A factory reset can clear all user-defined settings, replacing them with the original default values, so time/date, DAB/FM station list, and preset stations will be lost.

If you select Factory Reset, a double confirmation "YES" or "NO" will prompt you. Selecting "YES" will perform the reset operation.

SW Version

To check the software version, press the MENU button, then press the ">" or "<" button to select the system submenu, press the ▶/OK button again, and then press the ">" or "<" button to scroll through and get the "SW Version" option.

Radio error message and troubleshooting

1. Error Messages

Message	Description
DAB mode
No DAB Station	No DAB receptionNo DAB stations are available – check aerial.
Not available The listed station cannot be found.
Signal error	The DAB signal has been interrupted.
(No name)	The current station does not broadcast an identity name.
?	List Invalid
Signal error The DAB signal has been interrupted.
FM mode
No Radio Text	No RDS text information is available on this station.
No PTY	No RDS programme type information is available.
No Name	No RDS station name is being broadcast.

1. Troubleshooting

Problem	Cause Solutions
No sound	Volume is too low	Increase the volume
Poor sound quality in Radio mode	Radio signal too weak	Try to adjust the antenna position.
FM: HissDAB: intermittent cut-out DAB: "No stations available" message	Low signal strength	Check/move antennaMove radio next to window.Re-scan.
No audio signal via the Bluetooth connection	No audio signal via the Bluetooth connection	Check whether a connection exists. If necessary, repair the radio again with your Bluetooth device.
	Volume too low	Increase the main volume on the radio.
		Increase the volume on the audio source.
Bluetooth can not be connected	Pairing does not work	Check whether the audio source supports the A2DP protocol.
	Audio source is switched off	Switch on the audio source
	Bluetooth is switched off in your Bluetooth device.	Switch on the Bluetooth function in your device.
	Bluetooth version is not supported.	Try a different playback unit.
Poor sound quality from a Bluetooth device	Bluetooth device is almost out of working range of the Pp16 EDITION	Move your Bluetooth device closer to the radio.

SPECIFICATIONS
Power sourcing:	DC 5V/1.5A
Battery capacity (included)	1,050 mAh
Max Play Time(with battery)	3.5 Hours
Power Consumption	8 W
Standby Power Consumption	<1 W
DAB Frequency	174,928–239,2 MHz
FM Frequency	87,5–108 MHz
Bluetooth support	V2.1+ EDR
Bluetooth operation range	Within 10 meters
Transmission frequency	2,4 GHz
Protocols	A2DP 1.2
Working Temperature	0°C~ +35°C
Working Humidity	20–80 %

(Note: The product specification may change without prior notice.)

IMPORTANT SAFETY INSTRUCTIONS

Top view

Rear view

Bottom view

Alarm 2 setting

System settings

Top view

Rear view

Bottom view

Notes:

System settings

IMPORTANT SAFETY INSTRUCTIONS

Top view

Rear view

Bottom view

1. POWER ON/OFF switch
2. BACK-LIGHT ON/OFF switch
3. FUNCTION selector
4. Volume adjustment wheel
5. Battery charging indicator
6. LCD display
7. ▶ Button /OK /STANDBY

Note:

Notes:

Factory Reset (Restore Factory Settings)

Front view

Rear view

Bottom view

Note:

System settings

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
