LS200SUB - Soundbar BLAUPUNKT - Free user manual and instructions

Product Type	Soundbar with wireless subwoofer
Brand	Blaupunkt
Model	LS200SUB
Channels	2.1 (soundbar + subwoofer)
Total Power Output	30W RMS
Soundbar Dimensions (W x H x D)	900 x 70 x 70 mm
Subwoofer Dimensions (W x H x D)	170 x 300 x 250 mm
Soundbar Weight	2.2 kg
Subwoofer Weight	3.5 kg
Power Supply	AC 100-240V, 50/60Hz
Bluetooth Version	5.0
Audio Inputs	Bluetooth, AUX (3.5mm), Optical (Toslink), USB
Audio Outputs	Wireless subwoofer (2.4 GHz)
USB Playback	MP3, WMA, WAV (max 32GB)
Remote Control	Included (CR2025 battery)
Frequency Response	45 Hz - 20 kHz
Signal-to-Noise Ratio	≥ 70 dB
Total Harmonic Distortion	< 1%
Wall Mountable	Yes (brackets included)
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use solvents.
Safety Note	Do not expose to water, rain, or moisture. Use only indoors.
Included Accessories	Soundbar, subwoofer, remote control, optical cable, AUX cable, wall mount brackets, user manual

Frequently Asked Questions - LS200SUB BLAUPUNKT

How do I connect the soundbar to my TV via Bluetooth?

Press the Source button on the soundbar or remote until Bluetooth is selected. On your TV, go to Bluetooth settings, search for 'LS200SUB', and select it. Pair if prompted.

Can I use the USB port to play music from a flash drive?

Yes, insert a USB drive (FAT32, up to 32GB) with MP3, WMA, or WAV files. The soundbar will automatically start playback. Use the remote to control track selection.

What should I do if the subwoofer is not connecting?

Ensure the subwoofer is powered on and within 10 meters of the soundbar. Press the Pair button on the back of the subwoofer until the LED blinks quickly. Then press the Pair button on the soundbar or remote. The LED will become solid when connected.

How do I adjust the bass level?

Use the Bass +/- buttons on the remote control. You can also adjust the treble using the Treble +/- buttons.

Can I mount the soundbar on the wall?

Yes, the soundbar has keyhole slots on the back. Use the included wall mount brackets and screws (not provided for wall). Ensure the wall can support the weight (2.2 kg).

Why is there no sound from the soundbar?

Check that the soundbar is turned on and the correct input source is selected. Verify the volume is not muted. For optical connection, ensure your TV audio output is set to PCM or Stereo (not Dolby Digital).

How do I reset the soundbar to factory settings?

With the soundbar on, press and hold the Source button on the unit for about 5 seconds until the display shows 'RESET'. Release; the soundbar will restart.

What is the wireless range of the subwoofer?

The subwoofer connects wirelessly via 2.4 GHz and works reliably within a range of up to 10 meters (30 feet) in open space. Walls may reduce range.

Can I control the soundbar with my TV remote?

If your TV supports HDMI-ARC, connect the soundbar via optical or HDMI ARC. The soundbar will automatically respond to the TV's volume commands when set to TV mode.

How do I clean the soundbar?

Unplug the soundbar. Use a soft, dry microfiber cloth to gently wipe the surface. Do not use any chemical cleaners, sprays, or liquids as they may damage the unit.

USER MANUAL LS200SUB BLAUPUNKT

Enjoy it.

2.1CH Soundbar with wireless subwoofer

Important Safety Instructions

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.

• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

• Do not install the product in the following areas:

- Places exposed to direct sunlight or close to radiators.

• On top of other stereo equipment that radiates too much heat.

- Blocking ventilation or in a dusty area.

• Areas where there is constant vibration.

• Humid or moist places.

• Do not place near candles or other naked flames.

• Operate the product only as instructed in this manual.

• Before turning on the power for the first time, make sure the power adaptor is properly connected.

• Plug in the USB stick directly or use a USB extension cable that is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws or open the casing of the unit; there are no user-serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 35°C.
27. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
28. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment. After 30 minutes without any audio input, the device will automatically switch into standby mode. Follow up the instruction manual to resume the operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 30 minutes the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.), in order to resume playback. Please contact the local service center if the problem remains.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.
16. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.
17. To prevent possible hearing damage, do not listen at high volume levels for long periods.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth

The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Thank you for purchasing our model. Please read and reference this manual carefully before operating the unit. Keep the manual for future reference.

Control panel

1 - Display (BT = Bluetooth, OP = optical, Hd = HDMI, US = USB, AU = AUX); 2 - Mounting brackets; 3 - AUX input jack;

4 - Optical input port;

5 - HDMI (ARC) port;

6 - Soundbar power input: AC 110/240V ~ 50/60Hz;

3 - AUX input jack;

7 - Power/standby button;

8 - Volume up;

9 - Volume down;

10 - USB playback port;

11 - LED pairing indicator;

12 - WPS auto pair button;

13 - Subwoofer AC power input: 110/240V ~ 50/60Hz;

14 - USB port for service;

Remote controller

1 - Power button: press it for unit standby on/off. 2 – Pair button: long press (3 seconds) to disconnect current Bluetooth device, but ready for pairing with others. 3,5 - Volume + /- button: press it for volume adjustment. 4,11 – previous/next button: press it to switch previous/next track in Bluetooth or USB mode. 6 - Music button/13 - Movie button/14 - News button/17 - 3D button: Press it for preset EQ enjoyment. 7, 8 - Treble +/- button: press it to adjust treble level. 9 - Mute button: press it to make the unit in silence, press it again to resume the sound. 10 - Input button: press it to switch the play mode between Bluetooth/optical/HDMI/USB/AUX. 12 – Play/pause, reset button: press it to play or pause the music in Bluetooth or USB mode; long press (3 seconds) to reset the unit including volume, EQ etc.. 15, 16 - bass +/- button: press it to adjust bass level.

Remote control battery installation

Open up the battery door and insert 2 x AAA dry battery (included) into the compartment; please make sure the polarity of battery will aim and correspond to the positive and negative silkscreen-printed symbol in the compartment. Then close the battery door.

Notes:

a. The best working distance of remote control is within 5 meters without any obstacle in between. Please aim to the remote control sensor locates on the front of unit during operation. b. The sensitivity of remote control will become weak when the battery power exhausted. Please replace it with fresh one for operation. c. Please take out the battery in case of none-operation in a long time. d. Please dispose the battery in an environment friendly way. Please reference the local government requirement for the detail.

Soundbar placement

The best working distance between soundbar and wireless subwoofer is within 6 meters (valid working range 10 meters). Please do not place the subwoofer too far away from soundbar. And you can choose to place the soundbar on a flat surface or wall-mounting way as following.

1. Place on a flat surface: Place the unit horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Do not place it inside a cabinet or a walled shelf. Follow this guidance for best sound output and good airflow around the soundbar.

1. Mount on the wall

a. Use the soundbar for location, and mark 2 holes by a pencil on the wall which has same distance as the wall bracket on the soundbar. Then drill the mounting holes directly.

b. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way make sure leave some spaces.

c. Once the screws securely fastened, hang the soundbar over by inserting the screws onto the wall mount bracket.

Warning: If you are not confident to wall-mount the soundbar correctly and securely, please seek the assistance of an experienced and skilled person of professional.

Install the speaker on a vertical, reinforced area of wall. For plastic walls, it is recommended to screw into wall studs for greater security. For optimal performance, allow at least 25mm/1" distance between the soundbar and TV.

Audio wired connection and setting

Before powering on the unit, please connect the unit first. The soundbar has included digital (optical & HDMI(ARC)) and analogue (AUX IN) inputs for different sources. You can reference the instructions below for the connection depending on what device you have.

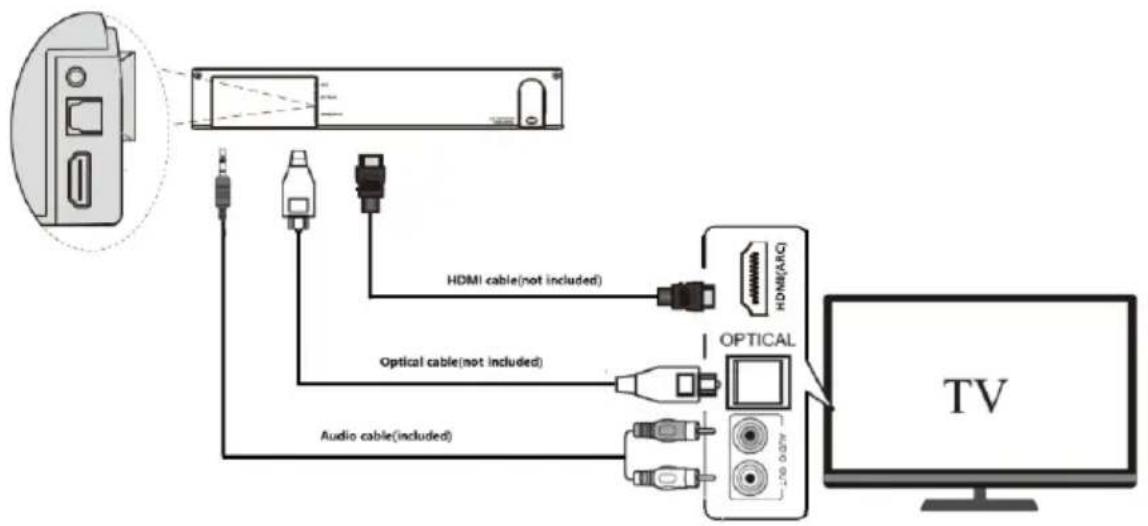

1. Soundbar connect with output of your TV.

Remove the protective cap of the OPTICAL socket, and then using an OPTICAL cable (not included) to connect between the TV's OPTICAL OUT jack and the OPTICAL input jack of soundbar. The HDMI(ARC)/AUX input connection is the same.

2. Soundbar connect with TV set-top box.

In case of output jack of your TV set-top box has, you can follow up below drawing and select AUX IN/optical connection with Soundbar.

3. Soundbar connect with DVD or Blue-ray DVD player.

In case of output jack of your DVD player or Blue-ray DVD player has, you can follow up below drawing and select AUX IN/optical/HDMI connection with soundbar.

4. Soundbar connect with MP3 player.

The soundbar has included one MP3 Link jack (AUX) which is able to connect with any other MP3 player device. Please reference below drawing for the connection and playing.

Important notes:

1. If there is no sound coming out of the soundbar in optical or HDMI mode, make sure the audio setting of your source player (e.g. DVD player, game player, TV) is set to "PCM stereo" or "stereo 2.0" with digital output. Please reference your TV or player manual for this operation.
2. HDMI(ARC): The soundbar supports HDMI with Audio Return Channel (ARC). If your TV has HDMI ARC compliant (reference your TV user manual for details), you can hear the TV audio through your soundbar by using a single HDMI cable (not included). The HDMI ARC connector on the TV may be labelled differently, please pay attention to check your TV's manual.
3. The output sound of optical and HDMI mode may be louder than AUX IN etc, which is normal, because the digital audio signal input and output level is different on audio source player (like DVD player, TV etc).
4. In case you have finished the above connection and setting, you can start to operate the soundbar according to this manual, and enjoy.

Operation

Power connection: Please check if the power source corresponds to the rating voltage spec, which is located on the rear panel of soundbar and subwoofer each. If it does not match, please consult your dealer or service center. Plug the attached AC power plug into the wall-mount socket in order to get the power source.

Power on/off: Short press the power button on the soundbar to power on the unit, press it repeatedly to switch play mode between Bluetooth/optical/HDMI/USB/AUX, long press (3 seconds) the power button to standby the unit. You can also achieve the same function by pressing the power and input buttons on the remote controller.

In case we power on the soundbar and wireless subwoofer, the unit will auto pair with the wireless subwoofer within a few seconds. If not, please try manual pairing operation, which is introduced in the following chapter of this manual.

Bluetooth operation

This product includes Bluetooth function which can wirelessly play music from other Bluetooth devices (like smart phone, tablet, TV etc).

1. Power on the unit, press the input button on the remote controller repeatedly to enter Bluetooth mode, and the "BT" symbol will flash on the display, which means the unit is ready to pair.
2. Enable the Bluetooth function on your device, and search for available devices (please reference your device manual for operation), then check the available Bluetooth device on the list. Select "BP LS200" for pairing, and the Bluetooth symbol will become stable on the display after pairing successfully.
3. Select and play the music from your Bluetooth device, adjust the volume level properly, then the sound will come out from the speaker.
4. In Bluetooth mode, you can do operations like previous/next track selection, play/pause, mute, etc. by pressing the relevant button on the remote controller.

Notices:

a. All Bluetooth devices are not guaranteed to pair successfully due to different designs and brands.

b. The best working distance for Bluetooth is within 10 meters without any obstacles in between.

c. The unit can only pair and work with one Bluetooth device at a time.

d. In case of an incoming phone call during Bluetooth playback, the music will stop temporarily and resume playback after the phone call ends.

e. Long press the pair button on the remote controller to quit the current Bluetooth device connection and start pairing with another device.

Bluetooth connection with TV: If your TV has Bluetooth function, the soundbar can also wirelessly play audio from your TV. You have to turn on the Bluetooth function on your TV screen and search for "BP LS200" to connect. Please refer to your TV's manual for details.

USB playback operation

The product includes a USB playback function that can decode and play music from a USB storage device. Before starting the operation, copy MP3 format music into the device and insert it into the unit first, because USB mode is only available when the device is successfully plugged into the unit. Then the unit will detect and play the MP3 music inside automatically.

In USB playback mode, you can get track selection, play/pause, preset EQ, treble & bass adjustment functions, etc. by pressing the relevant buttons on the remote controller.

Notes:

a. Connecting the USB stick via a USB extension cable for playback is not recommended, as it may produce noise or intermittent sound due to audio data loss during transfer. b. Decoding and playing all MP3/WAV format music is not guaranteed. c. The maximum supported storage device is up to 32GB. d. Some different devices and brands may take a little longer to start playback; please note that this is not a malfunction.

Pair wireless subwoofer with soundbar manually

The soundbar has been paired with the wireless subwoofer by default. In case there is a connection problem, please try the following steps.

a. Connect the soundbar to AC power and turn it on, then enter Bluetooth mode; the soundbar will be in pairing mode with the subwoofer.

b. Meanwhile, connect the wireless subwoofer to AC power and turn it on. The blue LED on the rear panel will flash slowly. Press and hold the WPS AUTO PAIR button on the rear panel of the subwoofer for 3 seconds. The blue LED indicator will flicker quickly, indicating that the subwoofer is pairing with the soundbar. c. After about 20-30 seconds, the blue LED indicator on the subwoofer will become steady without flickering, which means the pairing between the soundbar and subwoofer was successful. d. After the first successful pairing, the soundbar and subwoofer will automatically pair with each other on subsequent uses. e. The wireless subwoofer can also pair with another LS200SUB soundbar from the same batch. Repeat the above operation, but make sure only the desired soundbar and wireless subwoofer are turned on during pairing.

Note:

a. If the wireless subwoofer is turned on but the soundbar is powered off or in standby mode, the blue LED indicator on the wireless subwoofer will turn red after a few minutes because it enters standby mode. b. To avoid sound quality interference caused by wireless signals while using the LS200SUB, keep an appropriate distance from other Wi-Fi/2.4G wireless devices. c. The maximum connection range between the soundbar and wireless subwoofer is 10 meters in open space, and we recommend a distance of 6 meters.

Troubleshooting

1. The speaker cannot turn on.

a. Please check if the power connection is correct.

1. No sound output.

a. Please try adjusting the volume knob, checking the mute button, and verifying the play source.

b. Please contact the service center for support if the issue persists.

1. Sound distortion. a. Please try adjusting the volume to a lower level and playing music at that level. b. Check the treble/bass settings. c. Please try decreasing the volume level on external players such as a TV.
2. The sound is intermittent in Bluetooth mode.

a. Please try moving the Bluetooth device closer to the Soundbar.

b. Please try pairing the Soundbar with the Bluetooth device again.

1. There is no sound output in optical or HDMI(ARC) mode.

a. Please check if the connection between the Soundbar and the device is correct. b. Please make sure your TV is HDMI(ARC) compliant and that the appropriate port is connected. Set the TV to HDMI ARC (CEC). c. Set the TV's audio output mode to PCM format.

1. There is no sound from the subwoofer.

a. Press and hold the WPS auto-pair button on the rear panel of the subwoofer to reset and wirelessly pair it with the Soundbar. b. Power off and on both the Soundbar and subwoofer, then manually pair them according to this manual. c. If the issue persists, please contact the service support center.

Specifications

General

Power requirements: AC110~240V 50/60Hz

Power consumption (on mode): 192 Watt

Standby power consumption: < 0.5 Watt

Output power RMS: 160 Watt (40W x 2 + 80W subwoofer)

Total harmonic distortion: <1% (1 kHz, 1W)

Audio input sensitivity: 800mV

Frequency response: 45Hz – 20 KHz

USB support music: MP3/WAV

USB support device: up to 32GB max.

Soundbar dimensions: 960 x 70 x 78 mm (W x H x D)

Subwoofer dimensions: 170 x 380 x 306 (W x H x D)

Speakers

Soundbar driver impedance: 4Ω *4; 2.25inch

Woofer impedance: 3Ω*1; 6.5inch

Bluetooth

Bluetooth version: V5.0

Work range: approx.10 meters

Transmission frequency: 2.402~2.480GHz

Protocols: A2DP/AVRCP

(Notes: the product spec may change without prior notice).

Accessories

Remote Control x 1pcs

Remote control battery x 1 pair

Instruction Manual x 1pcs

Warranty card x 1 pcs

Audio cable (3.5mm stereo to RCA) x 1pcs

Wall mount screw: 2pcs x ST4 *45MM + 2pcs x plastic screw anchor

Notes:

Note:

Warning:

2. Wall mounting:

Warning:

IMPORTANT SAFETY INSTRUCTIONS

Notes:

2. Wall mounting:

2. Connecting the soundbar to the TV decoder.

Caution:

1 - Display (BT = Bluetooth, OP = optical input, Hd = HDMI, US = USB, AU = AUX);

2. Wall mounting:

Attention:

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove the cover or the rear part of the device. There are no user-serviceable parts inside. Maintenance and repair should be performed only by qualified service personnel.

Explanation of graphic symbols:

The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated "dangerous voltage" within the device's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle alerts the user to the presence of important operating and maintenance instructions in the literature accompanying the device.

2. Wall mounting:

a. Using the soundbar as a template, mark 2 holes on the wall at the same distance as the holes in the soundbar's wall bracket. Then drill the holes for mounting. b. Insert plastic wall plugs into the wall and screw the screws into the plastic plugs, do not tighten the screws fully, leave some space. c. After the screws are properly in place, hang the soundbar by inserting the screws into the wall bracket.

Wired audio connection and settings

First turn on the device before turning on the soundbar. The soundbar has digital (optical and HDMI (ARC)) and analog (AUX IN) inputs for various sources. You can find connection instructions below, depending on the device you have.

1. Connecting the soundbar to TV outputs.

Remove the protective cap from the OPTICAL connector, then use an optical cable (not supplied) to connect the TV's OPTICAL OUT port to the OPTICAL input jack on the soundbar. The connection via HDMI (ARC) / AUX connector is the same.

1. Connecting the soundbar to a TV receiver. Check which outputs your set-top box has, then use the appropriate cable to connect the set-top box to the soundbar. For proper operation, it is sufficient to connect with one type of connector. See the drawing below.

1. Connect the soundbar to a DVD or Blu-ray DVD player. Check which outputs your DVD / Blu-ray DVD player has, then use the appropriate cable to connect the device to the soundbar. For proper operation, it is sufficient to connect with one type of connector. See the drawing below:

1. Connecting the soundbar to an MP3 player. The soundbar has one MP3 Link (AUX) input to which any MP3 player can be connected. Use a suitable cable terminated with mini plugs as shown in the figure below.

Note:

1. If there is no sound from the soundbar when connected via optical or HDMI cable, check whether the digital audio output setting of the source device (e.g., DVD player, game console, TV) is set to "PCM stereo" or "stereo 2.0". Refer to the user manual of the TV or other source device for this procedure.
2. HDMI (ARC): The soundbar supports the HDMI ARC standard. If your TV is HDMI ARC compliant (see your TV's user manual for details), you can listen to TV audio through the soundbar using a single HDMI cable (not supplied). The HDMI ARC port on your TV may be labeled differently; see your TV's user manual.
3. Audio output in optical and HDMI modes may be louder than in AUX IN mode, which is normal because the level of the digital audio signal can differ from the level of the analog signal.
4. After proper installation and connection of the soundbar, use it according to this user manual.

Operation

Power connection: Check that the power source matches the voltage specification on the rear panel of the soundbar and subwoofer. If it does not match, contact the dealer or service center. Plug the supplied power plug into a wall outlet for the power source.

RMS power: 160 W (40 W x 2 + 80 W subwoofer)

Total harmonic distortion: <1% (1kHz, 1W)

Audio input sensitivity: 800mV

2. Connecting the soundbar to a TV set-top box.

4. Connecting the soundbar to an MP3 player

Attention:

RMS power: 160 W (40 W x 2 + 80 W subwoofer)

Note:

Notes:

Caution:

2. Wall mounting:

Attention:

2. Connecting the sound system to the TV decoder.

Attention.

Warning:

2. Connecting the Soundbar to the TV decoder

3. Connecting the Soundbar to a DVD or Blu-ray player.

Caution:

Notes

Note:

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
