DSE 220 - Sander AEG - Free user manual and instructions

Product type	Random orbital sander
Brand	AEG
Model	DSE 220
Dimensions (L x W x H)	Approx. 250 x 150 x 180 mm
Weight	Approx. 1.5 kg
Power supply	Corded (mains 230 V~)
Power consumption	220 W
Pad diameter	125 mm
Stroke (eccentricity)	2 mm
No-load speed	12,000 to 20,000 rpm
Main functions	Coarse and fine sanding, integrated dust extraction, variable speed
Paper fastening system	Velcro (hook and loop)
Abrasive paper type	125 mm discs (grit 40 to 120)
Sound level	Approx. 82 dB(A)
Vibration (hand-arm)	< 2.5 m/s²
Maintenance and cleaning	Clean the housing after use, empty dust bag regularly
Safety device	Anti-restart switch, spindle lock for disc change
Spare parts and repairability	Pad, sanding pads, brushes, switch available from AEG
Warranty	2 years (according to legislation)

Frequently Asked Questions - DSE 220 AEG

How do I change the abrasive disc on my AEG DSE 220 sander?

To change the disc, press the spindle lock button (usually located at the back of the sander) to hold the shaft, then unscrew the disc counterclockwise. Place the new disc and tighten by hand.

What type of abrasive paper should I use?

Use 125 mm diameter abrasive discs with Velcro attachment. The grit should be suitable for the job: grit 40-60 for roughing, 80-120 for fine sanding.

Is the AEG DSE 220 sander suitable for curved surfaces?

Yes, thanks to its eccentric pad, it is suitable for sanding flat and slightly curved surfaces. For pronounced curves, use a triangular sander.

How do I adjust the sanding speed?

The speed is adjusted via the knob on top of the sander. Turn it to select the desired speed (1 to 6). High speed is recommended for rough sanding, low speed for finishing.

Does the AEG DSE 220 sander have a dust extraction system?

Yes, it has a rear dust extraction outlet that can be connected to a vacuum via an adapter (not included). It can also use an integrated dust bag.

What should I do if the sander no longer starts?

First check the power supply (cable, plug, fuse). If everything seems correct, the carbon brushes may be worn out: they must be replaced by a professional. Refer to the manual for details.

How do I maintain my AEG DSE 220 sander?

After each use, clean the housing and pad with a dry cloth. Empty the dust bag regularly. Check carbon brushes every 6 months. Do not use solvents.

What is the maximum sanding depth?

The eccentric stroke is 2 mm, which allows moderate material removal. For deburring or roughing, use a coarse grit. Do not force the tool.

Can I use the sander without a dust bag?

Yes, but it is recommended to always use a dust extraction system to reduce dust and protect your health. If you don't have a vacuum, the supplied dust bag must be installed.

Where can I find spare parts for the AEG DSE 220?

Spare parts (pad, brushes, switch, sanding pads) are available from AEG customer service or specialized websites. Use the model number to identify compatible parts.

USER MANUAL DSE 220 AEG

Instruction for use

Please read and save these instructions.

Gebrauchsanleitung

Introduction		You demand the best and buy quality - quality provided by Atlas Copco. We have built for you a reliable and lasting tool. Working effectively and without endangering your health is only possible if this instruction for use is read carefully before first using the tool. We want to satisfy our customers and would like you to buy again AEG Electric Power Tools from Atlas Copco.
Technical Data		TypeNominal power (W)......220 260Min. orbital frequency at no load (min-1) ......6500 8000Max. orbital frequency at no load (min-1) ......11500Orbit diameter (mm)......1.5Base plate, size from corner to corner (mm)......105 105Weight (kg)......1.1Electronics......●	DSE 220	DSE 260
Safety advice		■ Please pay attention to the safety instructions in the attached leaflet!■ Do not pierce the motor housing as this could damage the double insulation (use adhesives).■ Always disconnect the plug from the socket before carrying out any work on the machine.■ Only plug-in when machine is switched off.■ Keep mains lead clear from working range of the machine. Always lead the cable away behind you.■ Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised service agents.■ Allow the machine to come to a stop before putting down.■ Appliances used at many different locations including open air must be connected via a current surge preventing switch.■ Always wear goggles when using the machine. It is recommended to wear gloves, sturdy non slipping shoes and apron.■ Dust that arises when working in stones with crystalline silicic acid can damage your health. Please note the safety regulations, VBG, of the employer's liability insurance association.■ This machine are suitable only for dry sanding.■ Dust that arises when working on wood or using the tool on industrial material can be dangerous to health. In this case connect the tool to a suction device.
Measured sound value		Typically the A-weighted sound pressure level of the tool is 72 dB (A).The noise of this power tool is measured according to IEC 59 CO 11, IEC 704, DIN 45 635, part 21, NFS 31-031. The sound level may exceed 85 dB (A) at your working place; in this case sound insulation measures are necessary for the operator.
Measured vibration value		Typically the weighted acceleration is 2.7 m/s2 .
Usage		The detail sander can be used for sanding a large variety of surfaces, especially in corners and on edges, as well as in confined areas.Do not use this product in any other way as stated for normal use.
ENGLISH	6		DSE 220, DSE 260

Brief description

Infinitely variable electronic speed pre-selection for working a large variety of surfaces.

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

Mains connection		Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fitting the plug, make sure that the brown (live) wire of this appliance is connected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth terminal of the plug marked either E, with the earth symbol, or coloured green or green/yellow.

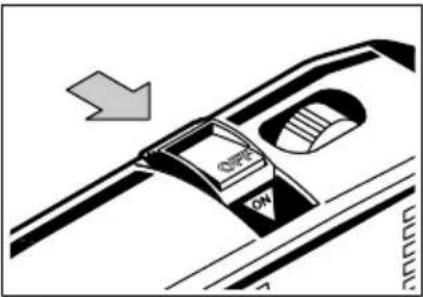

Switching on and off		Switching on: Move the slide switch to the left in direction of arrow. The switch engages.
		Switching off: Depress "OFF" button of the slide switch. The switch moves automatically back to the 0-position.
Electronics		Due to the electronic the speed can be controlled by setting the wheel to suit the various materials.
Speed selection	The speed is adjusted by means of the electronic thumb wheel.1 = lowest r.p.m.6 = largest r.p.m.
Mounting the base plate/ lamella base plate	!	Always disconnect the plug from the socket before carrying out any work on the machine. Mount the base plate (turned approx. 15°) to the tool reception (as shown in illustration) and turn it in direction of arrow until it locks.
ENGLISH	6	DSE 220, DSE 260

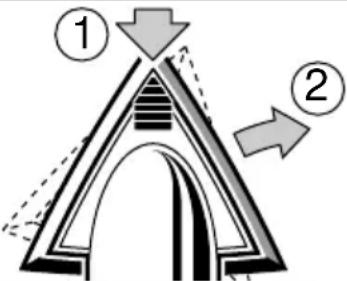

Fitting the sandpaper	[4KDS]	To remove the base plate depress the locking button and remove the base plate from the reception by turning it.To mounting/remove the lamella base plate proceed analogously.Should the Velcro coat at the top of the base plate be worn after longer use, the base plate can be turned 120° and be re-mounted. This ensures a perfect fit of the sanding paper at the top.
Dust extractionConnecting the dust-remover		Always disconnect the plug from the socket before carrying out any work on the machine.Simply press the required sandpaper to the Velcro faced base plate. To remove, pull it off. The holes in the sandpaper must conform with the holes in the base plate.
		When producing large quantities of dust, a suction hose (35 mm diameter) can be connected via the provided adapter. The suction hose can be connected with an AEG wet-and-dry vacuum cleaner. We recommend the use of the AEG wet-and-dry vacuum cleaner NTE 1100. It enables connecting the tool directly to the socket of the vacuum cleaner. When switching on the tool, the vacuum cleaner switches on automatically.Insert the suction hose connector into the adapter until it sits firmly. Connect the other end of the suction hose to a vacuum cleaner which is suited for dust extraction.
Advices for operationOptimum speed of rotation	■ Always start sanding with coarse sanding paper. Then use finer paper until reaching the required smoothness of the surface.■ Always switch on the machine before starting to sand. Remove the tool from the workpiece before switching it off. The workpiece could be scratched if the machine is not removed from the workpiece before running out.■ Smoothly lead the machine over the workpiece applying light pressure. Applying too much pressure reduces the stroke rate and therefore the sanding performance!■ Sand larger surfaces in widths. Let the widths overlay slightly.The optimum speed of rotation also depends on the hardness of the material to be worked as well as the quality and the graining of the used sandpaper:
	Usage Graining ElectronicsSanding body-work damageGrinding off old varnishSanding varnished surfacesSanding natural wood 60...240 2...5Rough sanding glass fibre reinforced plasticsFine sanding glass fibre reinforced plasticsDe-rusting steel	180...40060...80120...40060...80180...40060...120	3...54...52...42...52...52...52...4
Service Keep the machine and the ventilation slots clean.Only use AEG accessories and spare parts. The exchange of components not described must be carried out from an Atlas Copco service agent (refer to the leaflet guarantee/service agents).If needed, an exploded view of the tool can be ordered. Please state the ten-digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at:Atlas Copco Electric Tools GmbH, Postfach 320, D-71361 Winnenden.
Accessories		Please refer to page 2 for range of accessories. Further accessories with part numbers are shown in our catalogues.
ENGLISH	6	DSE 220, DSE 260

Usage Graining Electronics

Sanding body-work damage	180...400	3...5
Grinding off old varnish	60... 80	4...5
Sanding varnished surfaces	120...400	2...4
Sanding natural wood 60...240 2...5
Rough sanding glass fibre reinforced plastics	60... 80	2...5
Fine sanding glass fibre reinforced plastics	180...400	2...5
De-rusting steel	60...120	2...4

Accessories

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 50 144, EN 55 014, EN 55 014-2, EN 60 555, HD 400 according to the provisions of the regulations 73/23/EEC, 89/336/EEC, 89/392/EEC.
