USER MANUAL ESST3N PANASONIC

Operating Instructions

(Household) Rechargeable Shaver

Model No. ES-ST3N

CE

GB English. 5 DK Dansk. 123 Cz Cesky. 235
D Deutsch 23 P Portugues.141 SK Slovensky... 253
F Francais 43 N Norsk 161 Magyar 271
Italiano 63 S Svenska 179 Ro Romana 291
NL Netherlands.....83 FIN Suomi....197 TR Turkce. 311
Espanol. 103 Polski. 215

Panasonic

Operating Instructions

(Household) Rechargeable Shaver

Model No. ES-ST3N

Contents

Safety precautions. 8

Intended use 11

Parts identification 12

Before use 12

Charging the shaver. 13

Using the shaver. 14

Operation and display of the switch lock 15

Cleaning the shaver 16

FAQ 18

Troubleshooting 19

Service 21

For environmental protection and recycling of materials. 21

Specifications 22

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

• Do not use anything other than the supplied AC adaptor and the charging stand for any purpose. Also, do not use any other product with the AC adaptor and the charging stand. (See page 12.)
• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

This product

This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

• Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change etc).

Never disassemble except when disposing of the product. - Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.
• The main unit, charging stand, adaptor or cord is deformed or abnormally hot.
• The main unit, charging stand, adaptor or cord smells of burning.
• There is an abnormal sound during use or charging of the main unit, charging stand, adaptor or cord.
• Immediately request inspection or repair at an authorized service centre.

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

• Doing so may cause electric shock or injury.

Do not immerse the AC adaptor and the charging stand in water or wash with water.

Do not place the AC adaptor and the charging stand over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is

damaged or if the power plug fits loosely in a household outlet.

Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an

electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

• Failure to do so may cause fire or electric shock.

Disconnect the AC adaptor when cleaning the shaver with water.

• Failure to do so may cause electric shock or injury.

Regularly clean the power plug, the appliance plug and the charging stand to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Preventing accidents

Do not place within reach of children or infants. Do not let them use it.

• Putting parts or accessories in the mouth may cause an accident or injury.

If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician.

If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician.

• Failure to follow these instructions may result in physical problems.

CAUTION

Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face.

Do not apply the system outer foil directly to blemishes or injured skin.

Do not touch the blade section (metallic section) of the inner blade.

• Doing so may cause injury to skin or hand.

CAUTION

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

Do not use this product for hair on head or any other part of the body.

• Doing so may cause injury to skin or reduce the life of the system outer foil.

Check the system outer foil for cracks or deformations before use.

• Failure to do so may cause injury to the skin.

Be sure to place the carrying holder on the shaver when carrying around or storing.

• Failure to do so may cause injury to skin or reduce the life of the system outer foil.

Note the following precautions

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not allow metal objects or trash to adhere to the power plug, the appliance plug or the charging plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not disconnect the adaptor or the appliance plug by holding onto the cord.

• Doing so may cause electric shock or injury.

Do not share your shaver with your family or other people.

• Doing so may result in infection or inflammation.

Do not drop or hit against other objects.

• Doing so may cause injury.

Disconnect the adaptor from the household outlet when not charging.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products. Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not keep the battery together with metallic jewelry such as hairpins.
• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Never peel off the tube.
• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

• The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

If the battery fluid leaks out, do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.
• Do not bring the system outer foil into contact with hard object.

Doing so may damage the blades as they are very thin and deform easily.

• Do not dry the main unit with a dryer or a fan heater.
  Doing so may cause malfunction or deformation of the parts.
• Do not leave the shaver exposed to direct sunlight with the foil frame detached.

Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.

• Store the shaver in a place with low humidity after use.
  Failure to do so may cause malfunction due to condensation or rust.
• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.

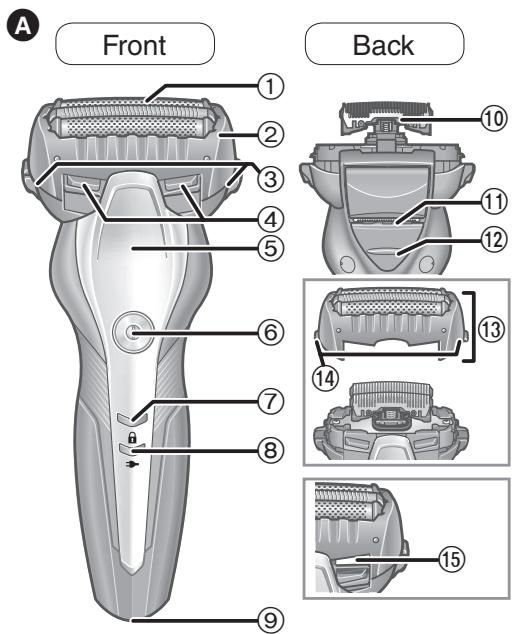

Parts identification

A Main body

① System outer foil
② Foil frame
③ Foil frame release buttons
④ Cleaning shutter
⑤ Finger rest
⑥ Power switch To turn the shaver on and off and also lock and unlock the power switch.
⑦ Switch lock lamp (B)
Charge status lamp ()
⑨ Appliance socket
10 Inner blades
① Trimmer
⑫ Trimmer handle
13 Outer foil section
14 System outer foil release buttons
⑤ Water inlet

AC adaptor (RE7-87)

Adaptor
⑰ Power plug
⑧ Cord
⑨ Appliance plug

Charging stand (RC9-86)

Charging plug
② Stand socket

Accessories

Carrying holder
Cleaning brush
Oil
Operating Instructions
Guarantee Card

Before use

Using the carrying holder

The shaver can be kept vertically. When transporting the shaver, you can use the carrying holder to protect the outer foil.

• When transporting the shaver, be sure to clean off any shavings before attaching the carrying holder.

Attaching the carrying holder

Attach the carrying holder as illustrated.

• With the protrusion (a) facing the front, securely attach the carrying holder to the shaver aligned to the orientation of the shaver head until it clicks.

Removing the carrying holder

Remove the carrying holder while pressing down on both sides.

Charging the shaver

• Turn the shaver off.
• Attach the carrying holder so as not to scratch the system outer foil.
• Wipe off any water droplets on the appliance socket and the charging stand.

1 Insert the appliance plug [E] into the shaver.

2 Plug in the adaptor [E16] into a household outlet.

• Charging is completed after approx. 1 hour.

The charging time may differ with the charging capacity.

3 Disconnect the adaptor after charging is completed.

• Charging the battery for more than 1 hour will not affect battery performance.

Note

You cannot operate the shaver while charging.

While charging

The charge status lamp () glows red.

After charging is completed

The charge status lamp () turns off.

The charge status lamp () will blink twice every second.

• After charging is completed, turning the power switch ON with the shaver plugged in will cause the charge status lamp () to light up and then turn off after 5 seconds. This shows that the shaver is fully charged.

• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp () may not glow for a few minutes. It will eventually glow if kept connected.

• Recommended ambient temperature for charging is 10^ - 35^ . It may take longer to charge or the battery may fail to charge properly in extremely high or low temperatures. The charge status lamp () will blink twice every second when there is a problem with charging. Charge the shaver within the recommended ambient temperature range.

• The shaver can be used for approximately 2 weeks with a full charge. (Based on one 3-minute dry-shave use per day)
  The number of usable days varies depending on the following conditions.

• Beard thickness

• Pressure applied to the skin
• Ambient temperature

• Usage of wet shaving

• If there is noise from radio or other source while using the shaver, move to a different location to use the shaver.

Charging with the charging stand

1. Insert the appliance plug into the charging stand.
2. Place the shaver on the charging stand.
3. Plug in the adaptor into a household outlet.

Using the shaver

Press ⑨ and shave.

• The power cannot be turned on when the switch lock lamp (A) blinks, as the power switch is locked. Press the power switch for more than 2 seconds to unlock. (See pages 15 and 16.)

Tips for better shaving

Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.
• To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.

You can also use a pen grip to hold the shaver.

2 Press when finished.

When the battery capacity is low

The charge status lamp () blinks once every second when operating the shaver.

• You can shave 2 to 3 times after the charge status lamp () blinks. (This will differ depending on usage.)

Using the trimmer

Slide the trimmer handle up. Place at a right angle to your skin and move downwards to trim your sideburns.

Tips for better usage

Apply the trimmer edge perpendicular to skin and move downward.

Trimming sideburns

Pre-shave of long beards

Notes

• The "shaving sensor", which automatically adjusts the power depending on the beard thickness, will operate.
  It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.
• Before shaving, check that the cleaning shutter is closed.
• After wet shaving, wash the main body with water and apply oil to the system outer foil.

• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

• The appliance may not operate in an ambient temperature lower than approximately 5^ .

• The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
• To prevent erroneous operation, place your fingers on the finger rest while using the shaver.

Operation and display of the switch lock

Locking the power switch

1. Press once and then release.

2. The shaver starts operating.

3. Press for more than 2 seconds.

4. The switch lock lamp () will light up for 5 seconds and turn off.

5. The shaver will stop operating.

Unlocking the power switch

1. Press for more than 2 seconds.

2. The switch lock lamp (B) will turn off.

1. Once the shaver starts operating, release

• The power switch cannot be unlocked when the shaver is set into the charging stand and the charging stand is turned on.
• The power switch is locked when the switch lock lamp ( ) blinks for 5 seconds and the shaver does not operate even though the power switch is pressed.

Cleaning the shaver

We recommend cleaning the shaver after each use.

1. Turn the shaver off and disconnect the AC adaptor.

2. Apply some hand soap and some water to the system outer foil [A①].

3. Close the cleaning shutter.

4. Turn the shaver on.

There are two ways to clean the shaver, depending on the actual dirt level.

To remove light dirt

1. Slide the cleaning shutter [A④] until it clicks.

1. Clean the outer foil section [A13] with running water.

1. Turn the shaver off.

2. Rinse with water and shake up and down several times to remove the water.

To remove heavy dirt

1. Turn the shaver off after 10 - 20 seconds.
2. Remove the outer foil section [A13] and turn the shaver on.

1. Clean the shaver and the outer foil section [A13] with running water.

• Rinse with water and shake up and down several times to remove the water.

• Wipe off any drops of water with a dry cloth.

• Dry the outer foil section, the shaver, and the trimmer [A⑪] completely.

• Allow the shaver to dry in the shade, avoid direct sunlight and then apply oil.

1. Lubricate the shaver.

It will keep the movement of the blade smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the system outer foils.
2. Raise the trimmer and apply a drop of oil.
3. Switch the shaver on, and run it for approximately five seconds.
4. Switch off the shaver, and wipe off any excess oil from the system outer foil with a soft cloth.

Notes

• Do not use any kitchen or bathroom detergents other than hand soap. Doing so may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc.
  Doing so may cause malfunction, or cracking or discoloration of the parts.
  Wipe with diluted soapy water.
• Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.

Cleaning with the brush

Remove the outer foil section and the inner blades.

(See this page.)

Cleaning with the long brush

Clean the outer foil section [A13], system outer foil [A1], the shaver body [A] and the trimmer [A11] using the long brush.

Cleaning with the short brush

• Clean the inner blades [A10] using the short brush by moving it in direction as illustrated.
• Do not move the short brush perpendicularly against the blades as it will damage the inner blades and affect their sharpness.

Replacing the system outer foil and the inner blades

system outer foil	once every year
inner blades	once every two years

Removing the outer foil section

Press the foil frame release buttons [A③] and lift the outer foil section [A⑬] upwards.

Attaching the outer foil section

After turning the water inlet surface to the front, securely attach the outer foil section [A13] to the shaver until it clicks.

Replacing the system outer foil

1. Press the system outer foil release buttons [A⑭] and pull down the system outer foil [A①].
2. Align the water inlet surface and the system outer foil mark () and securely attach together.
3. Do not press the system outer foil release buttons with excessive force. Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

Replacing the inner blades

1. Remove the inner blades [A10] one at a time.
2. Insert the inner blades one at a time.

Note

Do not throw away the foil frame.

FAQ

Question

Will the battery deteriorate if not used for an extended period of time?

Can I charge the shaver after every use?

Why should the adaptor be disconnected after use?

What is the constituent of the dedicated oil?

Answer

The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.
The battery used is a lithium-ion, so charging after every use will have no effect on battery life.
Charging the battery for more than 1 hour will not affect
battery performance, but disconnect the adaptor for safety and to save energy.
Constituent of the oil is liquid paraffin.

Troubleshooting

Perform the following actions.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem

The power switch does not turn ON.

The shaving sensor does not respond.

Action

Unlock the switch lock. (See page 16.)

Depending on the beard thickness or the amount of beard trimmings in the shaver
head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.

Apply oil.

(See page 17.)

The shaving sensor may not respond when there is not enough oil on the blades.

Problem

The shaving sensor responds even though the shaver is not in contact with the skin.
The shaver cannot be charged.
Operating time is short even after charging.

Action

Clean the beard trimmings from the shaver.
When the shaver is extremely dirty, remove the foil frame and wash with water.

(See page 16.)

Replace the system outer foil and/or inner blades.
Expected life of system outer
foil and inner blades:
System outer foil:

Approximately 1 year

Inner blades:

Approximately 2 years

The recommended temperature for charging is 10^ - 35^ . If charged at a temperature other

than the recommended temperature, the shaver may take longer to charge or may not charge at all.
Apply oil.

When the number of operations
per charge starts to decrease, the battery is nearing the end of its life.

Problem	Action	Problem	Action
Shaver does not operate even after charging.	Use the appliance in an ambient temperature approximately 5 °C or higher.	The shaver cannot be properly cleaned even after water is poured from the water inlet.	When the shaver is very dirty, first use the cleaning brush to remove beard trimmings. Or, remove the foil frame and wash with water. (See page 16.)
	The battery has reached the end of its life.
	The shaver will not operate with the AC adaptor connected. Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.	Shavings fly out in all directions.	This can be improved by cleaning every time after shaving. Clean the inner blades with the brush when shavings are adhering to the inner blades.
The driving sound changes while shaving.	The shaving sensor is operating. The sound changes depending on the beard thickness.		Confirm that the cleaning shutter is firmly closed.
Makes a loud sound.	Apply oil. The blades will not move smoothly when there is no oil on the blades, requiring more power.	System outer foil gets hot.	Apply oil. Replace the system outer foil if it is damaged or deformed. (See page 18.)
	The shaver makes a high-pitched sound due to the linear motor drive. This does not indicate a problem.	You do not get as close a shave as before.	Apply oil. This can be improved by cleaning every time after shaving. Replace the system outer foil and/or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years
	Confirm that the blades are properly attached.
	Clean the system outer foil with the brush.
The odor is getting stronger.	This can be improved by cleaning every time after shaving.

Service

Contact

Please visit Panasonic web site http://www.panasonic.com or contact an authorized service centre (you find its contact address in the pan european guarantee leaflet.) if you need information or if the shaver or the cord gets damaged.

Replacement parts

Replacement parts are available at your dealer or Service Centre.

Replacement parts for ES-ST3N	System outer foil and inner blades	WES9013
	System outer foil	WES9087
	Inner blades	WES9068

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre.

For environmental protection and recycling of materials

This shaver contains a Lithium-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

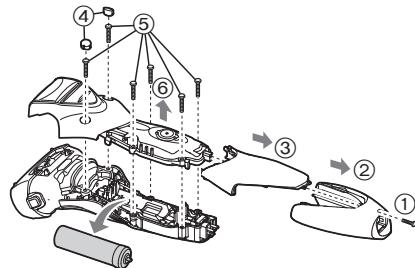

Disposal of the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the shaver.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the shaver from the charging stand.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑥ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time	Approx. 1 hour
Airborne Acoustical Noise	In shaving mode: 61 (dB (A) re 1 pW) In trimmer mode: 65 (dB (A) re 1 pW)

This product is intended for household use only.

Panasonic

Betriebsanleitung

Identification of dele. 130

Indenbrug. 130

Identification of dele

A Hoveddel

For at fjerne let snavs

Satt in adaptern welt.

• I annat fall kan det resultedera i brand ellerelstöt.

© Panasonic Corporation 2016
