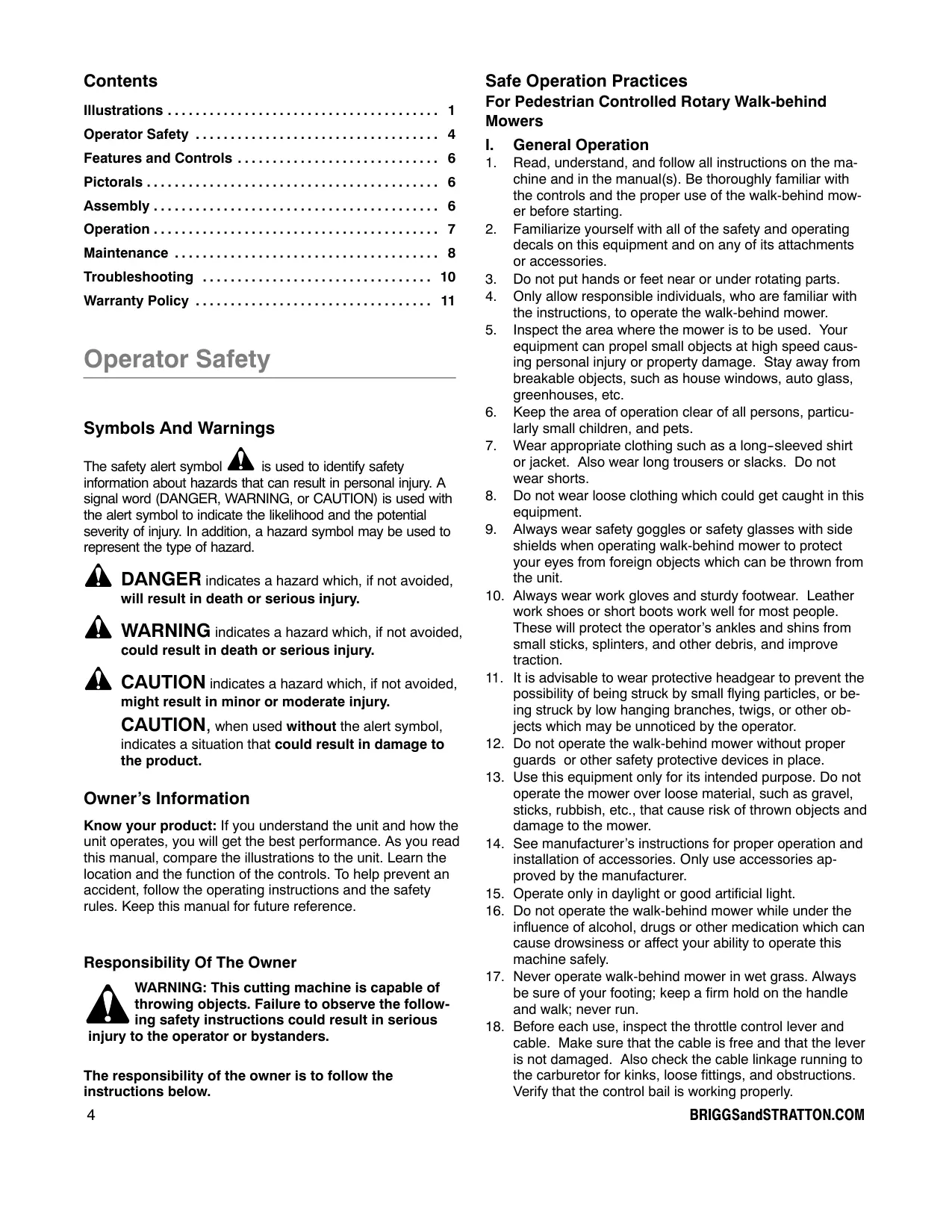

Operator Safety

Symbols AndWarnings

The safety alert symbol is used to identify safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

CAUTION, when used without the alert symbol, indicates a situation that could result in damage to the product.

Owner's Information

Know your product: If you understand the unit and how the unit operates, you will get the best performance. As you read this manual, compare the illustrations to the unit. Learn the location and the function of the controls. To help prevent an accident, follow the operating instructions and the safety rules. Keep this manual for future reference.

Responsibility Of The Owner

WARNING: This cutting machine is capable of throwing objects. Failure to observe the following safety instructions could result in serious

injury to the operator or bystanders.

The responsibility of the owner is to follow the instructions below.

Safe Operation Practices

For Pedestrian Controlled Rotary Walk-behind Mowers

I. General Operation

1. Read, understand, and follow all instructions on the machine and in the manual(s). Be thoroughly familiar with the controls and the proper use of the walk-behind mower before starting.
2. Familiarize yourself with all of the safety and operating decals on this equipment and on any of its attachments or accessories.
3. Do not put hands or feet near or under rotating parts.
4. Only allow responsible individuals, who are familiar with the instructions, to operate the walk-behind mower.
5. Inspect the area where the mower is to be used. Your equipment can propel small objects at high speed causing personal injury or property damage. Stay away from breakable objects, such as house windows, auto glass, greenhouses, etc.
6. Keep the area of operation clear of all persons, particularly small children, and pets.
7. Wear appropriate clothing such as a long-sleeved shirt or jacket. Also wear long trousers or slacks. Do not wear shorts.
8. Do not wear loose clothing which could get caught in this equipment.
9. Always wear safety goggles or safety glasses with side shields when operating walk-behind mower to protect your eyes from foreign objects which can be thrown from the unit.
10. Always wear work gloves and sturdy footwear. Leather work shoes or short boots work well for most people. These will protect the operator's ankles and shins from small sticks, splinters, and other debris, and improve traction.
11. It is advisable to wear protective headgear to prevent the possibility of being struck by small flying particles, or being struck by low hanging branches, twigs, or other objects which may be unnoticed by the operator.
12. Do not operate the walk-behind mower without proper guards or other safety protective devices in place.
13. Use this equipment only for its intended purpose. Do not operate the mower over loose material, such as gravel, sticks, rubbish, etc., that cause risk of thrown objects and damage to the mower.
14. See manufacturer's instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer.
15. Operate only in daylight or good artificial light.
16. Do not operate the walk-behind mower while under the influence of alcohol, drugs or other medication which can cause drowsiness or affect your ability to operate this machine safely.
17. Never operate walk-behind mower in wet grass. Always be sure of your footing; keep a firm hold on the handle and walk; never run.
18. Before each use, inspect the throttle control lever and cable. Make sure that the cable is free and that the lever is not damaged. Also check the cable linkage running to the carburetor for kinks, loose fittings, and obstructions. Verify that the control bail is working properly.

BRIGGSandSTRATTON.COM

1. Stop the engine (motor) when crossing gravel drives, walks, or roads.
2. Watch for traffic when operating near, or when crossing roads.
3. Stop the engine (motor) whenever you leave the equipment, before cleaning repairing or inspecting the unit, be sure that all moving parts have stopped. Let the engine cool, disconnect the spark plug wire and move it away from the spark plug.
4. If the equipment should start to vibrate abnormally, stop the engine (motor), disconnect the spark plug wire and prevent it from touching the spark plug. Check immediately for the cause. Vibration is generally a warning of trouble.
5. After striking a foreign object, stop the engine (motor). Remove the wire from the spark plug. Inspect the walkbehind mower for damage. If damaged, repair before starting and operating the walk-behind mower.
6. Regularly inspect the walk-behind mower. Make sure parts are not bent, damaged or loose.
7. Never pick up or carry the walk-behind mower while the engine is running.
8. Prolonged exposure to noise and vibration from petrol engine powered equipment should be avoided. Take intermittent breaks and/or wear ear protection from engine noise as well as heavy work gloves to reduce vibration in the hands.

II. Slope Operation

Slopes are a major factor related to slip and fall accidents which can result in severe injury. All slopes require extra caution. If you feel uneasy on a slope, do not mow it.

Do mow across the face of slopes; never up and down.

Do remove objects such as rocks, tree limbs, etc.

Do watch for holes, ruts, or bumps. Tall grass can hide obstacles.

Do not mow near drop-offs, ditches, or embankments. The operator could lose footing or balance.

Do not mow excessively steep slopes.

Do not mow excessively steep slopes (maximum 15 degrees) or areas where the ground is very rough. Exercise extreme caution when changing direction on slopes.

Do not mow on wet grass. Reduced footing could cause slipping.

III. Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the mower and the mowing activity. Never assume that children will remain where you last saw them.

1. Keep children out of the mowing area and under the watchful care of a responsible adult.
2. Be alert and turn walk-behind mower off if children enter the area.
3. Before and while moving backwards, look behind and down for small children.
4. Never allow children to operate the walk-behind mower.
5. Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

en

IV. Service

1. Use extra care in handling petrol and other fuels. They are flammable and vapors are explosive.

a. Use only an approved container.
b. Never remove fuel cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.
c. Never refuel the machine indoors.
d. Never store the machine or fuel container inside where there is an open flame, such as a water heater.
e. If the fuel tank has to be drained, this should be done outdoors. The drained fuel should be stored in a container specifically designed for fuel storage or it should be disposed of carefully.
f. Old oil and petrol should be carefully poured into containers especially designed for oil and fuel.
g. Filled containers should be carefully transported to a collection center for proper recycling.

1. Never run an engine indoors or inside a closed area.
2. Never make adjustments or repairs with the engine (motor) running. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting (remove the ignition key if equipped with an electric start). Always wear eye protection when you make adjustments or repairs.
3. Check the engine mounting bolts at frequent intervals for proper tightness.
4. Keep all nuts and bolts tight and keep equipment in good condition. If items are replaced, make sure the mounting fasteners are tight.
5. Never tamper with safety devices. Check their proper operation regularly.
6. When servicing or repairing the walk-behind mower, do not tip the machine over or up unless specifically instructed to do so in this Manual. Service and repair procedures can be done with the walk-behind mower in an upright position. Some procedures will be easier if the machine is lifted on a raised platform or working surface.
7. To reduce fire hazard, keep walk-behind mower free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage. Allow walk-behind mower to cool before storing.
8. Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
9. Always disconnect spark plug wire before cleaning, repairing, or adjusting.
10. Do not change the engine governor setting or over-speed the engine.
11. Clean and replace safety and instruction decals as necessary.
12. To guard against engine over-heating, always have engine debris filter mounted and clean.
13. Inspect walk-behind mower before storage.
14. Use only original equipment or authorized replacement parts.
15. Replace the cutting blade with factory authorized part.

Description

The walk-behind lawn mower is an engine powered rotary type mower. The engine drives a cutting blade located under the mower housing. The blade lifts and cuts through the grass. The height of cut can be adjusted to give the lawn the desired finish. The cut pieces of grass are either collected into a rear mounted grass bag or, on some mowers, it can be recycled to feed the lawn. Recycling the cut grass is known as "mulching". Push models require the operator to push the mower. Self-propelled models have a rear wheel drive system to make mowing easier.

Intended Use/Limits Of Use

The walk-behind lawn mower is designed to cut lawn grass. Any other use is not permitted. It is not designed to cut grass over 15cm in length or grass mixed with tall weeds. The lawn mower is only suitable for private use in a domestic garden. It is not suitable for cutting grass in public parks or playing fields.

Features and Controls

(Figure 1) Compare the following features and controls with your model. Make sure that you know the location and understand their purpose.

A. Engine Stop Lever
B. Upper Handle
C. Knob or Locking Lever
D. Lower Handle
E. Rear Door
F. Engine
G. Height Adjuster
H. Nameplate
I. Grass Bag
J. Recoil Starter Handle
K. Drive Lever (Self-propelled model)
L. Mulcher Plug

Pictorals

IMPORTANT: The following pictorials are located on your unit or on literature supplied with the product. Before you operate the unit, learn and understand the purpose for each pictorial.

Safety Warning Pictorials (Figure 23)

A. WARNING
B. IMPORTANT: Read Owner's Manual Before Operating This Machine.
C. WARNING: Thrown Objects. Keep Bystanders Away. Read User Instructions Before Operating This Machine.
D. WARNING: Do Not Use This Machine On Slopes Greater Than 10 Degrees.
E. WARNING: No Step.

F. WARNING: Keep Feet And Hands Away From Rotating Blade.
G. CAUTION: Disconnect Spark Plug Wire Before Servicing Unit.
H. WARNING: Crushed Fingers.

Control And Operating Pictorials (Figure 24)

I. Slow
J. Fast
K. Oil
L. Fuel
M. Engine - Start/Run/Stop
N. Drive Control Lever - Engaged/Disenaged

Assembly

Illustrations and pictorialis begin on page 1.

Unpacking instructions

The mower was fully assembled at the factory. When the mower was put in the carton, the handle was put in the storage position. To put the handle in the operating position, follow the steps below.

1. Remove the mower from the carton.
2. (Figure 2) Raise the lower handle (A) until the ends of the lower handle are locked in the operating position (B). Tighten knob (D) until the lower handle is secure.
3. (Figure 3) Remove knob (A) and the fasteners from the lower handle (C) Put the upper handle (B) in the operating position. Tighten the knobs (A) until the upper handle and lower handle are locked in place.
4. (Figure 4) To mount the recoil starter rope, you must first engage the engine stop lever (F). Slowly pull the recoil starter handle (G) and install the recoil starter rope into the rope guide (H).
5. (Figure 2) On self-propelled models, secure the cables to the handle with the cable retainers (F)

CAUTION: Be careful when you fold or raise the handle. Do not damage the cables. A cable that is bent will not work correctly. Before you use the unit, replace a bent or damaged cable.

How To Assemble The Grass Bag

1. (Figure 5) Slide the frame assembly (A) into the open end of the grass bag (B).
2. (Figure 6) Make sure the handle (C) is on the outside of the grass bag. Attach the clips (D) to the frame assembly (E).

How To Mount The Grass Bag (Figure 7)

1. To mount the grass bag on the mower, raise the rear door (F). Hold the handle (G) of the grass bag and mount the grass bag hooks (H) onto the rear door pivot rod (I). Lower the rear door.

IMPORTANT: Make sure the grass bag hooks (H), are mounted on the rear door pivot rod (I).

How To Prepare The Engine

WARNING: For the type of petrol and oil to use, see the Operator's Manual for the engine. Always use a safety petrol container. Do not

smoke when adding petrol to the engine. When inside an enclosure, do not fill with petrol. Before you add petrol, stop the engine. Let the engine cool for several minutes.

CAUTION: The engine does not contain OIL or PETROL. Before you start the engine, make sure you add oil according to the instructions in the Operator's Manual for the engine. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

For the type of petrol and oil to use, see the Operator's Manual for the engine. Before you use the unit, read the information on Safety, Operation, Maintenance, and Storage.

How To Change The Mulcher Plug

WARNING: Before you remove or install the mulcher plug, disconnect the spark plug wire and keep it away from the spark plug.

(Figure 8) Some models have an optional mulcher plug. Use the mulcher plug (A) to mulch the grass for a clean, fine cut. To discharge the grass into the grass bagger, remove the mulcher plug as follows.

How To Remove The Mulcher Plug

1. (Figure 9) Raise the rear door (B).
2. Remove the mulcher plug (A) from the discharge opening.

How To Install The Mulcher Plug

1. (Figure 9) Raise the rear door (B).
2. Slide the mulcher plug (A) into the discharge opening.

Operation

Illustrations and pictorialis begin on page 1.

Engine Stop Lever (Figure 10)

Release the engine stop lever (A) and the engine and the blade will automatically stop. To start and run the engine, hold the engine stop lever (A) in the operating position (B).

Before you start the engine, operate the engine stop lever several times. Make sure that the engine stop cable moves freely and that the engine stop lever operates correctly.

How To Stop The Engine (Figure 10)

To stop the engine, release the engine stop lever (A). Disconnect the wire and keep it away from the spark plug to keep the engine from starting.

en

Rear Wheel Drive System (Figure 11)

WARNING: For safe operation, the drive system must immediately disengage when the drive lever is released. If the drive system does not engage correctly, do not operate the mower until the system is adjusted or repaired by an authorized centre.

Self-propelled models have a rear wheel drive system. Operate the drive system as follows.

1. Hold the engine stop lever (A) in the operating position. Start the engine.
   NOTE: To stop the engine, release the engine stop lever (A).
2. Push the drive lever (C) completely forward. The drive system is now engaged and the mower will move forward.
3. To disengage only the drive system, release the drive lever (C). In the disengaged position (D), the mower will stop moving forward but the engine will continue to run.
4. To disengage both the drive system and also to stop the engine, completely release the engine stop lever (A).

NOTE: When the drive system is disengaged on a new unit, it is possible for the rear wheels to rotate if lifted off the ground. This is normal with a new belt and will stop after one or two hours of operation.

How To Start The Engine

WARNING: The blade will rotate when the engine runs.

IMPORTANT: Before you start the engine, operate the engine stop lever several times. Make sure that the engine stop cable moves freely and that the engine stop lever operates correctly.

1. Check the oil. See the Operator's Manual for the engine.
2. Fill the fuel tank with regular unleaded petrol. See "How To Prepare The Engine".
3. Make sure the spark plug wire is connected to the spark plug.
4. (Figure 12) Engines with primer: For most temperature conditions, firmly push the primer bulb (E) three times. In cooler weather, additional priming may be needed. A warm engine will usually not require priming. Every time you push the primer button, wait two seconds.

NOTE: When starting a new engine for the first time, push the primer bulb five times.

NOTE: Excessive priming can flood the carburettor with fuel. See "The Engine Will Not Start" in the Troubleshooting section.

1. (Figure 11) Self-propelled models: Make sure the drive lever (C) is in the disengaged position (D).
2. (Figure 13) Stand behind the mower. Use one hand to hold the engine stop lever (A) in the operating position as shown. Use the other hand to hold the recoil starter handle (F).
3. Slowly pull the recoil starter handle until resistance is felt, then pull quickly to start the engine. Slowly return the recoil starter handle.
4. If the engine does not start in 5 or 6 tries, see the Troubleshooting section.

Before Operation Of The Mower

WARNING: Check the condition of the grass bag for wear or deterioration. If worn or damaged, replace the parts only with approved factory re

placement parts.

To completely fill the grass bag, operate the engine with the throttle control (if equipped) in the fast position.

• To completely fill the grass bag (if equipped) operate the engine with the throttle control (if equipped) in the fast position.
• Make sure the grass bag (if equipped) is properly mounted.
• Check the condition of the grass bag for wear or deterioration. If worn or damaged, replace the parts only with approved factory replacement parts.

How To Adjust The Height Of Cut

WARNING: The blade will rotate when the engine runs. Before you change the height of cut, disconnect the spark plug wire and keep it away

from the spark plug.

Models With Individual Wheel Adjusters (Figure 15)

To change the height of cut, move the position of the adjuster arm (A) at each wheel as follows.

1. Disengage the adjuster arm (A).
2. Move the adjuster arm to another position.
3. Make sure that each adjuster arm is in the same position so that the mower will cut level.

Models With Single-Lever Adjuster (Figure 16 and Figure 17)

To change the height of cut, move the position of the adjuster arm (B) as follows.

1. Disengage the adjuster arm (B).
2. Move the adjuster arm to another position.

How To Empty The Grass Bag

WARNING: Before you remove the grass bag, stop the engine. Before you remove any grass from the mower housing, disconnect the spark

plug wire and keep it away from the spark plug.

1. (Figure 7) Raise the rear door (A).
2. Hold the handle (B) of the grass bag. Lift the frame assembly (C) over the rear door pivot rod (D).
3. (Figure 13) Empty the grass from the grass bag (E).

Mowing Tips

Some models have an optional mulcher plug. If the mulcher plug is installed, the grass is finely cut and will easily recycle. Because the nutrients are returned to the soil, the lawn will need less fertilizer.

The following tips will increase performance and improve the appearance of the lawn.

• The grass must be dry. If the grass is wet, it will be difficult to cut and cause heavy clumps of grass.
• The grass must not be too tall. The maximum height to effectively cut is 9.8cm . Set the height adjusters so that only the top third of the grass is cut.
• If the grass is more than 9.8cm high, two mowings will be necessary. For the first mowing, set the height adjusters in the highest position. Then, lower the height adjusters for the second mowing.
• Keep a sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown.
• Clean the bottom of the mower housing. If grass and other debris accumulate on the bottom of the mower housing, performance will be reduced.

To improve the quality of cut, try the following:

• raise height of cut
  cut more frequently
• operate at a slower ground speed
  reduce width of cut
• change direction
• mow a second time

Maintenance

Engine Maintenance

Illustrations and pictorialis begin on page 1.

Use the following maintenance section to keep your unit in good operating condition. Before you start the engine, read this manual and also the Operator's Manual for the engine. All the maintenance information for the engine is in the Operator's Manual for the engine.

WARNING: Before you make an inspection, adjustment, or repair, disconnect the spark plug wire and keep it away from the spark plug.

Engine Tipping

(Figure 14) Caution: Do not tip the engine with the spark plug down.

When you service the engine, inspect the blade, or clean the bottom of the mower housing; make sure to always tip the engine with the spark plug up. Transporting or tipping the engine with the spark plug down will cause the following.

hard starting
- engine smoking
spark plug fouling.
- oil or fuel saturation of the air filter

Lubrication

1. For maximum performance, lubricate the wheels and all pivot points with engine oil every 25 hours.
2. To lubricate the engine, refer to the Operator's Manual for the engine.

NOTE: Do not lubricate the engine stop cable. Lubricants will damage the cable and prevent the cable from moving freely. Replace the cable if bent or damaged.

How To Clean The Mower Housing

WARNING: The blade will rotate when the engine runs. Before you clean the mower housing, stop the engine and disconnect the spark plug wire

and keep it away from the spark plug.

If grass and other debris accumulate on the bottom of the mower housing, performance will be reduced. After you mow, clean the mower housing as follows.

1. Stop the engine.
2. Disconnect the wire from the spark plug.
3. Clean the top and the bottom of the mower housing.

How To Remove The Drive Belt

To remove or service the drive belt, take the mower to an approved service dealer.

How To Adjust The Drive Cable (Figure 19)

WARNING: Before you adjust the drive cable, release the engine stop lever and wait for the engine to stop.

If the drive system does not engage and disengage correctly, check the handle for correct assembly. Make sure that all parts are in good condition, not broken or bent, and that all fasteners are tight.

Worn parts will change the performance of the drive system. When you mow in high thick grass or on hills, the drive system can slip if the drive cable is too loose. If the drive system slips, adjust as follows or take the mower to an authorized service centre.

1. (Figure 19) If the drive system slips, turn the cable adjuster (A) one turn in the direction as shown in the illustration. Operate the mower and test the drive system.
2. If the drive system still slips, turn the cable adjuster one more turn to shorten the cable. Again, test the drive system.
3. Repeat the adjustment and test until the drive system does not slip.
4. Before you begin to mow, make sure the drive system will correctly disengage and that the mower will stop. If the drive system will not disengage, take the mower to an authorized service centre before you operate the mower.

Blade Service (Figure 20)

WARNING: Before you inspect the blade (B) or the blade adapter (E), disconnect the spark plug wire and keep it away from the spark plug. If the

blade hits an object, stop the engine. Disconnect the wire to the spark plug. Check the unit for damage.

Frequently check the blade (B) for wear or damage such as cracks. Frequently check the bolt (A) that holds the blade. Keep the bolt tight. If the blade hits an object, stop the engine. Disconnect the wire to the spark plug. Check the blade adapter (E) for damage. Check for a bent or damaged blade, a badly worn blade, or other damage. Before you operate the unit, damaged parts must be replaced with factory replacement parts. For safety, replace the blade every two years. Keep a sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown. To remove or service the blade, take the mower to an approved service dealer.

en

Check The Level Of Cut (Figure 20)

Test the unit in a small area. If the height of cut is not level or if the cut grass is not discharged or does not cut even, see the Troubleshooting section.

Folding Handle Storage

CAUTION: Be careful when you fold or raise the handle. Do not damage the cables. A cable that is bent will not work correctly. Before you use the unit, replace a bent or damaged cable.

How To Fold The Handle

1. (Figure 21) On models with knobs (A), loosen the knobs (A) that hold the upper handle (B) to the lower handle (C). CAUTION: As you fold or raise the handle, make sure that the cables are not caught between the upper and lower handles or around the handle fasteners.
2. (Figure 22) Rotate the upper handle (B) toward the back of the unit.
3. Push in on the ends of the lower handle (C).
4. Rotate the handle forward over the engine as shown. Make sure that the cables are not damaged.

How To Raise The Handle

1. (Figure 22) Pull the lower handle (C) back until the ends of the lower handle lock into the operating position. Then secure with fasteners.
2. Lift the upper handle (B) into the operator's position.
3. (Figure 21) On model with knobs (A), tighten the knobs.

How To Prepare The Mower For Storage

WARNING: Do not remove petrol while inside a building, near a fire, or while you smoke. Petrol fumes can cause an explosion or a fire.

1. Drain the fuel tank.
2. Let the engine run until it is out of petrol.
3. Drain the oil from the warm engine. Fill the engine crank-case with new oil.
4. Remove the spark plug from the cylinder. Pour one ounce of oil into the cylinder. Slowly pull the recoil starter handle so that the oil will protect the cylinder. Install a new spark plug in the cylinder.
5. Clean the dirt and debris from the cylinder cooling fins and the engine housing.
6. Clean the bottom of the mower housing.
7. Completely clean the mower to protect the paint.
8. Put the unit in a building that has good ventilation.
9. Make sure the grass bag is empty of grass. Grass remaining in the bag during storage will damage the bag.

How To Order Replacement Parts

Use only manufacturer's authorized or approved replacement parts. Do not use attachments or accessories not specifically recommended for this product. In order to obtain proper replacement parts you must supply the model number which is located on the product nameplate.

When ordering the following information is required:

Model Number
Serial Number
Part Number
Quantity

If you are not able to get parts or service in the manner given above, then contact:

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Troubleshooting

The Engine will not start.

1. Make sure the fuel tank is filled with clean petrol. Do not use old petrol.
2. On a cold engine, push the primer button (optional on some models) five times.
3. Make sure the wire for the spark plug is connected to the spark plug.
4. Adjust the carburettor. See the Operator's Manual for the engine.
5. There is too much petrol in the engine cylinder. Remove and dry the spark plug. Pull the recoil starter handle several times. Install the spark plug. Connect the wire to the spark plug. Start the engine.
6. The engine is difficult to start in heavy or high grass. Move the mower to a clean dry surface.
7. Make sure the engine stop lever is in the operating position.
8. Make sure the fuel valve is in the ON position. See the Operator's Manual for the engine.

The Engine will not stop.

1. Release the engine stop lever.
2. Check the engine stop cable. Replace the cable if bent or damaged.

The Engine performance is bad.

1. Check the height of cut settings. Raise the height of cut if the grass is high.
2. Check the bottom of the blade housing. Clean the blade housing of grass and other debris.
3. Check the wire to the spark plug. Make sure the wire is connected.
4. Clean the engine cooling fins of grass and other debris.
5. Check the carburettor adjustments. See the Operator's Manual for the engine.
6. Check the spark plug gap. Set the spark plug gap at 0.76 mm (0.030 in).
7. Check the amount of oil in the engine. Fill with oil if necessary.
8. Check the engine air cleaner. See the Operator's Manual for the engine.
9. The petrol is bad. Drain and clean the fuel tank. Fill the fuel tank with clean petrol.

Excessive Vibration.

1. The blade is not balanced. Remove the blade and replace with a factory replacement blade.
2. Check for a bent or broken blade. A damaged blade is dangerous and must be replaced.
3. Check the blade adapter. Replace a broken blade adapter.
4. If the vibration continues, take the mower to an authorized service centre.

The grass will not discharge correctly.

1. Clean the bottom of the mower housing.
2. Check for a badly worn blade. Remove and sharpen the blade. For safety, replace the blade every two years with a factory replacement blade.

The grass is not cut even.

1. Check the height adjustment at each wheel. The height adjustment must be the same for each wheel.
2. Make sure the blade is sharp.
3. Check for a bent or broken blade. A damaged blade is dangerous and must be replaced.
4. Check for a broken blade adapter. Replace a broken blade adapter.
5. Move the throttle control (if equipped) to the fast or start position.
6. Check the throttle control (if equipped). Make sure that the throttle control is not in the choke position.
7. Move the throttle control (if equipped) to the fast position. Check the speed of the engine according to the Operator's Manual for the engine.

LIMITED WARRANTY

Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the product that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in your area. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at www.murray.com.

There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law and and all implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.

WARRANTY TERMS

Product Type

Walk-behind Lawn Mower

Consumer Use

2 years

Commercial Use

90 days

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. "Consumer use" means personal residential household use by a retail consumer. "Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once product has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty.

No warranty registration is necessary to obtain warranty. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienceed. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply to the product if damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the serial number on the product has been removed or the product has been altered or modified.

This warranty covers product related defective material and/or workmanship only. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of product failure that the warranty does not cover.

• Normal Wear: Small Engine Powered Equipment, like all mechanical devices, needs periodic parts and service to perform well. Warranty does not cover repair when normal use has exhausted the life of the product or part.
• Installation: This warranty does not apply to product that has been subjected to improper or unauthorized installation, alteration or modification. Nor installations that prevent starting, cause unsatisfactory engine performance.
• Improper Maintenance: The life of this product depends upon the conditions under which it operates, and the care it receives. Recommended maintenance and adjustment intervals are stated in the Operator's Manual. Often product, such as tillers, edgers, rotary mowers, are used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, or other abrasive material entering the product because of improper maintenance is not covered by warranty. The warranty will not cover repairs due to problems caused by replacement parts that are not original manufactured part(s).
  Incorrect and/or insufficient fuel or lubrication: This warranty does not cover damage caused by the use of stale fuel, or altered gaslines. Damage to engine or engine components ie, combustion chamber, valves, valve seats, valve guides, burned starter motor windings caused by use of alternate fuels such as liquified petroleum, natural gas, are not covered unless engine is certified for this operation. Parts which are scored or broken because product was operated with insufficient, contaminated or incorrect grade of lubricating oil as well as product components damaged due to lack of lubrication are not covered.
• Operational Misuse: Proper operation of the product is stated in the Operator's Manual. Product damaged by overspeeding, overheating, or operation in a confined area without sufficient ventilation. Product broken by excessive vibration caused by a loose engine mounting, loose or unbalanced blades, impellers, overspeeding, or bent crankshaft due to striking of solid object. Damage or malfunctions resulting from accidents, abuse, or improper servicing or freezing or chemical deterioration, as well as operating in excess of recommended capacities as outlined in the Operator's Manual are not covered.
  Routine tune-up, wear items or adjustments: This warranty excludes wear items such as oil, belts, blades, o-rings, filters, etc.
• Other exclusions: Repair or adjustments for part(s) that are not manufactured by Briggs & Stratton are not covered. This warranty excludes failures due to acts of God and other force majeure events beyond the manufacturers control. Also excluded are used, reconditioned, and demonstration products.

Warranty service is available only through Authorized Service Dealers. Locate your nearest dealer in our locator map at BRIGGSandSTRATTON.COM.

en

Indholdsfortegnelse

Illustrationer 1

Sikkerhed for operatoren 12

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Fejlfinding

Motoren vil参加会议.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Fehlersuche

Tonoetnon tou kaalaiou oulloync ypaoiou (Figure 7)

1. Tia va to ntoeTheTe To kala aou loyng ypaoiou oTo xlookontko, avoNkwote Tny niow Uupa (F). KpatnoTe Tn xeipolaBn (G) Tou kalaotou ulloyns ypaoiou kai tonoeTne Ta aykiotpa Tou kalaotou (H) otov afova tnc Niow Uupaoc (I). AphiTe Tnv niow thupa va xaunawoei.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Avíxvεuση Bλαβών

O kivntipac naipvei npoosta.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Vianetsintä

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Dépannage

Vibrations excessives.

CONDITIONS DE LA GARANTIE

Type de produit

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Ricerca dei guasti

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Storingzoeken

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Motoren starter nikke.

1. Sjekk at drivstofftanken er fylt med fersk bensin. Bruk ikke gammel bensin.
2. Hvis motoren er kald, trykkes primerballongen inn (valgfri på enkelte modeller) fem ganger.
3. Sjekk at pennpluggkabelen sitter på pennpluggen.
4. Juster forgasseren. Se Operatorens handbok som tilhorer motoren.
5. Det er for mye bensin i motorens cylinder. Ta ut pennpluggen og tork den. Trekk flere ganger i startsnoren. Sett inn pennpluggen. Sett kabelen pa pennpluggen. Start motoren.
6. Motoren er vanskelig Å starte i tungt eller høyt gress. Flytt gressklipperen til et rent og tørt underlag.
7. Sjekk at motorens stoppespak stär i kjorestilling.
8. Sjekk at drivstoffkranen stär i stillingen ON (på). Se Operatørens handbok som tilhører motoren.

Motoren stopper jak.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Felsökning

Motorn startar inte.

N3BbPwBaIte KOceHeTO HAppeH0 Ha NOBbPxHOCTTa Ha NaKIOHnTe; HNKORA HaDoJy N Harope.

N3BbPwBaIte OTCTpaHЯBaHe Ha IpeДmEt N KaTo CkaJIH N KbCOBe, eIrpN KIOHn I dp.

N3BbPwBaIte Na6IIIOJeHHe 3a DnyKIn, 6pa3dN ININ N3dyTnHN. Bucoka TpeBa MoKe Da cKpNbA npenrTCTBnTa.

He KOCete pR3KO HaKJIOHEH NIOU, KaHaBKn JIN 6aHKETN. OepaTopbT MoKe Da 3aRy6n CTa6nIHoCT NIN paBHOBecne. He KOCete N3KNIOHTeJIHO CTpbMHn HaKJIOHN.

He KOCeTe N3KJIIOUHTeJIHO CTpBmHn HAKJIOHn (MaKcMym 15 rpaIyca) nIi TepeHn, B KOITo 3emrTa e MHORo HepaBHn. IpoRBAuTe N3KJIIOUHTeJIHO BHIMAHne, KORAto pPOMeHrTe NocOKaTa Ha KOCeHe B HAKJIOHa.

He KOCeTe MOKpa TpeBa. 3a6abeHTo CTbIbaHe MOKe Da IOBeDe Do IIOxJIb3BaHe.

III. Deua

TpaunHn Heuactn CnyaH MoTa Da Ce CnyaT, aKO OepaTopbT He e npdeynpeDeH 3a npcsctBneTo Ha Deca. Deata YecTo 6NBat npnbniuaHn OT KocaykaTa n HneHOTo DeiCTBne.Hnkora He npneMaIte, ye deLaTa Ie OCTaHaT Ha MICTOTO, Ha KOETO CTe Tn BIndJIa 3a NocleDeH PtTb.

1.ДрьжTe DeцаTaN3BbN IpoCTpaHCTBOTo Ha KocHe N NOd rpnKHTe Ha OTROBOpEn Bb3pacteh.
2.БbTe BnMaTeJIHn nI3KJIHOte KocaKaTAp, aKO Deua HABJ3aT B pa6OTHO npOCTpaHCTBO.
3. Преди и КогаTO се пидвЖВATE назад се олдайтЕ HaOKOLO 3a малкп Deца.
4. HnKora He no3B0JIbAaIe Ha MaJIKN Deua Da pa6oTATC KocaykaTa 3a onepaTOp, XODeu 3aJ HeJ.
5. 06pbuaTe DoIbHHTeHOBHMaHHe KOraTo DObJnxKaBaTe bJIn, 3aD KOtO HMA BnIMoCT, Uy6paU, DpbBeTa NIN dpyrN Obektu, KOtO MoTAT Da R HAmaJIrT.

IV. 06cnyxBaHe

1. 06pbuayTe DoOpbHnTeJHo BnHMaHne Pnp 6opabHeTo C 6eH3nH n Dpyr npRupBa. Te ca 3anaJIIMn, a N3napeHnra NTc Ma EKcnIO3NBHn.

a. ɪnəʊnʒBaɪte ᵠeɪnHCTBænoOdo6peŋ Kɔnteɪneɪp.
b. HNKORA He cBaJIaIte KaIaNcKaTa 3a rOpNBOTo n He HAIINBaIte rOpNBO npn pa6oTeu. OCTaBeTe DBrIraTeJNa da ce OxlaDi, ppei Da ro 3apeDInTe OTHOBO. He nyweTe B 6bn3OCT.

c. HnKora He 3apeXdaIe MaunHaTa B 3aTBopeHo NOMEUeHne.
d. HnKora He cKlaIpaIte MaunHaTa IJN KOHTeHep 3a rOpIBO B NOMEueHne, B KOETO IMA OTKpIT PnAmbK, HanpImEp C BODoHarpeBaTeJ.
e. Ako pe3epBoApbT 3a ropNbOTo Tpr6Ba da 6bJe n3TOueH, TOBA Tpr6Ba Da CTaba Ha OTKpIto. V3TOyeHOTo ropNbO Tpr6Ba Da ce CxbpaHra BA CneuHaIO npoeKtupan KOHTeHep 3a cKlaDnpaHe Ha ropNb IIN Tpr6Ba da 6bJe BHNMaTeJIHO NIKBnDnPaHO.
f. OctapnTo MaCNo 6eH3nTp6Ba BHMaTeJIHO Da Ce HaneT B KOHTeHepn, CneuaJIHO npoeKtpaHn 3a T8X.
g. ΠbJIHnTe KOHTeHnEepr76Ba Da ce TpaHcNOpTnpaT BHMMaTeJHo B cHTbPa 3a Cb6npaHETo IM 3a NOxOJaIO peuKJInpaHe.

1. HnKora He cTaptnpaIte DnIraTeIaBbTppe IIN B 3aTBOpEHO npOcTpaHCTBO.
2. HnKora He npaBeTe peRyIinpoBKn nIIN nonpaBKn c pa60Teu DnIraTeN.Pa3KaueTe Ka6eNa 3a CBeuTa I ro DpBXTe Ha pa3CTOHNe OT He, 3a Da IpeDToTbPaTInTe cnUaHIO CTapTnpAHe (OTCTpaHETe KJIoua 3a 3aAnBaHe, aKO nMa eJekTpuecko CTapTnpAHe). BnHaRn Hocete 3aunTHn Oouna, KOraTO N3BbPbBaTe peRyIinpaHe nIIN nonpaBKn.
3. Поберразе дani мотатхнite boITOBe Ha DBiRaTeJIca do6pe 3aterHaTn Ha YecTe n HInTEpbAи OT BpeMe.
4. ДрьжтЕ BCNUKи RAJKИ 6OЛTOBE 3aTeHATи И пaTeTe CbOpBXeHNeTO BДОБР OсБСТОHnE. AKO CA CMeHeH NЯКочactN, yBepete Ce, QueФИКcaTOpIte IM Ca 3aTeHnat.
5. Подьржай Te BCnKn RaKn n 6OЛТОБе 3aTeHаТи n Подьржай Te OБоруДВаHTo B DoБpo CbCTОHHe. ПоберяBAйTe MOHTaxHаТа KOHCTpyKцЯ BCEкп ПБТ, КORATO CMeHЯВaTe Ил 3aTOUbATE HOЖa.
6. HnKora He 3aMeHnTe yCTpoiCTBaTa 3a 6e30nacHa pa6ota. PpOBepraBaiTe rI peDobHO 3a npabuHaTa IM pa6ota.
7. Korato obcnykbaTe nIIN nonpaBte KocaykaTa, ynpabnBaHa ot OepaTOp 3ad He, He NaIOHbAite MaunHata Ha d IINI B NOBEe OT CneuaJIHO yKa3aHOTOKaJa ce HApBn B HAcToJIoTO PbKOBOCTBO. IpOceDpynte No noDbPbXkTa a pEmoHTa Ha KocaykaTa MORat Da ce N3BpUWBat B N3npaBeHa nO3uY. HAKO ONepaunCa eo-JeCHN 3a N3IbJIHeHne, aKO MaunHata Ce noCTaBn Ha n3dInHATA nnTcOpMa nIIN pa6OTHa NOBbpxHOCT.
8. 3a da ce hamajn nojkapHaTa onachoct, noiBpKaIte KocaykaT a uCTa OT TpeBa, INCtA nI IN dpyr HATpynHOTNOMKn. IOncTBaIe 6paKyBaHITe MacNo nIIN rOpIBO. Octabete KOcaKata da ce oxlaan nped da raCKnaDnpate.
9. Cnpete n npobepete o6opuydBaHeto, ako yapnte HnKaKbB npeJMeT. Ako e Heo6xOIMO, HanpaBeTe nonpaBka, npdeI da CTaptnpate OTHOBO.
10. BnHaHr OTKaUBaTe Ka6eNa Ha CBeuTa Ipei nouchTbaHe, nonpaBHe NJI peyInpaHe.
11. He npomehyTe ynpaBnBaAsaTa HacpoKa Ha DnIraTeJI N He yBeJIuHaBaIte OobOpTNe MY.
12. Почистваite и Сменивайтpeдунредпелнтete Taбелкna 3a Инструкции n 6e3oэнacha pa6oTa, korato e Heo6xOДИМо.
13. 3a da ce npedna3n DnBiratela OT nperepahe, pntbpbT 3a OTLOMKn BnHaRn da 6bJe MOHTnpaH n NOUCTeH.
14. Поверразыт КocaykaТа педдяя склдиратe.
15. Използваши само оригинално оборудваши。(н добреви pe3eрвни чаши.
16. CmehaTe HOka 3a KOceHe c OdopeHa OT 3aOda pe3epBHa Yact.

Oncanme

Kocaykata 3a onepaTop, KoTo ce dBNcxn Cnei He, e Kocayka potaOnoHen TIn, 3aDbNxBbHa h Ot DnBraTeI. DnBraTeIaT 3aDbNxBbPapeXeunH Ox, pa3noJoxeH NOd Koxyha Ha Kocaykata. HoXbT nobDnRa H Kocn TpeBaT. BnCOnHATA Ha KocHe MoKe Da ce peYUnpa, 3a da npndahe Ha Mopabata XeJaanH OkOHcAteJeH n3rIeI. OkOceHnte OTP3bUOn OT TpeBaT bNBat nIN cb6npaHn B pa3noJoxeHa OT3aTOp6a 3a TpeBa, INI, pRn HAKO KocayKn, MoKe Da 6bDaT peuKlnpaHn 3a HATOPBAHe Ha Mopabata. PeuKlnpaHeto Ha OTP3aHATA TpeBa e no3hato KaTO "MynpHaene" (NOKPbAHe Ha NoCbTa). ModeJIte 3a 6yTaHe HanaRat onepaTopbT da N36yTbHa HAnPeI Kocaykata. CamOXoDNHTe MoDeJI NImat 3aJaHa CnCTema 3a 3aDbNxBaHe, KOTo yJleChRA Ba KOCHeTO.

ZeIeBa yIooTpe6a/ΓpaHnCi Ha yIooTpe6a

Kocaykata 3a onepaTOp, KoITo ce DnJxN cIeI HeI, e npoeKTnpaHa da Kocn IInBaIHa TpeBa. He ce pa3peWaba HnKaBa dpyra ynoTpe6a. Ta He e npoeKTnpaHa 3a Kocnt6a Ha TpeBa, no-DbIra oT 15 cm nII npimeCeHa C BnCOKn nIeBEn. Kocaykata e noDxoJyua eINHCTBeHO 3a InuHo nOJ3BaHe B DomaUnHaTa rpaDiHa. He e noDxoJyua 3a KocHe Ha TpeBa B OoIeCTBeHN napKOBe nII nIrpuIa.

Elenentnyynpablenya

(Фура 1) CpaBHeTe cIeIbauIte eIemEHTn I ynpaBLeHnIcBaIIMMOJI. Y6eIeTe Ce,Ye I03HaBaTe pa3NoJIOXeHNeTO IM n pa3bIpaTe TxHOTO npedHa3NaYeHne.

A. loct 3a cnipahe Ha DnBiratena
B. TogHa npbXkKa
C. BytoH nJIi 6Joknpau JIOCT
D.Долнадрьхка
E. Kanak Ha IIpeJaBaTeJIHr MExaHn3bM
F.Диогател
G. Perynatop Ha BncoHnHaTa
H.ИнформадионнаТабелka

I. Top6a 3a TpeBaTa
J. PbkoXBaTKa 3a pbuHnA CTapTeP
K. 3aДвиЖВац loCT (CamaXOДeH moДeJI)
L. Kow 3a haTopraBaHe

Yka3aTeJIHnФngypn

BAJHO: CneHnTe yka3aTeHn fHyprn ca pa3noJoxeHn Bbpy Ba7aTa MaunHa nIb DocTabeHnTe C HeN HCTpyKuIn. PpeDi na PoohHeTe da pa6OTnTe C MaunHaTata, pa3yHe Tn pa36epTe ppeHa3NaeHneTo Ha BCraKa yka3aTeHa fHypra.

Преунштейнни Фгурни за Тхическа 6еонасост (Figure 23)

A. ПЕДУПЕХДЕНЕ
B. BAXKHO: PpoTeTe PbKOBoIDCTBOTO 3a noTpe6nTeJna, npeDn da pa6OTnte C Ta3n MaunHa.

bg

C. ПРЕДУПЕЖДЕНЕ: ИЗXBьрЯнпpeДмети. ДрьхTe наблюдателе на раэсторгпe. Пpoчтete Инстукципte за пotpeбителя пpeди на paбOTITE с Тази машина.
D. ПЕДУПЕЖДЕНЕ: He n3ползваи ТаЗ mашида ри наклони по-rogелени OT 10 rpaуca.
E. IPEyIPEXDEHNE: He cTbnaite.
F. IPEДУПЕЖДЕНЕ: ДьжTe кракаТи рьцTe си на pa3CTOЯне OT Вьртушия СЕ HOX.
G. BHIMAHNE: OTKaueTe Kaebela Ha CBeuTa npdeN o6cnyxbaHe Ha MaunHaTa.
H. IPEyIPEXJEHIE: IpeMa3aHn npbCTn.

YkaTeJIHnФИrpyn 3a ynpabIeHne npa6Ota (Figure 24)

I. BaBHe(6aBHO)
J. 5bp3(6bp30)
K. MacNo
L. TopuBO
M.Диогatel-Стар/Pабota/Стон
N. JIoCT 3a yypabJIeHHe Ha 3aIbIXBaHHeTo - BkIIOUeH/IV3KlIOUeH

MONTAXEN pOuec

NIIIOCTpaunTe n yKa3aTeJHnTe fIgypn 3anOuBaT Ha cTpaHnca 1.

Ihctpykun 3a pa3oNaKOBaHe

KocaykaTa e HanbIHO crIIO6eHa B 3aBoJa. Ipn IOCTABAHETO IN B ONAKOBkATo, DpbXkKaTa CE NOCTABR B PO3nUra 3a cKlaIupaHe. 3a da NOCTABuTe dpXkKaTa B pa60THa PO3nUra, CLeDBAIte CTbKNITE NO-DOJy.

1. N3baTe KocauKaTa OT ONaKOBKaTa.
2. (Фигра 2) Издгөт eдогна тдрьхка (A) дokato краица тбдат bлорани в работна поиця (B). 3aterнete nepaTkata (D), dokato дрьхкага 6ыд зakpenega.
3. (Фигра 3) Сваile Te nepчатkaTa (A) u cko6nte ot Долнота дрьжka (C) Пocstabete rophata dрьжka (B) в работна позиця. 3aTeHete nepчаткite (A),doKaTo rophata ndoJHaTa dрьжkn 6bДaT bIokupaHn Ha MeCTa T aM.
4. (Фиура 4) 3a Да моHTирate ВьжETO Ha рчня CTapTeP,пьрв ТрбБа Да ВКЛIOHITe ЛСТа 3a СИраHe Na DBIraTeJI (F).ИЗТERЛeТe 6aBHO рькoxВaTKaTа Ha рчня CTapTeP (G) И NOCTaBeTe ВьжETO 3a CTapTePa BbB BOДаЧа My (H).
5. (Фигра 2) Рпс самохонне модел, закpenete Kaбелпе Кьм рьковытkaТа с Kaбелнче Фнкатори (F).

BHIMAHHE: BbTeB HmMaTeHn, KOraTo CbBaTe nIu n3DnRaTe pbKoXBaTkata. He nobpeJdaTe Ka6eJIte. Ka6eI, KoITo e npErbHaT, Hma da paBoTn npaBnHO. Ppei Da non3BaTe MaunHaTa, CmeHeTe npErbHaTn IINI NobpeDen Ka6eI.

Kak da crlnoM Top6ata 3a TpeBaTa

1. (Фура 5) ПлбзHeTe pamKaTa (A)В OTBopeHЯ Краз ha Top6aTa 3a TpeBa (B).

2. (Фигура 6) YбeДeTe ce, Ye ДрБЖКаТa (C) e OT BьншаТа CTpaHa Ha TOp6aTa 3a TpeBa. ПрИВьрЖeTe CkoБиTe (D) КьМ paMКaТa (E).

Kak da mOnTnpuMe Top6aTa 3a TpeBaTa (Furpa 7)

1. 3a Да моHTираTe TOp6aТа 3a TpeBaTа Bbpxy KocaykaTа, NOBДИrHete Kanaka Ha npdeBaTeHnHa MexaHn3bM (F). 3aIpbxKte IpbxKaTа (G) Ha TOp6aTa 3a TpeBa, MOHTipaIte KyKIne n (H) BbPxy OCTa Ha Kanaka Ha npdeBaTeHnHa MexaHn3bM (I). Пптисе КANaka Ha npdeBaTeHnHa MexaHn3bM.

BAXHO: Y6eTeCe, Ye KyKeIte Ha TOp6aTa 3a TpeBa (H), ca MOHTnpaHI BbpxOCTa Ha KAnaKa Ha npedabateJIHHm MexAHn3bM (I).

Kak da noDrotBm Dnuratela

ПЕДУПЕЖДЕНЕ: 3a Вида Ha ИЗПОЛЗВАнITE MacLo n 6eH3nH, BnXTe PьКОБДСТВОТо 3a pa6oTa c DnBraTeЯ. BnHaru I3PON3BaIte

06e3onaceH KOHTeHep 3a 6eH3nH. He nywete, KORATO HANBATE 6eH3nH B DnurataTeJ. Korato cTe B 3aTBOpEHO NOMEuHHe HAnBaTe 6eH3nH. PpeiN 3apeXdane C 6eH3nH, Cnpete DnurataTeJ. Heka Toi ce OXlaDN B npOdbJIxKeHne Ha HAKoIKO MmHyTuN.

BHIMAHHE: DnBraTeJrHe CbDpKja MACIO nIIN
BEH3NH. Ipei Da cTaptnape DnBraTeJIe Ce yBepTe, che HaJIeMaN B Hero CnOpeI INHCTpyKuINTE B
PbKOBOdCTBOTO 3a pa60Ta C DnBraTeJIa. Ako ro CTaptnape
6e3 Maclo, ToI Za CE NOBpei N6e3 Da 6bDe Bb3MOxHO da
ce pEmoHTnpa I rapaHcNtA HrMa Da NOKpNBa UeTaTA.
3a BnJa Ha N3NoJ3BaHInTe MaCNO N 6eH3IH, BIXkTe
PbKOBOdCTBOTO 3a pa60Ta C DnBraTeJIa. Ipei Da
n3NoJ3BaTe MaUnHaTAt, IpOyETe INHΦopMaunTa OTHOCHO
TexHueckata 6e3OnaChOCT, EKcNIOaTaunrTa,
IoDDpbXkKaTaN CbxpaHeneTo n.

Kak da ce cmeHa Kowa 3a HaTopBaHe

ПЕДУПЕХДECHNE: Ппедида CBаЛNTe ИлmoHTираTe Коша 3a HaTOРЯВанe, CBaJIteKeKaбела Na CbeцтaN ro ДьЖТe Ha pa3СTOHnE

OTHER.

(Фура 8) HЯко модели Имат кош 3а HaTopяBaHe NO onця.ИЗнOLЗВайт КОWA 3a HaTopяBaHe (A)Да пОюбрЯВate TpeBaTA 3a NOЛУЧАВе На УпсTo, paBHomeрно КOCе He.3a Да pa3TOВapиTe TpeBaTA B ChvBaJa, CBaJIeTe KOWa 3a HaTopяBaHe KaKTo CNeДBA.

Kak da cBaInTe KOwa 3a HaTopraBaHe

1. (Фигура 9) Повдигнеле Кана Ка на прда Вателп МEXАнИЗБМ(B).
2. CbaIeTe Ko7a 3a HAtOpRABaHe (A) npE3 OTBopa 3a n3npa3BaHe.

Kak da mONTnPate Kowa 3a HaTopBaHe

Ha pa3ctoHnE OTe HeAko HOxu yapu HkaKbB

PpeMeT, cnpete Dbratela. Pa3kaute Ka6eHa

CbeuTa. IpoBepeTe MaunHaTa 3a NobpeDa.

ПоберяваиTe YecTo HOxA (B) 3a ИЗнOCBaHе Или NOВpeД OT BИДа HApyKHaTINH. ПоберяваиTe YecTo 6OЛТa (A), КоJOTO Ibpxn HOxA. ДрьЖTe ro Doбe 3aTeHnat. Ako HOxBJ T yApn HЯKaKbBпpeДmet, CпpeTe DBIrTaTeJY. Разкачete KaBeJa Ha CBWeIa. Поберete aДanTepa Ha HOxA (E) 3a NOBpeД. Поберete 3a ORbHaT Или NOВpeДeH HOX, HENpaВиLNo I3HocH HoX Или 3a ДPyra NOВpeДa. ПрдЯ Na ChETe MaunHATA B DeiCTBne, NOBpeDHeNte

aactn trpa6ba da 6bdaT cmehen Cpe3epBHN aactn OT 3aBOJa-npOu3BOOnTeJ. 3a 6e3oNaCh pa60Ta cMeHBAIte HOxa Ha BCEKn DBe rOdnH. Na3eTe pexeunr p6Ha HOxa. HOx, KOTo He oCTbp npuHHBa OUBETBAHe Ha Kpanuata Ha TpeBATA B KaFBO. 3a Da CBaNITE nnn 06cnyknte HOxa, 3aHeceTe Kocaykata npu YnbHOMoUe H cepBn3eH npdctabNTeJ.

N3npo6BaIte yctpoiCtBOTo Bbpxy OrpaHnueHa nIoU. Ako BnCOuHaTa Ha KOceHe He e paBHomepHa nIn OkOceHaTa TpeBa He ce pa3TOBapBa nIn IpocTo HMa KOceHe, HanpaBeTe cnpaBA Ka B pa3dEn Hen3npaBHOCTn N OcTpaHbAHeTo mM.

CrbBaHe Ha npbXkata npn cKnaDnpaHe

BHIMAHHE: BbTeB HmAteJIHn, KOraTO cBbATE nIIN 3dngate pkoXbaKata. He nobpeJdaIte ka6JInte. Ka6eJ, KOTo e npereBHaT, Hma da pa6OTn npabNIHO. PpeJn da noJ3BaTe MaunHaT, CMeHete npereBHaTn IIN NOpeDen Ka6eJ.

Kak da cbrBaTe npBXkata

1. (Фиура 21) Рп моделите с блораши 6утони (A),да ce pa3хлабват 6утони (A), коют задьржат roрнata част на дръккata (В) Кьм долната и част (С).BHIMAHINE: Рпсгваени ра3гваени на дръкката ce уberete, che kaбелите не са зхваати мекдиу roрнata и долнata част на дръкката плп Okоло.TexнITE скооби.
2. (Фигура 22) 3abptete rohpata yact ha npbkkata (B) KbM 3aHaT a yact Ha MaunHaT a.
3. HatncheTe B KpaunataHa DoJIHaTa Yact Ha dpbXkata (C).
4. 3aBbPTeTe DpbXkata Hanpei Bbpx MaunHaTa KaKTo e noka3aHo. YBepeTe ce, Ye KaBeJInte He ca nobpeHn.

Kak da n3dnghe Te npkKaTa

1. (Фура 22) Итглеле Долнота чаrt Ha дрьжкata (C) Na3aД, ДOKATO краицати се блOKират в работ ha позия. След това я закpenete ссс Кбoste.
2. Повдигнелу rat haцгьхкata (B)do pa60THata nO3nua Ha onepaTopa.
3. (Фиура 21) Вьрху модел с诫ун (A), застене诫ун. 6утон'te.

Kak da nojrotbnte kocaykata 3a cknaDnpaHe

PNEyPEXKDEHNE:He n3ToBaTe 6eH3nHa,doKaTO CTe BbTpe B cgradaTa,6n3o Cte Do orbH nn doKaTO npuHTe BeH3nHOBtne napi

MOrat Da npUHHr EKcnIO3n IJN NOxkap.

1. Μιθουτητε pe3ερBoapa 3a rρούBOTO.
2. Octabete IdbirateJIa pa6oTn, IOKaTO n3YeepnI 6eH3nHa.
   3.ИЗтуе MacNoTo OT TOnJIЯ DBuRatEn.HaNbIhete KapTepa Ha DBuRatEn C HOBO MacNo.
   4.ИЗваде ZeanJIteJIHATA CBeU O TcIINHbpa.ДоелTe eHa yHcIg MacNo B cIINHbpa.BaBHO npITeJIte PbKOXBaTKaTa Ha pBuHn CTapTep, TaKa Ye macIoTO Da 3aIHTn cIINHbpa.MOnTpauTe HOBa CBeU B cIINHbpa.
   5.Почирете Heчиротип e n OTлOMКнe OT OxlaNTeHnTe ПЛactHnИ KOKyxa HaДВИгаTeЯ.
   6.Почирете долнота ча't ha кокуха ha Кocayka-ta.
3. HanbJIno noHcTe Te KocauKaTa, 3a Da npEJa3nTe 6oTa n.
4. NocTaBaTe MaunHaTb Crpada C do6pa BENTnnaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI
5. YbepeTe ce, ye Top6aTa 3a TpeBa e n3npa3HeHa. OctabaUaTAt TpeBa B Top6aTa NO Bpeme Ha CbXpaHHeIeЯ NOBpeDi.

Kak da nopbyame pe3epBnuntary

N3PON3BaIte cAmO OTOpn3IpaHNI OIO6peHNIOTPON3BOIDTEJIpe3epBHNuCTN.He N3PON3BaItePnCTaBKNI INPiHaJDNEXKHOCTN,KoNTO He Ca CNEUHaNHOpeOpbHaHNI TO3N pOdyKT.3a Da IOnyUHTePOXODAHTe pe3epBHNuACTN Bne TPr6Ba DaPpeIOCTaBNTe HOMepa Ha MoJeLa, KOITo e pa3NOLOKeHBbpyΦnpMeHaTa Yka3aTeJHa TabenKa Ha npOdyKTA.Korato nopbVate, ce N3NCBAcEHaTaNHOpMaun:

HomepHaMoDena
- CepneH Homep
- Kataioxeh Nha YaactTa
KoJIneCTBO

Ako He CTe B CbCTOarHne Da noJyUHTe Yactnte nn yCJyraTcBflacHO OINCAHn INo-rope NaHn, CBbpxKeTe Ce C:

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

OTKpNbAHe N OTCTpaHЯBaHe Ha Hen3npaBHOCTN

Дигагелт Нама д CTapтupa.

1. YbepeTe ce, ye pe3epBoapbT 3a rOpINBOTo e HnblHeN C uNCT 6eH3uH. He n3IOn3BaJte OCTApJIO rOpINBO.
2. Ппс CTуден DBИгATEЛ, HAtИСHETe net ПБТи 6уTOHa 3a NOДКаЧВАне Ha rOрИВО (no OПцИ рпн HЯКоN MОdELI).
3. YBepeTe Ce, Ye Ka6eIbT 3a CBeUta E CbP3aH KbM HeA.
4. PerynipaTe Kap6bpaTopa. HanpaBeTe cnpaBka B PbkOBoNDCTBOTO 3a pa60Ta C DnBraTeJI.
5. Има ТБьрд Много БEH3ин BцлнДьра Ha DBИгаTeJЯ. OТстпане Ги ИЗсушete 3anaJInteJIHATA CBEИ. ИЗтглелЕ НяКОЛК ПБТи рБКoxВaTKaTЯ Ha pBчИЯ CTapТер. Пoctabe Te 3anaJInteJIHATA CBEИ. CBbpxKeTe KaBeJa KBM HeЯ. CTapТурайTe DBИгаTeJЯ.
6. Дигаел.Tудно CTapТира рп Deбета Ил Висока Трев. Ппемecтete КocaykaТа HaЧNTа cyxa NOВьхHOCT.
7. YBepete ce, Ye loctbT 3a cnipaHe Ha DnurataTeHa ha pa60Tha nO3nua.
8. YbepeTe ce, ye KlananaHa 3a rOpBOTO e Ha nO3nIaON. HanpaBeTe cnpabKa B PbKOBoDCTBOTO 3a pa60Ta C DBrIgataJIa.

Дигагеллт He cnupa.

1. Ocbobode Te IocTa 3a cnipaHe Ha DnBraTeJIa.
2. Поверете Кабеля за сиране на двигатуг. Смehete ro, akо e огьнат плповеден.

TexHnuecknte noka3aTeJn Ha dBnraTeJr ca louN.

TpeBaTa DOpH He e OkOceHa.

1. Поберете Нстюкata на Висунота пи BCЯКО колJO. Habстюкata на Висунота Трабьда щдени CBSA пи BCЯКО колJO.
2. YBepeTeCe,YeHOXbTeOcTbp.
3. Поберете за огнат посуени HOЖ. Поведен衢 HOЖ e onaceн и Трябва на сmeон.
4. Поберете за сунен щадпесу щога.Cмeheteсуненя щадпес.
5. Ппемесе Te loCTa Ha pbuHaTa ra3 (aKo nMa TaKbB) Ha no3nucr fast nnn start.
6. Поберете рьчна та ra3 (ako Иma Тakaba).Уверете ce, Ye рьчна та ra3 He e Ha поця CMyka.
7. Ппемесе Te рьнота ra3 (ako Иma TaKaBa) Ha lo3nци fast. Проверete оборOTITE Ha DBIrataTeЯ CnopeД PьКOBODTBOTO 3a pa6Otata My.

OGPAHnueHA TAPAHnIa

Kopnpaunn Briggs & Stratton, rpynata 3a npon3BOcTBO ha eheprocb3daBaun npodykTu LLC, ue nonpaBn nn 3aemen 6e3nIaTHo BCnUKN) uact(ua) Ha npodykTa, KOrTO(KoITo) e(ca) c depekeTeH MaepnaI nn n3pa6OTka, nn C dBete. TpahcnOpTNHe pa3xOan 3a npodykTa, BbPrat 3a peMOHT nn 3amHa no Ta3n rapaHn, Tp6Ba da ce eoemAT OT KynbUa. Ta3n rapaHn e BaJInDa 3a u oBeKT Ha nepnoiTe u yCIOBnra, NocOeHn No-dOny. 3a rapaHNoHNO bcnyBaHe ce obphte KbM hai 6bn3Kn YpbHOMoUe cepBn3e H pndTabuTeL BB BAun pernoh. OTHOCHO rapaHNoHHo TO bcnyBaHe otKpnite Hai 6bn3Kn YpbHOMoUe cepBn3e H pndTabuTeL H naata KaPta 3a MeCTOnOLOXeHNTo Ha npedctabNTeJIte Ha aDpec www.murray.com.

HЯma dpyra cneuajna rapaunia. Nopda3bnpaunite ce rapanui, BKJIOUHTeHIO Te3n 3a npodabaemocT I roHOCCT 3a cneuaJHa zeI, ca orpaHnueHn do edHa roDInHa ot daTaTa Ha KUYBaHe nIi Do cPoka, No3BOJeH B 3aKoHa, KaTO BCNUKn nopda3bnpaunce rapaunian ce n3KJIOUcbat. OTROBOPHOCT 3a clyaHn nIi NocJedBaun 9etn CHe n3KJIIOUvBa B CTeneH, no3BOJEna OH 3aKOHa. HkON uATn nIi CTpaHn He nO3BOJRAb AT OrpaHnueHn 3a BpeMeTPaeheto Ha noDpa3bnpaunata ce rapanui, a HAKON uATn nIi CTpaHn He no3BOJBAb Tn3KJIIOUVAHETo nIi OpaHnuaBaHTo Ha cLuyaHn nIi NOcTeDbauun 9eTn, Taka ye e Bb3MOXHO ropHOTo ORpaHnueHne n3KJIIOUeHne Da He e BaJIndHO 3a Bac. Ta3n rapaunua Bn daBa cneuФuHn 3aKOHOBn npaba, a BVE MOKeTe Da IMATE N Dpyrnpaba, KOINTO CE n3MeHJT B EDIN nIi dpyr 5at, nII B eDa nIi dpyra CTpHa.

TAPAHUNOHN CPOKOBE

TnHa npodykta

Kocayka c onepaTop 3aI HeI

2roDHH

90dHn

FapauHIOOHnI TepnoID 3aOuBa O T daTAt Ha KynBaHe OT pBnI NOTpe6nteHa I dpe6HO nIOn O KpaHnI NOTpe6nte 3a npOMnJIeHN HxJdN INoDbIjXkABa 3a nepnoD, nocouen B Ta6nIaTa rope. "3a noL3BaHe 3a cO6CTBeHN HyKdN" O3NaHabA IINHNO I3NoJ3BaHe B DOMaKNHCTBOTo OT NOTpe6nteHa I dpe6HO. "3a noL3BaHe 3a npOMnJIeHN HxJdN" O3NaHabA BCNUKIN DpyrU yNtpe6B, BKJIOHTeH NO TBpOBcKa yNtpe6Ba, KaTO IN TakaBA, fOpMnpaUa DOxoD nIIN O TdaBaHe IOd HAem. CJeI KATO BeDHbX DVBtAEJIeT E bII NOJ3BaH 3a npOMnJIeHN HxJdN, ToI ue 6bJe CHTan 3a CEJIte Ha Ta3n rapaHcH, KATO pOdoyKT C TbPROBCKO nO3BaHe.

He e Heo6xOIma pernctpaun Ha rapaunHra, 3a da ce nolynr rapaunOHNO bcnyXbahe. Na3eTe KbntAHnraTo OT NOKyNkata 3a doka3aTeJCTBO. Pn nnckBaHe Ha rapaunHNO bcnyXbahe, aKO he ocInpyrnte DOKA3aTeJICTBO 3a HauHaHaTa DaTt Ha KyNyBaHe, DaTATA Ha npOn3BOcTBO Ha npOkyTA ue 6bDe nI3PON3BaHa 3a onpeJeHHe Ha rapaUNOHnne nepNoD.

OTHOCHO BAWATA TAPAHUN

Hne npnbETCTbame rapaunohnpeMOHT n Ce n3BnHBaMe 3a Cb3daeHOTo Heydo6TBO. BceKu YnblHomouen cepBn3eH npedctabnte moxe da n3Bbprba rapaunohnnpoHTn. IOBeHTO rapaunOHn pmoHTn ce npobexkdt pytnHO, Ho noHrkora e Bb3MOxHO uckanra 3a rapaunOHNO bcnyXBaHe da He 6bDat cbOTBeTCTBaU. Hanpimep, rapaunOHNO bcnyXBaHe He c npilana a npodykTa ce e cnlyuHa npadn HnpaBnHaTO My nol3BaHe, HnpobexKahe Ha onepauuNo pyTHNaT a NodpbXka, npbe03BaHe, HnpabUNHa EKCnloatau, CbXpaHEHne nn HnpabUNeH MOtax. AnaloruyHo rapaunHnTa OTnda, aKO cepuHnT Homep Ha npodykTa e bnil n3TpNT e npodykTBt e npetbpIJI npomeHn nn KOHcTpykTNBnMoDnΦnKaun.

IrapaunrTa nokpmbEeHCTBHeo Cbbp3aHnTe C npOyKta DepekTeH MaepnA I/IIIN IpOn3BOcTBeHo KaecTBo. 3a da n36erHe HeOpa3ymHe, KoETO MoKe Da Ce POBn MekJy KyuBaHa I PpOdaBau, No-doJy ca N36poEHn HrkOu OT pPunHnTe 3a NobpejDaHe Ha npOyKTA, KOINTo rapaunrTa He nOKpmba.

• HopmaHIO n3HocBaHe: 3aIbNIXBAHOTO OT MaJIbK IDbIraTeI CbOpBXeHne, KaKTO BCnUKN MExaHnHn YcTpoiCTBa, nepIOduHc Ce HxJdae OT pe3epBHN qactu IN cepBn3HO o6ClyXbaHe, 3a da pa60Tu Do6pe. FapauHnraTa He NOKpNbapeMOHTa, KORATO HopmaHOTo n3HocBaHe e I3uepnaJIO XKnBota Ha npOdyKTA uIN HerOBA qact.
• MoNTaJx: Ta3n rapaHcIe e HeBaJIiNDHa 3a npOdyKT, KOTo e 6nil nOIoXeH Ha HEnpaBUNeH iINn Hepa3peSeH MOHTaK, ppeyCTpOJCTBO iINn KOHCTpyKtNBHa moNΦnkaCua. ToBa ce OTHacr N 3a MOHTaKn, KOTo npenrTCTBaT CTapTnpaHeto n BOJr Tdo He3aIOBOJInTeJIHa pa60Tha xapaKtepcntka Ha DnBraTeJI.
• Henpabunha noDpBkka: EKcNlOaTaUOnOHnT JxBOr Ha To3n IpojyKT 3aBnCn OT yCNoBnTa, npN KOtO pa60tn O T rpnKnte, KOnTO nOlyuaba. IpeOpbYBaHnTe nHTepBaIi NT Bpeme 3a NODpBxKa n peyUnpaHe ca fOpMynpaHn B PkoBoJCTBO t3 oepaTopa. YecTo npOdykTN KATO KUYINBaTOPI, uAnf-MaunHn, potaONHNKocAChn Ce n3PONBHa H cIgMa 3aPa7eHOCT n 3AmbpcBaHe, KOtO BOJr DO TOBA, KOeTO CE npoRBA KaTO npEbnapITeHnO n3HOCBaHe. TaKOBa n3HOCBaHe, npuHHeO T 3AmbpcBaHe, npax IJIpy a6pa3nBEH MaTePnAIn, Bn3bl B npOdykTA nopAdn HnpabunHa ekCnloatauHn, He ce NOKpNBaOT rapaHnraT. FapanrTa He NOKpNBa peMOHTn, DbljXaIe Ce Ha np6bIeMn, npuHHeHn OT pe3epBn qactn, KOnTO He ca oprHnHIO npo3BOdCTBO Ha npo13BOIDTEJI.

bg

• HenpaBnHNO n/nn HeoctbHOr npBBO nIc Cma3BaHe: Ta3n rapaHnHe NOKpBa NOpeHa, npuHHeHa OT n3PON3BaHe Ha OCTaRJIO rOpBBO nInpOMeHEn 6eH3HH. NobpeHa Ha DnRaTeJI NII HAKOIT O HeOBnTE eJeMeHTN KaTO rOpBnHbTA KAMEPA, KJanaHnTE, JERlATo HA KJanaHnTE, BOdAHTNE Ha KJanaHnTE, N3ROPENHAMOTKN Ha CTApTepa, pnpHHeHn OT yNoTpeBaTa Ha aItePbHaTbHNrOpaBn KaTO BteUHeN Ra3 npOnaH n npipOedH ra3, He ca rapaHnOHO NOKpHTN, OCBeH aKo DBrAtenT HmA ceTpNfKAT 3a Takaba EKcnIooatauNTy. AChTne, KOntO ca NaDpaHn IIN ChyPeHn, NopdAn ToBA, Ye PNOyKTbT e pa60TNI C HeoCTaBtHo, 3AmbpceHO c Maclo C He npabInHe BnCKO3HTET, KaKTo n IOBpeHn Yactn, nopadAn IINca Ha Cma3BaHe, He ca rapaHnOHO NOKpHTN.
• Henpabunha ekcnnoatau: IpaBnHaTa ekCnnoatauHa npOyKta e foOpmylnpaHa B PkoBOdCTBoto 3a onepaTopa. IpOdyKT, nobpeDen OT npBnuSeHn Oobotn, ppePraBaHe nI npabota B 3aTbOpeHo NOMEeHne 6e3 docTaTbHa BeHTnlaucn. IpOdyKT, cUynen OT pekOMepRa Hbpaun, npmHHeHa OT xJaab MOtJx Ha DnraTeJn, XnaBaN nI HeBaIacnpaHn HOKObE, nepKn, npBnuSeHn Oobotn nI n3KpNBEN KOJHOB BaI, npaDn yApB T bTpD npedMeT. NobpeDa nI HeN3npaBnOCTn B pe3yUntat Ha nHcndENTn, 3NoYnOTpe6a, HnpabUnHO oCbNyXbaHe nI Ha n3Mp3BaHe nI INXmUuecko Bb3deCTBne, CbIo KAKTo nI Ha paBto N3BbN ppeoppbBaHnTe OeMn, KaKTo e noDyepTaHO PkoBOdCTBOTO 3a onepaTopa, He ca rapaHcNOH NoKpnTu.
• PytnHHo perylnpae, n3HocEH nTeaJIIn nJn HacTpoKn: Ta3n rapaHcIy n3HOceHn deTaJIIn KaTO MaCNo, peMbci, HOKOBe, O-npbCTeHn, pJIITpn i T. H.
• Дугун ИЗКlioочен: Ремонт Или Habстори 3а чаT(и), КОНTO He ca пponьдени OT Briggs & Stratton He ca nokpitn OT rapaцида. Та зн rapaцида ИЗКlioоча НИзправно, Дьлжаше с ha БORA (прирогнITE сил) и дуг finopсмадори CBбпту, КОНTO ca ИЗВьн КОТРола Н пponьдени. ИЗКlioочeni ca CBшо ИЗПОЛ3ванITE, ремонтразанITE подктп, КАТО И TeЗи 3a Демонстрационни цELN.

TapaHcHHOHOTo 06cIyKbAHe e IocIbNHO cAmO Upe3 YIbIhOMoUeHInTe CepBn3Hn IpeIcTaBnTeJI. OTkpiIte BaIaIHT NaIbIz3bK IpeIcTaBnTeJI bHaawata KaPta 3a MeCTOnOLOXKeHneTO Ha IpeIcTaBnTeJIte Ha aIpc BRIGGSandSTRATTON.COM.

Obsah

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Mootor ei käivitu.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Dijagnostika kvarova

Motor se ne doit korekrenuti.

1. Provjerite je li u spremniku za gorivo Čisti benzin. Ne koristite stari benzin.
2. Na hladnom motoru pritsinite pumpicu za gorivo (opcija na nekim modelima) pet puta.
3. Pazite da je visokonaponski kabel spojen na svjecicu.
4. Podesite rasplinjač. Pogledajte Priručnik rukovatelja za motor.
5. Ima previše benzina u cilindru motora. Izvadite i osušite svjećicu. Nekoliko puta povucite konopac zaPokretanje motora. Vratite svjećicu na njeno mjesto. Spojite kabel na svjećicu. Pokrenite (startajte) motor.
6. Motor se teškoPokrece (starta) na gustoj ičvrstoj ili visokoj travi. Pomaknite kosilicu na Čistu, suhu površinu.
7. Provjerite je li poluga za zaustavljanje motora u radnom položaju.
8. Provjerite je li ventil (slavina) za gorivo u položaju ON. Pogledajte Priručnik rukovatelja za motor.

Motor se nece zaustaviti.

1. Otpustite polugu za zaustavljanje motora.
2. Provjerite ispravnost sajie za zaustavljanje motora. Zamijenite sajlu ak je svinuta ili ostecena.

Motor lose radi.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Hibakeresés

A motor nem indul.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Variklis neuzsiveda.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Bojājumu novéršana

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Wykrywanie usterek

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Depanare

TAPAHINHOEOB3ATEJIbCTBO 183

Бezoinachoctb onepaTopa

Cnmbolbl npedynpeKdeneH

IpeDynpdntelbHb3nak IcNoB3yeTcI nO60HaehnIHbOpMaun 06 OAnCbHx CnTuaynx, KOTOpBle MOrYt PnBcEtn KTPaBMe. C 3nM 3hakOM cNoB3yeTcI CnHaJIbHoe CNoBO (O1ACHO, OCTOPOXHO uN BHMAHVE), yka3bBaIOue He BepoTHocTb nIOTeHuaJIbHyTO TReKeTb TpaMbI. B DOnOIHeHMe, CmBOL ONaCHOtMOKETcNcNoB3OBaTcB dny kKa3aHnB bnda OnaCHOCTn.

ONACHO yka3bIbaeT Ha onachnyo cHTyaunio, KOtopa, ecn ee He n36ekatb, npuBeTeK CmepTeBHomy nCxody nIN cepbe3HOn TpaBme.

OCTPOXKHO yka3bIbaet Ha onachyio cnTyaauho, KOtopaa, ecn ee He n36eXaTb, MOxet npuBecTN K CmepTeNbHomy nCxOdy nIe cepBe3HOn TpaBme.

BHUMAHNE yka3bIbAeT Ha onaChyIO cHTyaCuIO, KOtOpaI, ecn ee He n36ExKaTb, MoXeT npuBcTe N TpaBMe cpeHne HJI neKoN TAAKeCTn.

BHUMAHNE, KORda mCOnNoB3yeTc8 6e3 npedynpeDntelHoro 3HaKa, yKa3bIbAet Ha CNTyaIIO, KOtopar MOKET npINBeCTN K NOBpeXdeHIO u3dJIIn.

HΦopMaunIaBlaeIbua

3HaIte BO3MOXHOCTN BaWero n3dJIeN: EcIn BbO 03HaKOMITecb C n3dJIeHem m oJMeTe, KAK OHO pa6oTaet, To BbI nOlyHTe OT hEr oMaKcImaJIbHyIO OTdAUY. NOp Mepe YTeHnI HAcTOnJeRpyKOBoDCTBa, cpaBnBaIe INlloCTpauCm CpeaJIbHbIM arperaTOM. N3yUHTe paCnOLOKeHne I Na3NaueHene OprAHOB UynpAbLeHn. YTo6bl NCKLIQUHTB BO3MOXHOCTb HeCCHaTHOrO cnyaar, Co6JIHOJaTe IHCTpyKuMn PO pa6Ote I npabINa TEXHKn 6e3ONaCHOCTN. CoxpaHHe NaCToAuee pyKOBoDCTBO dIra ObpaUeHN K HEmy B 6byUeM.

06raHHocTbBlaJeIbua

OCTOPOXKHO: 3Ta MaunHa c pejxumn pa6oymn opraHamc cnoc6ha amnytupobaT pykn nIn Horn, a TAKKe OT6paCbIBaTb C cnIoN ppeMeTbl.

Heco6IIOJeHHe INcHTpyKuI N IO TeXnKe 6e3OnaChocTm MoKet IprNBecTe K cepBe3HbIM TpaBMam OpeaTopa NJI Na6JIoudaTeJei.

063aHHOCtB BlaJeIbIca 3aKJIIOyaeTcB B bInOJIHeHm yKa3aHHbIX HNKe IHNCTpyKcN.

ПравILA Текник的服务站

ДляpoTOPhBIXKocnIok,ynpaBnEMybIXNyuImc3aAn onepaTopoM

I. Ośuza XIIIΦopMaζη NO ὄΚCπΥaTaζη

1. PpOHTnTe, NpOIIMnTe n CneIyIe BCem INHCTpyKzIaM, npBBeDEHHbIM B PYKOBOIDCTBE (aX) n Ha KaJIeMyKaX MaShINbI. IpeEd NaHaayoMaO3nPbOToB bHNMaTeNbHO O3HaKoMbTecc B opraHami ynpaBJeHnI npabINbHbIM npIMHeHEnM KocuNkI.
2. O3HaKoMbTeCb CO BCEMN HaKJIeKAMN IO TEXHnke 6e3OJaNoCHoCTn n 3KcPnIyatauMn Ha daHOM o6OpyIOBaHmN n Ha IIO6bIX HABechBIX npncnOC6JIeHNx n pInHaJdJeXHOCTx.
3. He onyckaIte cBoH HOrn IJIn pyKn B6JIn3N BpaaIooXcJ Detanei nn nOd Hmnn.
   4.ДonyckaiteToIbKOOTBETCTBHeHbIXIHOJeK，KOTOpbIe O3HaKOMJIeHbICINHTpyKcIaMmKpa6OteC KocuIKoJ.
4. Поберп Te ПLOцаду, Гд Должн И спьзоватс Косик. Baше оборудано может с слло OTбрасьВаТ He6oBshne npedMeTb, KOTOpBle MOrTy prnHnHtB TrpABMbI INI MaTePnaJIbHbY upe6. He npi6JIxkaItec b X pynKIM npedMetam,Κak HapriMep,Κ OKHam Doma,CTeKlAm abTomObIJe, opahKepeRm I T.D.
5. He donyckaite npnbJnxKeHnK pa6oey 3OHe IIOdeI, OocobHNO MaJIeHbKnX DeTeN I DomaUHNX JINBOTbIX.
6. Hocnte COOTBETCTBYUO yIOeJy, KaK Hanpimep, py6aIky c nnHHbIMn pyKaBaAMn nIy KypTky. Hocnte TaKxpe nnHHbIe 6pOKn nnIbnPOKne 6pIKn. He Hocnte wOpTbl.
7. He hocHTe CBO6OuHyo OJExKdy, KOtOpaM MoXeT 6bITb 3axBaueHa DnBxKyUIMNCA DeTaIaMn 3TOrO 0bOpyDobAHNA.
8. Bcerda HocHTe 3aunTHbIe OCHN IIN OCHN C60KOBbIMn UHTkAMn pR paOBe T c KOCUNKOJ, dIra 3auNTb CB0Xr rna3 OT INHOndbIX TeI, KOToPBIE MOyT 6bITb BBIOpeHbI n3 arperata.
9. Bcerda hocnte 3aunTHbIe nepaTkn KpeKkyo o6yBb. KoxaHra pa6oay a6bBy nII KOPOTKe canOrn xopoIo noXoJrT dna 6oJIbUHNcTBA IIOJeN. 3To 3aunTnT JOnbljKKn ngolen NooperatopA ot He6Oblux BetoYek nIu cienok, u yIyuHTC cenPHeNe C rpyHTOM.
10. Lénecoobpa3H O Hocntb 3aunTHyO KACKy dIJI NCKIIOUeHIN BO3MOXHOCTN IONUYeHIN Ydapa OT He60JIbIMx JETAOUIMX HaCTNUeK IINI HNI3KO paCnOJIOKeHHbIX CyhBeB, BETOK IINI DpyrNX PpeMToB, KOTopbIe MOryt 6bITb He 3aMeueHbI ONepaTOPOM.
11. He donyckaetcpa6oTaB c KocnKoB 6e3 haJleXaunx uNTKOB INI IN DpyrIX 3aunTHbIX pncnOco6JeHIn, yCTaHOBJeHHbIX HA CBOEM MeCTe.
12. Истору Стей мелу Достаиму Надусян. <|im_start|>assistant
13. Истору Достаиму Надусян. <|im_start|>assistant
14. Истору Достаиму Надусян. <|im_start|>assistant
15. Истору Достаиму Надусян. <|im_start|>assistant
16. Истору Дostаиму Великий. <|im_start|>assistant
17. Истору Дostаиму Великий. <|im_start|>assistant
18. Истору Дostаиму Великий. <|im_start|>assistant
19. Истору Дostаиму Великий. <|im_start|>assistant
20. Истору Дostаиму Великий. <|im_start|>assistant
21. Истору Дostаиму Великий. <|im_start|>assistant
22. Истору Дostаиму Великий. <|im_start|>assistant
23. Истору Дostаиму Великий. <|im_start|>assistant
24. Истору Дostаиму Великий. <|im_start|>assistant
25. Истору Дostаиму Великий. <|im_start|>assistant
26. Истору Дostаиму Великий. <|im_start|>assistant
27. Истору Дostаиму Великий. <|im_start|>assistant
28. Истору Дostаиму Великий. <|im_start|>assistant
29. Истору Дostаиму Великий. <|im_start|>assistant
30. Истору Дostаиму Великий. <|im_start|>assistant
31. Истору Дostаиму Великий. <|im_start|>assistant
32. Истору Дostаиму Великий. <|im_start|>assistant
33. Истору Дostаиму Великий. <|im_start|>assistant
34. Истору Дostаиму Великий. <|im_start|>assistant
35. Истору Дostаиму Великий. <|im_start|>assistant
36. Истору Дostаиму Великий. <|im_start|>assistant
37. Истору Дostаиму Великий. <|im_start|>assistant
38. Истору Дostаиму Великий. <|im_start|>assistant
39. Истору Дostаиму Великий. <|im_start|>assistant
40. Истору Дostаиму Великий. <|im_start|>assistant
41. Истору Дostаиму Великий. <|im_start|>assistant
42. Истору Дostаиму Великий. <|im_start|>assistant
43. Истору Дostаиму Великий. <|im_start|>assistant
44. Истору Дostаиму Великий. <|im_start|>assistant
45. Истору Дostаиму Великий. <|im_start|>assistant
46. Истору Дostаиму Великий. <|im_start|>assistant
47. Истору Дostаиму Великий. <|im_start|>assistant
48. Истору Дostаиму Великий. <|im_start|>assistant
49. Истору Дostаиму Великий. <|im_start|>assistant
50. Истору Дostаиму Великий. <|im_start|>assistant
51. Истору Дostаиму Великий. <|im_start|>assistant
52. Истору Дostаиму Великий. <|im_start|>assistant
53. Истору Дostаиму Великий. <|im_start|>assistant
54. Истору Дostаиму Великий. <|im_start|>assistant
55. Истору Дostаиму Великий. <|im_start|>assistant
56. Истору Дostаиму Великий. <|im_start|>assistant
57. Истору Дostаиму Великий. <|im_start|>assistant
58. Истору Дostаиму Великий. <|im_start|>assistant 60.Истору Дostаиму Великий. <|im_start|>assistant 61.Истору Дostаиму Великий. <|im_start|>assistant 62.Истору Дostаиму Великий. <|im_start|>assistant 63.Истору Дostаиму Великий. <|im_start|>assistant 64.Истору Дostаиму Великий. <|im_start|>assistant 65.Истору Дostаиму Великий. <|im_start|>assistant 66.Истору Дostаиму Великий. <|im_start|>assistant 67.Истору Дostаиму Великий. <|im_start|>assistant 68.Истору Дostаиму Великий. <|im_start|>assistant 69.Истору Дostаиму Великий. <|im_start|>assistant 70.Истору Дostаиму Великий. <|im_start|>assistant 71.Истору Дostаиму Великий. <|im_start|>assistant 72.Истору Дostаиму Великий. <|im_start|>assistant 73.Истору Дostаиму Великий. <|im_start|>assistant 74.Истору Дostаиму Великий. <|im_start|>assistant 75.Истору Дostаиму Великий. <|im_start|>assistant 76.Истору Дostаиму Великий. <|im_start|>assistant 77.Истору Дostаиму Великий. <|im_start|>assistant 78.Истору Дostаиму Великий. <|im_start|>assistant 79.Истору Дostаиму Великий. <|im_start|>assistant 80.Истору Дostаиму Великий. <|im_start|>assistant 81.Истору Дostаиму Великий. <|im_start|>
59. CMOTPnTE INHCTpyKcnn INpOIN3BOOnTeN NO HADLeXaSeI EKnPyatauNN MOHTaxy INpHaNDLeXHOcte.ICnOInb3yITe TOJbKO pInHaNDLeXHOctN, pa3peWHeHHble INpOIN3BOOnTeJIEM.
60. RaobataTe TOnbKO BdHeBHOe BpMa IIn npxOpoWe MCKycCTBeHHOM OcBeueHn.
61. He donyckaetcpa60TaTb c KocnIkoH, HaxoJcB noD BO3deICTBHeM aIKOROJIa, NEkapCTBeHHbIX npEnapaTOB nIN dpytnx MeNkamEHTOB, KOtOpbIe MOrYT Bbl3BaTb COHnIOCTb nIN NOBnIaTb Ha BauSy cnOco6HoCTb 6e3OnacHO npBaJIaTb 3ToI MaSHnHOJ.
62. HnKoIa He pa6oTaIte C KocJIKoH Na MOKpo TpaBe. Bcerda ydepXuBaIte paBHOBeCne, KpeNko DePexNtEc b 3a pyKOaTKy n BCerda nepeDburaiTecb waROM, a He 6eROM.
63. Перед Каддим И сплььов海内外, поровая Te troсик и рычаг уралбени дроссени. Убейтесь, что troсик DBИЖETССВОБДно, И что рычаг не по breast. ПоровьтЕ ТАКKEТРСОВМ ПИВOD, И душий K Kapбюрату на OTCYТСВЕ погИБОВ, ос��ен HoRо крелен И спунгов И рpenятCTBи. Удостовьс.TС, что сkoBa уралбени pa60taetdoJXHbIMобразом.
64. OctaHaBnBaIte pa60Tu DInrAteTn (3NeKtpomToPa) npi nepeceueHm DoPOXKeK, pOxOIOB mIIN DoPOR.

65. Пи рабote ВОЗné Дорог ИИnpи пи IXпесецни, седип Te 3a Движеним ТранспорТa.

66. OctaHaBnBaIte pa60Tu DInrataTei (3JeKtpomToPA) npi KaJDom POKUdaHmO6OpyDobAHnA, NpeE OChCTKo, peMOHTOM INPnpOBeRko arperaTaN y6eDiTeCb, YTO BCE DBNkUxneCeA qTn NOnHOCTbIO OCTaHOBUNcB. DaJIte DBNfATEIIO OCTbIT, OTCoEINHInTE pINOBOD CBeu 3aXnraHnI NTBeIInTe ERO BCTOPOHY OT CBeu 3aXnraHnI.

67. Ecnn oobpyoBaHne NaHnaeT HcHOpMaIbHO B6pnpObaTb,TO octaHOBnTE pa60Tu DVBrAtEna (3JeKTPOMOTopa), OTOeDNHTe npBOOD CBeu 3axnraHnN IO TBeDnTe ero B CTOPOHy OT CBeu 3axnraHnN. HeMeJdEHHo HaJnTe npUHNy. O6bHuO Bn6paAua RaJIeTcN ppeDynpExDeHnEm O HcNpabHoCTn.
68. Поссе удараз ob Инордьий прдmet, остановпг рабotу DBиагтеля (эльктportOTopa). OTCоeДИнHTe npOBOD OT CBeHn 3axKINaHn. ПрберъКоКИКУ на OTCYTCTBVE NOВPEЖDEHn. B clyaue noPbEJXdENH, OTPeMOHTNpyTe KOCINKU nepeD 3anycKom n EKcnIyatauMei.
69. Perylnpno npOBepaTe Kocnky. Y6eHntecb, YTO deTaN He nOrHytbl, He NoBpeXdEhbl IIN He C Ocna6IeHHbIM KpeJIneHnEM.
70. HnKoIa He noDnHMaIte nIe He nepEHOcIte KocuKy npiaaboTaIOUeM DvIRatene.
71. CneJyET n36eRaTb npoJOnjXnTeJIbHOrO Bo3deIcTBnA Bv6paun, nCXoJaUxN OT pnpBODmORO B dBNxKHe N6e3nHObBIM DVBraTeIem OobpyIOBaHN. DeIaIte nepemExaOuNEcpepebYbIiN HocITe HayuHKn, 3aunuaOuNe OT yMa DBVrAteIa, a TAKKe IpoCHbIe 3aunTHbIe nepchatKn dIra CHNXeHn INHTeHCNBHOCTN Bv6paun, nepedabaEMoHa na IaDOHn pyk.

II. Pa6ota Ha CKJIOHax

CKIIOHb IABJIOTcO OCHOBHO pNpUHHO cNyuaEB notePn KOHTPOJ YnpaBNEHn IN OPOKINbIBAHn, YTO MOKeT pNvBECTn K cepE3HOI TpaBMe. Pa6To Ha IIObIX CKIOHAX Tpe6yET MaKcMmaJIbHOI OCTOPXHOCTe. EcnB Bbl YCbTBBye Ce6b HeyBepeHHo HA cKIOHe, TO He cKaUHBAIte Ha HEM.

BbIOnHnTe cKaunBaHne IonepeK CKIOHOB, HO HNKoRda BBepx IN BHN3.

YbpaTe NocToPOHHne IpeDMeTbI, KaK HApPIMep, KAMH, CTBOJIyNABWHx DepeBBeB IN T.I.

CneIte 3a yrJy6JIeHnAMn, KaHaBaMn nnn KOnIO6nAmn. BbICOKaTpaBA MOKeT CkpbIBaTB npEnTCTBnI.

3anpeaetcKaaunBaHne B6JIn3n CTOKOB,KaHaB INI DanM6. Onepatop moKet notepArb onOpy IINr HOr INI paBHObecne.

3anpeaaetcckaunBaHne Ha OueHb Kpytbix CKJIOhax.

3anpeuaetcKaaunBaHne Ha OueHb KpyTbIX CKNoHax (C KpyTu3HOJ 6oJee 15 rpaDycob) IuHa NpOuaDKkAx, rIe NOUBA RABnETcR OueHb HEPBOH. CoBIOdaIte MaKcMmaJIbHyIO OCTOpOXHOCTb PnI CMeHe HnPabVNeHn HA cKnOHX.

3anpeaetcKaaunBaHnne no MOKpO TpaBe. HeyctOnuBoe nIOJoxHe HOr MoKET CTaTb pInuHoi NODcKaIb3bIBaHnI.

III. Detn

Tparnueckn Heecuacthble clyuaan Moryt npon3oyn, ecnn onepaTop He yuHTbIaet npncytCTBna Detei. DeTey qacto npnbnekaet pa60taouaq Kocnka n npoueec cKaunBaHn. HkoTd He npednonaraate, TTO deTn octaIncb Ha TOM Mecte, rDe Bblnx buJeN B nocleDn paa.

1. He donnyckaJIte npn6nIXeHnI JeTei K 3OHe cKaUNBaHnI, n OCTaBJIaIe Ix IOJ pNcMOTpOM OTBETBEHHORO B3POCJoro.
2. ByIbTe BHNMaTeJIbHbI N BBIKIOaJaTe KOCNIky npN BXOJKeHHn DeTeB pa6Ouyo 30Hy.
3. Ipeed Haayalom N BO Bpemr DnBxKeHn Ha3a, CMOTpuTe Ha3aN BHN3 B OTHOWeHn PnpCyTCTBn MaJeHbKnx DeTei.
4. HnkOrda He no3BolnTe DeTAM pa6oTaTb C KocnIkoN.
5. Пювлгийт ecobуо octopoxhoctb npи noxdxoide K rJyxmIM NOBOPOTAM, KcTAM, DepeBbM nIIN dpyrIM o6beKTam, KOtOpbie MOrTy 3acIoHnTb 063Op.

IV. O6cnykBaHne

1. Co6IIOdaIte MaKcImaJIbHyIO octOpoxHocTb npn O6paueHmC 6eHNOM I dpyrIMM TOJINBAMN. OHn JERKO BOCIIaMeHraOTc N INX napbl ABJIAOTc B3pbIBOONaCHbIMN.

a. IcnoJIb3yIte TOnIbKO pa3peHEnHyIO KaHnCTpy dIa TOnJIInBa.
b. HnKOrIa He ChmMaIte KpbIuKy ToTOnIIIBHOro 6aka IJIH He Do6AbJrIte 6eH3In npi pa6OtaIOUeM DvIRaTeNe. DaJIte DBNAteIIO OCTbITb nepeDdo3ApBaKo. Kypntb BOCnPeeAeTcR.
c. HnKOrJa He 3a npabTne MaunHy B 3akpytOM nOmeueHIn.
d. HnKOrJa He XpaHnte MaShuHy nJIn KaHnCTpy C TOnJIINBOM BHYTpN 3daHnI, rJe MOKeT HaXoDnTbCn IcTOUHnK OTKpbITOrO pIaMeHN, KaK HanpImEp, BODoHarpeBaTeJIb.
e. EcIn Heo6xOIMO ONOpOXHnTB TOnJIbHBiB 6aK, TO CInB TOnJIbBa HJXHO BblONJIHrTb HA OTKpbITOM BO3dYxe. CInTOE TOnJIbBO DOJXHO XpaHtCBsB K KaHcIePpe, CneuAIBHO NpeHa3HaueHHo Dnla XpaHeHnT OToJIbBa, INN OOnJXHO 6bITb YTNl3npoBaHO HaJIeXkaUIM 06pa3OM.
f. Ctapoe cma30Hoe MacNo I TOJINBO DOJXHbI 6bITb CInTbI B KaHcTpbl, CneuaJIbHO PpeHa3HaueHHbIe DnI XpaHeHnCMA3OuHOro MaCna NII TOnJIbA.
g. 3aONHeHHbIe KaHnCTpbl DoJIxHbI 6bITb OCTOpOxHO TpaHCnOpTnPoBaHbI Ha c6OpHbI pyHKT dJa HaNLeKauei nepepa60TKI.

1. HnKoIa He donyckaIte pa60Tu Dnuratena BHytpn NOMEuHnI INB OOrpaHnEHHOM IpocTpaHCTBe.
2. HnKOrJa He BbIOpHЯTe peryI npOBKn InnpeMOHT npiaobTaOoIeM DbrgATEle (3NeKtpOMTope).OTcoEiINHte npOBd CBeUH 3axNHaHN u DaJIneT e ERO OT CBeu 3axNgarHn IAnI ppeDtBpaSeHnClyuaHOrO 3aNyCKa (BbITaIHTe KIOU 3axNarHn IAn MoDeIe N c 3NeKtpUWeckm CTapTePOM). Bcerda Hocnte 3aunTHbIe OChn npBbIOpHeHn peryI npOBKn Inn peMOHTa.
3. Perynphno npOBepaTe KpeenKhbIe 6oNTbI DnurataTna Ha HndJeKaUyO 3aTJkky.
4. Пдержаваite BCE raйи 60Льы 3aTЯныIM, a obopydobaaHne B ИсрпаBHOM COSTOHIN.Есл кakne-Jin6o deTaJIи 6blIи 3aMeHbI,TO npOBePBte,уTO КрЕнжHbIe 3JNeMeHTbI 3aTЯнHYtI DoJXHbIM O6pa3OM.
5. HnKoIa He BMeuBaIeTcB Ba60Ty npEdoxpaHnteNbIx yctpoiCTB.PeryIaPHO npOBepaTe Ix HaIeXaUyIO pa60Ty.
6. Пи Тхнчeckomобслжквани Ип ремог Кocилк, He NaKLOHЯт e И He nepeворачьай Te Maшину, ecI 3TO Tobilko CneuuaJIbHo He OROBOpEHO B HAcTOnIeM pyKOBoDCTBE. Поцудрbl NO obcLsyЖиBaHIO n pemOHTy KocNiKIM MOrTy BbIOnJIaTbCBy Ee BepTnKaJIbHom NIoJoxeHIN. BbIOnJIHeHne HeKOTOpblx OnerapuIM MoKET bIb ToObJIerUeHNoIpyTeM noДБeMaMaINHbI Ha npINOДHЯТUpo paOboYIO pIaTcOpMy IInI PNOCKOCTb.
7. Дя умьшени рпсka bo3ннковеня пожара, удягтс кослку Траву, Лсты плл друго сkonишир cop. Удягш лролитoe macno плл торлво. Даду Кослко OCTытб пered xpaHeHem.
8. OctaHOBIne pa60Tu obOpyIOBAnHn I npOBepbTe erO nocJe yIapa O kaKo-Im6o IpEdmET. Ppi Heo6xOIMOCtN, BbIOnIHIne peMOHT nepeD IOBToPbHM 3aNyckOM.
9. Bcerda oTcoeHNHnTe npOBo CBeu 3axiruaHnnepeD OCHKTOK, pemOHTo mIn peylnpOBKoN.
10. 3aPpeaaetcHmMeHb HAcTPOky peryIaTopa XoJa DBrTaTeJI NII INI PpeBbIaTb HOMHaJIbHOe YnCNo O6OpOTOB DBrTaTeJI.
11. Pn Heo6xoDmOCTn, Ounuatae nnn 3aMeHnTe hakJeKn C HCTpyKUJMaN IO TexHKn 6e3OpNaCHOCTn N KcPnyatauMn.
    13.ДЯЗИNTBIДВIraTeN O T nepeReBa, Bcerda nCNoIb3yIte copo3aIepKINBAIOUΦnIbTp DVBIraTeN I OChuaIte erO.
12. Ocmotpnte kocnilky neped xpaenHneM.
13. ИспόльзуйтToЛьКО opин haьhoe obopуdoBaHne nIpa3peSeHHbIe 3aNaChbIe YacTn.
14. 3aMeHnItepejxuHnHOJOpunHaJIbHOJ3aIacHOJcAChO H3rTOBHTeJIa.

Oncanme

UnpabHemaHnDyumC3aOnepaTOpOMra3OHOKocnKa npedctabJreTco6oPOTOpHyIO KOCnIky C npBODom OT DbratJI. DbratJIb BpaAaet pexyuiN HOK, KOtobip pacnoLOXKe NOD KopnycOM KOCnIK. Hox NOHMaeT Tpaby N BblONHReT ee cKaunBaHne. BbcOTy Cpe3a MoxHo peryunpoBaTb, YTObI npuDaTb rAOHy JeNaeMbY BHeuHm BvI. Cpe3aHHa Tpaba JIn60 Co6nPaETcB INpKpeHHeHOM C3aIN MeWke dIa TpAbI, IIn6O, KaK dIa HEKOTOpBX MOJeL KOCnIK, MOKeT nCNoJb3OBaTbCn IOBtOPHO dIa NODkopMKn rA3OHa. NOBtOpHoe nCNoJb3OBaHne Cpe3aHHo TpAbI NOUYINO HA3BaHne «MylbHPOBaHne» HecamOXoHNbIE MOneTIpe6yIOT OT OpeaTopa ycNlNA TOJkAnr dIa nepMeueHn KOCnIK. CamoxoHbIE MOeIN ImeiOT cnCTEmy npBODa 3aDNHX KOleC dIa 6bnErHn OepaunnCKaunBaHn.

IcnoJb3ObaHne no Ha3HaueHnIO/OrpaHnueHnNo IcnoJb3ObaHnIO

UnpabIeMaI NyuImc3aDiOnepaTopom ra30HOKoNlka
PpeHa3NaHeHa DJI KsAunBaHnra3OHNo TpaBb. IIO6oe
HHOe PpimEnHe He DoynCkaeTcK. KocNJka He paccHTaHa
DJIckAunBaHn TpaBb C DInHO 6OJe 15 CM NJI TpaBb,
CMeuaHHo C BbICOKMm CopHAKAM. DaHHa
ra3OHOKoNlKa PnroDHa TOJbKO DJI INHINBnDaJbHOrO
NCnOJIb3OBaHn B PnpyCaDe6Hom CaHy. OHa He NOxOJIT
DJIckCAUnBaHn TpaBb B O6ueCTBeHHbIX NapKax NJI Ha
HRPOBbIX NLOUaDKaX.

OTdJIbHbIe y3JIbI n opraHbI ynpaBJIeHnI

(Pnc.1) CpaBnIte cneIyIOJIe y3JIbI n oprAHIynpaBHeHnC BaWei moJenbIy. Y6eIITcB, yTO Bbl 3HaTe INxpacNoIoxKeHHe I IOHMAeTe INx Ha3HaueHHe.

A. Pbyar octaHOba DBnIaTeJIa
B. Bēpxhā pykɔrTaKa
C. Kpyrla pyka unn 6jloKnpoBouHbI pbUar
D. HIXKHЯ pyKoRTka
E. 3aɪnɪrɪdɪbεpɪa
F.ДВИГАТЕЛБ
G. Perynatop Bicotbl
H. PácnopTnHa Ta6nUka

I. TpaBoc6bOpHbIM MeuOK
J. RykoRTka pyuHoro cTapTepa
K. Pbyar npBODa (cAmOXoHaHa MoJeIb)
L. 3aŋnyuška dān MyjlbchupobAHna

I3o6pa3nteJIbHbIe 3HaKn

BAKHO:Ha BaWem arperate nIN B NOCTaBnE moC daHHbIM n3DeJIeNEM DOKUMeHTaUIN NCNOJb3yIOTc CneDyUOuHne N3o6pa3nteMbHbIe 3NaKn. IpeE, nHaJALom pa60tbcTm arperaTOM, n3yUHte n NOnMnTe Ha3HaueHHe KaXdOro n3o6pa3nteMbHorO 3HaKa.

PpeDynpexKdaIoUne n3o6pa3nTeJbHbIe 3HaKn (Pnc.23)

A. OCTOPOXHO
B. BAXKHO: Пеег Налов рабыс с зто машино почтinte руковдосто по зацinn.
C. OCTOPOXKHO: Bb6poeHbIe C cInoI ppeMeTbI. He dOnyckaIte np6JInxKeHnHa6JIIOaTeJe.IpOHTnte HNCTpyKUnI DnI IOnb3OBaTeJInepeD 3KcPnyataune 3TOJ MaunHbI.
D. OCTOPOXHO: He Дусякай сюльбоваиме доMuшины на склохс Крутузно boлч, чem 10rpaусов.
E. OCTOPOXHO: 3anpeaetca Hactynatb Horoi.
F. OCTOPOXKHO: He npnbIJIkaIte HOrn n pyKn K BpaUIOSeMycr HOky.
G. BHIMAHHE: OToeDInHte npoBOD OT CBeuN 3axnraHnI nepeTexHnueCKm O6CnyXnBaHnem arperata.
H. OCTOPOXHO: Onachoctb pa3daBnBaHnnaIbceB.

N3o6pa3nteHbIe 3HaKn no ynpaBHeHIO n 3Kcnpyatau (Pnc.24)

I. Slow (MeДЛЕнHo)
J. Fast (EblcTpo)
K. Motophoe maclo
L. TOnJIuBO
M.Дигагель-Пуск/Pабota/Octанов
N. Pbyar ynpaBHeH npuBOdom - BkJIouHeO/BbIKIouHeO

C6opka

IJIIOCTpaunn n pncyHKn HaunhaIoTc co CtpaHnlzbl 1.

COBeTbI NO cKaaUNBaHnIO

HekotopbIe MoJIEN IMeIOT DOJONJIHTeJIbHyIO 3aIyUkky IJIa MyJbHINPOBaHnE. EcII 3aIgLyUkKa IJIa MyJbUHINPOBaHnY cTaHOBJIeHa, TO Tpaba N3MeJIbUaETcR, I MOKeT 6bITb

IcnoJb3ObaHa NOBTOPO. NocOJIbky NiTaTeJIbHbIe BeueCTBa BO3BpaAuaOTcB INoUBy, To JyXaKe IOTpe6yeTcMeHbSe yDobpeHn.

CneIyUOuNE COBETbI yBEnuHAT Ipon3BOIDTeJIbHOCTb CkaUNBaHnI uIyUHaT BHeuHn BnI LyXaKn.

Tpaba donxha 6bIb cyxO. Ecn TpaBa MOKpa, TO OHa C TpydOM cpe3aETc, n 6yDet o6pa3OBbIBaTb TjXeIbIe KOMKn TpaBbl.
Tpaba He DoJIxHa 6bITb CInuKOM BbICOKo. MakcmaIbHaB BbICota dJa 3ΦΦeKTHBHO cKaunBaHncoCTabJIaER T9,8 CM.YCTaHOBtpepyJlTOpbl BbICOTb TaKIM O6pa3OM, YTO6bl cKaunBaJAcB TOlbKO BepXHr TpeTb TpaBbl.
- EcIn BBICota TpaBbI 6oJIe 9,8 cm,TO NOTpe6yETcR Dba cKaunBaHn.ДЯпрВOrO cKaunBaHn,уCTaHOBtpepyJrTOpbl BICOTbl CBamOE BlicOKoe NIOJOKeHne. 3aTeM onyCTHTpe pyJrTOpbl BlicOTbl DЯ BTOPO rCKaunBaHn.
HoxdOJIxeh BcERda NmEtb XOpOio 3aToUeHHoe JIe3BVE.I3HOWeHHoeJe3BVE MoKET CTaTb PnUHHo IOnKeJTeHnKOHUnKOB TpaBnHOK.
OuHCTnTE HNxHIOU qACTb KOCNJKn. EcIn B HNXHei qactn Kopnyca KOCJIKn CkaJIINBaHTc OCTaTKn TpaBbl n dpyroM yCop, To ee npOn3BOIDTeJBHOCTb 6yJeT CHNXKeHa.

IyuyuueHnKaueCTBaCKaunBaHn，NONbTaITecb CJIaTb CNeDyUoee:

• yBelenuYte BbICOTy cpe3a
• 60onepeyIaRHO BbIOnHnTe cKaunBaHne
  pa6oTaIe C KocnIKoN npn He6oJIbIoN cKOpocTn nepemeeHn
• yMEnbIuTe IuIny 3axBaTa
  MeHnTe HappaBJeHne
  CKaUBAIteB DbA pInema

TexHnueckoe obcIyXnBaHne

Texnueckoe 06cnykubHne DnurTaTeJr

IJIIOCTpaunn n pncyHKn HaunhaOTc co cTpaHcbl 1.

O6paauTecb K daHHOMy pa3deNy no texHnueckomy
obcnyxnbAHIO dIaNoIepXaHnBaawero arperata B
xopoWe m pa6ooyem coCToHm. IpexJe yem Bbl 3anyctnte
dBnraTeJI, npOHTte HAcToHsE pyKOBODCTBO, a TaKke
pyKOBOIDCTBO NO 3KcnnyatauIM nDburatela. Bcra
HHOpMaunno TExHHueCKOMy o6cnyxnbAHIO dBuratela
CoDEpXNTCB BY pKOBODCTBE NO 3KcnnyatauIM DBrarateJIa.

OCTOPOXHO: Ipeed BbInoJHeHnem npOBepKn,

perynipobkn nnppeMOHTa,OTcoeHNHnTe

PPOBOD CBeU 3aXnIraHnI N OTBeIte erO B

CTOPOHYOT CBeu3aXnraHn.

HaKNoH DvBraTeJIa

(Pnc.14) BHMaHHe: He donyckaetcnaKIOH dBnIraTeJc HappaBJIeHHoB BnH3 CBeHOJ 3axnIraHHa.

PnO6cIyKuBaHnn DnBraTeJIa, IpoBepRrTe COCTOHNHe HOXa NII OUnIaIe HNXHIOU Yactb KOpNyca KocUNK;PiN

HaKJIOHe DnIraTeJIa, BCERda KOHTpOJIpyUte, YTO CBeya 3aXnIRaHnHaNpaBNeHa BBepx. TpaHCnOpTnpOBKa INI HaKJIOH DnIRaTeJIc HAnPaBNeHHoB BHN3 CBeyo3aXnIRaHn MoKeT CTaTb PnUnHOJ CJeDyUOeRo.

Tpydnoctnc3aanyckOM
-ДыIMЛЕнUEДВИТЕТЯ
- 06pa3OBAHnHaIrapaHaCBeYe3axKurHnA
HacbIeHnMaCJOMnnTOJIINBOMBO3dyuHOrO cnIbTpa

Cma3bBaHne

1. Дли мakсимально пюзвдпьhoeч, сma3bBaHTe KOJIecaи BCE TOUKN IOBOPOTa MaUNHHbIM MacJOM uepe3 kaxdble 25 yacob pa60Tbl.
   2.Информачию NO cma3bBaHnIO DBnIaTeJIa CMOTpnteВpykoBoIDCTBE NO 3KcNlnyatauIN DBnIraTeJIa.

ПРИМЕЧАHЕ: He ДолуckаETССma3bIВaHne TpOcNka pyчara octaHOBa DBuRatJIe. Cma3OuHbIe MaTePnAJIbI MOrTy NOBpeDInTb TpOcNK I 3aTpPydHnTb erO CBO6OДHoe nepemeSeHne. EcIи TpOcNKпернHyт Илп nobpexJdeH,To 3aMeHnTe erO.

Kak ouhncntb kopnyc kocnilkn

OCTOPOXHO: HoK 6yDet BpauaTbcra npn pa6oTaIooem DBratene. PpeD ouHcTKoK Kopnyca KocuKn, octahOBHTe pa60Ty

ДВИгаелЯ И OTCOeMHHTe npOBOD CBeHu 3aXnHnHaNуdJIHTE erO OT CBeHu.

EcnB HnKHe YacTn KOpnyCa KocnIKn cKaJIINBaOTcR OCTaTK TpaBbI nDpyRoM MyCOP,TO ee npOn3BOJNTeJIbHOCTb 6yDet CnHexHa. IocNe cKaunBaHnA, Ouchnte KopNyc KocnIKn CLeDyUoUIM O6pa3OM.

1. OctaHOBInTe pa6Otu DnurTaTeJIa.
2. OToeDInHnTe npoBOD ot CBeu 3aXnHaHnA.
3. OuHCTnTe BepxHIOU HnXHHIOU qAcTb KOpNyCa KocuKn.

KaK cHrTb npBODHO peMeHb

ДяСНТЯИМОБСЛУЖИВАнЯ ПИВОДНОР рЕДУЕТ DOCTABINTь 3Ту ГАЗОHOKОСИКУ yNOLHOMOЧЕHOMY cepвисому ДИлелу.

Kak oTpeyInpoBaTb TpOcNk npNbOda (Pnc. 19)

OCTOPOXHO: Ipeep perylnpOBKoTPOscKa npBOda, OTnycTe pblar OCTaHOba DBnraTeJI N DOxKnTEcb NOJHoro OCTaHOBa

Bala Dbratela.

Ecni CnCTema npBbOa He BkIIOuaTe TcH N He BbIKIOaETc
doJXhIM o6pa3OM,TO npOBepbTe npABuINbHOCTb c6OpKN y3Ja pyKOATKn. Y6eDiNTcB, YTO BCE DeTaN HAXoJrTcB
XoPoWe COCTOAHN,He NOIOMaHbI INI He COHTbI, INTO
Bce KpeJeKhbIe 3JIeMeHTbI 3aTHytbl.
H3HOWeHHbIe DEtaJIIM MOYr IOBNIaTB Ha
pa6OTocNOC6HOCTb CnCTembl npBbOa. KorDa Bbl BbINOHNIEc KaUWBHne B BbICOKOI, rGCTOI TpaBE INIHa
CKJIOHax,CnCTema npBbOa MoKET npO6yKCOBBaTb,ecnn
TPoCnK npBbOa CnIshKOM pOcNa6JIen. Ecni CnCTema
npBbOa npO6yKCoBBaET, TO OTrpyJIpyte ee
CNEduOuIM Obpa3OM INI ONITpABbTE KocNJky B
CEptNuPupOBaHHbI IN3ROTOBInTeJIEM CEHTp TEXHueCKORO
06CNIyXNBaHHa.

1. (Puc. 19) EcIn CnCTema npuBOda npo6yKCOBBiBaET, To npOBepHnTe peryJrTOp TPOcNka (A) Ha Odn H o6opOT B HnPaBJIeHN, NOKa3aHHOM Ha NJIJIIOCTpaCm. IopabotaiTe c KocnIKoI npOBepbTe CnCTEmy npuBOda.
2. EcIn CnCTeMa npBODa no-npexKHeMy npObyKcOBbIbAeT, To npOBepHnTe peryJrTOp TpOcNka eue Ha OIN H oBopOT dIy yKopauHbAHn TpOcNka. ChOba npOBepbTe pa60Ty cnCTeMbI npBODa.
3. Повторгейперауларову и поверку до Тх пос各项工作 вд. Достigated work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the work of the
   4.Перед началом сkaшиваня,провьтс,чTO сntema npINBOda BbIKJIIOUaTeTcДОЛЖнIM O6pa3OM,IчTO KOCNJlka OCTaHaBnIBaETc.ЕсИСNTEMAnpINBOda He BbIKJIIOuAeTc,TOTNpAbTeKOCJNky B cepTNФицИрOBaHHI N3rOToBnTEJIem ZeHTP TexHnueckOrO O6ClyjxNbAHЯ,прждчEM пpoJOnJaTb 3KcNJyatauIO KOCNJk.

O6cIyKuBaHne HOxA (Pnc. 20)

OCTOPOXKHO:Пеледпюверковhoа(B)илпелөрхODнka Hoха(E),OTCOeHNHTe ПювODCBeЧИЗжURAнЯиУдаЛNTe ERоТ CBeЧИ.

EcnHox yapreTcO kaKoJ-Ni6o npeDMet,TO octaHOBnTe pa6Oty dBnraTeJI. OToCoeHNHTe npOBOD OT CBeu 3aXnIraHn. PpOBepbTe arperat Ha OTCyTCTBnE NOBpeKdEHH.

PepnoDnueckn npOBepaTe HOK (B) Ha n3Hoc nnn
NoBPexKeHHN, KaK HanpImep, TpeuHNbI. PepnoDnueckn npOBepaTe 6oNT (A), KOTOpbK pKeiHT HOK. PnpOBepaTe HADJExkaUO 3aTAAKKy 6oNTa. Ecnn HOX ydapaeTcO kaKo-1n60 IpEaMeT, TO OCTaHOBte pa6O TY dBNrAteH. OToeDInHTE npOBoD OT CBeu 3axnraHn. PnpOBepTe npExoDHNK HOKa (E) Ha OTCyTCTBne NOBPexKeHHN. PnpOBepTe OTCyTCTBne cOrHyTORO COCTOAHN nnn
NoBPexKeHHN HOKa, CNlbHOro n3HOCA HOKa nIN dpynx NoBPexKeHHN. Ipeed 3KcNPyatauNe IOBpexKeHHN. NoBPexKeHHbIe DeTaN DOnxHbI 6bITb 3aMeHeHbI opRnHaJIbHbIM N3aNaChbIM NaCTAMN n3ROTOBHTeN. JIa 6e3OanHO pa6ObI, 3aMeHnTe HOX Yepe3 KaKdbIe Dba roJa. HOX dONJKeH Bcerda IMeTB XopoWIO 3aTOeHHoe ne3BVe. IN3HOse HHoe Je3BVe MOXET CTaTb PrnPunHOI NOXeJIteHHN KOHKnOB TpaBnHOK. JIra CHaTIaN IINI o6ClyXHBaHHN HOX CaJeDyET DCtABnTb 3Ty ra3OHOKOCnIKy YNOJHOMOeHHOMY cepBNCHOMY dINlepy.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

YctpaHenne HencnpaBHOCTeI

TpaBa He Bbl6pacbIbaeTc DOJIIXHbIM 06pa3OM.

1. Ouchntte HxhhIOu Yaactb Kopnyca KocnIkn.
2. Поберп Te HOK Ha CINbHbI n3HOC.CHMnTe n 3aToUHe JezBHe HOXa.ДЯ 6e3OpanChoi pa60TbI, 3aMeHnTe HOK Yepe3 KaJdIe DBa rOda OprInHaJIbHOJ 3aNaCHOH YaCTbIO n3rOTOBtEnI.

Hepobhoe cpe3aHne TpaBbl.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Riešenie problemov

Motor nešartuje.

1. Uistite sa, ze v palivovej nadrži je Čistý benzín. Nepoužívajte starý benzín.
2. Na studenom motore pātkrát stlačte tlacidlo palivovej pumpy (nastrekovač) (doplnkový na niedtorych modeloch).
3. Uistite sa, ze zapalovaci kabel je nasadeny na zapalovacej sviecke.
4. Nastavte karburátor. Pozrite si námod na obsluhu motora.
5. Vo valci motora je prilis vela benzinu. Vyskrutkujte a osuste zapal'ovaciu sviechu. Niekol'kokrát potiahnite za rukovat lanka navijacieho štartéra. Zaskrutkujte zapal'ovaciu sviechu. Nasad'te zapal'ovaci kabel na zapal'ovaciu sviechu. Našartujte motor.
6. Motor sa t'za'ko startuju v t'za'kej, alebo vysokej trave. Premiestnite kosa'ku na chistu, suchu plochu.

7. Zabezpečte, aby páka pre zastavenie motora bola v pracovnej polohe.

8. Zabezpečte, aby palivový ventil bol v polohe ON (otvorený). Pozrite si námod na obsluhu motora.

Motor sa nezastavuje.

1. Uvolnite páku pre zastavenie motora.
2. Skontrolujte bovden pre zastavenie motora. Ak je bovden ohnuty, alebo poškodený, tak ho vyměnte.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Motor se ne zažene.

Briggs & Stratton UK Ltd

Road Four, Winsford Industrial Estate, Winsford, Cheshire, CW7 3QN

United Kingdom

www.BRIGGSandSTRATTON.COM

Ariza Tespit

Motor calismiyor.
