LC-300 - Juicer FAGOR - Free user manual and instructions

Product type	Juice extractor (centrifugal)
Brand	FAGOR
Model	LC-300
Power supply	Mains (voltage indicated on rating label)
Main functions	Extraction of juice from fruits and vegetables
Speeds	2 speeds (positions 1 and 2)
Safety	Safety device blocking operation if lid is not properly closed; safety tab; on/off switch
Care and cleaning	Accessories washable with warm water and detergent; body wiped with damp cloth; do not put in dishwasher; do not immerse body in water
Spare parts and repairability	Replacement filter available; filter replacement recommended every 2 years; power cable replaceable only by authorized service
General information	Compliant with EMC directives; de-parasited appliance; domestic use

Frequently Asked Questions - LC-300 FAGOR

How to assemble the FAGOR LC-300 juice extractor?

To assemble the appliance, place the filter (F) and the filter support (G) into the machine body (H), then mount the lid (C) by turning it counterclockwise until the safety tab (D) slides into the groove of the safety device (E). Finally, insert the pusher (A).

How to start the extractor?

Ensure the appliance is properly assembled and the lid is closed. Plug in, then set the switch to position 1 or 2 to start.

Can I put the parts in the dishwasher?

No, none of the accessories (pusher, lid, filter, filter support) can be washed in the dishwasher. Wash them by hand with warm water and mild detergent.

What if the appliance does not work?

First check that the lid is properly closed and the safety tab is engaged. Make sure the switch is in a running position. If the problem persists, contact an authorized technical service.

How to clean the filter?

Clean the filter (F) immediately after use with a brush under warm water and detergent. Do not use bleach. Dry it thoroughly before reassembling.

What fruits and vegetables can I use?

You can extract juice from most fruits and vegetables, such as apples, carrots, oranges, etc. Remove pits (cherries, peaches) and peel citrus fruits, pineapple, or kiwi. Bananas, avocados, figs, and blackberries cannot be liquefied with this appliance.

How to remove the lid?

Before removing the lid, turn off the appliance by setting the switch to position 0 and unplug it. Turn the lid clockwise and lift it.

What if the filter is deformed?

If the filter is deformed, stop using the appliance immediately and replace it with an original replacement filter. Replacement is recommended every 2 years.

Can I use the appliance without the lid properly closed?

No, the appliance has a safety device that prevents operation if the lid is not properly in place. Never attempt to bypass this safety.

How to get spare parts?

To obtain spare parts, especially the filter, contact an authorized technical service approved by the manufacturer. Use only original spare parts.

USER MANUAL LC-300 FAGOR

ES - MANUAL DE INSTRUCCIONES HU - HASZNÁLATI UTMUTATÓ PT - MANUAL DE INSTRUÇÕES CS - NÁVOD K POUŽITÍ EN - INSTRUCTIONS FOR USE SK - NÁVOD NA POUŽITIE FR - MANUEL D'UTILISATION PL - INSTRUKCJA OBSŁUGI DE - GEBRAUCHSANWEISUNG BG - ИНСТРУКЦИЯ ЗА УПОТРЕБА IT - MANUALE DI ISTRUZIONI RU - ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ EL - ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ

The manufacturer reserves the right to modify the models described in this User's Manual.

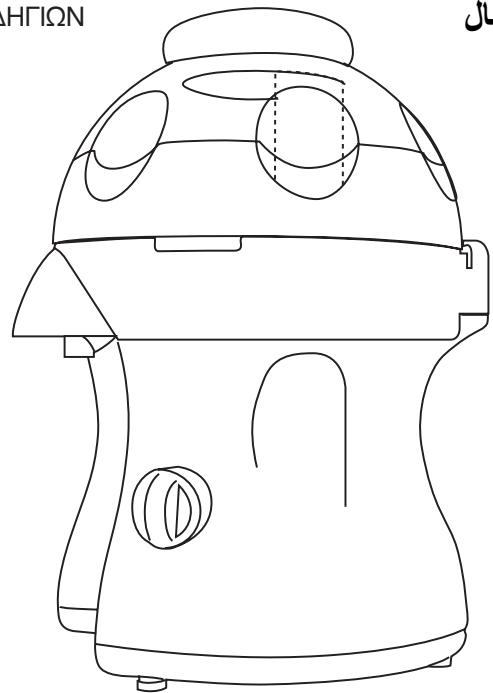

1. DESCRIPTION OF THE PRODUCT

A. Pusher. B. Feeder opening. C. Lid. D. Safety tongue. E. Safety mechanism. F. Filter. G. Filter support. H. Main body. I. On/Off switch.

Interference suppression: this appliance has been interference-suppressed in accordance with the interference-suppression directives.

Electromagnetic compatibility: this appliance has been suppressed in accordance with the EMC (electromagnetic compatibility) directives.

2. GENERAL ADVICE

Read the following instructions carefully before using the appliance for the first time.

• After removing the packaging, check that the appliance is in perfect condition. If in doubt, do not use and contact your nearest authorised Technical Assistance Service.
• The plastic bag in which the appliance is wrapped should be kept out of the reach of children, as it could constitute a safety hazard.
• In the event of the socket and plug being incompatible, have an authorised Technical Assistance Service replace the plug.
• The use of adapters, multi-sockets and/or extension leads is not advised. In the event of their use being absolutely necessary, always ensure that they conform to current safety standards, and take care not to exceed the indicated maximum voltage level.
• In the event of technical failure or improper working, contact an authorised Technical Assistance Service.
• The appliance is designed for use as described in this manual (for making fruit and vegetable juices). Any other use is considered unsuitable and therefore dangerous. The manufacturer accepts no responsibility for damage resulting from improper or irresponsible use, and/or from repairs carried out by unqualified personnel.

Take special care to follow the basic safety regulations outlined below:

• Check that the mains voltage corresponds to that indicated on the appliance's characteristics plate.
• Do not touch the appliance with wet or damp hands.
• Do not use the appliance barefoot, or when your feet are damp or wet.
• Do not pull on the mains cable to unplug the appliance.
• Do not leave the appliance open to the elements (rain, sun, frost, etc.).
• Do not allow children or the mentally disabled to use the appliance without supervision.
• Unplug the appliance when not in use.
• Do not leave the appliance on unnecessarily, as this may constitute a health hazard.
• Do not submerge the appliance in water.
• Do not attempt to replace the cable. In the event of it becoming damaged, have it replaced by an authorised Technical Assistance Service. Do not use your appliance if the cable or plug are damaged. Always unplug the appliance from the mains socket before carrying out any kind of cleaning or maintenance operation.
• In the event of technical failure or improper working, switch the machine off and do not try to repair it. Repairs should only be carried out by an authorised Technical Assistance Service. Always demand the use of original spare parts. Any failure to follow the above instructions could affect the safe functioning of the appliance.
• Keep these instructions in a safe place for future reference.
• This appliance should not be used by physically, sensorially or mentally handicapped people or people without experience or knowledge of it (including children), unless they are supervised or instructed in the use of the appliance by a person responsible for their safety. Children should be watched to ensure they do not play with the appliance.
• For greater protection, we recommend installing a residual current device (RCD) with an operational residual current not exceeding 30 mA. Ask your installer for advice.

3. BEFORE USING

Before using your juice extractor for the first time, wash the pusher (A), lid (C), filter (F) and filter support (G) and rinse thoroughly. To do so, disassemble the juice extractor as indicated below:

1. Make sure the appliance is unplugged and the switch is set to 0.
2. Remove the pusher (A) from the lid.

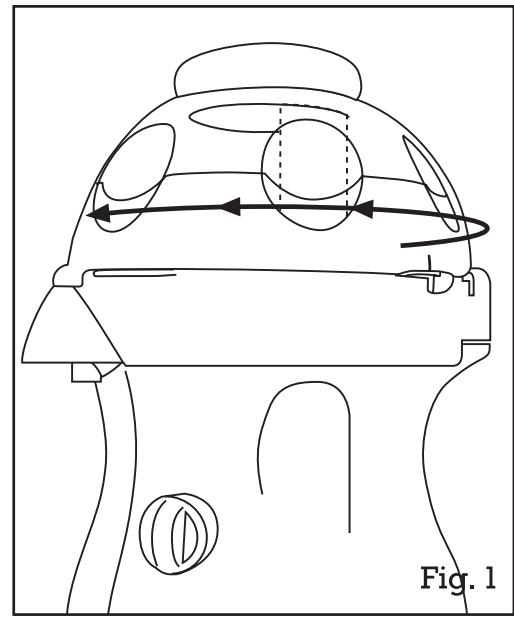

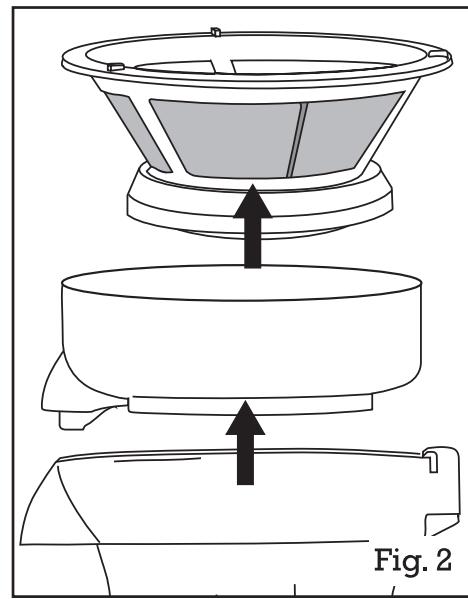

3. Rotate the lid clockwise and lift (fig. 1). Remove the filter (F) and the filter support (G) by pulling upwards (fig. 2).

To reassemble the blender, follow the above instructions in reverse order.

Assembling the lid:

The lid should be assembled so that when it is turned in a clockwise direction, the safety tongue (D) slots into the groove located in the safety mechanism (E) (fig. 3).

Important: The appliance has a safety mechanism that prevents the machine from working if the lid is not closed correctly. Do not use this safety mechanism as an On/Off switch.

4. HOW TO USE

• With the juice extractor fully assembled and the switch set to 0, plug the appliance into the mains socket and set the switch to 1 or 2.
• Select the fruit and/or vegetables you wish to process, peel (in the case of citrus fruit,

watermelons, pineapples, kiwi fruit, etc.), chop and remove any stones (in the case of cherries, apricots, peaches, plums, etc.) before tipping them into the feeder opening.

• Use the pusher to gently push the fruit and/or vegetables down into the machine (fig. 9).

Never use your fingers to push food into the blender.

• When you have finished working, set the switch to zero and unplug the appliance from the mains socket.

If you need to remove the lid between uses, switch the appliance off by setting the switch to 0.

Warning: check that the switch is set to 0 when the appliance is not in use.

5. CLEANING

• Switch the appliance off by setting the switch to 0.
• Unplug the appliance from the mains socket.
• Disassemble the juice extractor (see section entitled "Before Using").
• Clean the deposit immediately after use to prevent the peel/pulp from drying. Wash components with warm soapy water, using a brush to help clean the filter. Do not wash any of the components in the dishwasher.

Do not use bleach when cleaning the filter.

• Never submerge the main body (H) in water or hold under a running tap. Clean by wiping with a damp cloth.

6. HOW TO GET THE BEST RESULTS FROM YOUR APPLIANCE

• Switch the appliance on before inserting the fruit and/or vegetables.
• Clean the filter regularly when blending grapes, quinces, blueberries or blackcurrants, etc.
• The appliance is not designed to blend bananas, avocado pears, aubergines, figs, blackberries, etc.
• Do not leave the appliance switched on for long periods without inserting food.
• Never push food into the blender with your hands or any other object. Use the pusher provided.
• If the filter becomes misshapen, do not use again. Replace. Always demand the use of original spare parts.
• In any case, the filter should be replaced every two years.
• Warning: always employ extreme caution when handling the filter. DO NOT USE THE APPLIANCE IF THE LID, OR THE SAFETY MECHANISMS OR THE FILTER ARE DAMAGED OR IN POOR CONDITION.

7. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this

service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.

1. PRODUCT DESCRIPTION

Read the user manual carefully before using the device.

Unpack the device and check it for good condition. In case of doubt, do not use it and contact the authorized service center for technical support. - The packaging material (foam, plastic) must be kept out of reach of children, as it represents a potential source of danger. In case of incompatibility between the socket and the plug of the device, contact the authorized service center for technical support to replace the plug. We do not recommend the use of adapters, extension cords, or power strips. If their use is necessary, use only those that comply with current safety standards, being careful not to exceed the power rating of the adapter or the extension cord.

If the device stops functioning, contact only the authorized service center for technical support. This device must be used only for the purpose for which it was designed, i.e., for preparing fresh vegetable juices. Any other use is considered inappropriate and therefore dangerous. The manufacturer is not responsible for damages resulting from improper, incorrect, or irresponsible use of the device, as well as for damages resulting from repairs carried out by unauthorized persons.

Read the following basic safety rules carefully:

• Before using the device, check that your electrical network is compatible with it. Do not operate the device with wet or damp hands.
• Do not use the device barefoot or with wet feet. Do not disconnect the device from the mains by pulling the cable.
• Do not expose the device to atmospheric conditions (rain, sun, snow, etc.). Do not allow unsupervised use of the device by children or by persons with disabilities.
• Disconnect the machine from the mains when not in use. Do not leave the device switched on unnecessarily, as this is potentially dangerous. Do not immerse the device in water. The user must have the power cord replaced only by an authorized technical service. In case the cord is damaged, it must be replaced by an authorized technical service. Do not use the device if the cord or plug is damaged.
• Cleaning and maintenance of the device
• Disconnect the device from the electrical network. In case of abnormal functioning, switch off the device without attempting to repair it. Contact the authorized technical service for assistance. During its maintenance, use only original spare parts. If these instructions are not followed,

The safety of the device may be compromised.

Keep these instructions in a safe place for future reference. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. For better protection, it is recommended to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA. Consult your electrician.

3. BEFORE USE

Before using the appliance for the first time, clean the pusher (A), the lid (C), the filter (F) and the base of the filter (G). For this purpose, disassemble the appliance as described below:

1. The appliance must be disconnected from the mains and the switch must be in position 0. 2. Remove the pusher (A) from the lid.
2. Turn the lid in the direction of the arrow on the lid and lift it (Fig. 1). Remove the filter (F) and the base of the filter (G) by holding G with the spout facing up (Fig. 2).

To reassemble the appliance, perform the above operations in reverse order. Closing the lid:

To close the lid, turn it in the direction opposite to the arrow on the lid, until the locking pin (D) fits into the opening of the locking part of the appliance (E) (Fig. 3). Important! The appliance has a locking part that blocks its operation if the lid is not properly closed. Do not use this part as a switch for turning the appliance on and off.

4. USE OF THE JUICER

After closing the appliance and with the switch in position 0, plug it into the mains. Then set the switch to position 1 or 2. Place the fruits or vegetables you want to juice into the feed tube. While pressing with the pusher, if necessary, remove the pulp (with citrus fruits, apples, etc.) or the core (with pineapples, etc.). Press the products against the inner wall of the appliance using the pusher. Never press the products with your fingers. After juicing is complete, set the switch to position 0 and unplug the appliance. Between each use, and especially when you need to open the lid, turn off the appliance by setting the switch to position 0.

Attention! When not using the appliance, the switch must be in position 0.

5. CLEANING

Turn off the appliance by setting the switch to position 0. Unplug the appliance from the mains. Disassemble the juicer (see "Before first use"). To prevent food residues from drying inside the appliance, disassemble it and clean it immediately after use. Wash the parts of the appliance with warm water and detergent. Use a brush to clean the filter.

Never immerse the appliance in water or any other liquid.

Do not use the appliance for purposes other than its intended use.

Do not place the appliance (or) under water or under a tap. To clean it, use a soft, damp cloth.

6. TIPS FOR BETTER USE

Turn on the appliance only after placing the products. If you are juicing fruits like grapes, pears, apples, etc., clean the strainer more often. The juicer cannot extract juice from bananas, avocados, plums, figs, etc. Do not leave the juicer running for a long time without adding new products. Never push products into the feed tube with your fingers or other objects. If the filter is deformed, do not use it and replace it with a new original filter. Replace the filter regularly. Caution! When performing operations with the filter, be careful. DO NOT USE THE APPLIANCE IF THE BODY, THE POWER CORD OR THE FILTER ARE IN POOR CONDITION.

7. INFORMATION FOR CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its service life, the appliance should not be disposed of in regular household waste. You can dispose of it by taking it to a special

collection center for recyclable materials, or to your local authorities or your supplier, who are obliged to accept it. Separate disposal of electrical and electronic appliances prevents negative effects on the environment and health, resulting from improper disposal, and allows recycling of the materials from which the appliance is made, thus achieving significant savings in raw materials and energy.

To emphasize the requirement for separate disposal of waste from each product, a special symbol is placed on the product, which warns you not to dispose of it in regular household waste.

For more information, contact your local authorities or the store where you purchased the product.

1. DESCRIPTION

A. Pusher B. Feed tube C. Lid D. Fuse E. Locking clip F. Filter G. Filter holder H. Housing

I. Switch

Noise suppression: This appliance complies with the requirements for noise suppression.

Electromagnetic compatibility: This appliance complies with the requirements of EMC (Electromagnetic Compatibility).

2. GENERAL RECOMMENDATIONS

Read all instructions carefully and keep them for future reference.

After unpacking, make sure the appliance is not damaged. If this is the case, do not turn it on; contact an authorized service center. - Plastic packaging bags can be dangerous; keep them out of reach of children. - If the plug and the appliance socket are not compatible, replace the socket with a suitable one, consulting a qualified specialist. - It is not recommended to use adapters or extension cords. If you cannot do without them, use only adapters and extension cords that meet current safety standards, being careful not to exceed the power limit for the adapter or extension cord. - If the appliance stops working, contact only an authorized service center. - The appliance is intended for household use only.

Use the appliance only for its intended purpose, that is, for preparing fruit and vegetable juices. Any other use is considered improper and, consequently, dangerous. The manufacturer is not responsible for possible damage caused by improper, erroneous, or irresponsible use and/or repairs by unqualified personnel.

Pay special attention to the basic safety rules listed below:

• Make sure that the voltage in your home network matches that indicated on the appliance.
• Do not touch the appliance with wet or damp hands. Do not use the appliance if you are barefoot or with wet feet.
• When disconnecting the plug, it is forbidden to pull the cord. Do not expose the appliance to atmospheric agents (rain, sun, frost, etc.). Do not allow children or disabled persons to use the appliance without supervision.
• If the appliance is not in use, disconnect it from the mains. Do not leave the appliance plugged in unnecessarily, as it may pose a danger.
• Do not immerse the appliance in water. Do not use the appliance if the cable needs replacement. If the cable is damaged or needs replacement, contact only an authorized service center. Do not use the appliance with a damaged cable or plug. Before performing any cleaning or maintenance, disconnect the appliance from the wall outlet. In case of an accident or malfunction, turn off the appliance, but do not attempt to repair it yourself. Contact the authorized technical support service and request that

only original spare parts and accessories be used for repairs. Failure to comply with this requirement may pose a safety hazard to the appliance.

Store the instructions in a safe place so that you can use them at any time. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. To increase the safety of use, it is recommended to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA. Please follow this advice from the installer.

3. BEFORE FIRST USE

Before first use, wash and rinse thoroughly the pusher (A), the lid (C), the filter (F) and the filter holder (G). To do this, disassemble the juicer in the order shown below:

Do not push products with your hands.

After processing food, set the switch to position N, then remove the plug from the socket. Turn off the appliance by switching the switch to position 0 between two working sessions, if it is necessary to remove the lid.

Attention: When the appliance is not working, make sure that the switch remains in position 0.

5. CLEANING

Turn off the appliance by switching the switch to position 0. Remove the plug from the socket. Disassemble the juicer (preliminarily see the section "Before first use"). To prevent the strainer from clogging, disassemble the appliance and clean its parts immediately after use. Wash the parts in warm soapy water, rinse the filter well. It is forbidden to wash the parts of the juicer in the dishwasher.

Do not use a brush for cleaning the filter.

Do not immerse the body of the appliance (H) in water and do not rinse it under the tap. Wipe it with a damp cloth.

6. RECOMMENDATIONS FOR CORRECT USE

Turn on the appliance before loading products. If you are making juices from grapes, quince, blackberries, red currants, etc., the filter should be cleaned as often as possible. This juicer is not intended for making juices from bananas, avocados, eggplants, figs, blackberries, etc. Do not leave the juicer running empty. Do not push products into the juicer with your hands or foreign objects; use only the pusher. If the filter is deformed, do not use it, but replace it with a new one. In any case, change the filter once every 2 years. Attention: handle the filter with maximum care. Do not use the appliance if the lid, latch or filter is defective.

7. INFORMATION ON CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its service life, this appliance must not be disposed of with household waste. It can be handed over to special collection centers for recycling

of waste, located in the municipality, or to dealers working in this field of services.

Proper disposal of household electrical appliances helps to avoid possible negative consequences for the environment and human health that may occur as a result of improper disposal, and also allows for the reuse of materials included in these appliances, thereby significantly saving energy and resources.

To emphasize the need for separate disposal, this appliance is marked with a symbol indicating that it must not be disposed of in traditional waste containers.

For more detailed information, contact your local authorities or the store where you purchased this product.
