USER MANUAL CAT-44 NG FAGOR

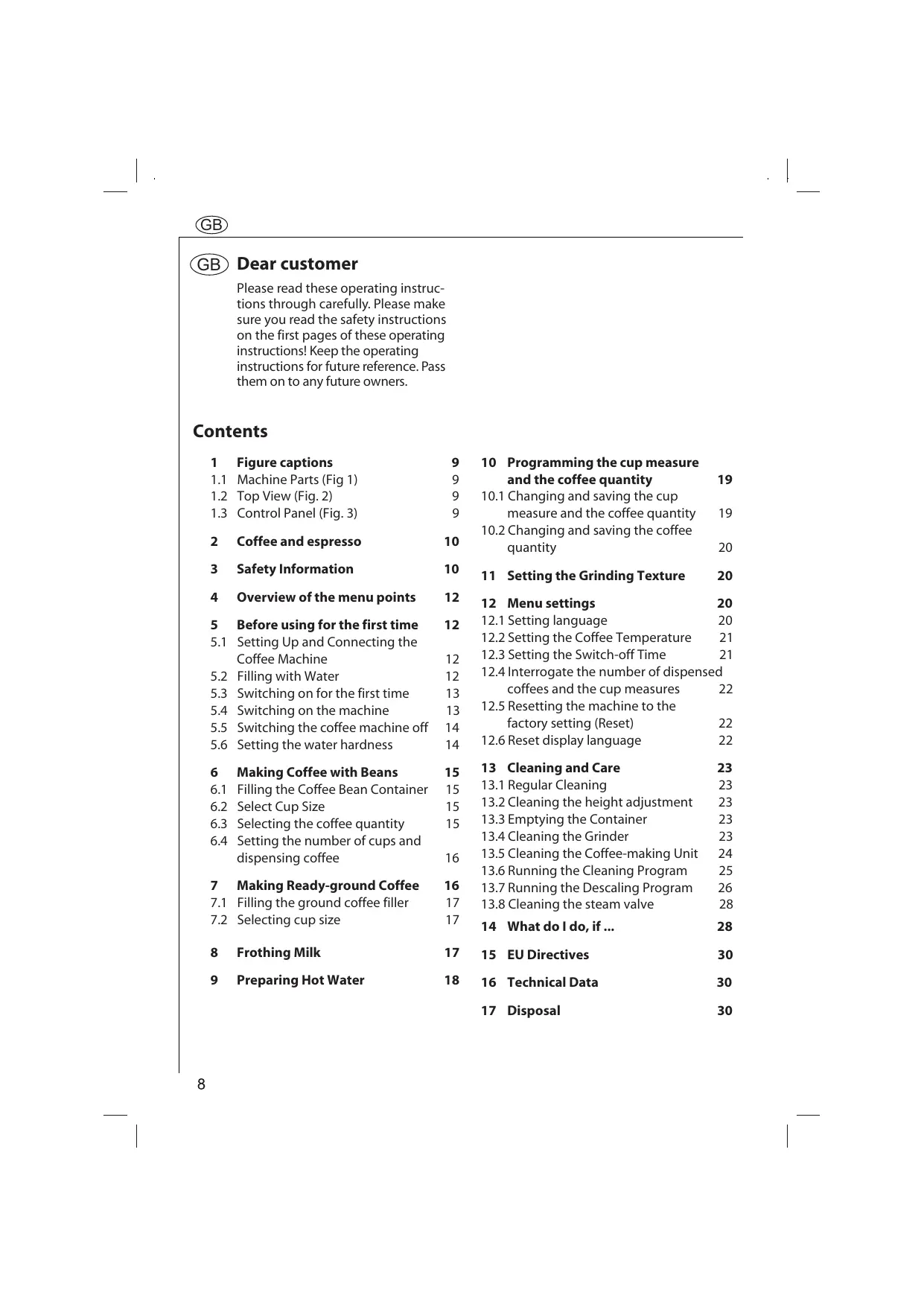

GB Dear customer Please read these operating instructions through carefully. Please make sure you read the safety instructions on the first pages of these operating instructions! Keep the operating instructions for future reference. Pass them on to any future owners. Contents

10 Programming the cup measure and the coffee quantity

10.1 Changing and saving the cup

measure and the coffee quantity

10.2 Changing and saving the coffee

11 Setting the Grinding Texture

Overview of the menu points

12.1 Setting language

12.2 Setting the Coffee Temperature

12.3 Setting the Switch-off Time

12.4 Interrogate the number of dispensed

coffees and the cup measures

12.5 Resetting the machine to the

factory setting (Reset)

12.6 Reset display language

5 Before using for the first time

5.1 Setting Up and Connecting the

5.2 Filling with Water

5.3 Switching on for the first time

5.4 Switching on the machine

5.5 Switching the coffee machine off

5.6 Setting the water hardness

Making Coffee with Beans Filling the Coffee Bean Container Select Cup Size Selecting the coffee quantity Setting the number of cups and dispensing coffee

13 Cleaning and Care

13.1 Regular Cleaning

13.2 Cleaning the height adjustment

13.3 Emptying the Container

13.4 Cleaning the Grinder

13.5 Cleaning the Coffee-making Unit

13.6 Running the Cleaning Program

13.7 Running the Descaling Program

13.8 Cleaning the steam valve

7 Making Ready-ground Coffee

7.1 Filling the ground coffee filler

7.2 Selecting cup size

Machine Parts (Fig 1)

Top View (Fig. 2) Q Cup rack R Opening for ground coffee with lid (ground coffee filler) S Bean container position setting T Service cover release button U Release catch for removing grinding ring V Lever for setting grinding texture Top view (see Fig. 2) Bean container with lid Service cover Selection dial for steam and hot water Height-adjustable dispenser with outlets Swivel nozzle for steam and hotwater with removable frothing aid Container (removable) Drip grille Drip tray float Drip tray Display Type plate (at top behind service cover) c Control panel (see Fig. 3) Water tank with fill level indicator (removable) Test strip for water hardness O.1 Descaling agent O.2 Cleaning agent Measuring spoon with cleaning brush

Control Panel (Fig. 3) Key „Steam Pre-selector“ (with indicator) Key „1 or 2 cups of coffee“ (with indicator) Key „Coffee Quantity“ (with indicators)

Your fully automated coffee machine guarantees you Absolute ease of operation both in making coffee and in maintenance and care. The excellent, individual taste is achieved by The pre-brewing system: before the coffee is brewed, it is first moistened to extract its full aroma The individually controllable amount of water per cup, from a short espresso to a „long“ milky coffee The individually controllable temperature, at which the coffee is made The choice between a normal or a strong cup of coffee The grinding texture – adjustable to the roast of the coffee beans, and Last, but not least, the guaranteed crema, that small crown of froth that makes espresso-coffee so unmatchable for connoisseurs Did you know? The time the water is in contact with the ground coffee is considerably less for espresso coffee than conventional filter coffee. As a result, less bitterness is released from the ground coffee– making espressocoffee that much milder!

Safety Information This appliance corresponds to accepted technological standards with regards to safety and to the German Appliance Safety Law. As the manufacturer, we nevertheless wish to familiarise you with the following safety information. General safety

• The coffee machine must be connected only to a mains power supply of which the voltage, type of supply and fre- quency conform with the details shown on the type plate (this can be found on the upper part, behind the service cover)!
• Never allow the mains lead to come into contact with hot parts of the appliance.
• Never use the mains lead to pull the plug out of the mains socket!
• Do not use the coffee machine, if: – the mains lead is damaged, or – the case shows visible signs of damage.
• Ensure that the coffee machine is switched off before plugging into the mains socket.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety. Child safety
• Do not leave the coffee machine running unattended, and take special care when children are about! Safety in operation
• Caution! The coffee dispenser, swivel nozzle and cup rack become hot in operation. Keep childeren at a safe distance!
• Caution! Danger of scalding when the steam nozzle is activated! Hot water or steam output can cause scalding.

Activate the steam nozzle only when you are holding a container under the nozzle. Do not use steam to heat inflammable liquids! Only use the coffee machine with water in the system! Fill the water tank with cold water. Do not use hot water, milk or other liquids. Do not exceed the maximum fill level of 1.5 litres. Do not put frozen or caramelised coffee beans in the bean container. Use only roast coffee beans! Remove any foreign bodies from the coffee beans. Failure to do this invalidates the guarantee. Spoon only ground coffee into the ground coffee filler. Do not leave the coffee machine switched on unnecessarily. Do not expose the coffee machine to the weather. When using an extension lead, use only a commercially available cable with a conductor cross-section of at least

To avoid injury, persons with motor system disorders should never use the machine without an accompanying person. Operate the machine only when the drip tray, container and the drip grille are installed! Safety in cleaning and care

• Follow the cleaning and descaling instructions.
• Switch off the coffee machine and unplug from the mains socket before carrying out any maintenance or cleaning!
• Do not immerse the coffee machine in water.
• Only clean the steam nozzle when the machine is switched off, cold and not under pressure!
• Do not clean coffee machine parts in the dishwasher.
• Never put water in the grinder. This would damage the grinder. Never open or repair the coffee machine. Faulty repairs can result in considerable hazard to the user. Repairs to electrical appliances must be carried out only by qualified service engineers. If a repair becomes necessary – including replacement of the mains lead, please contact
• the dealer where you bought the coffee machine, or
• to Fagor’s Customer Care Service. If the machine is misused or incorrectly operated the manufacturer accepts no liability for damages and the guarantee is invalidated – likewise if the cleaning and descaling program is not carried out immediately after the display indication

PROCESS» respectively «CARRY OUT DESCALING» and according to the details in these operating instructions.

Overview of the menu points

Below is an overview of the menu points in which you can change and save the machine parameters which are preset at the factory and also start programs and call up information. You will find detailed information on this in the further chapters of these operating instructions. Menu «LANGUAGE» Display language; Several languages are available for selection. Factory setting: «ENGLISH ». Menu «TEMPERATURE» Programmable coffee temperature between 1 (moderately warm) to 5 (extra hot). Factory setting: 3 (normal). Menu «SHUT OFF TIME» Programmable switch-off time between 1 to 5 hours. Factory setting: 1h (1 hours). Menu «WATERHARDNESS» Programmable hardness level between 1 (soft) and 4 (very hard). Factory setting: 4. Menu «CLEAN» Start the cleaning program. Menu «DESCALE» Start the descaling program. Menu «RESET» Reset the changed parameter settings to the factory settings. Menu «INFO» Retrieve the number of cups of coffee dispensed and the cup measure for each cup size.

Before using for the first time Setting Up and Connecting the Coffee Machine Place machine on a suitable horizontal, stable, unheated and water-resistant surface. Ensure there is good air circulation. Important! If the coffee machine is brought into a warm room from a cold environment, wait about two hours before switching on! We advise you to place the coffee machine on a suitable mat to prevent damage being caused by spray and splashes. Hold the bean container with the marking at the „Unlock container“ position and set it in place (Fig. 4). The bottom opening of the bean container must be closed (Fig. 4,a), if it is not closed (Fig. 4,b), insert the tip of a ballpoint pen in the small oval hole (arrow) of the black ring with the marking „TOP“ and turn opening clockwise as far as the stop. Now turn the bean container anticlockwise to the position „Coffee beans“ (Fig. 10) or further on to the position „Powder“ (Fig. 14). Push the drip tray in, until it engages on the right under the water tank (Fig. 5). Plug the coffee machine into an earthed mains socket. Do not use a socket that is not earthed! If you do not need the full length of the mains lead, open the cable compartment on the back of the coffee machine, and stow away the unused lead (Fig. 6). Filling with Water Each time before switching on the coffee machine, check that there is water in the water tank and refill if necessary. The coffee machine requires water for the automatic rinsing processes each time the machine is switched on or off.

Remove the water tank from the coffee machine (Fig. 7). Fill the water tank with fresh cold water (Fig. 8). Pour only fresh cold water in the water tank. Never put in other liquids, e.g. mineral water or milk. Replace the water tank (Fig. 7). Press the tank firmly in, to ensure that the water tank valve opens. If for instance, water has to be refilled during coffee dispensing, the „Fill water tank“ indicator (Fig. 3, k) flashes, the display indicates «REFILL WATER». Coffee preparation is inter- 5.4 rupted. Fill the water tank! To always be sure of a rich coffee, with a full aroma, you should:

• change the water in the water tank daily,
• wash the water tank at least once per week in normal washing-up water (not in the dishwasher). Then rinse with fresh water.

Switching on for the first time When you place the machine in use for the first time, the automatic switching on process only continues if you have selected the desired language. Switch on the machine with the „On/ Off“ key (Fig. 3, h) (Fig. 9). The red indicator light comes on The machine is set at the factory to the display language «ENGLISH ». To select a different language, proceed with „Setting language“ page 45. If you wish to select «ENGLISH », press the „OK“ key (Fig. 3, g). English is now programmed. After programming the display returns automatically in the main menu to the menu point «LANGUAGE». To start the switching on process, press the „Menu“ key (Fig. 3, f) or wait ca. 30 sec. For the machine to automatically start with the switching on process. The display briefly indicates «Xperta». The machine now heats up (display indication «UNIT HEATS») and subsequently performs a rinsing cycle (display indication «UNIT RINSES»). On completion of the rinsing cycle, the machine is ready for use. The display indication now appears according to the basic setting. Switching on the machine Each time before switching on, make sure there is water in the water tank and replenish if necessary. The machine requires water for the automatic rinsing cycles with each switching on and switching off process. Switch the machine on with the „On/ Off“ key (Fig. 3, h) (Fig. 9). The red indicator light comes on, the display indicates briefly «Xperta». Immediately after being switched on the machine runs through a set-up cycle. The noises occurring are perfectly normal. During the heating-up phase (ca. 60 seconds) the „Coffee machine heating“ indicator (Fig. 3, i) flashes (display indication «UNIT HEATS»). After the operating temperature has been reached, the coffee machine carries out an automatic rinsing cycle. (display indication «UNIT RINSES»). The water flows into the drip tray. The „Unit heats“ indicator (Fig. 3, i) lights continuously. The coffee machine is now ready to use. The indication shown in the display depends on the last selected coffee mode.

Switching the coffee machine off Switch the machine off with the „On/ Off“ key (Fig. 3, h) . The machine carries out a rinsing cycle (display indication «UNIT RINSES») and then requests you to empty the container (display indication ca. 1 min. alternately «UNIT SWITCHES OFF» and «WASTE CONTAINER»). The machine is switched off automatically after 60 seconds. Emergency cut-out You can place the machine out of action immediately at any time. Press the „On/Off“ key (Fig. 3, h) briefly twice in succession . All functions are immediately switched off and the machine is placed out of action.

Setting the water hardness After first placing the machine in use or when using a different water quality you should set the machine to the water hardness level corresponding to the local water hardness. You can use the included test card to determine the water hardness, or contact your local water supply company. Determining water hardness Dip the test strip in cold water for around 1second. Shake off the excess water, and gauge the hardness by means of the pink bands. pink bands or one pink band: Hardness 1, soft up to 1.24 mmol/l, or up to 7° German hardness, or up to 12.6° French hardness Two pink bands: Hardness 2, medium hard up to 2.5 mmol/l, or up to 14° German hardness, or up to 25.2° French hardness Three pink bands: Hardness 3, hard up to 3.7 mmol/l, or up to 21° German hardness, or up to 37.8° French hardness Four pink bands: Hardness 4, very hard over 3.7 mmol/l or over 21° German hardness, or over 37.8° French hardness Setting and saving the water hardness level You can set 4 hardness levels. The coffee machine is factory-set to hardness level 4. With the machine switched on, press the „Menu“ key (Fig. 3, f) . The menu point «LANGUAGE» appears. Press the paging keys or (Fig. 3, c or d) until the menu point «WATERHARDNESS» appears. Confirm the menu point with the „OK“ key (Fig. 3, g). The display indicates the current setting e.g. «HARDNESS LEVEL 3». Then press the paging keys or (Fig. 3, c oder d) until the determined hardness level is displayed. Confirm the selection with the „OK“ key (Fig. 3, g). After the programming the display returns automatically into the main menu to the meun point «WATERHARDNESS». To return to the coffee mode, then press the „Menu“ key (Fig. 3, f) wait ca. 30 sec. For the machine to automatically return to the coffee mode. You can execute other menu settings, see „Menu settings“.

Making Coffee with Beans 6.2 Select Cup Size The following process for making coffee with beans runs completely automatically: Grinding, portioning, pressing, pre-brewing, brewing, ejection of the coffee grounds. The facility to select the grinding texture and the coffee quantity allows you to individually set up the coffee machine to your own personal taste. Depending on your taste, select a „short“ espresso or a „long“ milky coffee. For this press the „Cup Size“ key (Fig. 3, until the desired cup symbol is selected or the desired cup size is indicated on the display. The cup sizes are indicated as follows: «CUP SMALL» Espresso cup Ensure that you use only pure coffee beans with no caramelised or aromatised additives. Do not use frozen beans. «CUP MEDIUM» Coffee cup «CUP LARGE» Coffee mug The bottom line in the display shows the coffee quantity. The procedure for changing this is described in the following section. Filling the Coffee Bean Container Turn the bean container to the „Coffee Beans“ position (Fig. 10). The mechanism sets to the required function Set the grinding texture (Fig.11). Using the grinding texture adjustment (Fig. 2, V) you can set the grinding texture of the grinder. Note! Before putting beans into the coffee machine for the first time, you can set the grinding texture once with the grinder stationary. Once the grinder has been filled with beans, the setting can be changed only while grinding is proceeding. Otherwise the coffee machine could be damaged. The grinder is factory-set to a medium grinding texture. Notes on changing the grinder setting can be found in „Setting the Grinding Texture". Raise the lid of the coffee bean container, and fill the container with fresh coffee beans (Fig. 12). Then reclose the lid. Note! Make sure that no foreign bodies, such as stones, enter the coffee bean container. Damage caused by foreign bodies in the grinder is excluded from the guarantee. The machine is set to standard quantities at the factory. Instructions for changing the set coffee quantities are to be found under „Programming the cup measure and the coffee quantity".

The top line in the display indicates the cup size. The instructions for selectig a different cup size are contained in the previous section. To save having to select the coffee quantity every time you switch on the coffee machine, you can permanently save the coffee quantity in relation to the cup size. Instructions are to be found under „Programming the cup measure and the coffee quantity".

Setting the number of cups and dispensing coffee Place one or two cups under the coffee dispenser. The dispenser can be slid up or down to match the height of your cup/mug to reduce heat loss and coffee splashes (Fig. 13). If the height adjuster is stiff, proceed as described under „Cleaning the height adjustment“. Press the key „1 or 2 cups of coffee“ (Fig. 3, b) once or twice in order to select 1 or 2 cups. The display shows «1 CUP» or «2 CUPS». If you have selected «2 CUPS», the key lights up. Press the „OK“ key (Fig. 3, g). The coffee is now made. Please note that the appliance brews in the two cup operation two cups of coffe one after another. Remove the cups not till both brewing processes are complete. While the 2 CUP procedure is running, the OK key indicator is flashing. In the coffee-making process, the ground coffee is first of all wetted with a small quantity of water for prebrewing. Following a short pause, the actual brewing process commences. You can prematurely stop the coffee being dispensed at any time by briefly pressing the previously actuated „OK“ key (Fig. 3, g) once again. This is indicated in the display with «BREAK».

If you have not dispensed coffee for a long period of time with the machine switched on, you should rinse the system before dispensing again. Start the rinsing with the „Rinse“ key (Fig. 3, e), the display shows «UNIT RINSES». With this additional rinsing phase the brewing unit is brought back to the initial coffee dispensing temperature. New brewing unit allows only to fill in 1 measuring spoon or ground coffee. Making Ready-ground Coffee This function allows you to brew preground coffee, e.g. decaffeinated coffee. Note that you must use only the supplied measuring spoon, and never put more than 1 level measuring spoon of ground coffee into the ground coffee filler. Note! Make sure that no ground coffee has remained in the filler, and that no foreign bodies enter the filler. The ground coffee filler is not a storage container. The ground coffee must be fed directly into the coffee-making unit. If the brewing unit is overfilled, the machine indicates a fault; the display then shows «CLEAN BREWING UNIT» and «SWITCHES OFF UNIT» alternately. For instructions on cleaning the brewing unit, see „Cleaning the Coffee-making Unit“. Do not put any water-soluble or freeze-dried instant powders or any other drink powder into the ground coffee filler. Coffee powder, which is too fine, can lead to blockages.

Filling the ground coffee filler

Turn the coffee bean container to the „Ground Coffee“ position (Fig. 14). The mechanism sets to the required function. When using ready ground coffee, the „Coffee Quantity“ function is inactive. So no coffee quantity signal lamps light. Open the lid of the ground coffee filler, and spoon in the 1 measuring spoon of the fresh ground coffee (Fig. 15). Do not add coffee during the brewing process. Only put in ground coffee for the next cup when the brewing process has completely finished and the coffee machine is ready. Close the lid.

Selecting cup size See „Select Cup Size". Frothing Milk The steam can be used to froth milk and to heat liquids. Since a higher temperature is needed to produce steam than to make coffee, the coffee machine has an additional steam mode. To make a cappuccino, fill a large cup 1/2 to 2/3 full with espresso, and then add the frothed milk. Caution! Danger of scalding when the steam nozzle is activated! Hot water or steam output can cause scalding. Do not activate the steam nozzle until it is immersed in the milk. To produce steam, press the „Steam Pre-selector“ key (Fig. 3, a) . The indicator illuminates; the „Unit heats“ indicator (Fig. 3, i) can also flash and the display shows «UNIT HEATS». When the heating process is finished, the „Unit heats“ indicator (Fig. 3, i) lights continuously the display shows

«STEAM READY – OPEN STEAM

NOZZLE». The machine is ready for the milk frothing. If the steam function is not used for longer than 1minute, the machine switches back automatically to the coffee mode. Pour low-fat, cold milk into a mug which must be small enough to fit under the steam nozzle. The milk should be cold. You should also use a cold mug, preferably a stainless steel one which should not be rinsed beforehand in hot water. Swing out the steam nozzle and hold the mug under the steam nozzle so that the nozzle opening is just immersed in the milk.

Attention! Impurities from dried milk residues in the steam nozzle. Take care not to immerse the steam nozzle in the milk far enough to cover the air intake opening at the top of the steam nozzle. Otherwise milk can be sucked into the nozzle and cause impurities in the steam nozzle. Turn the Selection dial for steam and hot water (Fig. 1, D) to the position (Fig. 16). The display shows the steam process (indication «STEAM»). The milk is frothed. Hold the mug steady during the frothing. The nozzle should not be allowed to touch the bottom of the mug and 9 cut off the steam supply. Froth the milk to at least twice its volume. To end the frothing, turn the Selection dial for steam and hot water (Fig. 1, D) to the position and then remove the vessel (Fig. 16). The display returns to the steam readiness indication (indication «STEAM READY – OPEN STEAM NOZZLE»). Caution! Danger of scalding from hot milk spray! Switch the steam off, before removing the mug with the frothed milk. Exit the steam mode by pressing the „Steam Pre-selector“ key (Fig. 3, a) or wait ca. 60 sec., for the machine to automatically return to the coffee mode; the indication is extinguished. Now the machine is once again ready for making coffee; the last selected coffee setting is shown in the display. Each time you have frothed milk, let off some hot water through the nozzle for a short time by setting the Selection dial for steam and hot water (Fig. 1, D) to the position. This is necessary to prevent milk residues drying inside the nozzle, and thereby blocking it. Use a suitable container to catch the water. During this process the display shows «HOTWATER». Then return the Selector dial to the position ; the last selected coffee setting is shown in the display. Remove the frothing aid after each use (Fig.17). For this, take hold of the frothing aid by the black seal and disengage the bayonet connector by turning it slightly anticlockwise.5LQVH off the milk residues under running water. Wipe the steam nozzle with a damp cloth. Caution! Danger of burns from the frothing aid! Hold the frothing aid only by the black seal. Preparing Hot Water The hot water can be used to pre-heat cups and for making hot drinks, e.g. tea or instant soups. Caution! Danger of scalding when the hot water nozzle is activated! Hot water or steam output can cause scalding. Activate the hot water nozzle only when a container is under the hot water nozzle. Place a container under the hot water nozzle. Set the Selection dial for steam and hot water (Fig. 1, D) to the position (Fig. 18). Hot water is ready; the display shows «HOTWATER». After you have dispensed the hot water turn the Selection dial for steam and hot water (Fig. 1, D) back to the position (Fig. 18) and remove the container.

Programming the cup measure and the coffee quantity The coffee machine is factory-set to standard measures. These measures can be individually changed to your own taste and saved for each cup size.

10.1 Changing and saving the cup

measure and the coffee quantity Here it is possible to change and save the cup measure for each of the three cup sizes and for coffee bean mode also the coffee quantity. To program the setting correctly, note the order: – First select the cup size for which you wish to make the settings. – Next select the coffee quantity (only for coffee bean mode) (i.e. how strong you want the coffee to be). – Then determine how full the cup is to be filled. First press the „Cup Size“ key (Fig. 3, d) until the cup symbol is illuiminated for which you want set the cup measure. The display shows e.g. «1 CUP LARGE». Only with coffee bean mode: Next press the „Coffee Quantity“ key (Fig. 3, until the desired coffee quantity symbol illluminates. The display shows e.g. «STRONG». The top line in the display indicates the selected cup size. The bottom line in the display indicates the selected coffee quantity. Place a corresponding cup under the coffee dispenser (e.g. coffee mug). Next press the „OK“ key (Fig. 3, g) and keep it pressed until the desired cup measure is reached. During the filling the display indicates «CUP LEVEL» ; the bar indicator in the bottom line moves up. The max. bar indication corresponds to the max. possible cup measure of ca. 240 ml. When you save the cup measure in coffee bean mode, firstly the grinder starts and grinds the coffee. Keep the „OK“ key pressed (Fig. 3, g) until the desired cup measure is reached. Release the key once your desired cup measure is reached. This cup measure is now saved. The display briefly indicates «PROGRAMMED». Repeat the action if you would also like to adjust the measures for the other cup sizes. The machine switches off automatically on reaching the max. cup measure. The saved values are retained also when the machine is switched off. If you would like to change your cup size or flavour, you can individually adjust the cup measure at any time or return them to the factory setting with a reset. You will find which settings are reset under „Resetting the machine to the factory setting (Reset)“. The saving of the cup measure is only possible for 1 cup. For dispensing of 2 cups the saved values are doubled.

10.2 Changing and saving the coffee

quantity The lever positions have the following effects: Fine grade for intensive taste This is only possible with coffee bean mode, not for use with ground coffee. Should your taste change or you find the coffee to strong or too mild, you can change just the coffee quantity without changing the cup measure. First press the „Cup Size“ key (Fig. 3, d) until the cup symbol illuminates, for which you would like to adjust the coffee quantity. The display shows e.g. «1 CUP LARGE». Medium grade for normal taste Coarse grade for mild coffee The top line in the display shows the selected cup size. The bottom line in the display always shows the coffee quantity you have saved previously for this cup measure, e.g. «STRONG» Next press the „Coffee quantity“ key (Fig. 3, c) until the desired coffee quantity symbol is illuminated. The display shows e.g. «MILD». The value is now saved. Repeat the process if you also want to adjust the coffee quantities for the other cup sizes. Remove foreign bodies from the grinder Foreign bodies, such as small stones in the grinder can damage the grinder. The coffee machine includes a stone detector. A foreign body in the coffee causes a loud, even rattle. If you hear this noise while coffee is being ground, immediately switchoff the coffee machine and remove the foreign body, as described in „Cleaning the Grinder“. Menu settings

12.1 Setting language

Be sure the follow the order; first select the cup size, then the coffee quantity. The saved quantities remain stored when the coffee machine is switched off.

Setting the Grinding Texture Note! The grinder settings must be changed only while coffee is being ground. Making adjustments to the stationary grinder can damage the coffee machine. Dispense a coffee with beans. During the grinding, set the grinding texture with the grinding texture setting lever (Fig. 2, V) and (Fig. 19).

You can select between several languages. The factory setting is «ENGLISH ». You can change this setting as follows: Press the „Menu“ key (Fig. 3, f) The manu point «LANGUAGE» appears. Confirm the menu point with the „OK“ key (Fig. 3, g). The set language appears in the display (on placing in operation for the first time, the factory setting «ENGLISH »). Press the paging keys or (Fig. 3, c or d) until the desired language appears. When the desired language is displayed, confirm it with the „OK“ key (Fig. 3, g). This languaage is now programmed.

12.4 Interrogate the number of

dispensed coffees and the cup measures The coffee machine has the facility to display the total number of cups of coffee made. You can also display the cup measures programmed for the three cup sizes. Where 2 cups of coffee are dispensed simultaneously, there are also counted as 2 cups of coffee. Press the „Menu“ key (Fig. 3, f) The menu point «LANGUAGE» appears. Press the paging keys or (Fig. 3, c or d) until the menu point «INFO» appears. Confirm the menu point with the „OK“ key (Fig. 3, g). The display shows the number of cups dispensed up to this time, e.g. «QUANTITY 135» for 135 dispensed coffees. Repeatedly press the paging keys or (Fig. 3, c or d) to indicate the currently saved cup measures for each of the three cup sizes. The display shows the selected cup size, e.g. «MEDIUM» and in the second line, the correspond• ing saved cup measure as a bar indica• tion. The max. bar indication corresponds to the max. possible cup measure of ca. 240 ml. To return to the coffee mode, press the „Menu“ key (Fig. 3, f) or wait ca. 30 sec. for the machine to automatically return to the coffee mode.

12.5 Resetting the machine to the

factory setting (Reset)

13.2 Cleaning the height adjustment

To ensure consistent coffee quality and faultless operation, always keep your coffee machine clean.

13.1 Regular Cleaning

Caution! Before cleaning, switch off the coffee machine and allow it to cool down. Do not use any abrasive, scouring or corrosive cleaning materials. Wipe the inside and outside of the case only with a damp cloth. Note! Never put the coffee machine or separate parts of the coffee machine in the dishwasher. Note! Never put water in the coffee bean container, as this would damage the grinder. Remove the water tank daily (Fig. 7) and empty any remaining water. Rinse out the water tank with fresh water. Use fresh water every day. Empty the container daily, see „Emptying the Container“. Regularly drain the drip tray. This can be done at any time, but must be done when the red Drip tray float (Fig. 1, I) appears through the opening in the drip grille. Regularly (at least once per week) clean the Water tank (Fig. 1, N), Drip 13.4 tray (Fig. 1, J), Drip grille (Fig. 1, H) and Container (Fig. 1, G) with warm water, a mild washing up liquid and possibly a brush. From time to time, remove the coffee bean container and clear away any residues. Each time the machine is used for frothing, remove the frothing aid and clean off any milk remains. The air intake opening under the seal must not become blocked. This can be cleaned out with a thin needle. If the height adjustment of the coffee dispenser becomes stiff, remove the container, open the service cover and remove it. Slide the height adjuster right down, and off the bottom. To do this, gently raise the inside catch. Use warm water to clean any coffee residues from both parts. Reassemble the two parts. To do this, gently pull up the catch. Check the ease of movement of the height adjuster. Refit the service cover and push the container back in place. Emptying the Container At regular intervals, after every 16 coffee brews, the „Waste container“ indicator (Fig. 3, j) signals that the container has to be emptied and cleaned. The display shows «WASTE CONTAINER». When the coffee machine is in daily use, empty the container daily. As a reminder the display shows «WASTE CONTAINER» every time you switch the machine off. Always empty the container with the coffee machine switched on, otherwise the coffee machine does not register that the container has been emptied. Cleaning the Grinder Use the supplied brush to remove ground coffee residues. Note! Never put water in the grinder. This would damage the grinder. Press the „On/Off“ key (Fig. 3, h) switch off the coffee machine. Unplug from the mains socket. Turn the bean container so that the mark is at the „UnlockContainer“ position and remove the container (Fig. 20). Remove any remaining coffee beans (you could use the vacuum cleaner with the hose or crevice tool attachment for this).

If a foreign body is impossible to remove, take off the grinding ring. To do this, proceed as follows (Fig. 21): Push the Release catch for removing grinding ring (Fig. 2, U) forward toward the centre of the grinder. Keep it in this position and turn the Lever for setting grinding texture (Fig. 2, V) approximately one full turn clockwise until it comes up against the stop. You can continue to turn the Lever for setting grinding texture (Fig. 2, V) only if the Release catch for removing grinding ring (Fig. 2, U) is pressed. Now release the grinding ring (Fig. 22) and remove the foreign body or bodies. Caution! Risk of injury from the spinning grinder. Never switch the coffee machine on, when you are working on the grinder. This can lead to severe injuries. Before starting work, ensure that the machine is unplugged from the mains socket.

When refitting the grinding ring, ensure that both catches on the grinding ring holder engage in the corresponding slots (Fig. 22). Failure to do this can lead to damage to the grinder. Turn the Lever for setting grinding texture (Fig. 2, V) approximately one full turn anticlockwise until it comes up against the stop. Set the bean container in place at the „UnlockContainer“ position and turn it back to the „Coffee Beans“ position . Add a small quantity of coffee beans, and test the proper operation of the grinder by making a cup of coffee. The first time the grinder is used, or after cleaning, less ground coffee will enter the coffee-making unit, because the channel first has to be filled. This can influence the first cup of coffee.

Cleaning the Coffee-making Unit We recommend cleaning the brewing unit monthly. More frequent cleaning is recommended if the machine is used more intensively. If your appliance is left unused for longer periods (e.g. holidays), it is necessary to empty the coffee grounds container and the water reservoir. Before reconnecting clean the brewing unit thoroughly. Removing the brewing unit: Switch off the appliance with button h “ON/OFF”. The appliance carries out a rinsing process and asks you subsequently to empty the coffee grounds container. Pull the coffee grounds container out of the appliance, empty and clean it. Fig. 23 Press the unlocking button on the service door. Fig. 24 The service door opens to the front. Fig. 25 The brewing unit is located behind the service door. Fig. 26 Caution! Risk of burning through hot brewing unit! If you have just dispensed coffee, then the dispenser could still be hot! 5/6 Remove the brewing unit by inserting your index finger through the ring of the coffee dispenser at the front of the brewing unit and pull the brewing unit straight forwards. Prevent the brewing unit with the other hand from falling. Fig. 27, 28. Cleaning the brewing unit / inserting the brewing unit The brewing unit is open and the ejection lever folds down. Turn the brewing unit around. Both stainless steel sieves are easily accessible now. Fig. 29.

Clean the brewing unit under warm running water, particularly the stainless steel sieves must be well rinsed and cleaned of coffee remains. Dip the brewing unit in hot water to release the dried coffee remains. Dry the brewing unit. Fig. 30 Inserting the brewing unit: Turn the brewing unit to the correct position (the outlet tube faces forwards and downwards), set the brewing unit in the guide grooves and push the brewing unit fully into the appliance. Fig. 31 Close the service door until it locks audibly into position. Fig. 32 Reinsert the coffee grounds container. Fig. 33 The appliance can only be switched on if the brewing unit is set in and the service door is closed. After switching on the brewing unit re-adjusts itself, the normal heating process starts again. When dispensing coffee for the first time after cleaning, an increased amount of water will access the coffee grounds container.

13.6 Running the Cleaning Program

The cleaning program permits the intensive cleaning of otherwise inaccessible locations. Start the cleaning program at the latest when you are instructed by the display indication «CARRY OUT CLEANING PROCESS». The cleaning process takes ca. 8 minutes and should not be interrupted. Use only cleaning products recommended by Fagor. To obtain them, consult your distributor or our Customer Care Helpline. Before starting the cleaning program, clean the brewing unit (see „Cleaning the Coffee-making Unit“ page 49). Press the „Menu“ key (Fig. 3, f) The menu point «LANGUAGE» appears. Press the paging keys or (Fig. 3, c or d) until the menu point «CLEAN» appears. Confirm the menu point with the „OK“ key (Fig. 3, g). The display shows «START CLEANING». Confirm with the „OK“ key (Fig. 3, g). The display shows «PREPARE CLEANING». To prepare for cleaning, follow the instructions in the display.

• «REFILL WATER – PRESS OK» Remove the water tank, fill it with water and replace. Then press the „OK“ key (Fig. 3, g). The unit rinses 2 x automaticity.

This message only appears when the bean container is in bean mode. Turn the bean container to the position „Ground coffee“ (Fig. 35).

Place the emptied container under the outlet as shown in Fig. 37. The container serves as a collecting vessel for the cleaning fluid. Press the „OK“ key (Fig. 3, g). The cleaning program starts.

During the cleaning process the display shows the following indications alternately:

• «CLEANING 1 <1-6>»: The program carries out 5 cleaning cycles. The pauses enable the cleaning solution to take effect. The cleaning cycles are counted off in the display.
• «IN PROCESS» The bar indication in the bottom line increases with the advance of the pause duration.

In the event of a power failure or interruption, the program must be restarted! The cleaning process takes ca. 8 minutes. Then the following is shown in the display:

Replace the container. «WAIT» The brewing unit is positioned.

Place the waste container under the outlet again.

• «CLEANING COMPLETED» When this message appears, the cleaning program is ended. Turn the bean container to the desired position. The machine is now ready for use and in the status of the last selected coffee mode. After running the cleaning program, you are advised to throw away the first cup of coffee from the machine.

13.7 Running the descaling programme

The descaling programme allows a simple and effective descaling of the appliance. You should descale the appliance at regular intervals, latest, however when you are informed by the display indication “CARRY OUT DESCALING“. The descaling process is carried out in 2 phases, takes several minutes and should not be interrupted. The frequency of descaling depends on how hard the water is in your region. Please do not forget to find out the water hardness and adjust the corresponding hardness degree on the appliance. Please read chapter “Determining and adjusting the water hardness”. Use only limescale removal products recommendes by FAGOR. You may obtain them from our authorised distributor network or through our customer care helpline. Method phase 1: descaling

1. Press button f “Menu “. Subsequently

press button c “Scroll “ or button d “Scroll “ until the menu point “DESCALE“ ppears.

2. Confirm the menu point with button g

“OK “. If you press button g “OK “ once more you will receive instructions via the display how you have to prepare the descaling. Follow the instructions on the display:

• REFILL <250ml> WATER changes with 125ml DESCALER IN WATERTANK – PRESS OK.

3. Pull out the water tank. Put 125ml

descaler agent into the water tank. Then add 250ml water into the water tank by filling the empty descaler bottle twice with fresh water (see Illustration ). Replace the water reservoir – press button g "ok “, the descaling program starts. Fig. 34

• WAIT The brewing unit is positioned.

thoroughly, fill with 1 litre of fresh water and insert – press button g “OK “. Fig 41,

• DESCALING changes with IN PROCESSS Descaling process of the brewing unit Method phase 2: rinse starts. Caution! Risk of scalding when the The program carries out several cycles. steam valve is in use! During the descaling process the display Hot water can cause scalding. Only use indications “DESCALING” to “IN the steam valve when holding a container PROCESS” are shown repeatedly and underneath or turn the steam valve into alternately. The pause times, which are the position in which liquid can flow into displayed by the indication ”IN PROCESS“ the drip tray. to “IN PROCESS IIIIIIIIIIII” , are for the
• OPEN STEAM VALVE cleaning agent to take effect. Open the steam valve, the rinsing process above the steam valve starts.
• UNIT RINSES The brewing unit is positioned. The program carries out a fresh water flushing through the steam valve. Caution! Risk of scalding when the The pump switches off automaticly after steam valve is in use! the rinsing process is finished. Hot water can cause scalding. Only use
• CLOSE STEAM VALVE the steam valve when holding a container Close the steam valve. underneath or turn the steam valve into • WAIT the position in which liquid can flow into The brewing unit is positioned. the drip tray.
• UNIT RINSES The program carries out a fresh water

flushing through the brewing unit. Open the steam valve, the descaling The pump switches off automaticly after process above the steam valve starts. the rinsing process is finished. Only use the steam valve when holding a • EMPTY WASTE CONTAINER container underneath or turn the steam Empty and clean the coffee grounds valve into the position in which liquid can container. Put the coffee grounds flow into the drip tray. Fig. 38 container back into the appliance.

• CLEAN DRIP TRAY – PRESS OK

Pull out the drip tray, rinse thoroughly Close the steam valve. Fig. 40 and insert. – press button g “OK “.

• REFILL WATER – PRESS OK

6 EMPTY WASTE CONTAINER

Pull out water reservoir, fill with fresh Empty and clean the coffee grounds water and put back again –press button g container. The coffee grounds container “OK “. serves as a collecting vessel for the

• DESCALING COMPLETED descaling water. Put the coffee grounds The descaling programme has finished container back into the appliance. Fig. 37 when this display indication appears. In case of power failure during the descaling process

7 CLEAN DRIP TRAY – PRESS OK

the program has to be started again! Pull out the drip tray, rinse thoroughly

• The appliance is now ready for operation and insert. – press button g “OK “. Fig. 39 again and the status is that of the last coffee mode selected. We recommend

8/9 CLEAN & REFILL WATERTANK – PRESS OK

pouring away the first cup of coffee made Pull out the water reservoir, rinse after running the descaling programme.

13.8 Cleaning the steam valve

Clean the frothing unit as well as the steam valve after frothing or heating up milk. If the steam valve allows only a reduced amount or no steam or hot water to pass through, we recommend decaling in addition. Caution! Risk to health through milk residue on the frothing unit and steam valve! Contamination through dried milk on the frothing unit as well as the steam valve is a breading ground for bacteria. Keep these parts of the appliance clean at all times. Caution! Risk of burning on the frothing unit and steam valve! The frothing unit as well as the steam valve get very hot during the frothing of milk or the preparation of hot water, and can cause burns. Allow these parts of the appliance to cool down before starting cleaning. Only hold the frothing unit by the black cap. Method:

1. Remove the frothing unit and rinse off

the milk residue under flowing water. Subsequently wipe the steam valve with a damp cloth. Fig. 43

2. Clean the air suction opening of the

frothing unit if blocked by poking the clogged opening carefully with a pointed needle. Fig. 44

3. Now unscrew the outlet valve from the

steam valve. For this, use the measuring spoon P with the integrated took function. Fig. 45

4. Clean the outlet valve by poking the

clogged opening carefully with a pointed needle. Then rinse thoroughly and check that the valve is free. Fig. 46 To clean the steam valve, place a container under the steam valve. Turn rotary switch D “Hot water/steam” into position and allow hot water to pass through briefly without the screwedon outlet valve. This rinses out any remaining contamination from the steam valve.

5. Now screw the cleaned outlet valve

back onto the steam valve using the measuring spoon P. Fig. 47

6. Then again place the frothing unit

onto the steam valve and lock. Fig. 48 Caution, protection of the appliance! A clogged steam valve can damage the appliance! If the steam valve still does not let through any steam or hot water following cleaning of the outlet valve, the device must be descaled. Corresponding information can be found in the chapter “Starting the descaling programme”. 14 What do I do, if ...

• ... coffee-making is interrupted and «REFILL WATER» is displayed? – The water tank is empty: Refill the water tank and press the „OK“ key (Fig. 3, g).
• ... coffee-making is interrupted and the indications «CLEAN BREWING UNIT» and «SWITCH OFF UNIT» are shown alternately? – Brewing unit is overfilled: Carefully clean the brewing unit; see „Cleaning the Coffee-making Unit“. – In powder mode spoon in a max. of 2 – In powder coffee mode, fill in max. 1 measuring spoon of coffee powder. – Adjust to a lower grinding level: see “Changing grinding quantities”. – Check the ejection lever: see Cleaning the brewing unit”
• ... the machine can no longer be operated and «WASTE CONTAINER» is indicated? – Container is full: Empty container and clean thoroughly; see „Emptying the Container“.

• ... «CARRY OUT CLEANING PROCESS» is displayed? – Number of coffees dispensed necessitates cleaning: Run cleaning program; see „Running the Cleaning Program“.
• ... «CARRY OUT DESCALING» is displayed? – Number of coffees dispensed necessitates descaling: Carry out descaling; see „Running the Descaling Program“.
• ... the espresso/coffee is not hot enough? – Preheat the cups with hot water. – Increase coffee temperature; see „Setting the Coffee Temperature“. – The coffee machine may need descaling.
• ... the espresso/coffee is too weak? – not enough ground coffee: spoon in correct measure, max. 2 measuring spoons. – The coffee bean container is empty. Add coffee beans. – The coffee quantity is set too low. Increase the coffee quantity, see „Changing and saving the coffee quantity“. – The grinding texture is set too coarse. Set the grinding texture to a finer grade, see „Setting the Grinding Texture“.
• ...the crema is too weak? – Use fresh water. – Use fresh beans or fresh coffee powder. – Clean the coffee-making unit, see „Cleaning the Coffee-making Unit“.
• ...milk is not frothy enough? – The milk is too hot or too old or the fat content is too high. Use suitable milk. – Blocked steam nozzle. Clean the steam nozzle. – The air intake in the frothing aid is blocked. Clean the frothing aid.

• ... the bean container will not locate on the grinder? – Coffee bean residue on or around the grinder: Remove coffee bean residue from the grinder. – Coffee bean residue is jammed in the bean container lock. Clear the bean container lock of coffee bean residue.
• ... the grinder makes very loud noises when grinding? – The grinder is blocked by a foreign body. Remove the foreign bodyas described in this manual, refer to „Cleaning the Grinder“. – You can continue to use your coffee machine with ground coffee.
• ... the coffee machine has to be transported? – Keep the original packaging as transport protection. – Secure the coffee machine against jarring. – Empty the coffee machine tank and container and allow any remaining moisture in the system to steam off. This will protect your coffee machine from being damaged by freezing in cold weather. To steam off the system, remove water tank and then select the steam function. When no more steam is released, turn off the steam tap and switch off the coffee machine. – Care should also be taken with the location of the coffee machine – especially in cold weather, when damage can be caused by freezing.
• …..”LOOSEN BREW UNIT”? - Remove the brewing unit and loosen the brewing unit with at least 3 revs. on the back side, using the tool function of the measuring spoon P.

• … The brewing unit cannot be removed? - Position of the notched connecting pin at the end of the brewing unit is incorrect: Turn the notched connecting pin.
• … The appliance switches off after rinsing or while coffee is being requested? - Pressure in the brewing unit too high: Open rotary switch “Hot water / Steam” to position / . Remove brewing unit and clean, open the brewing unit before cleaning. To do this, turn on the black toothed cone.
• … Insufficient water level display despite full water tank? - Air in the system: Take some hot water.
• … The appliance cannot be switched on? - Mains plug unplugged: Insert mains plug. - Service door not closed: Insert brewing unit and close the service door. - Brewing unit not inserted: Insert brewing unit and close the service door.
• … Water in the coffee grounds container? - During every rinsing process, water gets into the coffee grounds container: None (for technical reasons) - Preceding abortion of coffee making, for example due to insufficient water level: Check water tank for sufficient water level prior to each use.
• … No water comes out of the coffee outlet during rinsing? - Brewing unit blocked: Clean brewing unit.

This coffee machine complies with the following EU Directives:

• 73/23/EEEC of 19.2.1973 „Low Voltage Directive“, including Amendment Directive 93/68/EEC.
• 89/336/EEC of 3.5.1989 „EMI Directive“, including Amendment Directive 92/31/EEC.

Technical Data Mains voltage: Power consumption:

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.
