Product Type	Canister Vacuum Cleaner
Brand	Siemens
Model	VS04G2200
Dimensions (L x W x H)	400 x 280 x 320 mm
Weight	5.2 kg
Power Supply	Mains, 220-240 V
Maximum Power	700 W
Container Capacity	3.5 L
Filtration	Washable HEPA Filter
Noise Level	75 dB(A)
Cable Length	5 m
Operating Radius	8 m
Accessories Included	Hard Floor Nozzle, Carpet Nozzle, Crevice Tool, Upholstery Brush
Functions	Electronic Power Adjustment, Automatic Shut-off
Maintenance	Regular Filter Cleaning, Empty Container
Safety	Overheat Protection
Spare Parts	HEPA Filter, Dust Bag (Model Z...)
General Information	2-Year Warranty

Frequently Asked Questions - VS04G2200 SIEMENS

How to change the dust bag?

To change the dust bag, open the compartment by pressing the unlock button. Remove the full bag and insert a new compatible bag (Model Z). Close the compartment until it clicks.

How to clean the HEPA filter?

Remove the HEPA filter by turning it counterclockwise. Wash it with lukewarm water (without detergent) and let it dry completely for 24 hours before reinstalling. Do not use in an oven.

What to do if the vacuum loses power?

First, check if the bag is full. Inspect the HEPA filter and clean it if necessary. A loss of power can also be caused by a blockage in the tube or hose. Disassemble and remove obstructions.

How to use the hardwood floor nozzle?

The hard floor nozzle has soft brushes. Attach it by clipping the end onto the tube. Set the power to minimum position to avoid scratching the floor. For carpets, use the provided carpet nozzle.

The vacuum stops suddenly, what to do?

This may be due to overheating. Let the appliance cool down for 30 minutes before restarting. Also check that the filter and ducts are not blocked.

How to store the power cord?

Use the automatic cord winder located at the back of the vacuum. Gently press the pedal to wind the cord smoothly. Hold the cord during winding to prevent knots.

Can I use the vacuum on hard floors?

Yes, the vacuum is suitable for hard floors (tile, hardwood, laminate) thanks to the included specific nozzle. Avoid using the motorized brush on delicate floors without checking compatibility.

How to replace the brush of the nozzle?

Unclip the worn brush by pushing the side tab. Insert the new brush aligning it with the notches and push until it clicks. Replacement brushes are available under reference Z....

Where can I buy spare parts?

Spare parts (bags, filters, brushes) are available from authorized Siemens dealers, online on the official website, or in home appliance stores. Use the model number VS04G2200 to find the correct parts.

What is the lifespan of the filter?

The washable HEPA filter can last up to 2 years with regular maintenance (cleaning every 3 months). Replace it earlier if you notice a drop in performance or odors.

USER MANUAL VS04G2200 SIEMENS

Gerätebeschreibung

7 Upholstery nozzle*

8 Crevice nozzle*

9 Power cord

10 On/off button with electronic suction regulator

11 Parking aid

12 Hepa filter

13 Storage aid (on underside of unit)

14 Dust collector

15 Vacuum cleaner lid

16 Carrying handle

17 Exhaust grille

18 Dust bag change indicator*

*Depending on equipment

Replacement parts and accessories

Thread lifter (1) and polishing strips (2) can be ordered through the after-sales department.

A Replacement filter pack VZ52AFG1

Contains: 5 self-sealing dust bags 1 micro-hygiene filter

B Textile filters (permanent filters) VZ10TFG

Reusable filter with Velcro fastener.

C TURBO UNIVERSAL® brush for upholstery

VZ46001

All in one brushing and vacuuming of upholstered furniture, mattresses, car seats, etc.

Especially suitable for picking up pet hair. The brush roller is driven by the cleaner's suction air flow.

No separate electrical connection is needed.

D TURBO UNIVERSAL® brush for floors VZ102TBB

All in one brushing and vacuuming of short-pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair.

The brush roller is driven by the suction of the air flow.

No separate electrical connection is needed.

E Hard-floor brush VZ122HD

For vacuuming hard floors (parquet flooring, tiles, terracotta, etc.)

Please keep this instruction manual When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use and not for commercial use.

This vacuum cleaner should only be used in accordance with these instructions for use.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, please note the following points. The vacuum cleaner must only be operated with:

■Manufacturer's original dust bags.
■Manufacturer's original replacement parts, accessories and optional accessories
The vacuum cleaner is not to be used for:
■Vacuuming persons or animals
■Vacuuming up:

• Insects or spiders.
• Hazardous, sharp-edged, hot or burning substances.
• Damp or liquid substances.
  – Highly flammable or explosive substances and gases.
• Ash, soot from tiled stoves and central heating systems

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations. We confirm compliance with the following European directives: 89/336/EEC (amended by Directives 91/263/EEC, 92/31/EEC and 93/68/EEC). 73/23/EEC (amended by Directive 93/68/EEC).

■Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■Do not use the vacuum cleaner without the dust collector or dust bag fitted => The appliance could be damaged.
■Only allow children to use the vacuum cleaner under supervision.
- Keep suction away from your face when using the handle, nozzles or pipe. => Risk of injury.

■Never carry the vacuum cleaner by the power cord.
■Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■When disconnecting the appliance from the mains, pull the plug, not the power cord.
■Do not pull the power cord around sharp corners or allow it to become trapped.
■Unplug the vacuum cleaner from the mains before carrying out any work on it.
■Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ To prevent you from being exposed to risks, vacuum cleaner repairs and the fitting of replacement parts must only be carried out by the authorised after-sales service.
■ Protect the vacuum cleaner from moisture and sources of heat.
■Switch off the vacuum cleaner when it is not in use.
■At the end of its life, the vacuum cleaner should be disposed of in an appropriate manner.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation.

It is made of environment-friendly materials and therefore can be recycled.

Dispose of packaging which is no longer required at recycling points.

■Used vacuum cleaners

Used vacuum cleaners still contain many recyclable materials.

Therefore, please take used vacuum cleaners to your retailer or recycling centre so that they can be recycled.

Please enquire about current disposal methods at your retailer or local council.

Please note

● The mains socket must be protected by a 16 amp fuse.

If a fuse is be tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from tripping, select the lowest power setting before switching the vacuum cleaner on, and increase the power only once it is running.

Fold out picture pages.

Before using for the first time

Figure 1*

Push the handle onto the flexible tube and until it engages.

Setting up

Figure 2

a) Push the hose connector into the opening on the vacuum cleaner until it engages.

b) To remove the flexible hose, press the two lugs together and pull the hose out.

Figure 3*

Connect the handle and the suction pipe together.

Figure 4*

Connect the floor tool and suction hose/telescopic tube together.

Figure 5*

a) Connect the suction pipes together.

b) Disconnect the telescopic tube and adjust its length by moving the adjusting button/sliding sleeve in the direction of the arrow.

Figure 6

Holding the power cord by the plug, pull out the required length and plug it into the mains socket.

Figure 7

Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.

Figure 8

Adjust the suction by turning the on/off button in the direction of the arrow.

Vacuuming

Figure 9

Adjusting the floor tool:

a) Rugs and carpets

b) Hard floors

Figure 10

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

Figure 11

You can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time.

Slide the catch on the floor tool into the groove at the rear of the appliance.

Figure 12

The appliance can also be carried using the two handles when vacuuming steps, for example.

When the work is done

Figure 13

Unplug the vacuum cleaner.

Tug the power cord briefly and let go. The cable then rewinds automatically.

Figure 14

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner.

Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

You have purchased a floor vacuum cleaner which can vacuum up any type of dry dirt using the dust collector or dust bag.

We recommend that you use:

• the dust collector, in particular for your hobbies, e.g. to remove wood shavings, etc.
• the dust bag principally for everyday household cleaning.

Using the dust collector

Figure 15

Set the power setting to maximum for the best results when vacuuming.

We recommend that you reduce the setting only when vacuuming very delicate materials.

■ Attention: The dust bag change indicator

- only functions correctly in conjunction with a dust bag.

Emptying the dust collector

To achieve an optimal result when vacuuming, the dust collector should be emptied each time the vacuum cleaner is used.

Figure 16

Turn the dust compartment locking lever in the direction of the arrow to open the dust compartment cover.

Figure 17

Remove the dust container from the appliance.

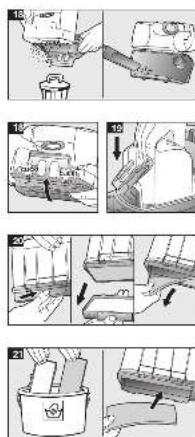

Figure 18

■Release the two snap locks on the bottom flap in the direction of the arrow, open the flap until it clicks into the stop position and the container will then empty the dirt in a downwards direction.
■If the bottom flap is very dirty, (thick dirt) clean it before closing, by vacuuming it with the crevice nozzle, for example.
(You must fit the dust bag in the vacuum cleaner when you do this - see Figure 23)
■Close the bottom flap so that it can be heard snapping into position.

Figure 19

Put the dust bag back into the vacuum cleaner and close the dust bag compartment lid.

Caution: The inside of the dust container may become scratched with use and start to look opaque. This does not, however, affect the performance of the vacuum cleaner in any way, i.e. it will continue to function as normal.

Cleaning the permanent filters and micro filters in the dust container

The filters must be cleaned:

■After any operating malfunctions, i.e. after a blockage is cleared.
■At least every six months.

Figure 20

■Press the fastener on the rear side of the container and remove the micro filter from the bottom of the container.
■Remove the permanent filter from the bottom plate of the container.

Figure 21

■ Wash the micro- and permanent filters. The filter must then be left to dry for at least 24 hours.
■ After cleaning, place the permanent filter on the bottom plate of the container.
Put the micro filter onto the container and fix it in place by pushing in the direction of the arrow. You will hear the flap snap shut.

Blockages

Removing a blockage in the dust container.

Figure 22

■Empty the container (see figure 18)
■Loosen the blockage, e.g. with a screwdriver, and tap or vacuum it out.
(You must fit a dust bag in the vacuum cleaner before vacuuming it out - see Figure 23)
■Close the bottom flap so that it can be heard snapping into position.

■ Caution: The micro- and permanent filters
- must be cleaned following any operating problem (see Figure 20 and 21).

Using dust bags

If necessary, a dust bag may be used instead of the dust collector.

Part number on the spare filter packaging:

VZ52AFG1

Figure 23

■Open the vacuum cleaner lid (see Figure 16)
■Remove the dust collector and insert a dust bag.
■Close the vacuum cleaner lid.

You have bought an extremely powerful device. The highest suction setting is therefore only recommended for heavily soiled, short-pile carpets and hard floors.

The required suction power can be selected by adjusting the suction regulator (see Figure 8).

■Low suction range:
For vacuuming delicate fabrics, e.g. curtains.
■Middle suction range:
For daily vacuuming of lightly soiled floors.
■High suction range:
For vacuuming durable floor coverings, hard floors and for heavily soiled surfaces.

Replacing the dust bag

Figure 24*

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains.

The nozzle, suction pipe and flexible tube must not be blocked, as this would also lead to dust bag change indicator being triggered.

Attention: The dust bag change indicator - only functions correctly in conjunction with a dust bag.

Figure 25

Open the lid by moving the locking lever in the direction of the arrow.

Figure 26

Seal the dust bag by pulling the locking tab and then remove it.

Figure 27

Place a new dust bag in the holder and close the vacuum cleaner lid.

Caution: The dust bag compartment lid will only close when the dust bag, textile filter or dust collector are inserted.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure 28*

■ Open the dust bag compartment lid (see Figure 16).
■ Pull out the motor protection filter in the direction of the arrow.
■ Clean the motor protection filter by tapping it.
■ If it is very dirty, the motor protection filter should be rinsed.
The filter must then be left to dry for at least 24 hours.
■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the appliance.

The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent or multipurpose cleaning product.

Never immerse the vacuum cleaner in water.

If necessary, the dust compartment can be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

A Pacote de filtros sobresselentes VZ52AFG1

Conteúdo: 5 sacos de filtro com fecho 1 micro-filtro higiénico

B filtro têxtil (filtro permanente) VZ10TFG

Primera utilización

Figura 1*

ل Connectivity Mutual Privacy, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security, Cultural Security

Fallersleber Straße 50

40227 Düsseldorf

Oberbilker Allee 270 A

44287 Dortmund

Rodenbergstraße 47

45141 Essen

Bamlerstraße 1 a

47805 Krefeld

BSH Home Appliances Pty Ltd

57-63 McNaughton Roads

3168 CLAYTON

[phone]

[phone]

www.bosch.com.au/sha/default.asp

BA Bosnia-Herzegovina

"HIGH" d.o.o.

Odoba_ina 57

Sarajewo 71000

Tel.: 033 - 21 35 13

Info-Line: 061 - 10 09 05

mailto:[e-mail]

BE Belgium, Belgien, Belgique

BSH Home Appliances s.a. n.v.

Old Wolverton (P.O.Box 118)

MK12 5ZR Milton Keynes

Tel.: [phone]

Fax:(1908) 328660

www.boschappliances.co.uk/

GR Greece, Hellas

BSH Ikiakes Syskeves ABE

17km Ethnikis Odou Athinon-Lamias

& Potamou 20

14574 Kifissia

Tel.: [phone]

Fax: [phone]

HK Hong Kong

BSH Home Appliances Limited

Unit 1&2B, 7th Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui - Hongkong/Kowloon

[phone]

[phone]

www.bosch-shop.com.hk/

HR Croatia

Andabaka Commerce

Gunduliceva 10

21000 Split

Tel.: [phone]

Info-Line: (21) 322 010

[e-mail]

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

[e-mail]

IR Ireland

Appliance Care

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Tel.: [phone]

Fax: [phone]

Outside of 01-area: 18903 22222

IS Iceland

Smith & Norland H/F

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italy, Italia

72 Buluju street, house 2.

1067 Riga

Tel.: [phone]

Fax: [phone]

[e-mail]

MK Macedonia

„RIMEKO SG“

Londonska 19

1000 Skopje

Tel.: [phone]

MT Malta

Aplan Limited

Aplan Centre B - Kara By Pass

B - Kara BKR

Tel.: [phone]

Fax: [phone]

[e-mail]

NL Netherlands

14-16 Constellation Drive

1310 Mairangi Bay Auckland

Tel.: [phone]

Fax: [phone]

PL Poland

BSH Home Appliances (SEA) Pte.

Ltd.

Cemal Sahir Sok. No. 26-28

80470 Mecidiyeköy - Istanbul

Tel.: [phone]

Fax: [phone]

www.siemensevaletleri.com

TW Taiwan

Achelis Taiwan Co., Ltd.

6th floor, No 2. Sec.3

Min Sheng E. Road

Taipei

Tel.: [phone]

Fax: [phone]

www.achelis.com.tw

Kundendienst-Zentren · Central-Service-Depots · Service Après Vente · Servizio Assistenza

Centrale Servicestation · Asistencia técnica · Servicevaerkter · Apparatservice · Huolto

UA Ukraine, Украина

KNEB

СП» Транс-Сервис«

тел: [phone]

ООО »Дойчэлектросераис«

тел.: [phone]

ООО »Три О Сервис«

тел: [phone]

VN Vietnam

T&C Co., Ltd

34 Ngu Truong To St.

Ba Dinh District

Hanoi

Tel.: [phone]

Fax:[phone]

[e-mail]

YU Yugoslavia

SZR Specijaelektro

III Bulevar 34, Blok 23

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

Info-Line: [phone]

[e-mail]

ZA South Africa

BSH-SA

15 th Rd., Randjespark

Private Bag X36, Randjespark

1685 Midrand - Johannesburg

Tel.:[phone]

Fax: [phone]

DE Garantie

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

de

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU

fr

es
