Product Type	Bagless Canister Vacuum Cleaner
Brand	Siemens
Model	VS5A1466
Maximum Power (W)	700 W
Dust Container Capacity	2 L
Filtration Technology	HEPA 13
Operating Radius	9 m (5 m hose + 4 m cable)
Power Cord Length	6 m
Dimensions (L x W x H)	45 x 28 x 30 cm
Net Weight	5.2 kg
Noise Level (dB(A))	80 dB(A)
Brush Type	Motorized brush for hard floors and carpets
Included Accessories	Crevice tool, upholstery brush, mattress nozzle
Power Adjustment	Electronic with variable speed control
Automatic Shut-off	Yes, in case of overheating
Repairability Index	8/10
Spare Parts Available	Filters, brushes, bags (although bagless), batteries (if cordless models)
Filter Maintenance	Wash with water every 3 months
Collection System Type	Bagless Cyclonic
Energy Class	A+++

Frequently Asked Questions - VS5A1466 SIEMENS

How to empty the dust container of the Siemens VS5A1466 vacuum cleaner?

Press the release button on top of the container, then remove it. Hold it over a trash can and press the bottom latch to release the dust. Close the lid and reinsert the container until it clicks into place.

How to clean the HEPA filter of the VS5A1466?

Remove the HEPA filter by turning it counterclockwise. Wash it under lukewarm water (max 40°C) without detergent. Let it dry completely for 24 hours before reinstalling. Do not put it in the dishwasher.

What to do if the vacuum loses suction?

First check that the container is not full. Then clean the HEPA filter and pre-filter. Also check that the hose or brush is not blocked. If the problem persists, refer to the manual for descaling the cyclone unit.

The power cord does not retract completely, what to do?

Unplug the vacuum and gently pull the cord to free it from any obstructions. Rewind it manually by guiding the cord. If the problem persists, the retraction mechanism may be defective; contact customer service.

Can I use the vacuum on hard floors and carpets?

Yes, the VS5A1466 is equipped with a versatile brush that adapts to hard floors and carpets. For hard floors, you can deactivate the brush rotation to avoid scratching.

How to change the main brush?

Unclip the brush cover by pressing the two side tabs. Remove the worn brush and insert the new one by aligning the notches. Close the cover until it clicks.

The vacuum turns off by itself, why?

This may be due to overheating. The vacuum automatically stops to protect the motor. Let it cool for 30 minutes after cleaning the filter and emptying the container. If the problem persists, check for blockages in the duct.

Where can I buy replacement filters for the VS5A1466?

HEPA filters and pre-filters are available on the Siemens website, from authorized dealers, or online. Use the reference number indicated in the manual (e.g., HEPA filter: 00639113).

How to use the crevice tool?

Attach the crevice tool directly to the wand or hose. It is ideal for corners, baseboards, narrow gaps, and radiators.

What to do if the filter full indicator lights up when the container is empty?

The sensor may be blocked. Clean the container and the air duct. If the indicator stays on, perform a filter cleaning cycle (refer to the manual).

USER MANUAL VS5A1466 SIEMENS

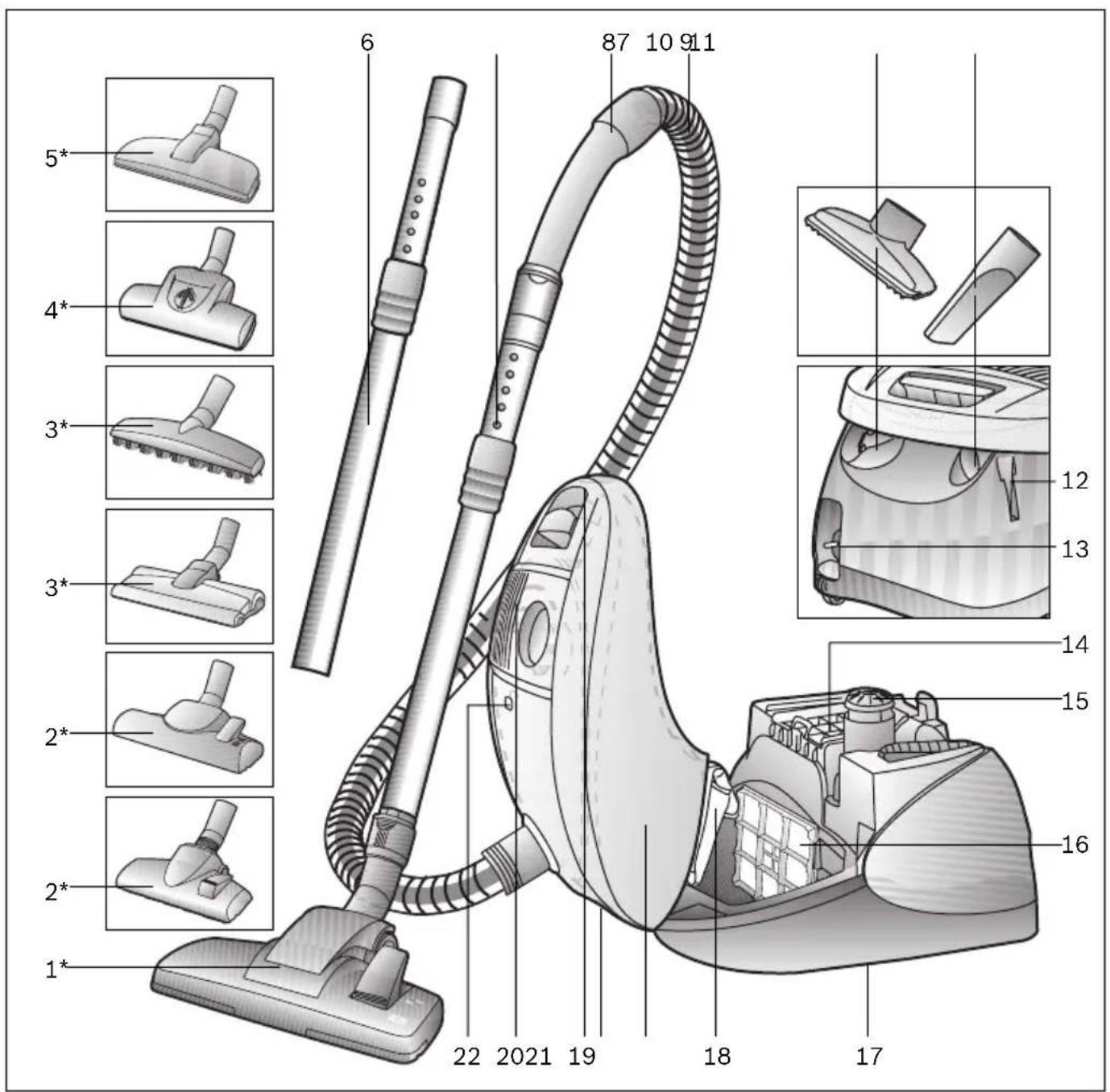

Gerätebeschreibung

1 Adjustable floor tool with locking collar*

2 Adjustable floor tool*

3 Hard-floor brush*

4 TURBO-UNIVERSAL® brush for floors*

5 Pet hair tool*

6 Telescopic tube with adjusting sleeve*

7 Telescopic tube with adjusting sleeve and locking collar*

8 Handle*

9 Flexible tube

10 Upholstery nozzle*

11 Crevice nozzle*

12 Parking aid

13 Power cord

14 Exhaust filter

15 On/off button with electronic suction regulator*

16 Motor protection filter, washable

17 Storage aid (on underside of unit)

18 Dust bag

19 Dust bag compartment lid

20 Carrying handles (on the front and back)

21 Exhaust grille

22 Dust bag change indicator*

*Depending on equipment

Replacement parts and accessories

A Replacement filter pack

■ Filter type G (VZ41AFG)

■ For best performance: Gplus (VZ41GPLUS)

Contents:

4 filter bags with seal

1 micro-hygiene filter

http://www.siemens.com/dust-bag

B Textile filters (permanent filters) VZ10TFG

Reusable bag with Velcro(R) fastener.

C Hepa filter VZ153HFB

Additional filter for cleaner exhaust air.

Recommended for allergy sufferers. Replace once a year.

D Micro-active carbon filter VZ192MAF

Combination of micro filter and active carbon filter.

Combats unpleasant odours. Replace twice a year.

Replace carbon filter frame with micro filter frame.

Please note!

It is not possible to combine a Hepa filter and a Microactive carbon filter.

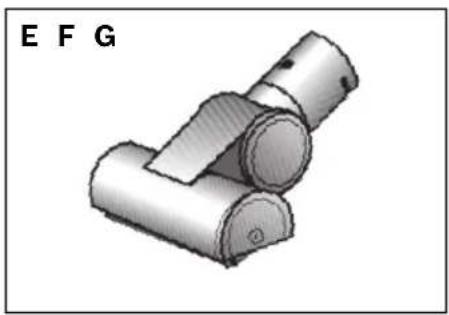

E TURBO-UNIVERSAL® brush for upholstery VZ46001

All in one brushing and vacuuming of upholstered furniture, mattresses, car seats, etc. Especially suitable for picking up pet hair. The brush roller is driven by the suction air flow of the vacuum cleaner.

No separate electrical connection is needed.

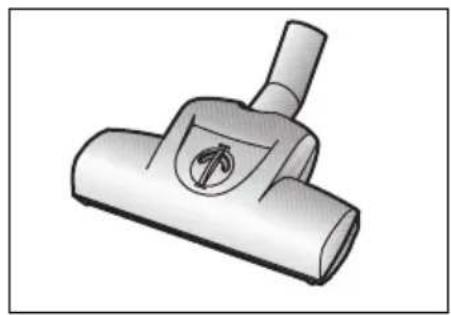

F TURBO-UNIVERSAL® brush for floors VZ102TBB

All in one brushing and vacuuming of shallow pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the suction air flow of the vacuum cleaner.

No separate electrical connection is needed.

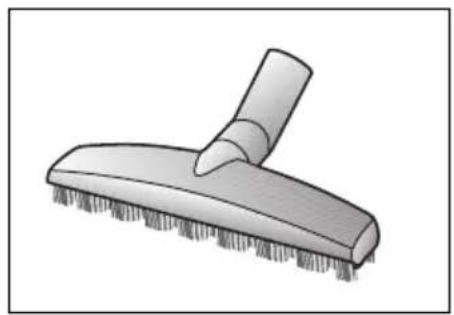

G Hard-floor brush VZ123HD

For vacuuming hard floors (parquet flooring, tiles, terracotta, etc.)

Congratulations on your purchase of a Siemens VSZ3 vacuum cleaner.

This instruction manual describes various VSZ3 models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation. Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted.

=> This can damage the appliance.

■ Only allow children to use the vacuum cleaner under supervision.
■ This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:

• hazardous, sharp-edged, hot or red hot substances.
• damp or liquid substances
• highly flammable or explosive substances and gases
• ash, soot from tiled stoves and central heating systems

• toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe.
  => Risk of injury.
  ■ Stand the appliance on a firm, secure surface when vacuuming.

■ When vacuuming stairs, the appliance must always be lower down than you.
■ In the following cases, stop using the appliance immediately and contact the after-sales service:

- if the mains connection cable is damaged.

- if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance - if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Fold out the picture pages.

Before using for the first time

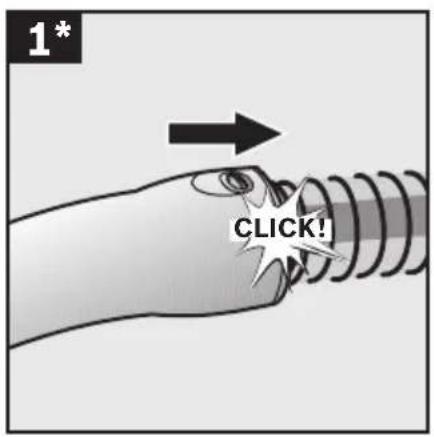

Figure 1*

Push the handle onto the flexible hose until it engages.

Figure 2*

Push the crevice nozzle and upholstery nozzle into the accessories holder as illustrated.

Setting up

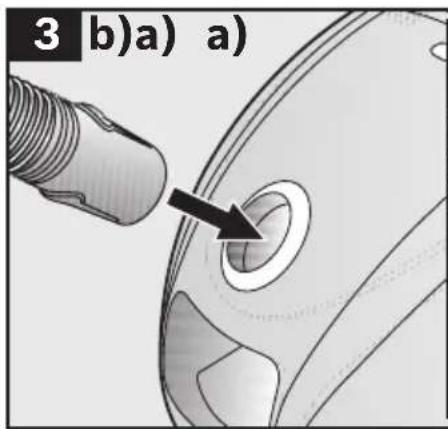

Figure 3

a) Push the flexible tube adapter into the air intake opening in the vacuum cleaner lid until it engages.

b) To remove the flexible hose, press the two lugs together and pull the hose out.

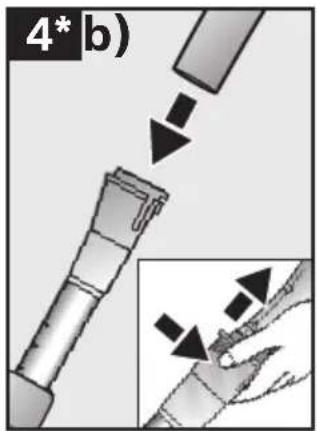

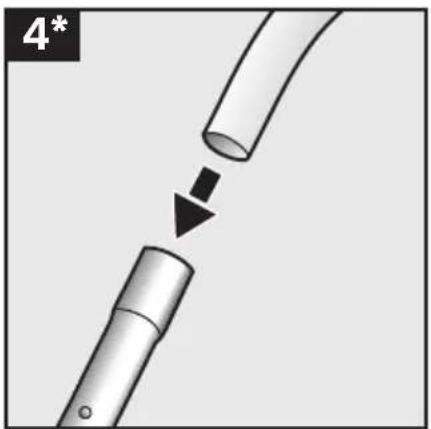

Figure 4*

a) Connect the handle and the telescopic tube together.

b) Push the handle into the telescopic tube until it engages.

Press on the locking collar and pull out the telescopic tube to disconnect.

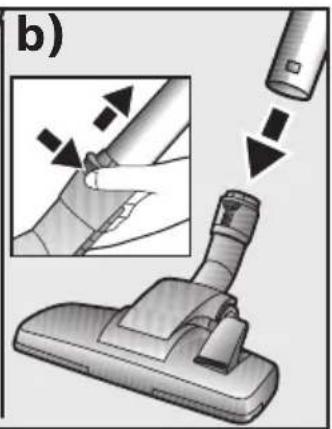

Figure 5*

a) Connect the floor tool and the telescopic tube together.

b) Push the telescopic tube straight into the connecting piece of the floor tool until it engages.

Press on the locking collar and pull out the telescopic tube to disconnect.

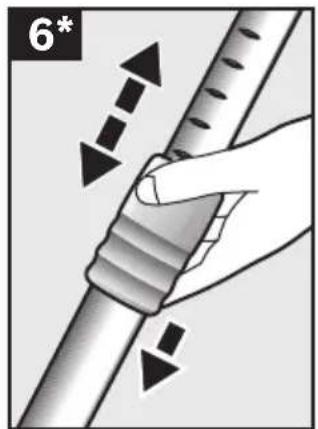

Figure 6*

To adjust the length of the telescopic tube, adjust the adjusting sleeve/sliding switch in the direction of the arrow and adjust the tube to the required length.

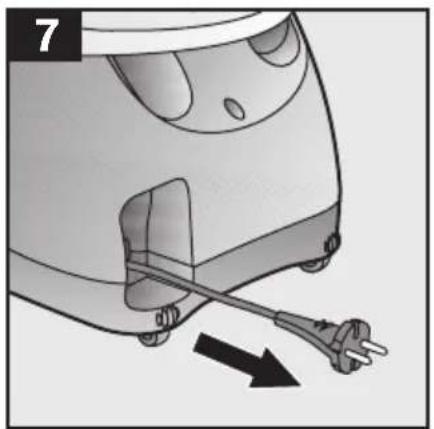

Figure 7

Holding the power cord by the plug, pull out the required length and plug it into the mains socket.

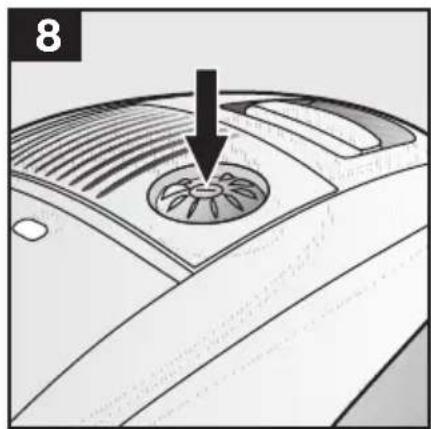

Figure 8

Press the ON/OFF button in the direction of the arrow to switch your vacuum cleaner on/off.

Figure 9

Adjust the suction by turning the ON/OFF button in the direction of the arrow.

Vacuuming

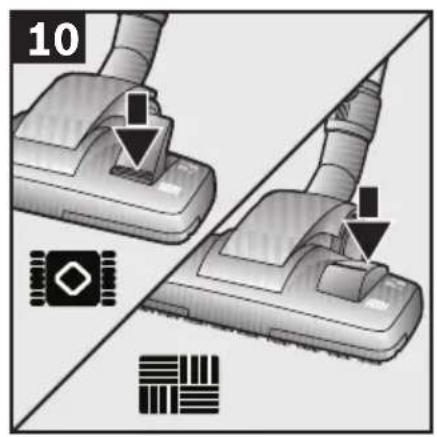

Figure 10

Adjusting the floor tool:

■ Rugs and carpets =>

■ Hard floors =>

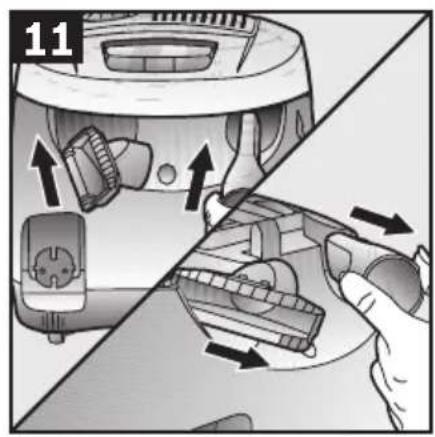

Figure 11

Remove the upholstery nozzle and crevice nozzle from the accessories holder as illustrated.

Figure 12*

Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.

b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

Figure 13

After use, push the crevice nozzle and upholstery nozzle back into the accessories holder as indicated.

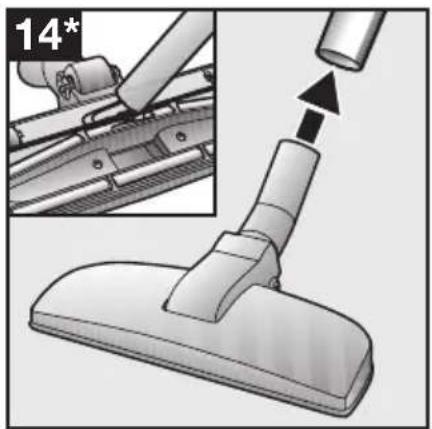

Figure 14*

Pet hair tool

Floor tool for easy and thorough vacuuming of pet hair. To clean the nozzle, simply vacuum it using the suction pipe/telescopic tube

Turbo brush

If your appliance is equipped with a turbo brush, please consult the accompanying instruction manual for notes on its use and maintenance.

Hard-floor brush

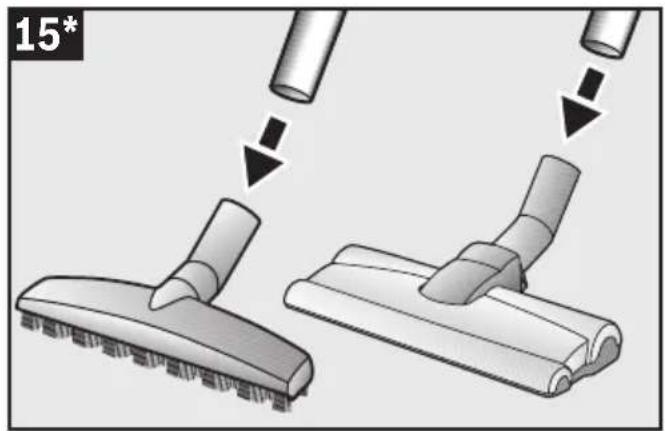

Figure 15*

For vacuuming hard floor coverings (tiles, parquet flooring, etc.)

Cleaning the hard-floor brush

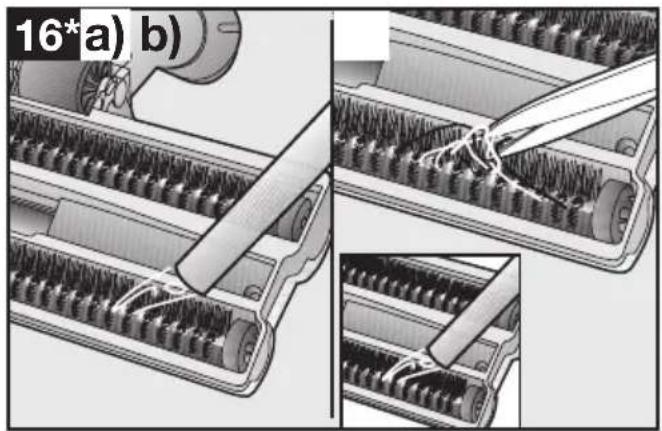

Figure 16*

a) Vacuum from below to clean the brushes.

b) Cut through threads and hairs wound round the rollers using scissors.

Vacuum threads and hairs with the crevice nozzle.

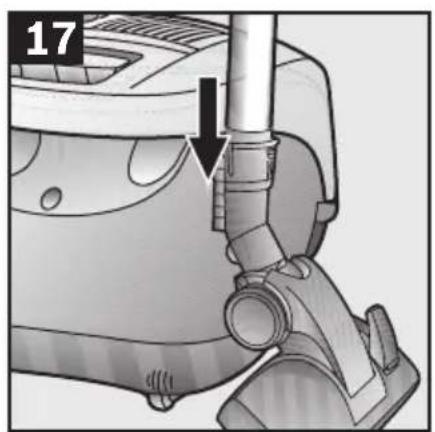

Figure 17

You can use the parking aid on the side of the vacuum cleaner if you wish to stop vacuuming for a short time.

Once you have switched off the vacuum cleaner, slide the catch on the floor tool into the groove on the side of the appliance.

*Dependent on model

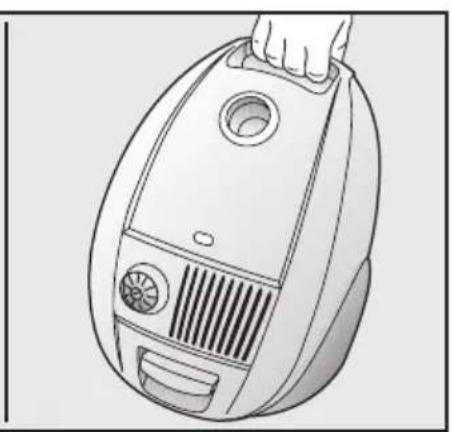

Figure 18

The appliance can also be carried using one of the two handles, for example when vacuuming steps.

When the work is done

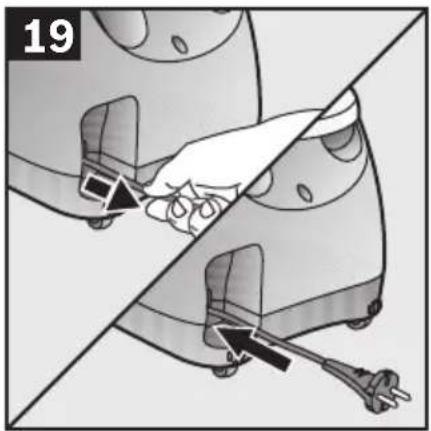

Figure 19

Unplug the vacuum cleaner.

Tug the power cord briefly and let go. The cable then rewinds automatically.

Figure 20

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner. Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

Changing the dust bag

Replacing the dust bag

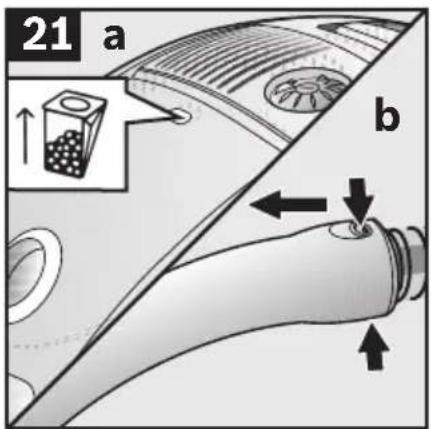

Figure 21

a) If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even if it is not yet full. Even if the dust bag is not full, it may still need changing, due to the type of dust which has been vacuumed.
First check that the nozzle, suction pipe and flexible tube are not blocked, as this would also lead to dust bag change indicator being triggered.
b) The handle can easily be detached from the hose to remove blockages.

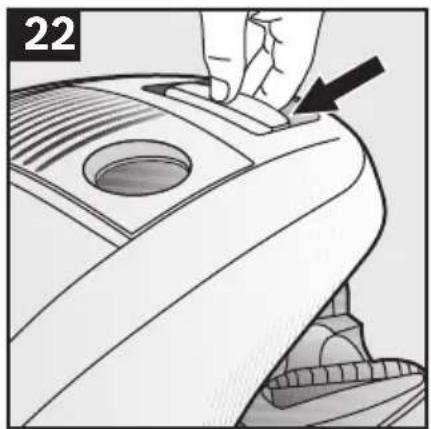

Figure 22

Open the lid by moving the locking lever in the direction of the arrow.

Figure 23

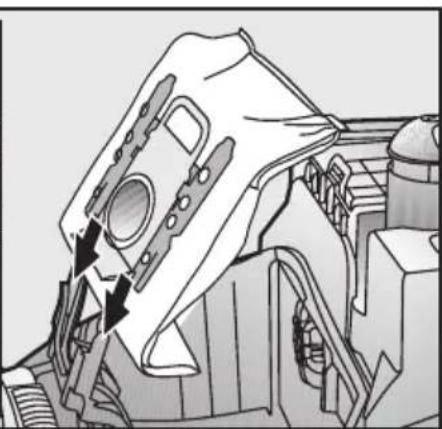

a) Seal the dust bag by pulling the sealing plate, and remove the bag.

b) Slide the new dust bag into the holder up to the stop.

! Caution: the lid will only close if a dust bag has been inserted.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure 24

■ Open the dust bag compartment lid (see Fig. 22).
■ Pull out the motor protection filter in the direction of the arrow.

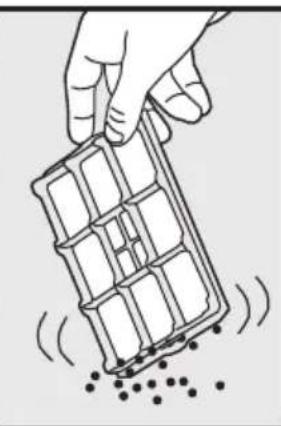

■ Clean the motor protection filter by tapping it out.

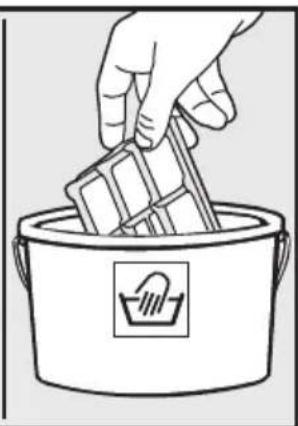

■ If it is very dirty, the motor protection filter should be rinsed. The filter must then be left to dry for at least 24 hours.
■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Replacing the micro-hygiene filter

This should be replaced with every replacement filter pack

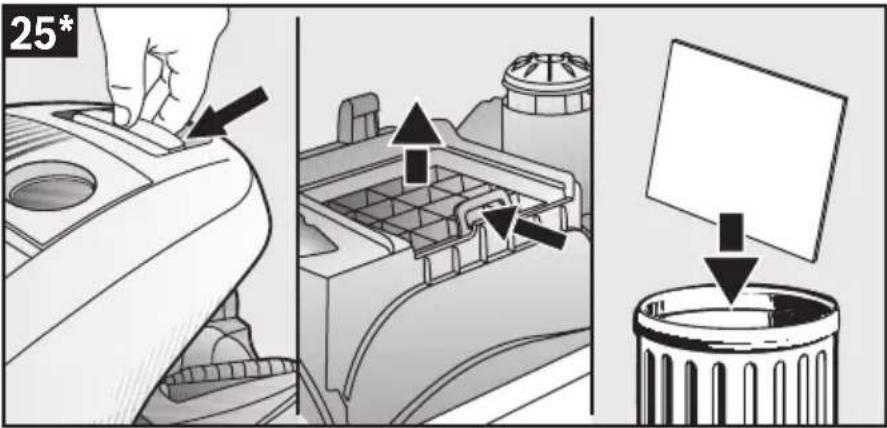

Figure 25*

■ Open the dust bag compartment lid (see Fig. 22).
■ Release the filter holder by moving the locking lever in the direction of the arrow.
■ Remove the micro-hygiene filter. Insert the new micro-hygiene filter into the appliance.
■ Insert the filter holder into the appliance until it engages.

Replacing the micro/activated carbon filter

If your appliance is equipped with a micro/activated carbon filter, this should be replaced every six months.

Figure 26*

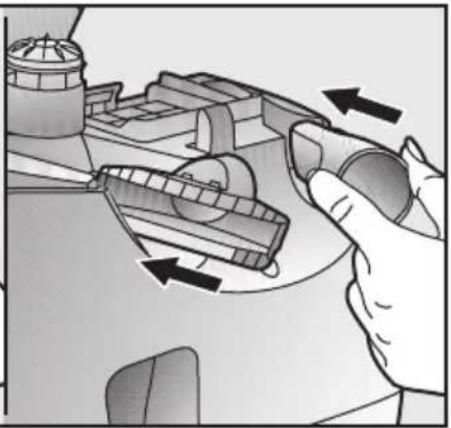

■ Open the dust bag compartment lid (see Fig. 22).
■ Release the filter holder by moving the locking lever in the direction of the arrow.
■ Remove the micro active carbon filter.
■ Insert the new micro active carbon filter.
■ Insert the filter holder into the appliance until it engages.

Replacing the HEPA filter

If your appliance is equipped with a HEPA filter, this should be replaced once a year.

Figure 27*

■ Open the dust bag compartment lid (see Fig. 22).
■ Release the Hepa filter by moving the locking lever in the direction of the arrow and remove it from the appliance.
■ Insert the new HEPA filter until it engages.

After vacuuming fine dust particles, clean the motor protection filter and, if necessary, replace the micro-hygiene filter, micro/activated carbon filter or HEPA filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent or all-purpose cleaning product. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Odobašina 57

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.cu.uk or call

Tel.: [phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax: [phone]

North-Greece – Thessaloniki

Tel.: [phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

Andabaka d.o.o.

Gunduliceva 10

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

DE Garantie

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

de

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE.

The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

fr

pt

[e-mail]
