Product type	Canister vacuum cleaner (bagged vacuum cleaner)
Brand	Siemens
Model	VS06G1668
Dimensions (W x D x H)	400 x 260 x 220 mm
Weight	5.4 kg
Tank capacity	3.5 L (dust bag)
Power consumption	800 W (adjustable)
Filter type	Washable permanent filter, HEPA filter
Operating radius	9 m
Noise level	75 dB(A)
Included accessories	Long crevice tool, hard floor brush, upholstery nozzle, crevice tool
Main functions	Dry vacuuming, electronic power adjustment, easy transport
Maintenance and cleaning	Empty the bag regularly, wash the permanent filter every 3 months
Safety	Automatic shut-off in case of overheating, motor protection
Spare parts and repairability	Compatible Siemens Premium type dust bag, replacement filters available
Color	Black / Red
Energy efficiency class	Class A

Frequently Asked Questions - VS06G1668 SIEMENS

How to change the dust bag of my Siemens VS06G1668 vacuum cleaner?

Open the front cover, remove the full bag, insert a new Siemens Premium bag until it stops, close the cover. Make sure the bag is properly attached.

What to do if the vacuum cleaner does not turn on?

Check the power outlet, the power cord, and the on/off switch. If the problem persists, the thermal fuse may have tripped: let it cool for 30 minutes.

How to clean the permanent filter?

Remove the filter from the compartment, gently brush it or rinse it with clean water (no detergent). Let it dry completely for 24 hours before reinstalling.

What type of dust bag to use?

Use exclusively Siemens Premium type dust bags (ref. WZ30120) to ensure optimal filtration and avoid damaging the appliance.

My vacuum cleaner makes an abnormal noise, what should I check?

Check that the bag is not too full, that the filter is not clogged, and that no object is stuck in the tube or brush. Clean if necessary.

How to adjust the suction power?

Use the slider or adjustment dial located on the vacuum cleaner body. Turn it towards the 'max' symbol for high power (hard floors) or towards 'min' for curtains.

Can I use the vacuum cleaner without a bag?

No, this vacuum cleaner is designed only with a bag. Do not use it without a bag, as this would damage the motor and reduce filtration.

How to store the power cord?

Press the automatic rewind button on top of the vacuum cleaner. Hold the cord to avoid whipping.

What is the warranty of the Siemens VS06G1668 vacuum cleaner?

The legal warranty is 2 years. Keep the purchase receipt. Additional commercial warranties may be offered by the retailer.

Where to find spare parts for my vacuum cleaner?

You can order spare parts (bag, filter, brush, nozzle) on the Siemens website or from authorized dealers. Use the model number VS06G1668.

USER MANUAL VS06G1668 SIEMENS

Your vacuum cleaner 6

Setting up 7

Vacuuming 9

When the work is done ....12

Changing the dust bag 14

Care 17

Optional extra 18

fr

Congratulations on your purchase of a Siemens VS06 vacuum cleaner.

This instruction manual describes various VS06 models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

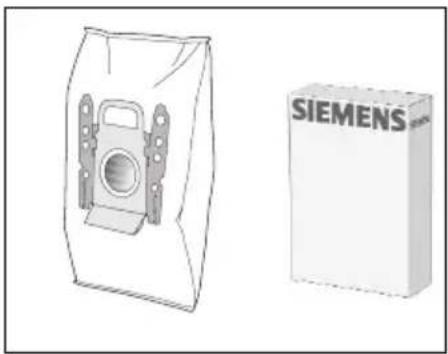

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.

■ Never use the vacuum cleaner without a dust bag fitted.
=> This can damage the appliance.
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.
■ Children must never play with the appliance
■ Cleaning and user maintenance must never be carried out by children without supervision.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:
- hazardous, sharp-edged, hot or red hot substances.
- damp or liquid substances
– highly flammable or explosive substances and gases
- ash, soot from tiled stoves and central heating systems
- toner dust from printers and copiers.

- Keep suction away from your head when using the handle, nozzles or pipe. => Risk of injury.

■ Stand the appliance on a firm, secure surface when vacuuming.

■ When vacuuming stairs, the appliance must always be lower down than you.

■ In the following cases, stop using the appliance immediately and contact the after-sales service:

• if the mains connection cable is damaged.
• if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance
• if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites. => Vacuuming up building rubble could damage the appliance.
■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials. As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse. If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit. To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

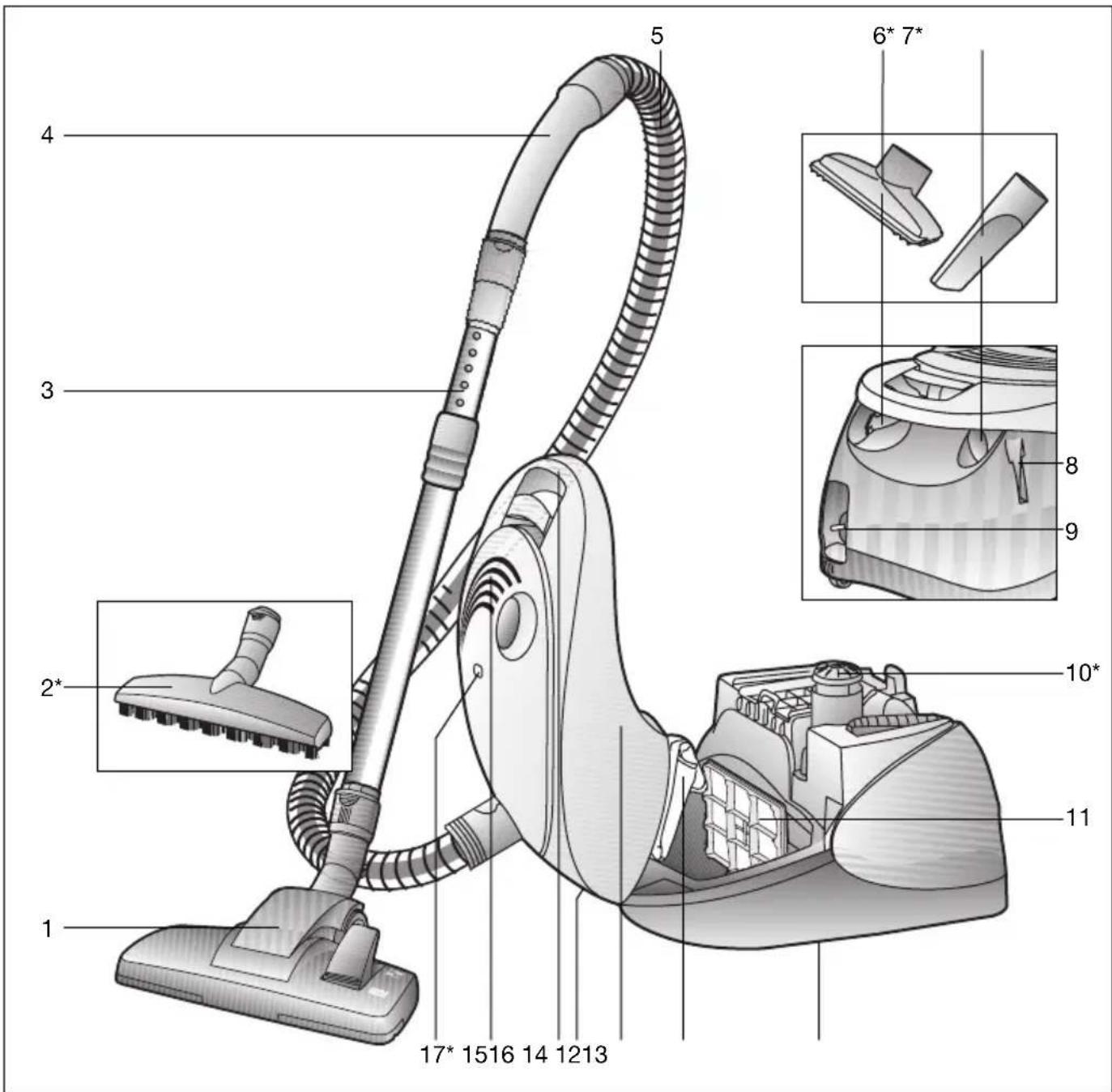

1 Adjustable floor tool
2 Hard-floor brush with locking collar*
3 Telescopic tube with adjusting sleeve and locking collar
4 Handle
5 Flexible tube
6 Upholstery nozzle*
7 Crevice nozzle*
8 Parking aid
9 Power cord

10 On/off button with electronic suction regulator*
11 Micro-hygiene filter
12 Storage aid (on underside of unit)
13 Dust bag
14 Dust bag compartment lid
15 Carrying handles (on the front and back)
16 Exhaust grille
17 Dust bag change indicator*

*Depending on equipment

Setting up en

Before using for the first time

Push the handle onto the flexible tube and until it engages.

*Depending on equipment level

Illustration of a kitchen appliance with a hand holding a bulb and plug, showing internal components and directional arrows (no text or symbols)

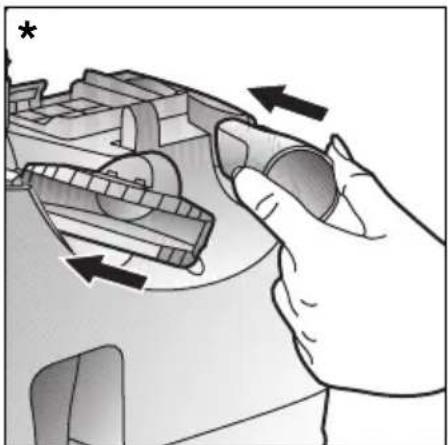

Push the crevice nozzle and upholstery nozzle back into the accessories holder as indicated.

*Depending on equipment level

Hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

*Depending on equipment level

Technical illustration of a mechanical component with a threaded shaft and circular opening (no text or symbols)

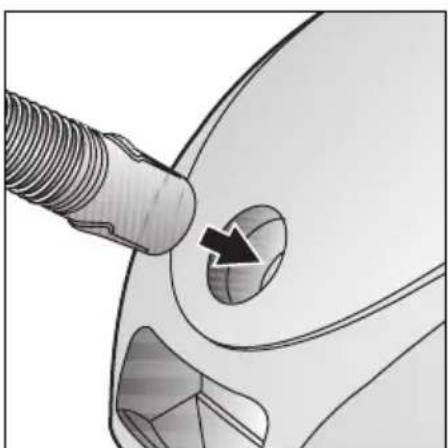

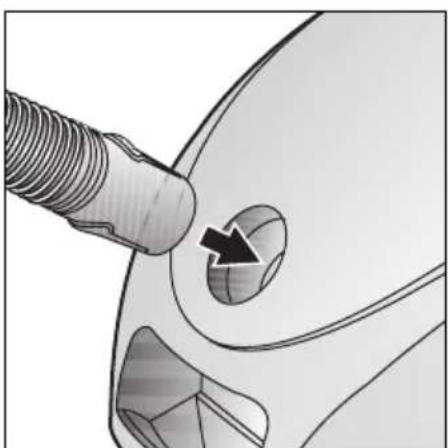

Insert the flexible hose connector into the opening on the vacuum cleaner until it engages.

Setting up en

Diagram showing a mechanical component being inserted into a cylindrical device (no text or symbols present)

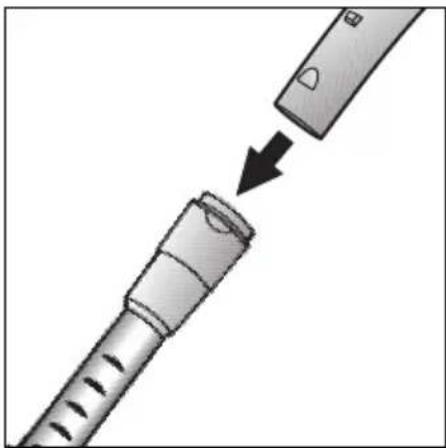

Push the handle into the telescopic tube until it engages.

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

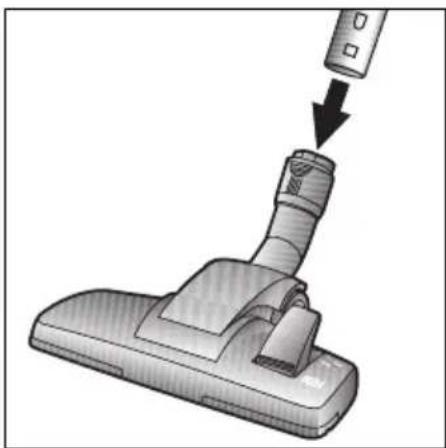

Push the telescopic tube into the connecting piece of the floor nozzle until it engages.

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

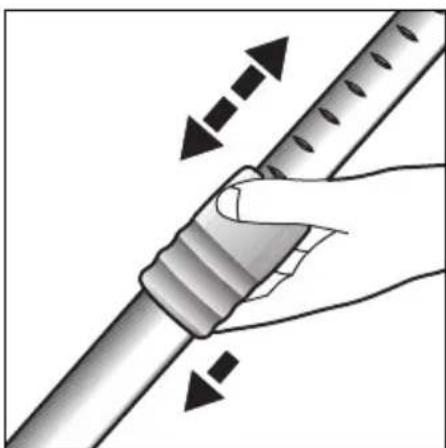

To adjust the length of the telescopic tube, press the adjusting button/adjusting sleeve in the direction of the arrow and adjust the tube to the required length.

Diagram of a vacuum cleaner with a power plug inserted, showing mechanical components and wiring (no text or symbols)

Holding the power cord by the plug, pull out the required length and plug the plug into the mains socket.

Setting up en

Diagram of a kitchen sink with a circular button and directional arrow indicating rotation (no text or symbols)

Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.

Diagram of a circular mechanical or electrical component with radial arrows indicating motion or flow, no text or symbols present.

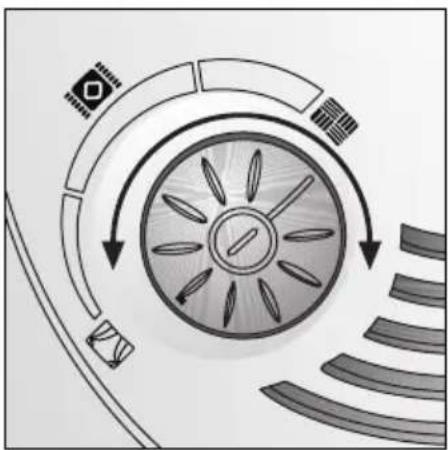

Adjust the suction by turning the on/off button in the direction of the arrow.

Turbo brush

If your vacuum cleaner is equipped with a turbo brush, please consult the accompanying instruction manual for notes on its use and maintenance. (Depending on equipment level).

Vacuuming en

Diagram showing two identical vacuum cleaner components with downward arrows indicating process flow, alongside a microchip and gear mechanism (no text or symbols)

Adjusting the floor tool:

■ For cleaning rugs and carpets =>

■ For cleaning hard floors =>

Vacuuming en

Illustration of a hand holding a kitchen appliance with a tool, showing internal components and directional arrows (no text or symbols)

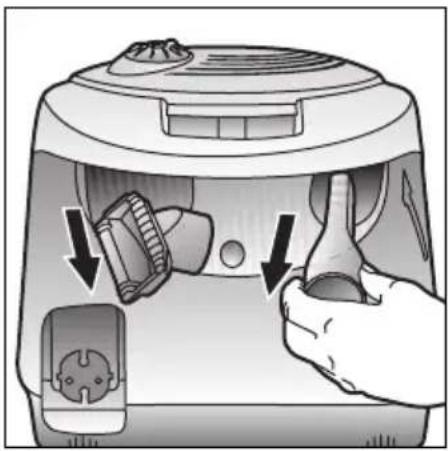

Remove the upholstery nozzle and crevice nozzle from the accessories holder as illustrated.

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from elongated to straight end (no text or symbols)

Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as required:

Crevice nozzle for vacuuming crevices and corners, etc.

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Upholstery nozzle

for vacuuming upholstered furniture, curtains, etc.

Vacuuming en

Illustration of a toaster oven with hand holding a bulb, showing internal components and directional arrows (no text or symbols)

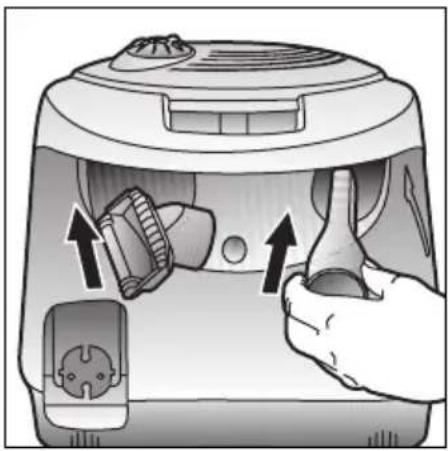

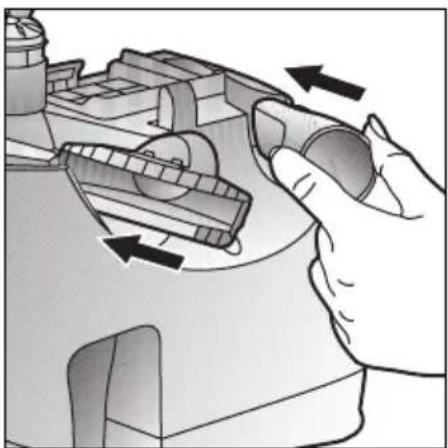

After use, push the crevice nozzle and upholstery nozzle back into the accessories holder as indicated.

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

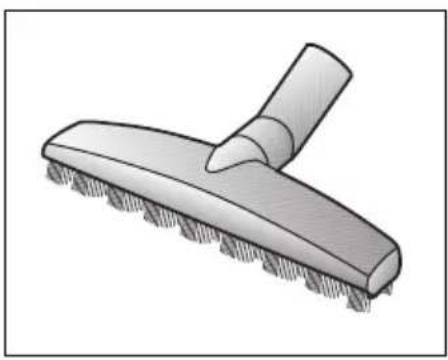

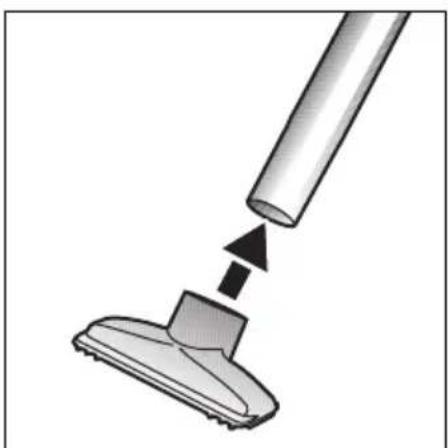

Hard-floor brush

For vacuuming hard floor coverings (tiles, parquet flooring, etc.)

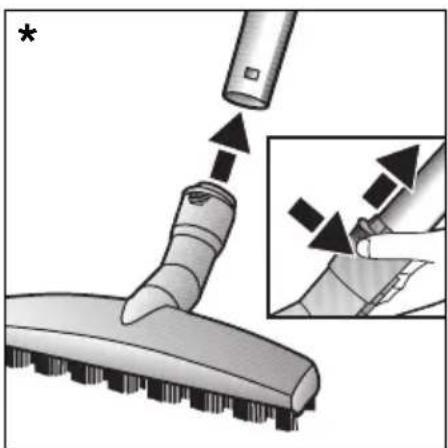

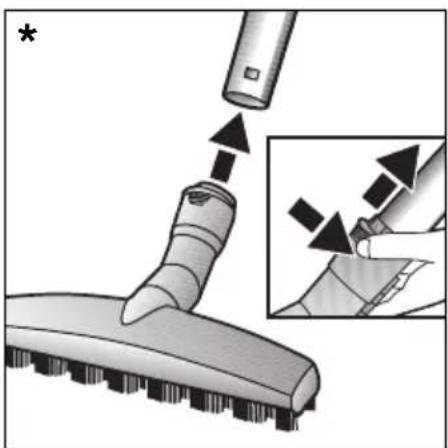

Push the telescopic tube into the connecting piece of the hard-floor brush until it engages.

Press on the unlatching sleeve and pull out the telescopic tube to disconnect.

*Depending on equipment level

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

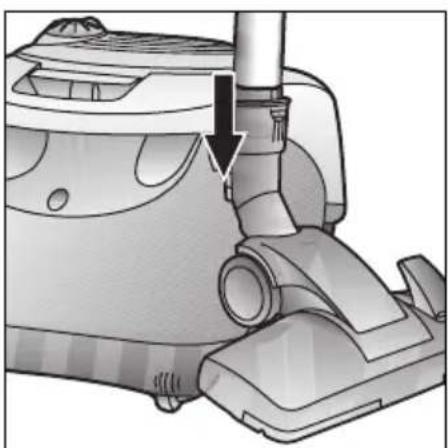

When stopping cleaning for a moment, you can use the parking aid on the back of the vacuum cleaner.

Once you have switched off the vacuum cleaner, slide the catch on the floor tool into the groove on the rear of the appliance.

Vacuuming en

Illustration of two hand washing machines with ventilation grilles, no text or symbols present

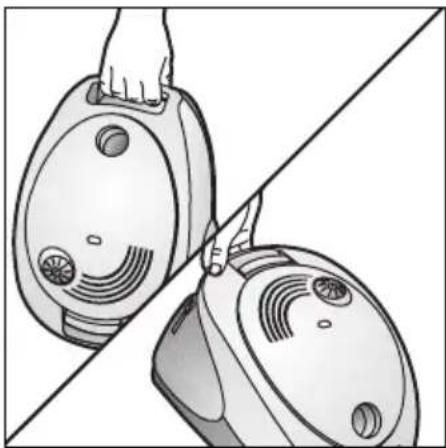

The appliance can also be carried using one of the two handles when vacuuming steps, for example.

Caution!

Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles).

Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

When the work is done en

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

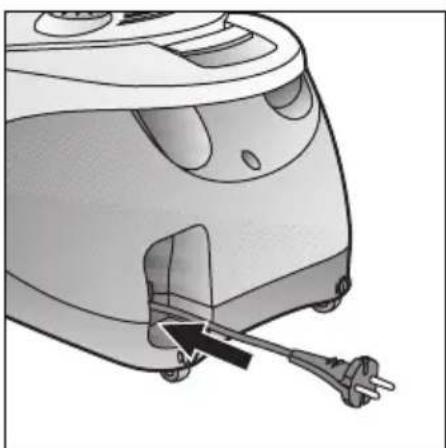

Unplug the vacuum cleaner. Tug the power cord briefly and let go. The cable then rewinds automatically.

Illustration of a vacuum cleaner with attached power plug (no text or symbols)

When the work is done en

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

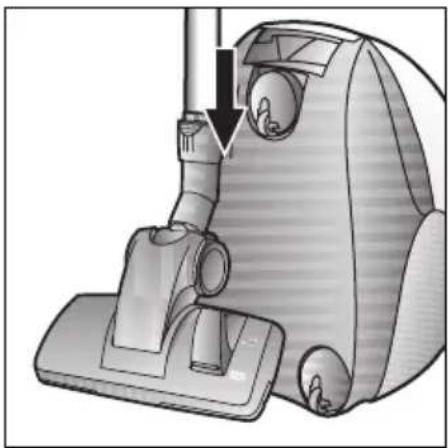

To store or transport the vacuum cleaner, use the parking aid on the underside of the vacuum cleaner. Stand the vacuum cleaner upright. Slide the catch on the floor tool into the groove on the underside of the appliance.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

To remove the flexible tube, press the two lugs together and pull the tube out.

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

To release the connection, press the unlatching sleeve and pull the handle out.

Illustration of a vacuum cleaner's tip being inserted into a clip, with an inset showing the tool interacting with the clip (no text or symbols present)

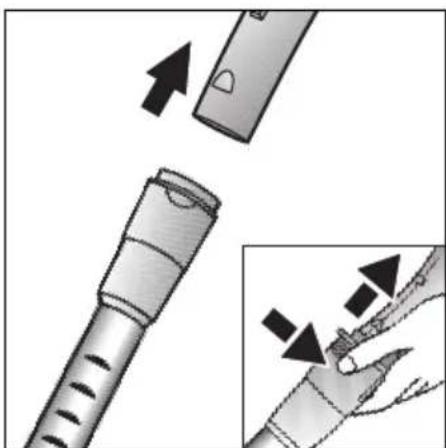

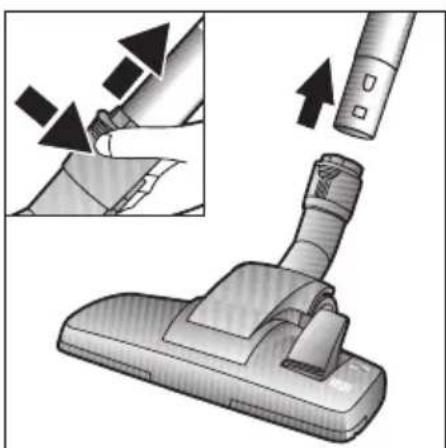

To release the connection, press the unlatching sleeve and pull the telescopic tube out.

Changing the dust bag en

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Replacing the dust bag

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains.

The nozzle, suction pipe and flexible tube must not be blocked, as this would also lead to dust bag change indicator being triggered.

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

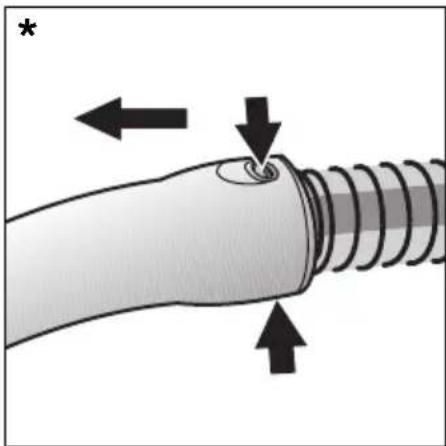

The handle can easily be detached from the hose to remove blockages.

*Depending on equipment level

Illustration of a hand pressing down on a computer mouse with a black arrow pointing to the button (no text or symbols present)

Open the lid by moving the locking lever in the direction of the arrow.

Illustration of a person in protective gear operating machinery (no text or symbols visible)

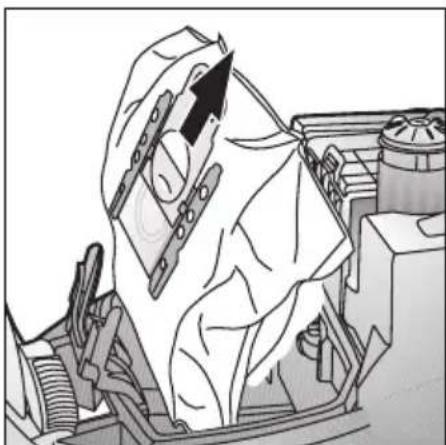

Seal the dust bag by pulling the sealing strip and then remove it.

For increased uptake of dust, even if the dust bag is already part-full, we recommend the use of replacement filter type VZ41GPLUS.

Changing the dust bag en

Technical line drawing of a mechanical assembly with no visible text or symbols

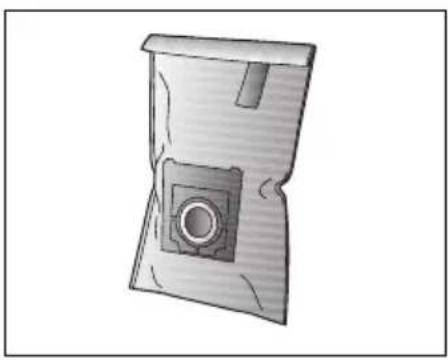

Slide the new dust bag into the holder to the stop.

Caution: The lid can only be closed when a dust bag has been inserted.

Cross-sectional diagram of a mechanical or electrical component with internal grid structure and a black arrow indicating direction (no text or symbols)

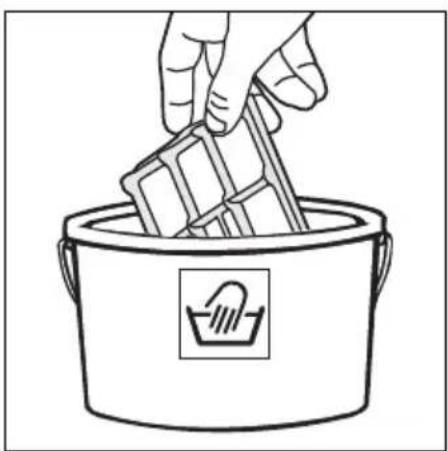

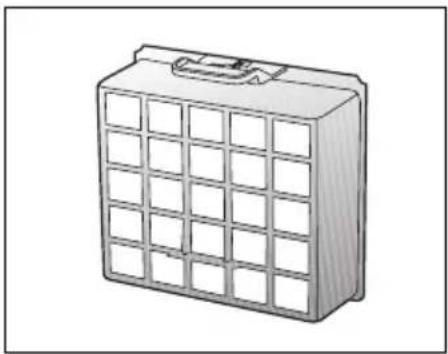

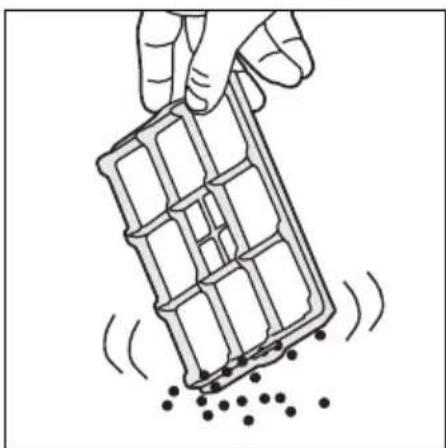

Cleaning the motor protection filter

The motor protection filter should be cleaned at regular intervals by tapping it or washing it out.

■ Open the dust compartment cover.

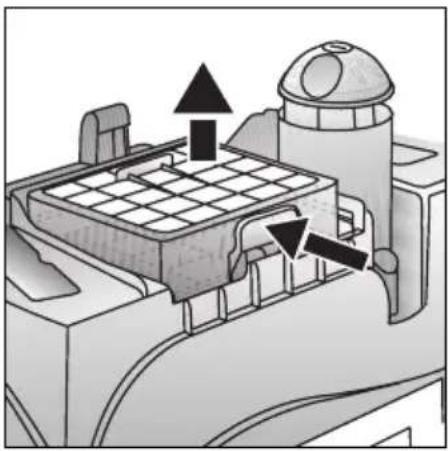

■ Remove the motor protection filter in the direction of the arrow.

Illustration of a hand holding a grid-based object with black dots falling, no text or symbols present

■ Empty the motor protection filter by tapping it.

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

■ If the motor protection filter is very dirty, wash it out. Leave the filter to dry for at least 24 hours.
■ After cleaning, insert the motor protection filter in the machine and close the dust compartment cover.

Diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Replacing the micro-hygiene filter

The micro-hygiene filter should be changed: when starting a newpack of bags

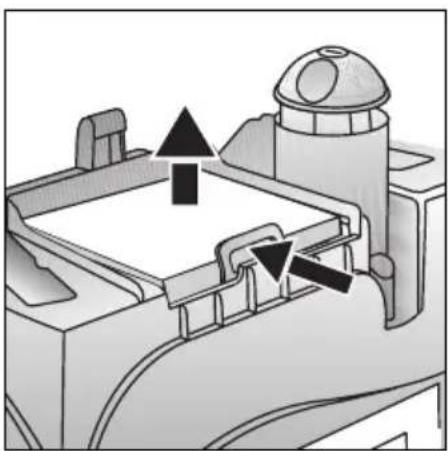

■ Open the dust bag compartment lid.
■ Release the filter holder by moving the locking lever in the direction of the arrow.

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

■ Remove the micro-hygiene filter. Insert the new micro-hygiene filter into the vacuum cleaner.
■ Reinsert the filter holder and clip into place.

Diagram of a printer or printer mechanism with directional arrows indicating movement (no text or symbols present)

Replacing the micro active carbon filter

If your vacuum cleaner is equipped with a micro active carbon filter, this should be replaced every six months.

■ Open the dust bag compartment lid.
■ Release the filter holder by moving the locking lever in the direction of the arrow.

Illustration of a trash bin with a plastic cover being inserted into it (no text or symbols)

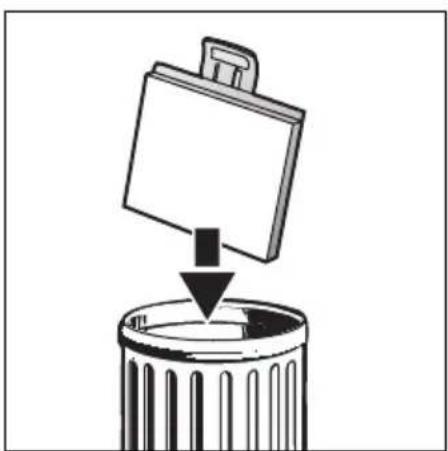

■ Remove the micro active carbon filter.
■ Insert the new micro active carbon filter.
■ Reinsert the filter holder and clip into place.

Changing the dust bag en

Diagram of a mechanical device with grid and dome components, showing directional arrows (no text or symbols)

Replacing the Hepa filter

If your vacuum cleaner is equipped with a Hepa filter, this should be replaced once a year.

■ Open the dust bag compartment lid.

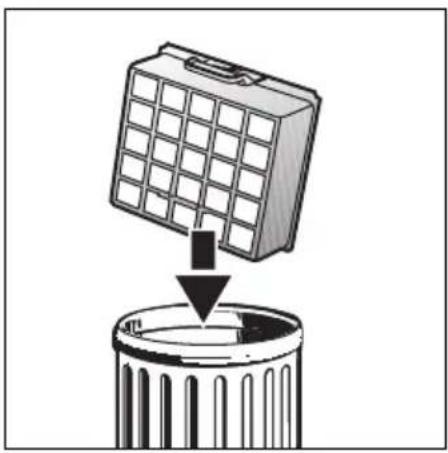

■ Release the Hepa filter by moving the locking lever in the direction of the arrow and remove it from the vacuum cleaner.

Illustration of a portable device with grid panel being inserted into a trash bin (no text or symbols)

Insert the new Hepa filter and clip into place.

If you have used the vacuum cleaner for fine dust particles, clean the motor protection filter and, if necessary, replace the micro active carbon filter or Hepa filter.

Care en

■ Always switch the vacuum cleaner off and disconnect the power cord from the mains before cleaning the vacuum cleaner.
■ The vacuum cleaner and plastic accessories can be cleaned with a commercial plasticcleaner.

Do not use abrasive, glass or all-purpose cleaners.

Never immerse the vacuum cleaner in water.

■ The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical changes.

Technical line drawing of a Siemens plastic box and its packaging (no text or symbols on the boxes themselves)

Replacement filter pack

■ Filter type G (VZ41AFG)
■ For best performance: Gplus (VZ41GPLUS)

Contents: 4 filter bags with seal 1 micro-hygiene filter

http://www.dust-bag-siemens.com

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

Textile filters (permanent filters) VZ10TFG Reusable bag with Velcro(R) fastener.

Illustration of a rectangular battery with grid layout and top handle (no text or symbols)

HEPA filter VZ153HFB

Additional filter for cleaner exhaust air. Recommended for allergy sufferers. Replace once a year.

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

Micro active carbon filter VZ192MAF

Combination of micro filter and active carbon filter. Combats unpleasant odours.

Replace twice a year. Replace carbon filter frame with micro filter frame.

Please note

It is not possible to combine a Hepa filter and an active carbon filter.

3D rendering of a mechanical component with cylindrical and curved parts (no text or symbols visible)

TURBO-UNIVERSAL® brush for upholstery VZ46001

All in one brushing and vacuuming of upholstered furniture, mattresses, car seats, etc. Especially suitable for picking up pet hair. The brush roller is driven by the suction of the air flow.

No separate electrical connection is needed.

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL® brush for floors VZ102TBB

All in one brushing and vacuuming of short-pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the suction of the air flow.

No separate electrical connection is needed.

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Hard-floor brush VZ123HD

For vacuuming hard floors (parquet flooring, tiles, terracotta, etc.)

Illustration of a hand using a tool to adjust or install a device, showing internal components and directional arrows (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating rotation (no text or symbols)

*selon l'équipement

Technical illustration of a mechanical component with threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical part, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a plug inserted, showing the blade and mounting point (no text or symbols present)

Diagram of a kitchen sink with a circular button and a downward arrow indicating airflow or movement (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation or flow, no text or symbols present.

Diagram showing two identical vacuum cleaner foot positioning with downward arrows indicating movement, alongside a close-up of the device (no text or symbols present)

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from elongated to tapered end (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

Illustration of a vacuum cleaner's side arm with a downward arrow indicating the component (no text or symbols present)

Illustration of two hand washing machines with ventilation grilles, no text or symbols present

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Illustration of a vacuum cleaner with attached power plug (no text or symbols)

Après le travail fr

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

Illustration of a vacuum cleaner's tip and handle assembly, showing tool insertion and component detail (no text or symbols)

Diagram of a robotic arm with a gear and sensor array, showing internal components (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow indicating the press (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component with internal grid structure and a black arrow indicating direction (no text or symbols)

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a printer or printer mechanism with directional arrows indicating movement (no text or symbols present)

Illustration of a trash bin with a plastic cover being inserted into it (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols present)

Diagram showing a square-shaped object being lowered into a trash bin (no text or symbols present)

Technical line drawing of a Siemens air vent cover and its corresponding plastic box (no text or symbols on the components)

Illustration of a mechanical component with a central square hole and flange (no text or symbols)

Sac textile (filtre permanent) VZ10TFG

Illustration of a rectangular battery with grid layout and top handle (no text or symbols)

Filtre HEPA VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

3D rendering of a mechanical component with two cylindrical parts and a flanged base (no text or symbols visible)

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, showing a brush and plug mechanism (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Technical illustration of a mechanical component with threaded end and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical part, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a power plug inserted, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a mechanical component with a circular base and radial arrows indicating motion or force (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation or flow, no text or symbols present.

Diagram showing two identical vacuum cleaner components with downward arrows indicating process flow, alongside a close-up of the component (no text or symbols)

Vloermondstuk instellen:

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand holding a knob with arrows indicating motion or movement (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from a straight pipe to a flanged pipe (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

Illustration of a vacuum cleaner's side arm with a downward arrow indicating the component (no text or symbols present)

Illustration of two hand washing machines with ventilation grilles, no text or symbols present

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Illustration of a vacuum cleaner with attached power plug (no text or symbols)

Na het werk nl

Illustration of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Illustration of a medical or laboratory device with arrows indicating movement or force, showing internal components and a close-up view of the device's tip (no text or symbols present)

Illustration of a vacuum cleaner's tip being inserted into a clip, with an inset showing the tool interacting with the clip (no text or symbols present)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Filterzak vervangen

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow pointing to the button (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

Motorbeveiligingsfilter schoonmaken

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a bag into a bucket with a recycling symbol (no text or labels)

Diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Illustration of a trash bin with a plastic clip emerging from it, symbolizing disposal or recycling (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols present)

Hepa-filter vervangen

Diagram showing a grid-patterned device above a trash bin with a downward arrow indicating waste or disposal (no text or symbols)

Technical line drawing of a Siemens plastic box and its packaging (no text or symbols on the boxes themselves)

Reservefilterverpakking

■ Filter type G (VZ41AFG)
■ Voor de beste performance: Gplus (VZ41GPLUS)

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

Illustration of a rectangular battery with grid layout and top handle (no text or symbols)

HEPA-Filter VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or binder (no text or symbols)

3D rendering of a mechanical component with cylindrical and curved parts (no text or symbols)

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a microwave oven (no text or symbols visible)

Hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Technical illustration of a mechanical component with a threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical device (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a power plug inserted, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a mechanical component with a circular base and radial arrows indicating motion or force (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation or flow, no text or symbols present.

Diagram showing two identical vacuum cleaner components with downward arrows indicating process, alongside a close-up of a microchip and a striped pattern (no text or symbols)

Ajustar la boquilla universal:

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from a straight pipe to a flanged pipe (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a tool to a surface, with an inset showing the same step (no text or symbols present)

Close-up of a vacuum cleaner's side arm and handle assembly (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to lift a device, showing front and side views (no text or symbols)

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Retirar el enchufe.

Illustration of a small vacuum cleaner with attached power plug (no text or symbols)

Tras el trabajo es

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Diagram of a mechanical component with threaded shaft and circular opening, showing directional arrows (no text or symbols)

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

Illustration of a vacuum cleaner's tip being inserted into a component, with an inset showing the tool interacting with the component (no text or symbols present)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow pointing to the button (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical illustration of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal structure and a black arrow indicating direction (no text or symbols)

Illustration of a hand holding a grid-based object with black dots falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Diagram of a mechanical or electrical component with internal grid structure and directional arrows (no text or symbols)

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Illustration of a trash bin with a plastic clip attached to the top, showing a downward arrow (no text or symbols)

Diagram of a mechanical device with grid structure and directional arrows indicating movement (no text or symbols)

Diagram showing a grid-patterned object being lowered into a trash bin (no text or symbols)

Technical line drawing of a Siemens plastic box and its packaging (no text or symbols on the boxes themselves)

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

Illustration of a rectangular battery with grid layout and top handle (no text or symbols)

Filtro HEPA VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

Microfiltro de carbono activo VZ192MAF

3D rendering of a mechanical component with cylindrical and curved parts (no text or symbols)

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

■ Original filterpose

Illustration of a hand using a tool to adjust or install a device into a microwave oven (no text or symbols visible)

Hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

*alt efter udstyr

Technical illustration of a mechanical component with threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical part, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a plug inserted, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a mechanical component with a circular base and internal gear-like structure, showing motion arrows (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation or flow, no text or symbols present.

Diagram showing two vacuum cleaner components with downward arrows indicating motion, alongside a patterned icon (no text or symbols)

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from a straight pipe to a flanged pipe (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand using a vacuum cleaner to lift a device, showing front and side views (no text or symbols)

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Illustration of a small vacuum cleaner with attached power plug (no text or symbols)

Efter arbejdet da

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction (no text or symbols present)

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

Illustration of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Skift af filterpose

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow indicating the press (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical illustration of a mechanical assembly with no visible text or symbols

Skyd den nye filterpose ind i holderen, til den när stoppet.

Cross-sectional diagram of a mechanical or electrical component with internal structure and no visible text or symbols

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a printer or printer mechanism with directional arrows indicating movement (no text or symbols present)

Illustration of a trash bin with a plastic cover being inserted into it (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols present)

Skifte Hepa-filter

Illustration of a portable device being lowered into a trash bin (no text or symbols)

Technical line drawing of a Siemens air vent cover and its corresponding plastic box (no text or symbols on the components)

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

Tekstilfilter (fast filter) VZ10TFG Genanvendeligt filter med burrelukning.

Illustration of a rectangular battery pack with grid layout and top handle (no text or symbols)

Simple line drawing of a rectangular object with a handle, resembling a briefcase or binder (no text or symbols)

3D rendering of a mechanical component with cylindrical and curved parts (no text or symbols)

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL®-børste til gulve VZ102TBB

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a microwave oven (no text or symbols visible)

Hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

*avhengig av modell

Technical illustration of a mechanical component with threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical device (no text or symbols present)

Diagram of a vacuum cleaner with a handle and screwdriver, showing a step to press or install (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with attached power plug and valve (no text or symbols)

Diagram of a mechanical component with a circular base and internal gear-like structure, showing motion arrows (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation or flow, no text or symbols present.

Diagram showing two vacuum cleaner components with downward arrows indicating motion, alongside a patterned icon (no text or symbols)

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from a straight pipe to a flanged pipe (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Illustration of two hand washing machines with ventilation grilles, no text or symbols present

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Illustration of a vacuum cleaner with attached power plug (no text or symbols)

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction (no text or symbols present)

Når du skal ta ut sugeslangen, må du klemme sammen de to låseknappene og trekke ut slangen.

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

Illustration of a vacuum cleaner's tip and handle assembly, showing part being inserted (no text or symbols)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Bytte av filterpose

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow pointing to the button (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical illustration of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal structure and a black arrow indicating direction (no text or symbols)

Rengjøre motorfilter

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Technical diagram of a mechanical assembly with no visible text or symbols

Bytte mikrohygienefilter

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

■ Ta ut mikrohygienefilteret. Sett inn nytt mikrohygienefilter.
■ Sett inn filterholderen og lukk apparatet.

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Bytte mikro-aktivkullfilter

Illustration of a trash bin with a plastic clip attached to the top, showing a downward arrow (no text or symbols)

■ Ta ut mikro-aktivkullfilteret.
■ Sett inn nytt mikro-aktivkullfilter.
■ Sett inn filterholderen og lukk apparatet.

Bytte av filter no

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols)

Bytte Hepa-filter

Diagram showing a small storage box being lowered into a trash bin (no text or symbols present)

Technical line drawing of a Siemens air vent cover and its corresponding plastic box (no text or symbols on the components)

Papirfilterpakke

■ Filter type G (VZ41AFG)
■ For beste resultat: Gplus (VZ41GPLUS)

Innhold: 4 filterposer med lukkeanordning 1 mikrohygienefilter

http://www.dust-bag-siemens.com

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

Illustration of a rectangular battery with grid layout and top handle (no text or symbols)

HEPA-filter VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

Mikro-aktivkullfilter VZ192MAF

3D rendering of a mechanical component with cylindrical and curved parts (no text or symbols visible)

TURBO-UNIVERSAL®-børste for polster VZ46001

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL®-børste for gulv VZ102TBB

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Munnstykke for harde gulv VZ123HD

Illustration of a hand using a tool to adjust or install a device into a microwave oven (no text or symbols visible)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Technical illustration of a mechanical component with threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical part, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a power plug inserted, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a mechanical component with a circular base and internal gear-like structure, no text or symbols present

Diagram of a circular mechanical or electrical component with directional arrows indicating rotation or flow (no text or symbols)

Diagram showing two vacuum cleaner components with downward arrows indicating motion, alongside a schematic symbol (no text or labels)

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from a straight pipe to a flanged pipe (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Illustration of two hand washing machines with ventilation grilles, no text or symbols present

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Illustration of a vacuum cleaner with attached power plug (no text or symbols)

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction (no text or symbols present)

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

Illustration of a vacuum cleaner's tip being inserted into a device, with an inset showing the process (no text or symbols present)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Byta dammpåse

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow indicating the press (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical illustration of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component with internal structure and no visible text or symbols

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Byta mikro-hygienfilter

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a printer or printer mechanism with directional arrows indicating movement (no text or symbols present)

Byta Mikro-Aktivt kol-filter

Illustration of a trash bin with a plastic clip attached to the top, showing a downward arrow (no text or symbols)

Diagram of a mechanical device with grid and housing components, showing directional arrows (no text or symbols)

Byta HEPA-filter

Diagram showing a grid-patterned object being lowered into a trash bin (no text or symbols)

Technical line drawing of a Siemens plastic box and its packaging (no text or symbols on the boxes themselves)

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

Textilfilter (långtidsfilter) VZ10TFG

Illustration of a rectangular battery pack with grid layout and top handle (no text or symbols)

HEPA-filter VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

Mikro-Aktivt kol-filter VZ192MAF

3D rendering of a mechanical component with cylindrical and curved parts (no text or symbols visible)

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a microwave oven (no text or symbols visible)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Technical illustration of a mechanical component with a threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical part, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a power plug inserted, showing mechanical components and a directional arrow (no text or symbols)

Diagram of a mechanical component with a circular base and internal gear-like structure, showing motion arrows (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation and flow direction (no text or symbols)

Diagram showing two identical vacuum cleaner footshops with downward arrows indicating process, alongside a close-up of the same components (no text or symbols)

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from a straight pipe to a flanged pipe (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip on a surface, with an inset showing the same step (no text or symbols present)

Close-up of a vacuum cleaner's side arm and handle, showing internal components and a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using a vacuum cleaner to lift a device, showing front and side views (no text or symbols)

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Illustration of a small vacuum cleaner with attached power plug (no text or symbols)

Työn jälkeen fi

Illustration of a vacuum cleaner with a downward arrow indicating the component (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction (no text or symbols present)

Illustration of a medical or laboratory device with arrows indicating movement or force, showing internal components and a close-up view of the device's tip (no text or symbols present)

Illustration of a vacuum cleaner with a close-up view showing the tip and handle (no text or symbols)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow pointing to the button (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical illustration of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component with internal structure and no visible text or symbols

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Technical diagram of a mechanical assembly with no visible text or symbols

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a printer or printer mechanism with directional arrows indicating movement (no text or symbols present)

Illustration of a trash bin with a plastic clip attached to the top, showing a downward arrow (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols)

Diagram showing a small storage box being lowered into a trash bin (no text or symbols present)

Illustration of a Siemens plastic bag and its corresponding 3D model (no text or symbols on the devices themselves)

Illustration of a mechanical component with a central square and circular hole (no text or symbols)

Illustration of a rectangular battery pack with grid layout and top handle (no text or symbols)

HEPA-suodatin VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or binder (no text or symbols)

3D rendered mechanical component with cylindrical and flanged parts (no text or symbols)

TURBO-UNIVERSAL®-harja pehmusteille VZ46001

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL®-harja lattioille VZ102TBB

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a microwave oven (no text or symbols visible)

Illustration of a hand turning a mechanical component with directional arrows indicating motion (no text or symbols)

*conforme o modelo

Technical illustration of a mechanical component with a threaded shaft and circular opening (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical device (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Diagram of a vacuum cleaner with a plug inserted, showing mechanical components and wiring (no text or symbols)

Diagram of a mechanical component with a circular base and radial arrows indicating motion or force (no text or symbols)

Diagram of a circular mechanical or electrical component with radial arrows indicating rotation or flow, no text or symbols present.

Diagram showing two identical vacuum cleaner components with downward arrows indicating process, alongside a close-up of the component (no text or symbols present)

Ajustar o bocal:

■ Tapetes e alcatifas =>

■ Pavimentos lisos =>

Aspirar pt

Illustration of a kitchen appliance with a hand holding a tool, showing internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a curved pipe with a pointed tip, showing a transition from elongated to straight end (no text or symbols)

Illustration of a vacuum cleaner with a handle and base, showing mechanical assembly (no text or symbols)

Illustration of a hand holding a small appliance with arrows indicating process flow (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a brush to apply a brush tip onto a surface, with an inset showing the same step (no text or symbols present)

Bocal para pavimento rijo Para aspirar revestimentos de pavimentos rijos (ladrilhos, parquete, etc.)

Close-up of a vacuum cleaner's side arm and handle, showing internal components and a downward arrow indicating motion (no text or symbols present)

Illustration of two hand washing machines with ventilation grilles, no text or symbols present

Illustration of a hand inserting a cable into a small electronic device (no text or symbols visible)

Desligue a ficha da tomada.

Illustration of a vacuum cleaner with attached power plug (no text or symbols)

Após o trabalho pt

Illustration of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction (no text or symbols present)

Illustration of a medical or surgical tool with arrows indicating movement or force (no text or symbols present)

Illustration of a vacuum cleaner with a close-up view showing the tip and handle (no text or symbols)

Diagram of a robotic arm with a gear and a container, showing mechanical components (no text or symbols)

Trocar o saco de filtro

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a computer mouse with a black arrow pointing to the button (no text or symbols present)

Illustration of a person in protective gear operating machinery (no text or symbols visible)

Technical illustration of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component with internal structure and no visible text or symbols

Illustration of a hand holding a 3D cube with particles falling, no text or symbols present

Line drawing of a hand placing a container into a trash bin with a recycling symbol (no text or labels)

Diagram of a mechanical or electrical component with internal grid structure and directional arrows (no text or symbols)

Mudar o micro-filtro higiénico

Simple line drawing of a trash bin with a blank tray and downward arrow (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Mudar o micro-filtro de carvão activo

Illustration of a trash bin with a plastic clip attached to the top, showing a downward arrow (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement or force (no text or symbols present)

Trocar o filtro HEPA

Diagram showing a grid-patterned device above a trash bin with a downward arrow indicating waste or disposal (no text or symbols present)

Technical line drawing of a Siemens plastic box and its packaging (no text or symbols on the boxes themselves)

Technical line drawing of a mechanical component with a central square hole and flange (no text or symbols)

filtro têxtil (filtro permanente) VZ10TFG

Illustration of a rectangular battery with grid layout and top handle (no text or symbols)

Filtro HEPA VZ153HFB

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

Micro-filtro de carvão activo VZ192MAF

3D rendering of a mechanical component with two cylindrical parts and a flanged base (no text or symbols visible)

Escova TURBO-UNIVERSAL® para estofos VZ46001

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Escova TURBO-UNIVERSAL® para pavimentos

VZ102TBB

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Jebel Ali Free Zone – Dubai

Tel.:[phone]

mailto:[e-mail]

www.siemens-home.ae

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza • Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

FR France

BSH Electroménager S.A.S.

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.cu.uk or call

Tel.:[phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax:[phone]

North-Greece – Thessaloniki

Tel.:[phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

09/11

HR Hrvatska, Croatia

Andabaka d.o.o.

Kopilica 21a

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.:[phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

1. Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IN India, Bhārat, भारत

BSH Customer Service

Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road,

Andheri East

Mumbai 400 093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. „Rialto-Studio“

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

ME Crna Gora, Montenegro

Elektronika komerc

Ul. 27 Mart br. 2

81000 Podgorica

Tel./Fax: [phone]

Mobil: 069 324 812

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza • Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

MK Macedonia, Makedonia GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.:[phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

Aplan Centre

B - Kara By Pass

B - Kara BKR

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

NL Nederland, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.:[phone]

Fax: [phone]

gama-electronics.com

XS Srbija, Serbia

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

en

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU

fr

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

da

■ The design of this product is environment-friendly. All plastic parts are identified for recycling purposes
