Product type	Canister vacuum cleaner
Brand	Siemens
Model	VS5A2522
Width	30 cm
Depth	40 cm
Height	25 cm
Weight	6.2 kg
Power consumption	2200 W
Dust capacity	4.5 L (dust bag)
Filtration	Washable HEPA filter
Operating radius	10 m
Cable length	7 m
Noise level	78 dB(A)
Floor types	Hard floors, carpets, rugs
Main functions	Adjustable power, automatic shut-off, cable rewind
Motorized brush	Yes, electric brush for carpets
Included accessories	Crevice tool, upholstery brush, corner nozzle
Maintenance	Change bag every 3 months, wash filter every 2 months
Safety	Automatic shut-off in case of overheating
Repairability	Repairability score 7.5/10
Spare parts available	Yes, bags, filters, brushes (Siemens references)

Frequently Asked Questions - VS5A2522 SIEMENS

How do I empty the dust bag of the Siemens VS5A2522 vacuum cleaner?

Open the bag compartment, remove the full bag and discard it. Insert a new bag following the installation direction. Close the compartment.

How do I clean the HEPA filter of my vacuum cleaner?

Remove the filter from the compartment, wash it with warm soapy water, rinse and dry completely before putting it back. Do not use harsh detergent.

What should I do if the vacuum cleaner loses suction power?

Check if the bag is full or if the filter is clogged. Clean the filter and replace the bag. Also inspect the hose and brushes for blockages.

What types of floors can the Siemens VS5A2522 vacuum cleaner clean?

It is designed for hard floors (tile, parquet) and textile floors (carpets, rugs) thanks to the adjustable motorized brush.

How do I adjust the suction power?

Use the electronic control located on the vacuum body or on the handle (depending on model). Turn the dial to adjust the power.

The power cord no longer retracts, what should I do?

Make sure the cord is not twisted or blocked. Press the rewind pedal while guiding the cord. If the problem persists, contact customer service.

What accessories are included with the vacuum?

The vacuum comes with a flexible hose, a main motorized brush, a crevice tool, an upholstery brush, and a corner nozzle.

Where can I buy replacement dust bags for the VS5A2522?

Siemens Type G bags or compatible universal bags are available in supermarkets, hardware stores or online. Check compatibility.

The vacuum has a burning smell, is this normal?

This may indicate a clogged filter or a full bag. Clean the filter and change the bag. If the smell persists, turn off the appliance and contact a professional.

How do I maintain the motorized brush?

Regularly remove hair and threads wound around the brush. Detach the brush if possible and clean it with scissors or a comb.

USER MANUAL VS5A2522 SIEMENS

Line drawing of a vacuum cleaner with coiled hose and handle (no text or symbols)

VS5.A./VS5.B./VS5.C.

Technical illustration of a Siemens plastic bag and its packaging (no text or symbols on the diagram itself)

Illustration of a mechanical component with a central circular feature and a rectangular opening (no text or symbols)

Simple line drawing of a rectangular grid structure with no text or symbols

3D rendered mechanical component with two cylindrical parts and a flat section, labeled 'D' in the top-left corner (no text or symbols on the component itself)

3D rendered image of a handheld vacuum cleaner (no text or symbols visible)

Illustration of a pushpin applying adhesive to a flat surface (no text or symbols)

Illustration of a pen tip being inserted into a cylindrical object (no text or symbols)

Close-up of a mechanical device with a tool inserted, showing internal components and an arrow indicating direction (no text or symbols)

Diagram of a vacuum cleaner with a downward arrow indicating motion, no text or symbols present

Mechanical assembly diagram showing a hand operating a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Illustration of two axles with arrows indicating movement or assembly (no text or symbols)

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Diagram showing a pipe being inserted into a T-shaped object, with an arrow indicating the insertion direction (no text or symbols present)

Diagram showing a tool interacting with a conical object, labeled '11* d' (no text or symbols on the diagram itself)

Diagram showing a tool interacting with a textured surface, with an arrow indicating process direction (no text or symbols present)

Diagram showing a tool interacting with a textured surface, no text or symbols present

Mechanical assembly diagram showing a tool interacting with a component, labeled with number 12 (no text or symbols on the diagram itself)

Illustration of a vacuum cleaner with attached hose and ventilation slots (no text or symbols)

Illustration of a handheld device with a circular head and attached tubing (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Mechanical device with a downward arrow indicating a process or operation, no visible text or symbols

Illustration of a hand using a tool to press down a mechanical component, no text or symbols present

Illustration of a person in bed with a computer monitor and a device, no text or symbols present

Illustration of a hand placing a grid-like object into a container with an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a grid-like object with scattered dots, no text or symbols present

Line drawing of a hand pouring liquid into a container with a circular icon (no text or symbols)

Gerätebeschreibung

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

1 Adjustable floor nozzle*
2 Suction pipe*
3 Combination nozzle*
4 Attachment support for the combination nozzle*
5 Telescopic pipe*
6 Locking button / sliding sleeve*
7 Secondary air regulator*
8 Hose grip*
9 Suction hose
10 Furniture brush*
11 Upholstery nozzle*
12 Corner nozzle*
13 Mattress nozzle*
14 Hard floor nozzle*
15 Mains cable

16 On / off switch with electronic suction regulator*
17 Exhaust filter*
18 Parking aid
19 Motor protection filter
20 Storing aid
21 Paper filter
22 Lid
23 Handle
24 Exhaust grid
25 Filter change display*
*Depending on version

Spare parts and accessories

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

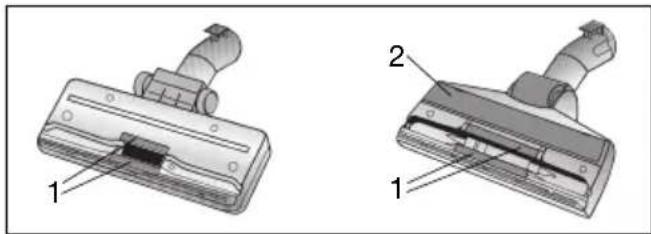

Filament lever (1) and polishing strips (2) can be obtained from the customer services and can also be replaced there

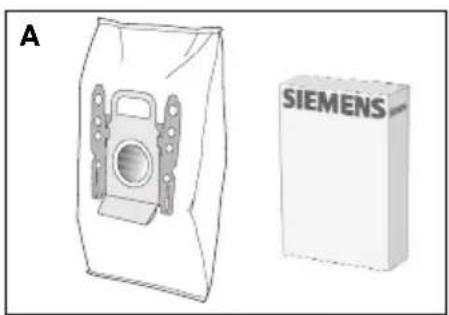

A Replacement filter pack

■ Filter type G (VZ41AFG)
■ For best performance: Gplus (VZ41GPLUS)
Contents:
4 filter bags with seal
1 micro-hygiene filter
http://www.siemens.com/dust-bag

B Textile filter (long-term filter) VZ10TFG

Reusable filter with Velcro fastening.

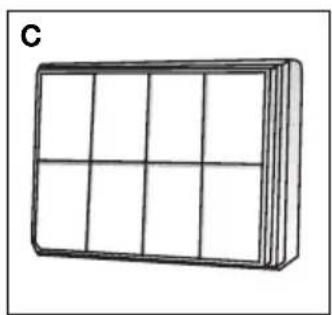

C HEPA Filter VZ54000

additional filter for pure exhaust air.

Recommended for those with allergies.

Replace every year.

D TURBO-UNIVERSAL®-upholstery brush VZ46001

Simultaneously brush and vacuum upholstered furniture, mattresses, car seats, etc..
Particularly suitable for vacuuming animal hair and fur.
The brush roller is driven by the suction force of the vacuum cleaner.
No electrical connection required.

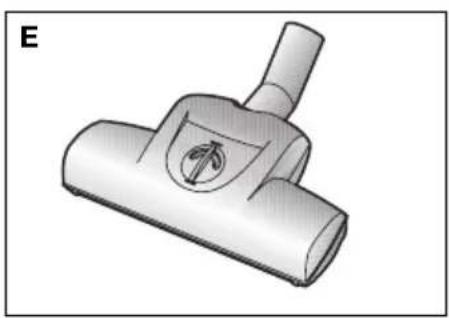

E TURBO-UNIVERSAL® - floor brush VZ102TBB

Simultaneously brush and vacuum short-pile carpets and fitted carpets or any kind of covers. Particularly suitable for vacuuming animal hair and fur. The brush roller is driven by the suction force of the vacuum cleaner.

No electrical connection required.

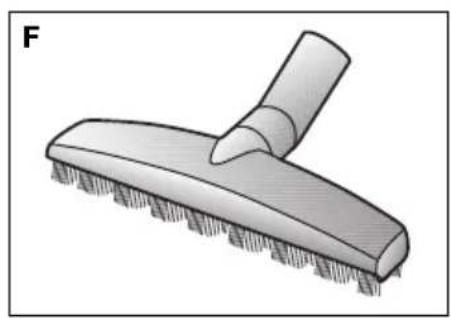

F Hard floor nozzle VZ123HD

To vacuum smooth flooring (parquet, tiles, terracotta...).

en

Congratulations on your purchase of a Siemens VS5 vacuum cleaner.

This instruction manual describes various VS5 models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted. => This can damage the appliance.
■ Only allow children to use the vacuum cleaner under supervision.
■ This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:

- hazardous, sharp-edged, hot or red hot substances.

• damp or liquid substances
  – highly flammable or explosive substances and gases
• ash, soot from tiled stoves and central heating systems

• toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe.
  => Risk of injury.
  ■ Stand the appliance on a firm, secure surface when vacuuming.
  ■ When vacuuming stairs, the appliance must always be lower down than you.
  ■ In the following cases, stop using the appliance immediately and contact the after-sales service:

- if the mains connection cable is damaged.

- if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance - if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

en

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Please fold out the picture page

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Before using for the first time

Illustration 1\*

Push the handle onto the flexible tube and until it engages.

Starting up

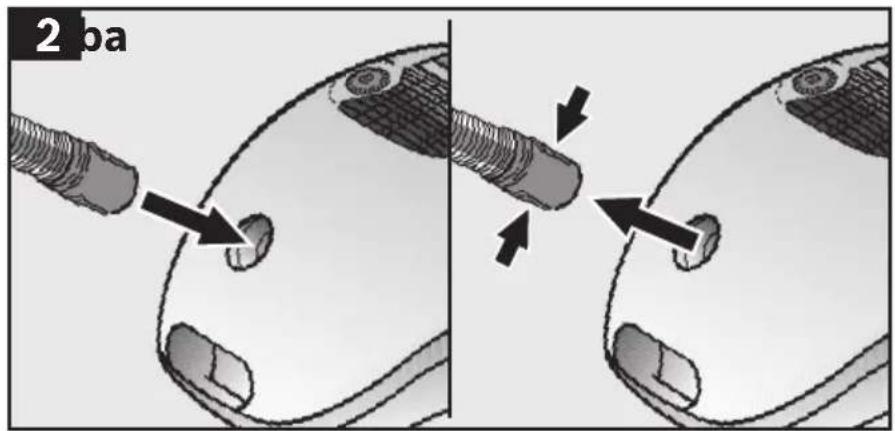

Illustration 2

a) Lock the suction hose supports into the suction opening.

b) When removing the suction hose, press together both latches and pull out the hose.

Illustration 3\*

Connect the handle and the suction hose.

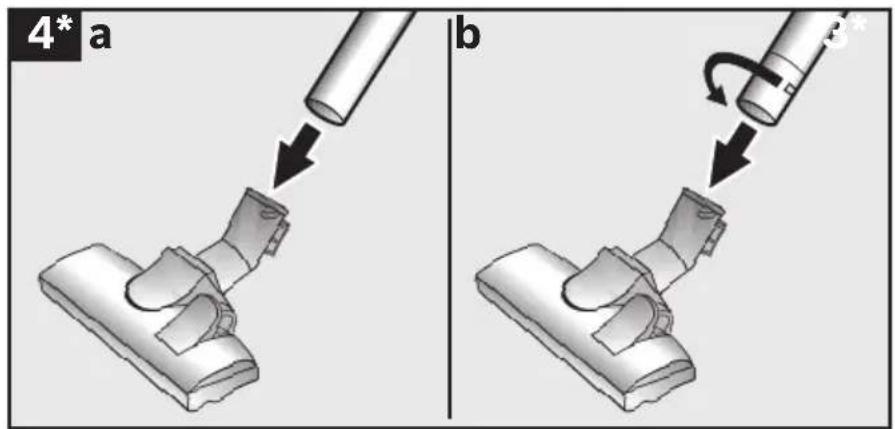

Illustration 4\*

a) Connect the floor nozzle and the suction hose.

b) Insert the telescopic pipe into the supports of the floor nozzle and secure by turning.

*Depending on version

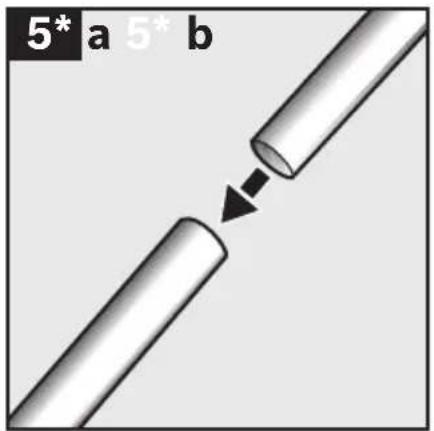

Illustration 5\*

a) Connect the suction hoses.
b) Unlock the telescopic pipe and adjust to the desired length by moving the adjusting button / sliding sleeve in the direction of the arrow.

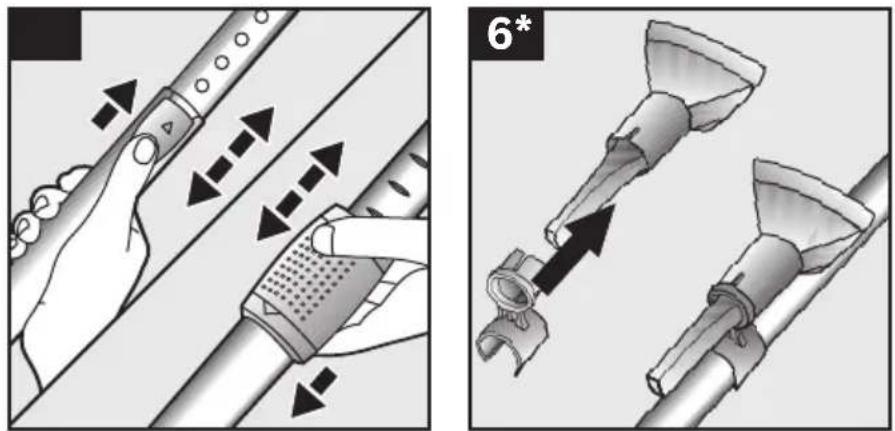

Illustration 6\*

Slide the attachment support on to the combination nozzle and clip on to the suction / telescopic pipe

Illustration 7

Take the mains cable by the plug and pull out the desired length and then plug in to the mains socket.

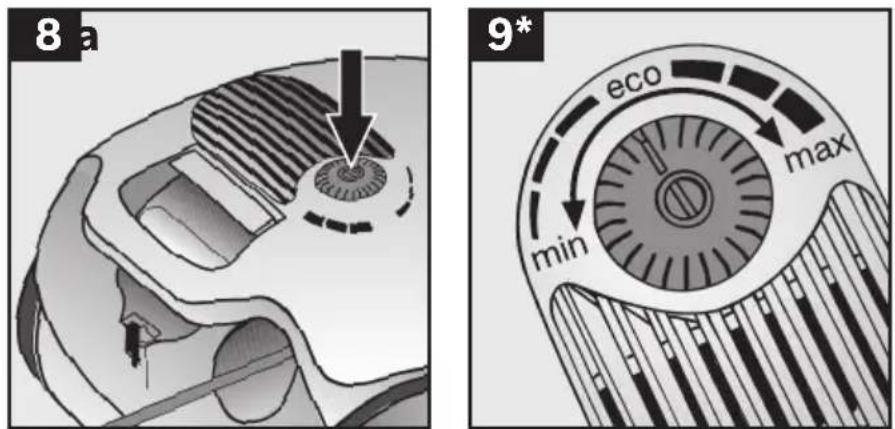

Illustration 8

Switch on / off the vacuum cleaner by pressing the on / off button in the direction of the arrow.

Illustration 9\*

a) Set the level of suction by turning the on / off button in the direction of the arrow.
b) The suction performance can also be regulated by turning the secondary air regulator in the direction of the arrow.
■ Secondary air opening open ➤ Suction reduced
■ Secondary air opening closed ▶ Maximum suction

Suction

Illustration 10

Setting the floor nozzle:

■ fitted carpets and carpets
■ smooth floors

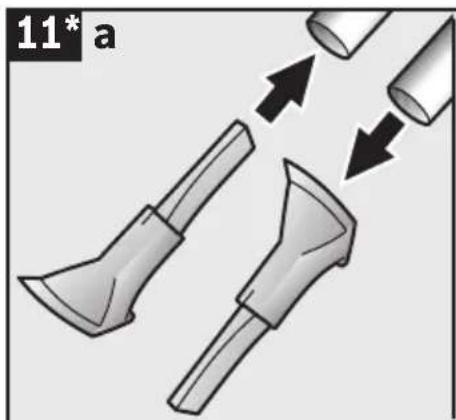

Illustration 11\*

Vacuuming with accessories
(connect to the handle or the suction hose as required)

a) Combination nozzle

For vacuuming in corners, joins, upholstery, curtains etc.

b) Corner nozzle

For vacuuming in corners and joins

c) Upholstery nozzle

For vacuuming upholstery, curtains etc.

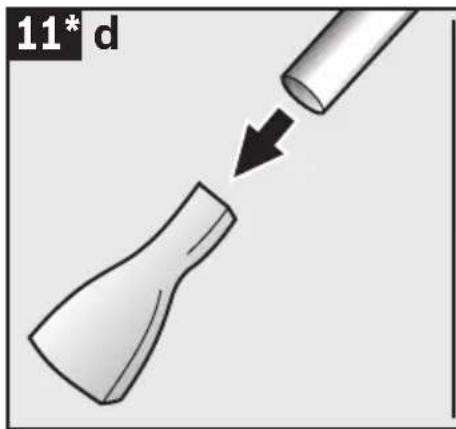

d) Mattress nozzle

For vacuuming mattresses, upholstery etc.

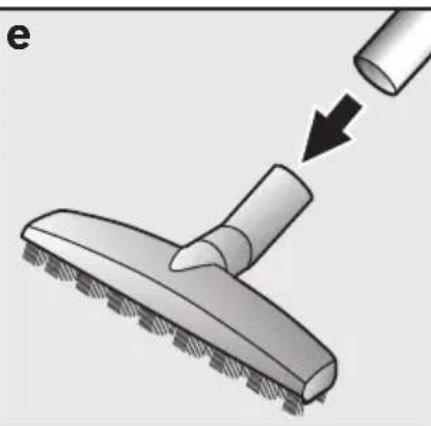

e) Hard floor nozzle

For vacuuming hard floor surfaces (tiles, parquet etc.)

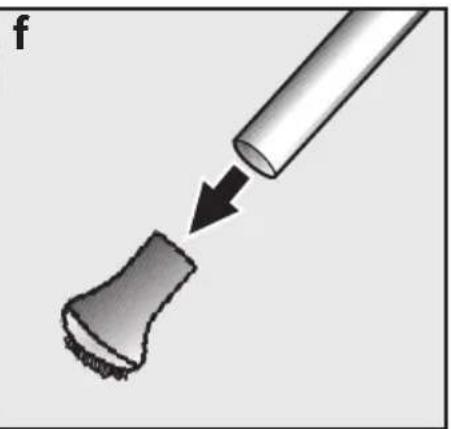

f) Furniture brush

To vacuum window frames, cupboards, sections etc..

Illustration 12

When taking brief vacuuming pauses, you can use the parking aid on the back of the appliance. Push the hook on the floor nozzle in to the recess on the back of the appliance.

Illustration 13

When vacuuming, e.g. stairs, the appliance can also be carried using the two grips.

After work

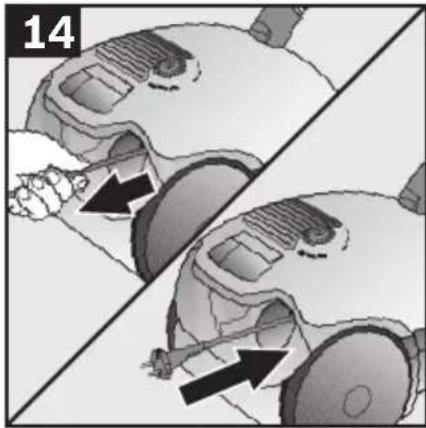

Illustration 14

Pull out the mains plug.

Pull briefly on the mains cable and then let go (the cable rolls up automatically).

Illustration 15

To store / transport the appliance, you can use the storing aid on the underside of the appliance. Stand the appliance up straight. Push the hook on the floor nozzle in to the recess on the underside of the appliance.

Changing the filter

Replace the dust bag

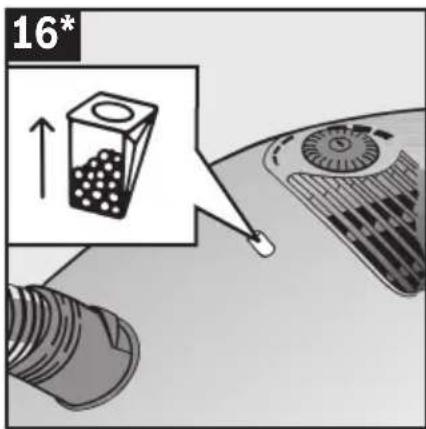

Illustration 16\*

The filter change display on the lid turns yellow.

Illustration 17

Open the covering by pressing the adjusting lever in the direction of the arrow.

Illustration 18

a) Close and remove the dust bag by pulling on the cover clips.

b) Insert the new dust bag in the holding fixture, up to the stop.

Attention: Cover will only close if a paper filter is inserted!

- After vacuuming fine dust particles (e.g. cement, plaster, etc.), clean the motor filter and replace the microfilter if necessary.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

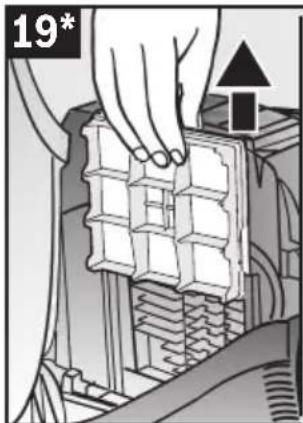

Illustration 19\*

■ Open the dust bag compartment lid (see Figure 17).

■ Pull out the motor protection filter in the direction of the arrow.

■ Clean the motor protection filter by tapping it.

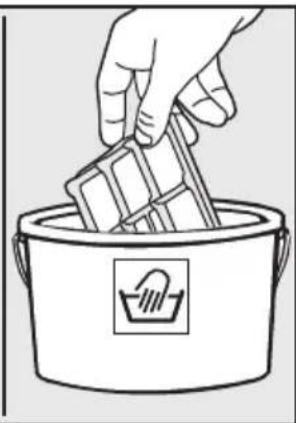

■ If it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Replacing the hygiene microfilter

(Omitted on vacuum cleaners which have a HEPA filter). When should I change the filter? Each time a new paper filter pack is fitted.

Illustration 20\*

■ Open the covering.
■ Pull out the filter holding fixture and open up.
■ Dispose of the old hygiene microfilter and insert a new hygiene microfilter.
■ Slide the filter holding fixture in and close the covering.

Cleaning the exhaust filter

The exhaust filter should be cleaned regularly by tapping out and rinsing.

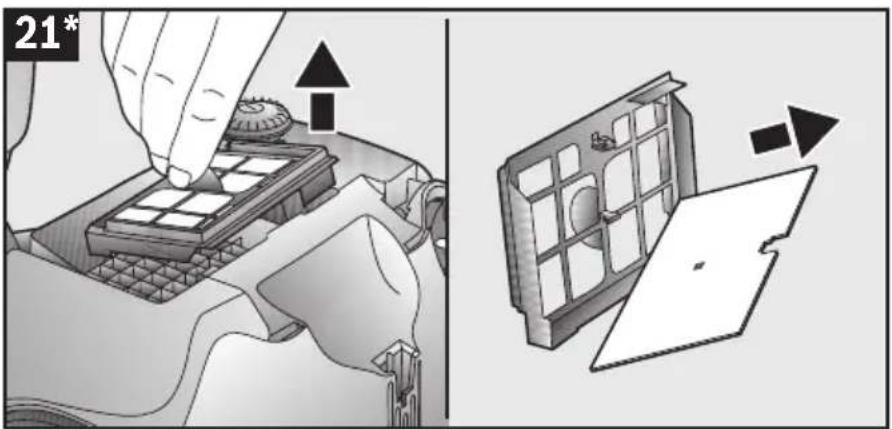

Illustration 21\*

■ Open the dust compartment lid (see Fig. 17).
■ Pull out the filter frame in the direction of the arrow.
■ Tap the dirt out of the exhaust filter.
■ If it is very dirty, the exhaust filter should be rinsed. The filter must then be left to dry for at least 24 hours.
■ Slide the filter frame under the two retaining ribs and push in the direction of the arrow until it engages.
■ Close the dust compartment lid.

Maintenance

■ Before the appliance is cleaned, ensure that it has been switched off and the mains plug removed.
■ Vacuum cleaners and accessories made of plastic can be cleaned using a general commercial plastic cleaner.

Do not use scouring agents, glass or all-purpose
cleaners.

Never immerse the vacuum cleaner in water!

■ If necessary, the dust section can be cleaned using another vacuum cleaner, or simply cleaned out using a dry dust cloth / dust brush.

Subject to technical change without notice.

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

B TEKSTIL-FILTER (Permanent filter)

VZ10TFG

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of two mechanical components with numbered parts, no visible text or symbols

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure and piping (no text or symbols beyond labels)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Primera utilización

Imagen 1\*

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure and piping (no text or symbols beyond labels)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Technical illustration of a vacuum cleaner component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Mechanical component diagram showing a connector with a handle and labeled part (no text or symbols present)

AE United Arab Emirates,

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Odobašina 57

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.cu.uk or call

Tel.: [phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax: [phone]

North-Greece – Thessaloniki

Tel.: [phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

Andabaka d.o.o.

Gunduliceva 10

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

DE Garantie

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

de

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE."

The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

fr

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or restriction (no text present)

pt

Участие Evonite of operations in acceptance and practice no you only gain Betaine workflow техники в Intermediate: http://www.stems-eshop.ru

[e-mail]
