USER MANUAL SJ 15XL UM0 HOTPOINT

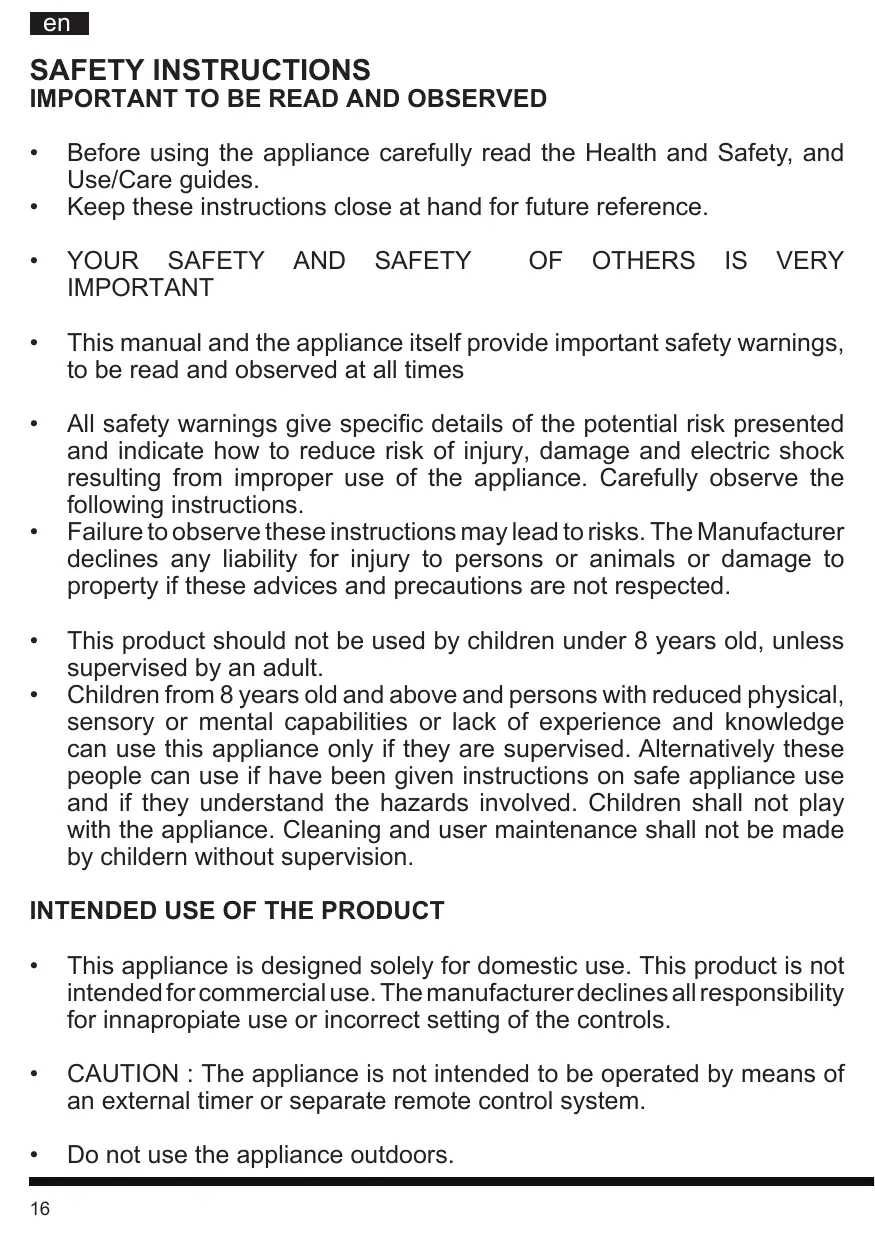

Before using the appliance carefully read the Health and Safety, and Use/Care guides. Keep these instructions close at hand for future reference.

YOUR SAFETY IMPORTANT

This manual and the appliance itself provide important safety warnings, to be read and observed at all times

All safety warnings give specific details of the potential risk presented and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions. Failure to observe these instructions may lead to risks. The Manufacturer declines any liability for injury to persons or animals or damage to property if these advices and precautions are not respected.

AND SAFETY OF OTHERS IS VERY This product should not be used by children under 8 years old, unless supervised by an adult. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised. Alternatively these people can use if have been given instructions on safe appliance use and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by childern without supervision.

INTENDED USE OF THE PRODUCT •

This appliance is designed solely for domestic use. This product is not intended for commercial use. The manufacturer declines all responsibility for innapropiate use or incorrect setting of the controls.

• CAUTION : The appliance is not intended to be operated by means of an external timer or separate remote control system.

• Do not use the appliance outdoors. 16

Do not store explosive or flammable substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched on.

Do not use accessories or attachments that are not recommended by the appliance manufacturer. Do not immerse the appliance body in water since this would give rise to electric shock. Do not use the appliance if the rotating sieve or the protecting cover is damaged or has visible cracks.

Repairs must be carried out by a qualified technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Children should not perform installation operations. Keep children away during installation of the appliance. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation of the appliance.

After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or our After Sales Service Dept. • Keep children away during installation of the appliance.

• The appliance must be disconnected from the power supply before carrying out any installation operation. • During installation, make sure the appliance does not damage the power cable. • Only activate the appliance when the installation procedure has been completed. • • •

Do not let the supply cord hang over the edge of a table / counter or contact any hot surfaces. Do not place the appliance on or near a gas or electric cooktop (hob) or in a heated oven. Remove any protective wrapping or plastic bag before operating the appliance. 17

Use the appliance on a level stable work surface.

ELECTRICAL WARNINGS •

Make sure the voltage specified on the rating plate corresponds to that of your home. • Regulation require that the appliance is connected to an earthed supply outlet.

• For appliances with a fitted plug, if the plug is not suitable for you socket outlet, contact a qualified technician. • Do not use extension leads, multiple sockets or adapters. Do not connect the appliance to a socket which can be operated by remote control. • The power cable must be long enough for connecting the appliance, once fitted in its housing, to the main power supply. • Do not pull the power supply cable. • If the power cable is damaged it must be replaced with an identical one. The power cable must only be replaced by a qualified technician in compliance with the manufacturer instruction and current safety regulations. Contact an authorised service center.

• Do not operate this appliance if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces. • Do not touch the appliance with any wet part of the body and do not operate it when barefoot. • •

If the power supply is cut, the appliance stays ON and starts again operating as soon as the power supply is restored. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

ELECTRICAL CONNECTIONS Socket outlet / plug If the fitted plug is not suitable for your socket outlet, contact After-Sales Service for 18

en it further instruction. Do not attempt to change the plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations. CORRECT USE • Turn the appliance off and unplug from the supply outlet when not in use, before cleaning, assembly, disassembly or interacting with any accessory. • Do not leave the appliance unattended while is operating. •

This appliance has a built-in safety-lock, which ensures that you can only switch the appliance on if you have assembled the juicer correctly on the motor unit. When assembled correctly, the built-in safety lock allows to use the product. Do not attempt to tamper with the cover interlock mechanism. Before juicing, make sure the pad is plugged-in completely to prevent any leakage. Do not operate the appliance empty to avoid damaging it. Avoid contacting any moving parts and keep your fingers out of the discharged openings and feeding tubes on the hopper. Do not use for more than 30 minutes. Do not put your hand or any other object in the food chute during operation. Do not attempt to juice any hard materials, large seeds (seeds which cannot be swallowed or chewed), pits, ice and ice cubes. Use frozen food only wth the correct proportion of liquids and as suggested in the dedicated section. If food gets stuck in the feeding tube, do not use anything other than the recommended pusher. Do not push reverse button quickly from normal running mode, but wait a few seconds in the off position. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

CLEANING AND MAINTENANCE •

The appliance must be disconnected from the power supply before carrying out any cleaning or maintenance operation.

Never use steam cleaning equipment.

Before use, and specially recommended before very first use, carefully wipe the outside of the appliance to remove any dust that may have accumulated, then dry it with a soft cloth. Do not use any harsh abrasive cleaners, alkaline cleaning agents or scouring agents. Wash the accessories in warm soapy water and then dry with a dry towel. Use the brush to clean thoroughly after operation. Do not use metal sponges or scouring powders to clean. They can damage the appliance. Make sure the rubber pad is pulled out completely when cleaning. Plug it back in securely after cleaning to prevent any leaks. To prevent any damage to the appliance do not use harsh solvents, alkaline cleaning agents, abrasive cleansers or scouring agents of any kind when cleaning. Do not immerse the motor unit or supply cord in water.

Feeding chute Screw Filter wiper Filter Juicing bowl Pusher Juice and pulp container Container lid Reverse button Stop button Start button Cleaning brush Juice filter Sorbet filter

INTRODUCTION Thank you for purchasing our product. In doing so, you have opted for an effective highperformance appliance. The Slow Juicer is a new type of low-speed slow grinder for fruit and vegetables. This new Juicer has two separate outlets for the juice and the pulp. The method of extraction is masticating and pressing, using the screw-like screw much like a mortar and pestle. The action tears open the food’s cell membranes and releases its deep-seated nutrients and enzymes. It also releases more phytonutrients, resulting in a richer coloured juice that retains more vitamins and minerals. The slow revolutions per minute ensure that it does not disrupt the cellular structure of fruit and vegetables, eliminating oxidation and separation. It consequently preserves the natural form of precious enzymes and nutrients, even from wheatgrass, soy and leafy greens. If the instructions on the correct use of this appliance are not observed, the manufacturer shall assume no responsibility for any resulting damage. The operating instructions may refer to different models: any difference is clearly identified.

USING YOUR JUICER ASSEMBLING THE JUICER Before you assemble the juicer, ensure that the power cord is unplugged and take care that the main juicer body and all other parts are clean. See other details in “Cleaning and Maintenance” section. To assemble the juicer:

Assemble the filter wiper, the filter and the screw (PICTURE A). Insert the filter wiper into the filter, then place the filter fixing teeth into the bayonet lock of the screw and rotate the screw until a click is heard. Place the main juicer body on the countertop. Assemble the juicing bowl on the main juicer body inserting the 3 pins on the main juicer body into the 3 holes on the juicing bowl bottom. Then place the screw/filter assembly into the juicing bowl with a small rotation of it in order to let the assembly engage with the motor shaft (PICTURE B). Place the juicer lid into the juicing bowl and then rotate it until the safety lock on the back engage the main juicer body (PICTURE C). If the juicer lid is not in the correct position, the machine is not able to work.

MAKING JUICE Place the containers on both sides of the main juicer body close to the pulp and juice chute. Press start button to start juicing. Stop button will stop the screw rotation that enable the juicing and reverse button will invert the screw rotation direction until the button is pressed. When the slow juicer gets stuck, press the stop button, and then press the reverse button to release the gear. Never press reverse button while running normal without stopping. Never press both start and reverse button togheter. Introduce fruit and vegetables into the feeding chute carefully pushing down the pusher to slowly feed items into the juicing bowl. Do not press the food pusher rapidly as the juicer will not be as effective. Do not introduce other items until all fruit or vegetables have gone through the juicer. Do not overload the juicing bowl. Do not juice hard fruit or vegetables, stones or hard seeds. The juice from the fruit and vegetables will flow directly into the juice cup and the pulp will be collected in the pulp container. When juicing is complete, ensure that the screw is stopped by pressing the stop button and the juicer is unplugged. Now the unit can be disassembled safely in the following order: 1. Remove the food pusher. 2. Remove the lid. 3. Remove the juice screw/filter assembly 4. Remove the juicing bowl Regular maintenance and cleaning of your appliance will keep it safe and in proper operational order. Refer to “Cleaning and Maintenance” section.

MAKING SORBET This juicer is able to produce sorbet from frozen fruits or vegetables. Remove the feeding chute and pull out from the juicing bowl the screw/filter assembly. Dismount the filter with holes (13) and mount the filter without holes (14) as shown in PICTURE A. Assembly again the juicer as described in dedicated section. Place the containers on both sides of the main juicer body close to the pulp and juice chute. Remove hard seeds from the ingredients and peel the skins from the ingredients before juicing, besides, the fruit need to cut into small pieces. Introduce frozen fruit slowly and carefully with liquids (milk, cream, yogurt or similar). Never introduce frozen fruit without liquids. Take out from freezer the frozen fruit at least 15 minutes before juicing. The sorbet come out from the pulp chute, but some liquid can come out also from juice chute. When juicing is complete, ensure that the screw is stopped by pressing the stop button and the juicer is unplugged. Now the unit can be disassembled safely in the following order: 1. Remove the food pusher. 2. Remove the lid. 3. Remove the juice screw/filter assembly 4. Remove the juicing bowl Regular maintenance and cleaning of your appliance will keep it safe and in proper operational order. Refer to “Cleaning and Maintenance” section.

TIPS FOR JUICING Before juicing: • The Slow Juicer is suitable for celery, spinach, carrots, apples, bananas, tomatoes, cucumbers, pear and all the fruits and vegetables which contain juice, but not for those containing starch. • Clean the fruit and vegetables thoroughly, making them ready for juicing. If the pieces of fruit or vegetables are very large, chop them to a size that will fit down the juicer’s food chute. Cut food items into small pieces for optimal extraction. • Pit fruit with stones or hard seeds (i.e. mangoes, nectarines, apricots and cherries) before juicing. Always peel fruits with hard or inedible skins. Examples include mangoes, citrus fruits, melons, and pineapples. • When selecting fruit and vegetables for juicing, always select fresh and properly ripe specimens. Fresh fruit and vegetables carry more flavor and

juice than those that are not properly ripe. Juice is best consumed when freshly made, as this is when its vitamin and mineral content is the highest. While juicing: • For optimum results, insert one ingredient at a time. • Insert food at regular speed, allowing all the pulp to be extracted with maximum efficiency. • When juicing celery with other fruits/ vegetables, it is recommended to interchange the celery with other items to prevent pulp build-up inside the juice bowl. • When juicing leafy greens like spinach and kale, it is recommended to juice with a combination of watery or fibrous fruits and vegetables to help with juice flow and yield and achieve optimal results. • Insert nuts to be juiced only with other foods such as soaked soybeans or liquids. • Do not operate with an empty bowl. • A small amount of lemon can be added to apple juice to prevent the juice form browning. • Bananas can be difficult to juice. When you use bananas, add them as the first or second ingredient: the nectar of the bananas will follow through into the juice form the other fruits. • When juicing fruits and vegetables having different consistencies, it may help to juice different combinations. For example, juice soft fruit first (i.e .oranges), then follow with hard fruit (i.e. apples). This will help you achieve maximum juice extraction. • For better tasting citrus juice, also remove the inner white peel from fruit. • If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing them in the juicer or combine them with other ingredients at low speed. After juicing: • Leftover juice should be refrigerated or frozen. • Saved pulp can be used for other recipes, as compost for your garden, or can be discarded. • As you juice, clean parts to avoid dried-on juice and pulp. • After each use, immediately rinse removable parts in hot water to remove pulp and juice. It may be necessary to use the cleaning brush to remove.

en it SAFEGUARDING THE ENVIRONMENT DISPOSAL OF PACKAGING MATERIALS The packaging material is 100% recyclable and is marked with the recycle symbol (*). The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES When scrapping the appliance, make it unusable by cutting off the power cable and delete and removing the doors and shelves, so that children cannot easily climb inside and become trapped. This appliance is manufactured with recyclable (*) or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol (*) on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

DECLARATION OF CONFORMITY This appliance has been designed, constructed and distributed in compliance with the safety requirements of European Directives: • 2006/95/EC Low Voltage Directive • 2004/108/EU Electromagnetic Compatibility Directive

en it JUICE RECIPE BOOK LEMON JUICE Ingredients for 4 servings: 3 large lemons, 1 apple, brown sugar. Wash and peel the lemons and chop them into small cubes. Wash and peel the apple. Place the ingredients in the juicer with 1 glass of water. Once processed, sweeten with brown sugar to taste. Serve with 1 teaspoon of crushed ice.

REVITALISING COCKTAIL Ingredients for 4 servings: 1 watermelon (1 kg), fresh basil, vodka. Remove the rind and seeds from the watermelon and cut it into small cubes. Wash and pick 1 handful of basil leaves. Place the watermelon and basil in the juicer and juice. Shake the juice with 4 tablespoons of vodka and crushed ice and serve in 4 tumblers, garnishing with a few basil leaves.

BLUEBERRY DESSERT Ingredients for 4 servings: 1 kg of blueberries, 500 g of whipped cream, 70 g of icing sugar. Wash and drain the blueberries, then place them in the processor to obtain their juice. Combine the whipped cream, blueberry juice and 50 g of icing sugar, folding gently until mixed. Take the blueberry pulp, mix it with the remaining sugar and pour the mixture into 4 glasses. Pour the whipped cream and blueberry juice mix on top and store in the refrigerator until ready to serve.

APPLE AND FENNEL GAZPACHO Ingredients for 4 servings: 3 apples, 4 fennel bulbs, 1 lime, raspberry vinegar, hazelnut oil, salt. Wash and chop the lime, apples and fennel. Place them in the juicer to juice. Mix the juice with 4 tablespoons of hazelnut oil and 1 pinch of salt using a whisk. Serve in 4 glasses, garnish with a few apple slices.

GREEN JUICE Ingredients for 4 servings: 1 cucumber, 2 fennel bulbs, 1 celery stalk, 2 carrots, baby spinach, parsley, 1 apple, 5 g of fresh ginger. Wash, peel and chop the cucumber, fennel, celery, carrots and apple. Peel the ginger root. Wash and pick 1 handful of parsley leaves and 1 handful of baby spinach. Process the vegetables in small batches to obtain their juice. Mix and serve immediately.

en it APPLE PANCAKES Ingredients for 4 servings: 5 apples, 2 eggs, 100 g flour, 200 g skimmed milk yoghurt, cinnamon powder, sugar, butter. Using a whisk, beat the eggs in a bowl with 4 tablespoons of sugar to obtain a light and fluffy mixture. Add the sifted flour, 1 pinch of cinnamon powder and mix. Wash the apples and juice them. The juice can be stored in a glass bottle and placed in the refrigerator, to be enjoyed as a drink. Take the processed apple pulp and fold it into the egg, flour and sugar mixture with a wooden spoon. Add yoghurt and mix. The mixture must be soft, and should drop fairly easily off the spoon. If it is too thick, add a little milk. Melt 1 knob of butter in a pan and pour a few spoonfuls of mixture. Cook the pancakes for 2 minutes on each side, flipping them over with a spatula. Dust with icing sugar and serve immediately.

APPLE SAUCE Ingredients to obtain approx. 300 g of sauce: 4 apples, 1 onion, acacia honey, cinnamon powder, clove powder, dry white wine, butter, salt. Wash, peel and cut the apples and onion into small cubes. Process and pour the juice and pulp into a pan. Add 1 tablespoon of honey and cook for approximately 10 minutes. Add salt to taste, 1 pinch of cinnamon powder and 1 pinch of clove powder. Pour the hot mixture into a glass container with lid, close the lid, place the container upside down to avoid any air leakage and allow to cool. The sauce can be stored in the refrigerator for approximately 1 month. It is best eaten with roast or braised meats.

en it SORBET RECIPE BOOK TROPICAL SORBET Ingredient for 300 g of sorbet: 110 g of pineapple, 2 bananas, 4 tablespoon of yoghurt. Peel the pineapple and the bananas, cut them into small pieces and put it into the freezer. When the fruit is frozen, add the yoghurt and blend them together. Put the ingredients in the juicing bowl slowly. Stir and serve immediately.

BLUEBERRIES CREAM Ingredient for 300 g of sorbet: 125 g of blueberries, 1 banana, 15 leaf of mint, 100 g of strawberries, 4 tablespoon of yoghurt. Wash the strawberries and the blueberries and peel the banana. Cut the fruit into small pieces and put it into the freezer. When the fruit is frozen, add the yoghurt and the mint leaves and blend them together. Put the ingredients in the juicing bowl slowly. Stir and serve immediately.

MANGO DREAM Ingredient for 300 g of sorbet: 200 g of mango, 1 bananas, 4 tablespoon of milk cream. Peel the mango and the bananas, cut them into small pieces and put it into the freezer. When the fruit is frozen, add the milk cream and blend them together. Put the ingredients in the juicing bowl slowly. Stir and serve immediately.

APPLE DELIGHT Ingredient for 300 g of sorbet: 200 g of apple, 1 bananas, 1/2 teaspoon of cinnamon, 4 tablespoon of milk cream. Remove the seeds and peel the apple and the bananas, cut them into small pieces and put it into the freezer. When the fruit is frozen, add the milk cream and the cinnamon and blend them together. Put the ingredients in the juicing bowl slowly. Stir and serve immediately.
