USER MANUAL EBDH 18242 F HOTPOINT

Operating Instructions

REFRIGERATOR/FREEZER COMBINATION Contents

Operating Instructions, 1

Description of the appliance, 6

Description of the appliance, 11

Reversible doors, 16

Start-up and use, 21

Maintenance and care, 23

Precautions and tips, 23

Before calling for Assistance:

Check if the malfunction can be solved on your own (

• If after all the checks, the appliance still does not operate or

the problem persists, call the nearest Service Centre

• type of malfunction

• appliance model (Mod.)

• serial number (S/N)

This information can be found on the data plate located on the

bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse

spare parts which are not originals.

Control panel 1. ON/OFFThe entire product (both the refrigerator and freezer compartments)may be switched on by pressing this button. The red LED indicatesthat the product is switched off, while the green LED shows that it isoperating.2. REFRIGERATOR and temperature adjustmentUsed to modify the temperature setting of the refrigerator; confirmationcorresponding to the selected temperature appears on the display.3. Refrigerator displayShows the set temperature for the refrigerator compartment.4. I-CAREControls the activation and deactivation of the I-CARE function (optimaloperating temperature for minimal energy consumption). When thisfunction is activated, the I-CARE LED on the keypad lights up.Press and hold the I-CARE button for 8 seconds so that the corresponding LED begins to flash; this will allow you to set the temperature to+4°,+5°,+6° in the Refrigerator compartment and -18°,-19°,-20° inthe Freezer compartment. Ten minutes after the most recent userinteraction, the display enters its energy saving mode.To exit theenergy saving mode, simply press any button or open the refrigeratordoor.5. ALARMAn alarm situation has been detected in the product (seeTroubleshooting section).6. CHILD LOCKActivates or deactivates the control panel button lock in order to avoidthe risk of the various functions being activated accidentally by children.The CHILD LOCK LED on the keypad lights up.7. FREEZER and temperature adjustmentUsed to modify the temperature setting of the freezer; confirmationcorresponding to the selected temperature appears on the display.8. FREEZER displayShows the set temperature for the freezercompartment.9. SUPER COOLActivates or deactivates the SUPER COOL function(rapid cooling). The SUPER COOL LED on thekeypad lights up and ‘SC’ appears on the refrigeratordisplay.10. SUPER FREEZEActivates or deactivates the SUPER FREEZE function(rapid freezing). The SUPER FREEZE LED on thekeypad lights up and ‘SF’ appears on the freezerdisplay.11. HOLIDAYActivates or deactivates the HOLIDAY function (theHOLIDAY LED on the keypad lights up), while thetemperature values +12°C and -18°C appear on therefrigerator and freezer displays respectively. Tenminutes after the most recent user interaction, thedisplay enters its energy saving mode (see I-CAREfunction).12. ICE PARTYActivates the ICE PARTY function (the temperature isdecreased for the amount of time it takes to cool abottle). The ICE PARTY LED on the keypad lights up.7

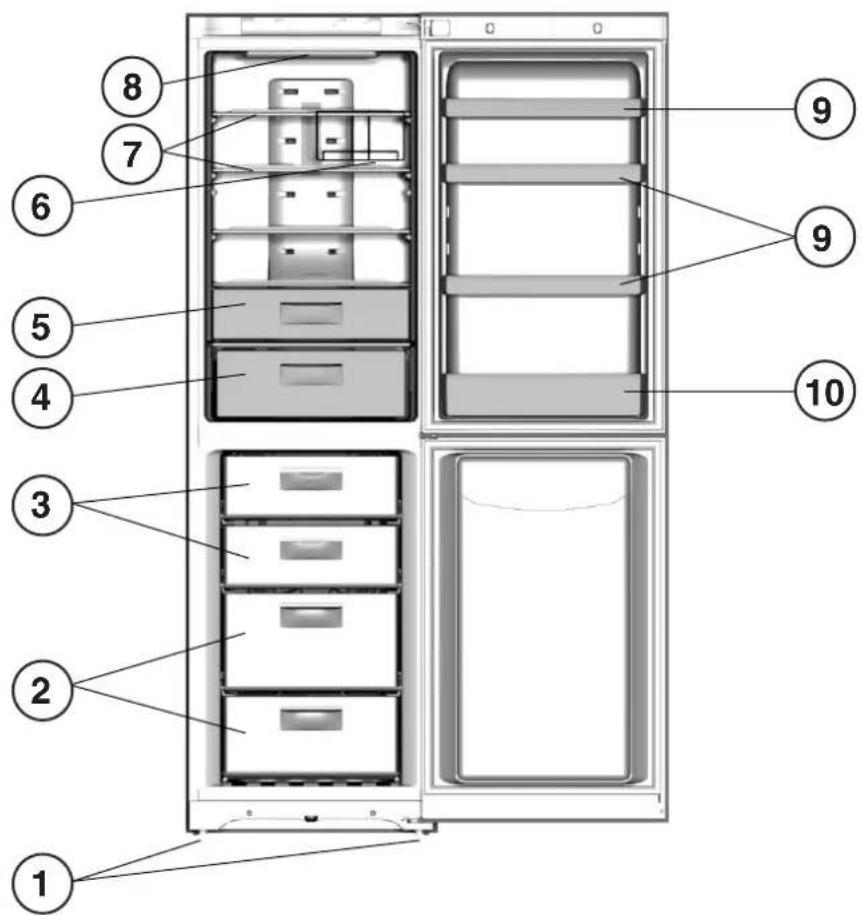

Description of the appliance

The instructions contained in this manual are applicable to different

model refrigerators. The diagrams may not directly represent the

appliance purchased. For more complex features, consult the

2 STORAGE compartment

3 FREEZER and STORAGE compartment

4 FRUIT and VEGETABLE bin *

5 FOOD CARE ZONE for MEAT and CHEESE *

8 LAMP (see Maintenance).

9 Removable multipurpose SHELVES *

* Varies by number and/or position, available only on certain

If it is necessary to change the direction in which the doors open,

please contact the Technical Assistance Centre.

Réversibilité des portes

Installation ! Before placing your new appliance into operation please readthese operating instructions carefully. They contain importantinformation for safe use, for installation and for care of the appliance.! Please keep these operating instructions for future reference.Pass them on to possible new owners of the appliance. Positioning and connection Positioning1. Place the appliance in a well-ventilated humidity-free room.2. Do not obstruct the rear fan grills. The compressor andcondenser give off heat and require good ventilation to operatecorrectly and save energy.3. Leave a space of at least 10 cm between the top part of theappliance and any furniture above it, and at least 5 cm betweenthe sides and any furniture/side walls.4. Ensure the appliance is away from any sources of heat (directsunlight, electric stove, etc.).5. In order to maintain the correct distance between the applianceand the wall behind it, fit the spacers supplied in the installationkit, following the instructions provided.Levelling1. Install the appliance on a level and rigid floor.2. If the floor is not perfectly horizontal, adjust the refrigerator bytightening or loosening the front feet.Electrical connectionsAfter the appliance has been transported, carefully place itvertically and wait at least 3 hours before connecting it to theelectricity mains. Before inserting the plug into the electrical socketensure the following:• The appliance is earthed and the plug is compliant with the law.• The socket can withstand the maximum power of the appliance,which is indicated on the data plate located on the bottom leftside of the fridge (e.g. 150 W).• The voltage must be in the range between the values indicatedon the data plate located on the bottom left side (e.g. 220-240V).• The socket is compatible with the plug of the appliance. If thesocket is incompatible with the plug, ask an authorisedtechnician to replace it ( see Assistance ). Do not use extensioncords or multiple sockets.! Once the appliance has been installed, the power supply cableand the electrical socket must be easily accessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replaced by authorisedtechnicians only (see Assistance). ! The manufacturer declines any liability should these safety The manufacturer declines any liability should these safety The manufacturer declines any liability should these safety The manufacturer declines any liability should these safety The manufacturer declines any liability should these safetymeasures not be observed.measures not be observed.measures not be observed.measures not be observed.measures not be observed. Start-up and use

Starting the appliance ! After transportation of the appliance, carefully place it in an uprightposition and wait at least 3 hours before connecting it to theelectricity mains, to make sure it operates as it should.• Clean the inside of the refrigerator well using warm water andbicarbonate of soda before placing food inside it.• The appliance comes with a motor protection control systemwhich makes the compressor start approximately 8 minutesafter being switched on. The compressor also starts each timethe power supply is cut off whether voluntarily or involuntarily(blackout).Freezer CompartmentWhen the product is switched on the freezer compartment is setto its default value of -18°C. We recommend that the SUPERFREEZE function is set (the freezer status bar continues to displaythe set value) in order to accelerate the cooling process of thecompartment; when the inside of the compartment has reachedits optimal temperature the function will be deactivated and thefood may be placed inside.Refrigerator CompartmentWhen the appliance is switched on the refrigerator compartmentis set to its default value of +5°C. We recommend that the SUPERCOOL function is set (the refrigerator status bar continues to displaythe set value) in order to accelerate the cooling process of thecompartment. After a few hours it will be cool enough for food tobe placed inside. Navigating the display Setting the temperatures:If the product is switched on, the refrigerator and freezercompartment displays will indicate the temperature values set at that moment. To change them, simply press the - and + buttons corresponding to the compartment for which you wish to changethe set temperature. More specifically, each time the buttons arepressed, the temperature increases or decreases and the level ofcold generated inside the compartment is adjusted accordingly.The temperature values that may be selected for the refrigeratorcompartment are +8°C, +7°C, +6°C, +5°C, +4°C, +3°C and +2°C,while the values that may be set for the freezer are -18°C, -19°C, -20°C, -21°C, -22°C, -24°C and -26°C. When the “I-CARE” function is active, the appliance automatically adjusts the temperatures according to the conditions inside andoutside the refrigerator, in order to minimise the amount of energyconsumed; the activation of this function is signalled by the I-CARELED on the keypad lighting up. When the HOLIDAY function is active the temperature may not be adjusted, however the appliance adjusts itself automatically so that the optimal settings for the situation are used: +12°C for the

refrigerator compartment and -18°C for the freezer compartment.

The activation of this function is indicated by the HOLIDAY LED lighting up.To activate and deactivate the functions, simply press the relevantbutton; the function status will be signalled by the correspondingLED on the keypad switching on or off.Several of the functions (SUPER COOL, SUPER FREEZE, ICE PARTY, I-CARE) are incompatible with others (HOLIDAY,...); remember that there is a pre-established order of priority whichwill help you to operate the product in the best possible way. When the ICE PARTY function has finished, press the ICE PARTY button to stop the corresponding LED from flashing and to silencethe sound alert. The flashing and sound alerts indicate that thefunction is complete and that the bottle should be removed fromthe freezer compartment.Child LockTo activate the Child Lock function, press and hold the Child Lockbutton for 2 sI-CAREnds; the activation of this button lock isconfirmed by a short beep and the illumination of the correspondingLED on the keypad. To deactivate the function, press and holdthe Child Lock button for 2 sI-CAREnds; deactivation will beconfirmed by a short beep and by the corresponding LED switching off.22

The No Frost system circulates cold air continuously to collect

humidity and prevent ice and frost formation. The system maintains

an optimal humidity level in the compartment, preserving the

original quality of the food, preventing the food from sticking

together and making defrosting a thing of the past. Do not block

the aeration cells by placing food or containers in direct contact

with the refrigerating back panel. Close bottles and wrap food

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment, never

hot foods (see Precautions and tips).

• Remember that cooked foods do not last longer than raw foods.

• Do not store liquids in open containers: they will increase the

level of humidity in the refrigerator and cause condensation to

SHELVES: with or without grill.

Due to the special guides the shelves are removable and the height

is adjustable (see diagram), allowing easy storage of large

containers and food. Height can be adjusted without complete

removal of the shelf.

TEMPERATURE Indicator light*: to identify the coldest area in

1. Check that OK appears clearly on the indicator light (see

2. If the word “OK” does not appear it means that the temperature

is too high: adjust the REFRIGERATOR OPERATION knob to a

higher position (colder) and wait approximately 10 hours until

the temperature has been stabilised.

3. Check the indicator light again: if necessary, readjust it following

the initial process. If large quantities of food have been added

or if the refrigerator door has been opened frequently, it is normal

for the indicator not to show OK. Wait at least 10 hours before

adjusting the REFRIGERATOR OPERATION knob to a higher

Area dedicated to the storage of fresh food, such as meat and

fish. Thanks to the low temperature inside the compartment, the

Food Care Zone extends the period of time for which the food can

be stored, keeping it fresh for up to a week.

Thanks to the powerful light it emits, the new dual LED lighting system

offers a clear view of all foods, with no shadowy areas.

If the LEDs need to be replaced, please contact the Technical

Using the freezer to its full potential

• Adjust the temperature using the display.

• Fresh food that needs to be frozen must not come into contact

with food that has already been defrosted. Fresh food must be

stored in the top FREEZER and STORAGE compartment where

the temperature drops below -18°C and guarantees rapid

• To freeze fresh food in the best and safest way possible, activate

the SUPER FREEZE function 24 hours before placing the food in

the freezer. After placing the food inside, activate the SUPER FREEZE function again; it will be deactivated automatically after

• Do not re-freeze food that is defrosting or that has already been

defrosted. These foods must be cooked and eaten (within 24

• Do not place glass bottles which contain liquids, and which

are corked or hermetically sealed in the freezer because they

• The maximum quantity of food that may be frozen daily is

indicated on the plate containing the technical properties

located on the bottom left side of the refrigerator compartment

(for example: Kg/24h: 4).

! To avoid blocking the air circulation inside the freezer

compartment, it is advisable not to obstruct the ventilation holes

with food or containers.

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer

door. This will help maintain the temperature inside the freezer,

ensuring that foods are conserved for at least 9 -14 hours.

* Varies by number and/or position, available only on certain models.GB

23 Easy Ice *The double tub was designed to optimise space in the freezercompartment and to ensure that ice is always readily available.The trays can be stacked or filled and used separately.Furthermore, the special fastening system makes Easy Ice anextremely flexible solution, as it can be positioned in the right orleft part of the top drawers. Maintenance and care

Switching the appliance off During cleaning and maintenance it is necessary to disconnectthe appliance from the electricity supply:1. Press the ON/OFF button to switch off the appliance.2. Pull the plug out of the socket.! If this procedure is not followed, the alarm may sound. This alarmdoes not indicate a malfunction. To restore normal operation, holdthe ON/OFF button down for more than two seconds. To disconnectthe appliance, follow points 1 and 2 above. Cleaning the appliance • The external and internal parts, as well as the rubber seals maybe cleaned using a sponge that has been soaked in lukewarmwater and bicarbonate of soda or neutral soap. Do not usesolvents, abrasive products, bleach or ammonia.• The removable accessories may be soaked in warm water andsoap or dishwashing liquid. Rinse and dry them carefully.• The back of the appliance may collect dust which can beremoved by delicately using the hose of a vacuum cleaner seton medium power. The appliance must be switched off andthe plug must be pulled out before cleaning the appliance. Avoiding mould and unpleasant odours • The appliance is manufactured with hygienic materials whichare odour free. In order to maintain an odour free refrigeratorand to prevent the formation of stains, food must always becovered or sealed properly.• If you want to switch the appliance off for an extended periodof time, clean the inside and leave the doors open. Replacing the light bulb * To replace the light bulb in the refrigerator compartment, pull outthe plug from the electrical socket. Follow the instructions below.Access the light bulb by removing the cover as indicated in thediagram. Replace it with a similar light bulb within the power rangeindicated on the cover. 1 1

Precautions and tips ! The appliance was designed and manufactured in compliancewith international safety standards. The following warnings areprovided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) andsubsequent amendments;- 2002/96/CE. General safety • The appliance was designed for domestic use inside the homeand is not intended for commercial or industrial use.• The appliance must be used to store and freeze food productsby adults only and according to the instructions in this manual.• The appliance must not be installed outdoors, even in coveredareas. It is extremely dangerous to leave the appliance exposedto rain and storms.• Do not touch the appliance with bare feet or with wet or moisthands and feet.• Do not touch the internal cooling elements: this could causeskin abrasions or frost/freezer burns.• When unplugging the appliance always pull the plug from themains socket, do not pull on the cable.• Before cleaning and maintenance, always switch off theappliance and disconnect it from the electrical supply. It is notsufficient to set the temperature adjustment knobs on ON/OFF(appliance off) to eliminate all electrical contact.• In the case of a malfunction, under no circumstances shouldyou attempt to repair the appliance yourself. Repairs carriedout by inexperienced persons may cause injury or furthermalfunctioning of the appliance.• Do not use any sharp or pointed utensils or electrical equipment- other than the type recommended by the manufacturer - insidethe frozen food storage compartments.• Do not put ice cubes taken directly from the freezer into yourmouth.• This appliance is not intended for use by persons (includingchildren) with reduced physical, sensory or lack of experienceand knowledge unless they have been given supervision orinstruction concerning use of the appliance by a personresponsible for their safety. Children should be supervised toensure that they do not play with the appliance.• Keep packaging material out of the reach of children! It canbecome a choking or suffocation hazard. * Varies by number and/or position, available only on certain models.24

GB Disposal • Observe local environmental standards when disposingpackaging material for recycling purposes.• The European Directive 2002/96/EC on Waste Electrical andElectronic Equipment (WEEE), requires that old householdelectrical appliances must not be disposed of in the normalunsorted municipal waste stream. Old appliances must becollected separately in order to optimise the recovery andrecycling of the materials they contain and reduce the impacton human health and the environment. The crossed out“wheeled bin” symbol on the product reminds you of yourobligation, that when you dispose of the appliance it must beseparately collected. Consumers should contact their localauthority or retailer for information concerning the correctdisposal of their old appliance. Respecting and conserving the environment • Install the appliance in a fresh and well-ventilated room. Ensurethat it is protected from direct sunlight and do not place it nearheat sources.• Try to avoid keeping the door open for long periods or openingthe door too frequently in order to conserve energy.• Do not fill the appliance with too much food: cold air mustcirculate freely for food to be preserved properly. If circulationis impeded, the compressor will work continuously.• Do not place hot food directly into the refrigerator. The internaltemperature will increase and force the compressor to workharder and will consume more energy.• Defrost the appliance if ice forms ( see Maintenance ). A thicklayer of ice makes cold transference to food products moredifficult and results in increased energy consumption. Troubleshooting If the appliance does not work, before calling for Assistance (seeAssistance), check for a solution from the following list.The display is completely switched off.• The plug has not been inserted into the electrical socket, or notfar enough to make contact, or there is no power in the house.The motor does not start.• The appliance comes with a motor protection control ( see Start-

). The display is on but it is dim.• Pull out and reverse the plug before putting it back in the socket.The alarm sounds and DOOR OPEN ALARM flashes on thedisplay (“d” is displayed instead of the REFRIGERATORtemperature).• The refrigerator door has been open for more than two minutes.The sound alert stops when the door is closed or when theappliance is switched off and on again.The alarm sounds and TEMPERATURE ALARM flashes onthe display (“A1” is displayed instead of the FREEZERtemperature).• The temperature inside the freezer is too high. The freezer willmaintain a temperature of around 0°C so that the food will notrefreeze, allowing you to eat it within 24 hours or to refreeze itafter it has been cooked.To switch off the buzzer, open and close the appliance door orpress the + and – freezer temperature adjustment buttons once.Press these buttons a second time to display the set value onthe freezer display, switch off the TEMPERATURE ALARM LEDand restore normal operation.The alarm sounds and temperature alarm flashes on thedisplay (“A2” is displayed instead of the FREEZERtemperature).• The temperature of the freezer is dangerously high: the foodinside must not be eaten. The freezer will maintain a temperatureof approximately -18°C.To switch off the buzzer, open and close the appliance door orpress the + and – freezer temperature adjustment buttons once.Press these buttons a second time to display the set value onthe freezer display, switch off the TEMPERATURE ALARM LEDand restore normal operation.The refrigerator and the freezer do not cool well.• The doors do not close properly or the seals are damaged.• The doors are opened too frequently.• The temperature that has been set is too high ( see Start-up

). • The refrigerator or the freezer have been over-filled.The food inside the refrigerator is beginning to freeze.• The temperature that has been set is too low ( see Start-up and

). The motor runs continuously.• The SUPER FREEZE button has been pressed (rapid freezing):the yellow SUPER FREEZE light is on or flashing ( see

). • The door is not closed properly or is continuously opened.• The outside ambient temperature is very high.The appliance makes a lot of noise.• The appliance has not been installed on a level surface ( see

. • The appliance has been installed between cabinets that vibrateand make noise.• The internal refrigerant makes a slight noise even when thecompressor is off. This is not a defect, it is normal.Early ending of functions• Electrical disturbance on the network or brief interruptions ofthe power supply.F
