Product type	Food processor
Brand	HOTPOINT
Model	HB 0803 UM0
Power supply	220-240 V ~ 50/60 Hz
Power	600 W
Main bowl capacity	1250 mL
Chopper bowl capacity	500 mL
Included accessories	Whisk, immersion blender, chopper, blade holder with fine grater, coarse grater, fine slicing blade, coarse slicing blade, pusher
Functions	Chop, blend, whisk, slice, grate
Control	ON/OFF button, speed dial, Turbo button
Safety	Soft start, lid lock, automatic stop if unlocked
Bowl material	Plastic
Blade material	Stainless steel
Cleaning	Removable parts washable with soapy water; do not immerse motor
Dimensions (approx.)	25 x 20 x 30 cm
Weight (approx.)	3 kg
Spare parts	Blades, bowls, whisk, blender, seals available via after-sales service
Repairability	Repair by authorized technician only
Warranty	Refer to after-sales service

Frequently Asked Questions - HB 0803 UM0 HOTPOINT

How to start the food processor?

Plug in the appliance, turn the speed dial to the desired position, then press and hold the ON/OFF button. For maximum speed, use the TURBO button.

How to attach the blender to the motor?

Push the blender onto the motor until the two small buttons on the sides of the connection system click into place.

What is the maximum bowl capacity?

The main bowl has a capacity of 1250 mL and the chopper bowl of 500 mL. Do not exceed these capacities.

Can I chop ice or frozen foods?

No. Never insert very hard foods such as hard chocolate, ice or frozen foods when using accessories intended for chopping.

How to clean the appliance?

Unplug the appliance. Wash accessories and lids with clean water without abrasive products. Bowls and whisk can be washed in warm soapy water. Do not immerse the motor or lids in water. Wipe the motor with a damp cloth.

What if the lid does not lock?

Make sure the fastenings are properly locked in the two notches. If the lid rotates with the motor, the appliance will not work correctly. Do not force the mechanism.

Can I use the whisk continuously for more than 2 minutes?

No. Do not use the whisk continuously for more than 2 minutes at a time to avoid overheating.

How to grate or slice with the food processor?

Attach the chosen accessory (grater or slicing blade) onto the blade holder, place it in the bowl, lock the lid, insert the motor. Place food in the feed tube and gently push with the pusher.

What if the appliance does not start?

Check that the appliance is properly plugged in and the lid is locked. If the problem persists, contact after-sales service with the model and serial number.

How to store the accessories?

Use the storage system located on the bowl lid. The detachable stem, whisk and motor can be stored on the lid as shown in the diagram in the manual.

USER MANUAL HB 0803 UM0 HOTPOINT

EN Operating instructions

FR Mode d'emploi

RU Hnctpykunno 3Kcnnyataun

TR Kullanma talimatlari

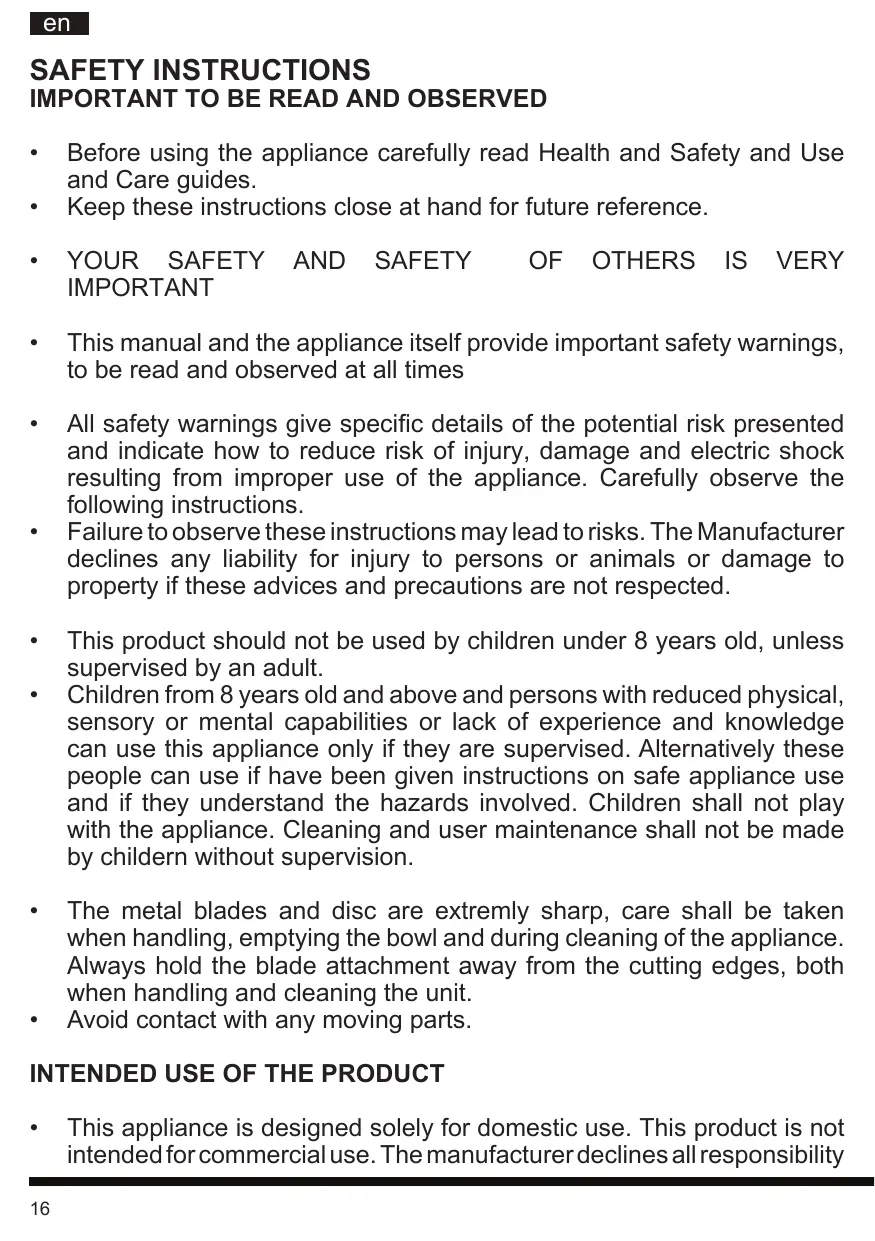

• Before using the appliance carefully read Health and Safety and Use and Care guides.
• Keep these instructions close at hand for future reference.
  YOUR SAFETY AND SAFETY OF OTHERS IS VERY IMPORTANT
• This manual and the appliance itself provide important safety warnings, to be read and observed at all times
• All safety warnings give specific details of the potential risk presented and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions.
• Failure to observe these instructions may lead to risks. The Manufacturer declines any liability for injury to persons or animals or damage to property if these advices and precautions are not respected.
• This product should not be used by children under 8 years old, unless supervised by an adult.
• Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised. Alternatively these people can use if have been given instructions on safe appliance use and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The metal blades and disc are extremely sharp, care shall be taken when handling, emptying the bowl and during cleaning of the appliance. Always hold the blade attachment away from the cutting edges, both when handling and cleaning the unit.
• Avoid contact with any moving parts.

INTENDED USE OF THE PRODUCT

• This appliance is designed solely for domestic use. This product is not intended for commercial use. The manufacturer declines all responsibility

for innapropiate use or incorrect setting of the controls.

• CAUTION : The appliance is not intended to be operated by means of an external timer or separate remote control system.
• Do not use the appliance outdoors.
• Do not store explosive or flammable substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched on.

INSTALLATION

• Repairs must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual.
• Children should not perform installation operations. Keep children away during installation of the appliance. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation of the appliance.
• After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service.
• Keep children away during installation of the appliance.
• The appliance must be disconnected from the power supply before carrying out any installation operation.
• During installation, make sure the appliance does not damage the power cable.
• Only activate the appliance when the installation procedure has been completed.

ELECTRICAL WARNINGS

• Make sure the voltage specified on the rating plate corresponds to that of your home.
• Regulations require that the appliance is connected to an earthed supply outlet.

en

• For appliances with fitted plug, if the plug is not suitable for you socket outlet, contact a qualified technician.
• Do not use extension leads, multiple sockets or adapters. Do not connect the appliance to a socket which can be operated by remote control.
• The power cable must be long enough for connecting the appliance, once fitted in its housing, to the main power supply.
• Do not pull the power supply cable.
• If the power cable is damaged it must be replaced with an identical one. The power cable must only be replaced by a qualified technician in compliance with the manufacturer instructions and current safety regulations. Contact an authorized service center.
• Do not operate this appliance if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.

ELECTRICAL CONNECTIONS

Socket outlet / plug

If the fitted plug is not suitable for your socket outlet, contact After-Sales Service for further instruction. Do not attempt to change the plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufacturer's instructions and current standard safety regulations.

CORRECT USE

• Make sure that all parts and lids are securely locked in palce before operating the appliance.
• The fasteners must be locked in the two clip positions, otherwise during operating the bowl lid may rotate as the motor rotates.
• Do not attempt to tamper with the lid interlock mechanism.

• Before disassembling the appliance, switch off the unit and wait until the blades have come to a complete stop.

• Always remove the blade assembly before pouring any contents from the bowl.

• Never insert food by hand. Always use the food pusher.
• Do not put your fingers or other objects into the unit opening while it is in operation. If any food gets stuck in the opening, use the food pusher or another piece of fruit gets vegetable to push it down. When this method is not possible, turn the appliance off and disassemble the unit to remove the remaining food.
• Never introduce very hard foods (e.g. Hard chocolate), ice or frozen foods when using the fine chopping attachments.
• Keep your hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage the blender. A scraper may be used when the appliance is not operating.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

CLEANING AND MAINTENANCE

• The appliance must be disconnected from the power supply before carrying out any cleaning or maintenance.
• Never use steam cleaning equipment.

PARTS AND FEATURES

Attachments supplied may vary by model

1. Speed-adjusting dial
2. ON/OFF button
3. Turbo button
4. Motor unit
5. Whisk attachment
6. Beaker
7. Blender attachment
8. Food pusher
9. Storage unit
10. Food processor lid
11. Feed tube
12. Food processor's knife blade
13. Food processor bowl
14. Fine shredder
15. Coarse slicing blade
16. Fine slicer
17. Coarse shredder
18. Blades support
19. Chopper lid
20. Chopper's knife blade
21. Chopper bowl

INTRODUCTION

Thank you for purchasing our product. In doing so, you have opted for an effective high-performance appliance.

These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages.

If the instructions on the correct use of this appliance are not observed, the manufacturer shall assume no responsibility for any resulting damage. The operating instructions may describe different models: any difference is clearly identified.

BEFORE FIRST USE

Carefully wipe the outside of the appliance to remove any dust that may have accumulated. Dust with a dry cloth.

USING THE PRODUCT

BLENDER ATTACHMENT (A)

This appliance is provided with special SOFT START FUNCTION which makes the motor start slowly before reaching the full blending power, for a more comfortable use and a greater control.

The blender attachment is suitable for blending liquids and vegetables.

1. To assemble the blender attachment to the motor unit, just push it until the two small buttons on the left and on the right of the connector have clicked.
2. Peel or core the fruits and then cut them into small pieces. Then put the fruit pieces or vegetables into the beaker. Usually a certain amount of water has to be added to facilitate smooth running, the proportion of food and water being 2:3. The mixture amount should not exceed the max capacity of the cup.
3. Plug the appliance into the power outlet.
4. Lower the hand blender into the food and rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the blender starts blending immediately. For maximum-speed blending use the TURBO button for a short time.

WHISK ATTACHMENT (only on some models) (B)

The whisk is mainly suitable for whipping cream, beating egg whites and mixing sponges and Ready-mix cakes.

1. To assemble the whisk attachment to the motor unit, just push it until the two small buttons on the left and on the right of the connector have clicked.
2. Place the food into the beaker.
3. Plug the appliance into the power outlet.
4. Lower the whisk into the food and rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the attachment starts whisking immediately. For maximum-speed whisking use the TURBO button for a short time.

Don't use the whisk for more than 2 minutes continuously.

CHOPPER ATTACHMENT (only on some models) (C)

The chopper is perfectly suitable for hard food, such as chopping meat, cheese, garlic, herbs, garlic, carrots, walnuts, almonds, hazels etc.

Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

1. Carefully remove the plastic cover from the blade.
2. Fit the knife blade on the pin in the bowl - always fit the knife blade before adding the ingredients.
3. Cut the food into small pieces and put them into the bowl.

A small amount of water can facilitate the smooth running of the appliance.

The mixture amount should not exceed the max capacity of the bowl.

1. Close the lid.
2. Assemble the motor unit into the bowl lid until the two small buttons on the left and on the right of the connector have clicked.
3. Plug the appliance into the power outlet.
4. Rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time.
5. Remove the knife blade first before pouring out the mixture.

Don't operate hard food for more than 10 seconds continuously.

FOOD PROCESSOR ATTACHMENT (only on some models) (D-E)

To use the food processor attachment as a chopper follow these instructions:

1. First of all make sure the non-slip ring is fixed to the bottom of the bowl.
2. Fit the knife blade on the pin in the bowl - always fit the knife blade before adding the ingredients.
3. Cut the food into small pieces and put them into the bowl.

A small amount of water can facilitate the smooth running of the appliance.

The mixture amount should not exceed the max capacity of the bowl.

1. Rotate counter clockwise the lid until blocked in position, as shown in pic. 1

Make sure the food pusher is properly fitted into its housing on the cover.

1. Assemble the motor unit into the bowl lid until the two small buttons on the left and on the right of the connector have clicked.
2. Plug the appliance into the power outlet.
3. Rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time.
4. Remove the knife blade first before pouring out the mixture.

Don't operate hard food for more than 10 seconds continuously.

To use the food processor attachment with shredding/ slicing inserts follow these instructions:

1. First of all make sure the non-slip base is fixed to the bottom of the bowl.
2. Fix the desired insert into the blades support as shown in pic. 2
3. Put the support into the pin on the bottom of the bowl.
4. Rotate counter clockwise the lid until blocked in position, as shown in pic. 1

The fasteners must be locked in the two clip positions, otherwise during operating the bowl lid may rotate as the motor rotates.

1. Insert the bottom part of the motor unit into the opening on the bowl lid, until the two small buttons on the left and on the right of the connector have clicked.
2. Plug the appliance into the power outlet.
3. Put the food inside the feeding tube and push it slowly with the food pusher. Do not push heavily.
4. Rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time.

To remove the blades support after using pull with two fingers as shown in pic. 3.

TIPS

Use the shredding side for carrots, potatoes and foods of a similar texture.
Use the slicing side for food items such as carrots, potatoes, cabbages, cucumbers, courgettes and onions.
Use fresh ingredients.
- Do not cut food too small. Fill the feed tube uniformly. This prevents the food from pouring out during processing.

STORAGE SYSTEM (F)

When not in use, the detachable stem, whisk and motor unit can be stored on the bowl lid as shown in pic. 3.

Times and quantities in the tables are approximate and could vary depending on quality of ingredients or preference.

500ml Chopping bowl
Food	Maximum	Operation time	Preparation
Meat	250g	8sec	1~2cm
Herbs	50g	8sec	/
Nuts	100g	8sec	/
Cheese	100g	5sec	1~2cm
Bread	80g	5sec	1~2cm
Onions	150g	8sec	1~2cm
Biscuits	150g	6sec	1~2cm
Soft fruit	200g	6sec	1~2cm
Flour	350g	10sec	/
Sugar	8g
Salt	8g

Big bowl (1250ml) (Chopping)
Food	Maximum	Operation time	Preparation
meat	500g	10sec	1~2cm
herbs	100g	8sec	/
nuts, almonds	300g	10sec	/
cheese	200g	10sec	1~2cm
bread	160g	8sec	1~2cm
onions	300g	8sec	1~2cm
biscuits	300g	8sec	1~2cm
soft fruit	400g	10sec	1~2cm
Flour	500g	10s	/
Water	300g
Barm	10g
Sugar	10g
Salt	10g

Big bowl (1250ml) (Slicing/Grating)
Food	Maximum	Operation time	Preparation
Potatoes	500g	60s	Suitable for feed inlet
Carrots	500g	60s	Suitable for feed inlet
Cucumber	500g	60s	Suitable for feed inlet

CLEANING AND MAINTENANCE

To prevent any damage to the appliance do not use harsh solvents or abrasive sers when cleaning.

Unplug the appliance from the power supply before cleaning.

1. Wash the blender attachments and lids under running water without any abrasive cleaners or detergents. After cleaning, place them upright so that any water that may have got in can drain out.

Do not immerse the blender and lids into water, as the lubrication on the bearings is to be washed away over time.

Lids and motor unit aren't suitable for dishwasher

1. Wash the containers and whisk in warm soapy water.

All removable parts can be washed in warm soapy water and then carefully rinsed and use. If necessary, use a nylon-bristle brush to remove the cup cleaning operation.

1. Wipe the motor unit with a damp cloth.
2. The non-slip base on the bottom of the bowl can be removed and cleaned. Make sure it is replaced correctly before using it again.
3. Dry all detachable parts thoroughly.

TIP

For quick cleaning between processing tasks, fill the chopper or food processor bowl with water halfway, assemble the chopper blade into the bowl and the motor unit onto the lid according to the description in the operation section and start chopping function for a few seconds.

SAFEGUARDING THE ENVIRONMENT DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100 % recyclable and is marked with the recycle symbol (^*) . The various parts of the packaging must therefore be disposed of responsibility and in full compliance with

local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped.

This appliance is manufactured with recyclable (^*) or reusable materials. Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance.

This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol (*) on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical

and electronic equipment.

DECLARATION OF CONFORMITY

This appliance has been designed, constructed and distributed in compliance with the safety requirements of European Directives:

2006/95/EC Low Voltage Directive
2004/108/EC Electromagnetic Compatibility Directive

CONSIGNES DE SECURITÉ CONSIGNES IMPORTANTES À LIRE ET À RESPECTER

He B36nBaIte BeHcNkOM 60JIe 2 MNHyT 6e3 OCTaHOBKn.

I3MEJIbUHTEJIb (ToJIbKO B HeKoTOpbIX MoJeIax) (C)

I3meJIbHTeIb OTJIuHNO IOxOAnT IJn

TBePbIX npOdyKTOB, HAnpImepe, Mca,

cbya, Nyka, TpaB, Yechoka, MopKOBn, rpeKnx opexOB, MmDaIa, YepHocInBa n np.

He cIeJyET n3MeIbHaTb B npIbope cnIshKOM

TBepdbie npodykTbI, TaKne KaK Ky6nKn Nbda,

MycaThbOpex, KcpeHbIe 3epHa N Kpybl.

1. Octopoxho CHIMITE 3auntHyo IJaCTNKOByIO KpbIshky C Hoxa.
2. YctahOBHTe HOX Ha cTepeXeHb B yaSe - ToIbKO NocJe 3Toro MOxHO 3aRpyKaTb B Hee npOdyKTbl.
3. HapexbTe npOyKbHa MeJKe KycOuKn n NomecTnTe IN B aUy.

Дяболес paBHomeрно pa6Otbl np6opa

MOXHO Do6aBnTb He60nbJooe KOJIueCTBO

Bɔdbl.

06beM

DOnJKeH

CMeuNbAeMbIX

npeBbIwaTb

npodykTOB He

MaKcImaJIbHyIO

EMKOCTb Yaun.

1. 3akpoTe KpbIky.
2. YTo6bI 3aKpeNtB KpbIshky aUShn Ha Kopnyce c DBrVaTeJeM, IpOcTO npuXmITE ee K HEmy Do 3aUeIKNbAHn He6oJIbuxx KhONok nO 6OKam.
3. BcTaBbTe BnIky npIbopa B po3eKy.
4. BbIbePte HxKHyO cKOpocTc NOMoUbOp peryIaTopa. HaxMITE uYdepXnBaIte KhONKy BKl./BblkI, yTO6bl 3aNyCTnTb npOceCC n3MeJIbUeHnA. IJn I3MeJIbUeHnHa MaKcImaJIbHOH cKOpocTu Ha KOpOTkoE BpeMa HaxMITE KhONky TURBO.
5. Прждуем Вьгу3ntь ИЗмьчehнble npodukkTbИЗчAnBbHbTeИЗ Hee HOK.

He n3MeIbIaIe Te TbePdIe npOdyKtbI 6oJIe

10cekynd6e3OCTaHOBKn.

KOMBAH (ToIbko MoJeIax) (D-E)

B HEKOTOPbIX

KpenneHndoJnxhblfHKcnpoBaTbCBAByx

TOUKKAX 3aXIMMA, B IPOTNBHom CJyue B

npocece paobtI dBraTeIa KpbIka YaIb6ydtBpaataTc.

1. BCTaBbTe HnKnHIOu YaCTb KOpnyCa C DnBaTaeIeM B OTBepcTne Ha KpbIuKe YauSi, npNkAB erO Do 3aueJKNBaHnHa He6oJIbXn KHONK nO 6OKam.
2. BCTaBtE BnIky npIbopa B po3eTky.
3. 3aRpy3nTe npOdyKtB B BOpOHky MeDIneHNO npoTOnKnHe TOnKaTeIeM.HeHaDaBnBaIteHa ToJKAteIb.
4. BbIbepeTe HxKHyO CKOpocTc NOMoUbOp peryIaTopa.HaxMITE uYdepJXBaIte KhoNkY BKl./BblKl., 3anyCTnTb npoccc n3MeJIbHeHna. IJa n3MeJIbHeHna Ha

MaKcImaJIbHOI CKOpOCTn Ha KOpOTKoe BpeMn HauKMITE KhoNkY TURBO.

YtO6bI BbIHytb Onopy IJRA HOKei N3 aAUNOCJIe NCIOJIb3OBaHnI, NOTAHHTe ee DByMauAMK KAK NOKa3aHO Ha pnc. 3.

PEKOMEHDAUIN

IcnoJIb3yIte Tepky IJnHa Hape3Kn MOpKOBn, KapTopeJn IOxOxNx npOdyKTOB.
- 甲HKBy nCnoB3yIe Tn Hape3Kn MOpKOB, KapToΦeЯ, KanycbI, orypoB, yKKHH N Lyka.
- IcnoJb3yIte CBexne npOdyKTbl.
He Hape3aIte npOdyKtI Ha cNIIuKOM MeJIKnE KycKn. 3aONHraIe BOPOHky paBHomepHO, UTObI npOdyKtI He BbIpaIaNn I3 Hee BO BpeMra pa60TbI KO6baHa.

KРышka ДлЯ XPAHEHЯ HACAOK (F)

Korda npi6op He NcNoIb3yETc, Kopnyc C DInraTeIeM, BeHcN I 6IeHep MOxHO xpaHITb B CnEuaNbHbIX rHe3dax B KpbIke YaSiK KAK NOKa3aHo Ha pnc.3.

Bpemn KOnHueCTBO, yka3aHHbIe B Ta6nue, YBaJIOTc npIN6JIn3NTeNbHbIMN n CET OT KaueCTBa npOdyKTOB N BaUHX NoTouTeHn.

DEKJIAPAÇU COOTBETCTBNA

Данн布局приборспwoeКТирован，ИЗROTOВЛЕNИpacnpoCTpaHЯETcB COOTBETCTBmC Tpe6OBAHЯIMnno6e3oNaChocTn，PpeDyUCMToPeHHbIMn CNeDyUOuIMNEBponeckmMn DInpeKTHBaMn:

Дирекпва 2006/95/EC по НИЗКOBОЛБТΗМУЭлЕКТРооборудованю
-Директува 2004/108/EC no злесктумагншон COBMECTIMOCTN

CEPBNUCHOE OBCJYXINBAHNE

BecnlaTHa rOpraJyIHHa: 88003333887*

* (Ucnyra 6ecnnaTHa Dnla a6oHeHToB Bcex ctauHOapHBIX LINHn Ha Bcei TeppntOpnn Poccn) Mbl 3abOTmC8 O CboNX POKyNaTeIaX N CTapaEMc8 o6eCneHTb BbICOKoe KaueCTBO cepBnCHOrO 06cIyKINBaHn. Mbl NoctOarHHo COBepSeHCTByem HauN npOdykTb, YTObI CdeNaTb BaWe o6UeHne c TEXHNKO pOcSTbIM n PpNArTHbIM.

YxOД 3a TeXHnKoI

Линна npoфессонаньнix cpecdTB Professional no yxody 3a texнкоj, pekomehdyemaj Hotpoint Ariston, npodnnt cpoK ekCnPyataun Baew TeXhNKu n Chn3NT BepoarTHOCTb ee NOLOMKn. Линна npoфессонаньнix cpecdTB Professional co3daHa C yetom oc6obHocTeB Baew texHKn. Поруктbl npoN3BOyTcB bIaIIIN C co6JIIODeHMe BbICOKx eBpOnecknx cTaHdptOB B O6laTaN KaeeCTBa, kONorIM N 6e3apOnacHocTn NcNoB3OBAHH. Y3naHTe noDpO6He Ha caTe www.hotpoint-ariston. ru B pa3dene «CepBuc» n cnpaunBaIte B mara3Inhax BaWero roPOda.

ABTOP3OBaHHbIe cepBcHbIe cHTpbI

YTO6bIb6blKe K HaaHIM NOTpe6nteJAM, Mbl CO3daJIIN ⅢnPOKyo CepBnCHyO CeTb, Oc06eHNoCTbIO KOtOpO JBAIETC BblcOKa NOIroTOBka, IpoPeCCNoHaJIIn3M N YecTHoCTb CepBnCHbIX MaCTepOB.

PpN BO3HNKHOBEHn HEnCnpaBHOCTN

Ipeud Tem, kak obpatntbce B Cnyk6y CepBnca npOBepbTe, HeJIb3a JIN yCTpaHNTb HeNCnpaBHocTb camOcToTeJIbHO (CM. pa3dEe «HeNCnpaBHocTn m ToDblx yCTpaHENra»).

ObpaNTbcBcBcPyCepBcMa MoxHNo TTepeOny 6ecnLaTHoRopuee IHHIN NIN NO TepeOnAm, yka3aHHbIM B rapaHTmHOM DOKymHeT.

! Mbl pekomehnyem 6bpaTaBcToIbko KaBTOpN3OBaHHbIM CepBnCHbIM CEHTpam ! PnppeMOHTe Tpe6ynte NcNoJIb3OBaHHaOpunHaJIbHbIX 3anachbIX YacteI

Ipeid o6paueHnem B Cnyk6y CepBnca Heo6xOAnMo y6eIuTbcra, YTO Bbl roToBbl coo6uNTb onepaTopy:

OncsHne HncpabHocTn;
Homep rapaHTnHOro DOKyMeHTa (cepBnCHOH KHMKKN, cepBnCHOrO cepTnΦnKaTaN.T.N.);
MoIeIb n cepinHbI Homep (S/N) I3dEInna, yka3aHHbIe B INΦopMaUOHHoT TabnUKe, paCNOJIOXeHHoHa I3dEInn Nn rapaHTnHOM DOKymHe;
- Daty npoDAJxn 3dEINr.

Binuk 3a3bnya BnKOpNCToByeTbc DnI 36BaHHB cepkib, JcHnx 6iNkB, 3amUyBaHH Ticta N rTOBHX cyMiwe I nToptIB.

1. Ⅲo6 3akpiinTn Hacaiky Ha Koprnyci 3 DbnuHOM, npocTo npntnciTh II Do HbOro Do 3aMnKaHHa HeBeJNKnx KHONOK 3 60kIB.
2. TomictiB npOdyKt B CkJnHky.
3. BCTaBTe BnIky npuJaDy Bpo3eKy.
4. HabaHTaXTe BInHcK B CkLnHky 3 npOdyKTamn i NobepHITb peryIaTOp WbNdkocTi Ha nOtpi6Hy BiDMiTky. Ppr HATnCKaHHi yTpyMByaHHi KHOPIK BBIMKHeHHa/BmNKaHHa 6IeHdep NoCHHaE 3bNAHHa HeraiHo. DnA 3bNAHHa Ha MaKcMaJIbHi NwBdkoCTi, MoJHa KopoTKoacycho HAtNCKaTu KHONKY TURBO.

He 36nBaIte BiHvnKom 6iJbwe 2 XBnIH 6e3 3ynHKn.

OuHHeHHI OeCJyTOByAHH

Lio6 yHnKHyTu yUkoJxKeHb npuIaNy He kOpNCTyIteCra arpeCNBHMn po3UnHHNKamu a6pa3NBHMn YnCTaYHMn 3acO6amn pnp eHHi.

IpepeOuHcHnM npuaNy BmMiB BuNkY 3 po3ETKn.

1. Bvmnte hacaikn kpnukn nid ctpymehem BOHn, He BnkopncTOBvOuH a6pa3NBHX r60k abo MNoCHX 3acO6IB. PicJra OUnueHH noCTaTE BmNTI dTaJI VertnKaJIbHO, Uo6 cTeKnA BcR BOda, UO notpannla BCEpeDInHy.

He 3aHypioTe 6JeHepi KpnuKny Body, OckJIbKn ce MoKe npNBecTn Do

NOCtynoBOrBmMbAHnMaCTnla3NiDunHnKIB.

Kpnu Koprnyc 3 DnBryHom He MoXHa MNTN B NOcyDomnHi MaunHi.

1. MInTe KOHTeHepn BInHcK B TeNJIi MInbHiBODI.

Yci 3HimHi qactnMoKHa MHTM MInbHOIO BDOIO, nicra yoro ix Heo6xioHO peTeBHOO Chytn i npocuHTN. Pn Heo6xioHocti dnn EHHa Yaasi KopncTyIeCe r 3 HOBOIO 8eTNOHO.

1. PpOToPiTb 6nok DnBryHa BOnOrO HcpeBtkoI.
2. HeKOB3Ha OCHOBa B HnXhHi YactHHi YaIi 3HimaTbCt i MntbCt. Ipeed HAcTyHIMB NIKOPINCTAHNcM KOM6aHHa 06OB'3KOBO BCTAHOBITb HEKOB3Hy OCHOBy Ha MicIe.
3. Petenbno npocuyitb Bc3HmHi qactHHI.

IOPADA

ΘHIMHIKOJIДAHY MAKCATbI

OcbI KypblfTeK TpyMbICtbIK KaFdaJaKaONDaHbIyFa apHaIraH. ByI eHIM KOMMepuJbIK KaFdaJaKaONDaHbIyFa apHaImaFah. EHNipywi 6ackapy 3JeMeHTepiH dypbc KOnDaHbayFa Hemece dypbc opHaTnayFa kayaantbI 6onydaH MyIem 6ac TapTaIbI.

• ABAY BOJIbIbI3: Kypblfbl cblptkbl TaMepMeH Hemece 6eK KaIbIKtAH backapy JyuecemH backapblnyfa apHaJMaFaH.
  KypblfblHb cbiptta KOJdaH6aHb3.
  KypbIbnfbl iwiHne Hemece XaHbIHda XapblIbnfbl 3aTTapdbI, MblcAInbI, a3pO30Jb 6aJIIOHdApbln CaKTayfa, COHda-Nak 6eH3INH 6acka TylTahfbI 3aTTapdbI KOHOFa 6oJIMaJDbI: KypblIbnfbl 6aIKaycbI3da KocblInfah XafDaJa, oPT 7bIFybl MYMKiH.

OPHATY

• XeHndeY kymbICTapbH eHdipywi HycKayIapbI MeH keprilikti kayinc3dk epexepeihe cainkec biikti MAMAH atkapby Tnic. PaindaanhybI HcKayIbIFbIHda epeKwe KepceTIJmEReh 6oIca, KypblfblHbIH eW6ip 6eJIirH xeHdeyre Hemece aybICTbIPyfa 6oImaIdbI.
  OpbHdayxymbICTapbIH6aJanaIapaTkapMaytnic.KypblfblbIopHaTkah Ke3de 6aJanaIapdbI aynaK yCTaHbI. KypblfblbI opHaTbI JkaTkah Ke3de XHe OdaH KeiH KaTama MaTePnAldapbIH (NJactIK KaTap, nonctipon 6eJIkTep, T.6.) 6aJanaIapdaH aynaK yCTaHbI.
  KypbIbHbI KaTamaHaN ShIFapFaHHaH KeiH, OfAH TacbIMaJday Ke3IHde 3aKbIM KeIImeReHHe Ke3 JeTeKi3iHi3. Ipo6IeMaIap BoIraH XaFdaJa, CaTyMbIfa HEmeCe eH XaKaBH Jepderi CaTydaH KeiH KOnJday KOpCETy KbI3MeTIHe Xa6apLnacBbI3.
  KypbIfBihb OPhaTKaH Ke3e 6aJanaIapDbI ayJaK YCTaHbI3.
• Ophaty JxMbIcTapbHa Kipicnec 6ypbIH KypblfblHb1 TOKTaH aXbIpaTy KepeK.
• Ophaty ke3iHnde KypbIJIfbl Kyat Ka6eJIHe 3aKbIM KeNTipMeNtiHHe Ke3 XeTki3iH3.
  KypbIbIbIbOpHaTy npoceDypacbl aayKaTaNFaHHa KeiH faHa Kocblb3.

TOKKA KATbICTbl ECKEPTyJIEP

• HomHaIbI cInaTTap TaKTacbHdafbI KepHey yHi3deri KepHeyre caikec KeletiHHe K3 XeTki3iH3.
• Hopmatubtik tanaTapra caikec, Kypblfbi Xepre TynbiktanFaH p03eTKaFA Kocblnybi KepeK.
  KypbIbIbIH aIbipbl 6eKITiIreH 6oJc XaHe oJ pO3ETkara dJI KeJIMece, 6JIikTi MaMaHra xaBapJaacbl3.
• ¥3apTkbls Chmdaepbl, 6ipHeWe po3eTKaHbI Hemece aanTepJIepdi KOndaHyfa 6oJMaIdbI. KypblfblHbI KaUbIKTaH backapy MymKInDi rI bap po3eTKaFg XaJfayra 6oJMaIdbI.

KopnycbiHa opHaTbIJaHHaN KeiH KyaT Ka6eJIiHiY3bIHDbIFbl KypblfblHbI p03eTKaFa JxalrFayFa XetKlNiKTi 6onybl Tnic.
KyaT Ka6eJIiHeH YCTan TapTNaHbI3.
Kyat Ka6eJIiHe 3aKbIM KeIcE, OHbl dən coHdaJ Ka6eJIbRe aybICTbipy KepeK. Kyat Ka6eIiN TeK eHdIPuySi HycckaynapbI MeH JeprInIKti Kayinc3diK epexeIepiHe caikeC 6iJIkTI MAmAH aybICTbipyTnic. YakiJIeTTI KbI3MeT optaIbIFbHa xa6apnacbIHbI3.
Kyat Ka6eIi Hemece aIbip3aKbIMdaJFaH, dypbc JyMbIC icTeMeiTIn Hemece 3aKbIMdaJFaH kYpHaH KypblfBihb naJaIaHyfa 6oImaIbI. Kyat Ka6eIiH Hemece aIbipc cyfa caImaHbI3. Ka6eJIbdi bICTbIK 6etTepre Tnir36eHi3.
KypbIfblfa DeHeHIn Ke3 KeJIreH cy 6oJIiriH Turi3yRe Hemece KypbIfblHbI JkaHaN aK naJaIaHaHy f6OImaMdbI.

3JEkTP KOCbIJIbICTAP

Po3eTka / aɪbɪp

Bekitirren aibip po3etkara dən keImce, catydaH keiH kOJdA y Kepcty Kbi3MeTHe xa6apnaCbIn, KocbIMwa HcKay aIbIHbI3. AibipdbE3 KUwHj36eH aybICTbpyfA TbIPbcNahbl3. BynpoueDypaHbI eHdpuyi HcKaynapbMeH afbIMdaftbCTaHdapTTbI Kayinci3dk epexepeine Caikec 6iikTi MaMaH opbIHdaytNiC.

ДУРБИС KОЛДАНУ

KypbIbHbI naJaIaHa6ac 6ypbH, 6apbIK 6eJIWeKTepe MeH KaKaNTap opbIHapbHaMbIKtan 6ekITiIReHHe Ke3 JeTki3iHi3.
- Бектіштет eki Кьісьіш Oрьіна КУліntалуbl Tис, ріпес мотор aінганда Terew KaКnaKшасы д aінгін KeTy i Mymkін.
KaKnaKaShaBn KyIbInTay MexaHn3MIn 03reptyre apeKeT JacaMaHbI3.
KypbIfblHbI 6eJIWeKTeMec 6ypbIH OHbl eWipin, Kyz3depi TOnblfBIMeh TOKTaraHa KaTHi3.
TereuTiH iuiHderi Ke3 KeIreH 3aTTbI TeKKeH Ke3de Jy3eep JnHaFbIH aJIbI OTbIPbIHbI3.
KoImeH taFam caIyMbI 6OImaHbI3. OpkaaH taFam nTepriiH KOJaHaHbIHbI3.

KypbIbnfbl JyMbIc icTe n TypHa Ke3De OHbIH CaHbIaybHa caycaKTapbIHb3dbI Hemece backa 3aTTapDbI caImaHbI3. CaHbIayda TaFAM TpybIN KaIca, OHb Intepin Kj6epy ywiH TaFAM NTepriWIn Hemece backa Xemic kekohiciKOJaHbIHbI3. Byn aDic hTnxE bepMece, KypbIbnHbI oWipin, KaJFaH TaFamDbI anbIn Tactay ywiH KypbIbnHbI 6eJIweKeTHei3.
- YcaTan Ⅲa6y KocbIMwaIapbIH KOJaHfAH Ke3De eTe KaTTbI TaFAM (MbICaJIb, KaTTbI ⅢOKOJa), Mγ3 HeMeCE My3daTbIJraH TaFAM caJyUbI 60JMaHbI3.
- Aybip japaKaT any Hemece 6IeHneprE 3aKbIM KeNy KayNiHe JxOJ bepMey yuH, 6IeHnepDi naiJaHaHfA H Ke3De KOnJaApBbIHb3 6eH ac KypaJaApBbIH bIDbICTaH ayNaK YCTaHbI3. Kypblfbl eWIn TypFaHda KbIpflw KOnDaHyfa 6oJaBl.
- A6aB 60JIbIb3, ce6ebi ac yN KOM6aHbHa Hemece 6JIeHJepRe bICTbIK cyIbIKTBk KyIbINFaHda, KeHet 6yJaHy caJIapbIHah ON KypblfIdaH aTKblaybIMymKiH.

TA3AJAY XΘHE Kbl3MET KΘPCETY

• Ta3anay Hemece Kbl3Met KepceTy KymbICTapbHa Kipicnec 6ypbH KypblfblHbl TOKTaH aXbIpaTy KepeK.
  -БуменТа3аЯфышжабдыIKтбIКолдаHyшыбОлmaныз.

БОЛшЕКТЕР MEH MYMKIHДIKTEP

Bipre 6epinetih KocbImwanaap MoeJIbRe Kapai np Tpyni 6onybl MyMkiH

1. KbldAmdbkTbpeTey tetiri
2. KOCY/ΘUIPY TyImeci
3. Typ6o Tymecci
4. Motop 6eniri
5. Bynfay Kocbimwacbi
6. CtaKaH
7. BneHep KocbIMwacbl
8. TaFAM nTepriu
9. CaKtay 6eJiri
10. Ac yu KOMbaaHbIbHb KaKaNaJUacbl
11. Cany tytiri
12. Ac yu KOM6aHbHbH nblwaKy3i
13. Ac yu KOM6aHbHbIH TereWl
14. YcaTan TpaftiW
15. Ipinen kecy kyy3y
16. YcaKtan Keckiu
17. Ipinen typaftbiu
18. Kyzdepin Tiperi
19. WAnKbIw KaKaNaWacbl
20. Wankbi ni bilaiba HbHky3i
21. Wankbiw terewi

KIPICNE

Bi3diH eHIMdi catbIn anfahbHb3ra anfbic 6iJipem3. Coaaiwa, TImDi epi eHiminiri Xofapbl Kpyblfblb TaHaDaBlHb3.

Ocbi naDanaHy HcyayIbIbI ap TpyI moDenbepre apHaanraH. CypTRepi 6ap 6etTepe aP TpyI moDenbepre kacanraH wOnydbI Kepyre 6oNaDbI.

KypblfblHb Dpbc KOndaHyfKaTbIcTb HcyKaynap
opbHdAmaca, eHdpywi eBip 3aJanaFx Kayantbl
60MaNb.I PaJaIaNHy HcckaynapHda ep Tpyni
MoJeBdep CnNaTTaJybl MyMKiH: Ke3 KeIreH
aBIPMaBlbIK aHbIK Kepcetinei.

AJFALI PET IAIJIAHAHBC 6YPbIH

KypblfblHbHcblptbHda KHaHbIn KaIraH 6onybl MymkiH shaHbI abaian cytin anbH3. Kypraf Shybepeken cypTih3.

ΘHIMДI KOЛДАНУ

БLEHДEP KOCbIMUJACbl (A)

KoIdaHy bInfaiNbI XaHe 6ackapy dAn 60nybl ywiH, Kypblnbl MOTOP Xymbcbl H 6bactaTbn, OaH KeiH TOblk apanaactbipy hHa XeTki3etih BAry BACTATY KLINrCBIMEH Xa6blkTaJFaH.

BleHepKocbIMUacblCybIKtbIKTap MeH KeKeHiCTepdi apanactbypfa KonaJIbl.

1. BneHdep KocbIMUacbIH MOTOP 6eJIrHE opHaTy yIiH, OHbl aftbTNaHbIH cOJ XeHe OH XaFbIHdAfl bEki WaFbIH TyIme cbipt etin opHaTbINFaHsa NTepceHiz 6oIraHbl.
2. KemicterpiKabih apshbI, OdaH KeiH kiiripim Kblbn TypaHbI. OdaH KeiH JeMIC 6enikterepi MeH KeKeHiCtepei cKaHaFa calhBbI. BipKeNk aiHaJybl XeHInTe yuH eDette bipa3 cy KocbIaNbl, KebiHece TaFam MeH cy apakatbHacbl 2:3 6oJaI. KocmaMeIWepi KeceHH en YIKeH KeJIeMHeA cnaybl Tnic.
3. KypblfblHbpo3ETkafkoCblb3.
4. Kon 6neHepin TaFAMFa TeMeHdetin, KaKeTTi XbIaMDbIKTb TaHday yuIH XbIaMdbIKTb peTey Tetirih bpyaHb3. ON/OFF TyuMecin Bacbin TypbHb3, coHa 6neHep depey apanaactbpa 6actaHbI. KofapblXbIaMdbIKnep anapacTbipy uH TYPBO tyMecin a3 yaBt KOndaHbHb3.

БУЛFAY KOCbIMUACbl (TeK Kei6ip MoeJIbIepIe) (B)

ByfaybH Herizihn Kpem Byfay, KymblptKa akybl3bH kenipTy, aMbifaH KaMbp XHe daBH KocnaaHaXacanaTbH TopTtapDbI apanactbyyui H kondaHbIaNabi.

1. Bynfay KocbIMUacbIH MOpT 6eniriHe opHaty yuH, OHbl aBfITNaHbIH COJ XeHE OH XaFbIH DaFbI EKI uFaBH TYIMc BcPT erIN opHaTbIFaHsA INcepH3 6oNFAHbI.
2. TaFAMblcTakahFa calbHbI3.
3. KypblJfBhlb po3eTKaFa KcBhlb3.
4. Bynfay KocbIMaaCbH TaFamra TeMeHDeTin, KaKetTi XblIaMdbIKtB TaHday yuIH XblIaMdbIKtB peTtey teTirih 6ypaHb3. KOCY/ ΘUIPY Tymecin 6acBn, YCTan TpybHb3, coHda 6ynfay KocbIMaaCbI Depey apanaactbpa 6actaIbI. Xofapbl XblIaMdbIKneh 6ynfay yuHIN TYPBO Tymecin a3 yaKbIT KOJaHaNbHb3.

BnyfaybIWTbI TOKtayCbI3 2 MNHyTTaH actAM KOndahyra 60MaJdbI.

UABY KOCbIMUACbl (TeK Kei6ip MoJeIbIepe) (C)

Wankbli est, ipimwik, nna3, wen, capbImcak, c6i3, rpek xahfara, opMaH xahfara, kapa T.6.CnKtbl KaTb TaFamdapdbla 6byf met KOJaJIbl.

My3 TeKwenepi, Xynap KaHFaBbl, KoPe dAnHepei XeHe DaHdi DaKbIJaap CNaKTbl aca I TaraMdApdbI wa6yfa 60MaJdbI.

1.Пл actikkan tabky3d en abaian weuin albHbI3.
2. Пьшak КузIH TereUteri icKke KeTIPin 6eKITi3; NBшak Ky3IH ePkauH INHpeDneHTepdi Kocnac 6pybH 6eKITy Kepek.
3. TaFamDbI kiwi beJIikTepre Typan, onapdbi TereuKe caNbHbI3.

KypbIJIbI JxMblcBIn XeHJIaTeTy ywiH 6ipa3 cy Kocy Kepek.

Kocna MeIepi TereuTin eH yJKeH KeJIemHeH acnaybl Tnic.

1. KaKaKaHaHbI Ka6bHbI3.
2. Motop 6enirin Terew KaKnafbHa opHaTy yuiH, OHbl aftnHaBnC0J XaHe OH XaFbIHdaBfki WafBn TYIme cbipt etin opHaTbJFaHua NTepceHi3 6onFaHbl.
3. KypbInfblHbI pO3eTKaFa KocblHbI3.
4. KaKeTTi JbIaMdbIKTb TaHday yuIH JbIaMdbIKTb peTtey TeTirih 6ypaHb3. KOCY/ ΘUIPY tyMecin 6acbIn, YcTan TypbHb3, coHaJ KocBIMsa Depey 7a6a 6actaHb. KoFapbl JbIaMdbIKnEH eHdey yuiH TYP5O tyMecin a3 yaKbIT KOnDaHbHb3.
5. KocnaHb TeKne6 6ypbH nbIwaK xy3iH anbln Tactay Kepek.

KaTbTaFamTaTOKtayCbI310cekyHdTaH actam KOJaHyFa 6oJMaJdbI.

AC YI KOMBAHbIKOCbIMUACbl (TeK Kei6ip MoeJIbJepe) (D-E)

Ac yu KOM6aHbI KocbIMsaCbH uanKbIu peTIHe KOndHy YUH MbHa HyCKaynapDbI opBHaB3:

1. AndbimEn, TaIb36aTbH caknHa teruHTy6iHe 6ekitirreHine Ke3 keTKi3iH3.
2. Пьшak КузIH TereuTeri icikke KeNTipin 6eKITi3; NBшak Ksy3IH apkaaH INHpeDneHTepdi Kocnac 6pybH 6eKITy Kepek.
3. TaFamDbI kiWi beJIikTepre Typan, onapdbi TereuKe caBih3.

KypbIJIbI JxMblcBIn XeHJIJeTy ywiH 6ipa3 cy Kocy Kepek.

Kocna MeIepi TereuTin eH yJIKeH KeJIemHeH acnaybl Tnic.

1. KaKnakwahbI cypTe KepcTeiInreHdei opHbHa 6ekiTinReHwe caFat tiInHe KapcbI 6afblTneH 6paHbI3.1

Tafam nTepriu KaKnaKTaFbI KOpnycbHa Dypbc 6eKiTiJreHIn TeKcepiH3.

1. Motop 6eJiriH TereW KaKnaFbHa opHaTy yuiH, OHbl aftTnHaBtC0J XaHe OH XaFbIHdaFbI eKi WafBH TyIme cbipt etin opHaTbJFaHua NTepceH3 6oJfAhl.
2. KypbInfblHbpo3eTKaFAKocblb3.
3. KaXeTTI JbIaMdbIKTb TaHday yUHH bIaMdbIKTb peTtey TeTirih 6paHb3. KOCY/ ΘUIPY Tymecin 6acbIn, YcTan TypbHb3, coHda Kocimna Depey 7a6a 6actaiDb. KoFapbl XbIaMdbIKneh eHdey yUHH TYPBO Tymecin a3 yaKbIT KOnDaHbHb3.
4. KocnaHb TeKne6 6ypbH nbIwaK kY3iH anbln Tactay KepeK.

KaTbI TaFMa ToKtayCbI3 10 cekyHdTaH actam KOJaHyFa 6oJMaJdbI.

Ac yin KOMbaHbI KOCbIMsaCbIH TpyaBil/KeckiJXkancbipMaMeH KOJaHy YsiH MbHa HcckaynapdbOpbHdaHb3:

1. AndbimeH, TaIb36aBtBn Tyfbp TereWtiH Ty6iHe 6ekitirreHine Ke3 XeKti3iH3.
2. Kaeketti XancbipMaHbI Ky3ep TiperHe CypTe KepceTIJIreHdEe 6eKITiHi3.2
3. Tipekti terewtiH tv6ihderi icikke caIbIbIbI3.
4. KaKnakwahbI cypTe KepcTeiInreHdei opHbHa 6ekiTInreHse caFat tiInHe Kapcbl 6afblTneH 6paHbI3.1

BekitkiuTepeKynbintanybi

eki Kblckbl Tnic, eHTnece

OpHbHa MOTOP

aHaHaFaHda TereW KaKaKwacbI da aHaHbIn Ketyi MymkIn.

1. Motop 6eJiriH actbHfbl XaFbH terEw KaKNaFbHdaFb caHbJayFa cany yuIH, OHbI aFbITnAHbH cOJ XaHe OH XaFbHdaFb eki uafBH TyMe cbipt etin opHaTbJfAHa uTepiH3.
2. KypbjnfbHbI po3eTKaFA KocblbI3.
3. Tafamdbi calny tyTirine Koibin, taFAM nTepriuHn aKbipbHdAn nTepiH3. Kywten nTepmHei3.
4. KaKeTTi JbIJaMDbIKTb TaHay yuH

KbIJaAMDbIKtpeTteyTeTirIHbpaHb3.KOCY/ ΘUIPY TyIMeciIN bacIn,ycan Tpyblb3,coHa KocBIMwa depey waba bactaMb. Kofapb I KblJaAMdbIKneH eHdey yuiH TPyO TyIMeciH a3 yaKbIT KOJaHaHbHb3.

KoJdaHbIb 6onFaHHaN KeiH Ky3ep TiperIH any yuH, cypETte KepCetInreHde Eki AkneH TapTbIHbI3.3.

KEHECTEP

Tpay XaFbIH c6i3, KapToI XeHe OfAH YKcAc TaFamdap yuHIN KOnJaHaBHybI3.
KecyKafbHcəbi3,KbIpbIiKa6aT，KnAp，KaDiJxHe Nnra3 YuhiN KOnDaHbIhbl3.
Typin KaJimaFaH INHpeDneHTep KOJaDaHbIbI3.
TafamdbI eTe ycaK kblbn KecneH3.Cany TyTirH6ipKeNk TOnTbIpbHbI3.CoHa, eHdey Ke3iHnDe TaFAM cbiptKa terinmeNi.

CAKTAY JXYNECI (F)

KoIdaH6aHaH Ke3e aIbIb6aIbI e3eKTI, 6yIay KocblMaaCbH XHe MOTOp 6eniriH cypETte KepcTeiReHJe TereLkKaNpaBHaCaKaTayFa 60anaBl.3.

KecTeeri yaBbTTap MeH MEnIeepnep

shaamaanbIn 6epinreH, onap

HnrpeDneHTepdiH canacbHa Hemece KaaybIb3Fa Kapaep Tpyi 6onybIMyMKiH.

500 млшабу тereши
Тaram	Мakси-малды	ЖуMbIC уakblы	Дайындан
Ет	250 r	8 c	1-2 сM
Шen	50 r	8 c	/
Жангak	100 r	8 c	/
Ipimшik	100 r	5 c	1-2 сM
Нан	80 r	5 c	1-2 сM
Пияз	150 r	8 c	1-2 сM
Пechенbe-lер	150 r	6 c	1-2 сM
ЖумсakЖемic	200 r	6 c	1-2 сM
Ун	350 r	10 c	/
КаNT	8 r
Туз	8 r

Улken.Tereш (1250 мл) (шабу)
Тaram	Мakси-Малды	ЖуMbICукыты	Дайынданay
eT	500 r	10 c	1-2 cm
шeп	100 r	8 c	/
жанfasк,Minдань	300 r	10 c	/
ipimшik	200 r	10 c	1-2 cm
нан	160 r	8 c	1-2 cm
пяз	300 r	8 c	1-2 cm
пechенbe	300 r	8 c	1-2 cm
жумсakжемic	400 r	10 c	1-2 cm
YN	500 r	10 c	/
Су	300 r
Ашыткы	10 r
КаNT	10 r
Туз	10 r

Улкен тereш (1250 мп) (kecy/угу)
Тaram	Мakси-малды	ЖуMbICyaКыТы	Дайындан
Картон	500 r	60 c	Са ly саны雁ы apКы雁ы салуfaхарамдау
Сөбіз	500 r	60 c	Са ly саны雁ы apКы雁ы салуfaхарамдау
Кияр	500 r	60 c	Са ly саны雁ы apКы雁ы салуfaхарамдау

TA3AJIAY KΘHE KbI3MET KΘPCETY

KypbIbIbIbI 3aKbIMdAmay yuHn Ta3anaFaH Ke3de eUkAnDaN KyuTi epITkiuTep He xemipriu AfbIi 3aTTap KOnDaHyBb1 60MaHbI3.

Ta3anamac 6ypbIH KypbIJIfblHbI po3eTKaJaH axkbpatY kaKeT.

1.Бнелдер кocbIMuaIapbMeH KaKnaKuIaIapdbI Xemipriu Ta3anaRbIu 3aTTap HeMece KyfbIu 3aTTap KonDaH6aCy aFbIHbIHda JyblHbI3. Ta3anaHaHn KeiH iUHe Kipin KeTKeH cy aFbIn KeTyi YuHn OIapDbI TIK KOIBHbI3.

BJeHep MeH KaKnakwanaIapDbI cyFaCaIMaHaB13,ce6e6i MoBbIHtipeKTEpDeri MaT eTe WaBbIn Ketyi MymkIn.

KaKnaKwapan MeH MOTOP 6eNiri bIDbc Kyy MaunHaCbIHda KyyFa KeMnei Di

1. bIbIcTap MeH 6yIyafbyIITbI XbIbI ca6bIHdbI cyda Kyybl3.

AJIbHaTbH 6apNbIK 6eIweKTeepi XbIbI bCa6bIHbI cyda XybIn, XaKcbUan 7aBbIn, 8yre 6oNaDb. KaXet 6oFaHda, KeceHi Ta3aJaly HeJIOH KbIshaTkI 5eTKa KOnDaHbIbI3.

1. Motop 6eJirH dIIMkbI Jy6peKeNeh cypTih3.
2. TereuTIN TYiHderi TaYfbl36aTbIn TYfblpbl anIn, Ta3anayfa 60naIbI. OHbI KaTaN KOJdaH6ac 6yphIn MbIKtan OPhbHa opHaTbJIrFaHbIHa Ke3 JeTKi3iH3.
3. AJIbH6aJIbI 6eJIweKTepei JkaKcbIan KeTIpiHi3.

KEHEC

Ehney apekeTepiH apacbHa Te3 Ta3aIay yuHn waKbH HeMece ac yu KOMbaHb TereuH JapbIa Cyra TOnbIpbIn, NaDaIaHy TypaBb 6eImde CnNaTTaRaHdAanKbHxKy3dI TereUKe XHe MOTOp 6eJirH KaKnakwaFa opHaTbIn, WabY cyHKcuaCbH bipHeWe cekyHka KocbHb3.

KOPIJUFAH OPTAHBI KOPFAY

KANTAMA MATEPNIAJIДAPbIH TACTAY

KanTama MaTePnaJIbIbHbIN 100% KaIta eHdeyre 6oIaIbI JxHe on KaIta eHdey TaHbAcbImE (^*) BeIriEnHRe. CoHbIKTaH KanTamaHbIH eP TypIi 6eJIkTepiH TactarHaJa KyaanKepeWiiNk TaHbITbIn,

KOKbc TactayFa KaTbICTb JxepriikTi opraHapdbH epexeneipin yctanyKaket.

TYPMbICTbIK KYPbIJFbIJAPdbI KOKbICKA TACTAY

KpyblfblHb KOKbIcKa TactaHaN Ke3de Kyat Ka6eINH KnbI, OHbl KONdaHbIMMaTbIH KyIre KeTIpiH3, coHdai-ak 6aIanap iWHe Kipin, 8bHa aImai KaImaybl yuH ecikTePi MeH TapTnapanbpH (6ap 6oJca) anbln TactaHb3.

BvI Kpyblfki KaTt eHneyre 60nataBH (^*) Hemece KaTa KOJaHaF a 60nataBH MaTePnaIaIapDaH JacaJFaH. ObI KoKlc TactayFa KaTbICTbJxepriNikTi epexenepre CcIKec TactaHbI3.

TypMbICTbIK 3neKtp KypblfblnapdbI eHdey, KaIIbHa KeTipy XaHe KaTa eHdey TypaIbI KocbIMua aKnapaT any yuHIn, Ky3bpIbI JepriikTI opraHFa, TypMbICTbIK KOKblcTbIXnHaMyMeH aHaJIbICaTBiH KbI3MeTKe HemeC KypblfblHbI cAtKaH dyKeHre xa6apnaCbIHbI3.

Bykpyblfbl 3JekTp XaHe 3JekTPOHdbIK KpyblfblnapdbIH (WEEE) KaIdbIKTapbHa KaTbICTbl 2012/19/EU Eypona DnpeKtNBacbHa caikec 6enrinehren.

OcbEhIMHIN DpybIC TactanybIH KaMTaMaCbI3 ety apKbInbIOcb EHMHIN DpybcTactaMraHa JkaFaJaDa KOpShaFAnOpTa MeH aam DeHCayIbIFbHa TURi3EtIH Kepi acepiHn AnDbH anyfA KeMeKTececci3.

ΘHIMderi Hemece iJecne KxKaTTaMaJaTbI (*) TaH6acbl 6yI ΘHm KədImr TyPbIcTBK Kokbc CnRAKbl TactaMaI, 3NeKtp XeHe 3JIeKTPoHbIK Xa6bIKbI KaTt aEhDeymeHaHaNbICaTbIH Tnicti XnHay OptaNbIFbHa

TancbipyIybl Tnic ekeHin 6ilipeidi.

CÖHKECTIK MÖLIMDEMECI

BvI KpybIfbl Mbla H Eypona DnpeKTHBaIapbIHbH Kayinc3dk TanaIcapbHa cJko6aHaH, XacaIFaH KeHe tapaTbIraH:

TeMeH KepeHyJI Xa6DbIK TpyaJIbI 2006/95/EC DInpeKTHBaCbI
3NeKtpMaHHTTik yJIecimDinik TypaBb 2004/108/EC dIpeKtNbacbl

CÖIKECTIK MÖLIMDEMECI

BykpybIbMbHa Eypona DnpeKTHBanapbIHbH kayinci3dk TanantapbHa ca JxobanaHfA, XacalFaH KHe tapaTbIraH:

TeMeH KepeyJIi Jaa6IbIK TpyaJIbI 2006/95/EC DnpeKTHBaCbl
3NeKtpMaHHTTik yJNecimDinik TypaBb 2004/108/EC dIpeKtNbacbl

KbI3MET KOPCETY

Bi3 e3 TybIHybIJaPbMbI3ra KbI3MeT KepcTeM3 XaHe cepBnCTIK KbI3MeTTi Xofapbl DeHreJe YcbHyta TbIpcAMbl3. Ci3re KpybIYbImeH OHai XaHe KOaNbl JxMybIC XacayfamymkiHik bepy uHin e3 EhimdepiMi3di y3iKci3 ketindpin Otbyfa TbIpcAMbl3.

KypbunfBifa KyTim Kepcety

KypbInfbFa Kytim KepcTyre aphanraH Hotpoint Ariston ycbHaTbH KypbInfbHbH Professional Kc6i6 6yBImdApbHbH Xenici KypbInfbHbH KondaHbMec3Hm Y3apTaI bXeHe OHbH cbHbH kany Kaynin aazTadbl.

Professional Kc6i6n 6yibImdapbHbH Jxenici KypblfBbIb3dbH epeKwEniKTePi H cKepe OtbpIn
XacanFaH. OHIMdep Cana, kONOrna XHe KOndany
Kayinc3diri 6oBbHua EyponanbIK Xofapbl
CTaHdaptTAPbl KaTaN caTaN OTbpbN ITanra
XacanFaH. Tobnk AknapaTTbWww hotpoint-ariston. ru Be6-caNtBbHbIN "Kb3Met KepeTy" 6eJIIMHe
KapaHb13 XHe KaNaHb3daFb DYKeHepDe
CypaHb13.

Yekijetti Kbi3met Kepcety optaiktapbI

Θ3 TtBHybIbnapbIMbI3fa JxakbHbIpaK bOly yuHn se6ep MAmahdapbIhIn XkoFapbl DeHreIderi KcicB daBnDfbl MeH eAndiirImepekWeneHetIH Kbl3MeKepCteY JeJIinepiH KaIbITactbIpdk.

Aky naIda 6onran kafdaIa

KbI3Met Kepcety opTaIbIbHa xa6apnacap anIbIHda, akayIbIKbI e3iH3 Ty3eTIn Kepyre TbIbICbHb3 ("AkaayIbIKTap JHe Oanapbl TY3eTy Konlnapbl" Tapaybl Hkapah3).

KbI3MeT KepcTeOp TaIbIbHa KeiNilik KyKaTbIHda KepcTeIrrH TeleOoh HemipimHe xaBapnacyf6oanaBl.

! Bi3 yekineTTi Kbl3MeT KepeCTy optaIbIKTapbHa fanaXa6apnacybl YcbHAmbl3
！KeHneyXyMbICTapbIH icke acbipfAH Ke3de fnpMaIbIK 6enweKteppiFaHa KOndanyhTanlan etiH3.

KbI3MeT KepcTeO optaIbIFbHa xa6apnacap anDbHda Keneci mIImeTepdi 6peyre daBH ekeHIi3di Tekepin aIbIHbI3:

Akaynbik TpyiH cunatTay;
Kenilik KyaKaTbHbH Hemipi (KbI3MeT KepcTeY KiTaIwacbl, Kbl3MeT KepcTeY cepTnΦnKaTb T.C.c.);
KypbIrfbIbIH aknapa TaKtaWacbIHda Hemece KeniDik KykaTbIHDa KepeciTirreH KypbIrfbIHbIH Moeni XaHe cepraJIbIK Hemipi (S/N);
KypbIfBihHcTaBIFahai-KyHi

Baca naДаы aknapat peн канытары www.hotpoint-ariston.ru Be6-caTbHbIn «КызмТ Керсу» Тарынан Kepe anacbl3.

TEXHnuecko OBCJyKBAHE

！Hikora He n3noI3BaIte ycnyIte Ha HeOTOpn3npaH TeXHnK.

IoprotBete cJeHaTa INΦopMaζηa:

TINHaBb3HnKHaJIpy npo6Jem.
MoDeN Ha ypeDa (Mod.).
- cepneH HOMep (S/N).

Tazn INΦopMaζη Ce hAmɪpa Na Taβeɪkata C daHnBbpxy ypeə.

ByncpeBn3EOO

Yπ. Xaɪduyùskā nonjha 57-59,

1612 Codon

Tei. (02) 955 35 95; aKc. (02) 955 35 96

Hotpoint Hotpoint

ARISTON

Indesit Company SpA

Viale Aristide Merloni, 47

60044 Fabriano (AN), Italy

www.ingesitcompany.com

ÜLKKEYE ÖZGU BILGILER KITAPÇİGN SON SAYFASINDA BULABILIRSINIZ
