Product type	Professional wet and dry vacuum cleaner
Brand	Bosch
Model	GAS 35 M AFC Professional
Tank capacity	35 liters
Dimensions (L × W × H)	58 × 38 × 54 cm
Weight	19 kg
Power supply	230 V, 50/60 Hz
Max power	1100 W
Max vacuum pressure	254 mbar
Max airflow	74 l/s
Filter type	Pleated filter (class M)
Automatic filter cleaning (AFC)	Yes, by pneumatic impulse
Main functions	Dry and wet vacuuming, blowing, tool connection
Power tool socket	With automatic start/stop control
Dust class	M (hazardous dusts, exposure limit > 0.1 mg/m³)
Hose length	4 m
Hose diameter	35 mm
Safety	Automatic shut-off when tank full (liquid), overflow protection, lockable power plug
Maintenance and cleaning	Filter cleaning by AFC, tank emptying, filter washable (after removal)
Spare parts and repairability	Filters, hose, nozzles, dust bags available as accessories
General information	Professional construction site appliance, complies with CE standards

Frequently Asked Questions - GAS 35 M AFC Professional BOSCH

How does the AFC system work?

The AFC (Automatic Filter Cleaning) system automatically cleans the filter at regular intervals with compressed air impulses, maintaining constant suction power without manual intervention.

Can I vacuum liquids with this vacuum cleaner?

Yes, the GAS 35 M AFC is designed for liquid vacuuming. It features an automatic shut-off when the tank is full to prevent overflow.

How do I change the dust bag?

Open the tank lock, remove the cover, take out the used bag and dispose of it. Place a new bag, ensuring it is securely attached to the suction nozzle before closing.

What is the dust class of this vacuum cleaner?

The vacuum cleaner is class M, meaning it is suitable for vacuuming hazardous dusts with an exposure limit greater than 0.1 mg/m³ (wood dust, plaster, etc.).

How do I clean the filter?

The AFC system automatically cleans the filter. For manual cleaning, you can remove the filter and wash it with clean water. Let it dry completely before reinstalling.

Can I use a power tool plugged into the vacuum cleaner's socket?

Yes, the integrated power socket allows you to connect a power tool (grinder, saw, etc.). The vacuum cleaner starts automatically when the tool is turned on and stops after a post-run time.

What is the tank capacity?

The tank has a capacity of 35 liters for solid waste and 23 liters for liquids (due to the automatic shut-off system).

Is the hose antistatic?

Yes, the supplied hose is antistatic to prevent electrostatic discharge when vacuuming fine dust.

How do I empty the liquid tank?

Unplug the appliance, open the lock, and tilt the tank to pour the liquid into a suitable drain. You can also use the drain plug at the bottom of the tank.

What accessories are included?

The vacuum cleaner comes with a 4 m hose, a floor nozzle, a crevice nozzle, an upholstery nozzle, a pleated filter, and a dust bag.

USER MANUAL GAS 35 M AFC Professional BOSCH

1 609 92A 6R4 (2021.09) PS/305

1 609 92A 6R4

no Crinipinal air/feptin-putules

1. Alkunorbird phiont

6

Deutsch

AFC

Automatische Filterreinigung (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Entsorgung

Safety information for vacuum cleaners

Read all the safety information and instructions. Failure to observe the safety information and follow instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This vacuum cleaner is not intended for use by children or persons with physical, sensory or mental impairments. It should not be used by persons who have insufficient experience and knowledge. Otherwise, there is a risk of operating errors and injuries.

▶ Supervise children. This will ensure that children do not play with the vacuum cleaner.

WARNING

nogenic substance.

WARNING

about the use of the equipment, the substances to be vacuumed and how to dispose of these safely. Thorough instruction on how to use the equipment prevents accidental misuse and injuries.

WARNING

can also be used to vacuum liquids when taking appropriate measures. The penetration of liquids increases the risk of an electric shock.

Never vacuum material that contains asbestos. Asbestos is a carci-

Only use the vacuum cleaner if you have been adequately informed

The vacuum cleaner is suitable for vacuuming dry substances, and

▶ Do not use the vacuum cleaner to vacuum combustible or explosive liquids, such as petrol, oil, alcohol or solvents. Do not vacuum hot, burning or explosive dust. Do not operate the vacuum cleaner in areas subject to explosion hazards. Dust, vapours and liquids can ignite or explode.

WARNING

Only use the socket for the purpose stipulated in the operating

manual.

WARNING

If you notice a foam or water leak, switch off the vacuum cleaner im-

mediately and empty the container. Otherwise, the vacuum cleaner can become damaged.

NOTE: The vacuum cleaner must only be stored indoors.
NOTE: Clean the liquid fill level sensors regularly and check whether they are damaged. Otherwise, the equipment may not function properly.
▶ If operating the vacuum cleaner in a damp location is unavoidable, use a residual current device (RCD). Use of an RCD reduces the risk of electric shock.
▶ Always check the vacuum cleaner, cable and plug before use. Do not use the vacuum cleaner if you discover any damage. Do not open the vacuum cleaner yourself. It should be repaired exclusively by a qualified professional using only genuine spare parts. Damaged vacuum cleaners, cables and plugs increase the risk of electric shock.
▶ Do not crush the cable or run the device over it. Do not pull on the power cable to pull the plug out of the socket or to move the vacuum cleaner. Damaged cables increase the risk of an electric shock.
▶ Pull the plug out of the socket before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or putting away the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.
▶ Ensure that the workplace is well ventilated.
The vacuum cleaner should be repaired exclusively by a qualified professional using only genuine spare parts. This will ensure that the safety of the vacuum cleaner is maintained.

WARNING

The dust extractor contains dust particles that pose a risk to health.

Emptying and maintenance procedures, including the disposal of dust containers, should only be carried out by professionals. Suitable protective equipment is required. Do not operate the vacuum cleaner unless the complete filter system is correctly inserted. Otherwise, you are putting your health at risk.

Before using the equipment for the first time, check that the vacuum hose is in perfect condition. Leave the vacuum hose fitted to the vacuum cleaner while doing this so that no dust escapes accidentally. Otherwise, you may end up inhaling dust particles.

18 | English

▶ Do not sit on the vacuum cleaner. You can damage the vacuum cleaner this way.
▶ Take care when using the power cable and the vacuum hose. Improper use of these can put other people at risk.
▶ Do not clean the vacuum cleaner by spraying a jet of water directly at it. Water entering the top of the vacuum cleaner will increase the risk of electric shock.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an au-

thorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Symbols

The following symbols may provide you with important information pertaining to the use of your dust extractor. Please take note of the symbols and their meaning. Knowing what these symbols mean will help you to use your extractor more effectively and more safely.

Symbols and their meaning

WARNING! Read all the safety and general instructions. Failure to observe the safety information and follow instructions may result in electric shock, fire and/or serious injury.

Dust extractor from dust class M in accordance with IEC/EN 60335-2-69 for the dry extraction of harmful dusts with an exposure limit of ≥ 0.1mg / m³

WARNING! The dust extractor contains dust particles that pose a risk to health. Emptying and maintenance procedures, including the disposal of dust containers, should only be carried out by professionals. Suitable protective equipment is required. Do not operate the dust extractor without the complete filter system. Otherwise, you are putting your health at risk.

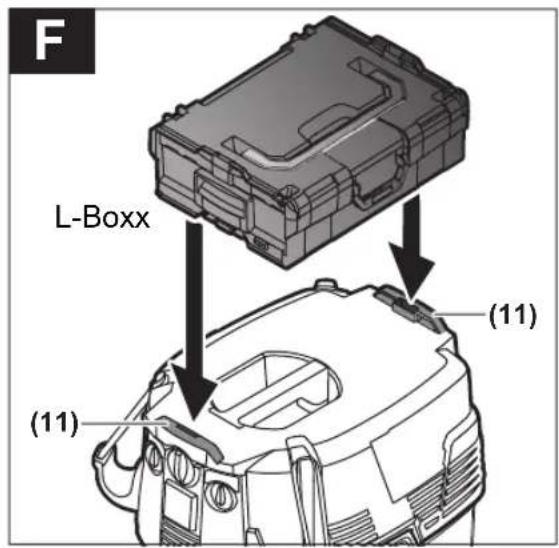

max. 1 L-Boxx max. 15 kg

Only attach a maximum of one L-Boxx.

The weight of the L-Boxx along with its contents must not exceed 15 kg.

Do not hang the dust extractor on a crane hook, e.g. in order to transport it. The dust extractor is not suitable for moving with a crane. There is a risk of injury and damage if you do this.

Do not sit or stand on the dust extractor. The dust extractor may tip over and become damaged if you do this. This poses a risk of injury.

Automatic start/stop

Extracting dust that accumulates from working power tools The dust extractor switches on automatically and off again with a time delay

Switching off

Vacuuming

Vacuuming up dust deposits

Symbols and their meaning

15 Volume flow monitoring for a hose diameter of 15 mm

22 Volume flow monitoring for a hose diameter of 22 mm

35 Volume flow monitoring for a hose diameter of 35 mm

Min./max. Continuous regulation of suction power:

– Maximum suction power for applications with a high level of dust generation

- Reduced suction power for applications with a low level of dust generation, and also to regulate the suction between the connected power tool and the surface of the workpiece, for example (e.g. when sanding)

Permitted connected load of the connected power tool (country-specific)

AFC Automatic filter cleaning

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock,

fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The tool is intended for collecting, vacuuming, conveying and separating wood chips as well as non-flammable dry dust types, non-flammable liquids and a mixture of water and air. The dust extraction capability of the dust extractor has been tested and corresponds to dust class M. It is suitable for the increased demands in professional use, e.g. in trade, industry and workshops.

Dust extractors from dust class M in accordance with IEC/EN 60335-2-69 may only be used to vacuum and extract harmful dust with an exposure limit of ≥ 0.1mg / m³ .

Only use the dust extractor if you can fully evaluate all functions and carry them out without restrictions, or if you have received corresponding instructions.

Product features

The numbering of the product features refers to the representation of the vacuum cleaner on the graphic pages.

(1) Container

(2) Sealing plug for extraction connection

(3) Hose adapter

(4) Holder for vacuum hose

(5) Socket for power tool

(6) Volume flow controller

(7) Mode selector switch

(8) Suction power regulator

(9) AFC button

(10) Carrying handle

(11) L-Boxx holder

(12) Top part of vacuum cleaner

(13) Catch for top part of vacuum cleaner

(14) Wheel

(15) Castor brake

(16) Castor

(17) Cable holder

(18) Closing flap for filter cover

(19) Holder for suction tubes

(20) Holder for crevice nozzle/curved nozzle

(21) Holder for floor nozzle

20 | English

(22) Dust extraction adapter
(23) Curved nozzle
(24) Vacuum hose
(25) Disposal bag
(26) Flat-pleated filter (PES)
(27) Crevice nozzle
(28) Rubber lip
(29) Brush inserts

(30) Floor nozzle

(31) Suction tube

(32) Adapter for vacuum hose holder

(33) Snap fastener

(34) False air intake

(35) Control LED

(36) Filter cover

(37) Fill level sensors

Technical data

Wet/dry dust extractor GAS 35 M AFC

Article number		3 601 JC3 1.. 3 601 JC3 170
Rated voltage V 220-240 110
Rated power input W 1200 1000
Frequency Hz 50-60 50-60
Container volume (gross) I 35 35
Net volume (liquid) I 19 19
Dust bag volume I 19 19
Max. vacuum A)
– Dust extractor hPa 230 211
– Turbine hPa 254 242
Max. volume flow rate A)
– Dust extractor l/s		36	31
	m 3 /s	0.036	0.031
– Turbine	l/s	74	71
	m 3 /s	0.074	0.071
Max. suction power	W 1380 1150
Area of pleated filter	m 2	0.615	0.615
Dust class		M	M
Weight according to EPTA-Procedure 01:2014	kg	12.4	12.4
Protection class		/I	/I
Protection rating		IPX4	IPX4

A) Measured using a vacuum hose 3 m long and 35 mm in diameter
The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Automatic start/stop

Rated voltage	Maximum power	Minimum power
230 V	2200 W	100 W

Permitted connected load of the connected power tool.

These values can differ for other country-specific models. Please take note of the information on the socket of the dust extractor.

Noise/Vibration Information

Noise emission values determined according to EN 60335-2-69.

Typically the A-weighted sound pressure level of the dust extractor is 70 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed 80 dB(A).

Wear hearing protection

Total vibration values a_h (triax vector sum) and uncertainty K determined according to EN 60335-2-69: a_h<2,5\ m/s² , K=1,5\ m/s² .

Assembly

▶ Pull the plug out of the socket before carrying out any work on the dust extractor.

Fitting the holder for the vacuum hose (see figure A)

- Slide the holder (4) for the vacuum hose firmly into the corresponding adapters (32) from above until they click into place.

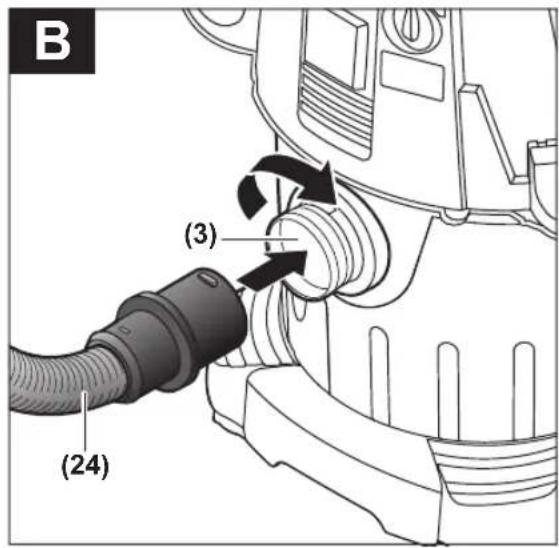

Fitting the Vacuum Hose (see figure B)

- Attach the vacuum hose (24) to the hose adapter (3) and turn it clockwise as far as it will go.

Note: The friction generated by the dust in the vacuum hose and accessory during extraction causes an electrostatic charge that the user may experience as static discharge (depending on environmental factors and their physiological state).

Bosch generally recommends using an anti-static vacuum hose (accessory) to vacuum up fine dust and dry materials.

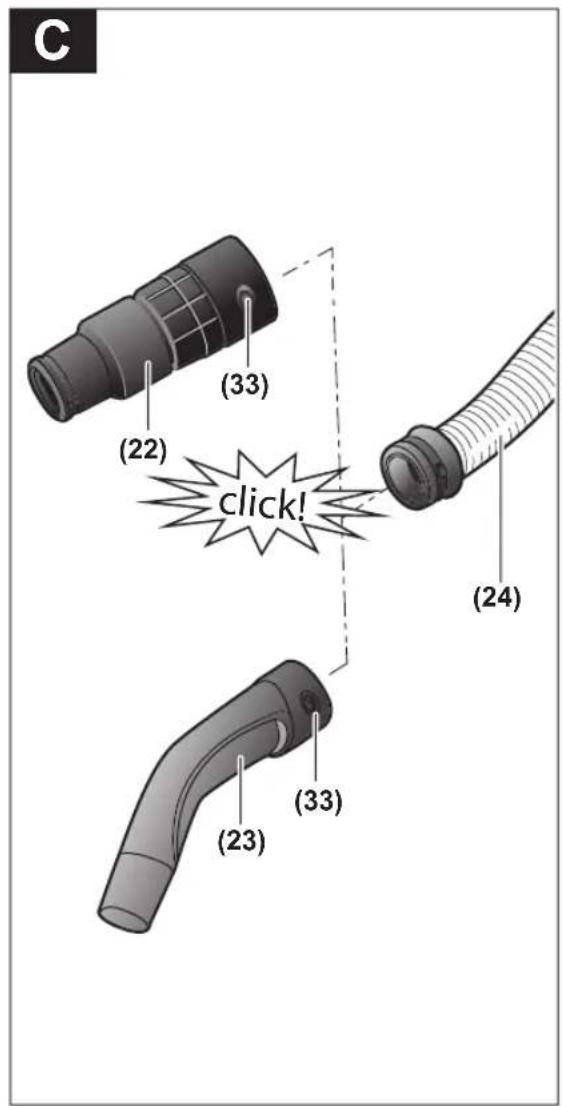

Fitting the vacuuming accessories (see figure C)

The vacuum hose (24) is equipped with a clip system which can be used to connect vacuuming accessories (dust extraction adapter (22), curved nozzle (23)).

Fitting the dust extraction adapter

• Push the dust extraction adapter (22) onto the vacuum hose (24) until you hear both snap fasteners (33) on the vacuum hose engage.
• To remove the adapter, press the snap fasteners (33) inwards and pull apart the components.

Fitting the nozzles and tubes

• Push the curved nozzle (23) onto the vacuum hose (24) until you hear both snap fasteners (33) on the vacuum hose engage.
• Then attach the required extraction accessory (floor nozzle, crevice nozzle, suction tube, etc.) firmly to the curved nozzle (23).
• To remove the accessory, press the snap fasteners (33) inwards and pull apart the components.

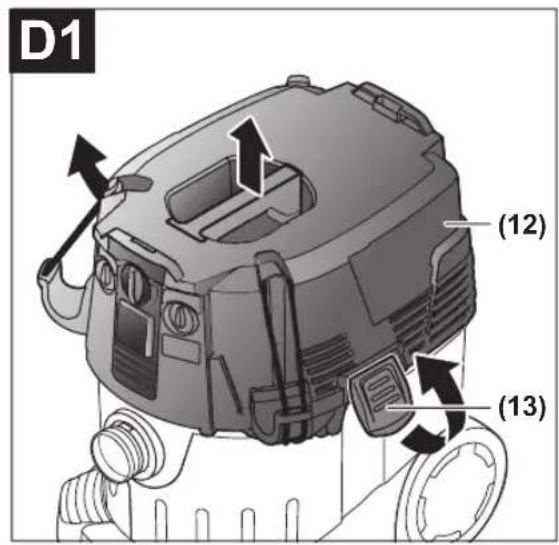

Inserting/removing the disposal bag or dust bag (dry extraction) (see figures D1–D2)

A disposal bag (25) or dust bag must be used for the dry extraction of dust class M materials.

Insofar as materials with or without an exposure limit of ≥ 1 mg/m³ (dust class L materials) are extracted, these can be sucked straight into the container.

Note: If using a paper filter bag, you must make sure that automatic filter cleaning (AFC) is switched off; you should also do the same if using a fleece filter bag (see "Automatic filter cleaning (see figure H)", page 23).

WARNING

The vacuum cleaner contains dust particles that pose a risk to health.

Emptying and maintenance procedures, including the disposal of dust collectors, should only be carried out by professionals. Suitable protective equipment is required. Do not operate the vacuum cleaner without the complete filter system. Otherwise, you are putting your health at risk.

Inserting the disposal bag

• Open the catches (13) and remove the top part of the vacuum cleaner (12).
• Insert the disposal bag (25) into the container (1) with the inlet facing forwards.
  – Pull the inlet over the connection flange and all the way into the recess of the connection flange.
• Make sure that the disposal bag (25) touches all the inside walls of the container (1).
• Fold the rest of the disposal bag (25) over the edge of the container (1).
• Put the top part of the vacuum cleaner (12) on and close the catches (13).

Removing and sealing the disposal bag

• Open the catches (13) and remove the top part of the vacuum cleaner (12).
  – Pull the full disposal bag (25) backwards out of the connection flange.
• Carefully take the disposal bag (25) out of the container (1) without damaging it. When doing so, make sure that the disposal bag does not scrape against the connection flange or other sharp objects.
• Remove the adhesive strip cover and tape up the disposal bag. Then tie up the disposal bag (25) below the inlet using the adhesive strip cover that has been removed.

Changing/inserting the dust bag (accessory)

• Open the catches (13) and remove the top part of the vacuum cleaner (12).
• Pull the full dust bag backwards out of the connection flange. Close the opening in the dust bag by turning down the top. Take the closed dust bag out of the container (1).
• Place the new dust bag over the vacuum cleaner's connection flange. Make sure that the entire length of the dust bag touches the inside wall of the container (1).
• Put the top part of the vacuum cleaner (12) on and close the catches (13).

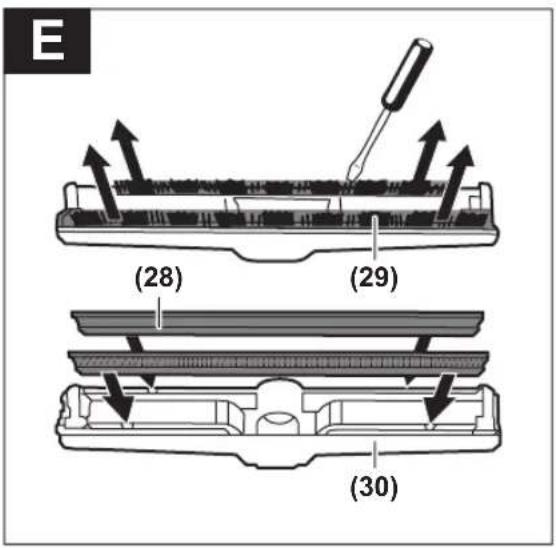

Fitting the rubber lip (wet extraction) (see figure E)

Note: The requirements for the degree of penetration (dust class M) have only been verified for dry extraction.

22 | English

• Use a suitable tool to lift the brush inserts (29) out of the floor nozzle (30).
• Place the rubber lips (28) in the floor nozzle (30).

Note: The textured side of the rubber lips must be facing outwards.

Attaching the L-Boxx (see figure F)

- Click the L-Boxx onto the adapters (11).

You can attach an L-Boxx to the top part of the dust extractor for transporting the extractor and to provide space-saving storage for extractor accessories and/or the power tool.

▶ Do not carry the dust extractor by the carrying handle of the attached L-Boxx. The dust extractor is too heavy for the carrying handle of the L-Boxx. There is a risk of injury and damage if you do this.

Operation

▶ Pull the plug out of the socket before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or putting away the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.

Start-up

▶ Pay attention to the mains voltage. The voltage of the power source must correspond with the information on the type plate of the dust extractor. Chargers labelled as 230 V can also be operated with 220 V.
▶ Make sure you inform yourself about the applicable regulations/laws on how to handle harmful types of dust in your country.

The dust extractor may be used for vacuuming and extracting the following materials:

• Dusts with an exposure limit of ≥ 0.1mg / m³
  ▶ Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

The dust extractor must categorically not be used in potentially explosive areas.

To ensure optimum suction power, you must always fully unwind the vacuum hose (24) from the top part of the dust extractor (12).

Dry vacuuming

Vacuuming up dust deposits

• Adjust the volume flow controller (6) to suit the hose diameter used.
• To switch on the dust extractor, set the mode selector switch (7) to the "extraction" symbol.
• To switch off the dust extractor, set the mode selector switch (7) to the "switch off" symbol.

The dust extractor is fitted with airflow monitoring. In the "vacuuming" operating mode, the volume flow monitoring is fixed to a value of 20 m/s, irrespective of the setting of the volume flow controller (6).

If the value falls below this, e.g. due to accumulated dirt in the vacuum hose, a full dust bag or a clogged flat-pleated filter, an audible alarm signal will sound. In this case, switch off the dust extractor and check it as described in the "Rectifying faults" section.

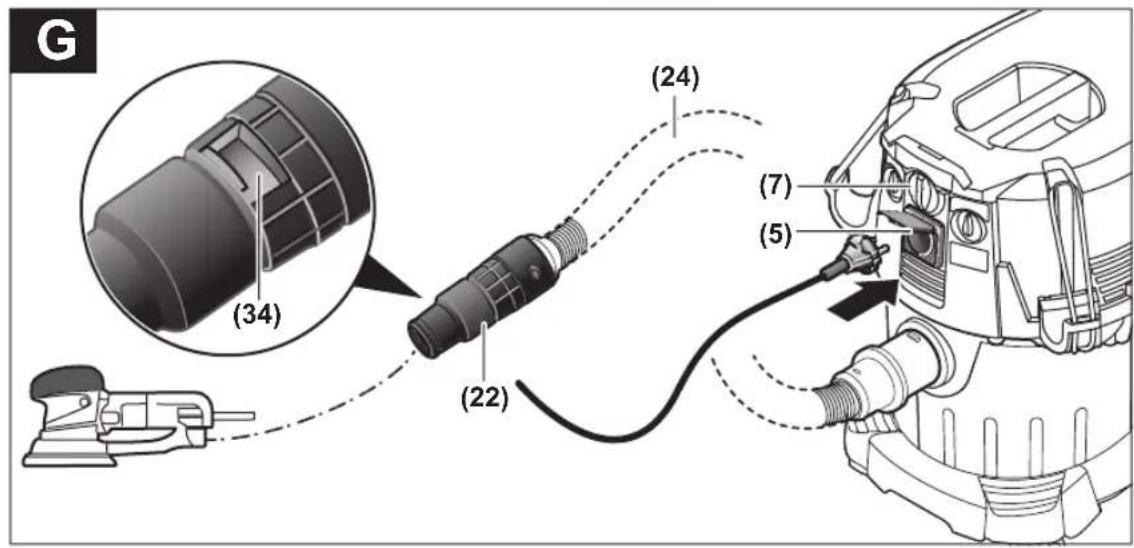

Extracting dust that accumulates from working power tools (see figure G)

There must be a sufficient air exchange rate (L) in the room when the exhaust air comes back into the room. Be aware of the corresponding national regulations.

The dust extractor has an electric socket with a protective earth contact (5), which can be used to connect an external power tool. Observe the maximum permitted load of the connected power tool.

In order for sufficient dust transport to be ensured at the extraction point, the volume flow must not fall below the minimum specified for the connected power tool.

Hose diameter Volume flow setting

35 mm 57.9 m	3/h
22 mm 41.2 m	3/h
15 mm 12.7 m	3/h

• Adjust the volume flow controller (6) to suit the hose diameter used.
• Fit the extraction adapter (22) (see "Fitting the dust extraction adapter", page 21).
• Insert the extraction adapter (22) into the dust extraction outlet of the power tool.

Note: When working with power tools that have a low air feed into the vacuum hose (e.g. jigsaws, sanders, etc.), the false air intake (34) of the dust extraction adapter (22) must be opened. This will ensure that the automatic filter cleaning function works correctly.

To do this, turn the ring above the false air intake (34) until the opening is at its maximum size.

- To activate the automatic start/stop

function of the dust extractor, set the operating mode selector switch (7) to the "automatic start/stop" symbol. In this operating mode, the volume flow is electronically monitored according to the setting of the volume flow controller (6). Sufficient dust transport is ensured when the setting is correctly selected.

• To activate the dust extractor, switch on the power tool that is plugged into the electric socket (5). The dust extractor will start automatically.
• To stop dust extraction, switch the power tool off. The automatic start/stop run-on function will run for up to 15 seconds longer in order to extract the remaining dust from the vacuum hose.

- To switch off the dust extractor, set the mode selector switch (7) to the "switch off" symbol.

If the acoustic warning signal sounds, the dust extractor must be checked as described in the "Rectifying faults" section.

Wet vacuuming

▶ Do not use the vacuum cleaner to vacuum combustible or explosive liquids, such as petrol, oil, alcohol or solvents. Do not vacuum hot or burning dust. Do not operate the vacuum cleaner in areas subject to explosion hazards. Dust, vapours and liquids can ignite or explode.
The vacuum cleaner must not be used as a water pump. The vacuum cleaner is designed for vacuuming air and vacuuming water mixtures.

Note: The requirements for the degree of penetration (dust class M) have only been verified for dry extraction.

Steps to Take before Wet Vacuuming

• Remove the disposal bag (25) or dust bag if necessary.
  Note: Use a wet filter bag (accessory), which separates liquid from solids, to make disposal easier when vacuuming water-solid mixtures.
• Fit the rubber lip (28) in the floor nozzle (30) (see "Fitting the rubber lip (wet extraction) (see figure E)", page 21).
• Switch off the automatic filter cleaning (AFC) (see "Automatic filter cleaning (see figure H)", page 23).

Vacuuming up liquids

- To switch on the dust extractor, set the mode selector switch (7) to the "extraction" symbol.

The dust extractor is equipped with fill level sensors (37). The dust extractor shuts down if the maximum fill level has been reached. Set the mode selector switch (7) to the "switch off" symbol.

Note: When extracting non-conductive liquids (e.g. drilling emulsion, oils and fats), the dust extractor will not switch off when the container is full. The fill level must be constantly monitored and the container emptied in good time.

If the acoustic warning signal sounds during wet extraction, the operating reliability of the dust extractor is not affected. No measures to rectify the fault are necessary.

• To switch off the dust extractor, set the mode selector switch (7) to the "switch off" symbol.
• To transport the dust extractor, screw the sealing plug (2) onto the hose adapter (3).
• Empty the container (1).
  To prevent mould growth after wet extraction:
• Remove the flat-pleated filter (26) and leave this to dry thoroughly.
• Remove the top part of the dust extractor (12), open the filter cover (36) and leave both elements to dry thoroughly.

Automatic filter cleaning (see figure H)

When automatic filter cleaning (AFC) is active, the flat-pleated filter (26) is cleaned every 15 seconds using blasts of air (pulsating noise).

The filter cleaning function should be used regularly, and at the very latest when the suction power is no longer sufficient.

Regular use of the filter cleaning function will increase the service life of the filter.

In order to achieve an optimum filter service life, deactivate the automatic filter cleaning function only in exceptional cases, e.g. when vacuuming pure liquids or using a paper filter bag.

A flat-pleated filter with surface dirt is still fully functional. It is not necessary to clean the flat-pleated filter manually by shaking or blowing it out; this may even damage the filter.

Note: The automatic filter cleaning function is switched on by default when the dust extractor leaves the factory.

It is only possible to switch the automatic filter function on or off when the tool is switched on.

- Deactivating AFC

Press the AFC button (9).

The control LED (35) will go out.

- Activating AFC

Press the AFC button (9).

The control LED (35) will light up green.

Maintenance and service

Maintenance and cleaning

▶ Pull the plug out of the socket before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or putting away the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.
▶ To ensure safe and efficient operation, always keep the dust extractor and the ventilation slots clean.
▶ Wear a dust mask when servicing and cleaning the vacuum cleaner.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

For the user to carry out maintenance, the dust extractor needs to be disassembled, cleaned and maintained as far as this is possible without endangering maintenance personnel or other persons. Before disassembly, the dust extractor should be cleaned to prevent any potential hazards. The room in which the dust extractor is disassembled should be well ventilated. Wear personal protective equipment while carrying out maintenance. After completing maintenance, the maintenance area should be cleaned.

An inspection regarding the dust extraction capability must be carried out at least once a year by the manufacturer or someone who has been trained, e.g. to check for filter damage, that the vacuum cleaner is tight and that the control unit

24 | English

is functioning correctly.

Class M dust extractors that have been in dirty environments should have their exteriors, as well as all their components, cleaned or treated with sealant. When performing maintenance and repair work, all dirty parts that cannot be cleaned satisfactorily must be disposed of. Such parts must be disposed of in impermeable bags in accordance with the valid provisions for disposing of such waste.

Removing/changing the flat-pleated filter (see figures I1–I2)

Suction power is dependent on the condition of the filter. Therefore, the filter should be cleaned regularly.

If the flat-pleated filter (26) becomes damaged, replace it immediately.

• Pull on the closing flap (18) and open the filter cover (36).
• Hold the flat-pleated filter (26) by the supports and take it out from above.
• Use a damp cloth to remove any dust and dirt that accrues around the closing edge of the filter cover (36) when removing the flat-pleated filter (26). PES and PTFE flat-pleated filters can be rinsed out under running water.
• Insert the cleaned (or a new) flat-pleated filter (26), ensuring that it is positioned correctly and securely.
• Close the filter cover (36) again (must audibly click into place).

Cleaning the container

- Wipe the container (1) from time to time using a non-abrasive off-the-shelf cleaning product and leave it to dry.

Cleaning the fill level sensors (see figure J)

Make sure that the fill level sensors are cleaned (37) occasionally.

• Open the catches (13) and remove the top part of the dust extractor (12).
• Clean the fill level sensors (37) using a soft cloth.
• Put the top part of the vacuum cleaner (12) on and close the catches (13).

Storage and transport (see figure K)

• Wrap the power cable around the cable holder (17).
• Insert the accessory into the holders provided for it: Suction tubes (31) into the holders (19), crevice nozzle (27) into the holder (20), floor nozzle (30) into the holder (21).
• Open the elastic bands of the vacuum hose holder (4) and wrap the vacuum hose (24) around the top part of the dust extractor in the holder (4). Hook the elastic bands back in.
• Click the L-Boxx onto the holders (11).
• Before transporting the dust extractor, remove any full disposal bags/dust bags and empty any liquids that have been absorbed, in order to avoid placing unnecessary strain on the back and prevent injury. Only ever carry the dust extractor by the carrying handle (10).
• To transport the dust extractor, screw the sealing plug (2) onto the hose adapter (3).
• Store the dust extractor in a dry room and secure it so that it cannot be used by unauthorised persons.
• Put the castor brake (15) down to hold the castors (16) in place.

Rectifying faults

If a fault (e.g. a filter damage) occurs, the vacuum cleaner must be switched off immediately. The fault must be repaired before resuming operation.

Problem Corrective measures

The suction turbine will not switch on.	- Check the mains cable, mains plug, fuse, socket and fill level sensors (37).
	The mode selector switch (7) is set to "automatic start/stop".
	- Set the mode selector switch (7) to the "vacuuming" symbol or switch on the power tool plugged into the electric socket (5).
The suction turbine switches off.	- Empty the container (1).
The suction turbine will not switch on again after emptying the container.	- Switch the dust extractor off and wait five seconds before switching it back on.
	- Clean the fill level sensors (37) and the space between the fill level sensors (37) using a brush.
The suction power is decreasing.	- Remove any blockages from the vacuum nozzle, suction tube (31), vacuum hose (24) or flat-pleated filter (26).
	- Change the disposal bag (25) or dust bag.
	- Make sure the filter cover (36) is engaged correctly.
	- Place the top part of the dust extractor (12) on correctly and close the catches (13).
	- Change the flat-pleated filter (26).
Dust is escaping when vacuuming	- Check that the flat-pleated filter (26) has been fitted correctly.

Problem Corrective measures

	- Change the flat-pleated filter (26).
Automatic switch-off (wet extraction) is not working.	- Clean the fill level sensors (37) and the space between the fill level sensors (37) using a brush.
	Automatic switch-off will not work in the presence of non-conductive liquids or foaming.- Check the fill level regularly.
Acoustic warning signal sounds. Suction power setting too low.
		Flat-pleated filter (26) is dirty.- Clean or change the flat-pleated filter if required.

Accessories

	Accessory number
Paper filter bag (dry) 2 607 432 035
Fleece filter bag (dry) 2 607 432 037
Wet filter bag (wet) 2 607 432 039
Disposal bag (PE) (dry/wet) 2 607 432 043

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The vacuum cleaner, its accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of the vacuum cleaner along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, vacuum cleaners that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Only for United Kingdom:

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113), vacuum cleaners that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

AFC Nettoyage de filtre automatique (AFC = Automatic Filter Cleaning)

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

AFC Limpieza automática del filtro (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Eliminación

AFC

Limpeza automática do filtro (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Smaltimento

AFC Automatische filterreiniging (AFC = Automatic Filter Cleaning)

Afzuigadapter monteren

www.bosch-pt.com/serviceaddresses

Afvalverwijdering

AFC Automatisk filterrengøring (AFC = Automatic Filter Cleaning)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Bortskaffelse

AFC Automatisk filterrengöring (AFC = Automatic Filter Cleaning)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Avfallshantering

AFC Automatisk filterrensing (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Deponering

AFC

www.bosch-pt.com/serviceaddresses

Hävitys

www.bosch-pt.com/serviceaddresses

Απόσυρση

AFC Otomatik filtre temizleme (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Tasfiye

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Utylizacja odpadów

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Likvidace

Automatic Filter Cleaning

AFC

Automatické čistenie filtra (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Likvidácia

www.bosch-pt.com/serviceaddresses

Eltávolítás

www.bosch-pt.com/serviceaddresses

Утилизация

AFC

www.bosch-pt.com/serviceaddresses

Утилізація

www.bosch-pt.com/serviceaddresses

Кәдеге жарату

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Eliminare

AFC

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Бракуване

www.bosch-pt.com/serviceaddresses

Отстранување

AFC Automatsko čišćenje filtera (AFC = Automatic Filter Cleaning)

Opis proizvoda i primene

Pročitajte sve

www.bosch-pt.com/serviceaddresses

Uklanjanje dubreta

AFC

Samodejno čiščenje filtra (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

Odlaganje

Sesalnik, pribor in embalažo je treba reciklirati v skladu z varstvom okolja.

Sesalnika ne zavrzite med gospodinjske odpadke!

AFC Automatsko čišćenje filtra (AFC = Automatic Filter Cleaning)

Opis proizvoda i radova

Treba pročitati sve sigurnosne napomene i upute. Propusti do kojih može doći uslijed nepridržavanja sigurnosn

napomena i uputa mogu uzrokovati električni udar, požar i/ili teške ozljede.

www.bosch-pt.com/serviceaddresses

Zbrinjavanje

AFC Automaatne filtripuhastus (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

AFC

Automātiska filtra tīrīšana (AFC = Automatic Filter Cleaning)

www.bosch-pt.com/serviceaddresses

AFC Automatinis filtro valymo jtaisas (AFC = „Automatic Filter Cleaning“)

www.bosch-pt.com/serviceaddresses

처리

www.bosch-pt.com/serviceaddresses

5m

5m

35 mm

5m

35 mm

5m

22 mm

3m

22 mm

3m

35 mm

3m

22 mm

3m

22 mm

-

2 608 000 565

•

2 608 000 566

-

2608000567

•

2 608 000 568

-

2 608 000 569

●

2 608 000 570

-

2 608 000 571

•

2608000572

2 608 438 0912 608 438 691

CE

|

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
	Nass-/Trockensauger	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	Wet/dry dust extractor	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Aspirateur eau et poussière	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Aspiradora en húmedo y seco	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Aspirador universal	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Aspiratore a umido / a secco	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Alleszuiger	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Våd-/tørsuger	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Våt-/torrsug	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Vår-/tørrsuger	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
	Märkä-kuivaimuri	Tuotenumero
el	Δήλωση πιστότητας EE		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη:*
	Απορροφητήρας υγρής/ στεγνής αναρρόφησης	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
	Islak/kuru elektrikli süpürge	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produktyodpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektywi rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Odkurzacz dopracy na sucho imokro	Numer katalogowy
cs	EU prohlásení oshodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňujevšechna příslušná ustanovení níže uvedených směrnic anariadení ajevsouladu snásledujícími normami:Technické podklady u:*
	Vysavač promokré a suchésání	Objednací číslo
sk	EÚ vyhlásenie ozhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetkypríslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúladesnasledujúcimi normami:Technické podklady má spoločnosť:*
	Vysávač navysávanienamokro/ nasucho	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnekaz alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyidevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Nedves / szárazelszívóberendezés	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названныепродукты соответствуют всем действующим предписаниямнижеуказанных директив и распоряжений, а также нижеуказанныхнорм.Техническая документация хранится y:*
	Пылесос длявлажной уборки/пылесос	Товарный No
uk	Заява про відповідність ЄС		Мизаявляемо під нашу одноособову відповідальність, що названівироби відповідають усім чинним положенням нищеозначенихдиректив і розпоряджень, а також нижчеозначеним нормам.Технічна документация зберігається y:*
	Вологовідсмоктувач/ пилосмок	Товарний номер
kk	EO сәйкестік мағлүмдамасы		Өз жауапкершілікпен біз аталған өнімдер төменде жзылғандиректикалар мен жарлықтардың тиісті қағидаларына сәйкестігін жәнетөмендері нормаларға сай екенін білдіреміз.Техникалық құжаттар:*
	Ылғалды/құрғақшаңсорғыш	Өнім нөмірі
ro	Declarație de conformitate UE		Declarăm pe proprie răspundere că produsele menționate corespundtuturor dispozițiilor relevante ale directivelor și reglementărilor enumerateîn cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Aspiratoruniversal	Număr de identificare
bg	ЕС декларация за съответствие		С пълна отговорност ние декларираме, че посочените продуктиотговарят на всички валидни изисквания на директивите ipазпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Прахосмукачказа мокро/ сухозасмукване	Каталожен номер
mk	EU-ИзJAVA за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се восогласност со сите релевантни одредби на следните регулативи ипрописи и се во согласност со следните норми.Техничка документација кaj:*
	Всисувач замокро/сувовсисување	Број на дел/артикл
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovarajusvim dotičnim odredbama naknadno navedenih smernica u uredaba i da suu skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Mokri/suviusisivač	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu zvsemi relevantnimi določili direktiv in uredb ter ustreza naslednjimstandardom.Tehnična dokumentacija pri:*
	Mokri/suhisesalnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovarajusvim relevantnim odredbama direktiva i propisima navedenima u nastavku i

CE

III

	Usisavač za mokro/suho usisavanje	Kataloški br. da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod: *
et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumendid saadaval: *
	Märg-/kuivtolmuimeja	Tootenumber
lv	Deklarácija par atbilstību ES standartiem		Mês ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Vakuumsūcējs mitrai un sausai uzsūkšanai	Izstrādājuma numurs
lt	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Skysčių ir sausų dulkių siurblys	Gaminio numeris
	GAS 35 M AFC	3 601 JC3 1.. 2006/42	/ECEN 60335-1:2012+A11:2014+A13:20172014/30/EU+A1:2019+A2:2019+A14:20192011/65/EUEN 60335-2-69:2012EN 55014-1:2017+A11:2020EN 55014-2:2015EN IEC 61000-3-2:2019EN 61000-3-3:2013+A1:2019EN IEC 63000:2018
			BOSCH* Robert Bosch Power Tools GmbH (PT/ECS)70538 StuttgartGERMANY
			Henk BeckerHelmut HeinzelmannChairman ofHead of Product CertificationExecutive Managementi.V.KwRobert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 07.08.2020

IV

CE

Declaration of Conformity

Wet/dry dust extractor Article number

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008

The Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations 2012

EN 60335-1:2012+A11:2014+A13:2017

+A1:2019+A2:2019+A14:2019

EN 60335-2-69:2012

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN IEC 63000:2018

BOSCH

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road,

Uxbridge UB9 5HJ, United Kingdom

Vonjy Rajakoba

Managing Director - Bosch UK

Martin Sibley

Head of Sales Operations and Aftersales

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 07/06/2021
