USER MANUAL appRP01V4 Approx

300Mbps Wireless WiFi-N Extender

Version 1.0

Visiter notre site web www.approx.es pour télécharger le guide d'utilisateur
Besuchen Sie unsere Website www.approx.es die Anleitung downloaden
Visita il nostro sito web www.approx.es per scaricare la guida per l'uso
Visite www.approx.es nosso site para baixar o guia do usuário
Posjetite naše web stranice www.approx.es za preuzimanje korisničkog vodiča
Odwiedź naszą stronę www.approx.es pobrać podręcznik użytkownika
Επισκεφτείτε την ιστοσελίδα μας www.approx.es να κατεβάσετε το εγχειρίδιο
Navštivte naše webové stránky www.approx.es stáhnout uživatelskou příručku
Kullanım kılavuzunu indirmek için web sitemizi ziyaret edin www.approx.es
Látogasson el honlapunkra www.approx.es Töltse le a használati útmutató
Посетете нашия учеб сайт www.approx.es да изтеглите указание за употреба
Vizitați site-ul nostru www.approx.es sa descarcati ghidul de folosire
Navštívte naše webové stránky www.approx.es stiahnut návod
www.approx.es bezoek onze website om gebruikershandleiding downloaden

Español

English

Française

01

09

17

Contraseña: approx

Modo Repeater (Modo Repetidor)

Mediante Cable RJ-45 (Modo Client)

Chapter 1. Introduction and product description

Thank you for choosing the Wi-Fi-N 300Mbps APPRP01V4 Repeater from Approx!

The APPRP01V4 is a repeater for Wi-Fi networks, designed for those seeking a definitive solution to extend the range of their wireless network. Connected to an electrical outlet, it repeats the WiFi signal to distant areas such as patios, terraces or far away rooms. For the more demanding user, it can also be used as an access point or in client mode. With the repeater APPRP01V4 any wireless network can be extended almost immediately with just an electrical outlet available in the range of the router. One of the outstanding features is its speed; 300Mbps and its quick and easy setup in minutes. You longer do not have any excuses to extend your Wi-Fi network!

Chapter 2. Package contents

• APPRP01V4 Wireless Repeater.
• Quick Installation Guide in multiple languages.
• Network cable RJ-45

Note: make sure your package contains the items described above. If you find any items are missing or damaged, please contact your dealer.

Chapter 3. Part descriptions

Chapter 4. Installation and configuration.

This repeater has three modes of configuration and installation with different functions.

Wireless Repeater Installation

• You will need a router or an access point with Internet.
- Connect to main router wirelessly to repeat.

Access point Installation

• You will need a router with Internet.
• Connect it from its LAN output to the repeater using the RJ-45 cable provided.

Client Mode Installation

• You will need a router with Internet.
• Connect wirelessly to the main router.
  • Connected via RJ-45 cable to the computer.

The repeater can be configured wirelessly or wired to its first configuration.

Wireless Configuration

1. Please connect your repeater APPRP01V4 into a free electrical outlet in your home that is within the coverage range of your primary router.
2. Click on the network icon (or) at the bottom right of the desktop. You will see the Wi-Fi signal repeater for the APPRP01V4. Click "Connect" and wait a few seconds

APPRP01V4

1. Go to your web browser and type in the address bar 192.168.10.1

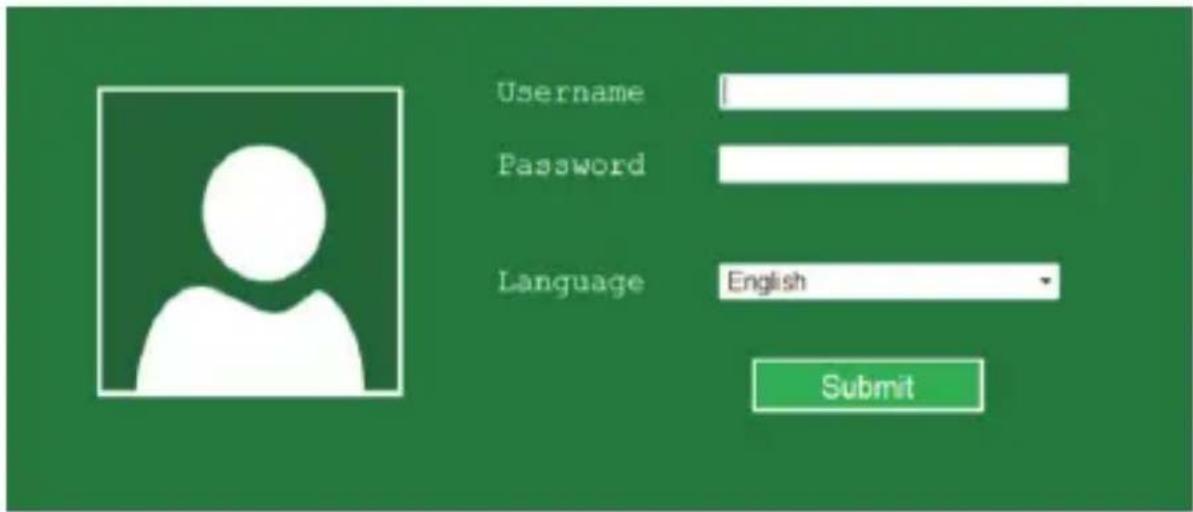

2. Automatically your browser will ask for a user name and password to access the repeater settings, please insert in those empty fi elds the following:

User name: admin

Password: approx

1. Once inside your web settings follow steps repeater setup wizard.

Configuration by RJ-45 cable

1. Please plug your repeater APPRP01V4 into a free electrical outlet in your home that is within the coverage range of your primary router.

2. Connect the supplied RJ-45 cable between a LAN output from your router and the repeater.

3. Follow the same steps as the wireless settings from point 3 to 5.

Note: If you cannot access your device do the following:

1. Click "Start," "Control Panel", "Network and Internet", "Network Connections" direct button click "Local Area Connection" or "Wireless Network Connection", "Properties". Select "Internet Protocol Version 4 (TCP/IPv4)" and click "Properties".

2. Enter 192.168.10.2 in the IP address, subnet mask 255.255.255.0 in and gateway 192.168.10.1 in and accept.

3. Repeat the same steps as the wireless settings from point 3 to 5.

You can also restore the factory settings with the following procedure below.

Connect the repeater to an electrical outlet (not strip), press the reset button for 10 seconds and release, wait and do nothing, the repeater will be returned to default values.

Configuration modes (setup wizard)

AP Mode (Access point)

1. Select AP within Wizard

1. Type a name for your wireless network in the SSID field

2. Let the channel (Channel) as Auto

3. In Security Type select a wireless security type for your device and set a password.

4. Click the Apply button to fi nish

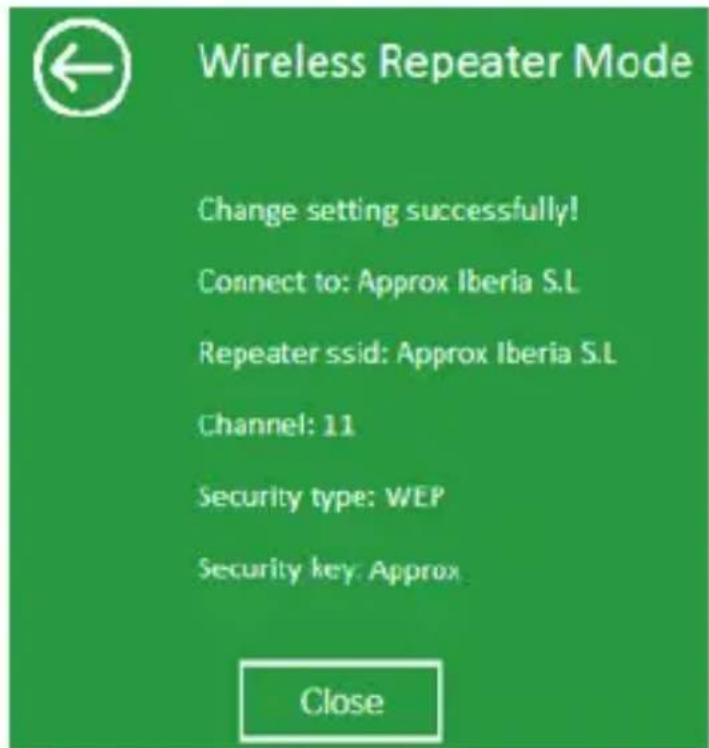

1. A message like the following will appear, click the Close

Repeater Mode (Repeater Mode)

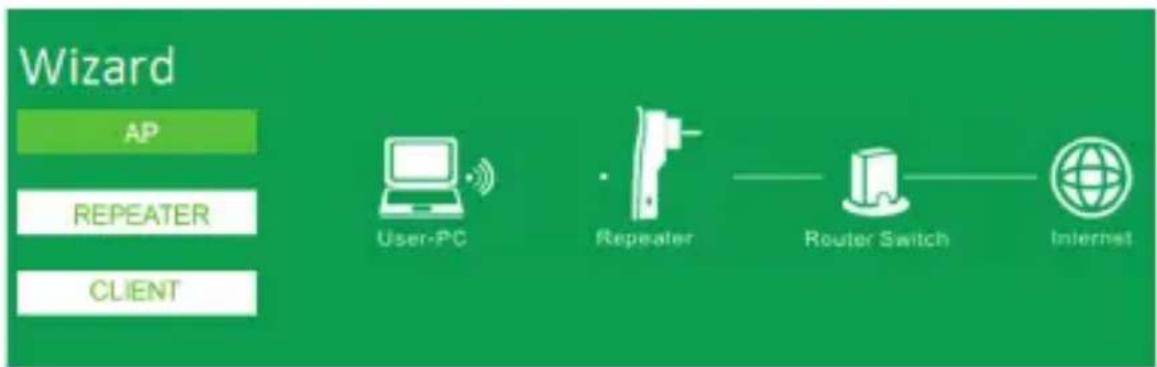

1. Select Repeater within the Wizard

1. Select the name of the wireless network you want to connect to

1. In the Security Key field type the password of the router to which you are connecting to repeat the signal.
2. Finally click the Apply button to accept the settings, if everything went well we will have a message similar to the following. Press the Close button.

Client Mode (Client)

1. Select the Client within Wizard

1. Select the name of the wireless network you want to connect to

1. In the Security Key fi eld type the password of the router to which you are connecting to repeat the signal.

2. Finally click on the button Apply to accept the configuration.

Connect computers to the repeater.

Wirelessly (AP and Repeater mode)

1. Click the network icon (o) on the bottom right of the desktop. For Wi-Fi signal repeater APPRP01V4. Click "Connect" and enter the security key and wait a few seconds.

Using WPS (AP and Repeater mode)

1. Press the WPS button of the repeater for 3 seconds.
2. Press the WPS button on your wireless adapter for 3 seconds.

3. Click Finish to complete the WPS configuration.

4. If the steps were successful your equipment will be connected to the repeater via WPS.

By RJ-45 cable (Client Mode)

1. Connect the supplied RJ-45 cable between the LAN input from the network card of your computer and the LAN input of your repeater.

Chapter 5. Technical support.

Please more information on installing and configuring this product please visit our Support section on our website www.approx.es web or write an email to the following address: [e-mail].

Configuration via un câble RJ-45.

Mode AP (Access Point)

Mode Répéteur

Mode Client

En RJ-45 (mode client)

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product:

Brand name: APPROX IBERIA S.L.

Model no: APPRP01V4

Product description: Wireless WiFi-N Extender 300Mbps

The measurements shown in this test report were made in accordance with the procedures given in the:

• EMC DIRECTIVE: 2004/108/EC
• RTTE DIRECTIVE: 1999/5/EC
• RoHS DIRECTIVE: 2011/65/EU
• LVD DIRECTIVE: 2006/95/EC

To which this declaration is based on with full conformance to the following European norms and standards:

• EN 61000-3-2 / A2:2009
• EN 61000-3-3:2008
• EN 55022 / A1:2007
• EN 55024 / A2:2003
• ETSI EN301 489-1 V1.8.1 (2008-04)
• ETSI EN301 489-17 V2.1.1 (2009-05)

Signed May 28, 2015

Simple line drawing of a curved line intersecting a triangle (no text or symbols)

Jose Luis Ruiz Gómez

Managing Director

APPROX IBERIA SL.

ADD: Polígono Industrial Guadalquivir

Gelves (Sevilla), Spain.

Website: www.approx.es

INSTRUCCIONES DE SEGURIDAD, MANTENIMIENTO Y RECICLADO

SAFETY, MAINTENANCE AND RECYCLING INSTRUCTIONS

1. Caution: Never open the device. The internal parts are shock hazard.
2. Do not insert objects of any kind into this unit through openings as they may touch voltage points and short out parts that could result in fire or electric shock.
3. Do not spill any liquid on the unit. Danger of short circuits.
4. Clean the product with a soft dry cloth. Always with the device turned off!
5. Follow local regulations for disposing of the product.

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte técnico / Technical support:

[e-mail]

MADE IN PRC

The content of this guide is subject to typographical errors
