PPM1010 - Plane Ferm - Free user manual and instructions

Product Type	Electric Planer
Brand	Ferm
Model	PPM1010
Dimensions (L x W x H)	300 x 160 x 150 mm
Weight	2.8 kg
Power Supply	230 V ~ 50 Hz
Power	800 W
Planing Width	82 mm
Adjustable Planing Depth	0 – 2 mm
No-Load Speed	15,000 rpm
Vacuum Connection	Yes (35 mm diameter)
Sound Pressure Level	90 dB(A)
Vibration Level	2.5 m/s²
Main Functions	Planing, chamfering, depth adjustment
Safety	Motor brake, lock switch
Maintenance and Cleaning	Clean the ventilation slots after each use, sharpen or replace the blades
Spare Parts Available	Planer blades, motor carbon brushes
Included Accessories	Adjustment wrench, parallel guide, dust bag

Frequently Asked Questions - PPM1010 Ferm

How to adjust the cutting depth on the Ferm PPM1010 planer?

Turn the adjustment knob at the front of the machine. Each graduation corresponds to approximately 0.1 mm. Do not exceed 2 mm depth to avoid overloading the motor.

Can the Ferm PPM1010 planer be used without a vacuum connection?

Yes, the planer is supplied with a dust bag. For best results, connect a vacuum via the 35 mm nozzle.

What to do if the planer blades are dull?

The blades are reversible: you can flip them to use the second edge. If both sides are worn, replace them with new blades (Ferm ref.). Remember to unplug the device before any handling.

The planer stops suddenly during use. What is the cause?

This may be due to motor overload (depth too large) or a jammed drum. Also check that the motor carbon brushes are not worn. Let the device cool down for a few minutes before trying again.

How to change the motor carbon brushes of the Ferm PPM1010?

Unplug the device. Unscrew the caps on the brush holders located on each side of the motor. Remove the worn brushes and insert new ones (same size). Replace the caps and tighten. It is recommended to change them in pairs.

What is the rotation speed of the Ferm PPM1010 planer?

The no-load speed is 15,000 revolutions per minute. This high speed allows clean and efficient planing.

Is the parallel guide supplied with the planer?

Yes, a parallel guide is included in the box. It attaches to the side of the planer for straight cuts or uniform chamfers.

How to clean the Ferm PPM1010 planer after use?

Unplug the device. Use a brush or dry cloth to remove sawdust from the ventilation slots and drum. Never use water or solvents. Lightly oil moving parts if necessary.

The planer vibrates abnormally: what to check?

Check that the blades are correctly installed and balanced. Also ensure that the drum is not obstructed by residues. Improper blade balancing is the most common cause of vibrations.

Can I use the Ferm PPM1010 planer to chamfer edges?

Yes, the parallel guide has a V-groove that allows chamfering. Position the guide so that the groove aligns with the edge to be chamfered, then plane gently.

USER MANUAL PPM1010 Ferm

Ferm power tool with blue handle and black body, no visible text or symbols on the device itself

PPM1010

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 08
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 13
FR Traduction de la notice originale 18
ES Traducción del manual original 23
PT Tradução do manual original 28
IT Traduzione delle istruzioni originali 33
SV Översättning av bruksanvisning i original 37
FI Alkuperäisten ohjeiden käännös 42
NO Oversatt fra orginal veiledning 46
DA Oversættelse af den originale brugsanvisning 50

Fig. 1

Fig. 2

Technical line drawing of a spray gun pouring liquid into a container (no text or symbols)

Fig. 3

Fig. 4

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5

PLANER 650W PPM1010

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text correspond with the pictures at pages 2 + 3

Read this operators guide carefully, before using the machine. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine functions correctly. Keep this operator's guide and other enclosed documentation with the machine.

Product description

This doubly insulated electric tool is designed to be manually operated. It has an appealing shape and small dimensions, which facilitate easy transportation. It is safe and reliable when in operation. It is driven by a single phase electric motor via a V-belt. It is suitable for planing wooden beams or boards.

Contents

1. Machine information
2. Safety instructions
3. Operation
4. Care and maintenance

1. MACHINE INFORMATION

Technical specifications

Voltage 230 V~

Frequency 50 Hz

Power consumption 650 W

Number of revolutions, idle 16500/min

Maximum planing width 82 mm

Maximum planing depth 2.0 mm

Weight 2.8 kgs

LpA (sound pressure) 85 dB(A)

LwA (sound capacity) 96 dB(A)

Vibration value 5.359 m/s ^2

Protection class IP 20

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

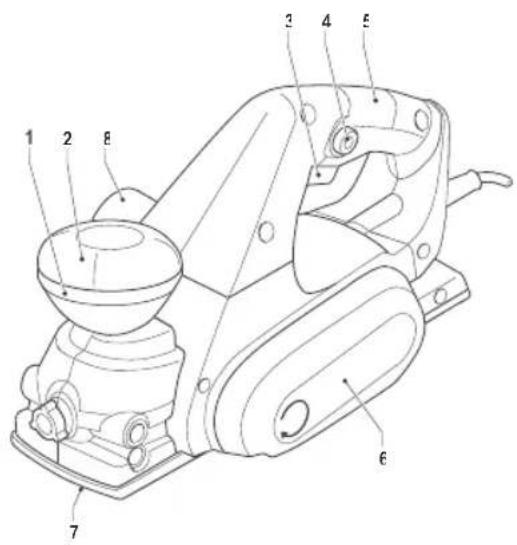

Parts list

Fig. 1 + 2

1. Control knob for adjustment of planing depth
2. Indication of planing depth
3. Operating Switch
4. Release Button
5. Handle
6. Cover, left
7. Planer shoe with V-groove
8. Dustbag connection

2. SAFETY INSTRUCTIONS

Explanation of symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Wear ear and eye protection

Wear a dust mask

Switch off the machine immediately in case of:

- Malfunction in the mains plug, power cable or damaging of cable.

•Brokenswitch.

- Smoke or stench of scorched insulation.

Wait for the cutter to stop before setting the tool down. An exposed cutter may engage the surface leading to possible loss of control and serious injury.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions. Keep these instructions in a safe place!

Always check that the power supply corresponds to the voltage on the rating plate.

Class II machine. Your machine is double insulated; therefore no earthwire is required.

When replacing old cables or plugs

Throw away old cables or plugs immediately as soon as new ones have replaced these. It is dangerous to put the plug of a loose cable into the socket outlet.

When using extension cables

Only use an approved extension cable that is suitable for the machine's power. The cores must have a diameter of at least 1.5 mm2. When the extension cable is on a reel, unroll the cable in its entirety.

3. OPERATION

Before setting up, repair or maintenance of the appliance you must always turn off the operating switch and pull out the mains plug!

Before initial operation

• Check if the rated voltage and rated frequency of the mains supply correspond to the details of the type plate.
• Place the workbench on a stable and even base.

Operation

Fig. 1

- To adjust the planing depth, turn the control knob (1) in a clockwise direction. On the control knob there is a pointer which shows the planing depth in mm. Turn the control knob until the desired planing depth is shown.

Never alter the planing depth during an operating cycle, otherwise this will result in an uneven surface. To prevent operating errors turn the control knob back to "0" when planing is completed.

• Secure the work piece with clamps or similar.
• Place the front sole on the edge of the work piece in such a way that the planing tool does not yet touch the work piece. The work piece must be level.

Switching on and off

• This machine is equipped with a safety switch.
• Start the machine by pressing the "lock off" button (to disengage the switch) and switch on the machine.
• The planer is now switched on and you can let go of the release button.
• Always hold the planer with both hands on the handles, so as to gain the best possible control

over your planing operations. Besides you do not risk becoming in touch with the moving parts.

• When the machine has reached full speed it can be pushed to the front over the work piece. At the beginning of the planing operation, put some pressure on the front and at the end of the operation, on the rear of the appliance. This results in the appliance remaining flat on the work piece and prevents the corners from getting rounded off.
• To obtain a level and smooth surface use a greater planing depth when rough planing and a lesser planing depth when planing a layer. Hold the electric tool straight during the operation, otherwise you will obtain an uneven surface. After the operation switch off the electric tool and remove the mains plug.

Bevelling edges

Fig. 1

The V-groove in the planer shoe allows easy beveling of workpiece edges. Place the planer with the V-groove (7) onto the edge of the workpiece and guide along the edge.

Warning! Use spindle lock only in stand still mode.

• Take care that your hand never comes in contact with the work piece during the operation.
- Only use the electric plane on the upper side of the work piece, never from below or from the side.
- Store the appliance only after it has come to a complete standstill.
- Use a suction device to suck off wood shavings or dust. For this use the connecting pipe and connect a suction pipe to it.
- Use a holding device to work on small work pieces.

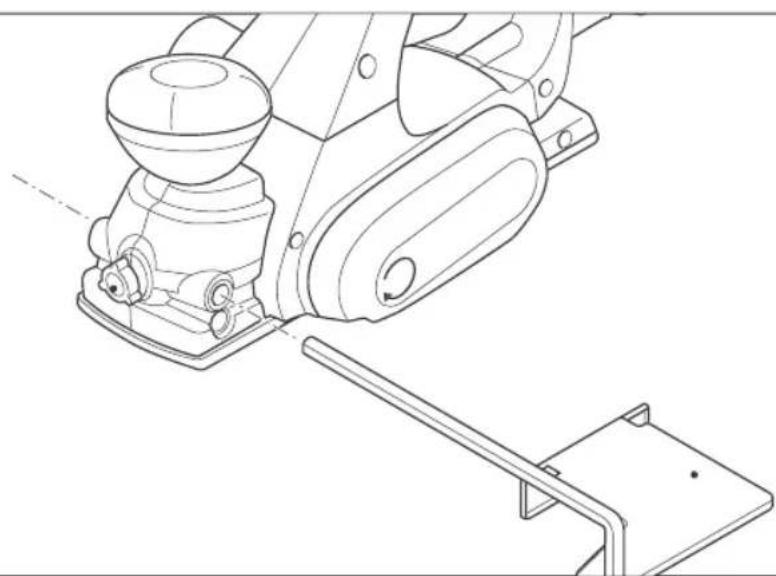

Fitting the rip fence

Fig.4

• Loosen knob (9).
• Insert the rip fence into the slots provided.
• Set the correct cut width and tighten the knob (9).

4. CARE & MAINTENANCE

Before undertaking any care or maintenance always remove the mains plug from the socket.

The planing tool becomes worn after a period of operation. If you use a blunt or damaged planing tool operational efficiency is reduced and the electric motor might become overloaded. Check the planing tool regularly with regard to wear or damage. Depending on its condition, the planing tool will have to be replaced.

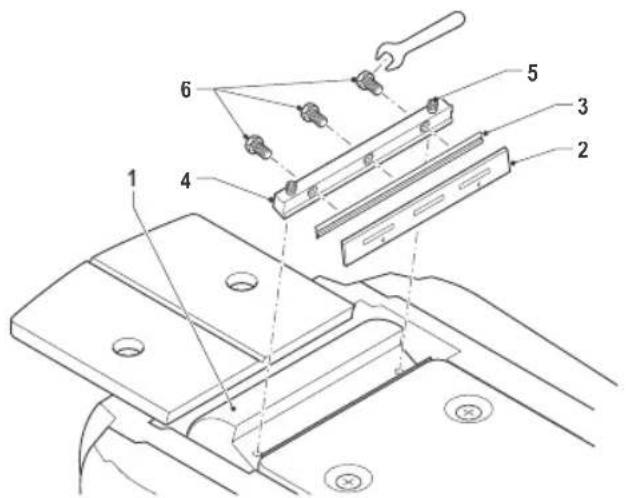

Removal of plane blade

Fig. 3

Use the enclosed open-jawed spanner (Accessories). First unscrew the three clamping screws (6) with the open-jawed spanner and remove the plane blade (3), the plane blade holder (2) and the plane blade support (4) from the holding shaft (1).

Installation of plane blade

Fig. 3

Take the new plane blade (3) and position it between the plane blade support (4) and the plane blade holder (2). Now turn the clamping screws (6) as far as possible into the plane blade support. But not so far that the plane blade and the plane blade holder become detached again from the plane blade support. Afterwards put the plane blade, plane blade holder and plane blade support together into the holding shaft. The plane blade support, plane blade and plane blade holder will now be fastened together in the holding shaft by releasing the clamping screws with the open-jawed spanner and thus the plane blade, plane blade support and plane blade holder are clamped in position.

Attention! Unscrew clamping screws as fas as possible so that a sufficient attachment is ensured.

Warning!

- When installing and removing the plane blade, care has to be taken that all parts (plane

blade, plane blade holder, plane blade support and holding shaft) are clean. Dirt or possible existing layers of dirt have to be removed.

- The Allen screws (5) are secured with an adhesive. These screws must not be adjusted. The position of these screws may only be altered by the manufacturer!

Check regularly if the clamping screws are tightened firmly. Always tighten screws firmly.

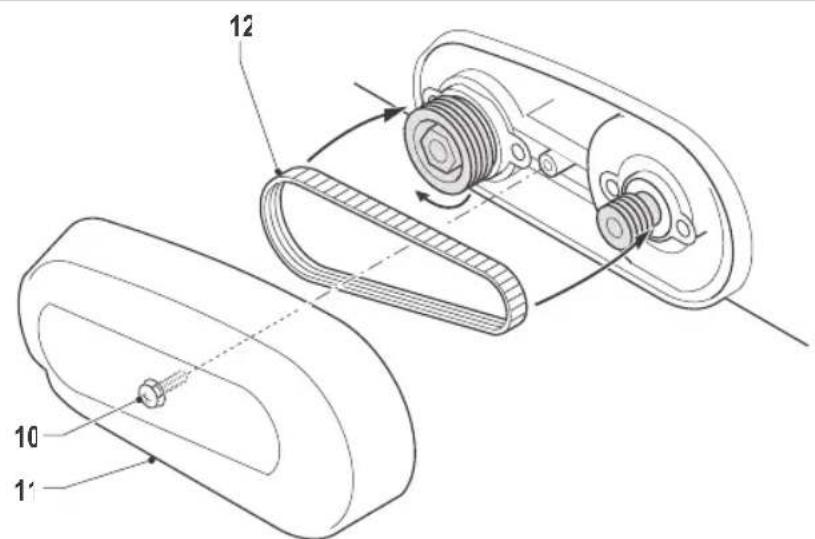

Replacing the drive belt

Fig. 5

• Loosen screw (10) and take off the belt cover (11).
• Remove worn drive belt (12).
• Before assembling a new drive belt, clean both belt pulleys.
• Place the new drive belt on the small pulley first and then work it on the large pulley by hand while rotating.
• Reattach the belt cover (11) and tighten with the screw (10).

Troubleshooting

1. The operating switch is switched on, but the motor is not working.

• The electric circuit is broken.
- Have the electric circuit repaired.
- Wires in the mains plug or in the socket are loose.
- Have socket and plug checked or repaired.
- The switch is faulty.
- Have the switch replaced.

2. The operating switch is switched on, but unusual noises can be heard, the motor is not working or only very slowly.

• Switch contact has fused.
  • Have the switch replaced.
• Componentjammed.
• Have the electric tool checked or repaired.
• Too much thrust, as a result the motor is dragging.
• Use less thrust during the task.

3. Motor gets hot.

• Foreign substances have got inside the motor.
- Have the foreign substances removed.

• Lack of or contaminated lubricating grease.
• Have lubricating grease applied or replaced.
• Pressure too high.
  • Use less thrust during the task
• Planing tool blunt.
• Replace the planing tool.

4. The motor is working, but the planing tool is not moving.

•V-beltworn.

- Have V-belt replaced.

5. Frequent or strong sparks on the commutator.

• Short circuit on the armature.
• Have the armature replaced.
  • Carbon brushes worn out or jammed
• Have the carbon brushes checked.
• Rough running of the commutator.
• Have the surface of the commutator cleaned or ground

For your own safety, never remove parts or accessories of the electric tool during operation. In case of fault or damage have the electric tool repaired only by a specialist workshop or by the manufacturer.

Use only original spare parts and original plane blades!

Maintenance

Make sure that the plug is removed from the mains when carrying out maintenance work on the motor.

The machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents

such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

ENVIRONMENT

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

GUARANTEE

The guarantee conditions can be found on the separately enclosed guarantee card.

HOBELMASCHINE 650W PPM1010

The numbers in the text refer to the diagrams on pages 2 - 3.

4. SERVICE OG VEDLIKEHOLD

CE

DECLARATION OF CONFORMITY PPM1010 - PLANER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpísmi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parla mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārlās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8. juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідас наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότιπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένων επικιδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(MK) Изјавуваме со наша целосна одговорност дека производот е во согласност со Смерницата 2011/65/EU на Европскит parlамент и и во согласност според Советот од 9 јни за ограничување на користење на одредени опасни супстанции во електричната и электронската опрема според следните стандарди и регулативи.

EN 62841-1, EN 6284-2-14, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3,

2006/42/EC, 2014/30/EU, 2012/19/EU, 2011/65/EU

Zwolle, 01-09-2019

H.G.F Rosberg CEO FERM

FERM - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
