USER MANUAL PETIT GOURMET TERRAILLON

You have just bought this Petit Terraillon product and we thank you for your purchase. We hope you enjoy using the product. In order to be completely satisfied, we recommend you read these instructions carefully.

Petit Terraillon's Petit Gourmet food processor offers you all the functions you need to prepare your baby's meals. It can be used as a warmer for bottles and small jars, a steamer and a mixer, following your baby's progress, from the first bottle right through to solid food.

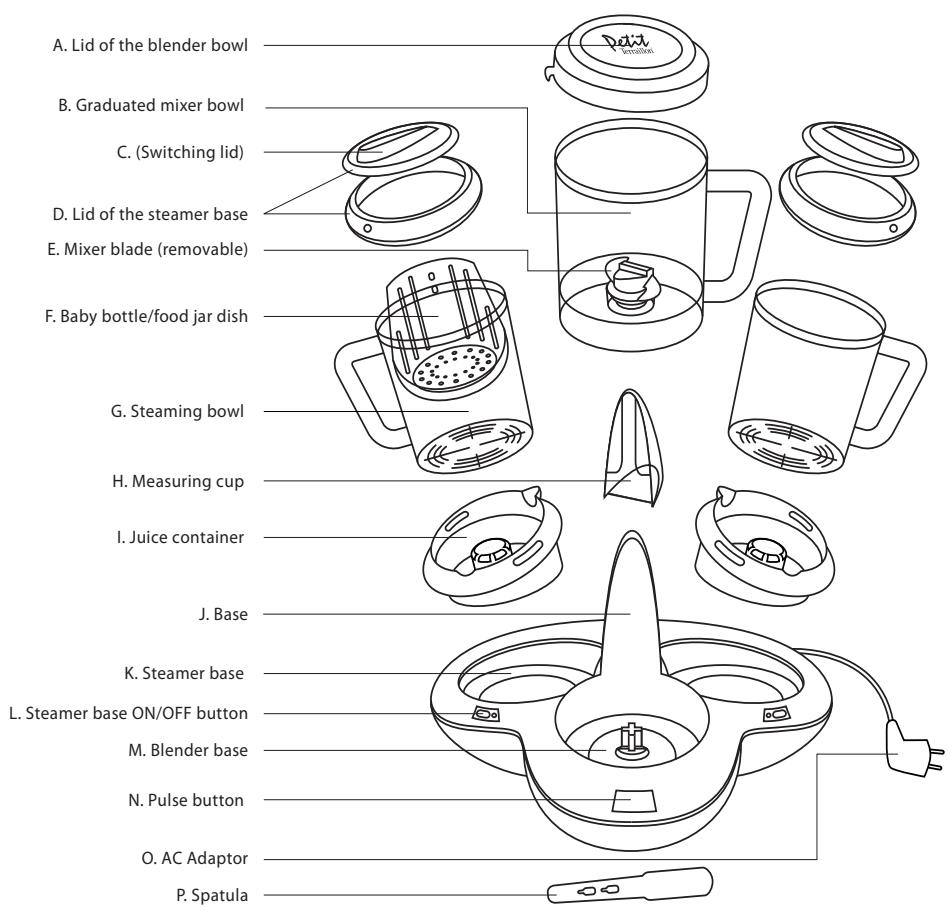

DESCRIPTION OF PRODUCT

ENTRETIEN

• Wash all items except the Petit Gourmet's bases (J, K and M) with soap and water before using for the first time.
• Clean the Petit Gourmet's base (J) with a damp cloth then wipe dry.
• Clean the appliance after every use.
• Never immerse the motor unit in water.
• Never use bleach or chemical sterilising solutions/tablets in the appliance.
• Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol, acetone or alcohol to clean the appliance.
• Clean the parts that have come into contact with food in hot water with some washing-up liquid immediately after use. All parts, except the motor unit, can also be cleaned in the dishwasher.
• After every use, clean the steamer bases (K) with a damp sponge, remove any residue, then dry the bases.
• The elements underneath the steaming bowls are removable for easier cleaning.
• Take care not to lose the mixer blade connector.
• Do not use abrasive items for wiping (abrasive detergents, scourers, etc.)
• Do not immerse the unit in water or any other liquid.
• Before cleaning, unplug the appliance and let it cool down.
• Wipe all plugs with a dry cloth.
• To remove any limescale, pour 250ml of white vinegar into each of the two steamer bases (K) and leave it to act. Rinse well and wipe with a soft damp cloth (do this after every fifteen or so uses).

SAFETY

• This appliance is intended for domestic use only.
• To avoid damaging the appliance, check that the voltage given on the appliance is identical to that of the usage location.
• To avoid all risk of electrocution, fire or other damage, never use accessories or items from other manufacturers or which have not been approved by Petit Terraillon.
• Unplug the appliance before cleaning or storing and after each use.
• Never immerse the appliance in water or other liquids. Wipe the electrical components with a dry cloth.
• Do not use the appliance if the power lead, plug or any other items are damaged: never attempt to dismantle the appliance. Only the manufacturer, your supplier's after-sales service or an approved technician should carry out any repairs required.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance out of the reach of children.
• Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
• If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
• The blades are very sharp. Handle with caution by holding them by the plastic part only, including when cleaning.
• The appliance becomes very hot during steaming and may cause burns when touched. Only lift the steaming bowls by their handles.
• Beware of hot steam that comes out of the bowls during steaming and when you remove their lids.
  Always use the appliance on a flat surface.
• Never place near a source of heat such as an oven, cooker or heater.
• Never let the appliance operate unattended.

• Always unplug the appliance before you assemble or disassemble any of the parts and before you clean it.
  Always unplug the appliance and let it cool down before you clean it.

• Never use the blender bowl or any other part of the appliance in a microwave, as the metal parts of the bowl handle and blade unit are not suitable for this use.

• Never sterilise the bowls or any other part of the appliance in a steriliser or in a microwave, as the metal part of the bowl handle and blade unit are not suitable for this use.
• Make sure that you do not overfill the steamer bases (100 ml). Fill the steamer base using the blender bowl and make sure you do not exceed the maximum level indicated on the blender bowl ("Max - 100 ml")
• When you blend liquids, do not exceed the maximum level indicated on the bowl ( Wol Max).
• Do not lift and move the appliance while it is operating.
• Never refill the steamer base during the steaming process, as hot water and steam may come out of the appliance as a result.
• Never connect this appliance to a timer switch or remote control system in order to avoid a hazardous situation.
• Always check the temperature of the baby food on the back of your hand before you feed your baby.
• Always check the consistency of the baby food. Make sure there are no chunks in the food.
• Only use the spatula supplied to take the food out of the bowls.
• Regular descaling prevents damage to the appliance.

Keep these instructions in a safe place for future consultation.

GENERAL USAGE INFORMATION

The Petit Gourmet is made up of 2 steamers and 1 mixer. The 2 steamers work independently of one another. They can both steam or heat food as well as warm bottles or small jars.

• The heating/cooking time is determined automatically by the quantity of water poured into the steamer base (K).

• The appliance switches off automatically once all the water has evaporated. - Use the recommended quantities of water:

• To heat up a bottle or small jar: use the measuring cup (H).
• To steam or warm food: use the blender bowl and refer to the table below (page 15).

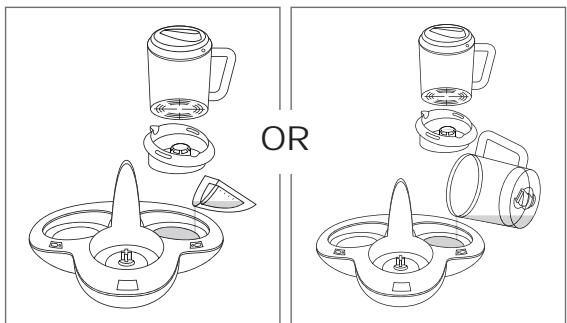

Filling the steamer base

• Never use the appliance when empty. - Never put anything else than water in the water tank. - If there is water left in the steam bases, empty this out after each use. - Certain items may still be hot after use. - To avoid any risk of burns when handling your baby's food, leave it to cool for about 2 minutes before removing it from the bowl. - To avoid any risk of burns, keep well clear of the steam outlet while the appliance is in operation. - Always make sure that the lid has cooled down after steaming before you open it. - Wait at least 10 minutes before turning the appliance back on between each use.

• Before using the mixer, ensure that the mixer bowl has been correctly locked onto its base, and that the lid is in the secure position (turned anti-clockwise) If the bowl or lid are not fully in place, the safety lock on the bowl and lid will prevent the appliance from operating.

Security of the blender bowl

Security of the blender bowl cover

THIS APPLIANCE IS NOT INTENDED FOR:

Defrosting food
- Steaming frozen food
- Steaming already blended food
- Cooking rice and pasta
- Blending ingredients first and then steaming them
Heating up fluids, e.g. soup or water
- Keeping food warm for several hours

The appliance is not intended for chopping hard ingredients such as ice cubes and sugar cubes.

JUICE CONTAINER (I)

Any juice from food will flow into the juice container as it is cooked and can be recovered at the end of the cycle.

Remove the juice container using the spatula (P) which slides between the sides of the container and measure the juice to decant according to the desired mixture texture.

Overview of the product's different stages of operation

Cycle	Indicator light
On/Off button (mains-connected and standby mode)	All lights are lit.
Cooking, heating, reheating cycle	The light flashes slowly until the cycle stops automatically or is ended manually.
End of cycle (standby mode)	The light flashes quickly for around 15 seconds then stays permanently lit.
Problem with the appliance	The light flashes quickly. Do not use the appliance and contact the store where you purchased it.

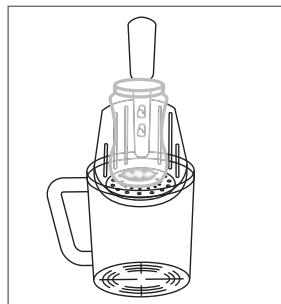

HEATING BOTTLES AND SMALL JARS FUNCTION

1 - Take the steaming bowl of your choice (G) out of the steamer, along with the juice container (I) using the spatula (P).
2 - Fill up the measuring cup (H) to the line giving the volume of water/milk to heat and pour the water into the steamer base (K). To reheat small jars of 130g, fill the measuring cup up to the small jar line.
3 - Place the juice container and the steaming bowl back on their base.
4 - Place the bottle/small jar dish (F) containing the bottle or small jar to heat in the corresponding steaming bowl (G) and place the lid back on the bowl. If the bottle is higher up than the bowl, remove the bottle switching lid (C) and put the lid back on the steamer bowl. In this way, the lid bypasses the bottle. Plug into the mains.
5 - Press the On/Off button on the corresponding steamer base (L). Wait for the operation to end.
6 - To avoid burning yourself, take out the bottle dish containing the bottle or small jar using the spatula. Unplug the appliance from the mains. To avoid any risk of burning, test the temperature of the bottle milk on the inside of your wrist or the small jar before giving it to your baby. Clean the appliance once it has cooled down.

Note: the indications on the measuring cup apply to bottles at room temperature.

STEAM COOKING/REHEATING (chopped food) FUNCTIONS

These functions are recommended for preparing meals for babies over 4 months.

Refer to the table below for recommended heating and reheating times.

We recommend dicing food into small cubes of around 10mm

1 - Remove the steaming bowl of your choice (G) from the steamer, along with the juice container (I) using the spatula (P).
2 - Pour the required quantity of water into the steamer base (K) using the graduated mixer bowl (B).
3 - Replace the juice container and steaming bowl onto their base.
4 - Place the ingredients in the steaming bowl and replace the lid on the bowl. Plug into the mains
5 - Press the On/Off button on the corresponding steamer base (L). Wait for the operation to end. Unplug the appliance from the mains. Wait for about 2 minutes.
6 - Hold the steaming bowl by its handle with care, to avoid burning. Pour the food into a container or directly into the mixer bowl using the spatula.

Take care, since water can fall out of the bowl during this operation.

Clean the appliance once it has cooled down.

Note: Do not steam frozen ingredients because the appliance cannot heat up frozen food to the temperature required for steaming. Always defrost frozen solid ingredients before you steam them in this appliance. Shake off any excess water from the defrosted ingredients before you put them in the bowl.

Reference table for cooking and reheating food (for around 200g of food)

Type of food	Recommended amount of water
	50 ml	75 ml	100 ml
Vegetables	Reheating
Carrots			•
Potatoes			•
Broccoli		•
Courgettes		•
Peas			•
Green beans		•
Meat
Red			•
White			•
Fish			•
Fruit
Apples		•
Pears		•
Bananas		•
Cooking time	about 10 mins	about 15 mins	about 20 mins

BLENDER FUNCTION

1 - Ensure that the mixer blade (E) is sitting on its axis located at the centre of the mixer bowl (B).
2 - Place the food in the mixer bowl. The food must already have been diced into approximately 10 mm cubes. Do not exceed the maximum load as indicated on the mixer bowl.
3 - Lock the mixer bowl onto its base then fit the mixer bowl lid (A). Plug into the mains.
4 - Press the pulse button (N) for 10 seconds at a time until the food is the desired consistency.

Blender bowl : view from the top

5 - After blending 10 seconds, let it cool down to 4 minutes before starting next blending. Unplug the appliance from the mains.
6 - Once you have finished mixing, take the lid off the bowl and unlock the mixer bowl using its handle. Remove the food with the spatula. Clean all the accessories for the next time.

Notes :

• If the ingredients stick to the wall of the bowl, switch off the appliance and loosen them with the spatula or add some liquid.
• Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.
• If the baby food is still too solid add some fluid (e.g. cooking juice) until the baby food is soft and smooth.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

WARRANTY

This product offers a warranty against defective material and workmanship. During this period, such defects shall be repaired free of charge (proof of purchase should be presented whenever you have a complaint during the warranty period). This warranty does not cover damage caused by accidents, misuse or negligence.

In case of complaint, please contact the shop from which you bought the device before contacting anyone else.

SPECIFICATIONS

For the blender:

Voltage: 220-240V ~ 50-60Hz

Power: 130W

Mixer bowl capacity: 700 ml

For the 2 steamers:

Voltage:220-240V\~50-60Hz

Power: 270W x 2

Steaming bowl capacity: 2 × 600 ml
