VersaFlame 2200 - Slicer DREMEL - Free user manual and instructions

Product Type	Butane-powered soldering iron/heat tool (categorized as slicer)
Brand	Dremel
Model	VersaFlame 2200
Power Source	Butane gas (refillable)
Temperature Range	Approx. 200°C to 1300°C (392°F to 2372°F)
Flame Control	Variable temperature control with adjustable flame
Ignition	Piezo electric ignition (no batteries required)
Fuel Capacity	Approx. 21 ml butane gas
Operating Time	Up to 2 hours per fill (depending on heat setting)
Weight	Approx. 180 g (6.3 oz) without gas
Dimensions (L x W x H)	Approx. 230 x 45 x 30 mm (9.1 x 1.8 x 1.2 in)
Included Accessories	Soldering tip, hot air tip, deflector, spark lighter, wrench, storage case
Main Applications	Soldering, heat shrinking, brazing, cutting, stripping, shrink tubing, thawing
Safety Features	Child-resistant lock, safety stand, automatic shut-off when not in use
Maintenance	Clean tips regularly, purge before refilling, store in cool dry place
Repairability	Replaceable tips and seals; serviceable by authorized centers
Certifications	CE, RoHS

Frequently Asked Questions - VersaFlame 2200 DREMEL

How do I refill the VersaFlame 2200 with butane?

Ensure the tool is off and cool. Purge any remaining gas by pressing the valve. Then, use a butane canister with the appropriate adapter, press firmly into the fill valve for about 5-10 seconds. Let it sit for a minute before use.

What type of butane should I use?

Use high-purity butane (preferably triple-refined) for best performance. Avoid low-quality gas with impurities that can clog the nozzle.

How do I adjust the flame size?

Turn the flame adjustment dial located near the base. Rotate clockwise to increase flame, counterclockwise to decrease.

Why won't my VersaFlame 2200 ignite?

Check if the gas tank is empty. Ensure the child lock is disengaged (push the lock button). Try purging and refilling. Clean the nozzle with a soft brush. If still no ignition, the piezo may need service.

Can I use the VersaFlame for soldering electronics?

Yes, with the included soldering tip. Use at lower temperatures (around 300-400°C) to avoid damaging components. It is suitable for medium-size joints.

How do I change the tip?

Allow the tool to cool completely. Unscrew the tip using the provided wrench. Screw on the new tip hand-tight, then secure with the wrench. Do not overtighten.

What is the maximum temperature?

The VersaFlame 2200 can reach up to 1300°C (2372°F) with the flame adjustment fully open. Use caution at high temperatures.

How do I store the VersaFlame safely?

Purge all gas before long-term storage. Store in a cool, dry place away from heat sources and children. Keep the safety cap on.

Is the VersaFlame suitable for cutting?

Yes, with the hot air tip or flame, it can cut ropes, plastics, and light metals. For thicker materials, a dedicated tool is recommended.

What safety precautions should I take?

Always use the safety stand when idle. Keep away from flammable materials. Wear heat-resistant gloves. Do not touch the metal nozzle during or after use. Allow to cool before storage.

USER MANUAL VersaFlame 2200 DREMEL

Illustration of a Dremel Baser torch with a pointed tip and base (no text or symbols on the tool itself)

GB Original instructions 4
DE Übersetzung der originalbedienungsanleitung 6
FR Traduction de la notice originale 9
IT Traduzione delle istruzioni originali 12
NL Vertaling van de originele gebruiksaanwijzing 15
DA Oversættelse af betjeningsvejledning 18
SV Översättning av originalinstruktioner 21
NO Oversettelse av originalinstruksjonene 24
FI Käännös alkuperäisistä ohjeista 27
ES Traducción de las instrucciones originales 29
PT Tradução das instruções originais 32
EL Μετάφραση των πρωτότυπων οδηγιών 35
TR Orjinal yönergelerin çevirisi 38
CS Překlad originálních pokynů 41

PL Tłumaczenie oryginalnej instrukcji 44
BG Превод на оригиналните инструкции 47
HU Az eredeti előírások fordítása 50
RO Traducere a instructiunilor originale 53
RU Перевод оригинальных инструкций 56
KZ Тупнуска нускаулар аудармасы 59
ET Algsete juhiste tõlge 62
LT Originalių instrukcijų vertimas 65
SL Prevod originalnih navodil 68
LV Originālās lietošanas pamācības tulkojums 71
HR Prijevod originalnih uputa 74
SR Превод оригиналног упутства 76
SK Preklad pôvodných pokynov 79
UK Переклад головних інструкцій 82
AR 88 ترجمة التعليمات ال Appalachian

EU

Illustration of a hand using a pipette to apply liquid into a cylindrical container (no text or symbols visible)

Illustration of a hand inserting a plug into a terminal block (no text or symbols)

Illustration of hands using a tool to adjust a component, with no visible text or symbols

Diagram of a mechanical device with a lever and handle assembly (no text or symbols)

USED SYMBOLS

READ THESE INSTRUCTIONS

USE SAFETY EQUIPMENT. ALWAYS WEAR EYE PROTECTION.

Before using the Dremel VersaFlame, make sure you read and understand this manual completely.

READ ALL INSTRUCTIONS.

Failure to follow all instructions listed below may result in fire and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not keep combustible materials near the tool.
c. Keep children and bystanders away while operating the tool. Distractions can cause you to lose control.
d. Only use the tool outdoors or in well-ventilated rooms.

PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating tools may result in serious personal injury.

b.

Use safety equipment. Always wear eye protection. Safety equipment such as a dust mask, non-slip safety shoes, hard hat and hearing protection used for relevant conditions personal injuries.

c. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

d. Dress properly. There is a danger of burning yourself with the flame or with liquid soldering tin. Wear protective clothing to protect yourself against burns. Keep your hair, clothing and gloves away from the flame. Loose clothes or long hair can catch fire.

e. Secure the workpiece. Use a clamping device to hold the workpiece. This allows you to use both hands to operate the tool.
f. Keep this manual for future reference.
g. Do not use the appliance when it is leaking (gas smell), shows any sign of damage or is malfunctioning.
h. If the appliance is leaking (gas smell) immediately take it outside and check the leak-tightness without a flame. Always use soapsuds. (Re)filling the gas tank must be done in a well-ventilated place far away from any possible sources of ignition, open flames, pilot lights, electrical cookware and away from other persons. Be sure to observe the safety instructions and warning notices on the refill container. Do not make any modifications to the tool.

i. Do not work materials containing asbestos (asbestos is considered carcinogenic).

j. Take protective measures when during work dust can develop that is harmful to one's health, combustible or explosive (some dusts are considered carcinogenic); wear a dust mask and work with dust/ chip extraction when connectable.

TOOL USE AND CARE

a. Store your tool in an appropriate place with an ambient temperature between 10^irc C and 50^irc C. Allow your tool to fully cool down before storing. Unused tools should be stored away from children in a dry location. Switch off all unused tools.

b.

Always switch off the tool and allow it to fully cool down

before attaching or removing the accessories or before cleaning.

C.

Extremely flammable gas under pressure.

d.

Do not use near sparks or an open flame.

e.

Do not puncture or incinerate the gas tank or store at a

f.

Keep out of reach of children.

g.

Do not try to disassemble this unit.

SERVICE

a. Have your tool serviced by a qualified repair expert using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ENVIRONMENT

DISPOSAL

The tool, accessories and packaging should be sorted for environment-friendly recycling.

SPECIFICATIONS

GENERAL SPECIFICATIONS

Description.... Dremel VersaFlame

Model number 2200

Power source .... Refined butane gas

Gas tank capacity .... 42 ml / 22 grams

Run time ± 75 minutes (highest setting)

Heat-up time ± 25 seconds (soldering tip)

Nominal heat input 16 g/h

Cool-down time 17 min (< 25°C)

Temperature 1200°C (open flame)

680 - 1000°C (hot air)

550°C (soldering tip)

Weight 227 grams (empty tool)

ASSEMBLY

WARNING

ALWAYS SWITCH OFF THE TOOL AND ALLOW IT TO FULLY COOL DOWN

BEFORE ATTACHING OR REMOVING ACCESSORIES.

GENERAL

The Dremel VersaFlame is a high quality tool that can be used for hard or soft soldering. It can also be used to heat up and/or ignite flammable and non-flammable materials. The Dremel VersaFlame emits an adjustable flame with a temperature of up to 1200°C. It has an integrated ignition mechanism.

FIGURE 1

1. Soldering tip
2. Catalyst
3. Burner
4. Air control lever
5. Ignition button
6. Child safety lock (stopper)
7. Lock button (for continuous working)
8. Flame control lever
9. Gas tank
10. Base
11. Filling valve
12. Flame extension piece
13. Deflector

(RE)FILLING THE GAS TANK

The Dremel VersaFlame may only be filled and operated with liquid butane gas. Make sure the gas you are using is refined butane gas that can also be used for lighters.

1. Hold the tool and the gas refill container as shown in Figure 2.
2. Fill the gas tank with liquid butane gas observing the instructions on the refill container. The gas tank is full when liquid butane gas escapes through the filling valve. In that case, there is no more air present in the gas tank.

WARNING

DO NOT OVERFILL THE GAS TANK!

GETTING STARTED

USE

Familiarize yourself with the components of the Dremel VersaFlame (see Figure 1).

The Dremel VersaFlame is equipped with a child-safety mechanism. This mechanism requires a two-step operation to protect against accidental ignition.

To switch on and operate the Dremel VersaFlame, follow the steps in Figure 3.

NOTE: The air control lever must be in the open position (Figure 3a). The lock button must be in the forward position for the tool to be able to ignite (Figure 3b).

1. Hold the Dremel VersaFlame in one hand.
2. With your other hand move the child-safety lock to the left (Figure 3c).
3. Slowly press the ignition button and hold it down (Figure 3d).
4. When using the catalyst: Close the air control lever for 2 seconds and re-open it to prevent the catalyst from being overheated (Figure 3e).

NOTE: After ignition, make sure that the tool is switched on by checking that the catalyst starts to glow.

1. To switch off the Dremel VersaFlame, release the ignition button. This will immediately shut off the flow of butane gas.

If the Dremel VersaFlame is to be used continuously for a prolonged period of time, holding down the ignition button can become uncomfortable. To operate the Dremel VersaFlame continuously, follow the steps in Figure 4.

1. Switch on the Dremel VersaFlame as described above.

2. Slide the lock button backward (Figure 4a) and release the ignition button (Figure 4b).

3. To switch off the Dremel VersaFlame, slide the lock button forward. This will immediately stop the flow of butane gas.

USING WITH AN OPEN FLAME

The Dremel VersaFlame can only be used with an open flame if the catalyst is removed.

FLAME LENGTH AND TEMPERATURE ADJUSTMENT

Move the flame control lever forward to increase the flame length and temperature, or backward to decrease the flame length and temperature.

When using an open flame, the Dremel VersaFlame is at the desired temperature immediately after ignition.

Please allow ± 25 seconds of heat-up time for the soldering tip.

USING THE ACCESSORIES

WARNING

ALWAYS SWITCH OFF THE TOOL AND ALLOW IT TO FULLY COOL DOWN

BEFORE ATTACHING OR REMOVING ACCESSORIES.

The Dremel VersaFlame is delivered with a catalyst, a soldering tip, a flame extension piece and a deflector.

CATALYST (Figure 1 part 2)

The catalyst generates hot air of 680^irc C: Used for melting plastics and other heat-sensitive materials.

1. Slide the narrow part of the catalyst into the burner. Make sure the slot of the catalyst is aligned with the white indicator mark. See Figure 5.

2. To remove the catalyst, slide it out of the burner.

SOLDERING TIP (Figure 1 part 1)

The soldering tip (to be used on the catalyst): used for regular soldering activities, using soldering tin.

1. Screw the soldering tip in clockwise direction onto the catalyst. Secure the tip using the 7 mm wrench (provided). See Figure 6.

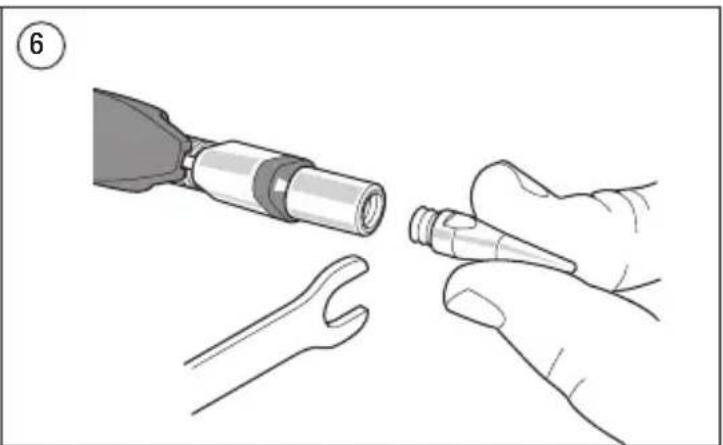

2. To remove the soldering tip, use the 7 mm wrench to unscrew the tip in counter-clockwise direction.

FLAME EXTENSION PIECE (Figure 1 part 12)

The flame extension piece generates hot air of approx. 1000°C: Used for heating larger surfaces.

1. Loosen the screw to fit the front tip of VersaFlame (screwdriver not included). See Figure 7.

DEFLECTOR (Figure 1 part 13)

To be used with the flame extension piece. See Figure 7.

MAINTENANCE

CLEANING THE TOOL

WARNING

ALWAYS SWITCH OFF THE TOOL AND ALLOW IT TO FULLY COOL DOWN

BEFORE CLEANING.

1. Clean the exterior of the tool with a clean cloth. If necessary, use a damp cloth with a small amount of neutral detergent.

2. After soldering or in case of excess solder on the soldering tip, wipe the tip on a soldering sponge soaked in some water when it is still hot.

3. Never clean the soldering tip with sandpaper as this reduces its lifetime.

SERVICE AND WARRANTY

This DREMEL product is guaranteed in accordance with statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling will not be covered by the guarantee.

In case of a complaint, send the tool undismantled together with proof of purchase to your dealer.

CONTACT DREMEL

For more information on the Dremel assortment, support and hotline, go to www.dremel.com.

Dremel, Konijnenberg 60, 4825 BD Breda, The Netherlands
