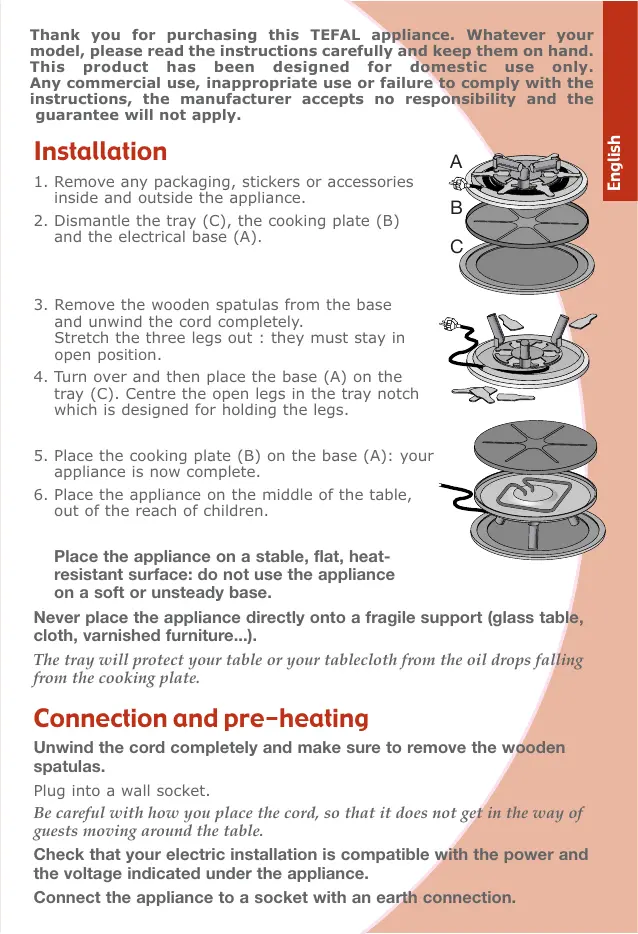

Thank you for purchasing this TEFAL appliance. Whatever your model, please read the instructions carefully and keep them on hand. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Installation

1. Remove any packaging, stickers or accessories inside and outside the appliance.

2. Dismantle the tray (C), the cooking plate (B) and the electrical base (A).

3. Remove the wooden spatulas from the base and unwind the cord completely. Stretch the three legs out : they must stay in open position.

4. Turn over and then place the base (A) on the tray (C). Centre the open legs in the tray notch which is designed for holding the legs.

5. Place the cooking plate (B) on the base (A): your appliance is now complete.

6. Place the appliance on the middle of the table, out of the reach of children.

Place the appliance on a stable, flat, heat-resistant surface: do not use the appliance on a soft or unsteady base.

A B C

Illustration of a mechanical device with gears and tools, no text or symbols present

Illustration of a closed notebook with a square object inside, placed on top (no text or symbols)

Never place the appliance directly onto a fragile support (glass table, cloth, varnished furniture...).

The tray will protect your table or your tablecloth from the oil drops falling from the cooking plate.

Connection and pre-heating

Unwind the cord completely and make sure to remove the wooden spatulas.

Plug into a wall socket.

Be careful with how you place the cord, so that it does not get in the way of guests moving around the table.

Check that your electric installation is compatible with the power and the voltage indicated under the appliance.

Connect the appliance to a socket with an earth connection.

Connection and pre-heating, continued

If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. The appliance works once plugged into the wall socket.

Allow the appliance to pre-heat for about 15 minutes.

Never plug the appliance in when not in use.

Do not leave the appliance switched on while unattended.

You may notice a slight smell and some smoke on first use, this is normal.

Cooking

After pre-heating, the appliance is ready to be used :

Each guest can place a slice of cheese on the cooking plate, in one of the six imprints designed for the cheese. Once the cheese is melted, each one moves his plate closer to the cooking plate and using the spatula, slides the cheese onto it.

Illustration of a circular fan with six blades, connected to a power outlet (no text or symbols)

During first use :

• Pour a little oil on the plates. Wipe off with an absorbant kitchen towel.
• You may notice a slight smell and some smoke on first use, this is normal.

To keep the benefits of the grill plate's non-stick coating, always use a non-stick plastic or wooden spatula.

After use

Unplug the cord from the wall socket. Leave the appliance to cool.

Clean the cooking plate, the tray and the base of the appliance with a sponge, hot water and washing up liquid.

Do not put the electrical base and the tray in the dishwasher.

The cooking plate can be put in the dishwasher.

Do not use scouring pads or hard abrasive powder.

Never immerse the appliance and the cord in water.

TEFAL reserves the right to modify the characteristics or components of its products at any time, in the interests of consumers.

Storage

Ensure the appliance is cool and unplugged before storing.

1. Place the cooking plate (B) upside down on the tray (C).
2. Turn the base (A) over, fold up the legs. Wind the cord anti-clockwise and wedge the cord in the slot designed for it.
3. Place the spatulas in their holding cavities. Place the base (A) upside down on the cooking plate (B).
4. Slide your appliance in its storage bag.

Simple 3D illustration of a circular object with six radial blades, resembling a lid or cover (no text or symbols)

Illustration of a mechanical component with a handle and central hub (no text or symbols)

Illustration of a mechanical component with a central hub and four arms (no text or symbols)

Keep the storage bag out of the reach of children.

Cleaning advice :

• We recommend that you wash your storage bag on the setting used for "delicates" in the washing machine and at low temperature.
• Warning : The storage bag may lose its colour during washing.
• Do not iron your storage bag.

Prevention of accidents in the home

For a child, even a slight burn may sometimes be serious.

As they grow up, teach your children to be careful with hot appliances in the kitchen.

If your appliance is used in the company of children, always do it under adult supervision.

Do not touch the hot surfaces of the appliance.

If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

Raclette

A good raclette is cooked with special raclette cheese. Take about 200 g of cheese per person. Cut the cheese in slices of 5 mm.

For this, you can use the Tefal special knife (not delivered with the appliance: you can buy it by your local dealer).

3D rendered image of a curved metal frame with a wavy top and horizontal base (no text or symbols)

Illustration of a mechanical component with a curved base and handle, no text or symbols present

A few recipes for 6 people :

Raclette Savoyarde

• 1.5 kg raclette cheese • 2 kg potatoes • 12 slices of ham • a few peppers
• mushrooms • 1 jar of pickles • 1 jar of pickled onions • canned baby corn

Bake potatoes in their own skins. Cut the cheese in slices, the peppers into quarters and mince the mushrooms. Place the pickles, pickled onions, corn and peppers into individual small dishes. Place a slice of cheese onto the cooking plate in one of the six imprints and leave to melt. Serve with ham, potatoes and the other garnishes.

Dried meat raclette

• 1.5 kg raclette cheese (pasteurized or with not pasteurized milk) • 12 potatoes
• 12 thin slices of dried meat • 12 slices of ham • ground nutmeg • paprika
• pepper • tomatoes • parsley

Bake potatoes in their own skins and cut them in thin slices. Place a slice of cheese on the cooking plate in one of the six imprints. Cover with potatoes then a second slice of cheese. Add a slice of dry meat. If required add any seasoning half way through cooking. Serve with ham and garnish with slices of tomato and parsley.

4 cheeses raclette

• 375 g raclette cheese (pasteurized or with not pasteurized milk) • 375 g of blue cheese • 375 g soft cheese • 375 g goat's cheese (log shape) • 1.8 kg potatoes
  • thyme • 1 jar black olives

Bake potatoes in their own skins and thinly slice. Offer the different cheeses cut into about 2cm cubes to your guests on a serving plate. Each guest can then place cubes of the cheese according to their taste onto their own section of the cooking plate. Leave the cheese to melt by stirring with the wooden spatulas to mix the flavours.

Once melted the cheese mixes can be slid onto the thin sliced potatoes, garnish with lightly sprinkled with thyme and black olives..

For U.K. users only: additional information and instructions

WIRING INSTRUCTIONS

WARNING : ALL APPLIANCES MUST BE EARTHED

IMPORTANT : the wires in this lead are coloured in accordance with the following codes.

Green and Yellow

: Earth

Blue

: Neutral

Brown

: Live

Connect the Green/Yellow wire to the terminal in the plug marked "E" (or by the earth symbol) or coloured Green.

Connect the Brown wire to the terminal in the plug marked "L" or coloured Red.

Connect the Blue wire to the terminal in the plug marked "N" or coloured Black.

Seek professional advice if you are unsure of the correct procedure for the above.

ABOUT YOUR FACTORY FITTED PLUG

The cord is already fitted with a plug incorporating an appropriate fuse. If the plug does not fit your socket outlet, see paragraph below. Should you need to replace the fuse in the plug supplied, an appropriately rated approved BS 1362 fuse must be used (refer to electrical specification for fuse rating).

If the plug supplied does not fit your socket outlet, it should be removed from the mains lead and disposed of safely. The flexible cord insulation should be stripped back as appropriate and a suitable alternative plug fitted. The replacement plug must be equipped with an appropriate fuse. If the plug has external access to the fuse (non-rewirable type plug) please note that the fuse cover is an important part of the plug. Please ensure that it is always refitted correctly. If you lose this cover, please do not use the plug. You may contact our helpline for a replacement.

For any problems or queries, please contact our helpline :

0845 602 1454 - UK (calls charged at local rate)

[phone] - Ireland

or consult our website: www.tefal.co.uk

N: Blue E: Green and or black yellow or green

L: Brown or red Fit correct fuse(13 amp) Use cable gripper
