USER MANUAL GA 18 L GUDE

Icon of an open book inside a black circle (no text or symbols)

Deutsch D 4

Translation of original operating instructions

ASH VACUUM CLEANER

Français F 12

Black industrial vacuum cleaner with attached hose and handle (no visible text or symbols)

3

Person operating a black Gude industrial machine with visible branding and motion lines (no text or symbols on the device itself)

4

Close-up of hands handling a mesh-coated container in a black pot (no text or symbols visible)

5

Close-up of a hand holding a coiled black material sample on a concrete surface, with two white arrows pointing to the edges (no text or symbols visible)

Einleitung

To enjoy your new machine as long as possible, please read carefully the Operating Instructions and the attached safety instructions before using it. Further, we recommend keeping the Operating Instructions to recall the product features in the future.

Within the continuous product development, we reserve the right to make technical changes to improve it.

Any reprints, even partial, are subject to approval.

This document represents translation of the original Operating Instructions.

Supply includes

Take the machine out of the transport package and check whether there are the following parts:

Pic. 1:

1. Suction tube
2. Tank
3. Suction branch
4. Engine
5. Suction hose
6. On/off
7. Filter insert

Please contact your dealer if any parts are missing or are damaged.

Technical specification

Ash vacuum cleaner #16737

Voltage/frequency: 230 V\~50 Hz

Engine power: 1200 W/P1

Tank capacity: 18

Suction hose: ∅ 28 mm

Suction hose length: 1 m

Noise level: L

WA 84 dB

Weight: 4,2 kg

Use as designated

The appliance corresponds to EU Machine Directive in force.

The vacuum cleaner has been exclusively designed for cleaning of wood-heat stoves and fireplaces in a cold condition.

Use the appliance only in dry weather and on cold nces (never use the appliance when wet)

The appliance is not suitable for vacuuming of mable, explosive, toxic, carcinogenic and other serious matters and materials.

The machine cannot be used for works other than for which the machine has been designed and that are specified in the Operating Instructions.

Any other use is a use in conflict with the designation. The manufacturer will not be liable for any consequential damage and injuries. Please be sure to know that the machine has not been designed for industrial purposes.

Operator requirements

The operator must carefully read the Operating Instructions before using the machine.

Qualification

No special qualification is necessary for using the machine apart from detailed instruction by an expert.

Minimum age

The machine can only be operated by persons over 18 years of age. An exception includes youngsters operating the machine within their professional education to achieve necessary skills under trainer's supervision.

Training

Using the machine only requires appropriate instructions by a professional or reading the Operating Instructions. No special training necessary.

General safety instructions

Please read carefully the Operating Instructions.

Get acquainted with the setting-up and proper use of the appliance.

You must read the entire Operating Instructions before using the appliance. Should you have any doubts about the balance connection and operation please contact the ulcer (service department).

The appliance can only be used with safety switch against stray current (RCD) 30mA.

TO ENSURE HIGH SAFETY LEVEL, PLEASE FOLLOW CAREFULLY THE INSTRUCTIONS BELOW:

CAUTION

1. The person operating the vacuum cleaner is responsible for safety of bystanders.

2. Children and pets must stay in a safe distance from the power-driven ash vacuum cleaner (at least 6 m).

3. Always wear safe and non-slip shoes, gloves, protective glasses and long trousers when working with the ash vacuum cleaner.

4. Never point the powered ash vacuum cleaner at face.

5. Make sure hands, legs and pieces of clothes do not get near holes and moving parts.

6. Do not wear loose clothes or jewels that could be dragged into air inlet.

7. Before putting the ash vacuum cleaner into operation, make always sure it has been assembled properly.

8. Never use the ash vacuum cleaner when raining and in a wet environment.

9. Keep all handles and fixtures dry and clean.

10. Before switching the ash vacuum cleaner on, make sure all outward nuts, bolts and screws are tightened and secured.

11. Never let the ash vacuum cleaner run when on its side. It has only been developed to be operated in a vertical position.

12. Do not vacuum burning materials such as cigarette stubs or charcoal.

13. Do not vacuum flammable, toxic and explosive materials.

14. Do not let strange persons get near the appliance. Keep visitors and bystanders, especially children and ill or weak persons in a safe distance from the place of your work. Make sure no other persons can touch the appliance.

15. Never use the appliance when raining or when there is ice and snow!

16. Ensure safe storing of tools. Appliances that you do not use should be kept in a dry place, in an elevated position if possible, or locked in order not to be accessed by children.

17. Make sure you wear reasonable clothes. You clothes must correspond to the work purpose and must not limit you in the work.

18. Use personal protective equipment. Wear safety shoes with steel toe boxes and non-slip sole.

19. Wear hearing protection equipment. Wear personal hearing protection equipment such as ear plugs.

20. Always watch what is going on. Pay attention to what you are doing. Use common sense when working. Do not use power appliances when tired. Do not work with the appliance when impaired, intoxicated or under the influence of drugs that reduce the concentration ability.

21. Time of use and breaks. After some time of using the appliance you may face problems with hand blood perfusion due to vibrations. However, the time of using the appliance can be extended by wearing suitable gloves and taking regular breaks. Be sure to know the time of using of power-driven appliances is reduced by personal propensity to poor blood perfusion, low outside temperatures or strong pressing of the appliance during work.

22. Look out for damaged parts. Inspect the appliance before using it. Are there any parts damaged? If there is any slight damage, please seriously consider whether the appliance is going to work safely and properly despite that damage. Make sure the moving parts are adjusted and set correctly. Do any elements not fit together in a corresponding manner? Are any of them damaged? Has everything been installed correctly? Are all other conditions for faultless working of the appliance fulfilled? Guard devices, etc. that are damaged must be repaired or replaced by authorised repairmen unless explicitly specified otherwise in the Operating Instructions. Have any fault switch replaced in an authorised shop. If appliance needs to be repaired, contact the nearest service centre.
23. Always disconnect the plug before setting-up and maintenance.
24. Approved parts to be used only. Use identical spare parts for maintenance and repairs. To that end, contact an authorised service centre.

Warning! Use of other suction nozzles, accessories and extensions not explicitly approved can lead to a threat to persons and objects.

The appliance can only be used for the specified purpose of use. Any other use is considered unauthorised use. The user itself, not the producer in any case, will be liable for any material damage or putting a person at risk.

The producer cannot be liable for any change or unauthorised use of its appliances and any related damage.

CAUTION!

Even with professional use of the appliance there is always a certain residual risk that cannot be excluded. The following potential risks can be derived from the type and design of the appliance:

• contact with exposed impeller fan (cutting injuries)
• touching the rotating impeller (cutting injuries)
  • hearing damage if reasonable protection fails to be provided
• deleterious formation of dust or gas if appliance is used in closed spaces (sickness).

Stay in dangerous area of the appliance is prohibited. Never allow children and other persons not familiarised with the Operating Instructions to use the appliance. Local regulations can determine minimum age of the user. Never vacuum if there are other persons, especially children and animals near the vacuum cleaner. Be aware of the fact the machine operator/user is responsible for any accident caused to other persons or their property.

You should unconditionally contact an electrician if the feeder cable of the appliance is damaged. Do not execute any repairs yourself under any circumstances.

The appliance has not been designed to be used by persons (including children) with physical or sensory disability or mental disorder. Persons with lack of experience in or knowledge of the appliance are also prohibited to work with the appliance.

Do not vacuum burning or smouldering items such as cigarettes, matches, etc. If you take glass, metal or other materials out of a collecting vessel with your hands, you should unconditionally wear protective gloves to prevent injury. Insufficient lighting represents a high security risk. Always ensure sufficient lighting when working with the appliance.

Residual risks and protective measures

Electric residual risks

Threat Description Protective measure(s)
Direct electrical contact	Electric shock	Safety switch against FI stray current
Indirect electrical contact	Electric shock through a medium	Safety switch against FI stray current

Behaviour in case of emergency

Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible. Protect the injured person from other injuries and calm him/her down.

In case of accident, first aid kit must always be available in the place of your work in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away.

Please provide the following details if help is needed:

1. Place of accident
2. Accident nature
3. Number of injured persons
4. Injury type

Disposal

The disposal instructions are based on icons placed on the machine or its package. The description of the meanings can be found in the "Marking" section.

Transport package disposal

The package protects the machine against damage during transport. Packing materials are usually chosen depending on their environmental friendliness and disposal method and can therefore be recycled. Returning the package to material circulation saves raw materials and reduces waste disposal costs. Parts of packages (e.g. foils, styropor®) can be dangerous to children. Risk of suffocation! Keep parts of the package away from children and dispose them as soon as possible.

Guarantee

A warranty period of 12 months applies to commercial use and 24 months apply to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Marking

Product safety:

CE
Product corresponds to applicable EU standards

Prohibitions:

General prohibition(in connection with any other icon)

Warning:

Warning/Caution	Warning against dangerous voltage

Commands:

Please read carefully the Operating Instructions.

Environment protection:

Dispose waste professionally so as not harm the environment.	Packing cardboard material may be delivered to collecting centres for recycling.
Any defective and/or disposed electric or electronic devices must be delivered to respective collection centres.	Interseroh-Recycling system with serial number

Package:

Protect against moisture!Caution – Fragile!This side up!

Technical specifications:

Voltage ~ frequency Engine output
Suction hose ∅ Suction hose length
Tank capacity Weight

Other:

Please clean after each use!		Hot coal not to be vacuumed in any case!

Noise

Assembly / first start-up

1. Take the appliance out of the package and fit the suction nozzle (pos. 1/1) on the suction hose (pos. 1/5) first
2. Insert the other end of the suction hose to the air intake (pos. 1/3)

The Güde GA 18L ash vacuum cleaner is now ready for operation.

Operating

Safety instructions for first start-up

• Use exclusively approved extension cables for outdoor works.
• The plug and socket must be waterproof and the cable must be of the necessary length and have the following cross-section:
• 1.5 mm ^-2 with maximum length of 10 m or 2.5 mm ^2 with maximum length of 15 m. Unsuitable extension cables can be dangerous!
• Do not vacuum toxic, caustic and deleterious substances with this appliance.
• Do not vacuum water or any other liquids with this appliance.
• Do not vacuum bigger pieces of charcoal with this appliance as they could get jammed within the hose.
• Do not vacuum hot or burning or smouldering substances (e.g. hot ash) with this appliance.
• Use the appliance exclusively for vacuuming of cold ash. Do not vacuum heating boilers and oil stoves and plaster and cement dust with this appliance.

Switching the engine on

Put the switch (pos. 1/6) to the "ON" position

Switching the engine off

Put the switch (pos. 1/6) to the "OFF" position

Filter change

If you want to change or clean the filter insert, remove it by screwing it out (pos. 2)

Inspections and maintenance

Safety instructions for inspections and maintenance The appliance, especially the suction nozzle needs to be cleaned after any use!

Regular maintenance is necessary for proper working of your appliance.

Regular cleaning and maintenance of the suction nozzle must especially be carried out to prevent damage and accidents in general.

The following needs to be provided before maintenance:

• disconnect the plug,
• put the appliance to a stable position,
• wait until the engine cools down.

Have any repairs unconditionally executed by trained professional staff.

Disconnect the plug before every alteration, adjustment or maintenance of the appliance!

Cleaning

Always keep the appliance clean and in working order! Clean the engine with just a cloth. Avoid spraying with heavy water stream.

Filter cleaning

To maintain the maximum suction power of the ash vacuum cleaner, rough cleaning of the filter is recommended(after each use if possible). If possible, clean the filter outside to prevent your home from becoming dirty.

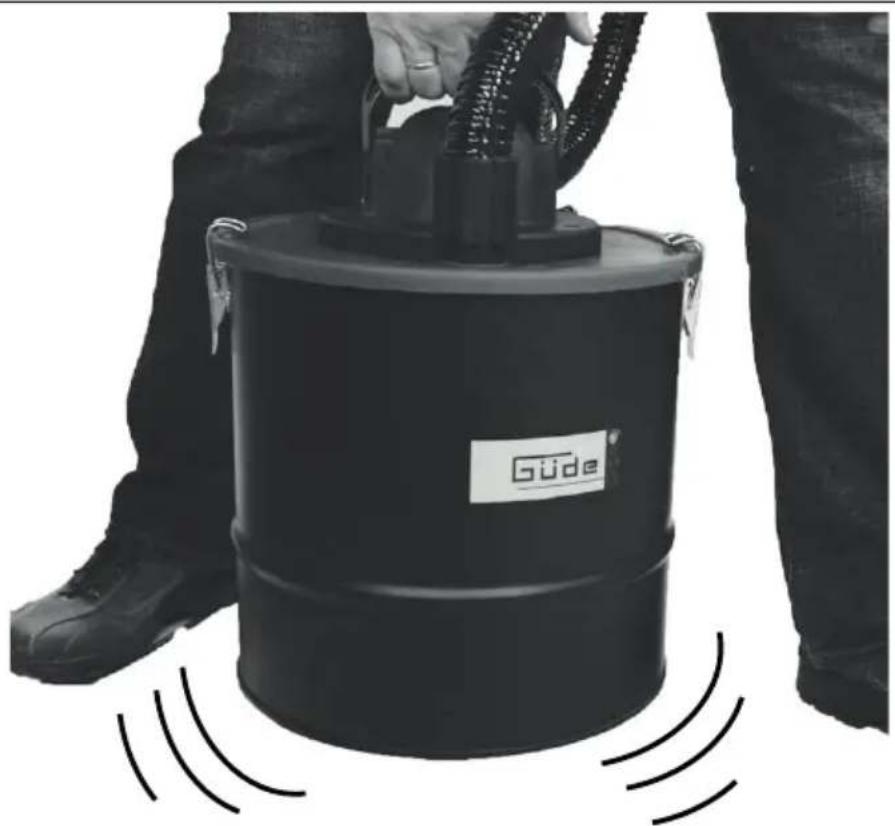

Take the ash vacuum cleaner and hit it hard on the floor for 3-5 times (pic. 3) so that the coarsest pieces of dirt fall off the metal filter screen. Le the vacuum cleaner stand for 2-3 minutes to allow dust to settle down in the vacuum cleaner.

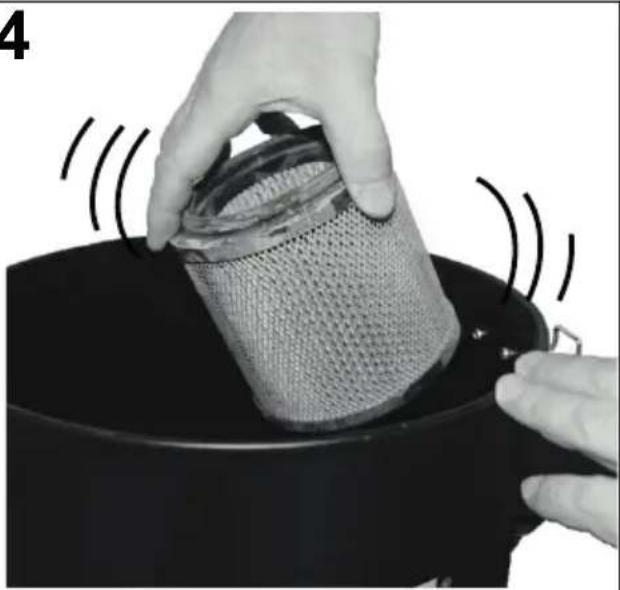

Open the container lid, remove the filter by slight clockwise rotation and clean it by tapping the outer dust layer on the container inside out on the ash (pic. 4).

If the vacuum cleaner suction power does not significantly improve even after rough cleaning, the filter must be thoroughly cleaned by repeated tapping out (pic. 5) or carefully blowing out by compressed air outdoors or replace it (Art. No. 16731).

CAUTION! Then, if possible, perform a short test run outdoors to release dust particles produced during replacement or cleaning.

Service

Putere motor: 1200 W/P1

Volum rezervor: 18 l
