USER MANUAL GAA 65 GUDE

Industrial dust collector device with white cylindrical component and blue handle (no visible text or symbols)

Warning symbol and open book icon with exclamation mark and lowercase 'i' in the open

GAA 65

55137

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with placeholder text and a blue circular icon containing a 'B2013' button

12

Blue abstract geometric shape resembling a stylized letter 'H' (no text or symbols)

The image is too blurry to recognize any text content.

3

Blue push cart with black wheels and a small box, no text or symbols visible

The image is too blurry to recognize any text content.

5

Close-up of a black industrial component with a cylindrical top and circular base, featuring a yellow warning button (no visible text or symbols)

7

8

9
10

12

Two identical metal ring clips with clamps, no text or symbols visible

11

Blank white image with no visible content, text, or symbols

13

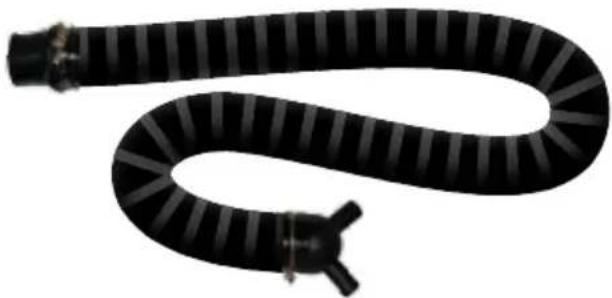

Black and white striped hose with a handle, no text or symbols visible

D	Montage	SLO	Montaža
GB	Assembly	HR	Montaža
F	Assemblage	BG	Монтаж
I	Montaggio	RO	Montaj
NL	Montage
CZ	Montáž
SK	Montáž
H	Szerelés

1

2-3

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

2

4

D	Wartung	SLO	Vzdrževanje
GB	Maintenance	HR	Održavanje
F	Entretien	BG	Поддръжка
I	Manutenzione	RO	Întreținere
NL	Onderhoud
CZ	Údržba
SK	Údrzba
H	Karbantartás

3

5

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage
	CZ	Montáž
	SK	Montáž
	H	Szerelés

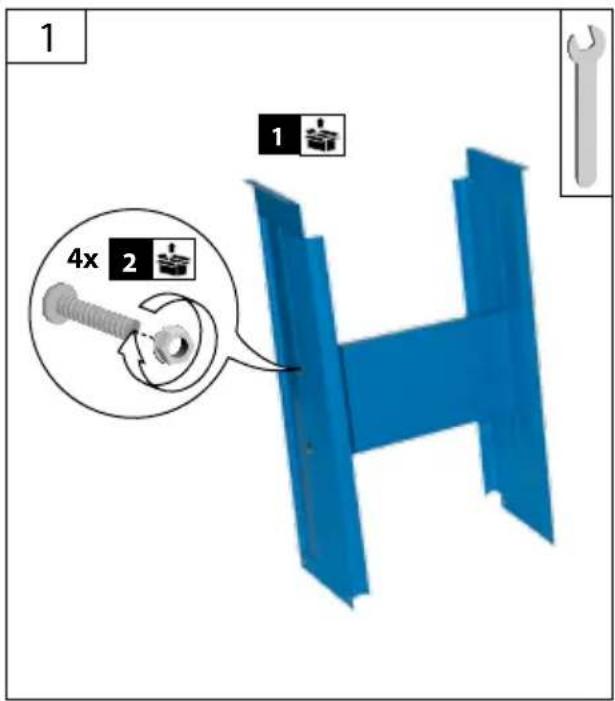

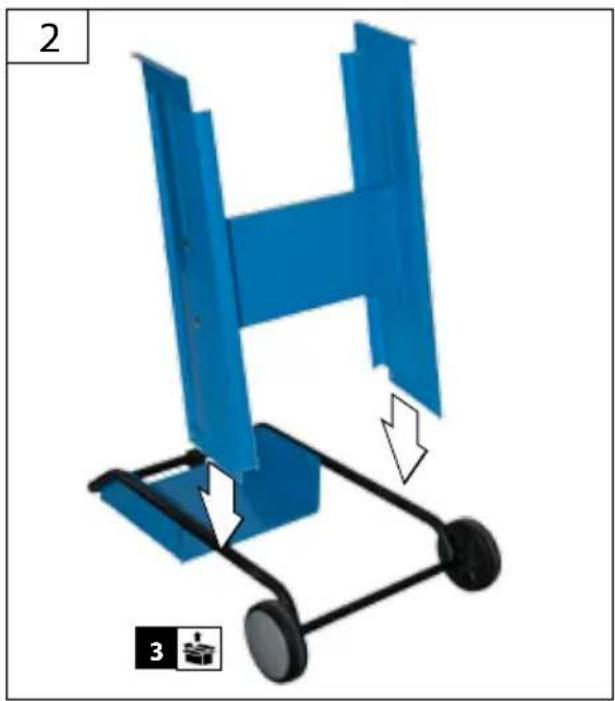

1 4x 2 1

Blue plastic stand with a large letter H and a black cart, showing a mechanical assembly (no text or symbols)

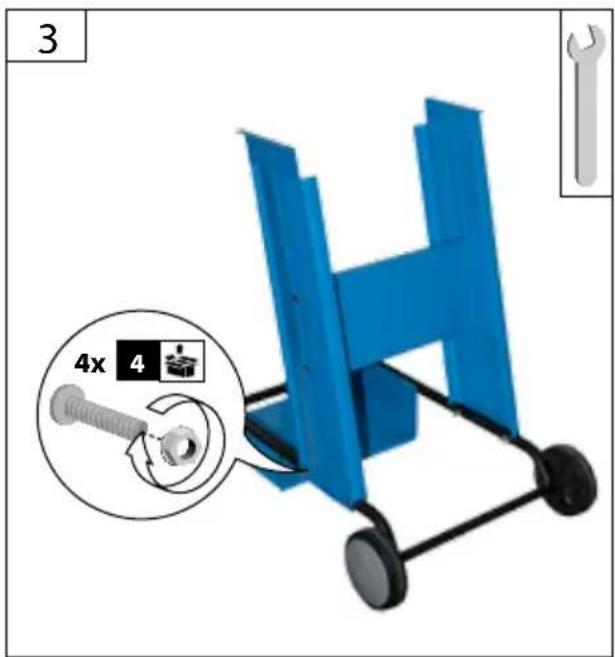

3 4x 4

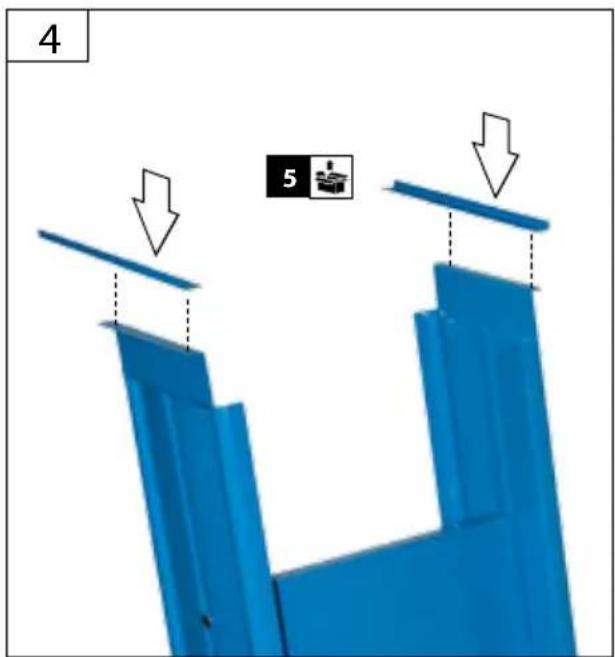

4 5

D Montage

SLO Montaža

GB Assembly

HR Montaža

F Assemblage

BG Монтаж

Montaggio

RO Montaj

NL Montage

CZ Montáž

SK Montáž

H Szerelés

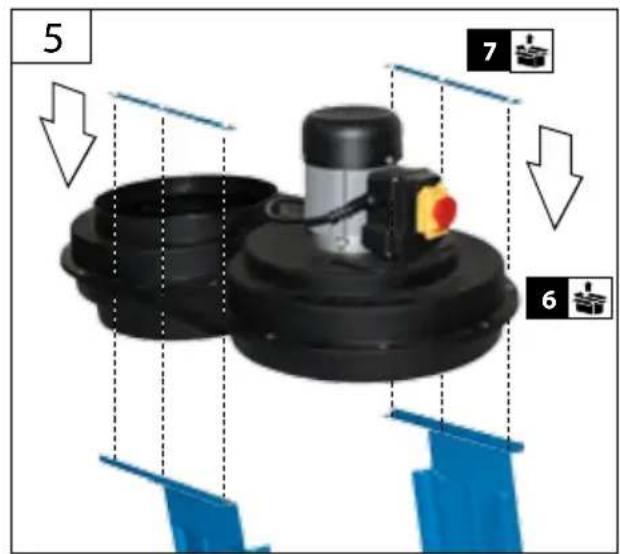

5 7 6

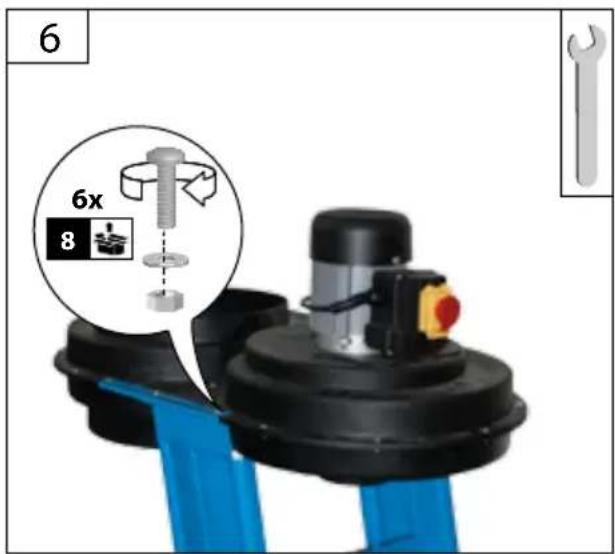

6 6x 8

7 9

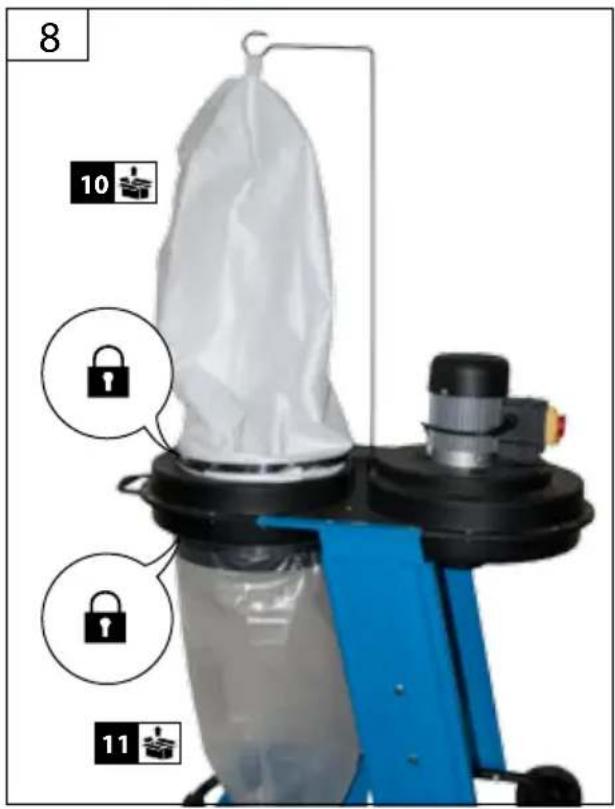

8 10 11

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Páboṭa
	I	Esercizio	RO	Functionare
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

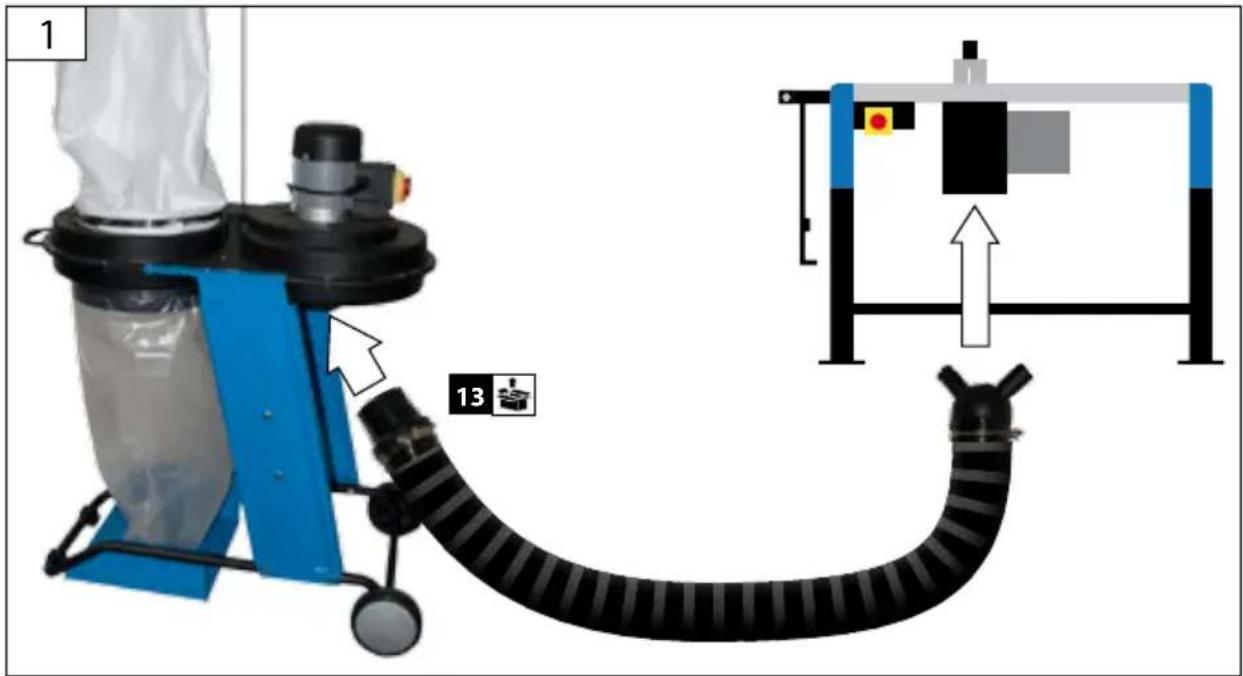

1 13

D Wartung

SLO Vzdrževanje

GB Maintenance

HR Održavanje

F Entretien

BG Поддръжка

Manutenzione

RO Întreținere

NL Onderhoud

CZ Údržba

SK Údrzba

H Karbantartás

3

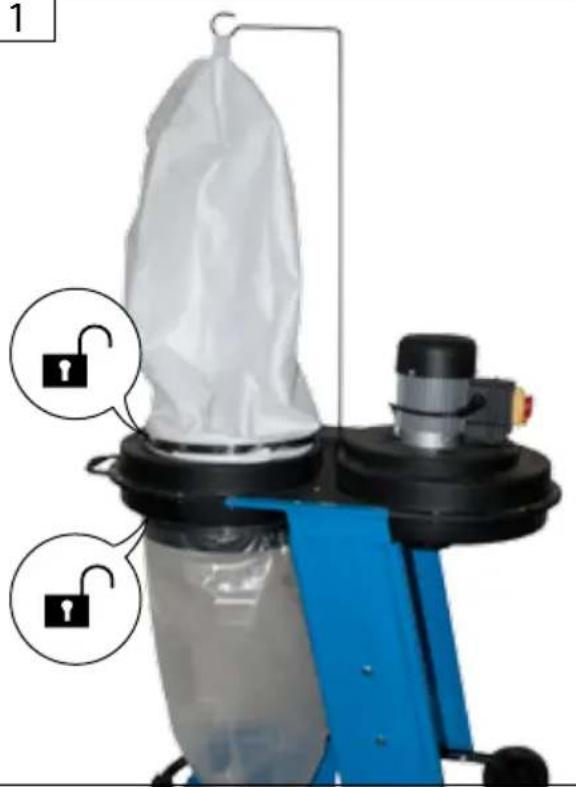

1

Close-up of a mechanical device with plastic bag and lock icons, no visible text or symbols

2

55158

55159

Close-up of a plastic bag with a hanging bag attached to a blue industrial machine (no visible text or symbols)

Close-up of a mechanical device with a white cylindrical component and blue tubing (no visible text or symbols)

55160

Abstract black-and-white wavy line pattern with vertical stripes (no text or symbols)

55161

Close-up of a metallic cylindrical object with coiled wire, no visible text or symbols

Technische Daten

Read and understand the operating instructions before using the appliance. Familiarise

with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Safety Instructions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Fire and explosion hazard!

Never suck up into the machine any inflammable or explosive solvents, or liquids like petrol, oil, alcohol, thinners, or small particles (such as metal filings or ash) that may be hotter than 60°C - otherwise there is danger of explosion or fire!

You are not allowed to use the appliance in the vicinity of inflammable gases or substances.

Do not point the nozzle, hose or tube at people or animals.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use the chips extractor on a firm, flat and non-vibrating base. Sufficient amount of fresh air and adequate lighting must be provided. Remove any articles from the site that could cause tripping.

Do not use the chip extractor in moist or wet conditions or in the vicinity of inflammable liquids or gases. Non-permissible in explosion-hazardous rooms.

Specified Conditions Of Use

The chip extractor is convenient for exhausting chips from milling, planning and cutting that are formed by mills, table circular saws and planes. (Caution: not suitable for wood dust during sanding).

The vacuum cleaners described in this operating manual are suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices and rental businesses.

Any national regulations in this regard must be complied with.

WARNING

The following materials should not be picked up by the vacuum cleaner

• hazardous dust
  • hot materials (burning cigarettes, hot ash, etc.)
• flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
• flammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

WARNING: Operators shall be adequately instructed on the use of these machines.

WARNING: This machine is not suitable for picking up hazardous dust.

WARNING: This machine is for dry use only.

CAUTION: This machine shall be stored indoors only.

CAUTION: This machine is for indoor use only.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2.

Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING - Read the operating instructions to reduce the risk of injury.

WARNING/CAUTION!

Warning against dangerous electric voltage

Unplug the machine before any work on it.

Wear ear protectors!

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

CE marking

Mains Connection

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with.

Electric connection to a socket.

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Protect the feeder cable from excessive temperatures, oil and sharp edges.

Maintenance

⚠️ Unplug the machine before any work on it.

Before using the appliance, perform a visual inspection at all times to make sure the power cord and the plug, in particular, are not damaged on the charger.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.

The ventilation slots of the machine must be kept clear at all times.

Never spray water on to the upper section of the vacuum cleaner. Danger for persons, risk or short-circuiting.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Do you have a complaint? Do you require spare parts or an operating manual? You can get quick and unbureaucratic assistance in the Service section on the homepage of our service partner Güde GmbH & Co. KG (www.guede.com). Please help us to help you. In order to be able to identify your device in the case of a complaint, our service partner will require its serial number, article number, and year of manufacture. All this information can be found on the nameplate.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

WAARSCHUWING/OPGELET!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

97/68/EC_Emission No.:

2000/14/EC_2005/88/EC
