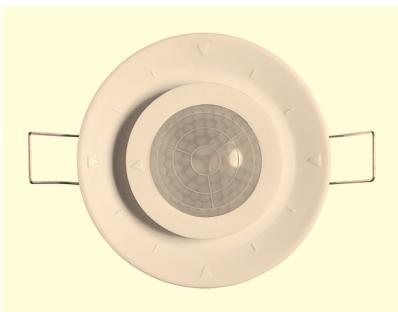

Product Type	Motion Detector
Brand	THÉBEN
Model	LU361PE2
Detection Area	304 zones, up to 7 m diameter (at 2.4 m height)
Detection Angle	360° (circular)
Light Threshold Setting (LUX)	6 levels: 10, 30, 100, 400, 1000 lux, ∞
Time Delay	5 settings: Test, Impulse, 1, 5, 15, 30, 60 min
Power Supply	230 V~, 50 Hz (via connection box)
Protection Rating	IP40
Protection Class	II
Operating Temperature	-10°C to +45°C
LED Indicator	Red, lights up for 2 s upon detection
Outputs	2 relays (lighting and free contact)
Installation	Recessed in false ceiling, hole of 65 mm
Recommended Installation Height	2.4 m
Cable Supplied	30 cm (model LU361PE2)
Dimensions (hole)	Diameter 65 mm
Approximate Weight	100 g
Maintenance	Clean with a slightly damp cloth
Safety	Disconnect power before any intervention

Frequently Asked Questions - LU361PE2 THEBEN

How to install the LU361PE2 detector?

Installation is done in a false ceiling: drill a hole of 65 mm, pass the cable, connect the connection box according to the diagram, then insert the detector using the fixing springs. Make sure the device is disconnected from power before starting.

What to do if the LED does not light up?

Check that the device is powered and the connections are correct. If the problem persists, the connection box may be defective and must be replaced.

How to adjust the lighting time delay?

Use the Time 1 button: you can choose between Test, Impulse, 1, 5, 15, 30 or 60 minutes. Turn the button clearly to the desired value.

How to perform a walk test?

Set the METER button to 'T' and the Time 1 button to 'test'. Walk through the detection area: the light turns on for 5 seconds and the red LED lights up for 2 seconds. Adjust the detection head if necessary.

Why do lights not turn off?

This may be due to false triggering (presence in the area) or incorrect wiring. Move away from the detection area and check the connections.

How to adjust the light sensitivity (LUX threshold)?

Use the LUX button to choose from 6 levels: 10, 30, 100, 400, 1000 lux or ∞ (disabled). The detector only activates if the ambient brightness is below the set threshold.

What are the causes of false triggering?

Heat sources (radiators, air conditioning), light objects moving with the wind (curtains, plants) or reflective surfaces can cause false triggering. Keep the detector away from these elements.

How to clean the detector?

Use a slightly damp cloth to clean the surface. Avoid abrasive products or solvents. Make sure the device is disconnected from power before cleaning.

Can I connect multiple detectors together?

Yes, you can connect up to two LU361PE2 detectors together, or one LU361PE2 with a LU361PE-S (cable of 3.5 m). They connect in parallel on the connection box.

What is the maximum detection range?

At an installation height of 2.4 m, the detection area has a diameter of approximately 7 m. You can reduce the range with the METER button (from 1 m to 7 m).

USER MANUAL LU361PE2 THEBEN

Contact I: L ↓ 10 A max (Cos = 1 )

Contact II: (D1 - D2) 10 A 230 v.

nul detension. (Cos. = 1 / 230V max.).

LU 361 PE: Ref. 101 0 823

Contact I: (D1 - D2) 10 A 230 V. max.

contact nul de tension.(Cos. = 1

5 sec. / impulsion (1 sec. ON / 9 sec OFF)

Mode impulsion: Déclenchements courts.

Rated Voltage:
- Load:

TECHNICAL

SPECIFICATIONS

230V 50Hz

LU 361 PE2:

Dual independent load control.

Load I (L↓): 10A max. (cos = 1 )

Load II (D1-D2):10A max. ( = 1)

voltage free contact (Load II is uncontrolled by LUX value, it can work at any light level).

LU 361 PE: Single load control (D1-D2): 10A max (cos = 1 ) voltage free contact.

LU 361 PE-S: Dual independent load control. Sensor with 3.5M cable. (Apply to LU 361 PE2 power box mainly)

360^ circular.

About 7M diameter at 2.4M height.

10LUX/30LUX/100LUX/400LUX/ 1000LUX/\~ (6 Adjustments)

LU 361 PE2/LU 361 PE-S: Time 1:

For lighting: Test (LUX disable)/ impulse (1 sec. "ON"/ 9 sec. "OFF") / 1 min./5 min.

/15 min./30 min./60 min. (7 Adjustments)

Time 2: For HVAC: 10 sec./3 min.

/15 min./30 min./60 min. (5 Adjustments)

LU 361 PE Time: For lighting: Test (LUX disable) 5 sec./ impulse (1 sec

Adjustable for detection zones.

4 elements of super sensitive type.

304 zones.

Class II, IP40 (Sensor).

-10°C ~ + 45°C.

Detection Angle:
- Detection Pattern:
- Precise LUX Adjustment:
- Precise Time Adjustment:

• Meter:
• Sensor Element:
• Detection zone:
  Environmental Protection:
  Operation Temperature:

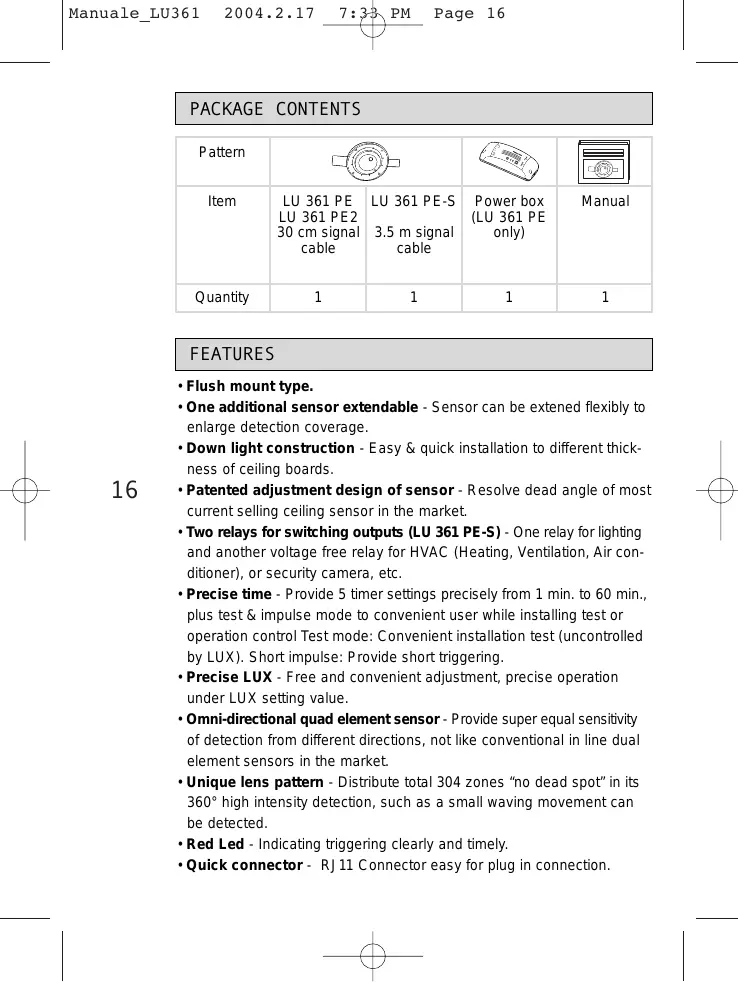

PACKAGE CONTENTS

Pattern
Item	LU 361 PE LU 361 PE2 30 cm signal cable	LU 361 PE-S 3.5 m signal cable	Power box (LU 361 PE only)	Manual
Quantity	1	1	1	1

FEATURES

• Flush mount type.
• One additional sensor extendable - Sensor can be extended flexibly to enlarge detection coverage.
• Down light construction - Easy & quick installation to different thickness of ceiling boards.
• Patented adjustment design of sensor - Resolve dead angle of most current selling ceiling sensor in the market.
• Two relays for switching outputs (LU 361 PE-S) - One relay for lighting and another voltage free relay for HVAC (Heating, Ventilation, Air conditioner), or security camera, etc.
• Precise time - Provide 5 timer settings precisely from 1 min. to 60 min., plus test & impulse mode to convenient user while installing test or operation control Test mode: Convenient installation test (uncontrolled by LUX). Short impulse: Provide short triggering.
• Precise LUX - Free and convenient adjustment, precise operation under LUX setting value.
• Omni-directional quad element sensor - Provide super equal sensitivity of detection from different directions, not like conventional in line dual element sensors in the market.
• Unique lens pattern - Distribute total 304 zones "no dead spot" in its 360^ high intensity detection, such as a small waving movement can be detected.
• Red Led - Indicating triggering clearly and timely.
• Quick connector - RJ11 Connector easy for plug in connection.

FIELD OF VIEW

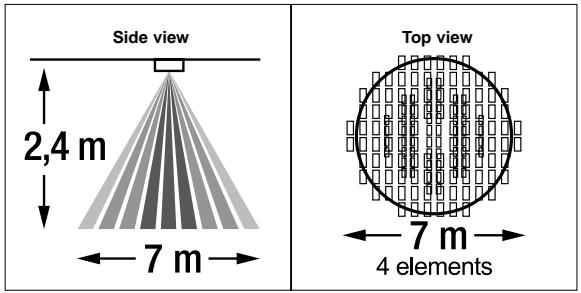

The LU 361 PE2 LU 361 PE LU 361 PE-S can be mounted on the ceiling and widely used in offices, conference rooms, hotels, utility rooms, kitchens and lavatories. While mounting on locations above mentioned, it is highly recommended to install at height of 2.4M and the detection range with a diameter of approx. 7M (See Fig. 1).

Fig. 1

17

INSTALLATION AND WIRING

A. Select A Proper Location

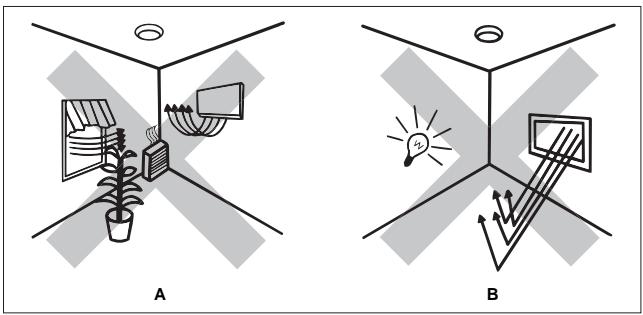

Since the sensor is in response to temperature change, please avoid the following conditions (See Fig. 2).

• Avoid directing the sensor toward areas or objects whose surfaces are highly reflective or are subject to rapid temperature change, such as pools.
• Avoid mounting the sensor near heat sources, such as heating vents, air conditioners, dryer as vents or lights.
• Do not aim the sensor toward light devices.
• Avoid aiming the sensor toward the objects which sways in the wind, such as curtain, miniature bushes, etc.

Fig. 2

B. Installation Procedure

Switch off power supply before installation.

1. Please read the instruction manual carefully before installation
2. Be sure all power supply is switched off.

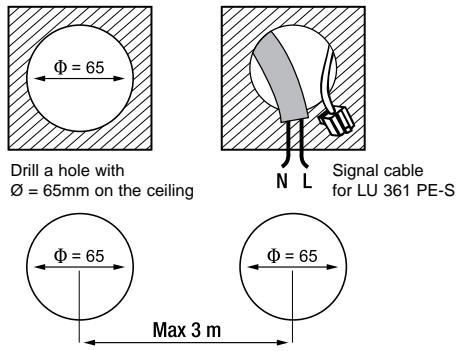

3. To install the sensor, please drill a hole (diameter of 65~mm ) on the ceiling and keep the power cable above ceiling board (SeeFig. 3).

Fig. 3

Note:

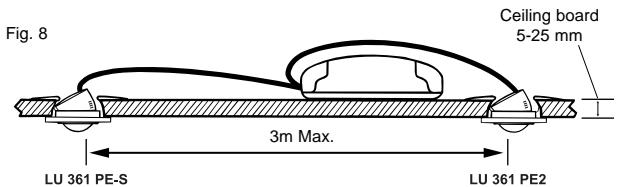

• When installing LU 361 PE2 and LU 361 PE-S on the same ceiling, assure the two holes is max. 3M away and the thickness of ceiling board is 5-25 mm (See Fig. 3 and 8).

• Both LU 361 PE2 and LU 361 PE-S sensor can be connected to one power box at the same time. To install the second sensor (LU 361 PE-S), please keep the signal cable to pass through the hole (SeeFig. 3).

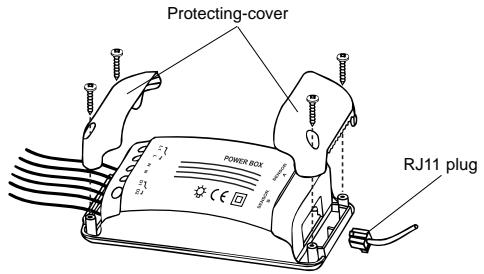

• Unscrew protecting-cover on power box with a screwdriver. One terminal connects power supply and another connects RJ11 plug (See Fig. 4).

Fig. 4

19

1. Wiring diagrams.

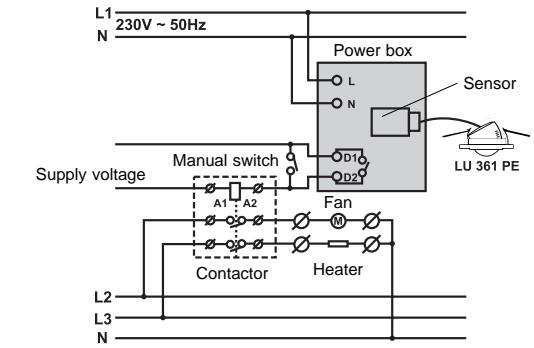

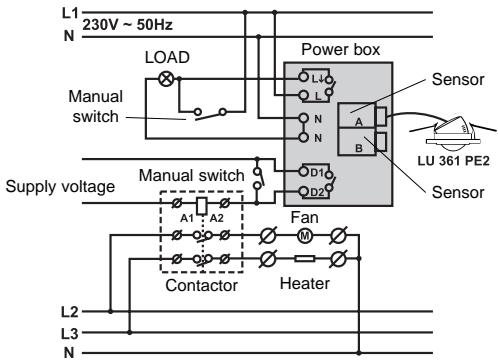

2. ONE SENSOR (See Fig. 5).

Fig. 5
LU 361 PE2

Fig. 5
LU 361 PE

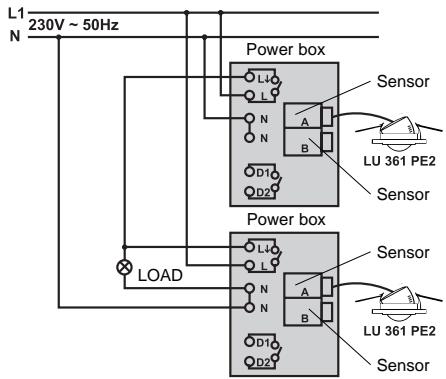

2. TWO LU 361 PE2 CONTROL ONE LOAD (Voir Fig. 6).

20

Fig. 6
LU 361 PE2

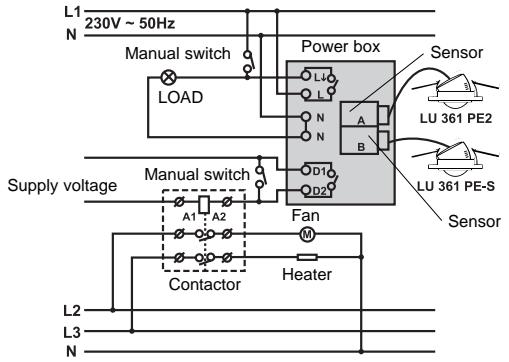

3. LU 361 PE2 and LU 361 PE-S TWO SENSORS CAN BE CONNECTED TO ONE POWER BOX AT THE SAME TIME (See Fig. 7).

Fig. 7
LU 361 PE2
LU 361 PE-S

Note:

Make sure wiring is connected correspondingly.
- Connect LU 361 PE-S at the same time (See Fig. 8), and refer to wiring diagram to connect it in parallel with the first sensor (LU 361 PE2) in power box (See Fig. 7).

1. Refer to wiring diagram to connect wiring into power box terminal then replace protecting-cover and tighten it with screws (Voir Fig. 9).
2. Organize all wirings, then fix the power box with screws and mount it in the ceiling (Voir Fig. 10).

Fig. 9

Fig. 10

1. Insert sensor into the installation hole (See Fig. 11).

Fig. 11

Note:

• Insert two spring-clip pins into hole and press the sensor upward, then spring-clip pins will automatically stick on ceiling.

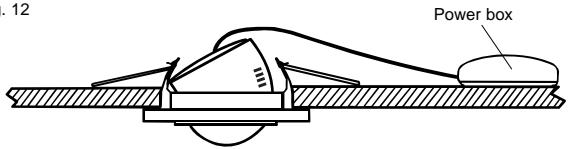

• Adjust sensor position and assure its bottom fixed tightly on ceiling (See Fig. 12).

Fig. 12

1. Wipe gently with a clean and dry cloth if the sensor surface is dirty.
2. Restore power.

ADJUSTMENT AND WALK TEST

A. Adjust sensor head

Note:

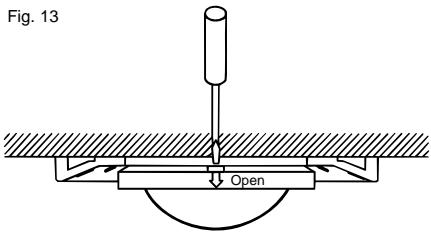

Slightly pull out sensor head with a screwdriver at OPEN mark before sensor head adjustment (See Fig. 13).

You can adjust sensor head to meet your detection coverage. It can be adjusted horizontally 350^ (by 30^ step) vertically 30^ (by 5^ step) (See Fig. 14, 15 and 16).

Fig. 14

Fig. 15

Fig. 16

B. LED Function

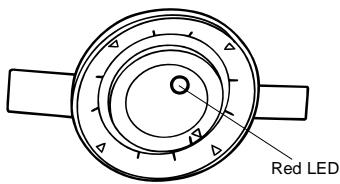

1. LU 361 PE and LU 361 PE-S has one RED LED (See Fig. 17). It lights for 2 secs. Once the sensor is triggered and uncontrolled by LUX.
2. LED can be regarded as indicator when performing a walk test without connecting any loads.

Fig. 17

C. Walk Test

The purpose of the walk test is to check and adjust the motion sensor detection range. Turn "METER" knob to "7m", "TIME 1" knob to "test", then you can carry out a walk test and it is uncontrolled by LUX (See Fig. 18).

Note:

• When first time switches the power n or power is re-supplied again after the power is shut off, LED will turn on for 40 secs. then turn off. During the time of warming up, there is no output for LOAD I if it is in test & impulse mode, otherwise it has permanent output as LOAD II. Once any activities are detected after warming up period (40 secs.), LOAD I and LOAD II will operate according to prior settings. If there is no triggering in 20 secs. after warming up period, LOAD I and LOAD II will turn off automatically and won't be controlled by the settings of Time 1 & Time 2.

Fig. 18

Test Procedure

1. Aim the sensor across to your desired detection zone.
2. Switch the power on.
3. Walk from outside across to the detection zone (See Fig. 18). Once the sensor is triggered, the light will turn on for 5 secs.
4. Adjust sensor head to change coverage if necessary.
5. Also can adjust METER knob to change coverage.
6. Repeat step 3 to 5 until you are satisfied with the detection coverage.

KNOB SETTING

Note:

• Slightly pull out sensor head with a screwdriver before knobs adjustment (See Fig. 13).

LUX, METER, TIME knob

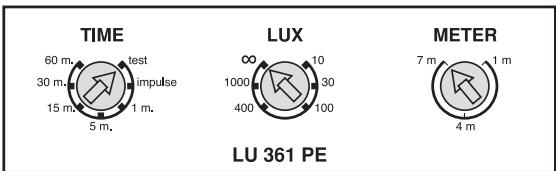

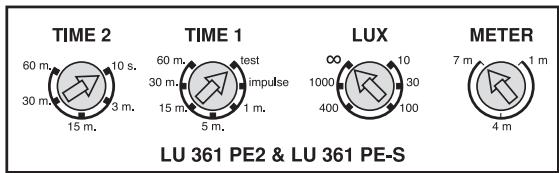

Adjust LUX, TIME, METER knobs according to the desired value marked beside each knob (See Fig. 19).

Fig. 19

Time and LUX knobs must be set at value figure marked. DO NOT adjust knobs in between of two value figure marked to cause value functional failure or value confusion.

1. Precise LUX knob Setting

Fig. 20

*6 adjustment Precise LUX: 10LUX/30LUX/ 100LUX/400LUX/1000LUX/\~

25

2. Precise TIME knob Setting

Fig. 21

• Time 1/Time (for lighting): 7 adjustable Precise Time: Test (LUX disable)/impulse (1 sec. "ON"/9 sec. "OFF")/1min./5min./15min./30min./60min.
• Test mode: Time 1/Time knob setting to "test", the sensor automatically enters into test mode. In this mode light is uncontrolled by LUX. Light will turn on for 5 secs. then turn off once it is triggered. At the same time, LED will turn on for 2 secs. then turn off.
• Short impulse mode: Time 1/Time knob setting to "impulse", the sensor automatically enters into short impulse mode.
• Time2 (for HVAC): Uncontrolled by LUX (LU 361 PE2 only). 5 adjustable Precise Time: 10sec/3min./15min./30min./60min

3. METER knob Setting

Fig. 22

• Set METER knob to "1m", the sensor will operate within very limited small "field of view" with a diameter of approx. 1M.
• Set METER knob to "7m", the sensor will operate on the largest "field of view" with a diameter of approx. 7M.
• Set METER knob to middle position, the sensor will operate on the largest "field of view" with a diameter of approx. 4M.

TROUBLE SHOOTING

When sensor fails to work normally, check presumptive problems and suggested solutions in following table that will be hopeful to solve your

Problem	Possible cause	Suggested solutions
LED does not turn on.	1. Power does not switch on. 2. Wiring is connected incorrectly.	1. Check whether power is switched on. 2. Refer to wiring diagrams and connect wiring correspondingly.
Lights does not turn on.	1. Wiring is connected incorrectly. 2. Defective load.	1. Please check whether the power supply and load are connected correctly. 2. Replace the defective load with a new one.
Lights does not turn off.	1. Sensor is nuisance triggering. 2. Wiring is connected incorrectly.	1. Keep away from detection zone to avoid activating sensor while doing the test. 2. Please check whether the power supply and load are connected correctly.
Nuisance triggering.	There are heat sources or any objects such as bushes which may sway in the wind within the detection coverage.	Avoid aiming the sensor toward any heat sources such as air conditioners, electric fans, heaters or any highly reflective surfaces. Make sure there is no swaying objects within the detection coverage.

C∈APPROVAL

27

LU 361 PE2 / LU 361 PE / LU 361 PE-S
