PRF0120528 - Basket ELICA - Free user manual and instructions

Brand	Elica
Model	PRF0120528
Product type	Range hood
Operating version	Recirculation (with active carbon filter); possibility of external extraction with optional kit
Installation	Ceiling mounted
Controls	Touch on the hood + remote control (included)
Number of suction speeds	4 (1 low, 2 medium, 3 high, 4 intensive limited to 5 min)
Lighting	LED: cooking surface lighting and diffused light (depending on model)
Automatic operation	Yes, with smoke detector for automatic speed adjustment
SNAP® compatibility	Yes (additional suction unit)
Grease filter	Metallic, dishwasher safe (70°C max); replacement every 2 years
Active carbon filter	Washable with water or in dishwasher (65°C); replacement every 3 years
Filter saturation indicator	Yes, by red LED (steady for grease, flashing for carbon)
Delayed shutdown	Yes, programmable via remote control: 20 min (speed 1), 15 min (speed 2), 10 min (speed 3)
Power supply	220-240 V ~ 50/60 Hz
Minimum safety distance	50 cm (electric cooker) / 65 cm (gas or mixed cooker)
Lamp type	LED (replacement by after-sales service)
Safety and performance standards	EN/IEC 60335-1, EN/IEC 60335-2-31, EN 55014, etc.
Weight	Handling by two or more people (weight not specified)
Spare parts available	Grease filters, carbon filters, LED lamps, remote control

Frequently Asked Questions - PRF0120528 ELICA

How to clean the grease filter of the hood?

The grease filter should be cleaned at least once a month. You can wash it in the dishwasher at low temperature (70°C max) with a non-aggressive detergent. After washing, dry it in the oven at 100°C for one hour. It is recommended to replace the filter every 2 years.

How to maintain the active carbon filter?

The active carbon filter can be washed every two months with hot water and a mild detergent or in the dishwasher at 65°C (full cycle without dishes). After washing, dry it in the oven at 100°C for 10 minutes. Replace it every 3 years or if damaged.

What to do if the filter saturation indicator lights up?

If LED L1 is steady red, clean the grease filter. If it flashes red, clean the carbon filter. After maintenance, reset the signal by pressing simultaneously the T1 and T2 buttons on the hood for at least 5 seconds, with the hood off.

How to pair the remote control with the hood?

To pair the remote control, press and hold the T2 + T5 buttons on the remote within the first minute the hood is powered on. The hood LEDs will flash to confirm pairing.

What safety distances must be observed for installation?

The minimum distance between the cooking surface and the lowest part of the hood is 50 cm for electric cookers and 65 cm for gas or mixed cookers. If the cooking device instructions specify a greater distance, respect it.

How to activate automatic operation with sensor?

To activate automatic mode, press simultaneously the T1 and T2 buttons on the hood. LED L1 will light up with several colors and LED L2 will light up white. The hood will then adjust the speed according to the detected fumes.

What to do in case of power failure? Is the calibration lost?

After a power outage, an automatic sensor calibration is performed (duration about 5 minutes, LED L1 and L2 flash white). No manual action is required.

How to replace the LED lamps of the hood?

The LED lamps must be replaced by the authorized after-sales service. Contact technical support to purchase suitable replacement LEDs.

Can the hood be used with a gas cooker?

Yes, but strictly observe the safety distance of 65 cm. Additionally, the room must be sufficiently ventilated when the hood is used with gas appliances.

How to disable the audible signal or the carbon filter saturation indicator?

With the hood off, press simultaneously T1 and T2 until a beep, release, then briefly press both buttons again. LED L1 changes from steady to flashing (signal disabled). Repeat the operation to reactivate.

USER MANUAL PRF0120528 ELICA

EN Instruction on mounting and use

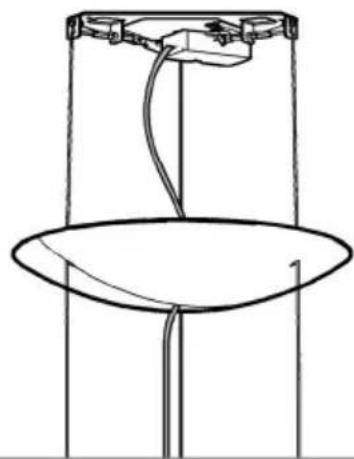

Simple line drawing of a hanging lamp mounted on a wall, with no text or symbols present.

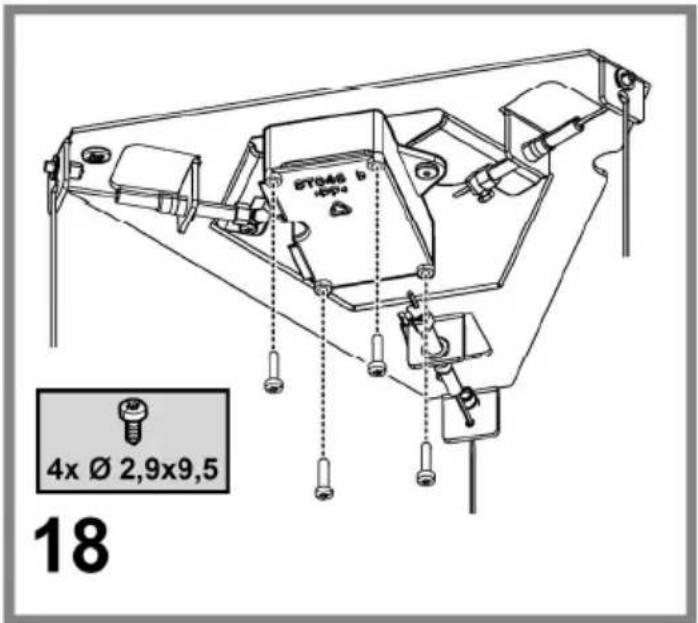

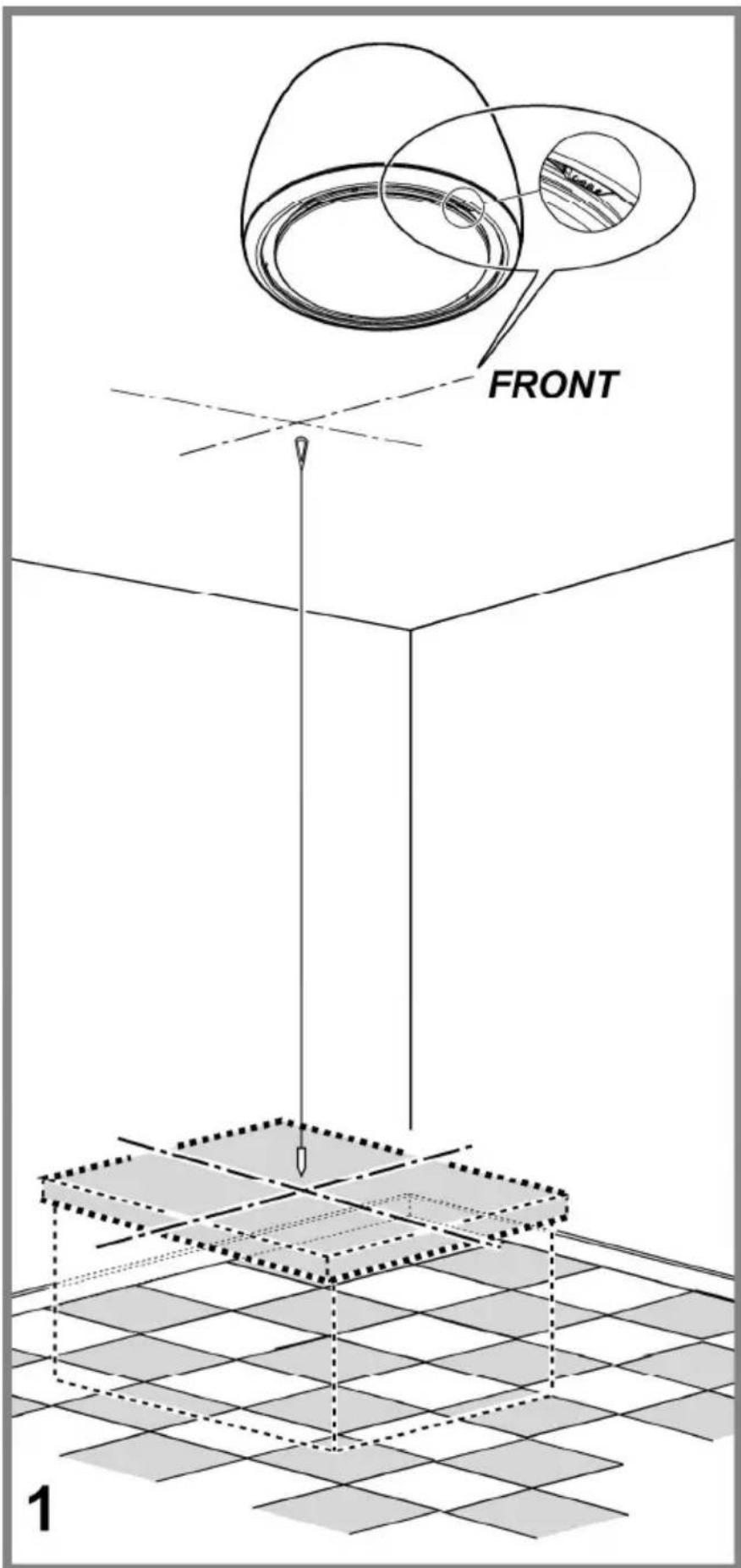

1-2-3-4-5-6-7-8-9- 10-11-12-13-14-15- 16-17-18-19-20-21- 22-28

Simple line drawing of a roof support structure with a chimney and brick wall (no text or symbols)

4-5-6-7-23a-24-25a- 26a-27-28 4-5-6-7-23b-24-25b- 26b-27-28

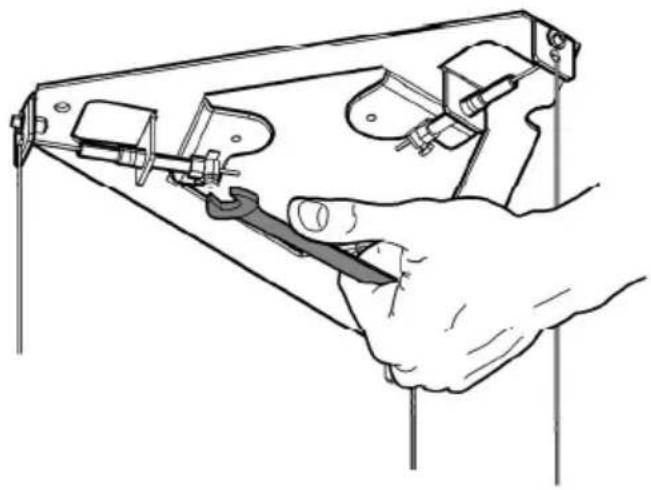

Mechanical assembly diagram showing a wrench tool interacting with a bracket and clamp (no text or symbols)

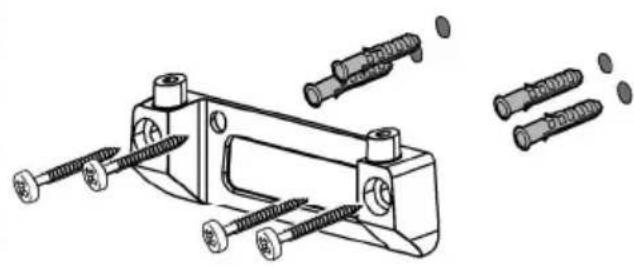

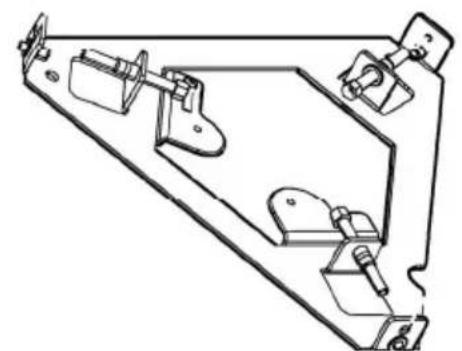

Technical line drawing of a mechanical bracket assembly (no text or symbols)

2

Technical line drawing of a mechanical component with multiple curved and straight lines, no text or symbols present

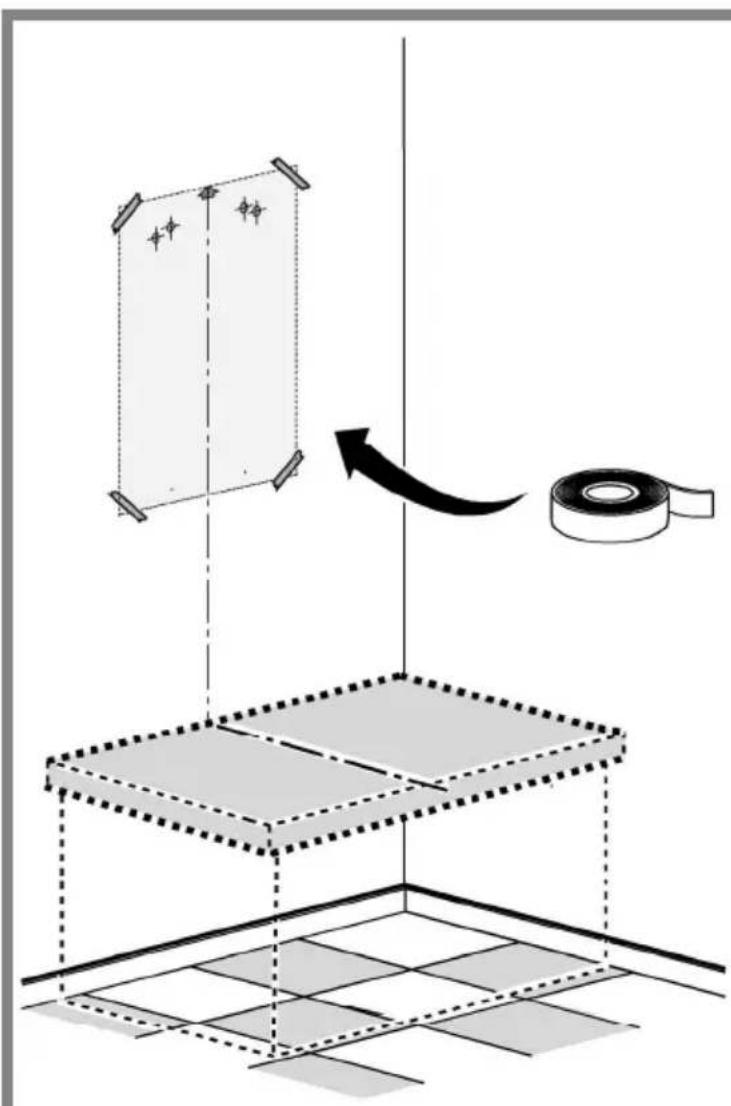

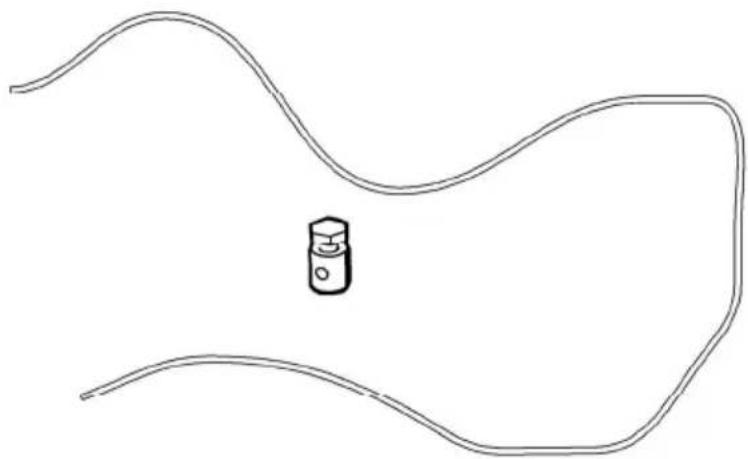

Simple line drawing of a curved road with a small icon in the center (no text or symbols)

3

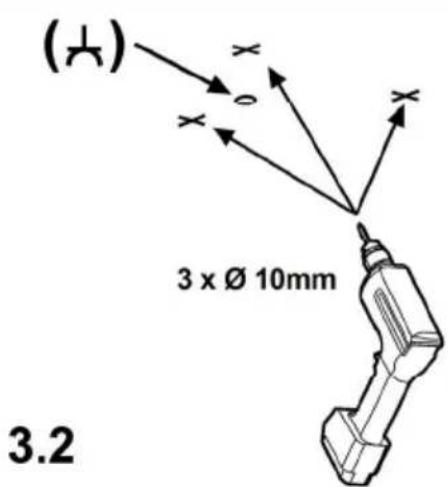

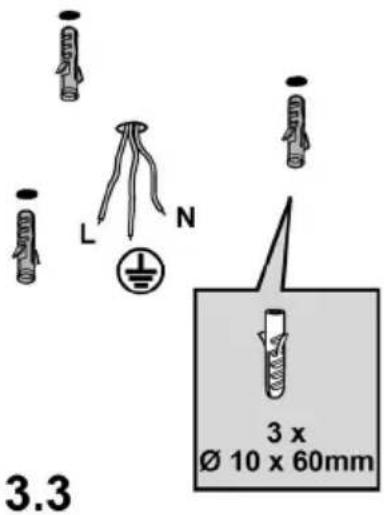

3.4

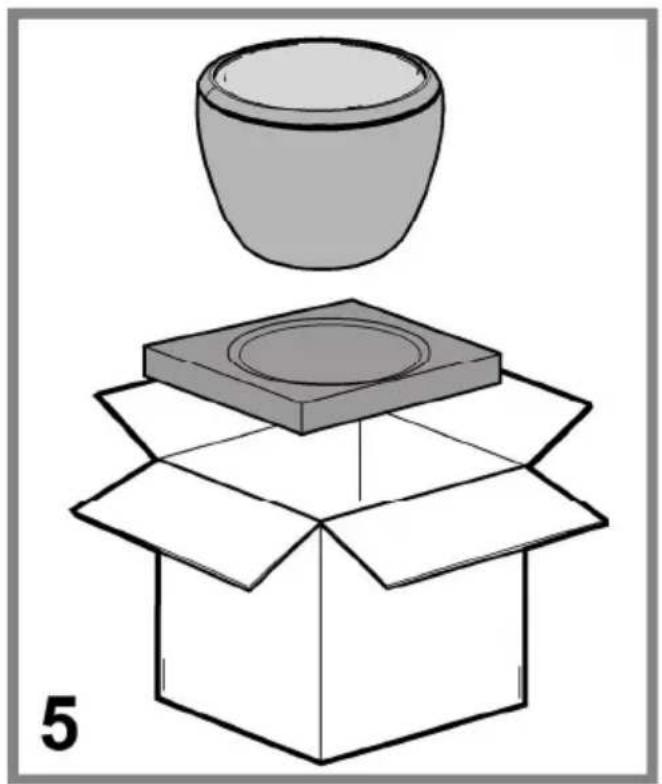

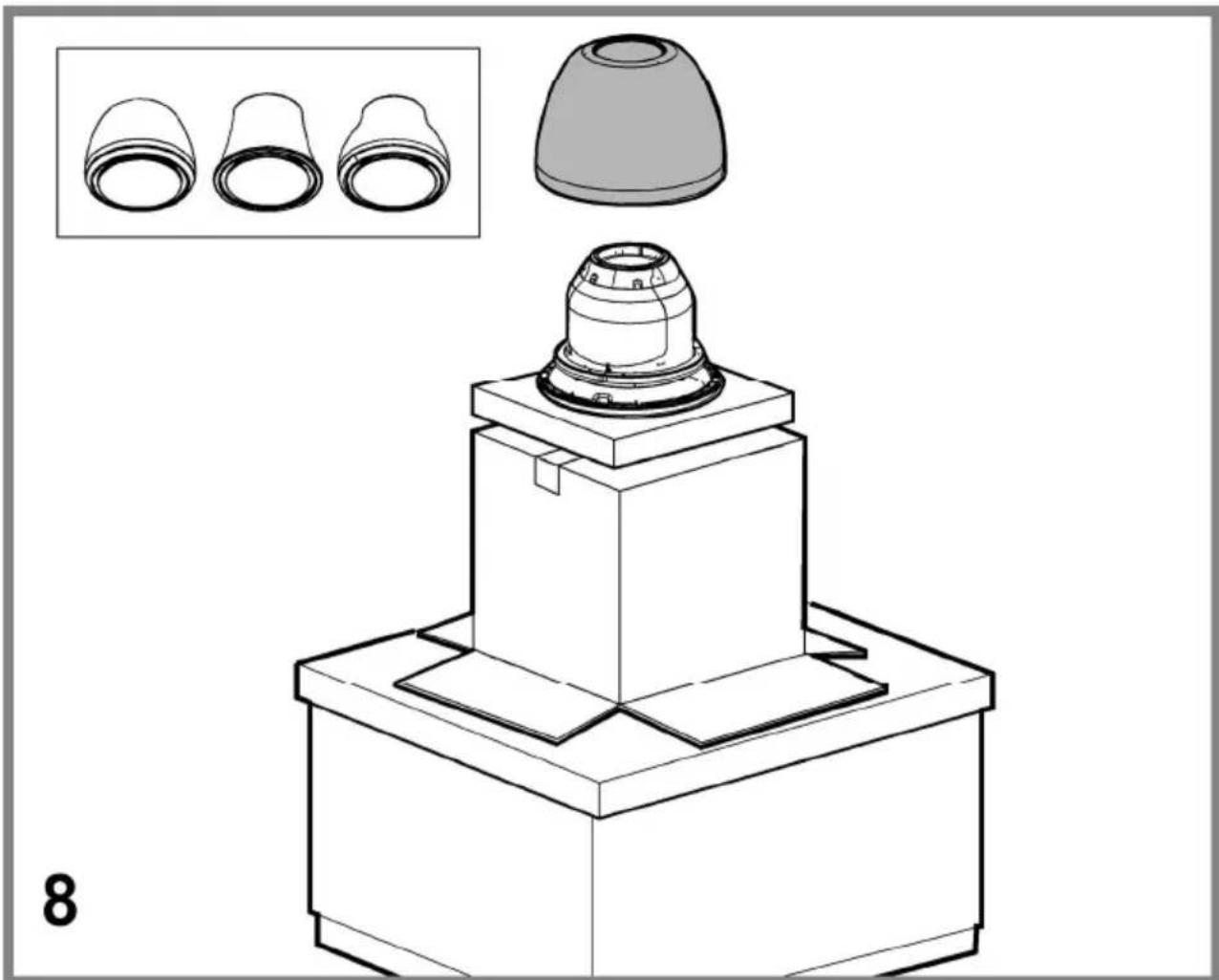

Illustration of a box with a lid and a cup above it, no text or symbols present

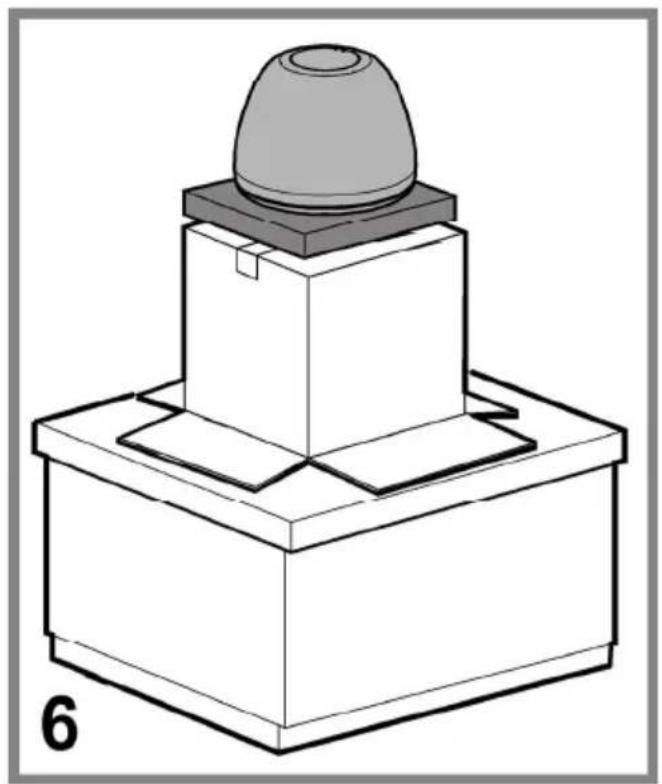

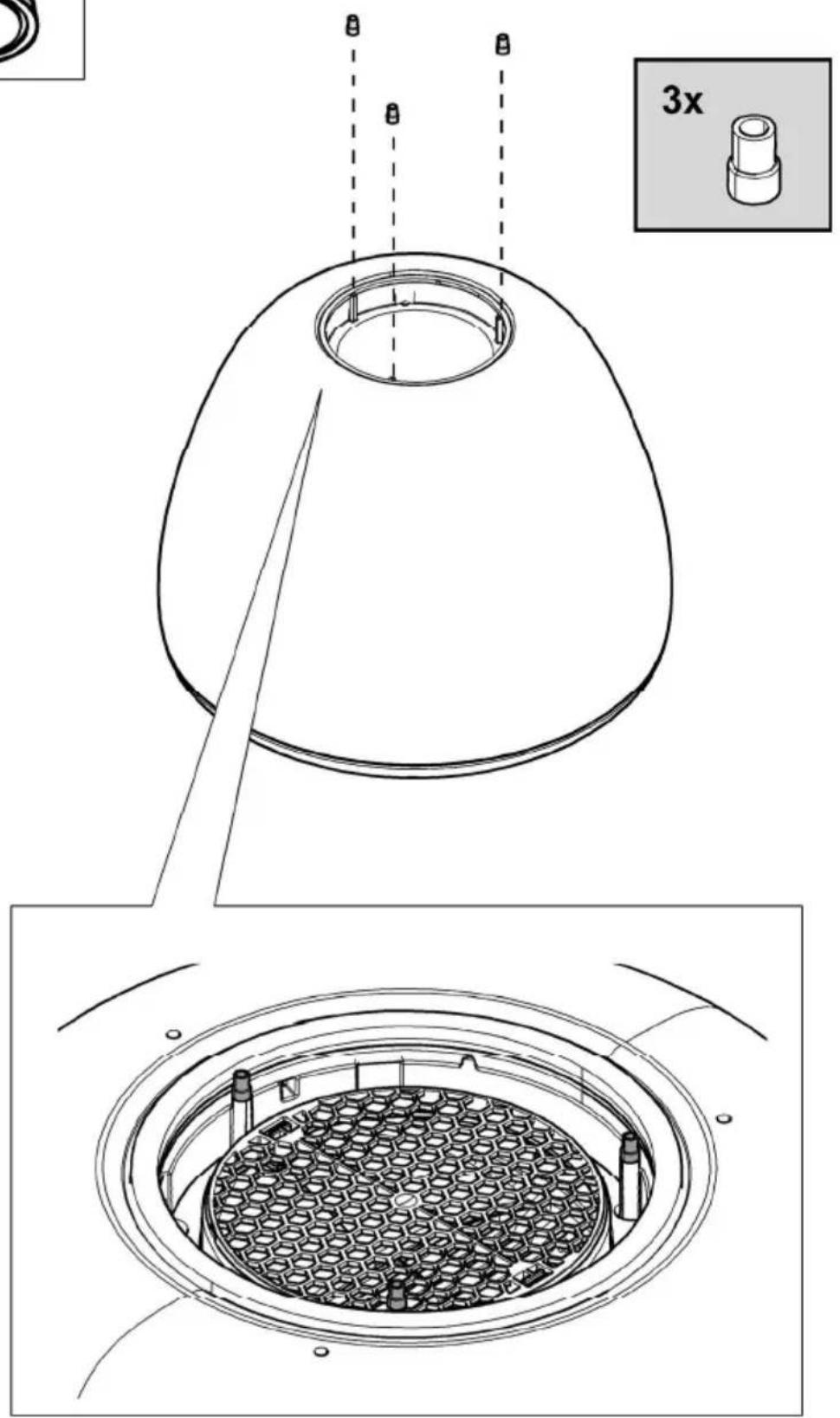

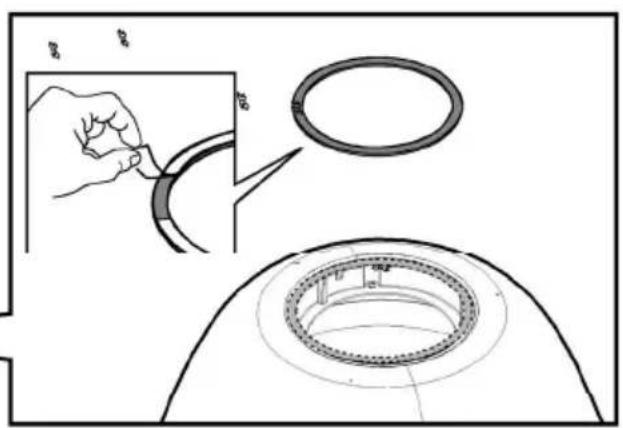

Isometric line drawing of a mechanical component with a dome-shaped top and base (no text or symbols)

Technical illustration of a mechanical component with a dome-shaped top and base, shown with an inset close-up of its circular features (no text or symbols present)

Technical line drawing of a mechanical component with three inset views of a conical component (no text or symbols)

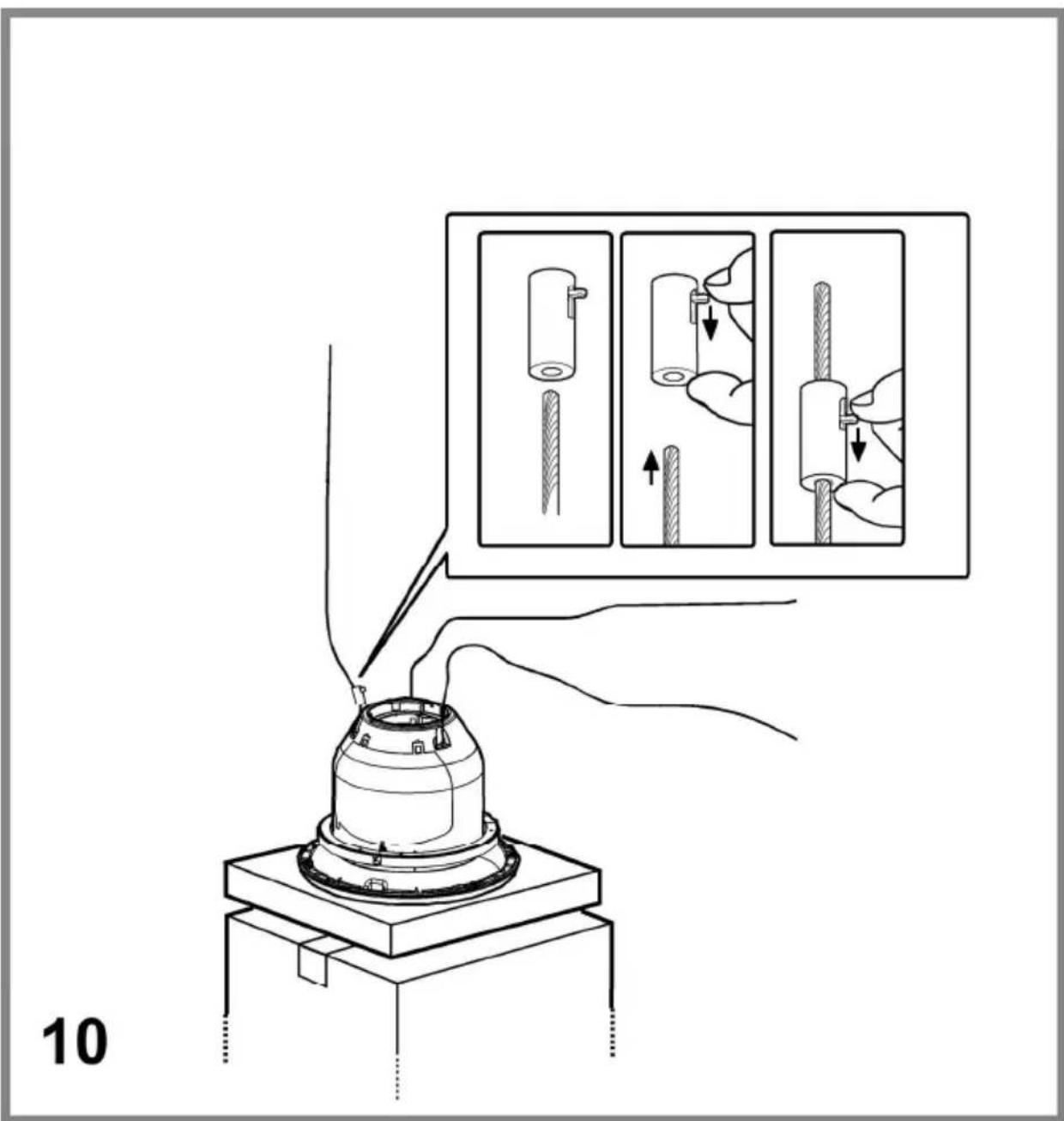

9

9.1

Diagram showing two keys rotating around a central object with curved arrows indicating rotation (no text or symbols present)

9.2

Hand holding a tool above a mechanical component (no text or symbols visible)

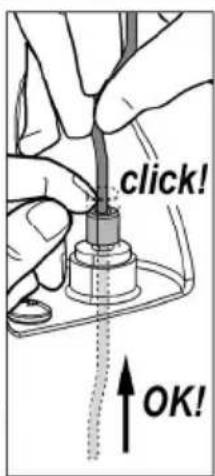

Hand holding a cable inserted into a mechanical component, with arrows indicating direction of movement (no text or symbols present)

9.3

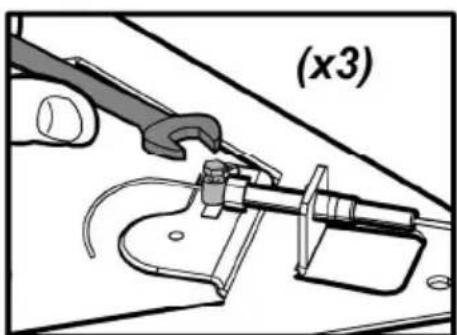

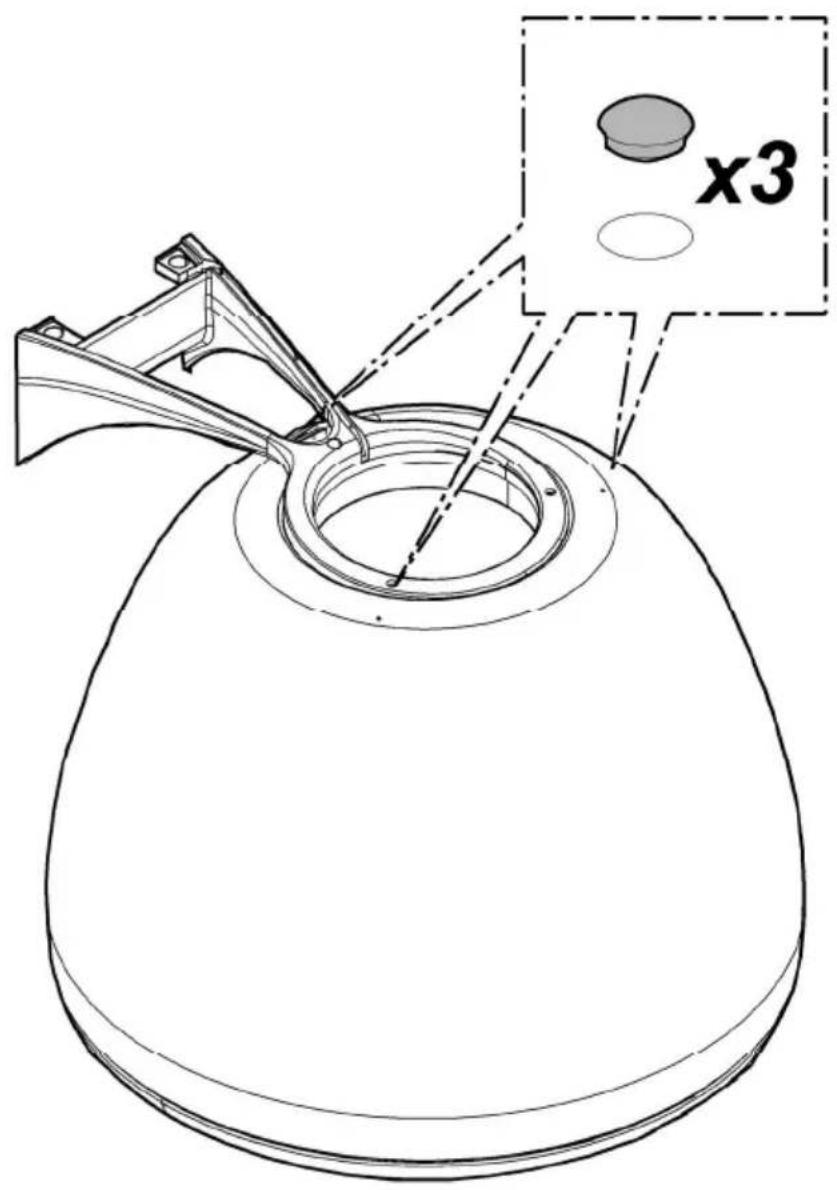

x3

9.4

Diagram showing two keys locked in a lock mechanism with an open lock, no text or symbols present

9.5
9.6

Diagram showing a mechanical assembly with three stages of tool manipulation, including a close-up of cylindrical components and directional arrows (no text or symbols)

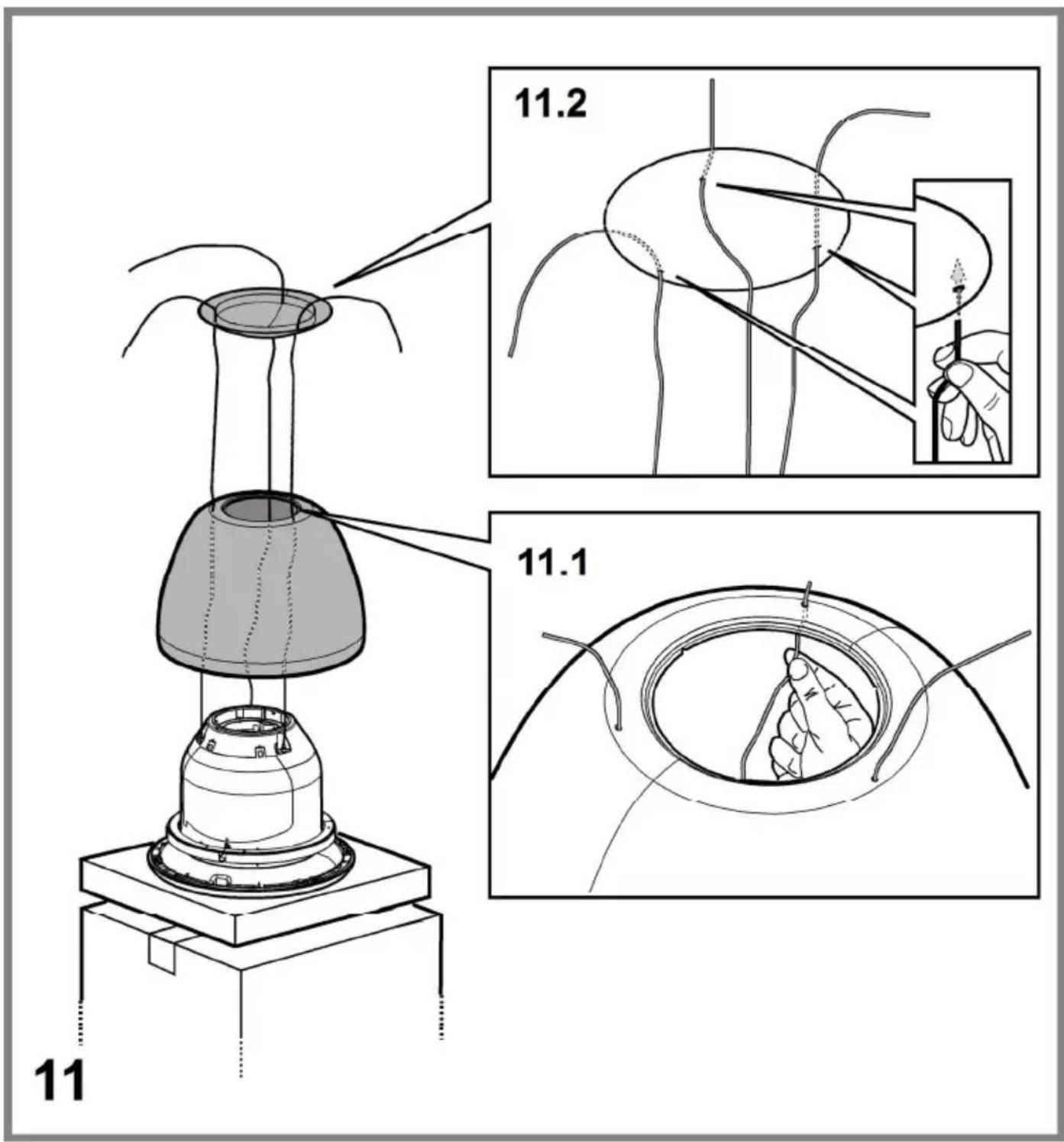

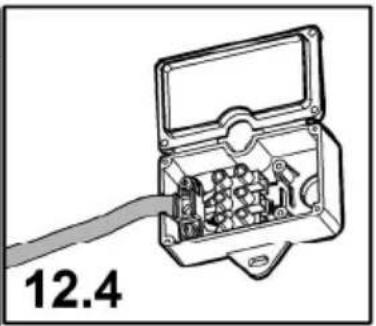

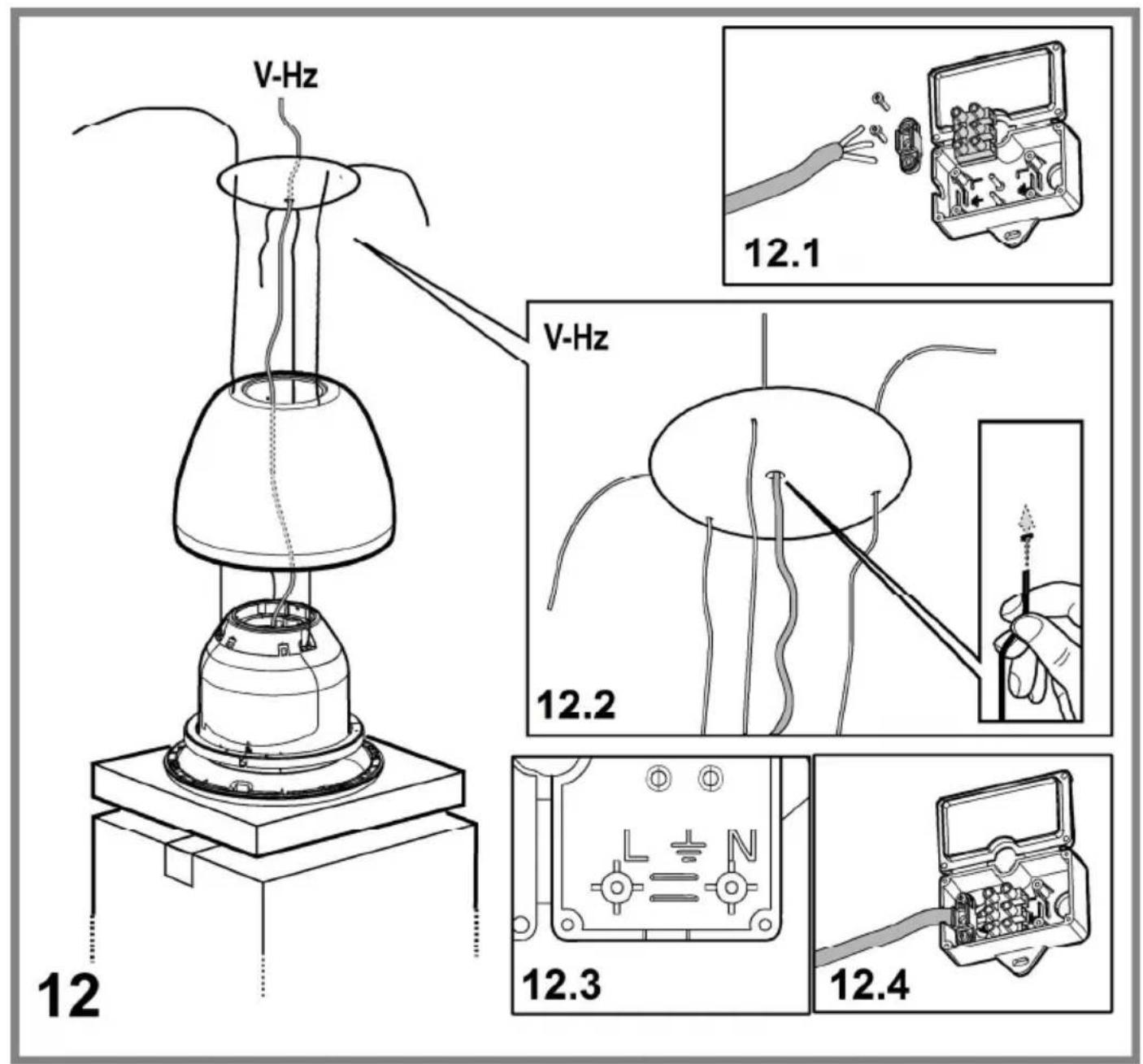

Diagram showing a cable being inserted into an electrical switch case, labeled 12.1 (no text or symbols on the diagram itself)

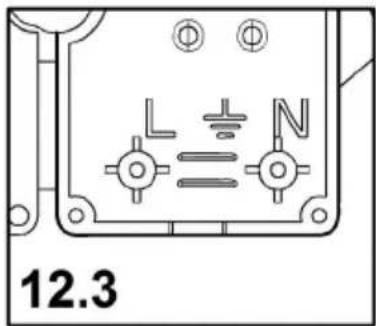

Diagram of an open electrical switch box with internal components and a cable, labeled '12.4' (no text or symbols on the diagram itself)

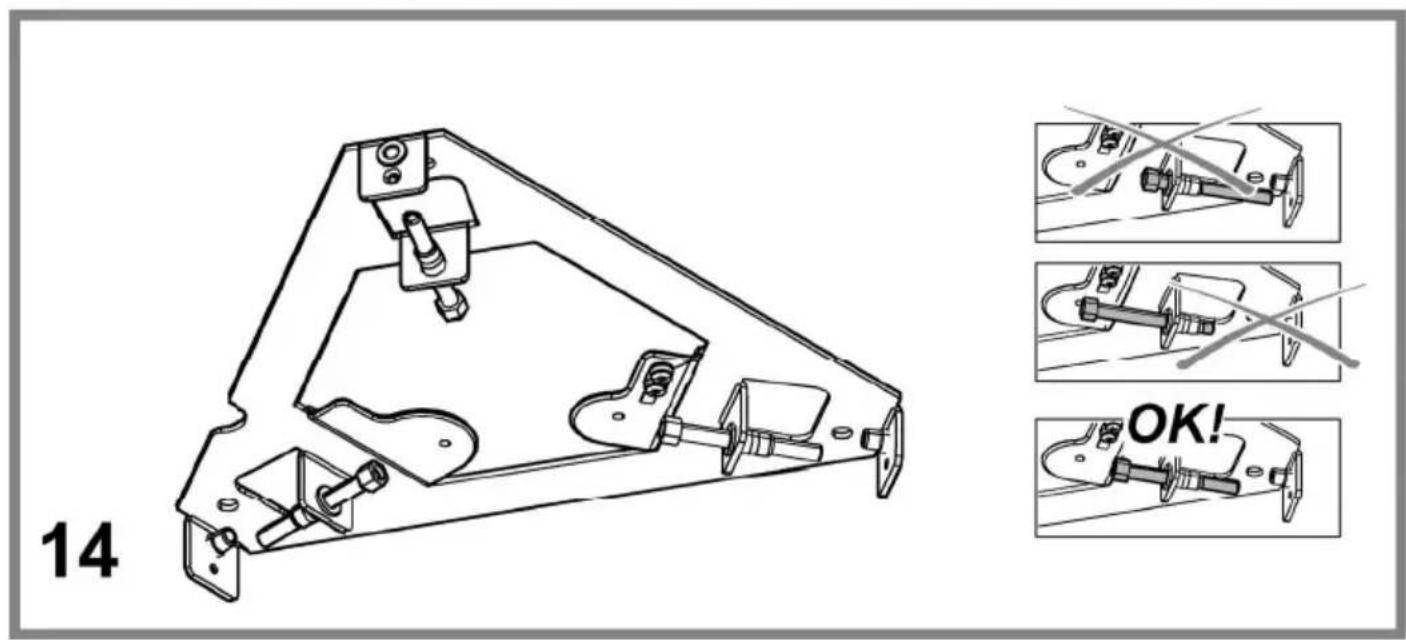

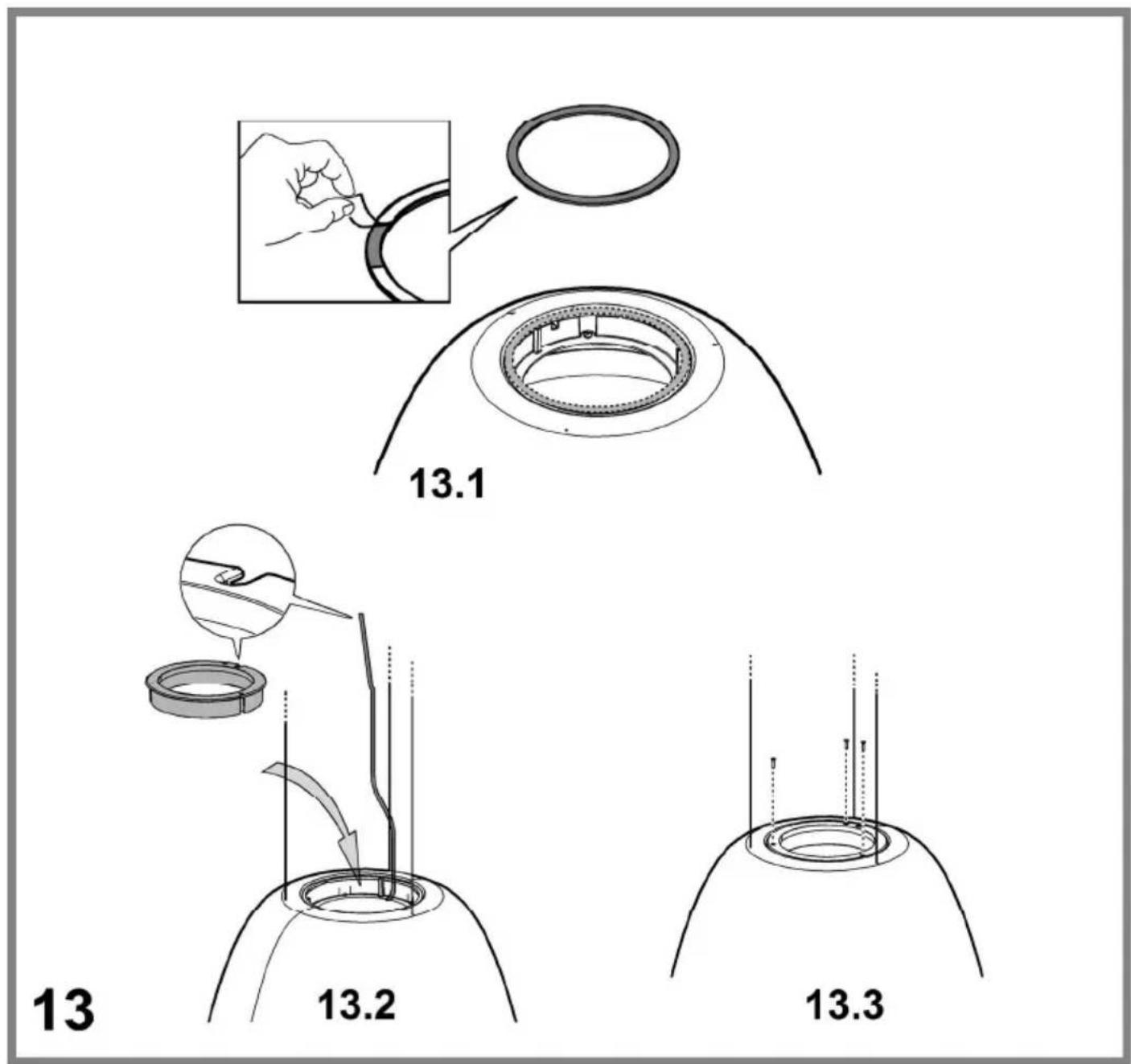

15

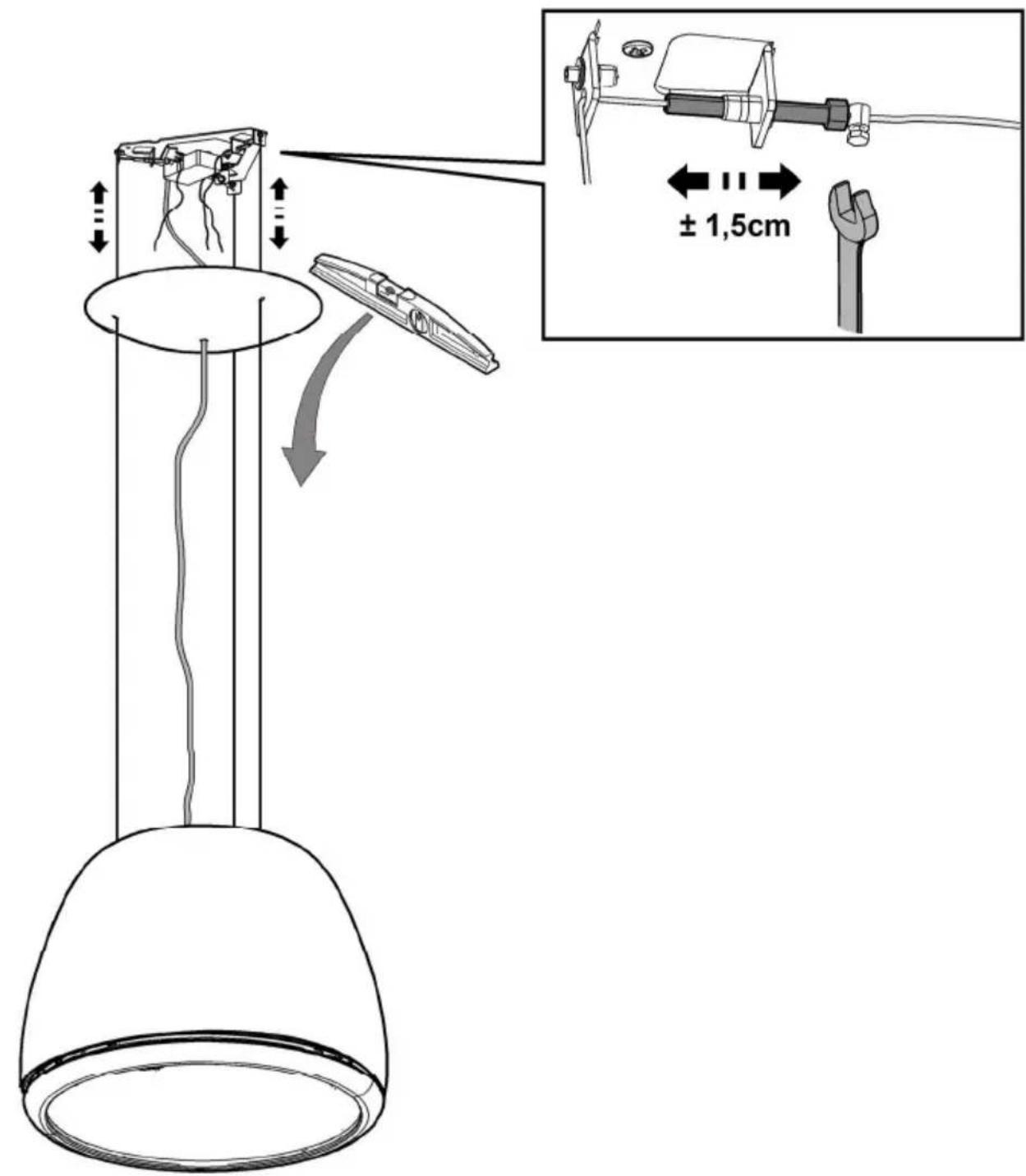

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

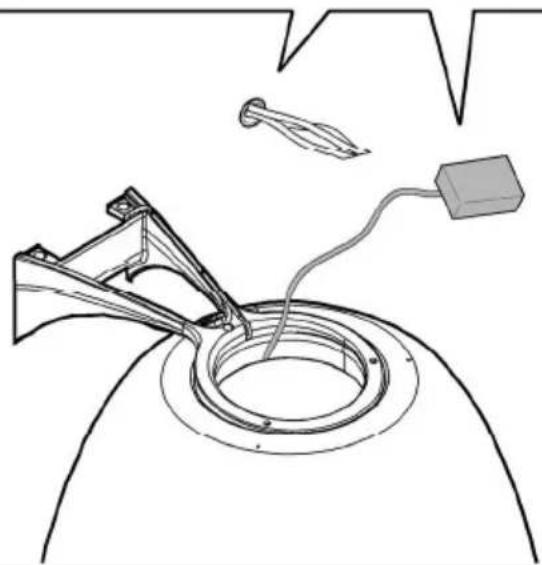

Technical line drawing of a mechanical device with attached components and wires (no text or symbols)

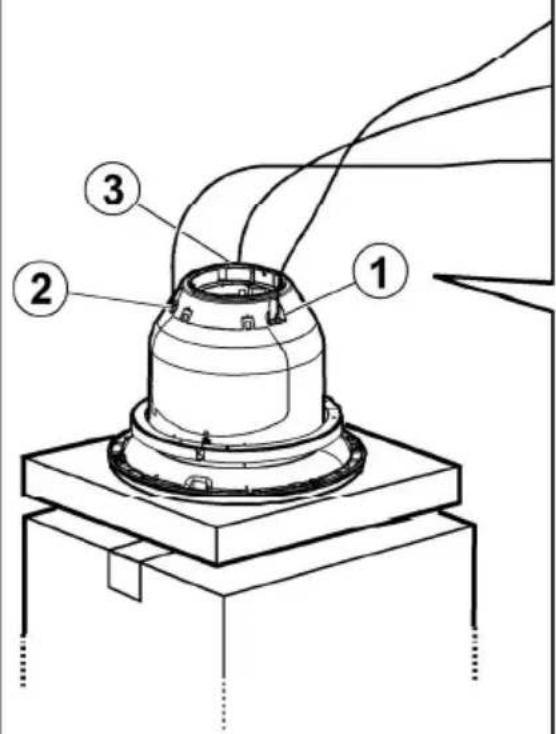

Technical illustration of a mechanical assembly with a bell jar, base, and housing (no text or symbols)

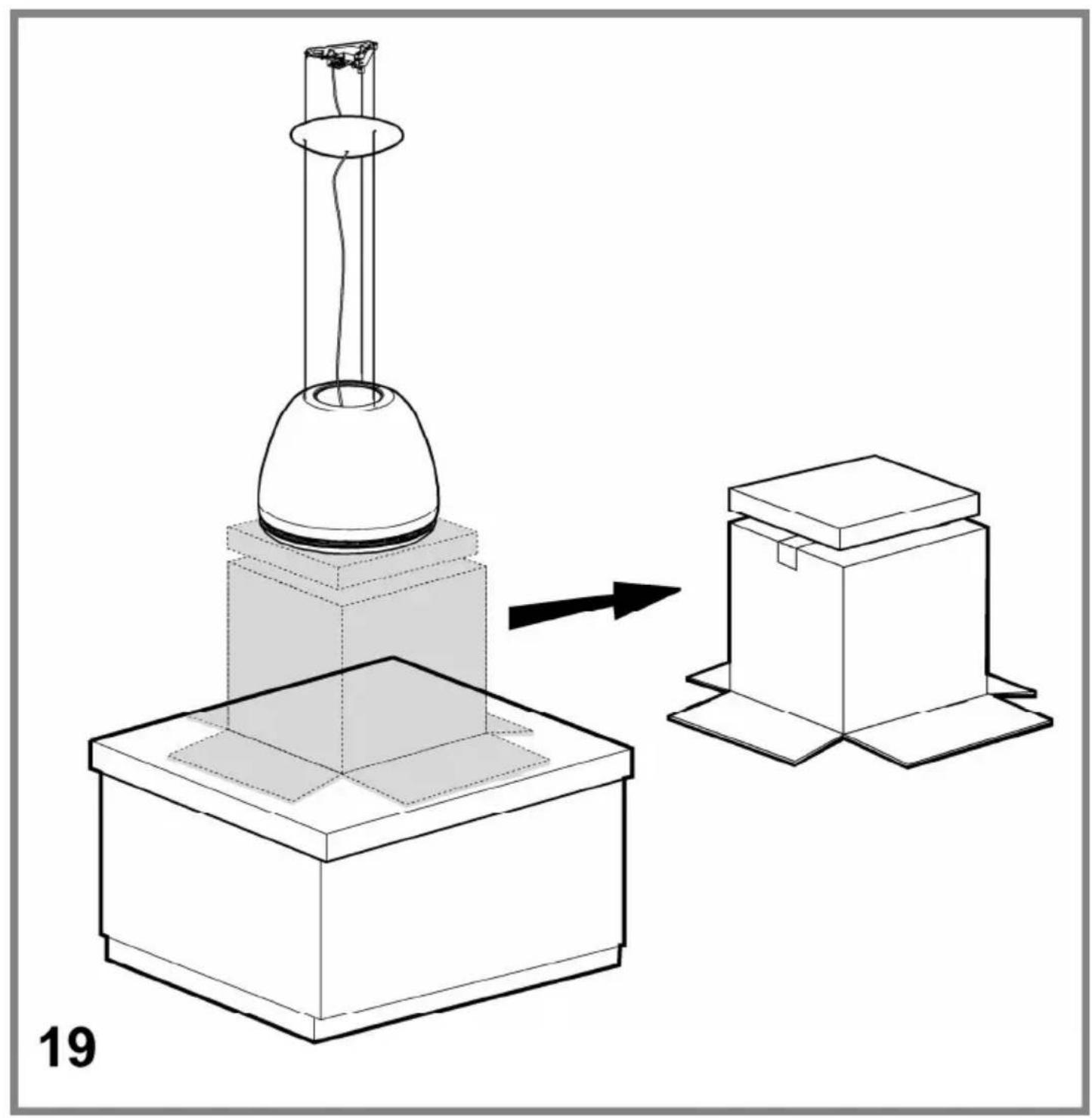

20

21

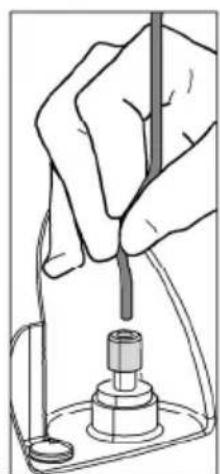

22

Simple line drawing of a mechanical device with a circular base and vertical supports (no text or symbols)

Simple line drawing of a funnel with a curved internal line, no text or symbols present

23a

Technical line drawing of a mechanical clamp or bracket assembly with multiple screws and bolts (no text or symbols)

23b

Simple line drawing of a cylindrical object with a curved top and inner ring (no text or symbols)

24a

Technical line drawing of a mechanical component with a circular base and mounting bracket (no text or symbols)

Abstract line drawing of intersecting curved and elliptical shapes with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a curved base and internal ring (no text or symbols)

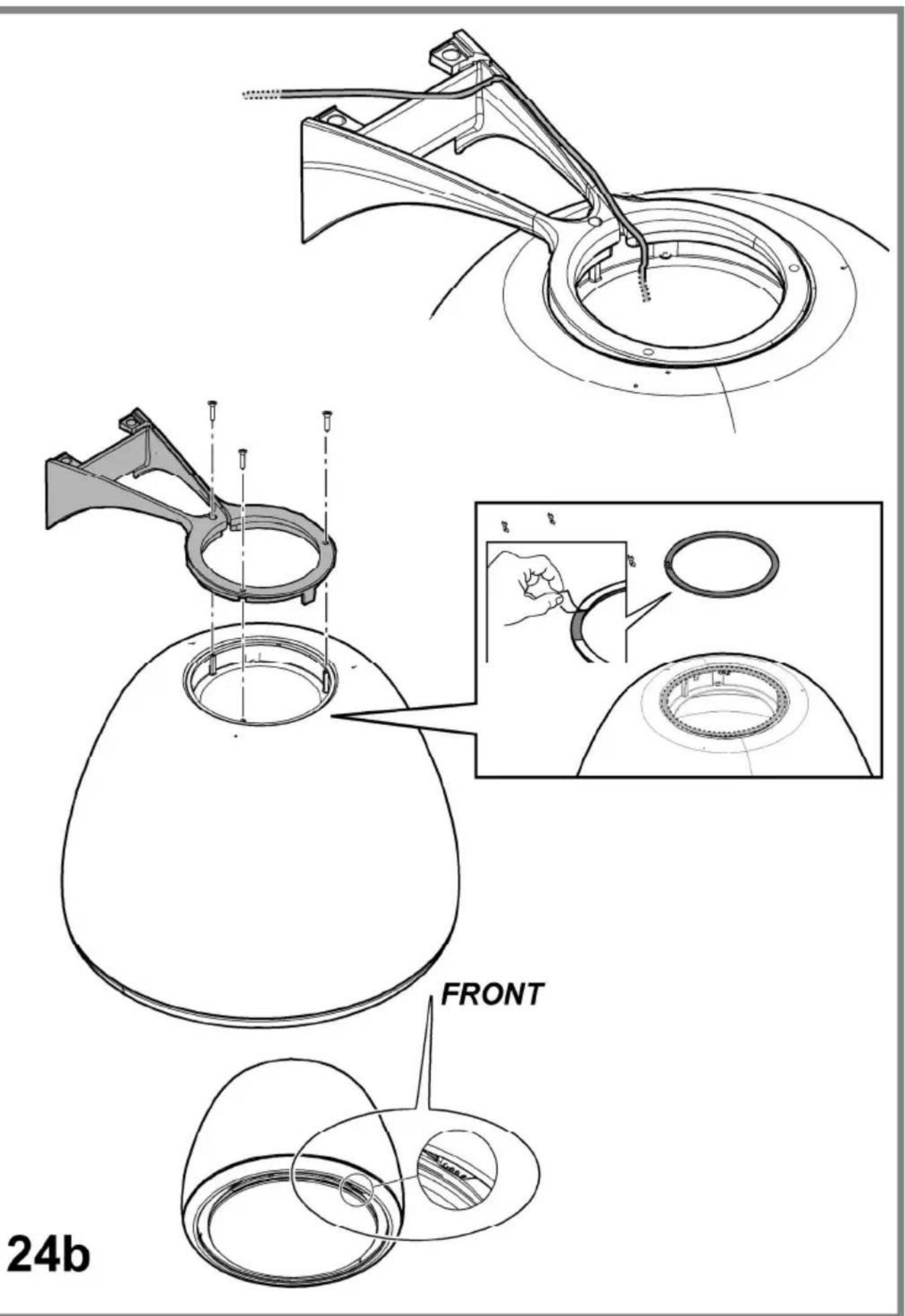

25a

25b

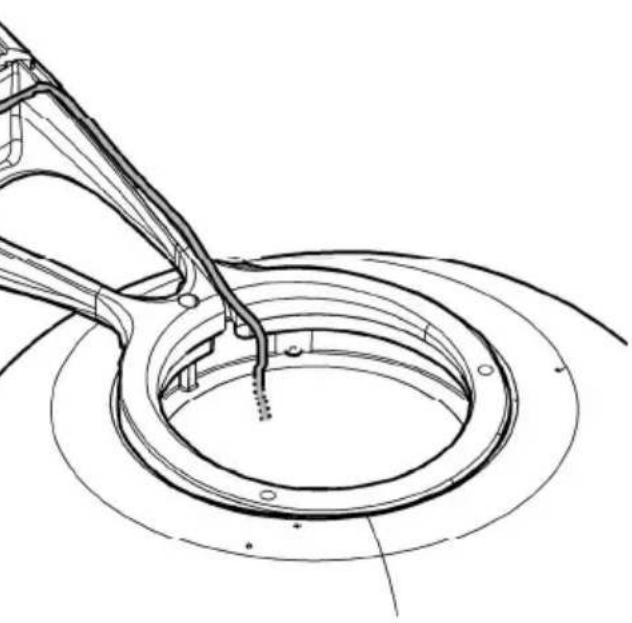

Technical diagram of a mechanical device with attached components and wiring, no visible text or symbols

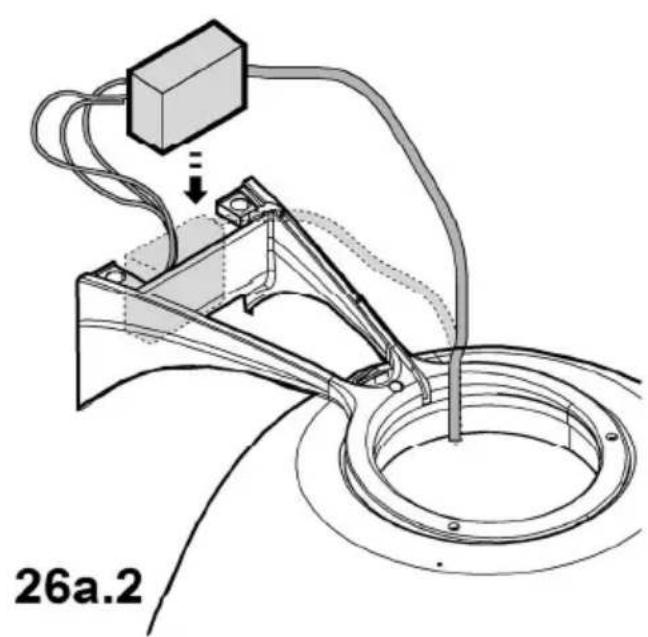

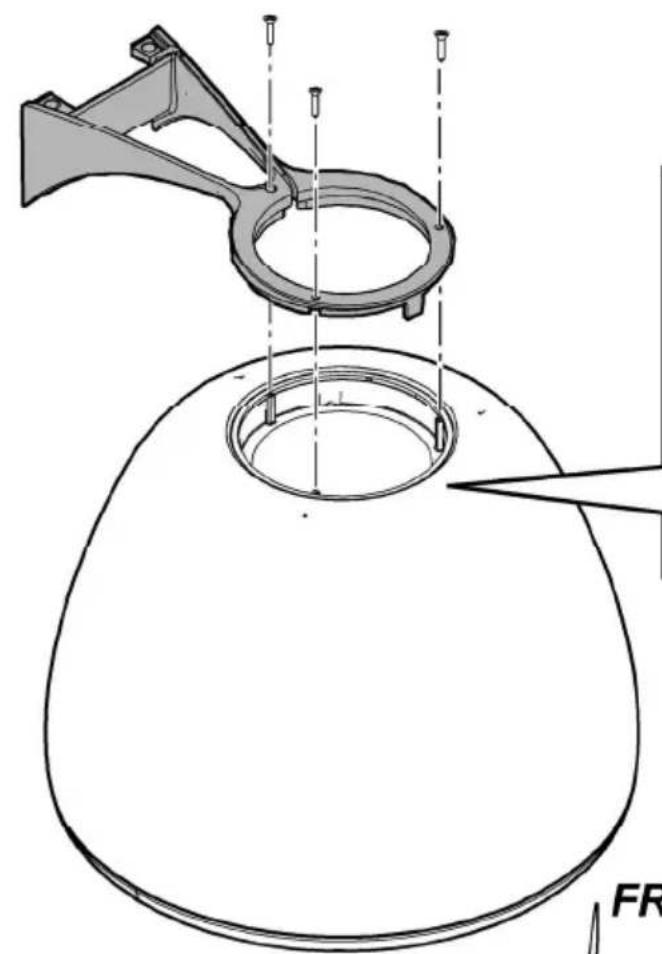

26a.1

26a.3

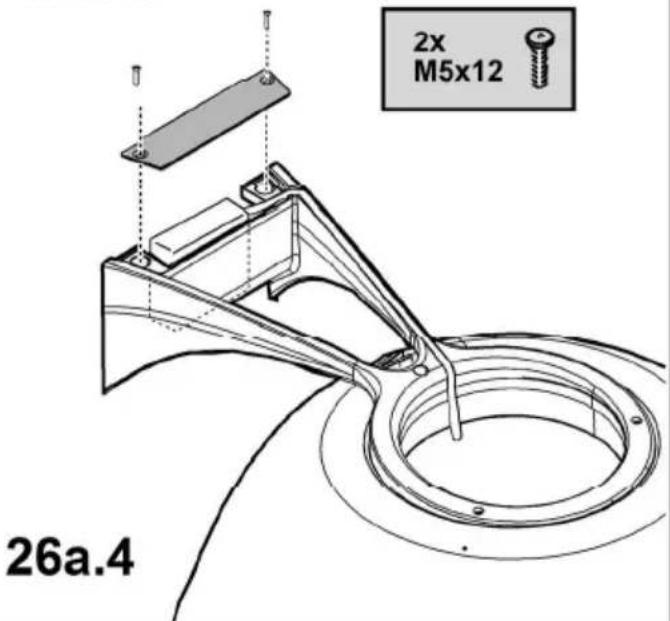

Technical line drawing of a mechanical assembly with no visible text or symbols

26a

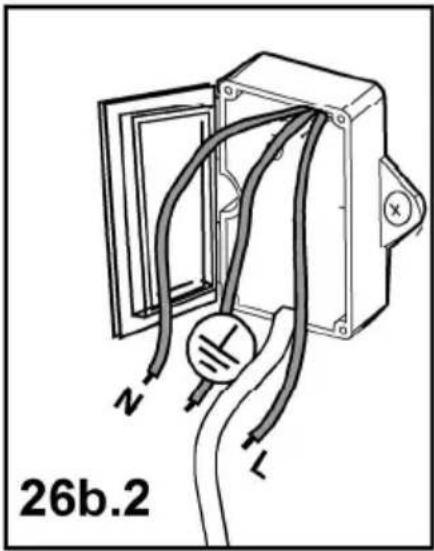

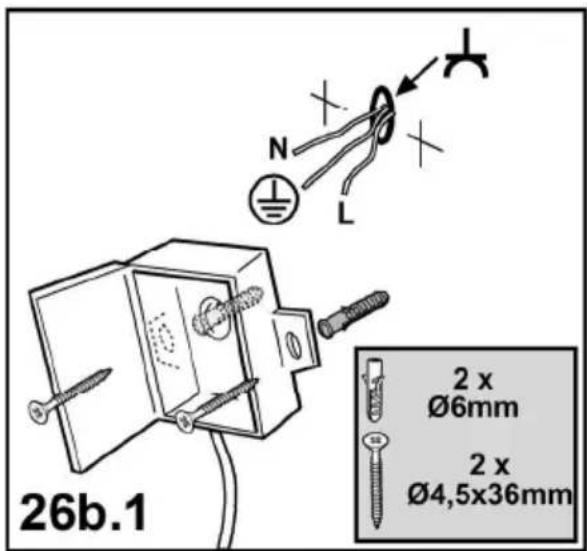

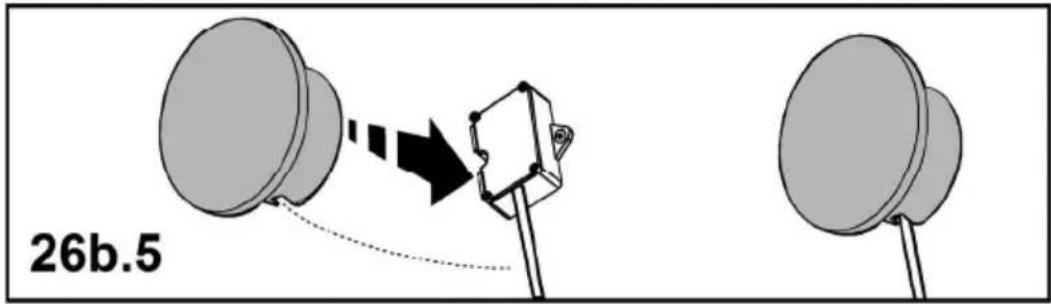

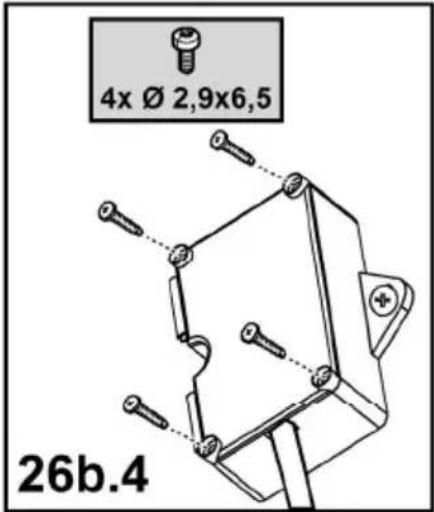

26b

Technical line drawing of a mechanical assembly with no visible text or symbols

28

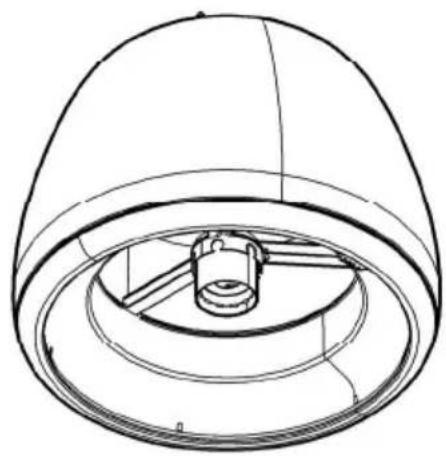

Simple line drawing of a dome-shaped object with a circular base (no text or symbols)

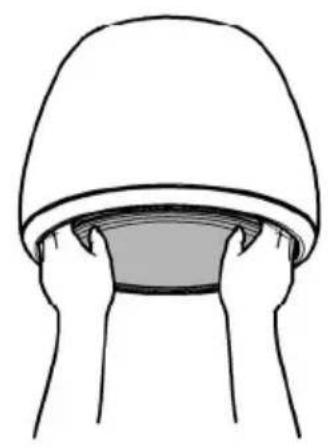

Simple line drawing of two hands holding a dome-shaped object (no text or symbols)

Illustration of two hands cupping a bowl (no text or symbols)

Simple line drawing of a person holding a bowl (no text or symbols)

Line drawing of hands holding a car tire inside a helmet (no text or symbols)

Technical line drawing of a dome-shaped mechanical component with internal components (no text or symbols)

3D diagram of a circular mechanical component with three internal blades (no text or symbols)

29

Diagram of a circular mechanical component with internal blades and directional arrows (no text or symbols)

30.1

Technical diagram of a mechanical component with two views: top shows a circular cross-section with internal segments, bottom shows a circular cross-section with internal divisions (no text or symbols)

30.2

30

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Caution

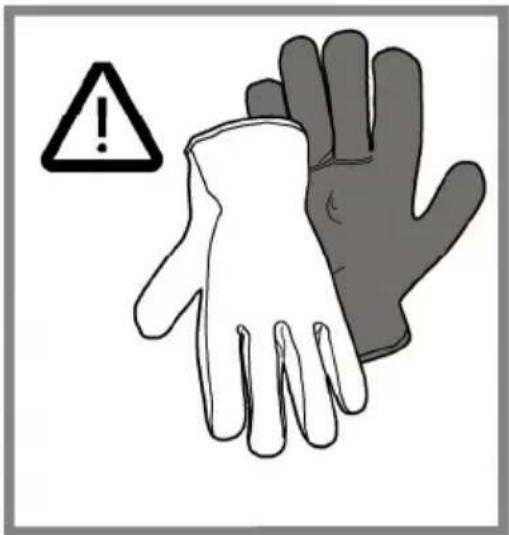

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not flambé under the range hood.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical

hazards.

Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Note: any imperfections in cosmetic appearance are to be considered as particular characteristics of the product itself.

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood has been made for use in the internal recirculating filtering version.

Cooking fumes and steam are aspirated inside the hood, filtered and cleaned, passing through the fat filter/s and the carbon filter/s that MUST be supplied with the hood.

Important

It is possible to buy an extraction operation Kit.

In this case the charcoal filter must not be installed.

Furthermore, the use of the extraction kit may require a different installation of the hood from what shown in this manual; therefore, before starting the installation of the hood, buy the extraction kit and consult the instructions enclosed with the kit.

Installation

Specialised personnel must carry out both the electrical and the mechanical installation.

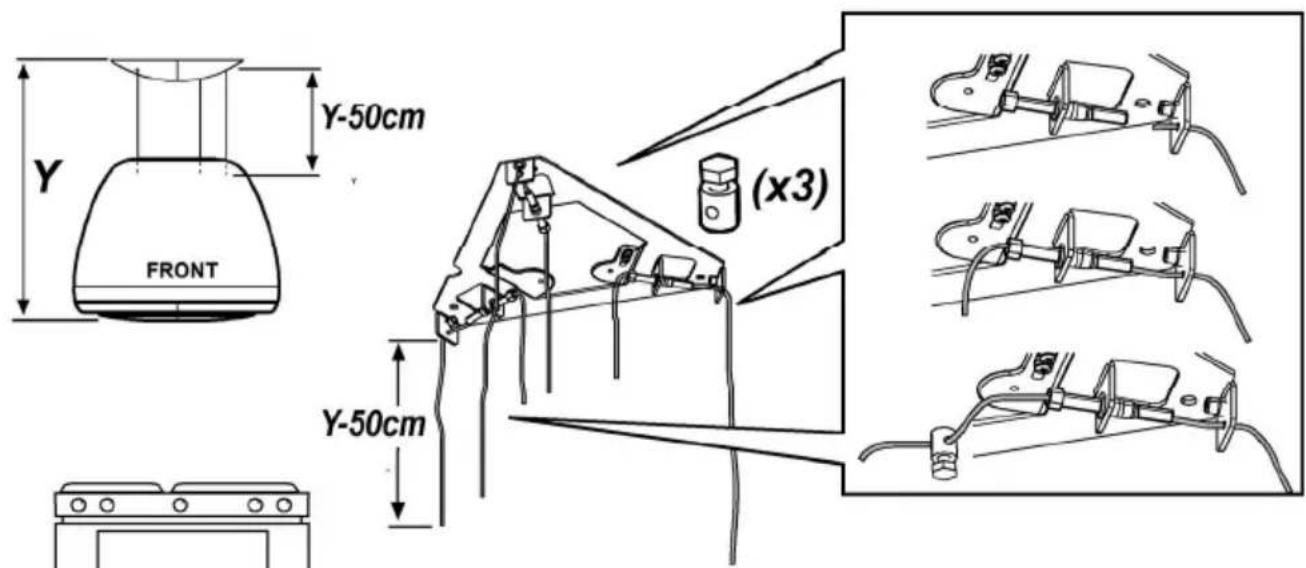

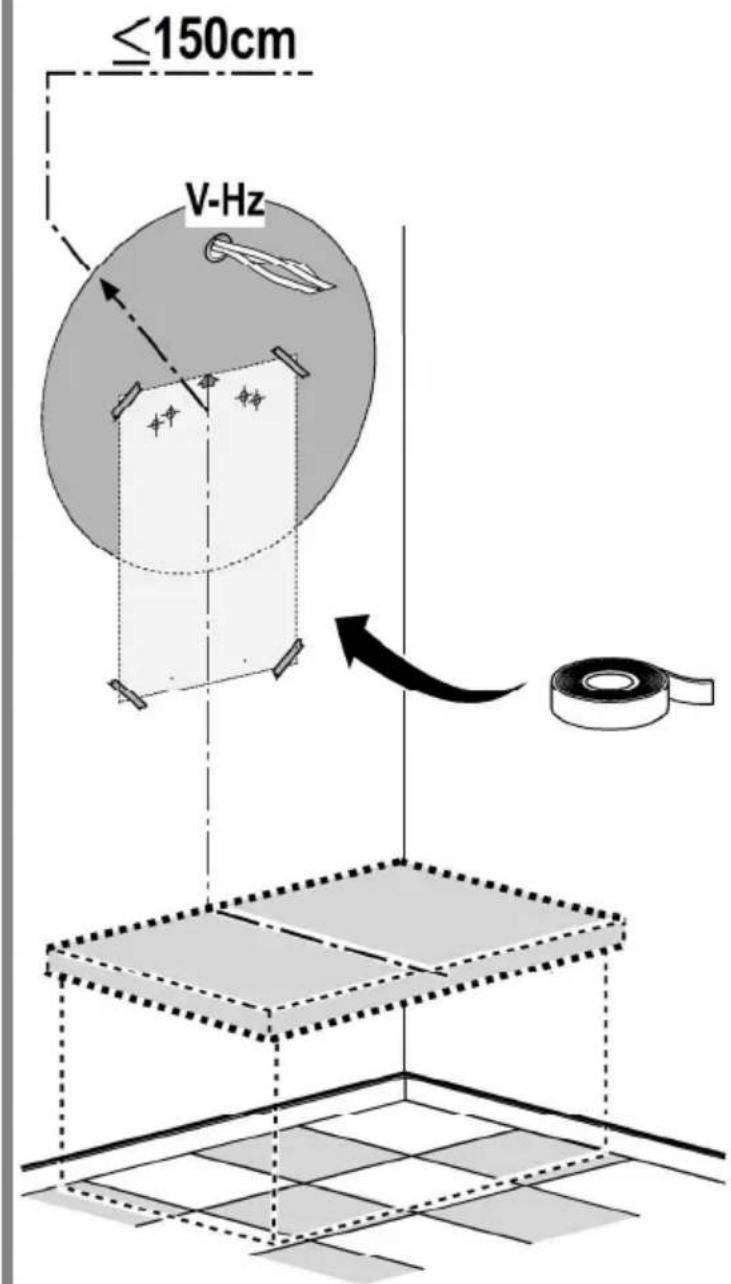

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

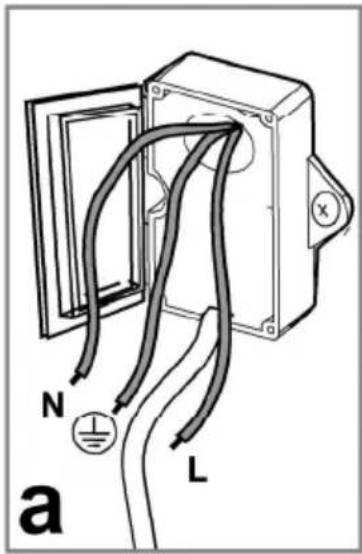

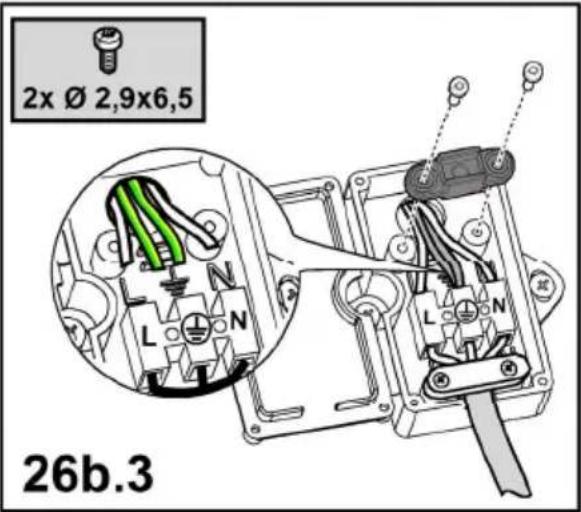

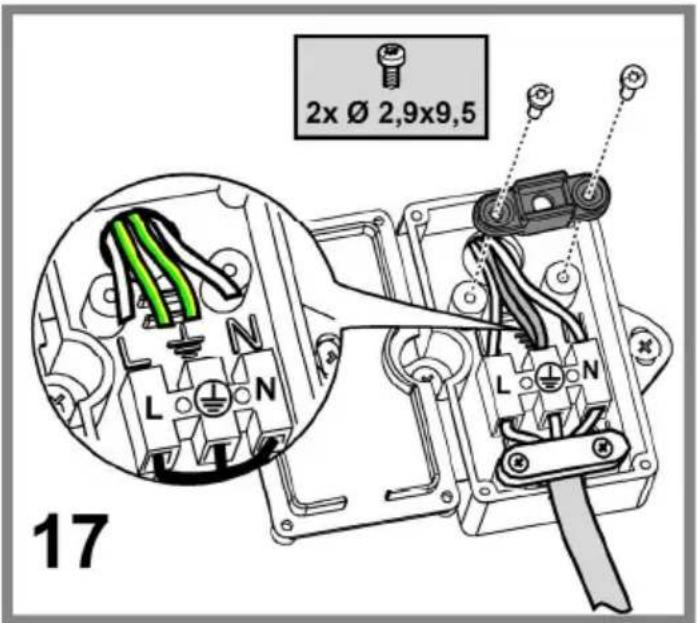

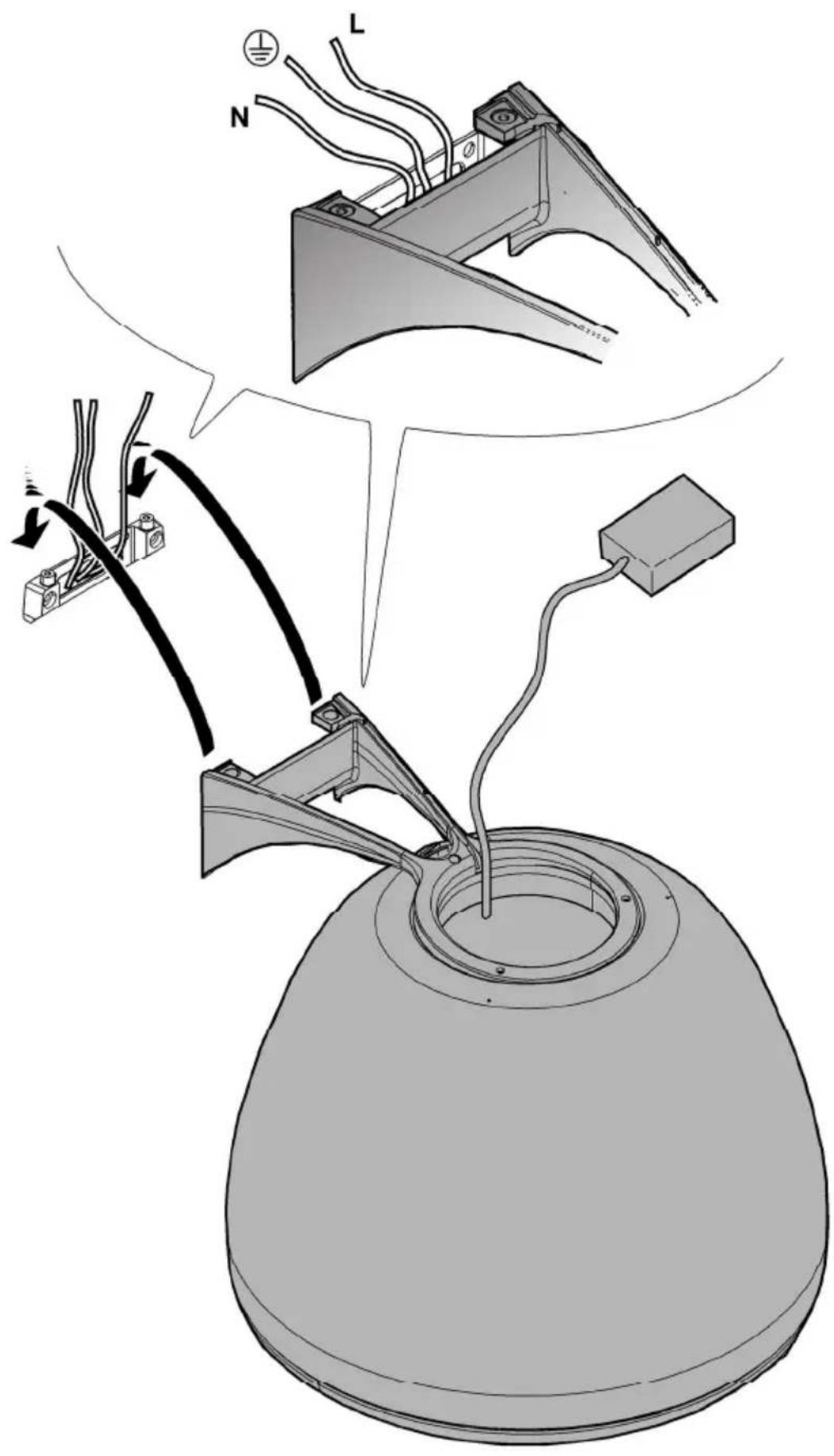

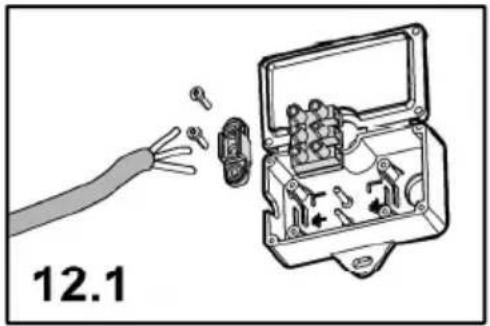

Electrical connection

The mains tension must correspond to the tension shown on the characteristic label situated inside the hood.

The product is meant for connecting directly to the mains supply, therefore apply a regulation bipolar switch that ensures complete disconnection from the mains in the conditions of category III over-tension, conforming to the installation rules.

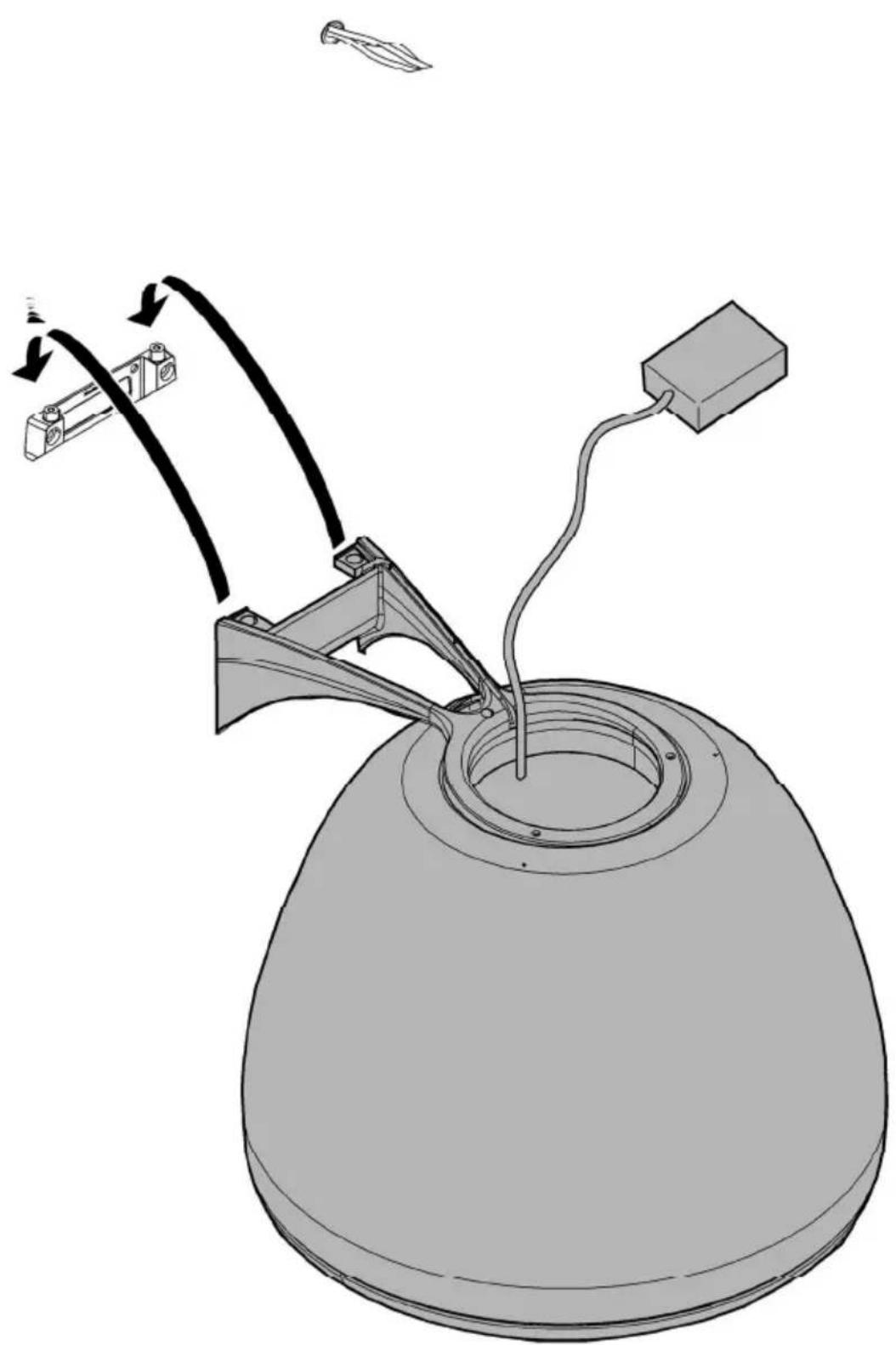

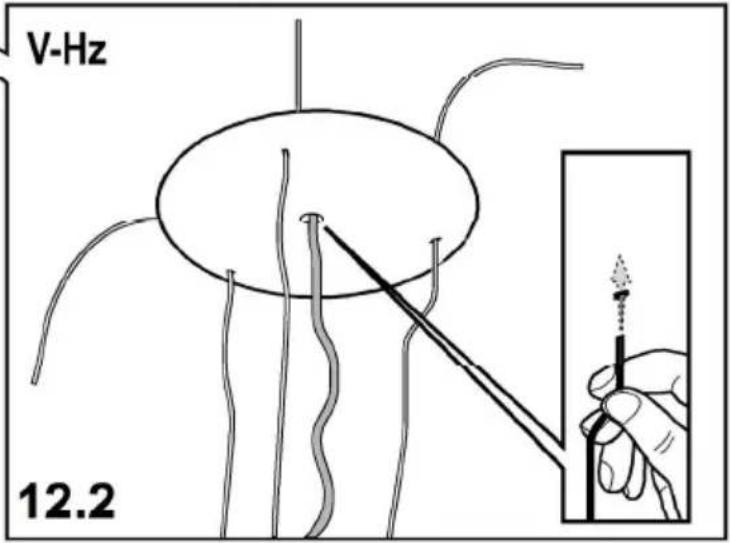

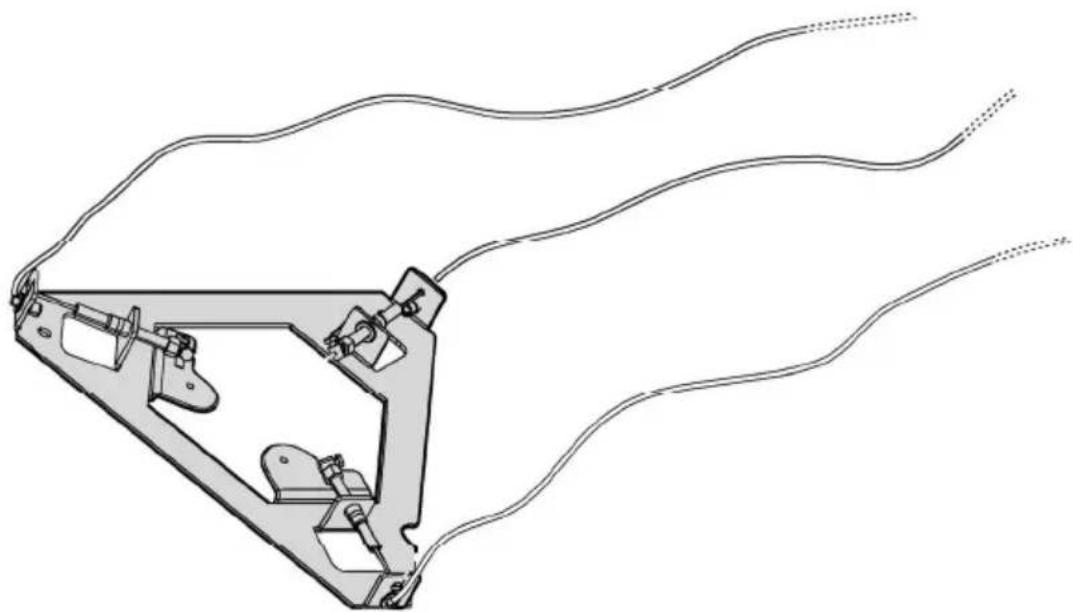

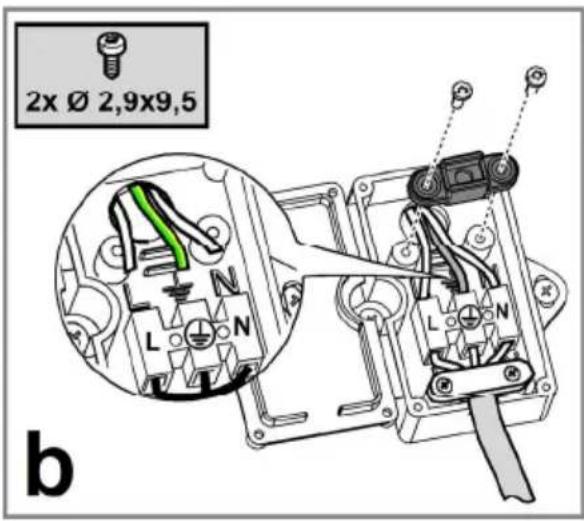

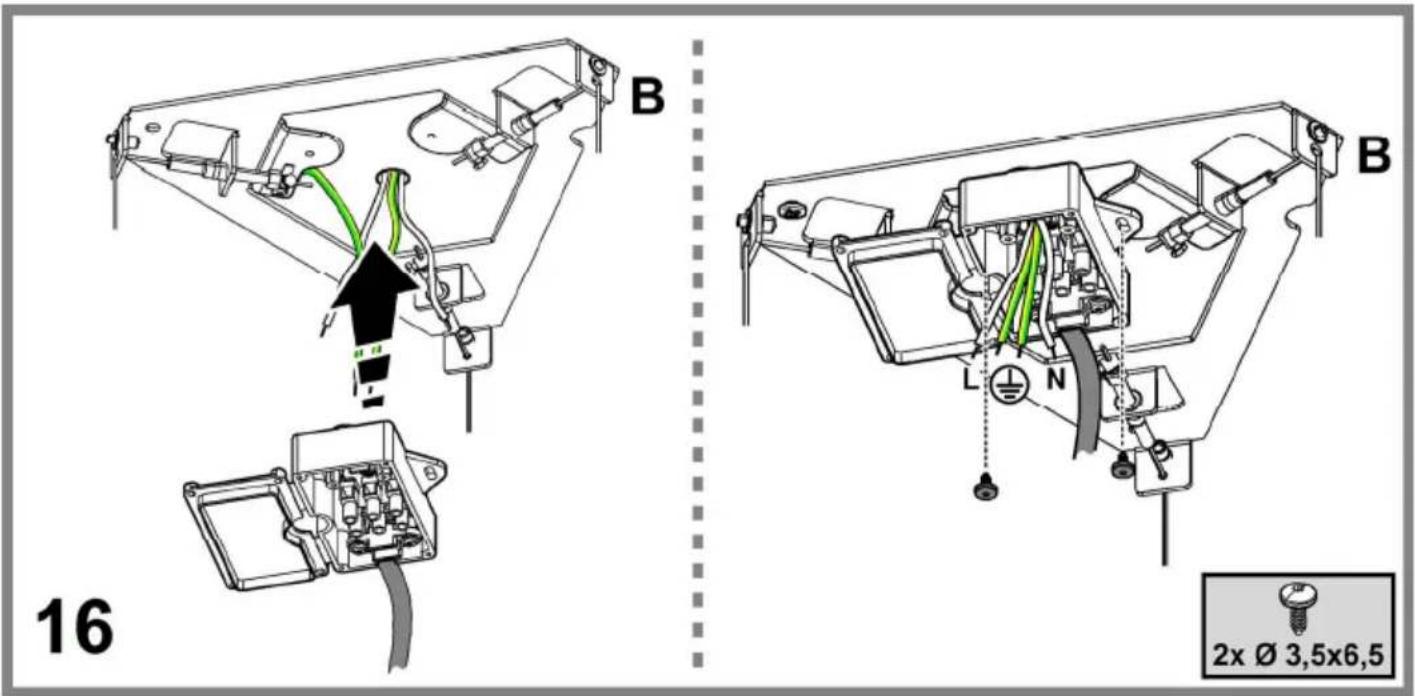

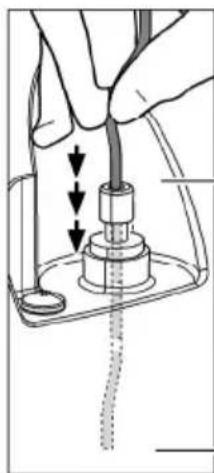

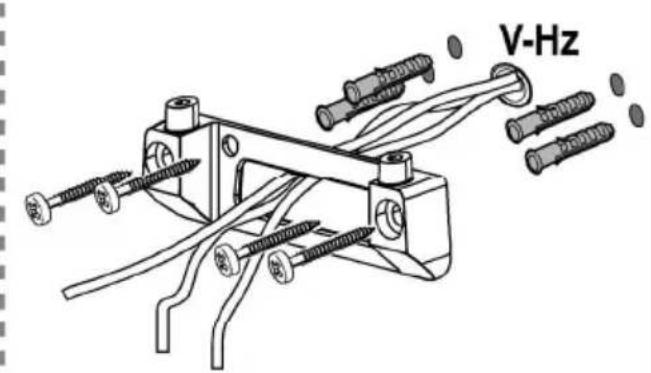

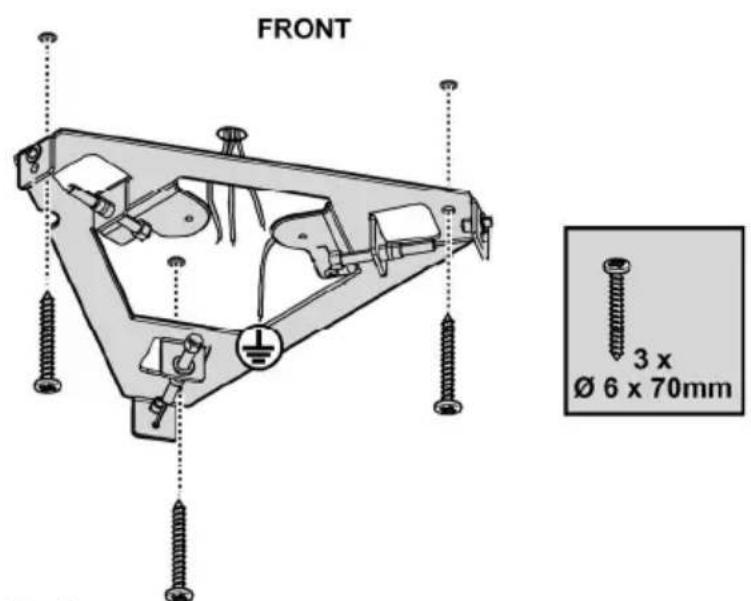

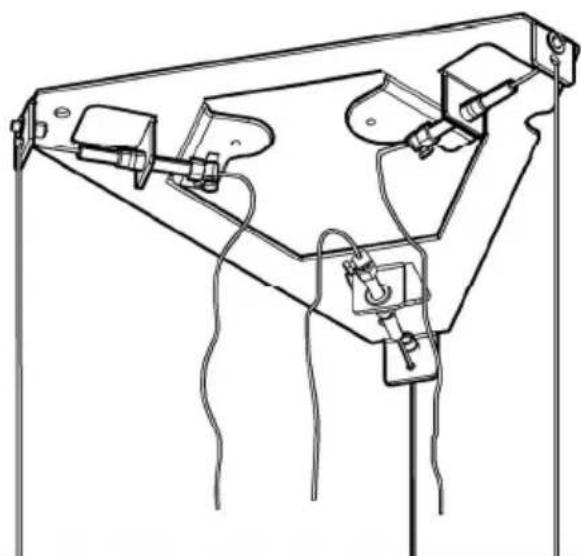

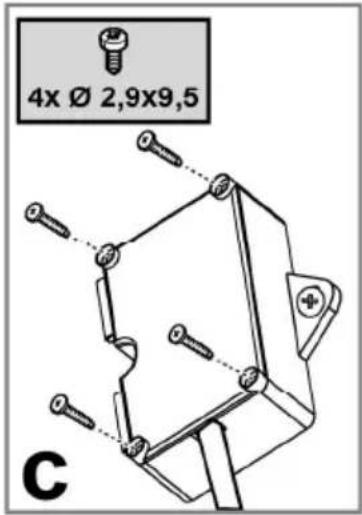

Warning! Detail B (fixing bracket to the ceiling) is equipped with a conductor (yellow-green) that must be connected to the earth of the domestic electrical plant. Fig. 16-17

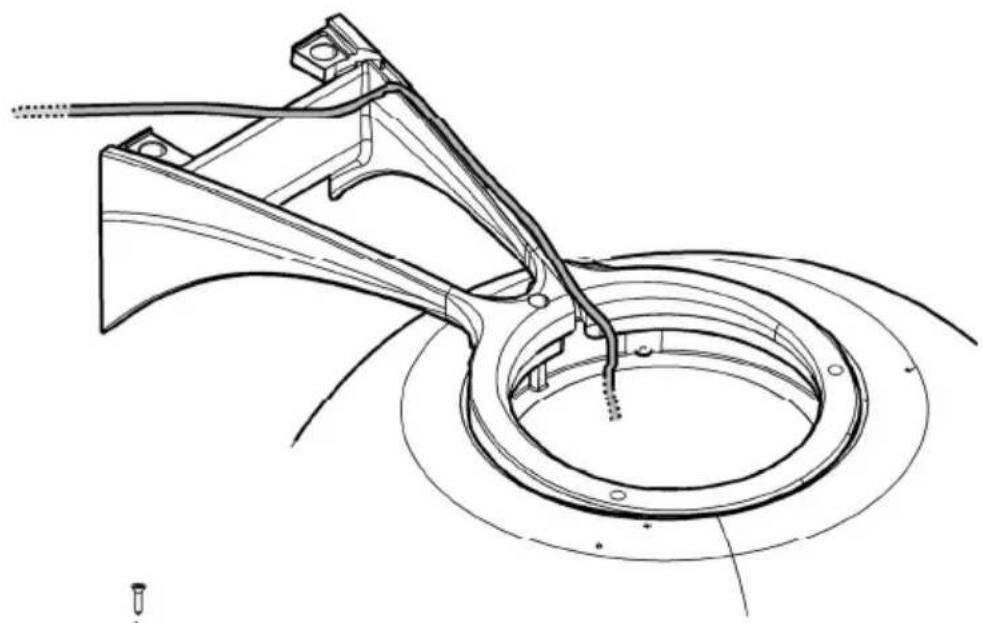

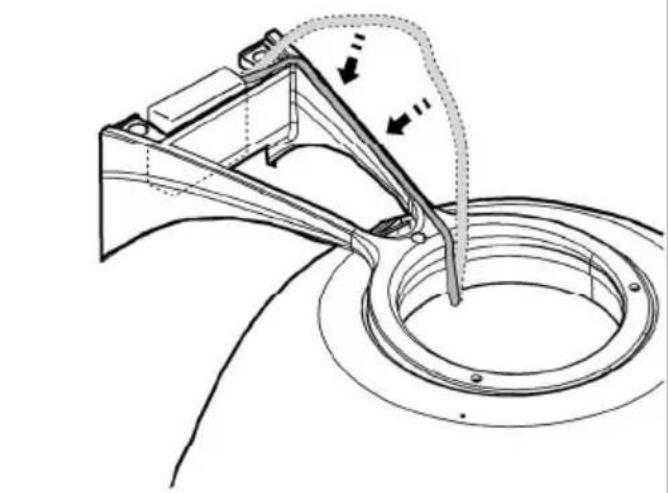

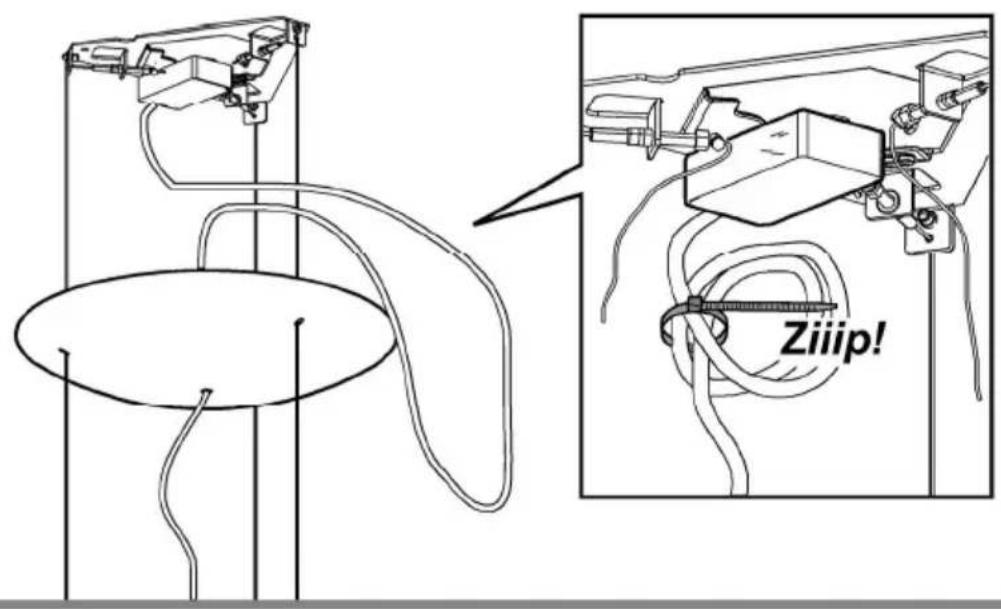

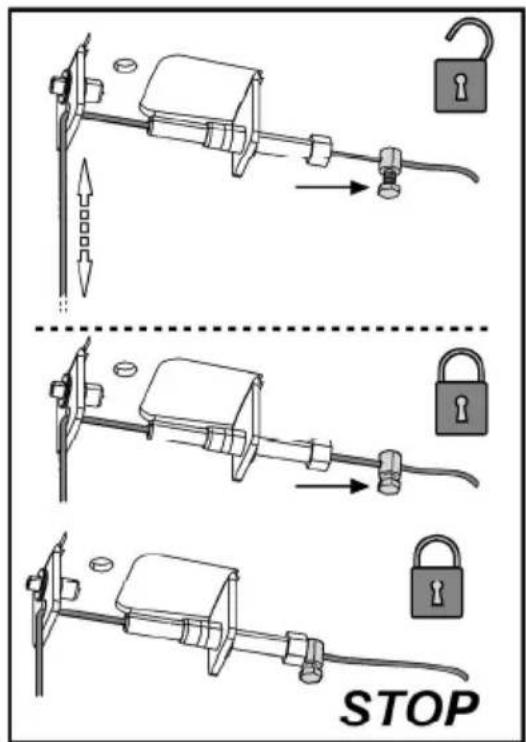

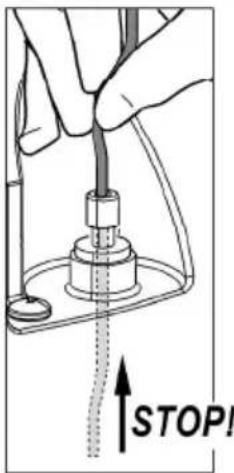

ATTENTION! Be particularly careful about positioning excess cable. Failure to observe this indication could be grave damage to the apparatus and/or an electric k to the user or the installer.

Warning! Changing the interconnection cable must be carried out by the authorised technical assistance service.

Mounting

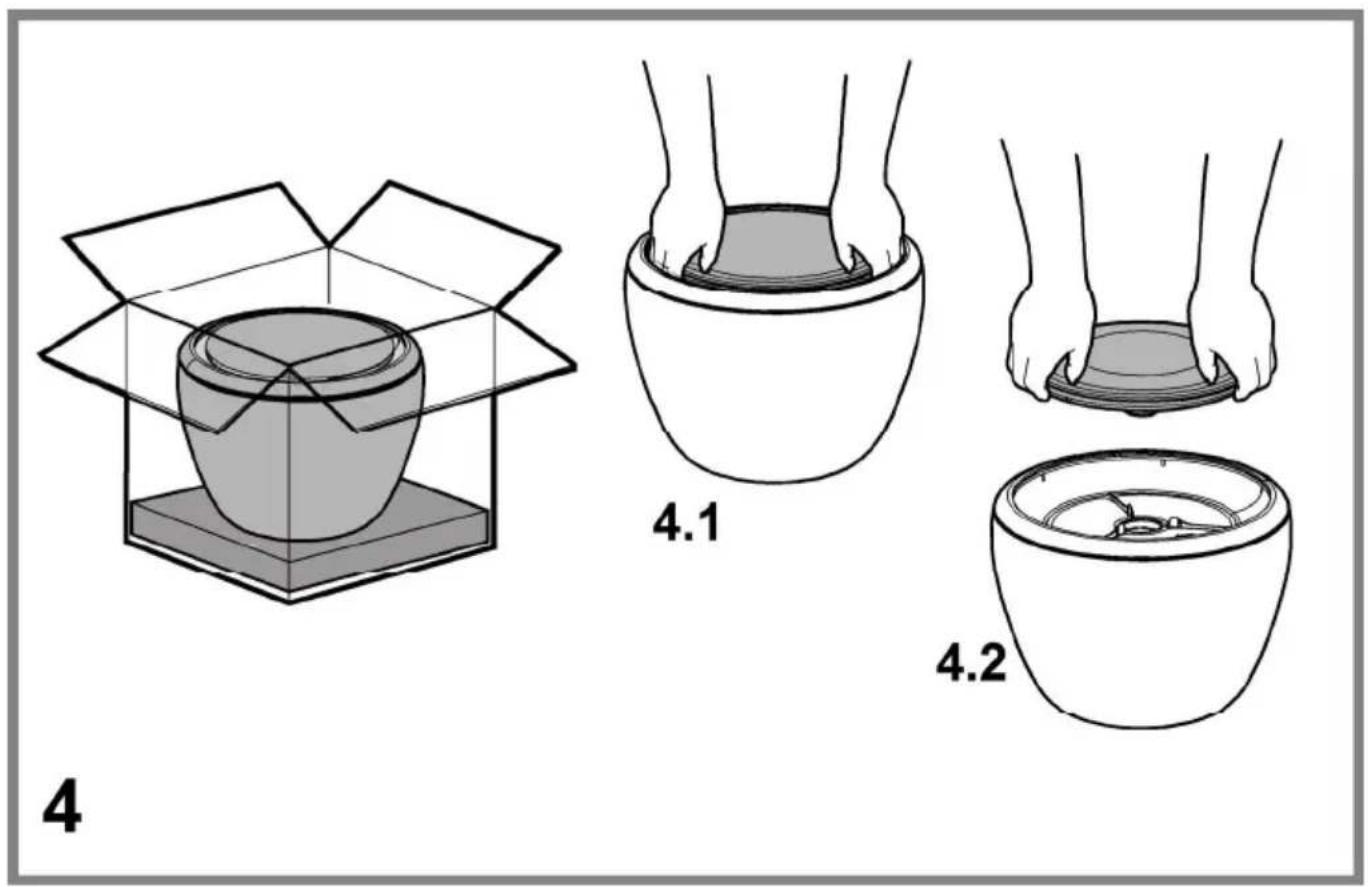

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

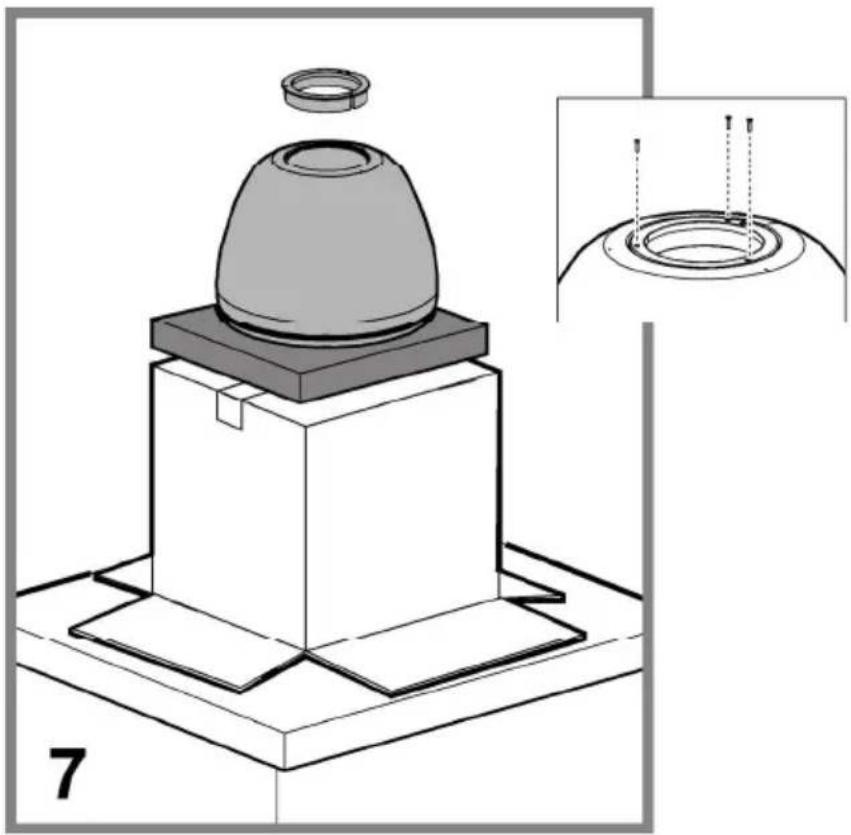

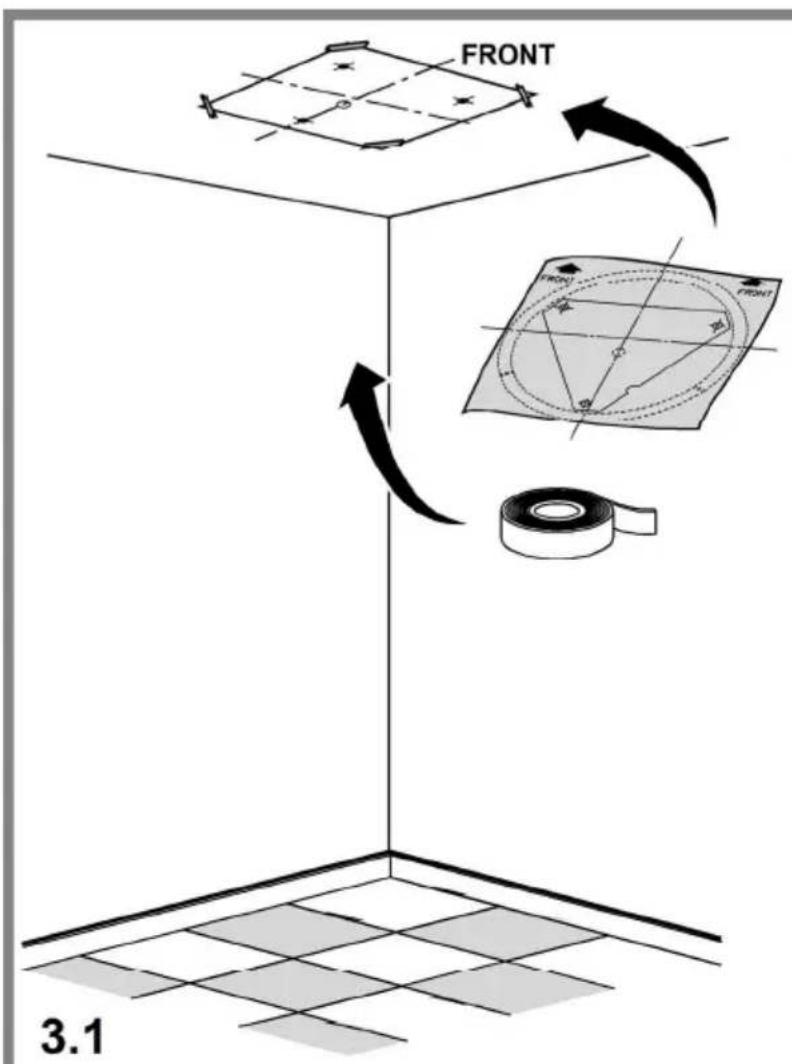

This type of cooker hood must be fixed to the ceiling.

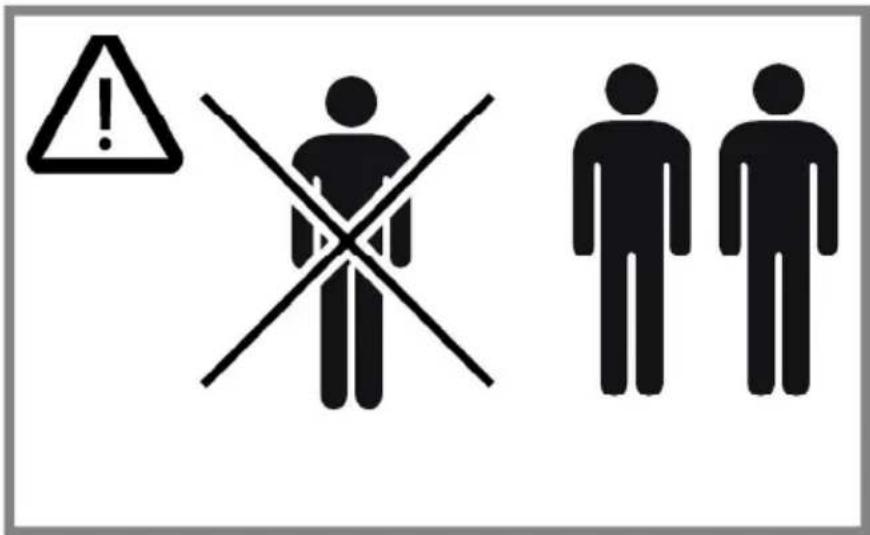

Very heavy product; hood handling and installation must be carried out by at least two persons.

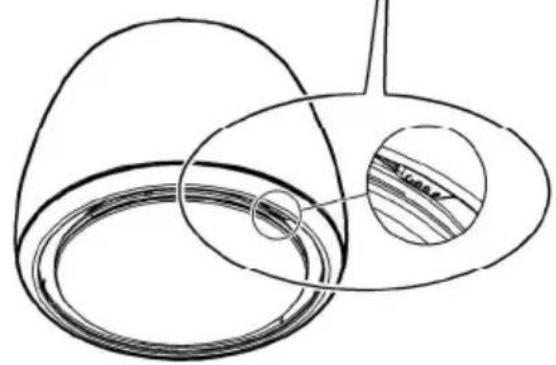

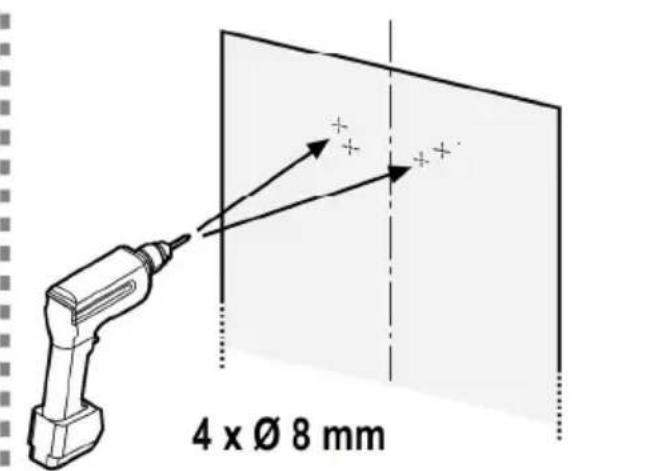

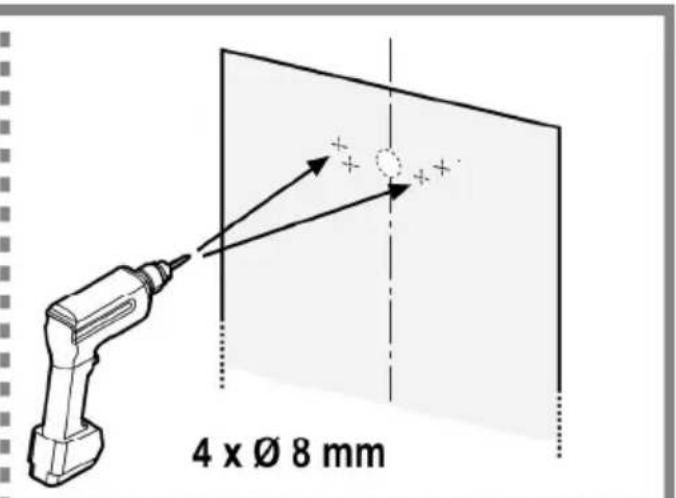

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

The hood has an on-board controller which can also be used with the specific remote control (only supplied on some models) Control panel on hood

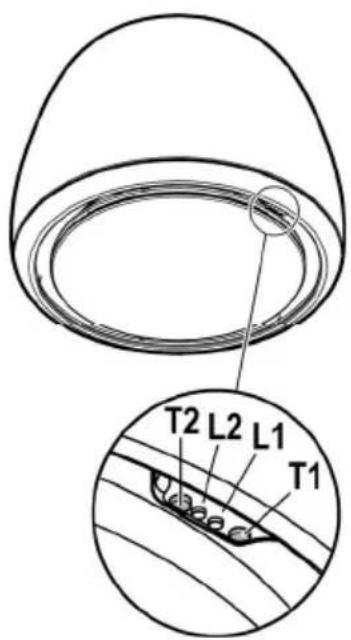

T1. Suction speed (power) control key.

Press repeatedly until the desired speed is selected, choosing between:

Speed OFF – LED L1: off

Speed 1 (low suction) – LED L1: green light

LED L2 turns green and flashes if the delayed hood deactivation is enabled (only with remote control).

Speed 2 (medium suction) – LED L1: yellow light

LED L2 turns yellow and flashes if the delayed hood deactivation is enabled (only with remote control).

Speed 3 (high suction) – LED L1: blue light

LED L2 turns blue and flashes if the delayed hood deactivation is enabled (only with remote control).

Speed 4 (intensive suction) – LED L1: Blue button

Note 1: Speed 4 has a limited duration of 5 min., and then the hood passes automatically to speed 2.

T2. Light control key (hob light-dim light)

Press briefly to light up the hob

Keep it pressed longer to light up the dim light

Note: The dim light is only available on some models.

Grease filter saturation warning - LED L1: red light

The warning is visible for about one minute after switching the hood off. When this warning appears the grease filter requires maintenance.

Charcoal filter saturation warning - LED L1: red light

The warning is available for about one minute after switching the hood off. When this warning appears the charcoal filter requires maintenance.

Deactivation/activation of charcoal filter saturation warning:

This warning is normally activated, to deactivate it:

with hood off, press keys T1 and T2 simultaneously until you hear a beep.

Release both keys and press the same keys again, T1 and T2, shortly.

LED L1 lights up steady with a red light (warning on) and then starts to flash (warning off).

Repeat the operation if you want to reactivate the warning. LED L1 switches from flashing red (warning off) to a steady light (warning on).

Filter saturation warning reset

With the hood off, press keys T1 and T2 simultaneously for at least 5 seconds. LED L1 will stop signalling saturation.

Repeat the operation in case of simultaneous warnings of both filters.

Remote control affiliation

The affiliation of the remote control is displayed with both LEDs on, which show several colours in sequence.

Automatic operation (sensor), connection with SNAP®

Warning! It is recommended to perform the 'Adjusting the parameters for automatic operation' (see relevant paragraph) before using the automatic mode and connect the hood to the SNAP®.

Automatic operation (sensor)

The hood will switch on at an adequate speed depending on the cooking fumes detected by the hood sensor.

To activate this function:

Press keys T1 and T2 simultaneously. LED L1 will light up showing several colours, whereas LED L2 will turn white.

Automatic operation of the hood with SNAP®

Note: SNAP ^® is an auxiliary suction unit capable of operating together with the hood. For further information, refer to the manual supplied with SNAP ^®

To activate this function:

Press keys T1 and T2 simultaneously. LED L1 will light up showing several colours, whereas LED L2 will turn orange.

Adjusting the parameters for automatic operation.

Note: All the calibration, selection, adjustment, and logical connection operations described below are possible with hood OFF and involve:

- Hood calibration (automatic or manual).

• Hob selection (gas - induction or electrical)

- Logical connection between hood and SNAP ^ (if in possession of SNAP ^ ).

Sensor calibration

Note: Calibration lasts about 5 minutes. LEDs L1 and L2 turn white and flash.

Calibration is required to allow the hood sensor to run properly. Calibration can be:

Automatic:

every time the hood is reconnected to the mains (e.g. upon first installation or after a blackout).

Manual:

To be carried out if unsatisfactory automatic operation is detected and under normal kitchen conditions.

Press and hold key T1..

Hob selection (gas - induction or electrical)

Simultaneously press keys T1 and T2 until you hear a beep. Release the keys and press solely T2 (within about 5 seconds) to access the hob selection mode..

Press T2 again to choose the required hob according to the layout below:

Orange LED 2 Gas hob

Blue LED 2: Induction hob

White LED 2: electrical hob

The selected key remains on to indicate the selection. After 10 seconds, the key flashes temporarily to indicate that the selection made has been recorded.

Logical connection between hood and SNAP ^® (if in the possession of SNAP ^® ).

The connection between hood and SNAP ^® is automatic. No setting is required.

Remote control

Warning! Some functions of this remote control may only be activated with certain hood models.

Remote control affiliation:

Keep T2 +T5 pressed within the first minute the hood is powered. Once pairing is complete it is displayed on the hood.

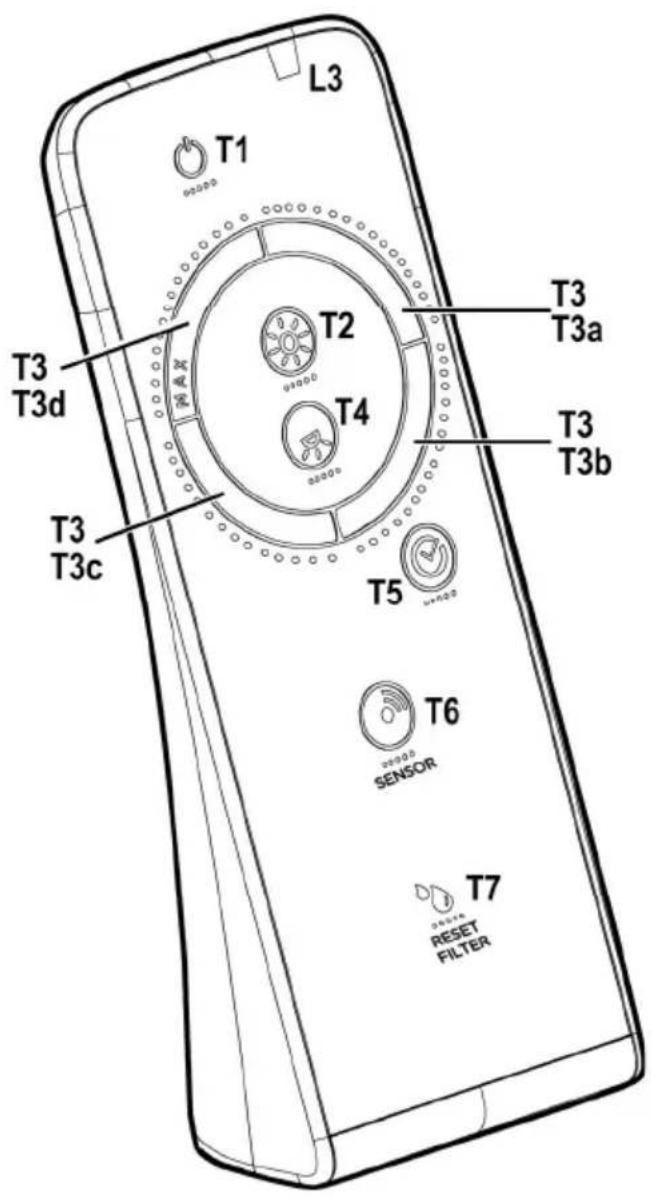

Description of the remote control functions

T1. OFF key
T2. ON/OFF key and dim light intensity adjustment
T3. Suction speed (power) control key:
T4. Hob light ON/OFF key
T5. Delayed hood ON/OFF key
T6. Sensor ON/OFF key.
T7. Filter saturation warning reset key.
L3. Remote control operation LED

Note: touch the keys lightly to select the available functions.

T1. OFF key
Press to switch the hood off
T2. ON/OFF key and dim light intensity adjustment
Press briefly to switch the dim light on or off Press longer to adjust intensity.
Note: The dim light is only available on some models.

T3. Suction speed (power) control key Touch the key starting from any position, turning it clockwise or anticlockwise to increase or decrease suction speed. The key is divided into several sectors. You can select the desired speed directly in the corresponding sector as follows:

T3a: Speed 1 (low suction)

T3b: Speed 2 (medium suction)

T3c: Speed 3 (high suction)

T3d: Speed 4 (intensive suction)

T4. Hob light ON/OFF key Press to switch the hob light on or off.

T5. Delayed hood ON/OFF key. Press to program the delayed switch-off of the hood based on the suction speed (power) active at that moment:

Speed 1 (low suction): 20 minutes

Speed 2 (medium suction): 15 minutes

Speed 3 (high suction): 10 minutes

T6. Sensor ON/OFF key Keep it pressed to activate/deactivate the mode with sensor which manages fume extraction in automatic mode.

Note: The sensor is only available in some models.

T7. Filter saturation warning reset key.

Maintenance of the remote control

Cleaning the remote control:

Clean the remote control with a damp cloth and a neutral solution of detergent without abrasive substances.

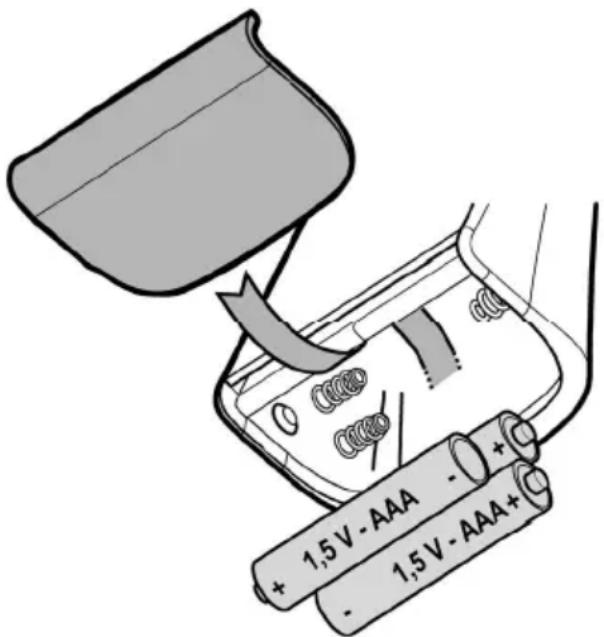

Changing the battery:

• Open the battery casing.
• Replace the flat batteries with 3 new 1.5 V type AAA batteries.
  Respect the polarity indicated in the battery casing when inserting the new battery!
• Close the battery casing up again.

Disposal of the batteries

Ultimate disposal of the batteries should be handled according to all national laws and regulations. Do not place used batteries in your regular waste.

Ultimate disposal of the batteries must be done safely.

Contact your local waste management officials for other information regarding the environmentally sound collection, recycling, and disposal of the batteries.

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

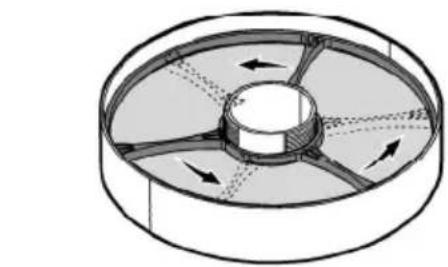

Grease filter

Fig. 28-29-30

Traps cooking grease particles.

This must be cleaned at least once a month (or when the filter saturation indication system - envisaged on the model in possession - indicates this necessity), using non-aggressive detergents, in a dishwasher, which must be set to a low

temperature and a short cycle (Tmax: 70°C).

When washed in a dishwasher, metal parts may discolour slightly.

The filter must be dried in an oven for one hour at a max temperature of 100^ C; if the filter is still moist, repeat the operation.

Replace the filter at least every 2 years.

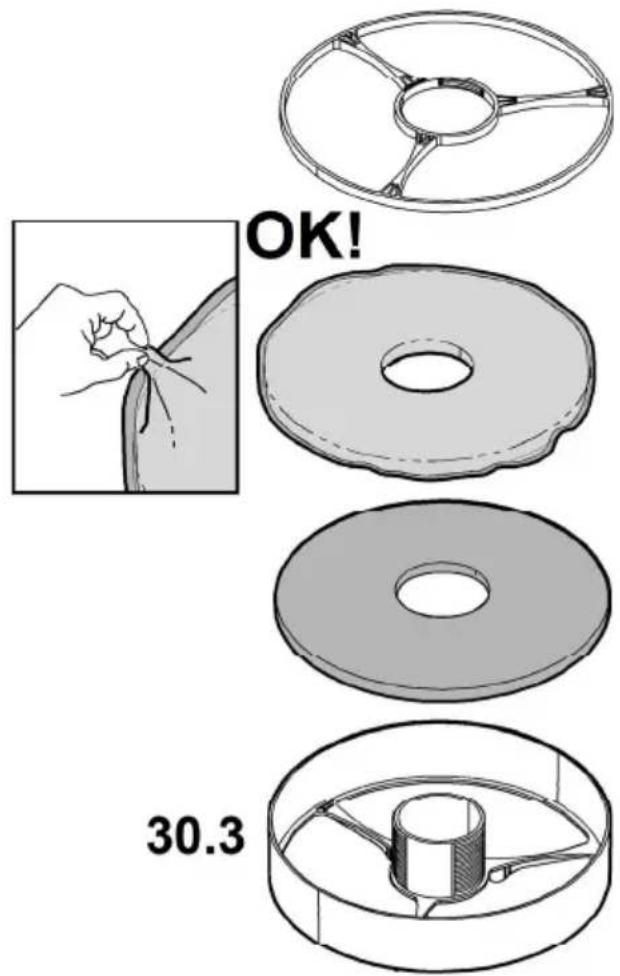

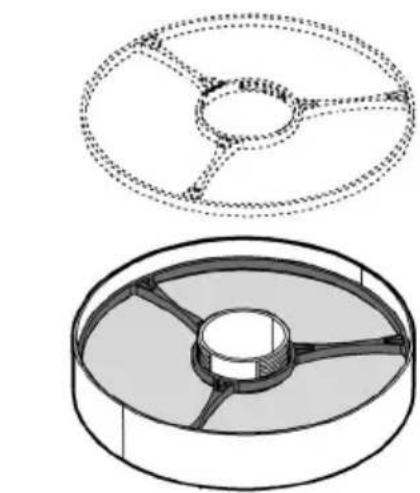

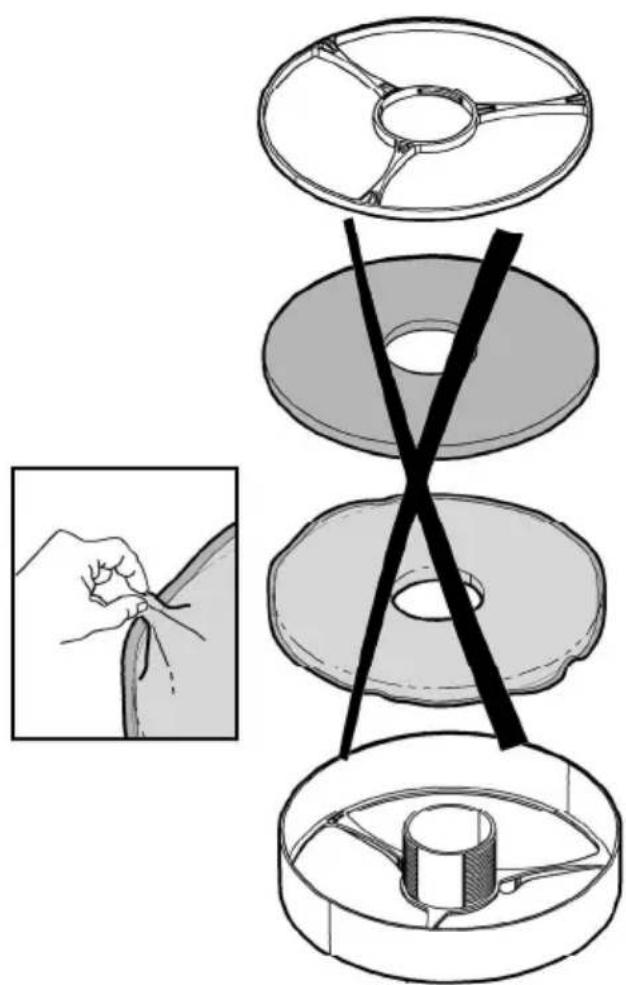

Attention! After having performed maintenance on the filter, FIRST install the grease filter in the specific container and THEN the charcoal filter. The latter can be recognised as it is sealed inside a braiding.

Once the container has been repositioned, make sure only the grease filter is visible.

Charcoal filter (filter version only)

Fig. 28-29-30

It absorbs unpleasant odours caused by cooking.

Attention! The active charcoal filter can be recognised as it is sealed inside a braiding. Perform disassembly, maintenance and cleaning operations of the filter, managing it with the utmost care to avoid damaging or opening the braiding.

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Attention! After having performed maintenance on the filter, FIRST install the grease filter in the specific container and THEN the charcoal filter. The latter can be recognised as it is sealed inside a braiding.

Once the container has been repositioned, make sure only the grease filter is visible.

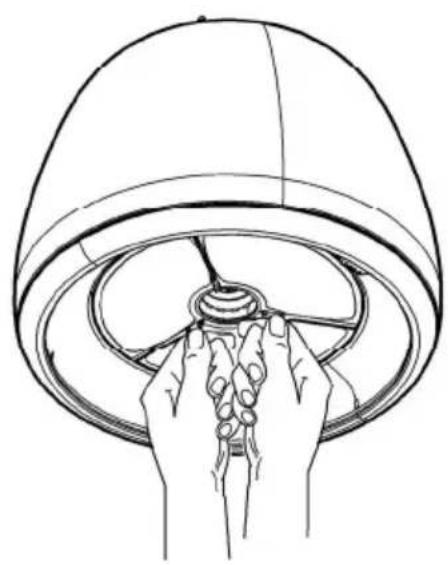

Replacing lamps

Fig. 29

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

To purchase spare LEDs, contact the technical assistance service.

Vitesse 4 (aspiration intensive) – Led L1: bouton bleu ciel

Electrical and Electronic Equipment (WEEE)

T1. Kontrollknapp for sugehastighet (effekt).
