USER MANUAL HKF 50 E KARCHER

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with threaded shaft and flange (no text or symbols)

Deutsch 3

English 11

Français 19

Nederlands 27

Español 35

Русский 43

Polski 51

Please read and comply with these instructions prior to the

initial operation of your appliance. Retain these operating instructions for future reference or for subsequent possessors.

• Before first start-up it is definitely necessary to read the operating instructions and safety indications Nr. 5.951-949!
  – In case of transport damage inform vendor immediately

Contents

Environmental protection	11
Symbols in the operating instructions	11
Proper use	11
Function	11
Safety instructions	11
Technical specifications	14
Start up	15
Operation	16
Shutting down	16
Maintenance and care	16
Troubleshooting	17
Accessories	18
CE declaration	18
Warranty	18

Environmental protection

	The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.
	Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.

Symbols in the operating instructions

⚠️ Danger

indicates an immediate threat of danger. Failure to observe the instruction may result in death or serious injuries.

⚠ Warning

indicates a possibly dangerous situation. Failure to observe the instruction may result in light injuries or damage to property.

Note

indicates useful tips and important information.

Proper use

• The interior cleaners HKF 50 are spray devices to clean drums and containers.
• The cleaning head is inserted into the container through an opening with a suitable minimum inner diameter.

Cleaning head	Minimum container opening
HKF 50	55 mm

- A separate high pressure pump is connected to the interior cleaner via a high pressure hose.

Note

The chapter "Specifications" contains a list of the permitted cleaning liquids.

Operation outside closed containers and with higher pressure and temperatures than those listed in the "Specifications" is prohibited.

Please do not allow cleaning liquids to enter the environment. Protect the ground and dispose of used oil in an environmentally-clean manner.

Please do not let mineral oil contaminated waste water reach soil, water or the sewage system.

Function

• The interior cleaner consists of a drive unit, a support pipe and the cleaning head. The nozzles on the cleaning head turn around two axles and therefore touch every place in the container.
• The cleaning head is turned by an electric or compressed air motor. The speed is independent of the pressure and the volume of cleaning liquid. With electric drives, the speed can be set to constant, with compressed air drives, the speed can be adjusted via the compressed air.

Safety instructions

• Please follow the national rules and regulations of the respective country.
• Please follow the safety instructions which are attached to the used detergents (normally on the packing label).
• In order to avoid improper operation, the system may only be used by persons who have been instructed in handling the system or have proven qualification and expertise in operating the system or have been explicitly assigned the task of handling the system.
• The operating instructions must be accessible for every user.

Wrong operation or misuse are hazardous to the operator and other persons on account of:

– high pressure
– high electrical voltages (HKF 50 E)
– Cleaning agents or used cleaning liquid
– Danger of explosion

⚠️ Danger

- Danger of crushing by the interior cleaner. Only use the interior cleaner's drive in closed containers.

• Danger of injury by high pressure jet - therefore only use interior cleaner inside closed containers.
• Health hazards posed by residue in containers that are cleaned or by the cleaning liquid used. Therefore, the listed protective measures must be adhered to.
• Risk of injury due to interior cleaner toppling over at low submerge depth. In this case, the interior cleaner must be supported.
• Risk of injury by toppling container - therefore use extra support for container and interior cleaner.
• Danger of injury by interior cleaner sliding off; therefore tighten interior cleaner with clamping ring.

Risk of explosion and fire when using cleaning agents and residue in the containers. Please contact Kärcher in such cases to find out, how the respective cleaning agents should be used.

⚠ Warning

In order to avoid damage to the cleaning head, ensure a free layout inside the container. The cleaning head must never touch the container wall.

Personal safety gear

Wear ear plugs to protect your ears against hearing loss while cleaning parts that produce high sound levels.

Depending on the concentration and health risk of the used cleaning liquid, wear the following protective gear:

– Liquid resistant protective clothing
- Protective glasses or face shield
- Protective gloves
- Protective shoes

Approved operators

Approved operators are persons who are at least 18 years old and are able to operate this system (exceptions: apprentices, see BGV D15 §6).

Behaviour in emergency situations

→ Switch off the separate high pressure pump.
→ Interior cleaners with electric drives: Pull out the mains plug.
→ Interior cleaners with compressed air drives: Shut off the compressed air supply.
→ Shut off the cleaning liquid supply.

Zone layout

Areas that bear the risk of explosion are divided into zones, according to the frequency and duration of explosion-risk atmosphere in BetrSichV and EN 1127-1.

The definition of the zones lies in the responsibility of the operator.

Tips for zoning are included in the BetrSichV, EN 1127-1, BGR 104 – Ex-guide-line of BG Chemie and in the EN 60079-10.

- Zone 0

Zone 0 is an area where dangerous explosion-risk atmosphere is present as a mixture of air and flammable gases, vapors or mists at all times, across long time periods or frequently.

- Zone 1

Zone 1 is an area where (during normal operation) dangerous explosion-risk atmosphere is present as a mixture of air and flammable gases, vapors or mists from time to time.

- Zone 2

Zone 2 is an area where (during normal operation) dangerous explosion-risk atmosphere as a mixture of air and flammable gases, vapors or mists is not normally present and if present, only for a short time.

- Zone 20

Zone 20 is an area where dangerous explosion-risk atmosphere is present as a cloud of flammable dust contained in the air, at all times, across long time periods or frequently.

- Zone 21

Zone 21 is an area where (during normal operation) dangerous explosion-risk atmosphere is present as a cloud of flammable dust in the air from time to time.

- Zone 22

Zone 22 is an area where (during normal operation) dangerous explosion-risk atmosphere as a cloud of flammable dust is not normally present and if present, only for a short time.

Special conditions in the Ex area

1 The interior cleaner must only be used in Zone 0 if the containers are at least 1 m in diameter with the usual container height or do not exceed a comparable container size.
2 The mass content of non-diluted solid substances in the cleaning liquid must not exceed 1%.
3 The interior cleaner must be ground electro-statically.
4 The pump for the cleaning liquid must only be operated while it is filled with fluid.

5 The nominal pressure of the pump must not exceed 5 MPa when operating with solvents.
6 The compressed air motor must only be operated once the interior cleaner has been filled with cleaning liquid.
7 The speed of the cleaning head must not exceed 40 rpm.
8 The operating temperature of the cleaning liquid water with cleaning agents must not must not exceed 95 °C.
9 The operating temperature of the cleaning liquid solvents, brines and acids must not must not exceed 20 °C.
10 The interior cleaner must be checked for flawless condition and smooth function after a certain operating time has passed (incl. bearing bushings and drive-side seal for wear and tear and leakage). If applicable, a repair needs to be conducted.
11 The interior cleaner must only be used with cleaning liquids and in such media, whose affect on the materials is not damaging.
12 Cleaning liquids that contain flammable solvent particles, must comply with the ignition groups IIA and IIB. Solvents of the ignition group IIC must not be sprayed.
13 The interior cleaner must not be constantly located in Zone 0, but only during the actual container cleaning. The operating guidelines as per BetrSichV as well as other national guidelines must be adhered to. Take into consideration, that the mixture of the container/interior cleaner brought into the container is not resistant to breakdown from flames.
14 Hoses must be conductive (electrostatically) (resistance R < 1000 Ohm).
15 Only cleaning agents with a conductivity G > 1000 pS/m may be used.
16 All parts that touch media must be connected to the grounding system.

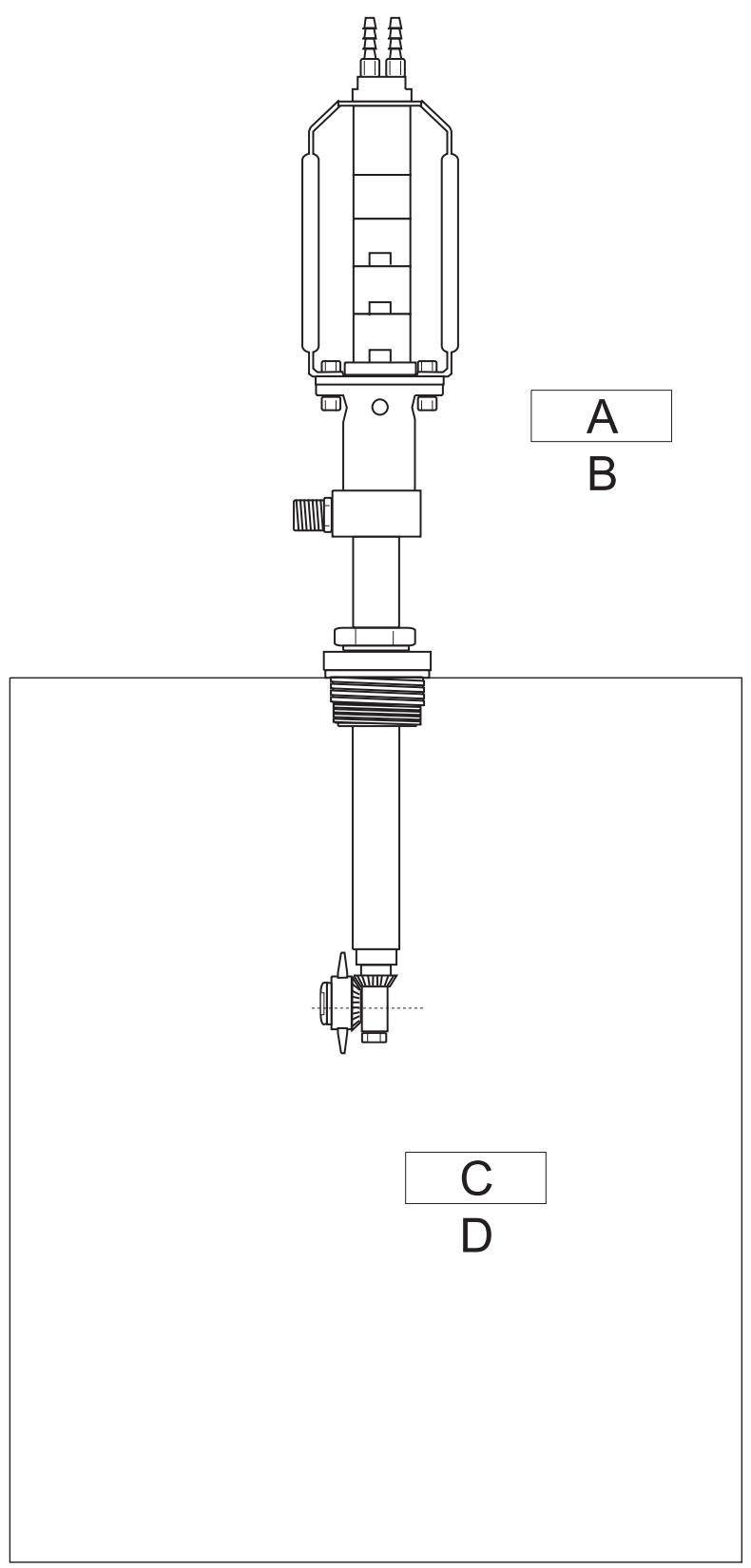

A B C D

A Zone 1/22
B Category 2/3
C Zone 0/20
D Category 1

Technical specifications

		HKF 50 E	HKF 50 P
Order No.		3.631-009	3.631-008
Max. flow rate	l/h (l/min)	1200 (20)	1200 (20)
Max. temperature with water with cleaning agents	°C	95	95
Max. temperature with solvents, brines, acids	°C	20	20 Ex
Max. operating pressure	MPa (bar)	10 (100)	10 (100)
Max. operating pressure with solvent operation	MPa (bar)	--	5 (50) Ex
Voltage	V	230	--
Current type	--	1~	--
Frequency	Hz	50	--
Rated power	W	20	--
Type of protection	--	IP 65	--
Compressed air	MPa (bar)	--	0,4-0,7 (4-7)
Compressed air flow rate	l/min	--	450
Functional speed - drive	1/min	29	10-20
Sound pressure level (EN 60704-1)	dB(A)	65	83 (without silencer)
High pressure connection	--	DN 15 - M22x1.5	DN 15 - M22x1.5
Minimum container opening	mm	55	55
Total length	mm	650	715
Max. immersion depth	mm	304	304
Weight	kg	7	7
Ambient temperature	°C	+2...+40	+2...+40
Ignition protection class	[KKK6]	--	II 1/2 G c T4
			II 1/3 D c 120 °C

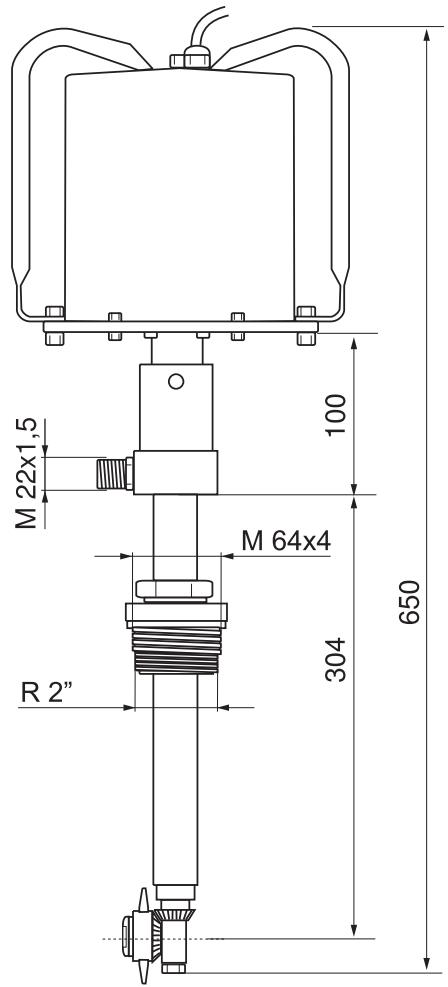

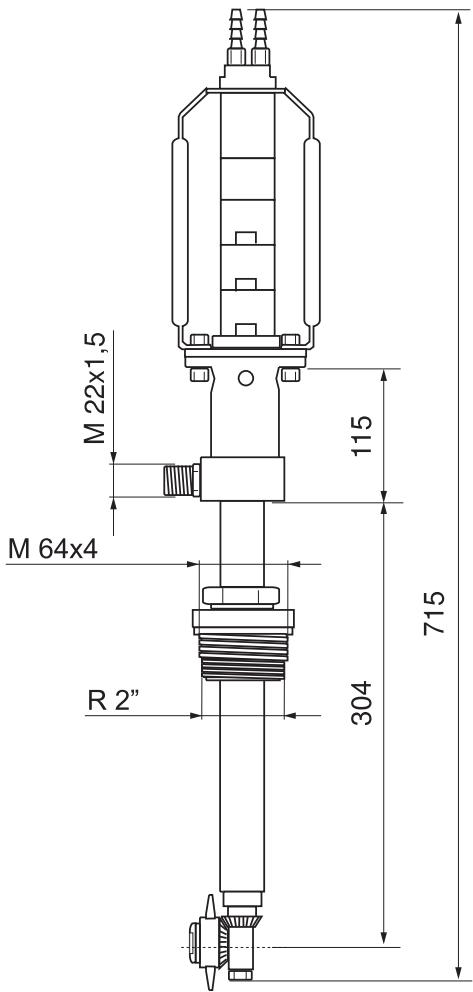

Dimensional sheet sheet HKF 50

M 22x1,5 M 64x4 R 2" 100 304 650

M 22x1,5 M 64x4 R 2" 115 304 715

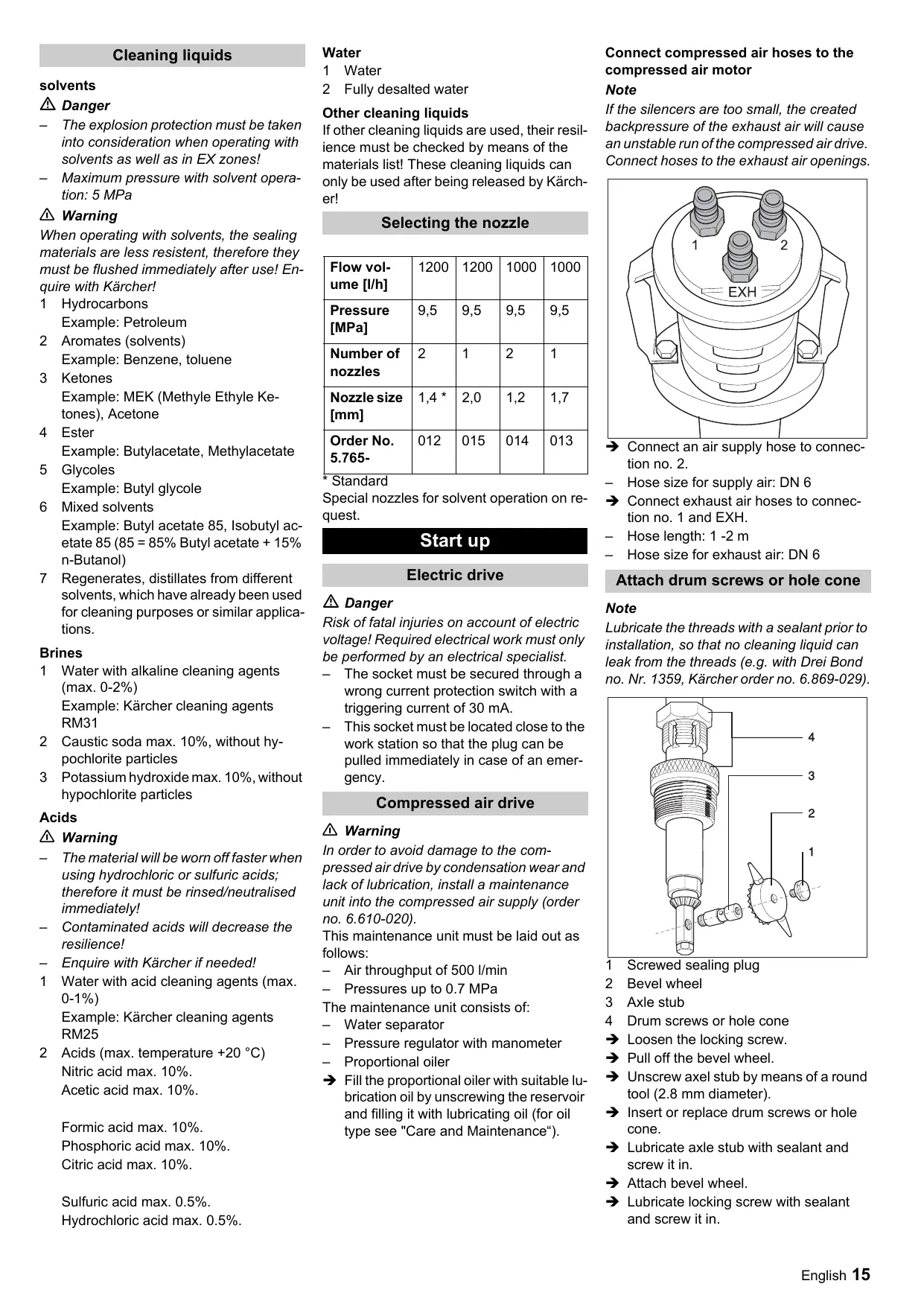

Cleaning liquids

solvents

⚠️ Danger

• The explosion protection must be taken into consideration when operating with solvents as well as in EX zones!
  – Maximum pressure with solvent operation: 5 MPa

⚠ Warning

When operating with solvents, the sealing materials are less resistant, therefore they must be flushed immediately after use! Enquire with Kärcher!

1 Hydrocarbons
Example: Petroleum
2 Aromates (solvents)
Example: Benzene, toluene
3 Ketones
Example: MEK (Methyle Ethyle Ketones), Acetone
4 Ester
Example: Butylacetate, Methylacetate
5 Glycoles
Example: Butyl glycole
6 Mixed solvents
Example: Butyl acetate 85, Isobutyl acetate 85 (85 = 85% Butyl acetate + 15% n-Butanol)
7 Regenerates, distillates from different solvents, which have already been used for cleaning purposes or similar applications.

Brines

1 Water with alkaline cleaning agents (max. 0-2%)
Example: Kärcher cleaning agents RM31

2 Caustic soda max. 10%, without hypochlorite particles

3 Potassium hydroxide max. 10%, without hypochlorite particles

Acids

⚠ Warning

• The material will be worn off faster when using hydrochloric or sulfuric acids; therefore it must be rinsed/neutralised immediately!
• Contaminated acids will decrease the resilience!
  – Enquire with Kärcher if needed!

1 Water with acid cleaning agents (max. 0-1%)
Example: Kärcher cleaning agents RM25

2 Acids (max. temperature +20 °C)

Nitric acid max. 10%.

Acetic acid max. 10%.

Formic acid max. 10%.

Phosphoric acid max. 10%.

Citric acid max. 10%.

Sulfuric acid max. 0.5%.

Hydrochloric acid max. 0.5%.

Water

1 Water
2 Fully desalted water

Other cleaning liquids

If other cleaning liquids are used, their resilience must be checked by means of the materials list! These cleaning liquids can only be used after being released by Kärcher!

Selecting the nozzle

Flow volume [l/h]	1200	1200	1000	1000
Pressure [MPa]	9,5	9,5	9,5	9,5
Number of nozzles	2	1	2	1
Nozzle size [mm]	1,4 *	2,0	1,2	1,7
Order No. 5.765-	012	015	014	013

* Standard

Special nozzles for solvent operation on request.

Start up

Electric drive

⚠️ Danger

Risk of fatal injuries on account of electric voltage! Required electrical work must only be performed by an electrical specialist.

• The socket must be secured through a wrong current protection switch with a triggering current of 30 mA.
• This socket must be located close to the work station so that the plug can be pulled immediately in case of an emergency.

Compressed air drive

⚠ Warning

In order to avoid damage to the compressed air drive by condensation wear and lack of lubrication, install a maintenance unit into the compressed air supply (order no. 6.610-020).

This maintenance unit must be laid out as follows:

– Air throughput of 500 l/min

- Pressures up to 0.7 MPa

The maintenance unit consists of:

- Water separator

– Pressure regulator with manometer

– Proportional oiler

→ Fill the proportional oiler with suitable lubrication oil by unscrewing the reservoir and filling it with lubricating oil (for oil type see "Care and Maintenance").

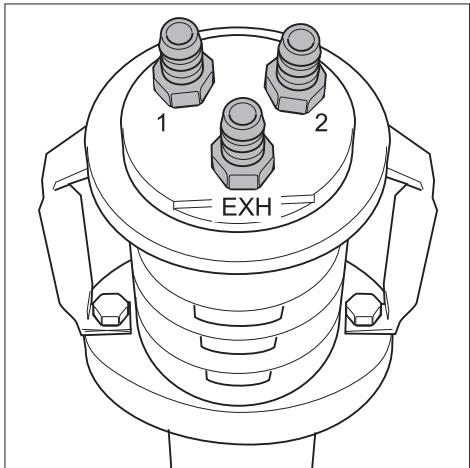

Connect compressed air hoses to the compressed air motor

Note

If the silencers are too small, the created backpressure of the exhaust air will cause an unstable run of the compressed air drive. Connect hoses to the exhaust air openings.

1 2 EXH

→ Connect an air supply hose to connection no. 2.
– Hose size for supply air: DN 6
→ Connect exhaust air hoses to connection no. 1 and EXH.
- Hose length: 1 -2 m
– Hose size for exhaust air: DN 6

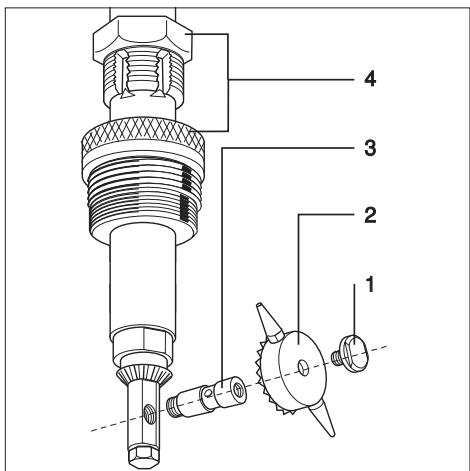

Attach drum screws or hole cone

Note

Lubricate the threads with a sealant prior to installation, so that no cleaning liquid can leak from the threads (e.g. with Drei Bond no. Nr. 1359, Kärcher order no. 6.869-029).

1 2 3 4

1 Screwed sealing plug
2 Bevel wheel
3 Axle stub
4 Drum screws or hole cone
→ Loosen the locking screw.
→ Pull off the bevel wheel.
→ Unscrew axel stub by means of a round tool (2.8 mm diameter).
→ Insert or replace drum screws or hole cone.
→ Lubricate axle stub with sealant and screw it in.
→ Attach bevel wheel.
→ Lubricate locking screw with sealant and screw it in.

Operation

⚠️ Danger

Risk of injury on account of the escaping water jet that could be hot!

• Only use the interior cleaner in closed containers.
• Only insert the interior cleaner into a container or switch it into another container while the separate high pressure pump and internal drive are turned off.
  → Place interior cleaner onto container and lock it.
  → Connect the high pressure pump to the interior cleaner via a high pressure hose.
  → Interior cleaners with electric drives: Plug in the mains plug.
  → Interior cleaners with compressed air drives: Open the compressed air supply.
  → Open the cleaning liquid supply.
  → Switch on the separate high pressure pump.

Note

With almost all cleaning tasks, 2 nozzles will achieve a good cleaning result. With very large and extremely dirty containers, 1 nozzle is used; the other one is locked with a screw.

Advantage:

- Better cleaning result by larger spray width and impact force of the cleaning jet.

Disadvantage:

• The bearings and seals are stressed more and will wear faster.
  – Extension of the cleaning time.

Shutting down

Note

Flush/rinse the interior cleaner for 30 seconds prior to shutting it off. This will avoid crusting and adhesion and thus a premature wear of the seals.

→ Switch off the separate high pressure pump.
→ Shut off the cleaning liquid supply.
→ Interior cleaners with electric drives: Pull out the mains plug.
→ Interior cleaners with compressed air drives: Shut off the compressed air supply.
→ Remove the interior cleaner from the container.

Maintenance and care

The basis for a safe operational plant is regular maintenance.

Use only original parts of the manufacturer or part suggested by him, such as

– replacement and wear parts
- Accessory parts
- Fuel
- Detergent

⚠️ Danger

Risk of accident while working on the unit! During all tasks:

→ Remove voltage from and secure high pressure pump at the main switch.
→ Shut off the cleaning liquid supply.
→ Interior cleaners with electric drives: Pull out the mains plug.
→ Interior cleaners with compressed air drives: Shut off the compressed air supply.

Who may perform maintenance?

Operator

Work designated with the sign “Operator” may only be carried out by persons who have been instructed in the safe operation and maintenance on the high pressure plant.

Maintenance contract

In order to guarantee a reliable operation og the equipment, we success, you signed a maintenance agreement. Please refer to you local Kärcher service department.

Time	Activity	Performance	of whom
weekly or after 40 operating hours	Check the maintenance unit for compressed air.	⚠ DangerDanger through compressed air. Shut off the compressed air supply and let existing compressed air escape from the maintenance unit prior to performing maintenance work.- Drain the water from the water separator by opening the water drain screw, drain water and close water drain screw.- Fill the proportional oiler with suitable lubrication oil by un-screwing the reservoir and filling it with lubricating oil.- For oil type refer to following table.	Operator
monthly or after 160 operating hours	Check screws for tight fit.	Check that all screws are fitted tightly.	Operator

Lubricating oil for compressed air maintenance unit (for HKF 50 P)

Festo spezial

Aral Vitam GF 32

Esso Nuto H 32

Mobil DTE 24

BP Energol HLP 32

Troubleshooting

Troubleshooting notes

⚠️ Danger

Risk of accident while working on the unit! During all tasks:

→ Remove voltage from and secure high pressure pump at the main switch.
→ Shut off the cleaning liquid supply.
→ Interior cleaners with electric drives: Pull out the mains plug.
→ Interior cleaners with compressed air drives: Shut off the compressed air supply.

Who may remedy faults?

Operator

Work designated with the sign “Operator” may only be carried out by persons who have been instructed in the safe operation and maintenance on the high pressure plant.

Electricians

Only persons with a professional training in the electro-technical area.

■ Customer Service

Work designated with the sign "Customer Service" may only be done by the fitters of Kärcher Customer Service.

Troubleshooting

Fault	Possible cause	Remedy	of whom
Motor does not turn.	There is no voltage at the motor.	Check fuse and cables.	Electricians
	Thermal protection switch in the coil has triggered.	Fix cause for overload.	Electricians
	Error current protective switch was triggered.	Remove cause and reset error current protective switch.	Electricians
	No compressed air present or pressure too low.	Check compressed air supply.	Operator
	Compressed air supply line kinked.	Check compressed air hoses.	Operator
Motor does not turn, cleaning head does not turn	Mechanical defect on:– Coupling parts– Drive shaft– Gears	Check parts and replace defective parts.	Customer Service
Cleaning head turns too abruptly	Cleaning head touches container wall.	Change position of cleaning head and make sure it can run smoothly.	Operator
	Worn drive discs cause increased bevel play.	Replace drive discs.	Customer Service
	Destroyed gears on bevel wheels.	Replace bevel wheels.	Customer Service
Uneven cleaning jet	Spray nozzles clogged.	Clean spray nozzles.	Operator
	Spray nozzles damaged.	Replace spray nozzles.	Operator

Accessories

Description	Order No.
Maintenance unit for compressed air (only for compressed air drive)	6.610-020
Hole cone in PE design	5.132-016
Locking screw (for 1 nozzle operation)	5.411-061
Compressed air filter with automatic condensate drain (only for compressed air drive)	6.414-154
Compressed air hose (sold by the meter)	6.388-192
Exhaust air silencer with oil separator	on request

CE declaration

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

The undersigned act on behalf and under the power of attorney of the company management.

Product: Internal cleaner

Type: HKF 50 E

Relevant EU Directives

98/37/EC (to 28.12.2009)

2006/42/EC (from 29.12.2009)

2006/95/EC

2004/108/EC

Applied harmonized standards

EN 55014-1: 2006

EN 55014-2: 1997 + A1: 2001

EN 60204-1

EN 61000-3-2: 2006

EN 61000-3-3: 1995 + A1: 2001 + A2:

2005

HKF 50 P

5.957-454

Product: Internal cleaner

Type: HKF 50 P

Relevant EU Directives

98/37/EC (to 28.12.2009)

2006/42/EC (from 29.12.2009)

94/9/EC

Applied harmonized standards

EN ISO 12100-1

EN ISO 12100-2

EN 1127-1: 1997

EN 13463-1: 2002

EN 13463-5: 2003

Applied national standards

ID no. of notified body

0123

TÜV SÜD

Ridlerstr. 65

80339 München

Test report no.

Ex5 0307 10088 097

Marking

II 1/2 G c T4

II 1/3 D c 120 °C

Warranty

The warranty terms published by our competent sales company are applicable in each country. We will repair potential failures of the appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in fabrication.

In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the appliance, including all accessories, and the proof of purchase.

Technical diagram of a mechanical component with numbered parts labeled 1 to 4

Technical diagram of a mechanical assembly with numbered parts labeled 1 to 4

1 Резьбовая пробка

Technical diagram of a mechanical component with numbered parts labeled 1 to 4

AE Karcher FZE, P.O. Box 17416, Jebel Ali Free Zone (South), Dubai, United Arab Emirates,

[phone], www.kaercher.com

AT Alfred Kärcher Ges.m.b.H., Lichtblaustraße 7, 1220 Wien,

[phone], www.kaercher.at

AU Kärcher Pty. Ltd., 40 Koornang Road, Scoresby VIC 3179, Victoria,

[phone], www.karcher.com.au

BE Kärcher N.V., Industrieweg 12, 2320 Hoogstraten,

[phone], www.karcher.be

CA Kärcher Canada Inc., 6535 Millcreek Road, Unit 67, Mississauga, ON, L5N 2M2,

[phone], www.karcher.ca

CH Kärcher AG, Industriestrasse, 8108 Dällikon, Kärcher SA, Croix du Péage, 1029 Villars-Ste-Croix,

0844 850 864, www.kaercher.ch

CN Kärcher (Shanghai) Cleaning Systems, Co., Ltd., Part F, 2nd Floor, Building 17, No. 33, XI YA Road, Waigaogiao Free Trade, Pudong, Shanghai, 200131

[phone], www.karcher.cn

CZ Kärcher spol. s r.o., Modletice c.p. 141, CZ-251 01 Ricany,

+420/323/606 014, www.kaercher.cz

GB Kärcher (U.K.) Ltd., Kärcher House, Beaumont Road, Banbury, Oxon OX16 1TB,

[phone], www.karcher.co.uk

GR Kärcher Cleaning Systems A.E., 31-33, Nikitara str. & Konstantinoupoleos str., 136 71 Aharnes,

[phone], www.karcher.gr

HK Kärcher Limited, Unit 10, 17/F., Apec Plaza, 49 Hoi Yuen Road, Kwun Tong, Kowloon,

++(852)-2357-5863, www.karcher.com.hk

HU Kärcher Hungaria KFT, Tormásrét ut 2., (Vendelpark), 2051 Biatorbagy,

[phone], www.kaercher.hu

I Kärcher S.p.A., Via A. Vespucci 19, 21013 Gallarate (VA),

[phone], www.karcher.it

IE Kärcher Limited (Ireland), 12 Willow Business Park, Nangor Road, Dublin 12,

[phone], www.kaercher.ie

JP Kärcher (Japan) Co., Ltd., Irene Kärcher Building, No. 2, Matsusaka-Daira 3-chome, Taiwa-cho, Kurokawa-gun, Miyagi 981-3408,

[phone], www.karcher.co.jp

KR Karcher Co. Ltd. (South Korea), 2nd Floor, Youngjae Building, 50-1, 51-1, Sansoo-dong, Mapo-ku, Seoul 121-060,

[phone], www.karcher.co.kr

MX Karcher México, SA de CV, Av. Gustavo Baz Sur No. 29-C, Col. Naucalpan Centro, Naucalpan, Edo. de México, C.P. 53000 México,

[phone], www.karcher.com.mx

MY Karcher Cleaning Systems Sdn. Bhd., 71 & 73 Jalan TPK 2/8, Taman Perindustrian Kinrara, Seksyen 2, 47100 Puchong, Selangor Darul Ehsan, Malaysia,

[phone], www.karcher.com.my

NL Kärcher B.V., Postbus 474, 4870 AL Etten-Leur,

0900-33 666 33, www.karcher.nl

NO Kärcher AS, Stanseveien 31, 0976 Oslo, Norway,

[phone], www.karcher.no

NZ Karcher Limited, 12 Ron Driver Place, East Tamaki, Auckland, New Zealand,

[phone], www.karcher.co.nz

PL Kärcher Sp. z o.o., Ul. Stawowa 140, 31-346 Kraków,

[phone], www.karcher.pl

RO Karcher Romania srl, Sos. Odaii 439, Sector 1, RO-013606 BUKAREST,

[phone], www.kaercher.ro

RU Karcher Ltd. Service Center, Leningradsky avenue, 68, Building 2, Moscow, 125315

[phone], www.karcher.ru

SE Kärcher AB, Tagenevägen 31, 42502 Hisings-Kärra,

[phone], www.karcher.se

SGP Karcher South East Asia Pte. Ltd., 5 Toh Guan Road East, #01-00 Freight Links Express Distripark, Singapore 608831,

[phone], www.karcher.com.sg

SK Kärcher Slovakia, s.r.o., Beniakova 2, SK-94901 NITRA,

[phone], www.kaercher.sk

TR Kärcher Servis Ticaret A.S., 9 Eylül Mahallesi, 307 Sokak No. 6, Gaziemir / Izmir,

[phone], [phone], www.karcher.com.tr

TW Karcher Limited, 7/F, No. 66, Jhongijheng Rd., Sinjhuang City, Taipei County 24243, Taiwan,

USA To locate your local dealer please visit our web site at http://www.karchercommercial.com or call us at 888.805.9852

ZA Kärcher (Pty) Ltd., 144 Kuschke Street, Meadowdale, Edenvale, 1614,

[phone], www.karcher.co.za
