Terrain - Stroller Mountain Buggy - Free user manual and instructions

Product type	All-terrain stroller
Brand	Mountain Buggy
Model	Terrain
Dimensions (open)	110 x 60 x 100 cm
Dimensions (folded)	85 x 60 x 30 cm
Weight	12 kg
Load capacity	Up to 20 kg
Recommended age	From birth to 4 years
Wheel configuration	3 wheels
Tire type	Inflatable, diameter 12 inches
Brake	Foot parking brake
Safety harness	Adjustable 5-point harness
Handle adjustment	Height adjustable (from 75 to 110 cm)
Suspension	Front and rear
Sun canopy	Yes, with UV protection
Storage basket	Yes, capacity 5 kg
Frame material	Aluminum
Maintenance	Clean with a damp cloth, lubricate wheels
Safety	Compliant with EN 1888 standards
Included accessories	None (sold separately)
Warranty	2 years

Frequently Asked Questions - Terrain Mountain Buggy

How to fold the Mountain Buggy Terrain stroller?

To fold the stroller, lower the handle, pull the folding levers on both sides, and push the frame down until it locks in the folded position. See the manual for more details.

How to clean the safety harness?

The harness can be cleaned with a damp cloth and mild soap. Do not use abrasive products. Air dry.

What is the maximum weight supported by the stroller?

The maximum recommended weight for the child is 20 kg. Do not exceed this limit to ensure safety.

How to inflate the stroller tires?

Use a pump compatible with Schrader valves (standard). The recommended pressure is indicated on the tire sidewall, typically between 2 and 3 bars.

Is the stroller compatible with car seats?

Yes, with adapters sold separately, it is compatible with certain car seats from Maxi-Cosi, Cybex, and BeSafe.

How to adjust the stroller handle?

Unlock the adjustment knob under the handle, adjust to the desired height (from 75 to 110 cm), then lock.

What to do if the front wheels lock?

Check for debris in the bearings. If necessary, clean and lubricate with silicone spray. If the problem persists, contact customer service.

Can the stroller be used from birth?

Yes, the stroller is usable from birth thanks to a reclining backrest to a flat position. Always use the 5-point harness.

How to replace worn parts?

Spare parts (wheels, tires, harness, etc.) are available on the official Mountain Buggy website or from authorized retailers.

Where to find additional accessories?

Accessories such as the rain cover, cup holder, or car seat adapter are available online on the Mountain Buggy website or in specialized stores.

USER MANUAL Terrain Mountain Buggy

life without limit™

MB mini, swift™, urban jungle™ and terrain™ instructions

for detailed instructions please visit:mountainbuggy.com/instructions

THIS BUGGY IS INTENDED FOR CHILDREN FROM

MB mini / swift™

newborn to 4 years

urban jungle™/terrain™

newborn to 5 years

MAXIMUM WEIGHT IN

THE UPRIGHT MAIN SEAT

MB mini / swift™

20kg / 44lbs

urban jungle™ / terrain™

25kg / 55lbs

important information

• Always load / unload your child on level ground.
- Ensure the brake is engaged during the loading and unloading of your child.
- Care should be taken if the buggy is used on stairs or escalators.
• Always use the wrist safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:

• Fraying – especially webbing straps and safety harness;
• Wear – locks, snap fasteners, tyres, plastic and moving parts;
• Safety – locks must not be loose.

important information

tyres and tubes

• Tyres and tubes are not under warranty.
  • MB mini has aerotech tyres.
  The luxury collection buggies have aeromaxx tyres.
• With use, tyres can show signs of wear. This is normal.
• urban jungle ^TM / swift ^TM / terrain ^TM use air-filled tyres.
  The valve is car-size. Manually inflate to 20 - 22psi max.
• A flat tyre can result from grit holding the valve open. To check: inflate tyre, deflate rapidly, and re-inflate. Do not over inflate

- Releasing air gives a softer ride, but lower pressure reduces tread life.

- New inner tubes and tyres are generally available from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.

- Tyre pressure is affected by heat especially when inside parked cars.

care information

If your product is damaged in any way, or you're not sure how to use it, please consult our web support team (mountainbuggy.com/support).

• Brush dirt off frame and wheels regularly.
• Clean frame with non-abrasive household cleaner and a soft cloth and always dry frame if wet.
• Wash off sand and salt after visiting the beach.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap. Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
  • Take care to avoid damage to foam rubber. Foam rubber is not under warranty.
• Improper care will void any warranties. Do not use this product if damage is suspected.

warranty

All of our products have a one year warranty from date of purchase against defects in material and workmanship.*

Additionally, when you register your product online within 30 days of purchase, you are eligible for a 2 year warranty free of charge.

Once registered, you can further extend the warranty to 3 years by purchasing an extended warranty within 30 days of purchase.

Please register your product purchase online now at mountainbuggy.com/register

*you may be entitled to other rights in some countries.

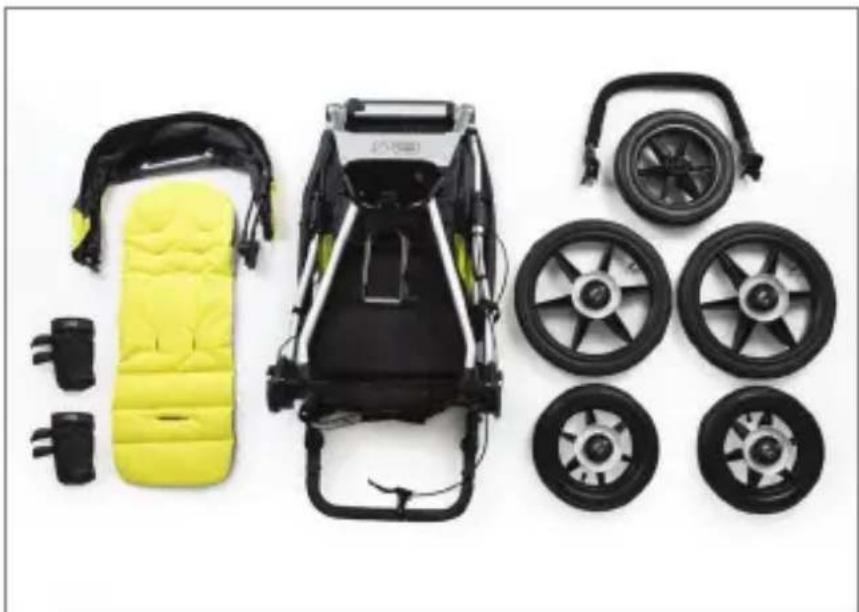

what's in the box

MB mini

Black and yellow baby stroller with black body and yellow canopy (no text or symbols visible)

Black and yellow photo of a drone safety gear with three wheels, no text or symbols visible

urban jungle™

Black and gray station wagon with black body, silver frame, and wheels (no visible text or symbols)

Product photo of a stroller with three wheels and a full black-and-white seat cover, accompanied by a small white bag (no text or symbols visible)

swift™

Black and gray baby stroller with black body, silver frame, and white body (no text or symbols visible)

Product photo of a stroller with various accessories including a blanket, rear cover, and three wheels (no text or symbols visible)

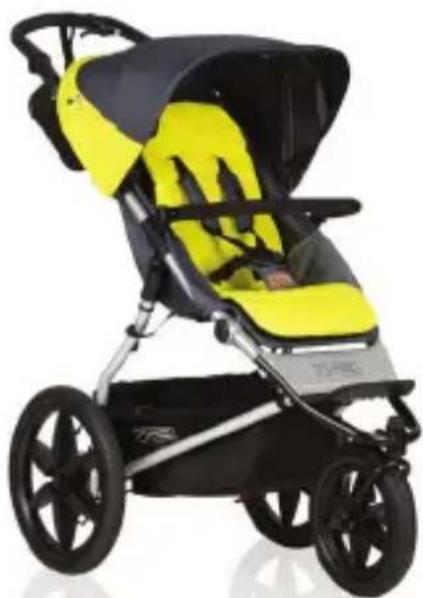

terrain™

Black and yellow sportswear stroller with black body and yellow seat, no visible text or symbols

Top-down view of a car's front-mounted safety gear assembly including seat, rear seats, and wheel rim (no text or symbols visible)

accessories

protect TM*

Model of a purple and black baby stroller with black body, silver frame, and blue head (no text or symbols visible)

*protect™ and cocoon may vary by region

cocoon*

Black and white photo of a baby stroller with black body cover and silver frame (no text or symbols visible)

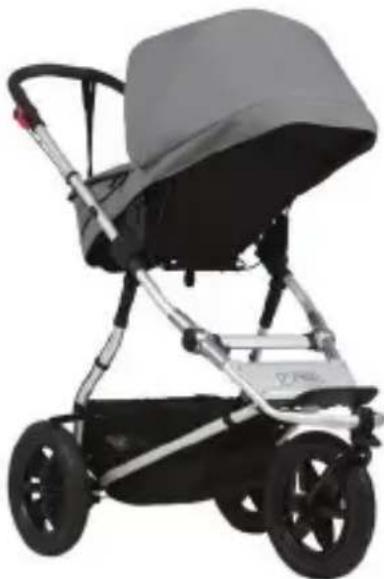

carrycot plus™

Exterior view of a baby stroller with gray canopy and silver frame (no text or symbols)

**parent facing seat comes with carrycot plus™

carrycot plus™ parent facing seat**

Black and white photo of a baby stroller with gray canopy and silver frame (no text or symbols visible)

01

Close-up of a hand adjusting a black bicycle tire with red arrows indicating fastening or repair (no text or symbols visible)

02

Close-up of a hand adjusting a black tire with a red clip, no visible text or symbols

03

Close-up of a black motorcycle wheel rim and tire, with a green checkmark icon in the corner (no text or symbols on the main subject)

01

Person assembling a black stroller with two wheels, showing red directional arrows indicating motion (no text or symbols)

02

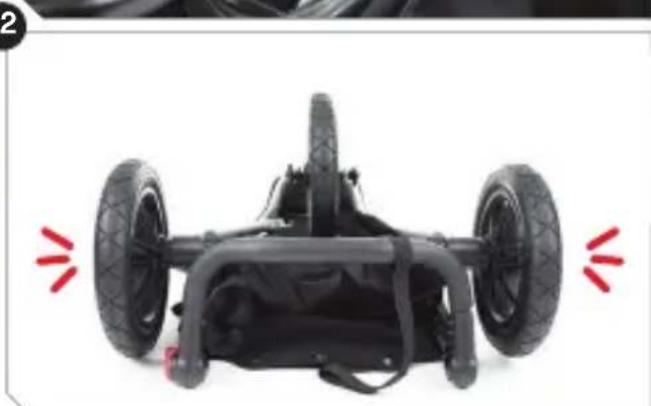

Top-down view of a black toy car with three wheels and red motion arrows indicating motion (no text or symbols)

03

Close-up of a hand adjusting a black bicycle brake system with a red arrow indicating the motion (no text or symbols visible)

04

Close-up of hands adjusting a black bicycle tire with a red arrow pointing to the wheel (no text or symbols visible)

01

Black and white photo of a person in a wheelchair using a tricycle, with a red circular marker highlighting the seat area (no text or symbols present)

02

Close-up of a hand holding a cylindrical mechanical component with a red arrow indicating rotation (no text or symbols visible)

03

Mechanical device with black wheels and red directional arrows indicating motion (no text or symbols)

04

Black and white stroller with a white canopy and red decorative elements, displayed against a plain background (no text or symbols visible)

Close-up of hands adjusting a black mechanical component with red arrows indicating motion direction (no text or symbols)

Illustration of a robotic device with red arrows indicating motion or movement, no visible text or symbols

Close-up of a person adjusting a bicycle seatbelt with a red circle highlighting the seat area (no text or symbols visible)

Mechanical stroller with red directional arrows indicating motion (no text or symbols)

Black and white photo of a person standing beside a tricycle with a green checkmark icon (no text or symbols on the object itself)

Person adjusting a black tumbler with white fabric, showing red arrows indicating movement (no text or symbols)

Close-up of hands using a red tool to trim a black leather jacket (no text or symbols visible)

Close-up of hands fastening fabric with a zipper, showing stitching details (no text or symbols visible)

Close-up of a black umbrella with a white cover and red arrow indicating rotation (no text or symbols)

Close-up of a white leather jacket with black lid and red arrows pointing to interior (no text or symbols)

01
swift / urban jungle

Close-up of a red and black mechanical lever handle with a red curved arrow indicating rotation (no text or symbols)

02

Close-up of a black and red mechanical lever handle with a red arrow indicating motion, next to a red hexagonal 'STOP' sign (no text on lever body)

Close-up of a black stroller with mesh netting and a red directional arrow indicating motion (no text or symbols)

02

Close-up of a black stroller with mesh net and tire, showing red directional arrow indicating stop control (no text or symbols on the device itself)

01

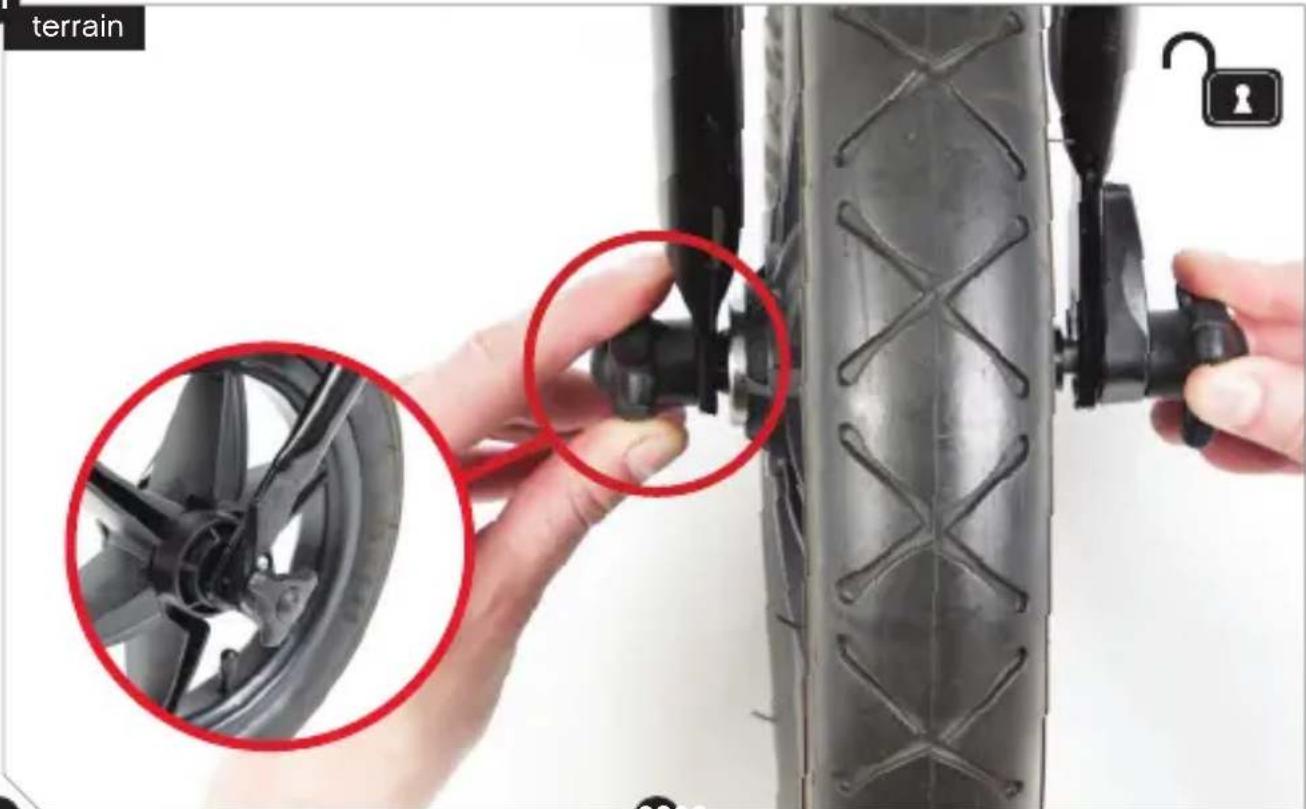

terrain

Hand adjusting a black cable with a red arrow pointing to a small component, no text or symbols visible

02

Close-up of a hand adjusting a black bicycle tire with a red arrow pointing to the cable (no text or symbols visible)

01

Two white plastic clips with rectangular straps, arranged side by side on a plain background (no text or symbols visible)

02

Two gray plastic buckle straps laid on a dark surface (no text or symbols visible)

The image is too blurry to recognize any text content.

Two white plastic-coated metal clamps laid flat on a gray surface (no text or symbols visible)

01

02

Two black rectangular objects with curved legs, possibly mechanical or electronic components, against a white background (no visible text or symbols)

03

Two black trousers standing upright, viewed from above (no text or symbols visible)

04

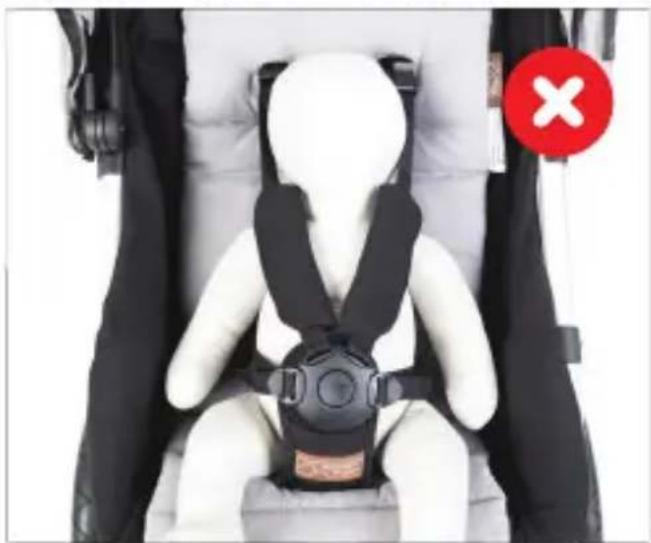

Person wearing a white seatbelt and black harness, seated in a black seat with a green checkmark icon (no text or symbols on the device itself)

Person wearing a full-body white car seatbelt and black harness, seated in a dark seat (no text or symbols visible)

*liner available as an additional accessory for MB mini

●

Close-up of hands adjusting black fabric strips with a red arrow indicating the process (no text or symbols visible)

020

Close-up of hands adjusting a black belt buckle with a red arrow pointing to the buckle detail (no text or symbols visible)

01

Close-up of hands adjusting a black athletic belt buckle with a red arrow indicating the motion (no text or symbols visible)

02

Close-up of a hand adjusting a black textured belt buckle with a red arrow pointing to the detail (no text or symbols visible)

Close-up of a hand inserting a component into a vehicle seatbelt, with a red circle highlighting the part (no text or symbols visible)

Close-up of a mechanical component with a T-shaped cutout, resting on a textured surface (no visible text or symbols)

Close-up of hands adjusting a black car seatbelt buckle with a red arrow indicating the adjustment (no text or symbols visible)

01

02

Close-up of a white dog wearing a black outdoor fitness device with a visible label reading 'mountain buggy' and a lock icon on the right (no other text or symbols)

01

Close-up of a person's back cover with red arrows indicating movement, no visible text or symbols on the device itself.

02

Close-up of a white plush toy with black straps and red warning symbols on the chest (no text or symbols on the device itself)

01

Close-up of a motorcycle's seat and engine components with a red circle highlighting a specific cable (no text or symbols visible)

02

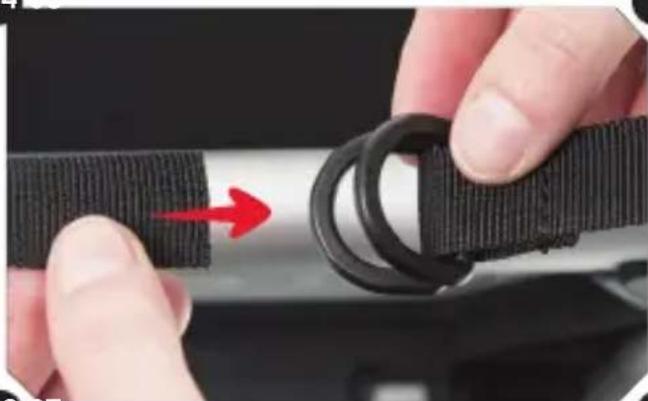

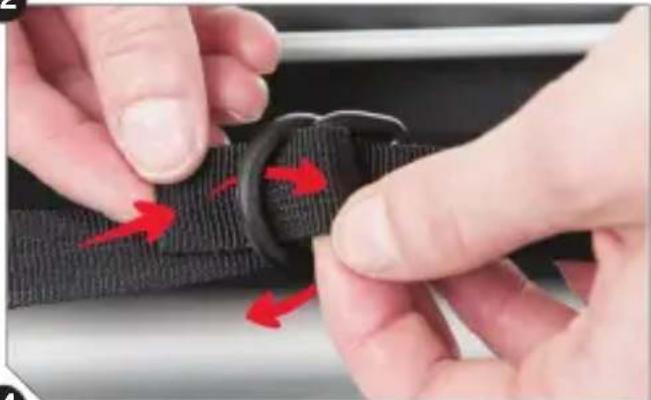

Close-up of hands adjusting a black strap with red directional arrows indicating movement (no text or symbols)

03

Close-up of hands adjusting a black plastic ring component with a red arrow pointing to it (no text or symbols visible)

04

Close-up of a hand adjusting a black cable with a red arrow indicating motion (no text or symbols)

05

06

Person assembling a baby stroller with red arrows indicating motion (no text or symbols visible)

Child wearing a black and gray stroller with a hand adjusting the seat, no visible text or symbols

02

Close-up of a hand adjusting a black fabric button with a red arrow, labeled 'X4' in red (no other text or symbols)

03

Close-up of a motorcycle's seat and engine components with a red circle highlighting a specific cable (no text or symbols visible)

04

Close-up of hands holding a black corrugated component with a red arrow pointing to it, no visible text or symbols

•

Close-up of hands adjusting a black car seatbelt buckle with red directional arrows (no text or symbols visible)

06

•

Close-up of a hand holding a small object with red motion lines, possibly indicating movement or positioning (no text or symbols visible)

01

Close-up of hands adjusting a black backpack with red directional arrows indicating movement (no text or symbols)

●

Person adjusting a black backpack with red buttons, no visible text or symbols

03

Person adjusting a black backpack with a red downward arrow, no visible text or symbols

●

Illustration of a baby stroller with a red arrow indicating a downward motion, accompanied by a green checkmark (no text or symbols on the device itself)

01

•

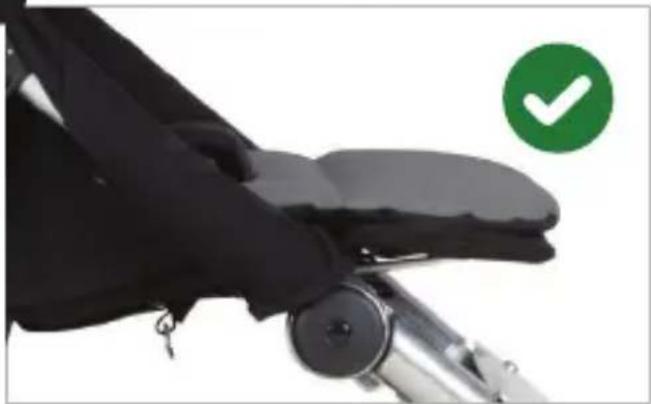

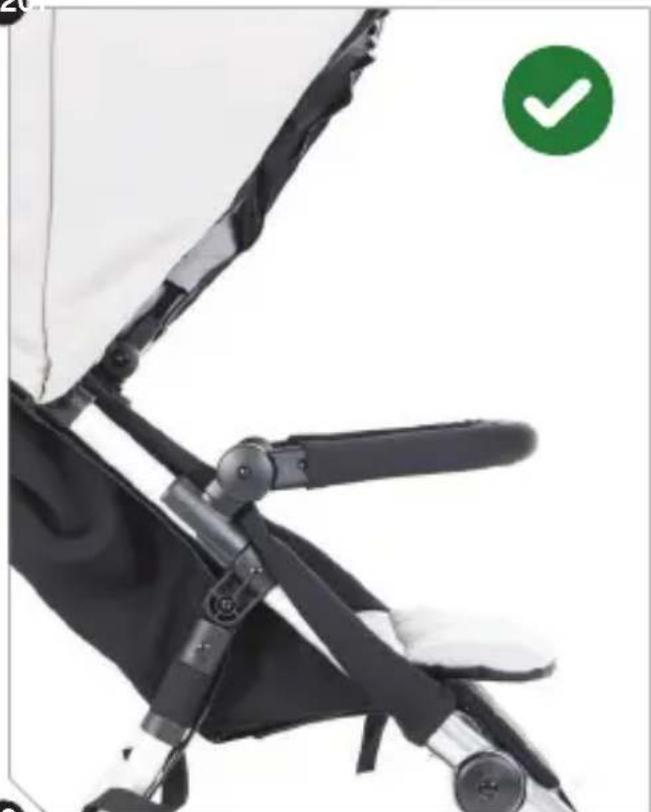

Close-up of a black athletic chair seat with a green checkmark icon (no text or symbols on the chair itself)

01

02

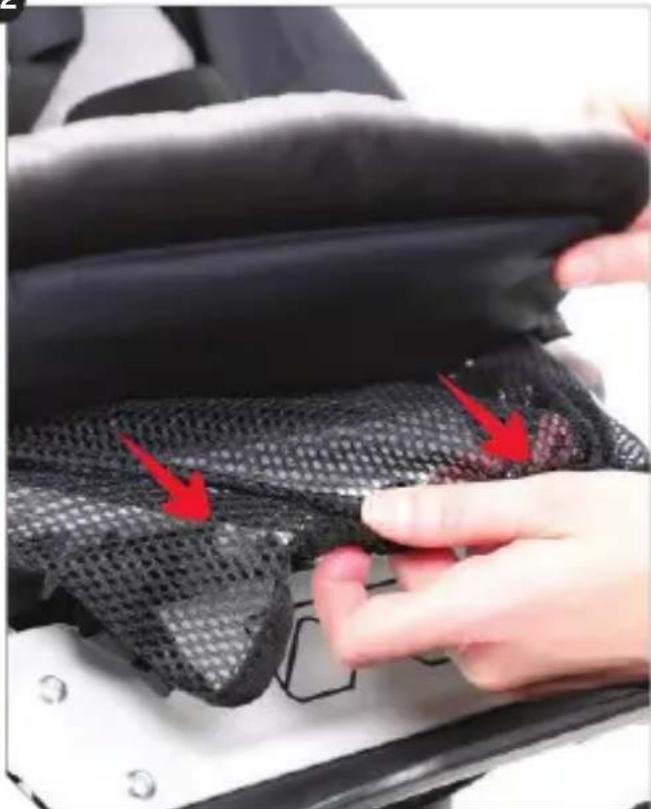

Close-up of a hand pressing down on a black mesh material with red arrows indicating the seam or defect (no text or symbols visible)

03

Close-up of a person wearing a black athletic vest with mesh mesh, connected to a red cable and a close-up of the cable being inserted (no text or symbols visible)

Close-up of a black children's seatbelt buckle being adjusted, with red arrows indicating the adjustment point (no text or symbols visible)

020

Close-up of a baby stroller with black seat, white gumbra, and black frame (no text or symbols visible)

01

Close-up of a black stroller seat with a hand adjusting the seatbelt, showing red arrows indicating adjustment points (no text or symbols visible)

02

Interior view of a baby stroller with black and white leather seats, no visible text or symbols

*grab bar is available as an additional accessory for MB mini
*food tray is available as an additional accessory

01

Close-up of a white stroller with black wheels and a red arrow indicating motion, no visible text or symbols.

02

Close-up of a baby stroller with black wheels and white cable, no visible text or symbols

03

Close-up of a stroller with black wheels and white seat, showing a red downward arrow indicating a lock function (no text or symbols on the vehicle itself)

01

0304

●

Close-up of a hand adjusting a black stroller handle with a red arrow indicating the adjustment (no text or symbols visible)

Close-up of a black tricycle with a tire and blue gasket, showing a red arrow indicating motion (no text or symbols)

01

Close-up of a hand adjusting a black bicycle tire with a red arrow indicating rotation (no text or symbols visible)

030

Hand adjusting a black bicycle tire with a red arrow indicating motion (no text or symbols visible)

WARNINGS

European safety standard states:

IMPORTANT: Keep these instructions for future reference.

• This buggy is intended for children from newborn to 4 years and up to a maximum weight of 20kg (MB mini / swift™) / 5 years and up to a maximum weight of 25kg (urban jungle™ / terrain™). • It is recommended that the most reclined position be used for newborn babies. • The buggy shall only be used for a maximum of 1 child. • Never leave your child unattended. • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used. • Any load attached to the handle and / or back of the backrest and/or the sides of the buggy will affect stability of the buggy. • urban jungle™ / terrain™ - do not place more than 10kg in the parcel tray. • MB mini / swift™ - do not place more than 5kg in the parcel tray. • Do not place more than 1kg in the bottle holder. • Always use the restraint system. • No additional mattress shall be added unless recommended by the manufacturer. • Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. • Ensure that all locking devices are engaged before use. • The parking device shall be engaged during the loading

and unloading of children. • To avoid injury ensure that your child is kept away when unfolding and folding this product. • Do not let your child play with this product. • This product is not suitable for running or skating. • A car seat used on a stroller does not replace a cot or a bed. Should your child need to sleep, place them in a suitable pram body, cot or bed.

WARNINGS

American safety standard states:

- Never leave your child unattended in the buggy. • Always use the safety harness to avoid serious injury from falling or sliding out. • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in reclined carriage position unless child is securely restrained. • This buggy is intended for children from newborn to 4 years and up to a maximum weight of 44lbs (MB mini / swift™) / 5 years and up to a maximum weight of 55lbs (urban jungle™ / terrain™). • To prevent the the from becoming unstable, do not place parcels or accessory items anywhere except in the

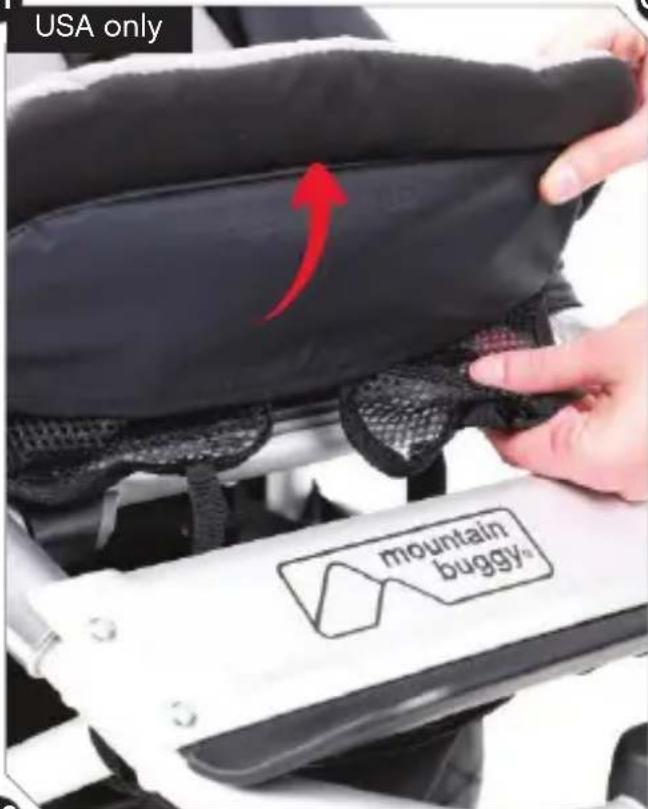

storage basket and pockets provided. • urban jungle™ / terrain™ - do not place more than 22lbs in the parcel tray. • swift™/ MB mini - do not place more than 11lbs in the parcel tray. • Do not place more than 2.2lbs in the bottle holder. • Excessive weight may cause a hazardous unstable condition to exist. In the reclined position, the mesh wall (stored under the front seat) must be used. The user must attach the wall to the stroller frame using the cord and toggle attachment device.

WARNINGS

Australia / New Zealand safety standard states: To avoid injury or death:

• Always apply the brakes whenever the buggy is stationary. • Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on this buggy. • Make sure children are clear of any moving parts if you adjust the buggy. • Use the harness at all times. • When not in use, never leave the harness buckled, as harness can form loops

which may pose a strangulation hazard. • It is unsafe to use accessories other than those approved by the manufacturer. • Do not use this seat with any other models of buggy. • Care should be taken if the buggy is used on stairs or escalators. • The buggy should not be used near an open fire or exposed flame. • This buggy is intended for children up to a maximum weight of MB mini / swift™ - 20kg / urban jungle™ / terrain™ - 25kg. • urban jungle™ / terrain™ - do not place more than 10kg in the parcel tray. • MB mini / swift™ - do not place more than 5kg in the parcel tray. • Do not place more than 1kg in the bottle holder. • Use the tether strap to stop the buggy rolling away. • The buggy is designed for use on flat or gently sloping surfaces and may be unstable on higher sloping and uneven surfaces, resulting in the possibility of the buggy tipping over. • Due care should be exercised when folding or unfolding the buggy, as there is potential for fingers or body parts to be injured. • When folding the buggy, please check visually that the automatic frame lock is engaged. • The buggy should only be carried or lifted when it is properly folded. Do not carry or lift the buggy by the wheels, the grab bar or the harness - position your hands at the centre of the side frame.

WARNINGS

Canadian safety standard states:

- urban jungle™ / terrain™ - do not place more than 10kg in the parcel tray. • MB mini / swift™ - do not place more than 5kg in the parcel tray. • Do not place more than 1kg in the bottle holder. • The buggy may become unstable if a parcel bag, other than one recommended by the manufacturer, is used. • The buggy may become unstable if the recommended load is exceeded. • Take care when folding or unfolding the buggy to prevent your fingers being entrapped. • Maximum weight in the upright main seat MB mini / swift™ - 20kg / urban jungle™ / terrain™ - 25kg. • Maximum height for main seat is 100cm.

CE VÉHICULE EST CONÇU POUR DES ENFANTS DE

MB mini / swift™

0 à 4 ans

urban jungle™ / terrain™

0 à 5 ans

CHARGE MAXIMALE EN POSITION DROITE (SIÈGE PRINCIPAL)

MB mini / swift™

20kg

urban jungle™ / terrain™

25kg

Information Importante

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

Mountain Buggy UK 71–73 Victoria St Windsor, Berkshire SL4 1EH, United Kingdom [phone]

CHN

Mountain Buggy China No.10 East Chuangyeyuan Road, Yangzhou China [phone]

USA/CAN

Mountain Buggy USA 323 S. College Avenue Fort Collins, CO 80524 USA [phone]

EUR/FRA

Mountain Buggy Spain Calle Linaje, 3 Malaga 29001, Spain [phone]
